US Navy "V/STOL Type A" competition

[hesham]

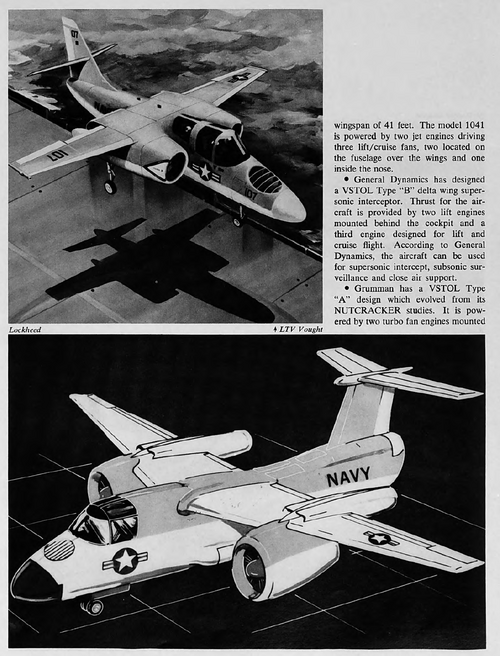

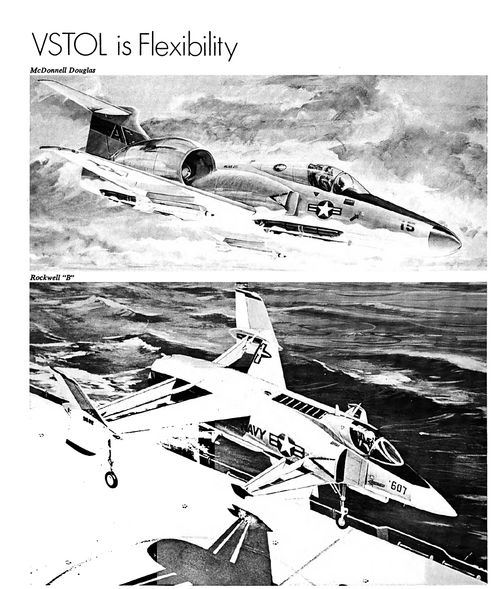

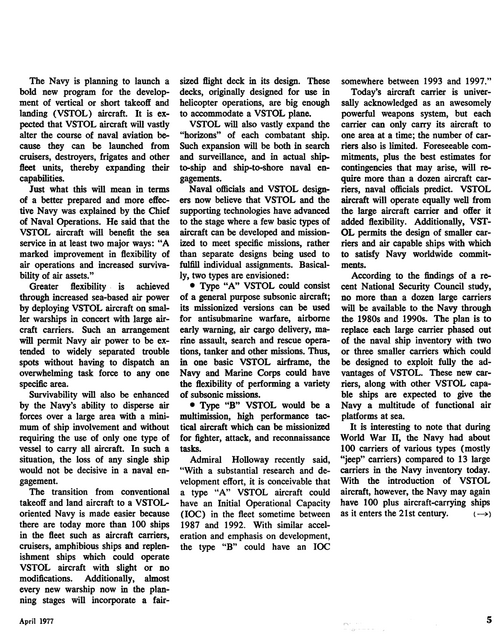

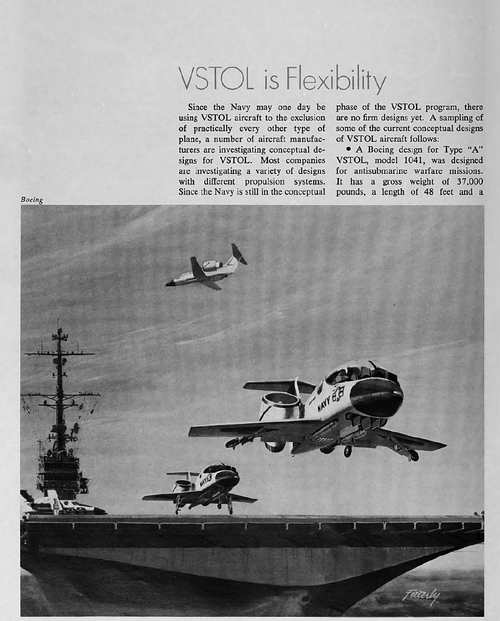

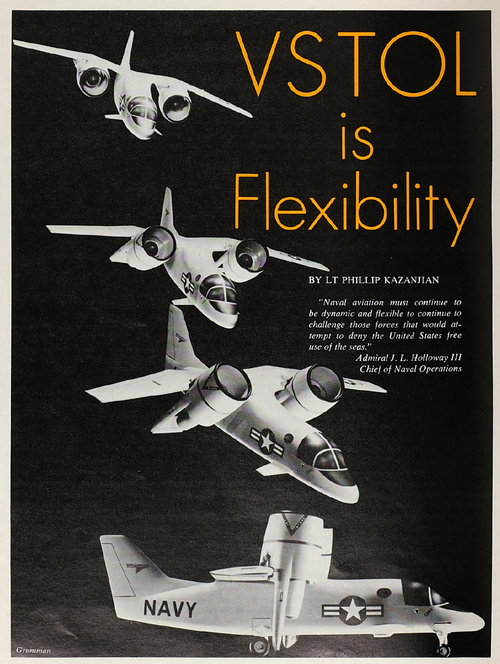

From this report,All Hands April 1977,

U.S. Navy - All Hands > Media > Archives > 1970's

but for Rockwell NA.410 ?



[overscan (PaulMM)]

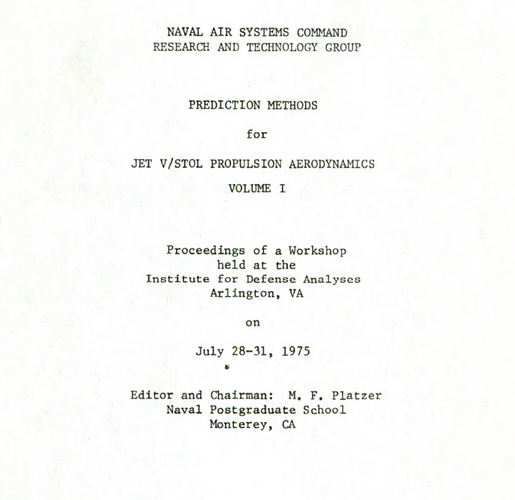

"Naval Air Systems Command 1975" is not a source, Hesham. Amend with the actual details.



[hesham]

"Naval Air Systems Command 1975" is not a source, Hesham. Amend with the actual details.

OK my dear PaulMM,

I will correct it.



[overscan (PaulMM)]

From this report,All Hands 1977,

but for Rockwell NA.410 ?

All Hands Magazine APRIL 1977.

U.S. Navy - All Hands > Media > Archives > 1970's



[overscan (PaulMM)]

OK my dear PaulMM,

I will correct it.

Thanks - I updated the original post with a link.



[hesham]

Thanks - I updated the original post with a link.

Thank you my dear PaulMM,

and what about Rockwell NA-410 ?.



[overscan (PaulMM)]

Thank you my dear PaulMM,

and what about Rockwell NA-410 ?.

Don't see a question? What about NA 410?



[hesham]

Could be a misprint ?.



[overscan (PaulMM)]

Why?

We know of NA-420 / NA-430 / NA-431 Type A V/STOL designs.

https://www.secretprojects.co.uk/threads/rockwell-na-420-na-430-and-na-431-us-navy-type-a-proposals.15481/

I don't believe we have a different ID for NA-410, so why could it not be another V/STOL Type A design?

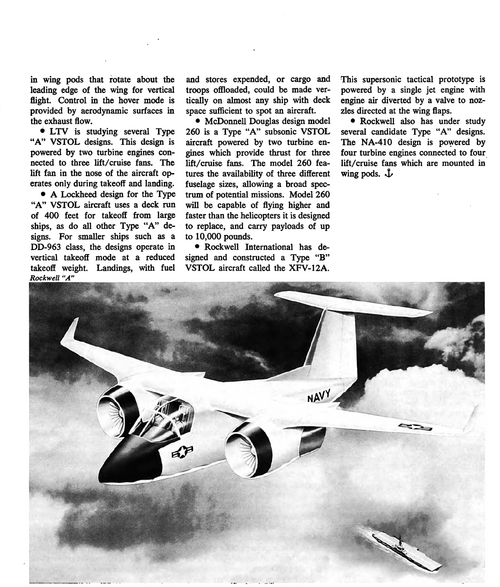

Rockwell also has under study several candidate Type "A" designs. The NA-410 design is powered by four turbine engines connected to four lift/cruise fans which are mounted in wing pods.



[hesham]

Why?

We know of NA-420 / NA-430 / NA-431 Type A V/STOL designs.

https://www.secretprojects.co.uk/threads/rockwell-na-420-na-430-and-na-431-us-navy-type-a-proposals.15481/

I don't believe we have a different ID for NA-410, so why could it not be another V/STOL Type A design?

OK my dear PaulMM,and that's new,we missed number 410 in the list of North American/Rockwell.



[hesham]

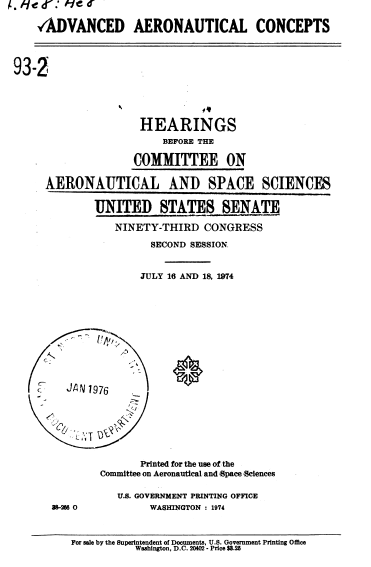

From this report.



[Stargazer]

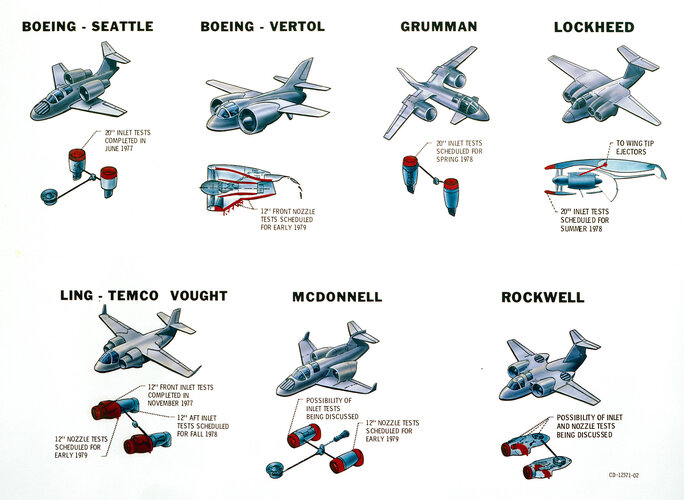

I'm well aware we have dozens of posts already in the existing US VSTOL Projects topic, but I want to split that one up a bit. Therefore I'm creating this topic, with an image from NASA Glenn image archives.

Same image enhanced from better quality version at National Archives.
Original image: https://catalog.archives.gov/id/17471966



[ivran]

US Navy "V/STOL Type A COMPETITION,What is "B" clasification, "C" or "D"any information about defferents,and possiby aircraft concept design??​



[overscan (PaulMM)]

V/STOL Type A - multirole aircraft, this topic.
V/STOL Type B - fighter aircraft.



[yasotay]

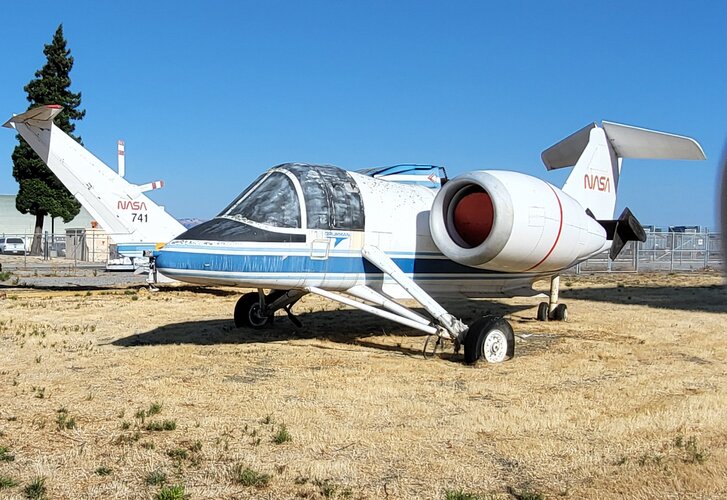

Alas, the only substantive part of the program is rotting in the back of Moffett Field, CA.



[joewee]

Alas, the only substantive part of the program is rotting in the back of Moffett Field, CA.

Ah yes, my first 'paper airplane' assignment, only months out of college. I speak of Design 698-309 dated June 1976, our initial Type A configuration, as drawn by Tony Bacci and directed by Bob Kress. I had the very good fortune to have Dr. Wolfgang Gunther Buchmann as my lead engineer and mentor.
The NASA-Ames model is a later configuration, reflecting a proposed flight demonstrator design. The last version I worked on was Design 698-411, our baseline submittal responding to the Navair's 1977 RFI, in support of the Navy's development of the Sea-based Air Master Study (SeaBAMS). Grumman management incorrectly presumed (or maybe just wished) the RFI was the precursor to a formal program launch. Can't recall by 1977 if we had yet ditched the canards and the engine-hinge scheme off the wing front spar (not sure what Kress was thinking). Thanks for posting.
