Turkish Missile Industry and Products

[TomS]

Strange. It is very light for dimensions and VERY short ranged.

Perhaps it is intended as a coastal or even seabed launched system?

I'd just assume they don't have highly advanced battery technology. The weight does seem a bit low for the reported length, but maybe they have a lower density battery?



[Combat-Master]

Strange. It is very light for dimensions and VERY short ranged.

Perhaps it is intended as a coastal or even seabed launched system?

I'd just assume they don't have highly advanced battery technology. The weight does seem a bit low for the reported length, but maybe they have a lower density battery?

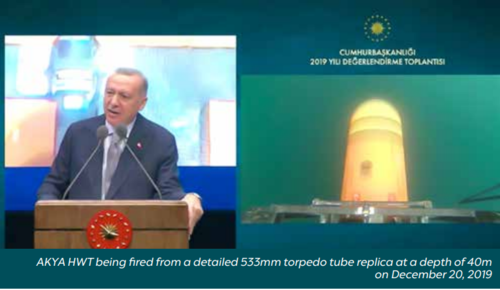

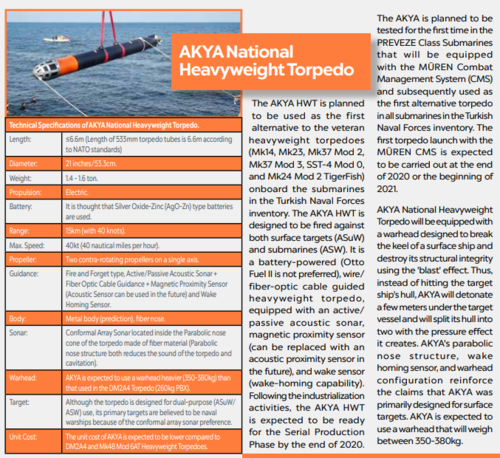

Some up-to-date information was released on AKYA HWT

A Look at Major HWTs & LWTs in NATO Countries & Ongoing Torpedo Programs in Turkey

The first true torpedo was invented in 1866 by British engineer Robert WHITEHEAD, based on the ideas of Austrian Navy officer Johann LUPIS. The word `torpedo` (derived from the word `torpere,` which means `to stun` in Latin), was created in 1800 by the American inventor Robert FULTON, who also...

www.defenceturkey.com



[Combat-Master]

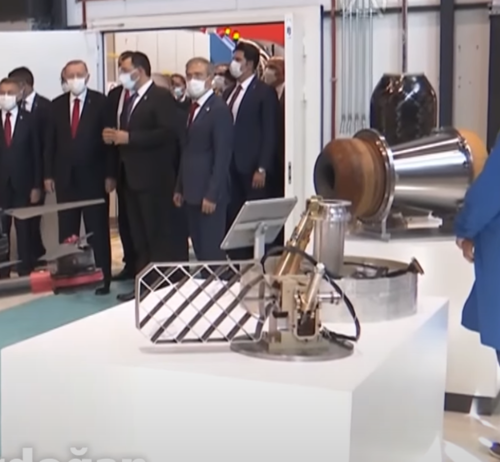

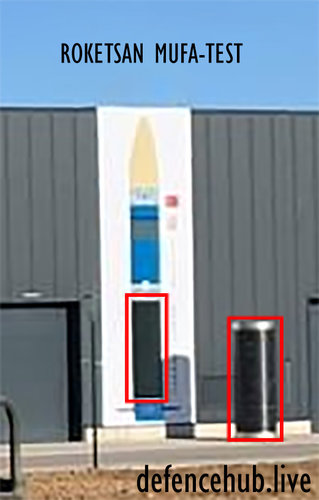

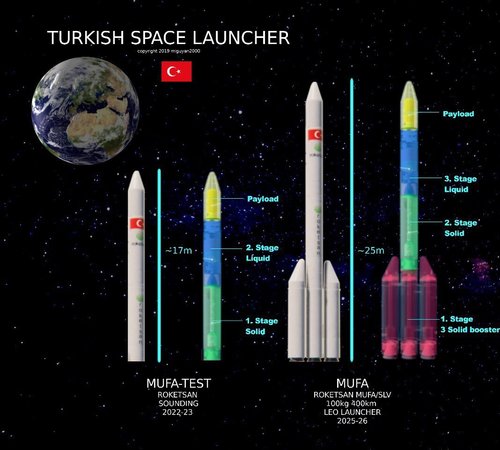

MUFA-TEST sounding rocket



Right side we can see, composite tank, swivelling nozzle for solid motors and lattice grid fins



[Combat-Master]

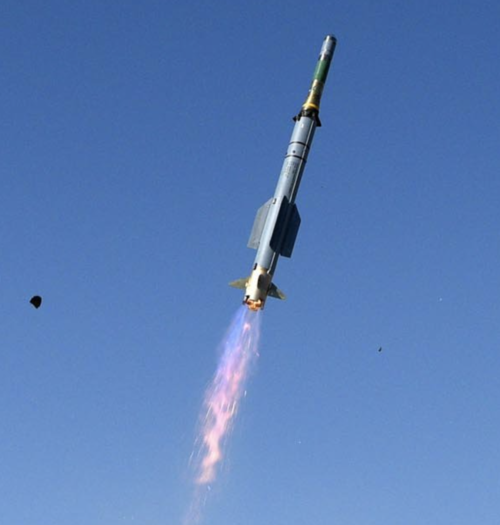

SUNGUR MANPAD - during launch
Seeker- IIR
Range - 6km
View attachment 640207

SUNGUR MANPAD, during a reveal of Roketsan systems the max effective range of the SUNGUR MANPAD was revealed as being 8km, previously it was stated to be 6km.



[Combat-Master]

Testing Turkish version of SDB and 4-rack launcher on-going.

View: https://www.youtube.com/watch?v=JkP64-p4JAk



[Combat-Master]

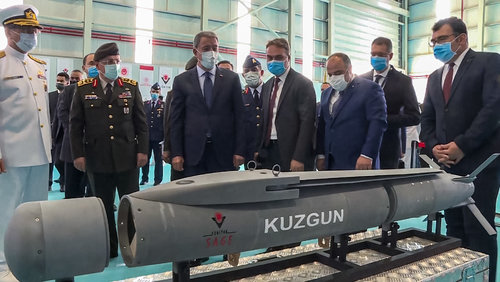

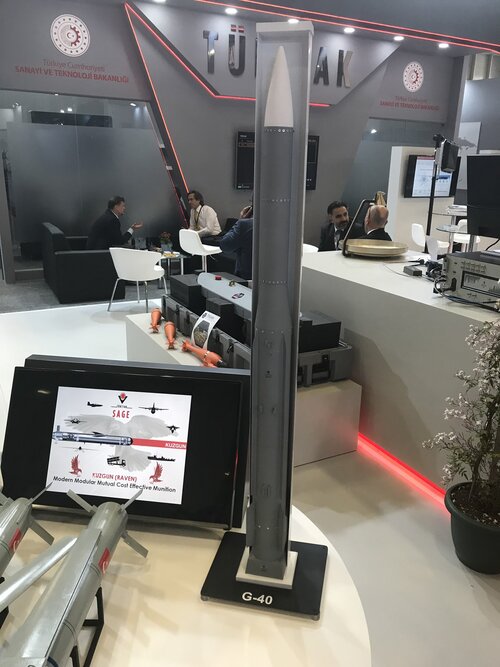

1:1 Scale mock-up of Kuzgun Modular Missile - As can be seen on the image, the tail section can be swapped out for a jet powered tail. Also, the front seeker section can be swapped out for single, dual mode or tri mode IR/RF/LAS seekers


SOM-J Cruise Missile

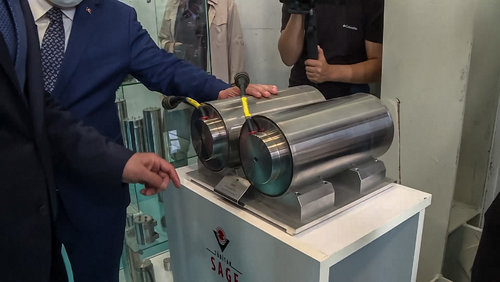

Very Large Thermal Batteries, unknown use case - likely very long range missiles.



[Combat-Master]

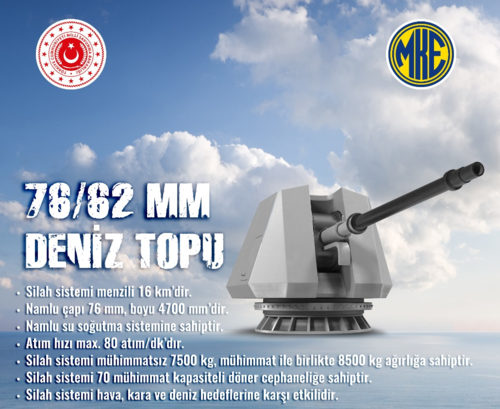

Not a missile, but I thought it worth posting here. Turkey's MKE is working on developing a 76/62mm Naval Cannon.

Range - 16km HE-PFF
Length - 4700mm
Cooling - Water Cooled Jacket
Fire Rate - 80 rounds a minute
Weight - 7500kg dry - 8500 with ammunition
Magazine - 70 rounds



[TomS]

Not a missile, but I thought it worth posting here. Turkey's MKE is working on developing a 76/62mm Naval Cannon.

Range - 16km HE-PFF
Length - 4700mm
Cooling - Water Cooled Jacket
Fire Rate - 80 rounds a minute
Weight - 7500kg dry - 8500 with ammunition
Magazine - 70 rounds

View attachment 641514

Looks like a fairly direct copy of the OTO Melara 76mm. They've tweaked the barrel fittings slightly but it's very similar.



[Combat-Master]

Not a missile, but I thought it worth posting here. Turkey's MKE is working on developing a 76/62mm Naval Cannon.

Range - 16km HE-PFF
Length - 4700mm
Cooling - Water Cooled Jacket
Fire Rate - 80 rounds a minute
Weight - 7500kg dry - 8500 with ammunition
Magazine - 70 rounds

View attachment 641514

Looks like a fairly direct copy of the OTO Melara 76mm. They've tweaked the barrel fittings slightly but it's very similar.

I wouldn't pay too much attention to the renderings provided, however specification wise, very similar.
To add, development of 76mm is to reduce procurement times of weapon systems for Naval Apllications. OTO Malera being so successful, have worlds navies to outfit, hence very long lead times - which was not favourable for a Navy which looks to expand within a short time period.

View: https://youtu.be/AmuPFoMhAoU


Aselsan, developed fire control system for OTO Melera 76mm. Giving it ability to fire salvos for simultaneous impact. - much like modeen howitzers. No doubt the FCS would be adapted to Turkish 76mm.



[TomS]

Aselsan, developed fire control system for OTO Melera 76mm. Giving it ability to fire salvos for simultaneous impact. - much like modeen howitzers. No doubt the FCS would be adapted to Turkish 76mm.

Interesting, though I'm not sure it's incredibly useful in this application. Targets at sea can't take cover, which is the main advantage of multiple rounds, simultaneous impact (MRSI). And shooting MRSI means that most of the rounds took a slower than optimal route to the impact point, which is not great for hitting moving sea targets.



[zen]

Is it me or does Kuzgun look a lot like SPEAR III?



[Combat-Master]

Aselsan, developed fire control system for OTO Melera 76mm. Giving it ability to fire salvos for simultaneous impact. - much like modeen howitzers. No doubt the FCS would be adapted to Turkish 76mm.

Interesting, though I'm not sure it's incredibly useful in this application. Targets at sea can't take cover, which is the main advantage of multiple rounds, simultaneous impact (MRSI). And shooting MRSI means that most of the rounds took a slower than optimal route to the impact point, which is not great for hitting moving sea targets.

It is very much a feature set requested by the Turkish Navy for shore bombardment, if you look at Turkey's geographical position it is hugged by sprinkle of islands to it's west in the Aegean.



[Brickmuppet]

Fire support aside, one other thing that simultaneous impact might do is give multiple incoming targets to overwhelm point defense systems.



[TomS]

Fire support aside, one other thing that simultaneous impact might do is give multiple incoming targets to overwhelm point defense systems.

Point defense against gun rounds?

I guess someone might try it, using Phalanx in something more like its C-RAM role. But it's going to get overloaded really fast.

Besides, an OTO shooting at 80-120 rpm is already delivering functionally simultaneous impacts as far as a system like that is concerned. For field artillery, rounds impacting within a second of each other meets the standard for MRSI. A rapid-fire gun with an RoF of 60+ RPM meets that standard automatically, without any trajectory shaping.



[Hanz2k]

I assume MRSI here is rather some form of patterning fire mission to land multiple rounds in short time to suppress coastal defense in certain area using one gun only.



[Combat-Master]

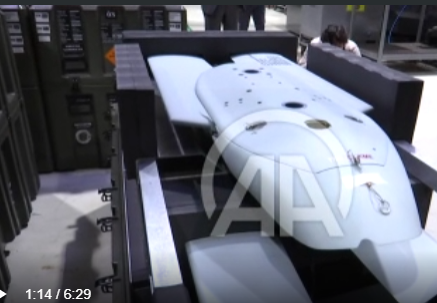

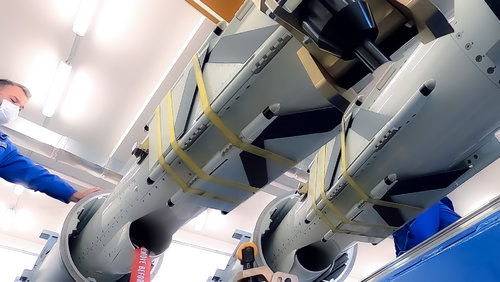

Inlet design on ATMACA AShM - being slid into launching cannister. (Side-by-side image of same missile)


--- to add ---

ATAMACA AShM passed electronic warfare and GPS/GNS denial testing in recent test fire, flying only with INS to target.



[Combat-Master]

Bunker Busting capabilities of Turkey's Domestic version of Small Diameter Bomb tested

View: https://www.youtube.com/watch?v=q8f5dUgt_DY&feature=youtu.be



[Combat-Master]

Bunker Busting capabilities of Turkey's Domestic version of Small Diameter Bomb tested

View: https://www.youtube.com/watch?v=q8f5dUgt_DY&feature=youtu.be

And with Live Warhead

View: https://www.youtube.com/watch?v=1yANDavPqPA&feature=youtu.be



[JohnR]

Not a missile, but I thought it worth posting here. Turkey's MKE is working on developing a 76/62mm Naval Cannon.

Range - 16km HE-PFF
Length - 4700mm
Cooling - Water Cooled Jacket
Fire Rate - 80 rounds a minute
Weight - 7500kg dry - 8500 with ammunition
Magazine - 70 rounds

View attachment 641514

Looks like a fairly direct copy of the OTO Melara 76mm. They've tweaked the barrel fittings slightly but it's very similar.

I wouldn't pay too much attention to the renderings provided, however specification wise, very similar.
To add, development of 76mm is to reduce procurement times of weapon systems for Naval Apllications. OTO Malera being so successful, have worlds navies to outfit, hence very long lead times - which was not favourable for a Navy which looks to expand within a short time period.

View: https://youtu.be/AmuPFoMhAoU


Aselsan, developed fire control system for OTO Melera 76mm. Giving it ability to fire salvos for simultaneous impact. - much like modeen howitzers. No doubt the FCS would be adapted to Turkish 76mm.

Would it not have been easier and cheaper to take out a licence for the OTO 76mm, rather than trying to reinvent the wheel. I can see a court case between Leanardo and MKE for some sort of industrial rights infringement.



[Combat-Master]

Domestic Missiles from ROKETSAN etched into every PCB board the Founder of Turkish Republic, Mustafa Kemal Ataturk and signature.



[Combat-Master]

View: https://www.youtube.com/watch?v=8pujNmS2CoE&feature=emb_title



[Combat-Master]

www.DEFENCEHUB.LIVE

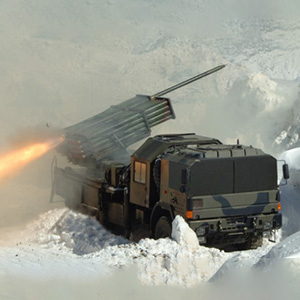

Artillery Systems & Projects of Turkish Defence Industry

	Manufacturer	Designation	Type	Diameter ^	Range
	MKE	N/A	Naval Cannon	76mm	16km
	MKE	Boran	Light Towed Howitzer	105mm	16km
	MKE	T-107	Multi-Barrel Rocket Launcher	107mm	11km
	MKE / Roketsan	T-122	Multi-Barrel Rocket Launcher	122mm	40km
	MKE	Panter	Towed/Semi-Propelled Howitzer	155mm	40km
	MKE	Yavuz	Self-Propelled Howitzer	155mm	40km
	MKE	T-155 Firtina	Self-Propelled Howitzer	155mm	45km
	Aselsan/MKE	N/A (Concept)	Self-Propelled Howitzer	155mm	45km
	Aselsan/MKE/BMC	Aselsan KMO	Self-Propelled Howitzer	155mm	40km
	Roketsan	TRG-230	Multi-Barrel Rocket Launcher	230mm	70km
	Roketsan	T-300 Kasirga	Multi-Barrel Rocket Launcher	300mm	120km
	Roketsan	TRG-300 Tiger	Multi-Barrel Rocket Launcher	300mm	Block I - 120km Block II - 90km

	Manufacturer	Designation	Type	Diameter ^	Range
	Roketsan	Yildirim	Theatre Quasiballistic Missile	600mm	152km
	Roketsan	Khan	Theatre Quasiballistic Missile	610mm	280km
	Roketsan	Bora	Theatre Quasiballistic Missile	610mm	360km

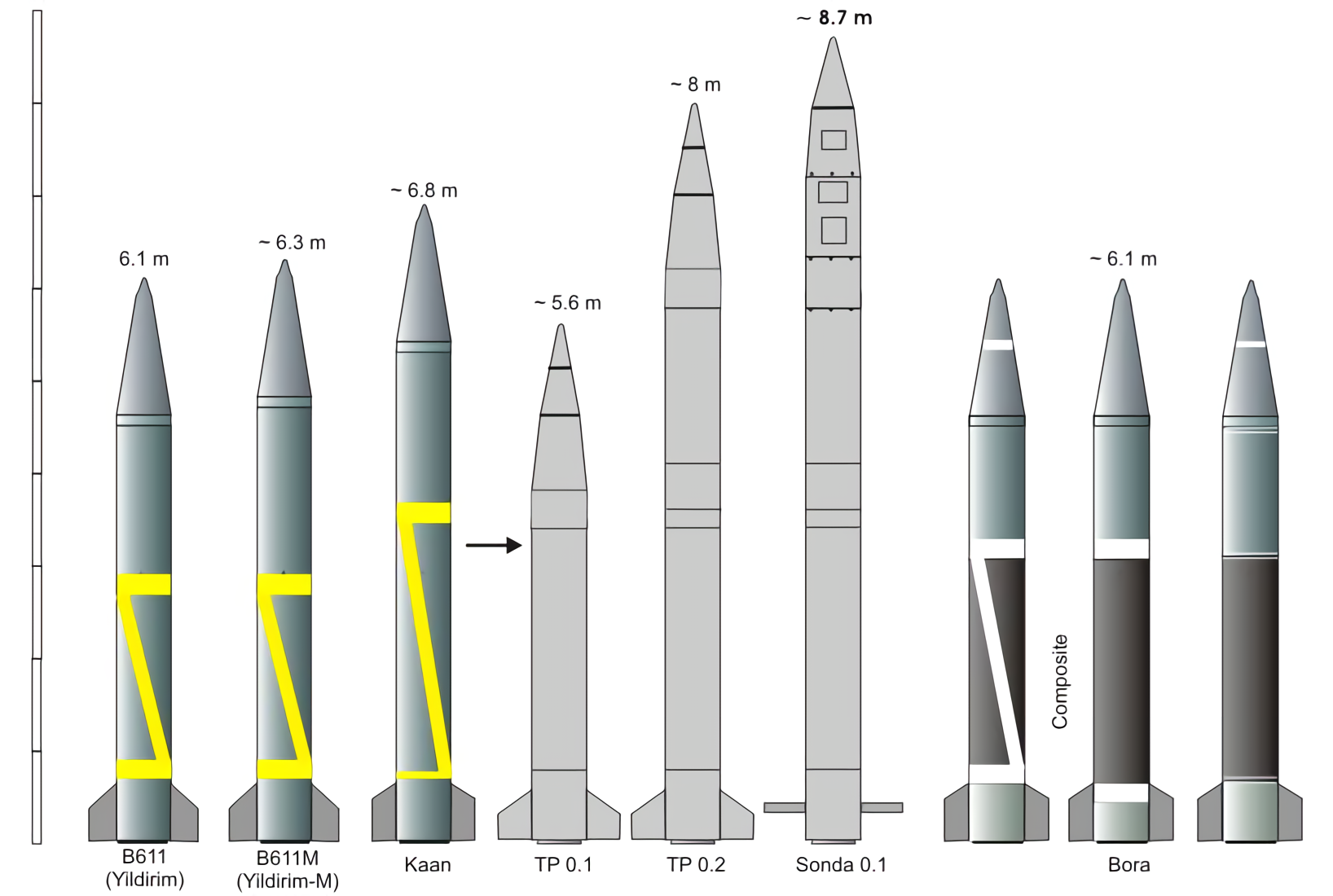

The dimensions of the "Yildirim" missile from Roketsan and its tube-launch variants "Kaan" and "Bora"



[Combat-Master]

Sounding Rocket TP 0.1

View: https://www.youtube.com/watch?v=dEw3TjO4lHY

Erdogan vows to boost Turkish defense industry

President praises Turkish defense industry, pledges more support - Anadolu Ajansı

www.aa.com.tr

Erdogan vows to boost Turkish defense industry​

President praises Turkish defense industry, pledges more support​

Yildiz Nevin Gundogmus |12.11.2020

ANKARA
The Turkish president on Thursday vowed to further boost the country’s defense industry.
“We can never tolerate procuring products [of the defense industry] from abroad that we can produce ourselves,” said Recep Tayyip Erdogan at the inauguration ceremony of a new facility for Turkish defense giant Aselsan.
“We will continue to provide all kinds of support to the defense industry,” Erdogan added.
Despite hurdles created by global suppliers, Erdogan said Turkey came out stronger than before by relying on its own strength.
He said that from 62 defense projects in 2002, the figure has grown to 700.
Erdogan said Turkey has seven companies among the top 100 defense firms of the world. He added that five of those companies entered the list in the last five years.
Especially in recent years, Turkish companies have attracted growing popularity with drones and helicopters, vessels, armored cars, electronic devices, weapons, and weapon parts.



[Combat-Master]

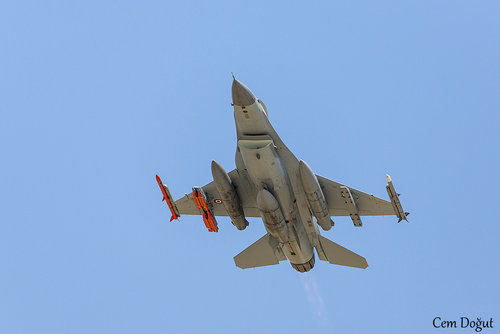

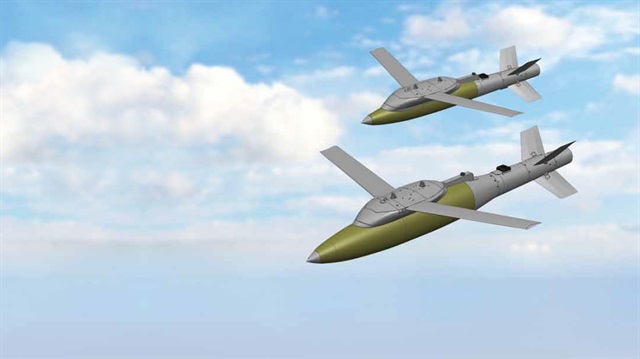

HGK-ER wing kit for Mk-82 and Mk-83 bombs.


Entered into serial production without any news it seems, here are casses of HGK-ER kits. Each case has 4 HGK-ER wing kits stacked inside.



[Combat-Master]

Sounding Rocket TP 0.1

View: https://www.youtube.com/watch?v=dEw3TjO4lHY

Erdogan vows to boost Turkish defense industry

President praises Turkish defense industry, pledges more support - Anadolu Ajansı

www.aa.com.tr

Erdogan vows to boost Turkish defense industry​

President praises Turkish defense industry, pledges more support​

Yildiz Nevin Gundogmus |12.11.2020

ANKARA
The Turkish president on Thursday vowed to further boost the country’s defense industry.
“We can never tolerate procuring products [of the defense industry] from abroad that we can produce ourselves,” said Recep Tayyip Erdogan at the inauguration ceremony of a new facility for Turkish defense giant Aselsan.
“We will continue to provide all kinds of support to the defense industry,” Erdogan added.
Despite hurdles created by global suppliers, Erdogan said Turkey came out stronger than before by relying on its own strength.
He said that from 62 defense projects in 2002, the figure has grown to 700.
Erdogan said Turkey has seven companies among the top 100 defense firms of the world. He added that five of those companies entered the list in the last five years.
Especially in recent years, Turkish companies have attracted growing popularity with drones and helicopters, vessels, armored cars, electronic devices, weapons, and weapon parts.

Sounding Rocket tests - in English.

View: https://www.youtube.com/watch?v=ejhdoTiEL5E



[AN/AWW-14(V)]

HGK-ER wing kit for Mk-82 and Mk-83 bombs.


Entered into serial production without any news it seems, here are casses of HGK-ER kits. Each case has 4 HGK-ER wing kits stacked inside.

it's the new designation of KGK?

'Kanatlı Güdüm Kiti' göreve hazır | Türkiye Ekonomisi Haberleri

Bilim, Sanayi ve Teknoloji Bakanı Faruk Özlü, Türkiye Bilimsel ve Teknolojik Araştırma Kurumu (TÜBİTAK) Savunma Sanayii Araştırma ve Geliştirme Enstitüsü (SAGE) tarafından geliştirilen "Kanatlı Güdüm Kiti"nin ilk parti teslimatlarının mayısta yapılacağını belirterek, "Seri üretim çalışmaları...

www.yenisafak.com



[Combat-Master]

HGK-ER wing kit for Mk-82 and Mk-83 bombs.


Entered into serial production without any news it seems, here are casses of HGK-ER kits. Each case has 4 HGK-ER wing kits stacked inside.

it's the new designation of KGK?

'Kanatlı Güdüm Kiti' göreve hazır | Türkiye Ekonomisi Haberleri

Bilim, Sanayi ve Teknoloji Bakanı Faruk Özlü, Türkiye Bilimsel ve Teknolojik Araştırma Kurumu (TÜBİTAK) Savunma Sanayii Araştırma ve Geliştirme Enstitüsü (SAGE) tarafından geliştirilen "Kanatlı Güdüm Kiti"nin ilk parti teslimatlarının mayısta yapılacağını belirterek, "Seri üretim çalışmaları...

www.yenisafak.com

KGK was the name of the project whilst in development by Tubitak. Serial production and marketing name is HGK-ER used by KALE group.


MIDAS - Turkey's domestically developed vertical launch system for Navy to replace MK-41. G-40 is expected to replace RIM-162 ESSM.



[Combat-Master]

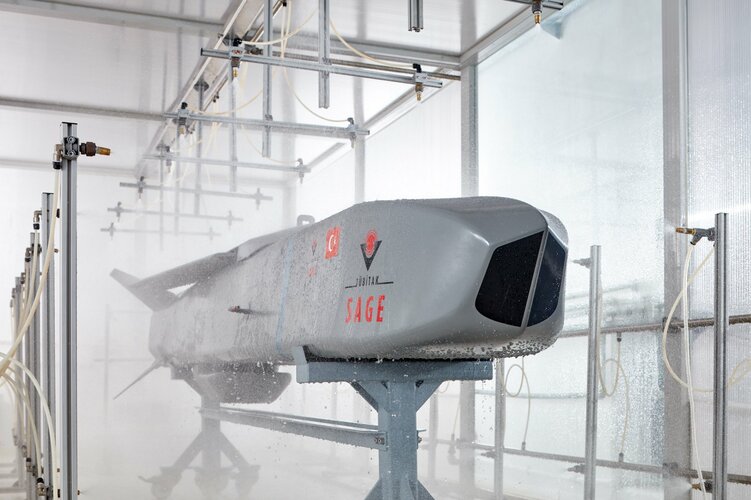

One of the environmental tests SOM Cruise missile was subject to



[Combat-Master]

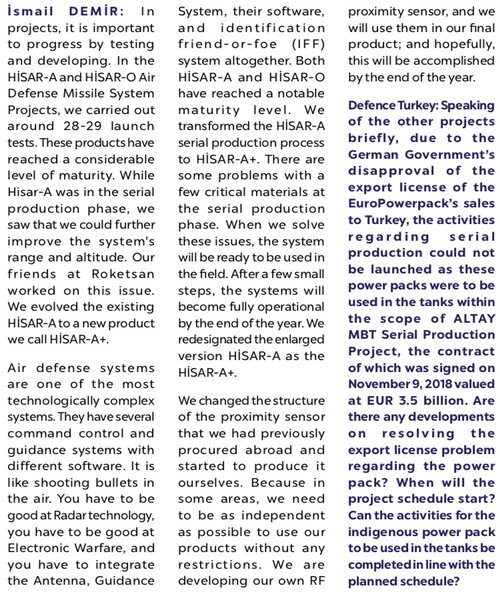

Turkey's domestic Air-Defence Missile HiSAR-A+ passed acceptance tests.
At 00:38 and 00:49 second mark, you can see dual-pulse rocket motor in action, as the second pulse ignites for terminal stage of it's flight.

View: https://www.youtube.com/watch?v=4iCG4bMg7Bw



[Combat-Master]

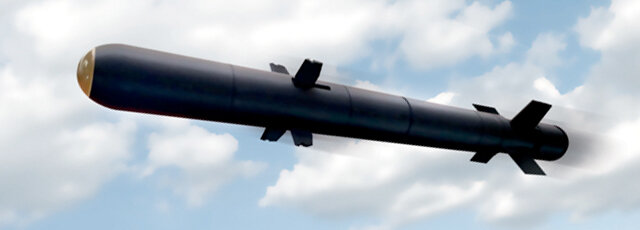

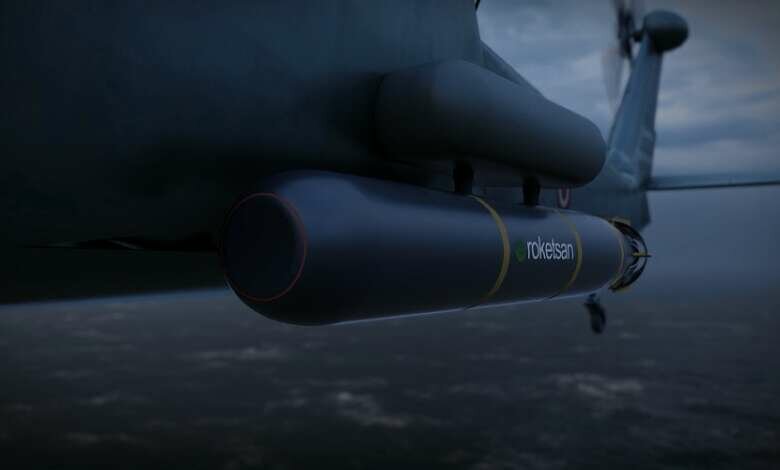

Roketsan-Aselsan consortium developing lightweight 324 mm Torpedo (ORKA) Project

View: https://www.youtube.com/watch?v=aLSMvnKcI4c&feature=emb_title

Roketsan ORKA Lightweight Torpedo is coming for Blue Homeland | Turkish Defence News

Under the leadership of the SSB, the "324 mm Torpedo Development Project" was initiated to meet the light class torpedo requirement of the Naval Forces Command.

www.turkishdefencenews.com



[Combat-Master]

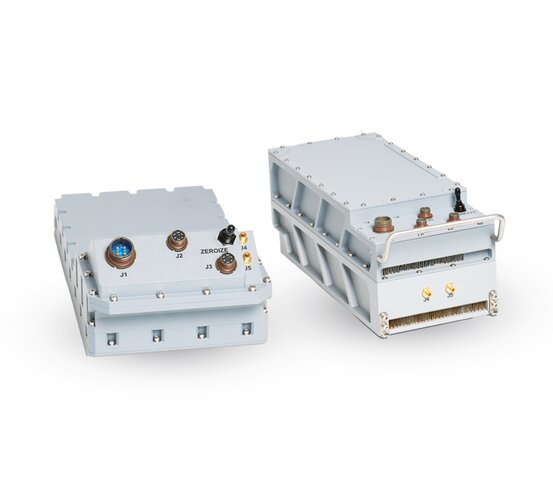

THE FIRST TACTICAL DATA LINK SYSTEM OF TURKEY

With Meteksan’s successful completion of KEMENT TDL System development phase and performance tests , Turkey has become one of the prominent countries that has Network Enabled Capability.

KEMENT TDL is a TDMA-based, secured (crypto), jam-resistant, high-speed digital communication system with relay capability for near-real time transmission of complex data sets. Kement TDL enables NEC(network-enabled capability) and NEW(Network Enabled Weapon) among Command Control (C2) Systems, land, sea and air platforms, ammunition (cruise missiles etc.), weapons and mission systems in the battlefield.


Turkey moving towards it's own network capability, whilst still maintaining Link 16/22 (for now).



[Combat-Master]

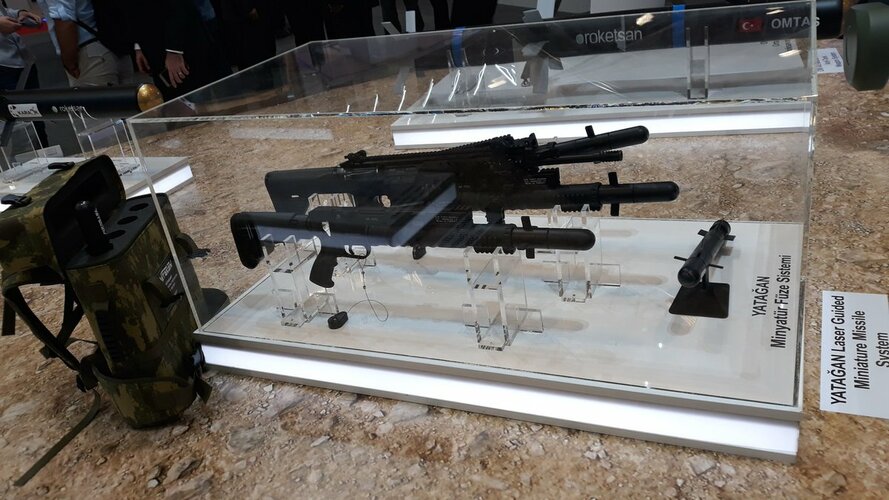

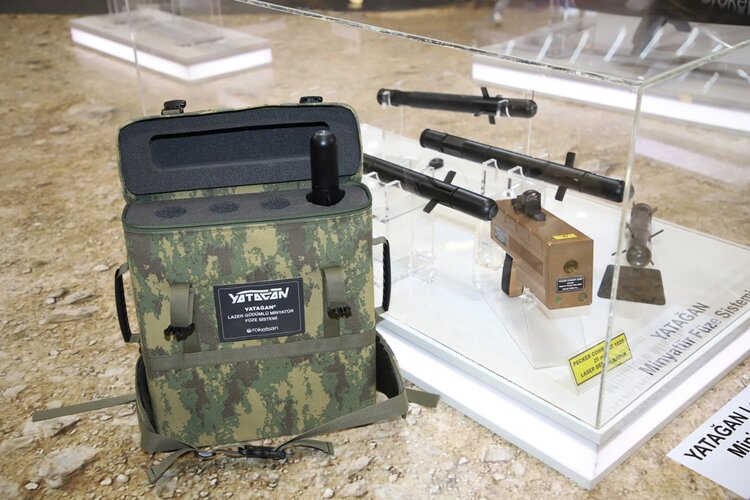

YATAĞAN® LASER GUIDED MINIATURE MISSILE SYSTEM​

YATAĞAN® Laser Guided Miniature Missile System can be fired using new generation man portable 40 mm grenade launcher and has a greater effective range than the maximum range of existing grenade launcher ammunition. Lightweight and small size missile enables integration of the system with mini unmanned aerial vehicles, ground and surface vehicles.
It brings precision, range and target oriented fire power to urban warfare.

Technical Specifications​

Diameter	40 mm
Length	~40 cm
Weight	~1 kg
Maximum Range	~1,000 m
Seeker	Semi-Active Laser Seeker
Accuracy (CEP)	1 m
Platforms	Grenade Launchers Mini UAVs Unmanned Ground Vehicles Unmanned Surface Vehicles



[Combat-Master]

SUNGUR MANPAD - during launch
Seeker- IIR
Range - 6km
View attachment 640207

SUNGUR MANPAD, during a reveal of Roketsan systems the max effective range of the SUNGUR MANPAD was revealed as being 8km, previously it was stated to be 6km.

View attachment 641299

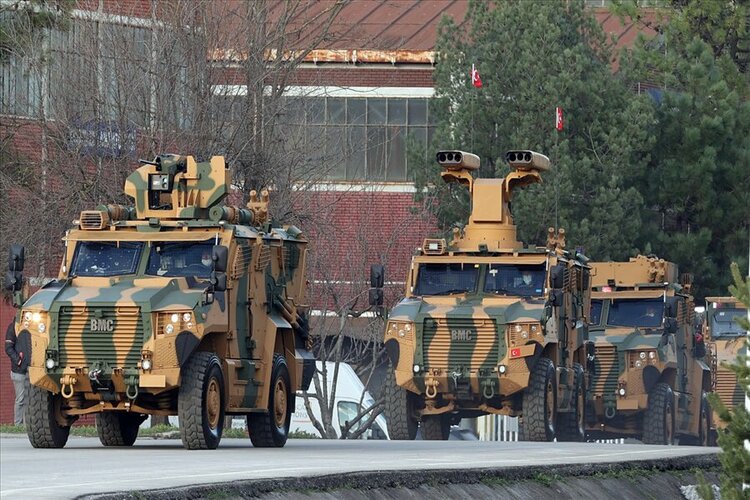

Sungur VSHORAD pedestal mounted launcher is now equipped with 6x missiles.



[Combat-Master]

FInal testing of ATMACA AShM with live warhead before entering serial production - 250kg warhead.

View: https://www.youtube.com/watch?v=KLd0L5Ae-7g

Akya Block 1 heavy weight torpedo launched from Gur Class Type 209 submarine - notice no cavitation

View: https://www.youtube.com/watch?v=sdWJ1VO3G_k

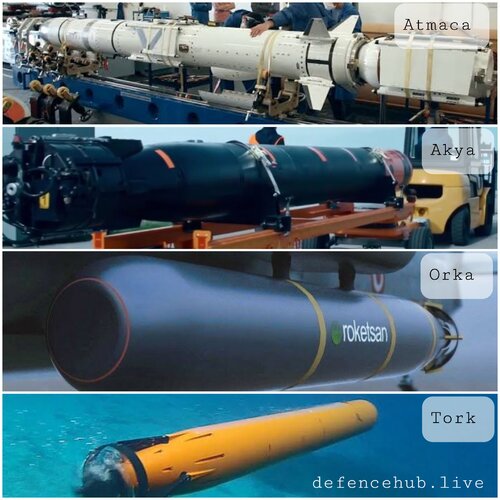

Turkey almost self-sufficient on and under the sea.

• Atmaca Anti-Ship Missile
• Akya Heavyweight Torpedo
• Orka Lightweight Torpedo
• Tork Anti-Torpedo Torpedo

Medium range anti-ship missile under development



[Combat-Master]

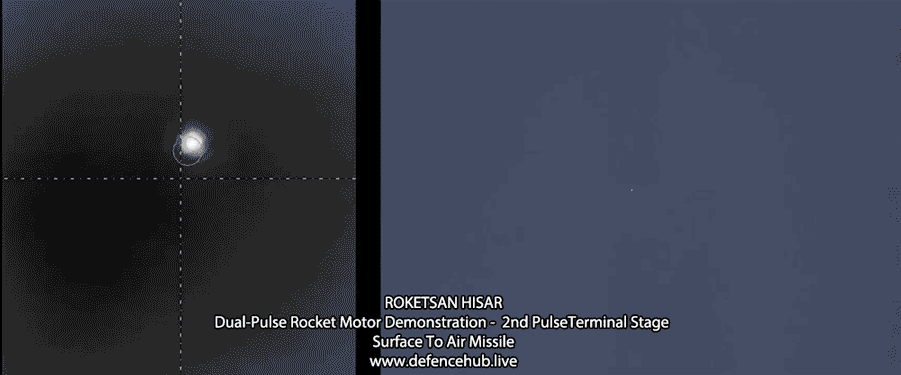

HISAR Surface to Air Missile, demonstrating dual pulse rocket engine with second pulse being ignited



[Combat-Master]

Turkish ATMACA anti-ship missile launched from TCG Kınalıada corvette successfully destroyed target​

View: https://www.youtube.com/watch?v=SoiWM_D2Lx8



[Combat-Master]

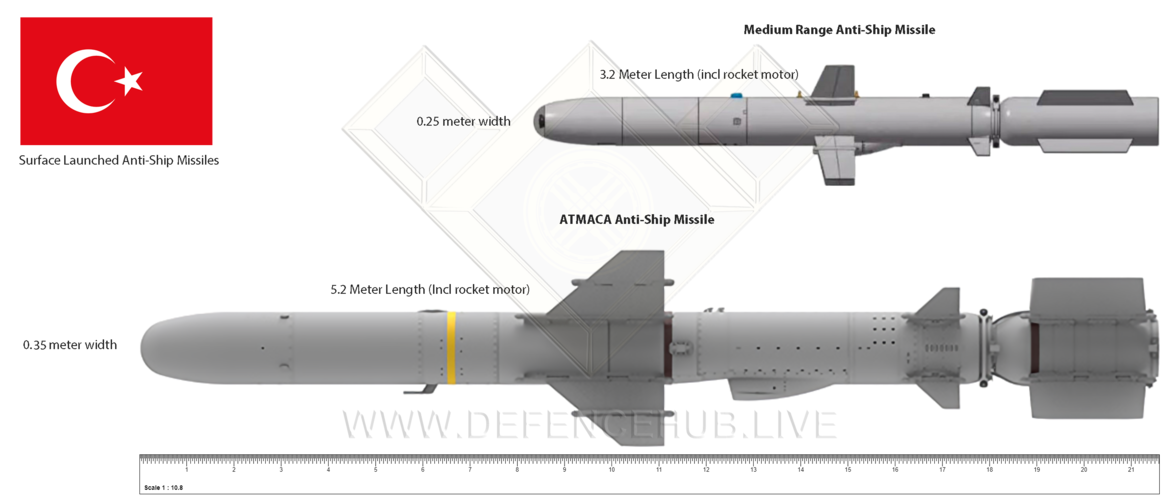

Medium Range Anti-Ship missile to replace Penguin Missiles in Turkish Inventory



[AN/AWW-14(V)]

HISAR has a combat deployment (Syria, Libya) or it's just rumor?



[Combat-Master]

HISAR has a combat deployment (Syria, Libya) or it's just rumor?

It is possible that a batch of HISAR-A and Korkut 35mm SPAAG were sent, but no official confirmation.



[Combat-Master]

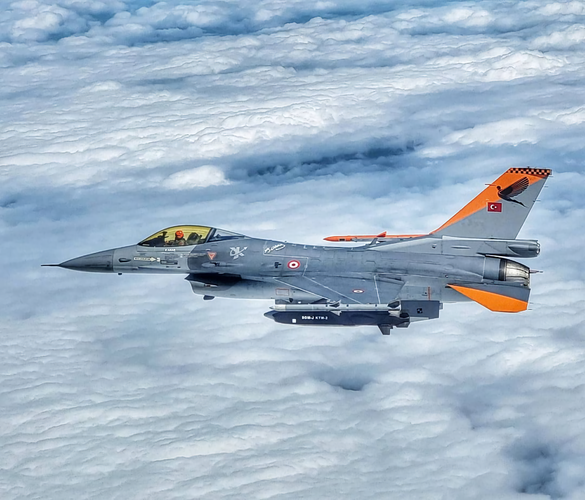

SOM-J Semi-Armor Piercing Warhead - Range 275km
