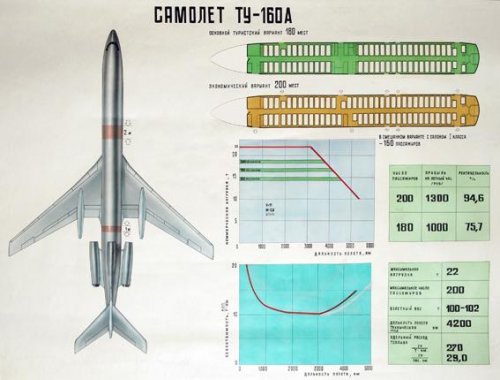

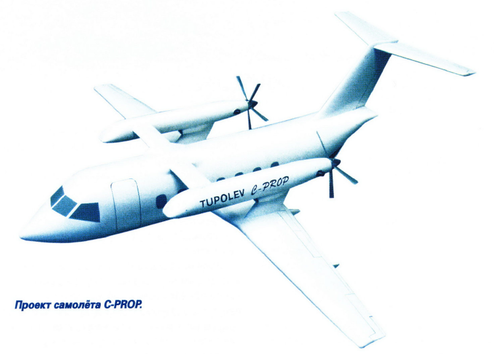

Tupolev post 1945 civil and military transport projects

Hi! Tu-110.
http://nlo-mir.ru/tech/51010-jeksportnyj-variant-tu104.html
"The international requirements for reliability were very strict: in particular, the aircraft flying over the waters should have a power plant of at least four engines. At the end of 1955, a new modification of Tu-104, which received a "110" (Tu-110) aircraft, was started in the KB.
After the commencement of the factory tests of the experienced Tu-104 in the KB, it was decided to design an alternative power-plant option of four turbojet smaller rods than the AM-3. To some extent, this was due to the possible prospects for the export of the aircraft outside the USSR and the CMEA countries. The KB proposal was supported in the Government, and on 12 August 1955 the Council of Ministers of the USSR issued a Decree No. 1511-846, which instructed the KB to design and build on the Tu-104 passenger aircraft with four turbojet type al-7. The aircraft was to have a flight-technical data close to the characteristics of the Tu-104."

"An experienced "110" aircraft in the late 1950s was extensively under four D-Systems engines and then under D-20 for the air selection system for the FS system (the 1-to-one-in-a-p). The three serial Tu-110a in 1960 were also set up by Dr. Systems, at which they were tested and made up of the Tu-124. With the engines of Dr. Systems, 110A was given the most. In the future, these machines were used as flying laboratories to test various electronic equipment. In addition to these works in 1960, a similar upgrade for the Tu-110 was proposed at the same time as the start of the 124a(2) with engines in the tail of the fuselage. The project was 110d, but unlike the 124a(2), which became a serial Tu-134, this work was not further developed."

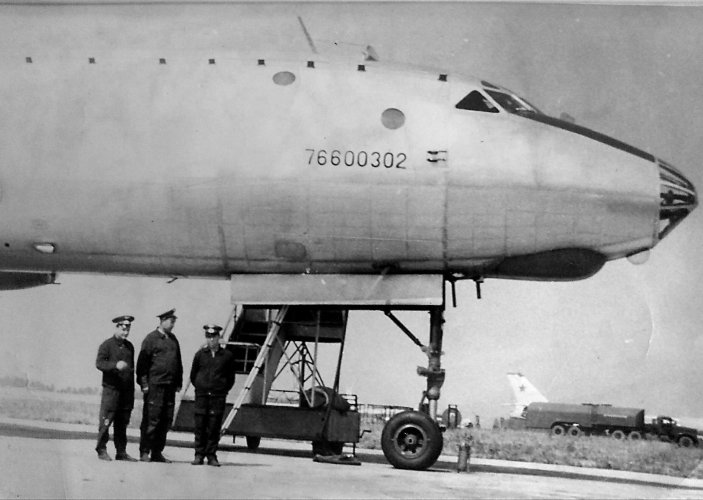

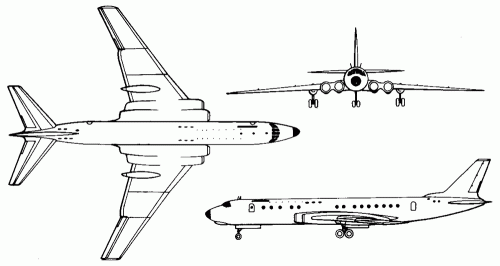

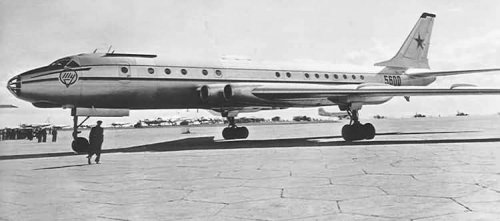

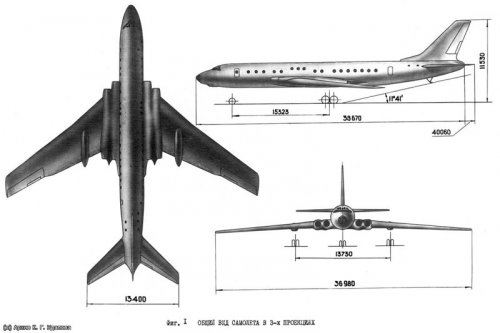

What is the middle drawing?


Attachments

  • tu110-1.jpg
    41.8 KB · Views: 126
  • 1-tu110-1.gif
    37 KB · Views: 136
  • tu110shema.jpg
    51.4 KB · Views: 140

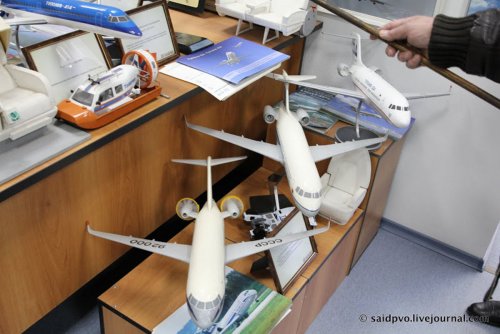

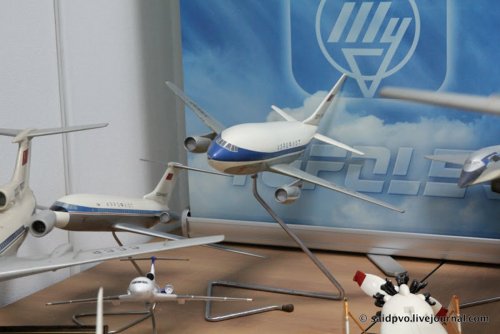

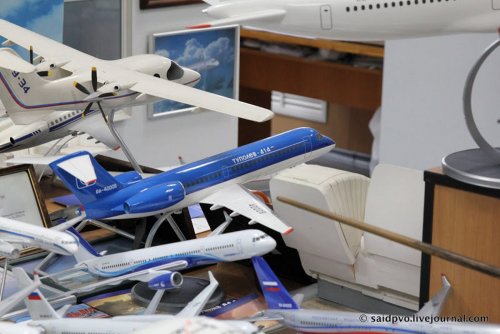

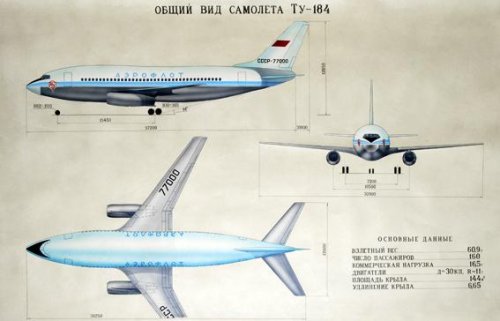

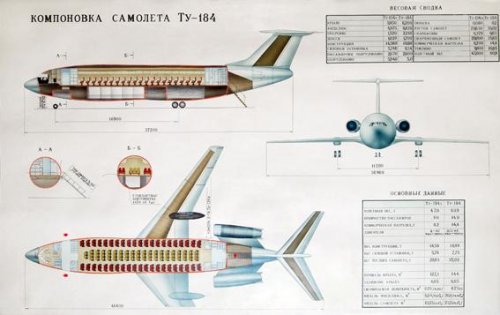

Hi! Tu-184, Tu-134D and Tu-334 models.

http://saidpvo.livejournal.com/172879.html


Attachments

  • Tu-334.jpg
    158.1 KB · Views: 134
  • Tu-134D.jpg
    126.6 KB · Views: 131
  • IMG_6736.JPG
    243.2 KB · Views: 125
  • Tu-184.jpg
    175.4 KB · Views: 119

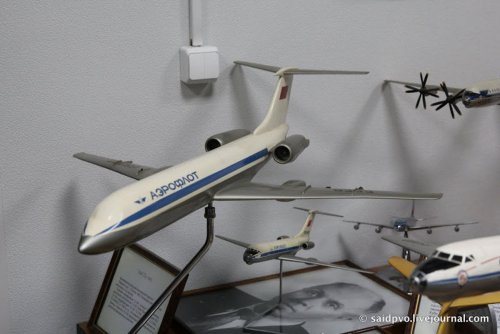

Tu-414 model and Tu-124B model.


Attachments

  • Tu-414.jpg
    141.9 KB · Views: 127
  • Tu-124B model.jpg
    Tu-124B model.jpg
    111.5 KB · Views: 137

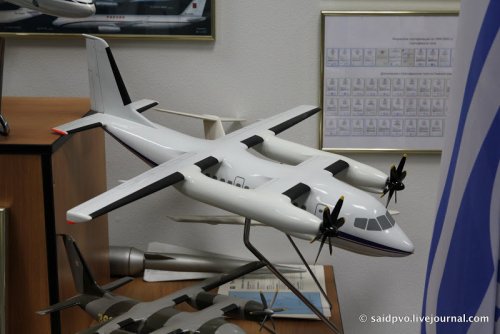

Hi! Tu-136 models. I can see large fuel tanks behind the engine.

http://www.globalsecurity.org/military/world/russia/tu-136.htm

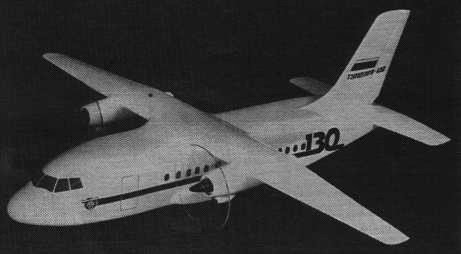

"The second Tu-130 was a short-range civilian transport project terminated in development stage. Later developments included Tu-136 Project, another short-range civilian transport that was an advanced development of the Tu-130 with cryogenic liquid natural gas fuel engines. A Tu-136 model was successfully tested at TsAGI. This was the third time the Tu-136 designator had been used, which was previously applied to totally un-related [and un-built] VSTOL fighter project and a spaceplane project."


Attachments

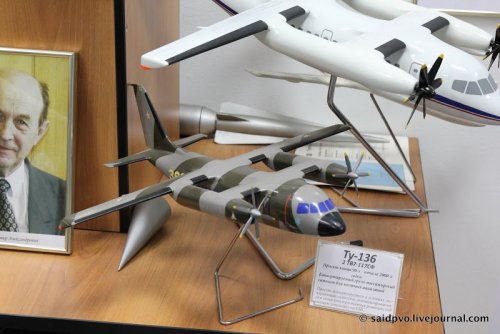

  • Model of the Tu-136 for a regional passenger aircraft with a power installation on CNG (project).jpg
    Model of the Tu-136 for a regional passenger aircraft with a power installation on CNG (project).jpg
    91.6 KB · Views: 129

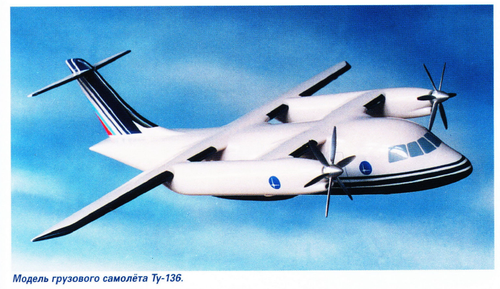

  • A convertible version of the Tu-136 f in the freight version from the passenger compartment.jpg
    A convertible version of the Tu-136 f in the freight version from the passenger compartment.jpg
    106.8 KB · Views: 122
kaiserbill said:
FighterJock said:
Triton said:

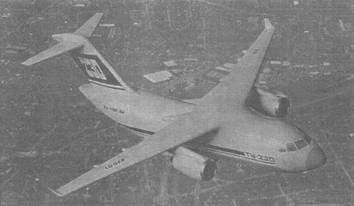

Model of Tupolev Tu-230

Source:
https://lib.rus.ec/b/280155/read

Is the Tu-230 getting built or is it still on the design stages?
It seems to me that the Il-214 will be filling the role.

A shame that, but it is a good idea to have Ilyushin involved in new design's too, otherwise they would end up going under.

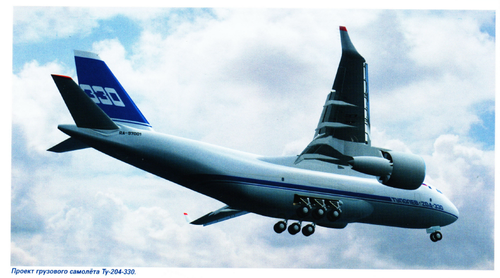

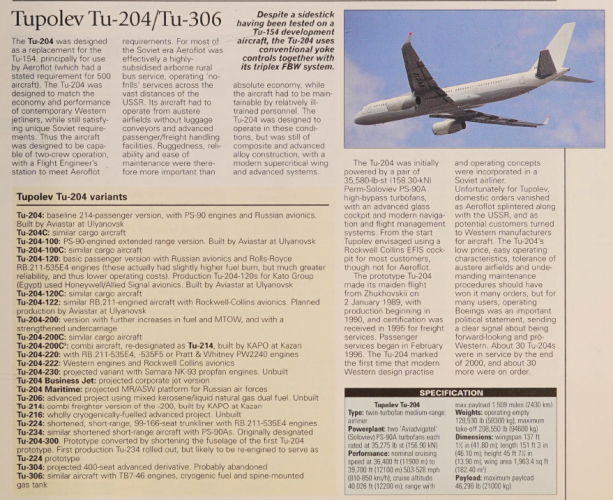

From Kryl'ya Rodine 5-6/2019,


Tu-534, developed in 2007, represents
The Tu-204 with an increased diameter of 83 cm and 5.65 m is the length of the fuselage. The number of passengers transported
fat was 279 in a two-class layout and 309 in a single-class one. The wing of the aircraft, its power plant, most of the systems and equipment borrowed from the Tu-204. The aircraft was supposed to be equipped with two turbofan engines with a load of 16500-18200 kgs.
