When's Russia going to build this thing?



[Geo]

When's Russia going to build this thing?

This year.



[Scott Kenny]

Not to nitpick, but the patent is about low observable air intake

Right, but prior art is the DSI bump on a flat surface.

I'm not sure "a DSI bump on a curved surface" is sufficiently novel to be patentable. Because it is a VERY obvious next step from the flat surface DSI.



[Scott Kenny]

Right, but prior art is the DSI bump on a flat surface.

I'm not sure "a DSI bump on a curved surface" is sufficiently novel to be patentable. Because it is a VERY obvious next step from the flat surface DSI.

Also, now that I think about it, IIRC the F-16 DSI was on a slightly curved surface as well...



[stealthflanker]

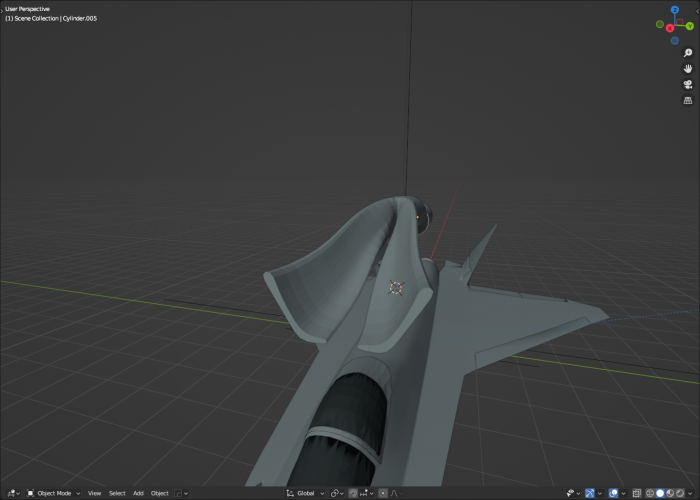

an LTS of mine for Science. Other than AleDucat i guess no one else making model of LTS's inlet ?

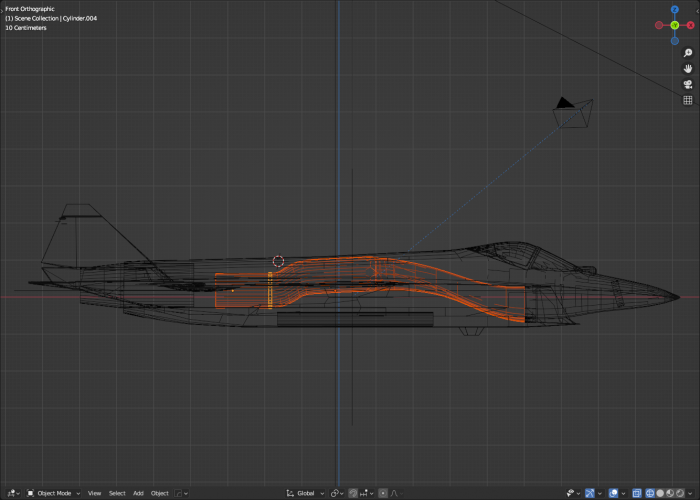

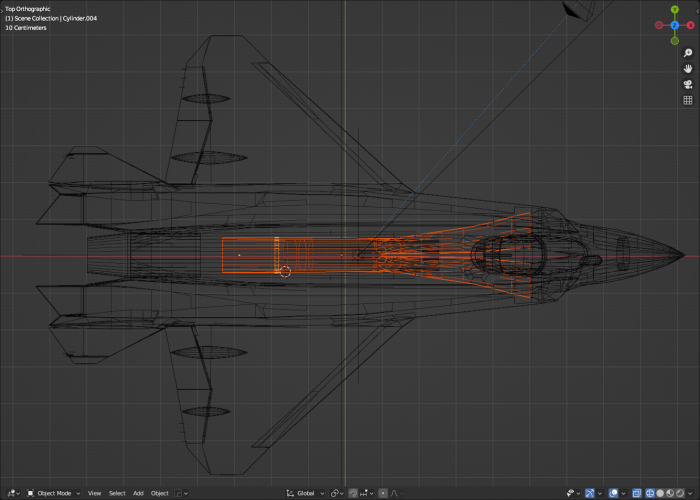

But anyway this is my piece. As seen, I speculated the inlet will be bifurcated until it met the "main duct" somewhere in the middle of fuselage before curving back down to the compressor face. I assume AL-41F1 engine with 932mm diameter.



[Acatomic]

When modeling the intake did you use the patent as a reference?



[paralay]

an LTS of mine for Science. Other than AleDucat i guess no one else making model of LTS's inlet ?

LTS.stl

Посмотреть и скачать с Яндекс Диска

disk.yandex.ru



[VTOLicious]

When modeling the intake did you use the patent as a reference?

View attachment 765279

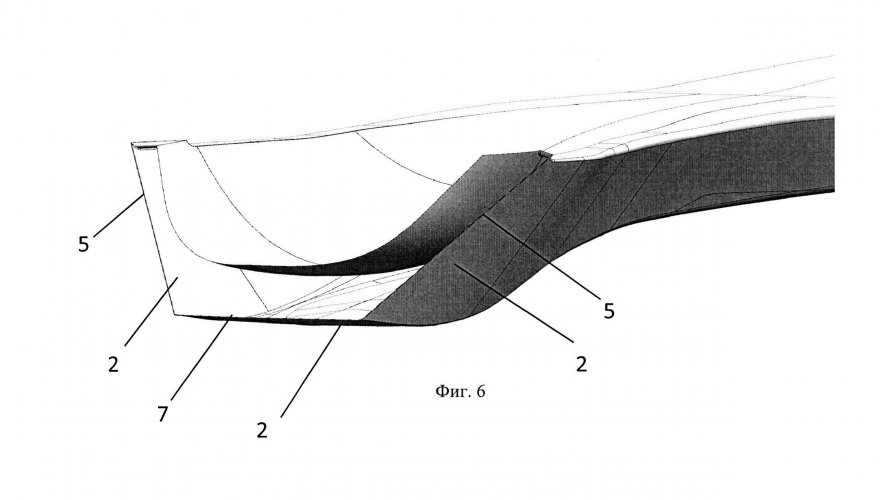

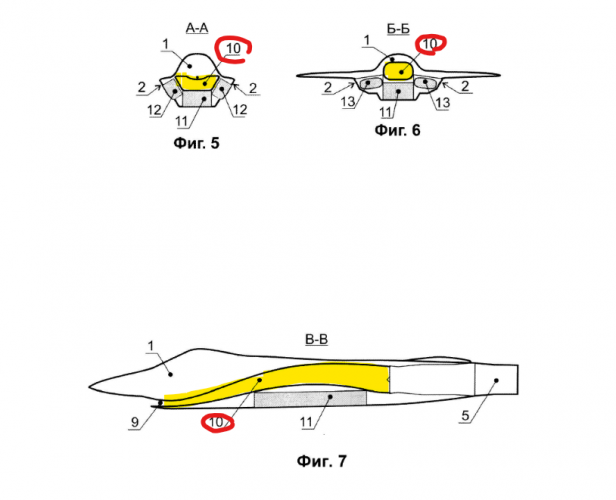

Also this is in line with the patent snip posted above...



[stealthflanker]

LTS.stl

Посмотреть и скачать с Яндекс Диска

disk.yandex.ru

Thanks Paralay

Also this is in line with the patent snip posted above...

View attachment 765310

Thanks

When modeling the intake did you use the patent as a reference?

For some reason i missed that patent :x. Feels stupid.

New inlet coming soon Thanks for the reminder guys.



[paralay]

I couldn't make a straight section up to half the diameter before entering the engine. This needs to be fixed.



[AGS-1787]

Paralay your files are STL man your models could be 3d printed!!!



[Scar]

Paralay your files are STL man your models could be 3d printed!!!



[paralay]

I doubt it, there are a lot of mistakes. I'm just learning



[Avimimus]

Also this is in line with the patent snip posted above...

View attachment 765310

What are the bay dimensions (if we took the patent as accurate)? Has this been posted?



[VTOLicious]

What are the bay dimensions (if we took the patent as accurate)? Has this been posted?

@paralay



[paralay]

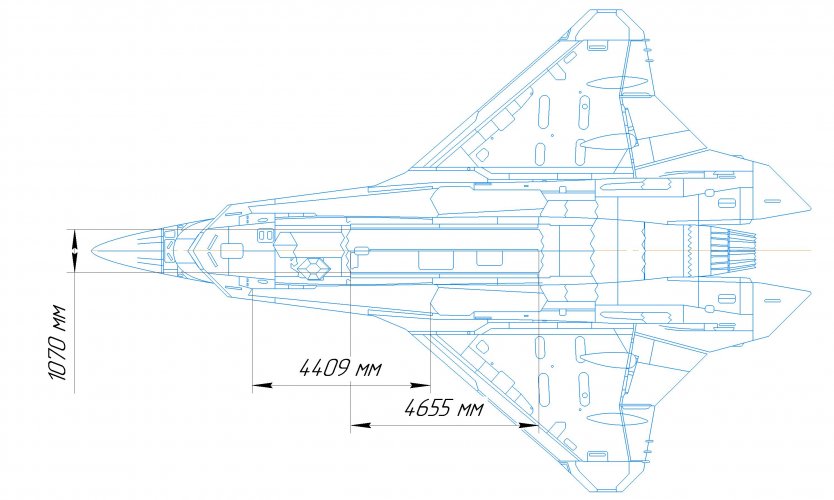

The size of the hatch openings of the weapon bays
