Soviet COIN and light Shturmovik Projects

Smells like another Grunin project - have asked about at EAA forum.

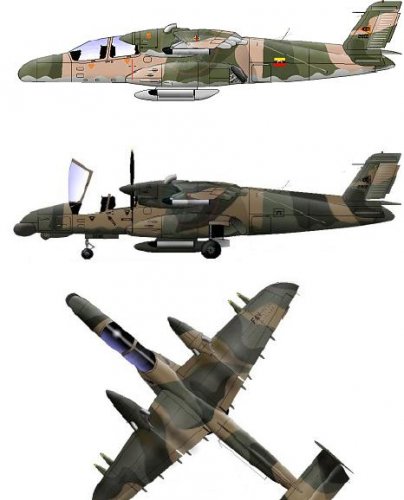

Looks like a ROKS design. I have a similar type of pic with pull propellors. ROKS T-501 Strizh


Attachments

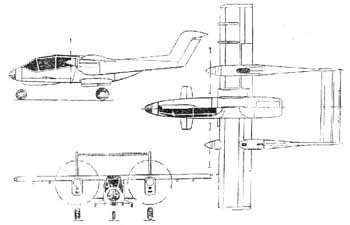

  • T-501 Strizh.jpg
    T-501 Strizh.jpg
    50.5 KB · Views: 1,122
Bazinga said:
Looks like a ROKS design. I have a similar type of pic with pull propellors. ROKS T-501 Strizh

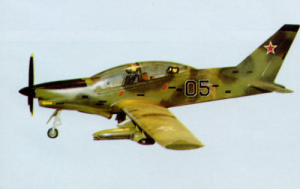

I'm afraid this is completely wrong. The T-501 Strizh is an Aeroprogress-ROKS design that doesn't look anywhere near the plan you provide (see attachment). That particular image of yours which is falsely labeled as the Strizh is in fact an imaginary design of unknown origin (generally called the "OV-12") that has circulated on the web for a while. Also, Aeroprogress had several COIN designs of their own (including a design quite similar to an OV-10 with canards) which do not look like either of these designs.


Attachments

  • T-720.jpg
    20.1 KB · Views: 305
  • T-712 Shtyk.jpg
    T-712 Shtyk.jpg
    70.4 KB · Views: 793
  • T-710 Anakonda.jpg
    T-710 Anakonda.jpg
    64.3 KB · Views: 888
  • T-504 Borets.jpg
    T-504 Borets.jpg
    7.9 KB · Views: 888
  • T-501 Strizh.png
    T-501 Strizh.png
    72.8 KB · Views: 1,137
x-copied said:
Hello Everybody

Two months ago, I have read a topic in FYJS website, the poster said this was a Soviet unbuilt COIN aircraft project. Of course, that just was a picture, a gouache, may be not true. However, the head was similar to the Kamov Ka-50, was this project really exsist?
links: http://www.fyjs.cn/bbs/read.php?tid=952117.
:eek:

What bugs me more is the fact that the picture displays a comment in Korean (under "HXGS", which is the forum name of the poster) and was posted on a Chinese site... ???

Jemiba said:
You can get an overview of Soviet COIN a/c here http://www.secretprojects.co.uk/forum/index.php/topic,50.0.html
I've attached the picture from that site to prevent it from being lost.
About the type I'm a bit sceptical, the picture looks like being heavily doctored and I don't
think, that folding wings are really useful for a COIN a/c. But there are experts here
to tell ! ;)
I have overviewed the links that you provided to me before I post this topic, but I failed to find it, so I believed something was wrong, may be this paint was not a COIN a/c, perhaps it was just a light attacker.
:)

Stargazer2006 said:
x-copied said:
Hello Everybody

Two months ago, I have read a topic in FYJS website, the poster said this was a Soviet unbuilt COIN aircraft project. Of course, that just was a picture, a gouache, may be not true. However, the head was similar to the Kamov Ka-50, was this project really exsist?
links: http://www.fyjs.cn/bbs/read.php?tid=952117.
:eek:
What bugs me more is the fact that the picture displays a comment in Korean (under "HXGS", which is the forum name of the poster) and was posted on a Chinese site... ???
In the FYJS website, there were two "hxgs" ID names, one was me, the other was his. if you read it carefully you would find a trick, the word "X" was english in my ID names and russian word "X" in his ID names. Certainly, many friends were confused about two ID names.
:)

flateric said:

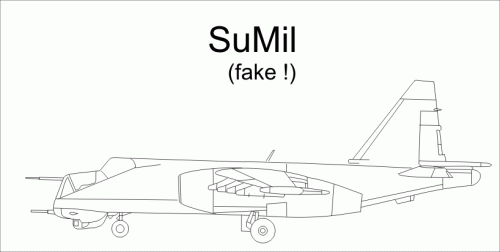

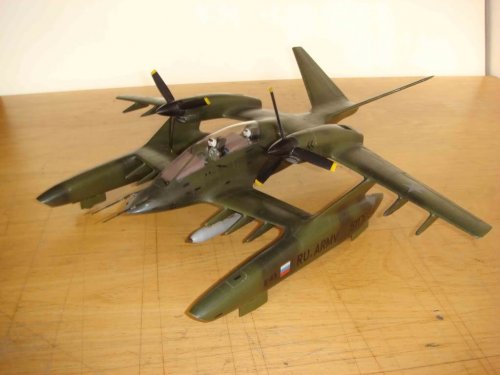

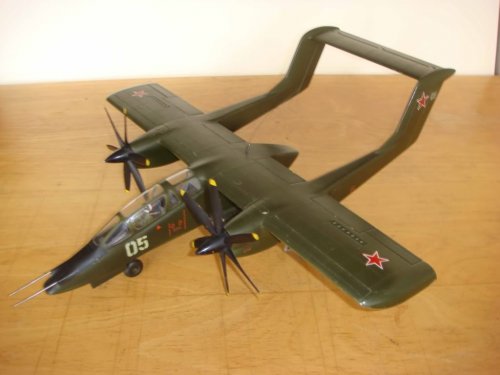

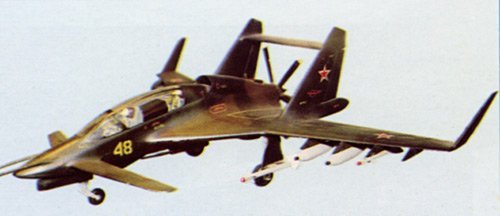

this was SiBNIA model shop kitbashing joke made from UNDA 1/72 Su-25 model kits

And again, things turns up upside down, as Grunin DB staff says it was real project, belonging to LVSh family of projects (Light Army Attack aircraft or Light Renewable Attack aircraft) meaning fast resurrection of production using off-the shelf parts from existing projects after nuke poke.

flateric said:
Smells like another Grunin project - have asked about at EAA forum.
Grunin DB staff says it was - again - a real project, belonging to LVSh family.

Well - that is extremely interesting Flateric!

I wonder if there were any other designs for such contingencies (although the ability of industry to survive after the 1960s... well, decreased with proliferation...)

Jemiba said:
You can get an overview of Soviet COIN a/c here http://www.secretprojects.co.uk/forum/index.php/topic,50.0.html
I've attached the picture from that site to prevent it from being lost.
About the type I'm a bit sceptical, the picture looks like being heavily doctored and I don't
think, that folding wings are really useful for a COIN a/c. But there are experts here
to tell !

There are lots of details on this model that scream fake. For starters it could probably never take off or land without destroying the propellers. Which as a pusher are far aft of the centre of gravity and unprotected by any tail strike stopper. So as soon as the aircraft rotates bang the blades hit the ground. Then there is a wing fold break out of line with the actual break in the wing. Strangely space wing pylons. Rear seat windscreen that looks cool but wouldn’t provide rear seat occupant with any kind of view forwards or downwards when flying.

CostasTT said:
An interesting report on projects by Yevgeny P. Grunin here. (translated to English, courtesy of Google Translate)

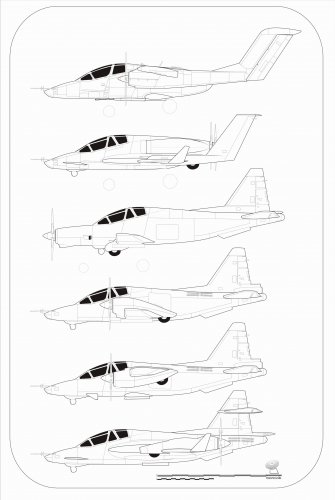

Only a few profiles LVSh project based on the Su-25UB.


Attachments

  • Resize of T-8V (based on Su-25)(100-2).jpg
    Resize of T-8V (based on Su-25)(100-2).jpg
    327.2 KB · Views: 767
Amazing drawings my dear Borovik,


but are those a real; projects ?.

These projects and many other projects ( including those known to us as the ROS Aeroprogress : T -710 , 502, 712 , etc.) have been developed in the framework of LVSh / - light military attack or easily can be filled attack aircraft/ . Was such a doctrine that in case of war, attack aircraft must be recreated on the basis of which the element is available . There were projects with booths Su- 25, Su 25 UB , Mi-24 , with 2 cabins on the Ka-50 ( Ka-52 was not there ), etc. Therefore, images of different projects . Projects developed in KB Sukhoi , namely team/brigade №100-2 . Brigade Chief Arnold I. Andrianov and theme leader , Eugene P. Grunin .

I would love to see some of the other variants of these projects (especially the ones with the Mi-24 cockpit!)...

Avimimus said:
I would love to see some of the other variants of these projects (especially the ones with the Mi-24 cockpit!)...
Three images have to link CostasTT

Ah - finally got the link to work!


47 designs?! It would make an interesting book.
We should create a thread somewhere to try to list all Russian Shturmoviks sometime - at this rate it is getting hard to keep track of them all. :D

Sukhoi / Grunin Designs


A lot of these were based on components of existing aircraft, the initial thoughts of this was a wartime contingency. Most are Su-25 derived - many of these designs were started within Sukhoi's 100-2 team, by Grunin and others who later left to form their own company.

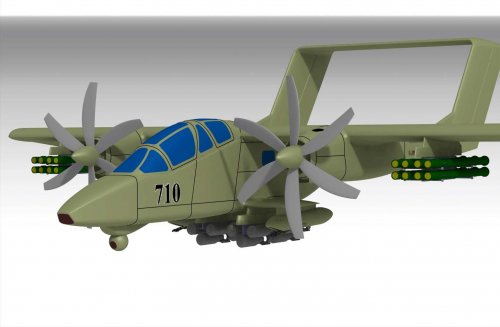

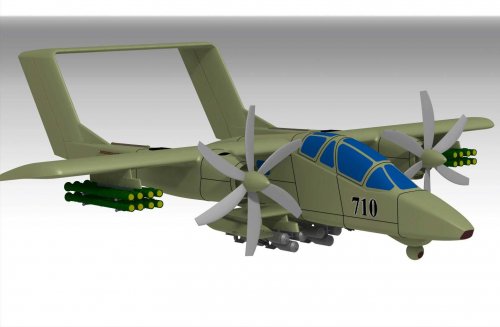

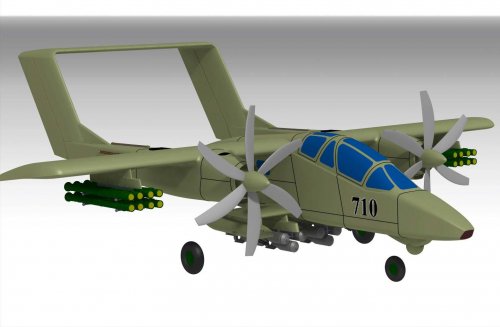

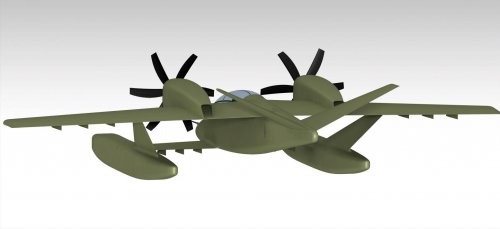

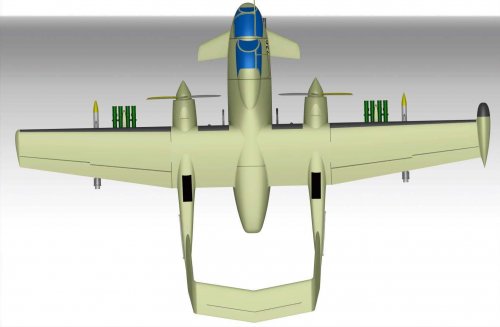

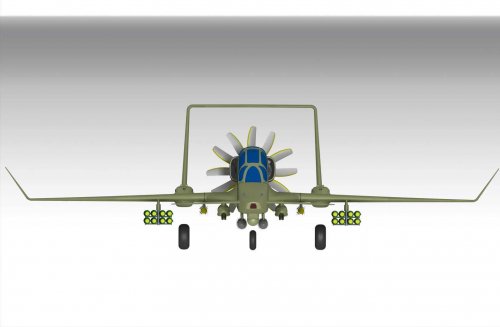

T-710, T-712

Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-712__5_.jpg
    48.5 KB · Views: 214
  • T-712__1__001.jpg
    103.4 KB · Views: 203
  • T-710_Ver_1__4_.jpg
    70.9 KB · Views: 196
  • T-710_Ver_1__3_.jpg
    71.8 KB · Views: 423
  • T-710_Ver_1__2_.jpg
    73.9 KB · Views: 430

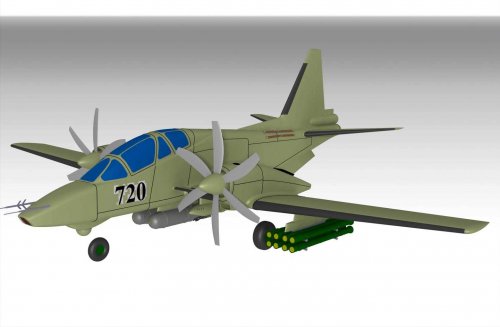

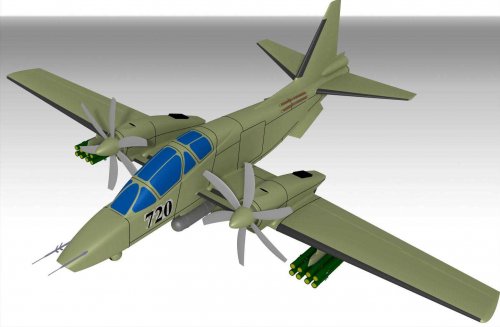

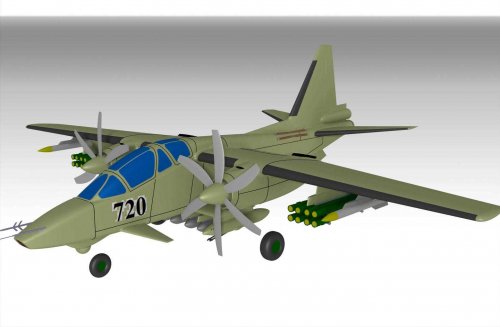

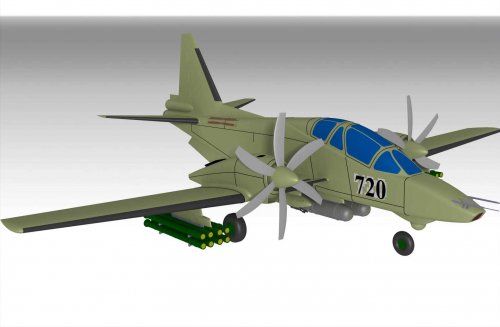

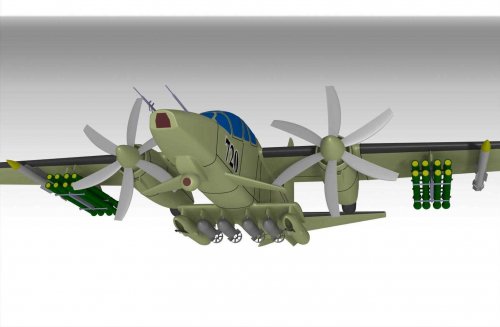

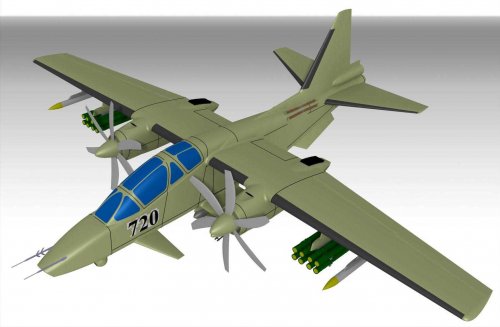

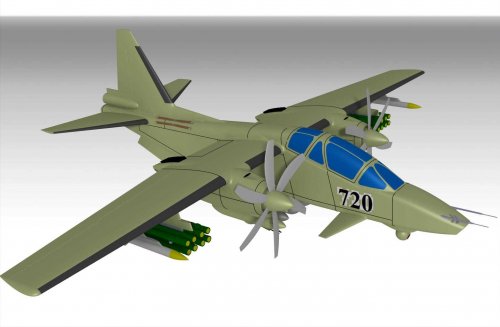

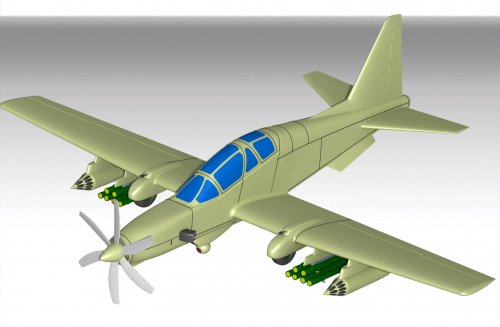

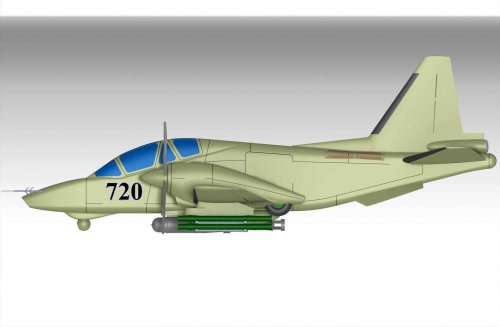

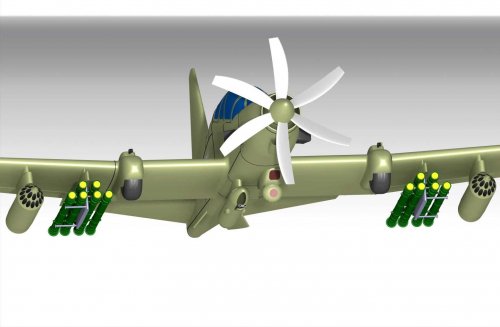

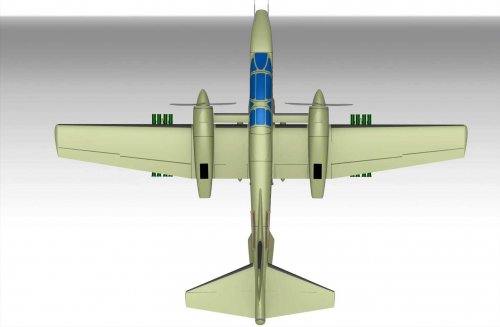

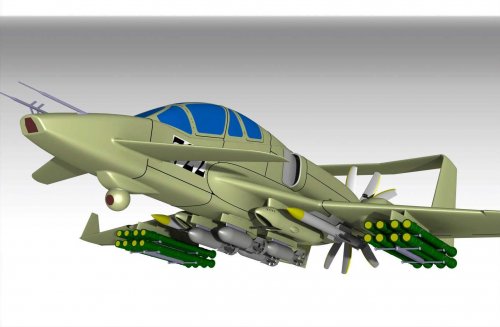

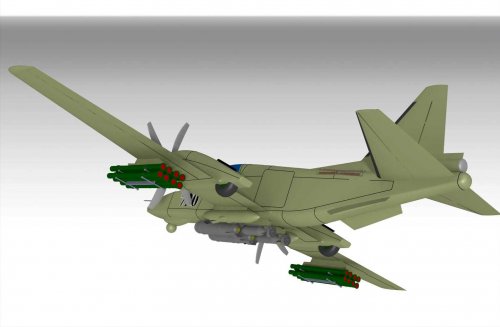

T-720

Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-720-3__9_.jpg
    98.3 KB · Views: 166
  • T-720-3__8_.jpg
    64.8 KB · Views: 159
  • T-720-3__7_.jpg
    61.9 KB · Views: 153
  • T-720-3__6_.jpg
    58.9 KB · Views: 148
  • T-720-3__4_.jpg
    81.5 KB · Views: 161
  • T-720-3__3_.jpg
    78.9 KB · Views: 163
  • T-720-3__2_.jpg
    68.1 KB · Views: 151
  • T-720-3__1_.jpg
    66.1 KB · Views: 145

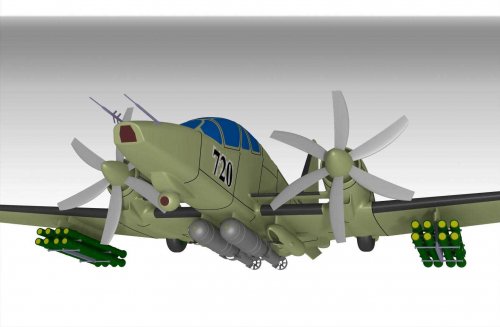

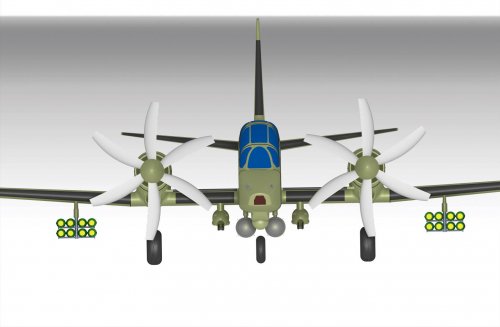

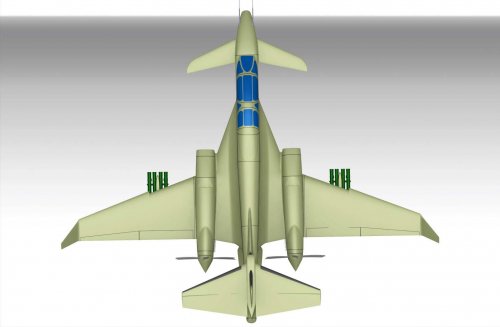

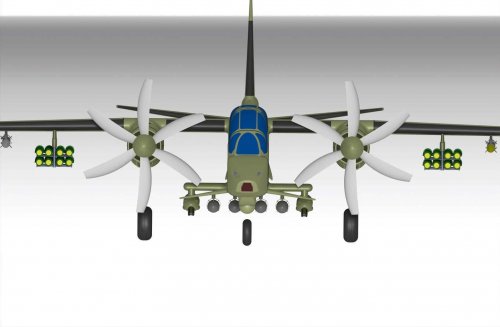

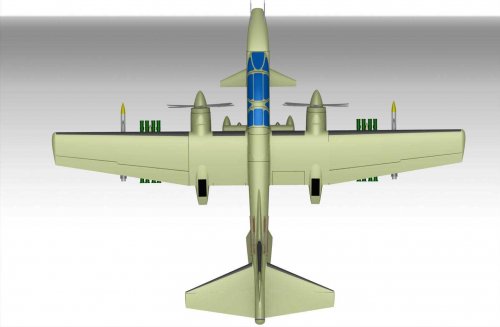

Another T-720 variant

Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-720-4__Sverhu_.jpg
    63.7 KB · Views: 136
  • T-720-4__Speredi_.jpg
    73 KB · Views: 150
  • T-720-4__5_.jpg
    74.4 KB · Views: 151
  • T-720-4__4_.jpg
    84 KB · Views: 142
  • T-720-4__3_.jpg
    72.4 KB · Views: 138
  • T-720-4__1_.jpg
    76.1 KB · Views: 130

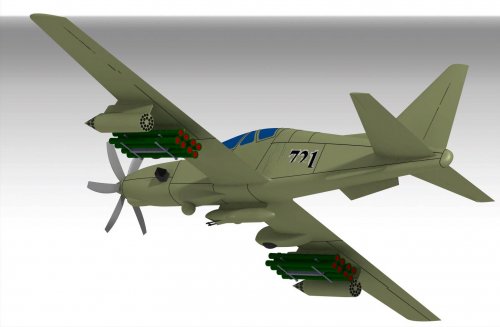

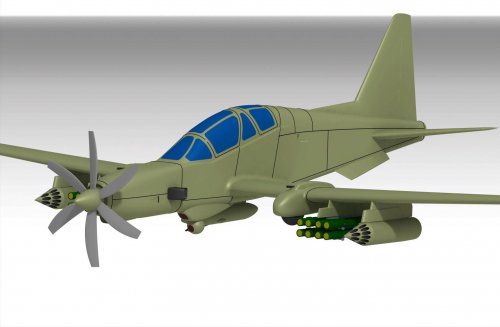

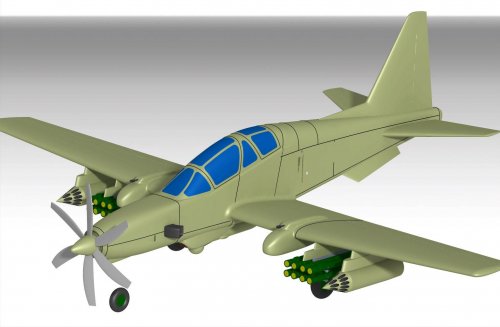

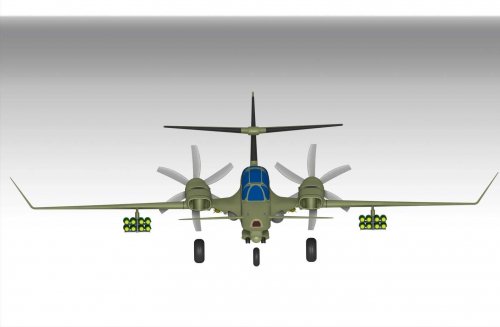

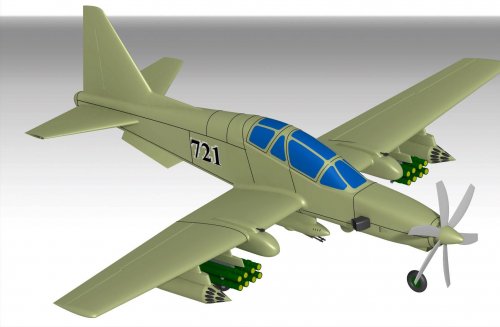

T-721

Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-721 255-_1__6_.jpg
    T-721 255-_1__6_.jpg
    111.2 KB · Views: 130
  • T-721 255-_1__5_.jpg
    T-721 255-_1__5_.jpg
    72.5 KB · Views: 129
  • T-721 255-_1__4_.jpg
    T-721 255-_1__4_.jpg
    74.3 KB · Views: 126
  • T-721 255-_1__3_.jpg
    T-721 255-_1__3_.jpg
    71.4 KB · Views: 128
  • T-721 255-_1__2_.jpg
    T-721 255-_1__2_.jpg
    84.7 KB · Views: 130
  • T-721 255-_1__1_.jpg
    T-721 255-_1__1_.jpg
    82.5 KB · Views: 143

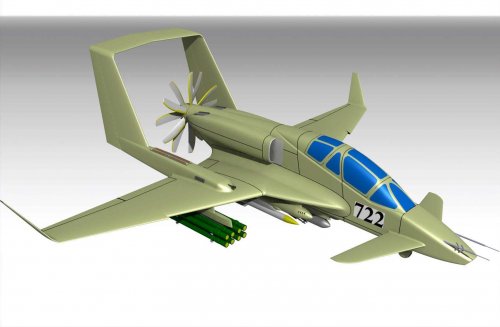

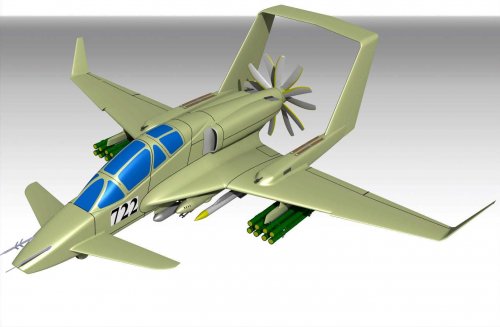

T-722

Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-722 11_202.jpg
    T-722 11_202.jpg
    59.7 KB · Views: 163
  • T-722 10_155.jpg
    T-722 10_155.jpg
    57.3 KB · Views: 168
  • T-722 6_245.jpg
    T-722 6_245.jpg
    91.4 KB · Views: 176
  • T-722 5_324.jpg
    T-722 5_324.jpg
    77.7 KB · Views: 175
  • T-722 4_420.jpg
    T-722 4_420.jpg
    81.6 KB · Views: 178
  • T-722 3_568.jpg
    T-722 3_568.jpg
    89.3 KB · Views: 183

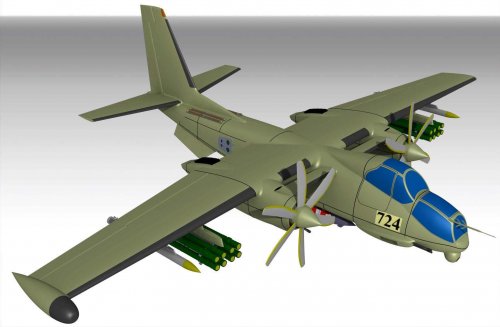

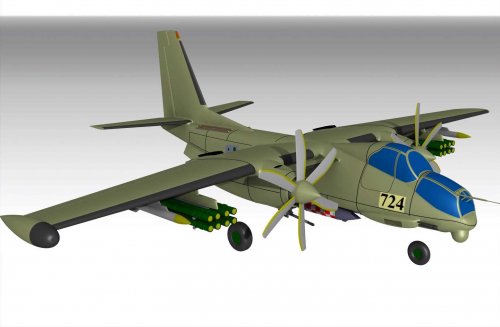

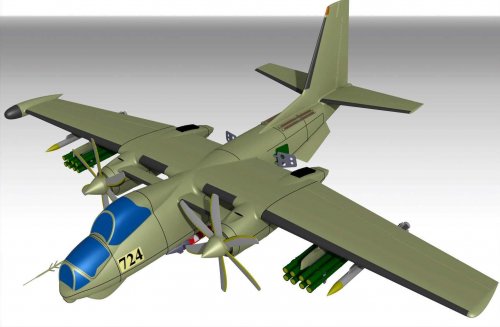

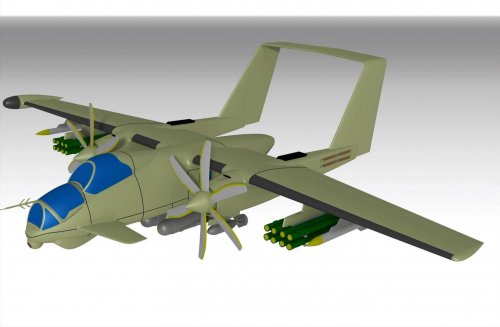

T-724

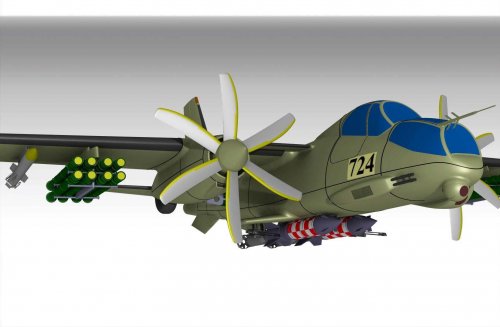

This is Mi-24 derived.



Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-724 10_157.jpg
    T-724 10_157.jpg
    84.4 KB · Views: 424
  • T-724 9_158.jpg
    T-724 9_158.jpg
    90.9 KB · Views: 419
  • T-724 8_173.jpg
    T-724 8_173.jpg
    88.9 KB · Views: 424
  • T-724 7_205.jpg
    T-724 7_205.jpg
    81.5 KB · Views: 427
  • T-724 4_421.jpg
    T-724 4_421.jpg
    66.5 KB · Views: 439

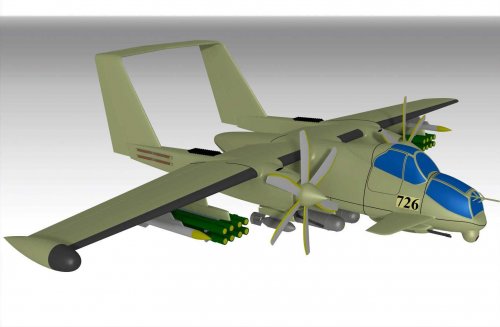

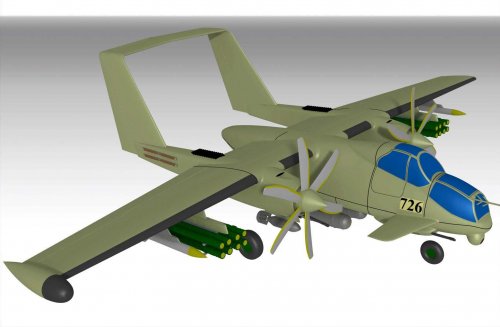

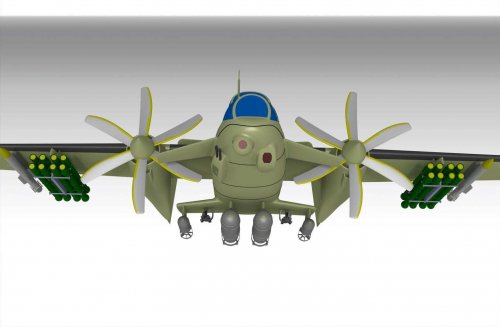

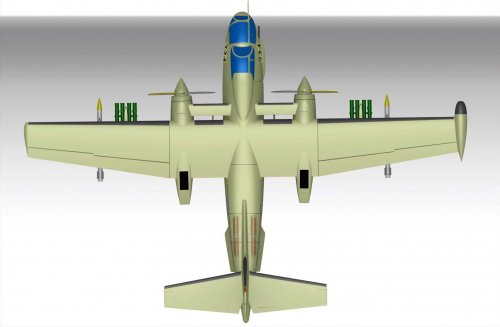

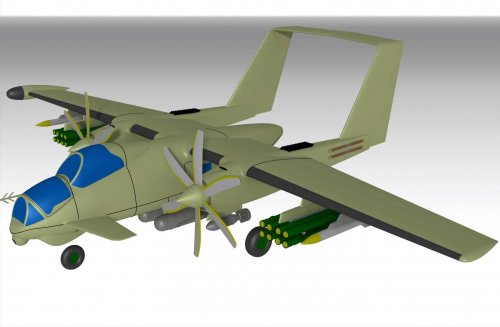

T-726, also Mi-24 derived.


Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-726 7_206.jpg
    T-726 7_206.jpg
    76.6 KB · Views: 148
  • T-726 6_248.jpg
    T-726 6_248.jpg
    75.9 KB · Views: 136
  • T-726 4_422.jpg
    T-726 4_422.jpg
    66.1 KB · Views: 135
  • T-726 2_744.jpg
    T-726 2_744.jpg
    74.1 KB · Views: 142
  • T-726 1_1060.jpg
    T-726 1_1060.jpg
    82.2 KB · Views: 144

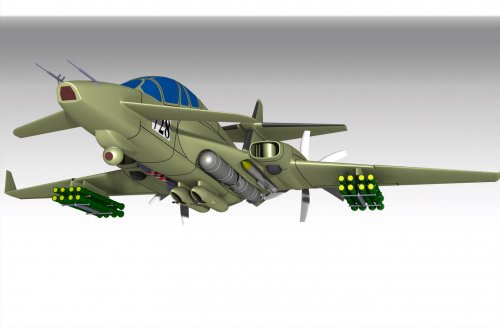

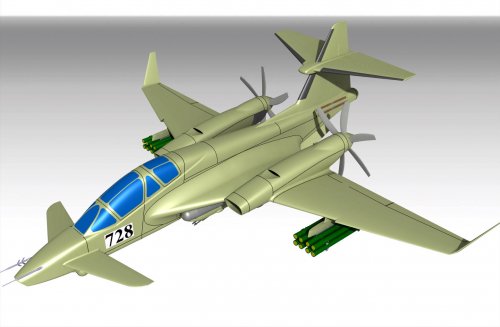

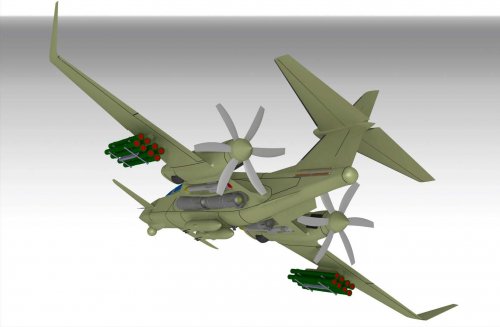

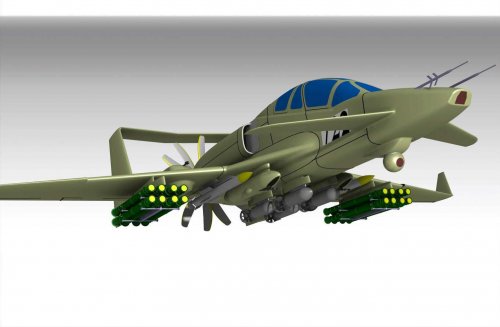

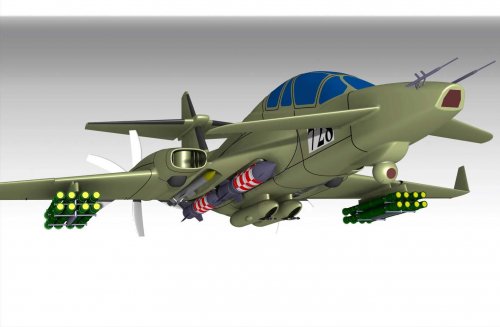

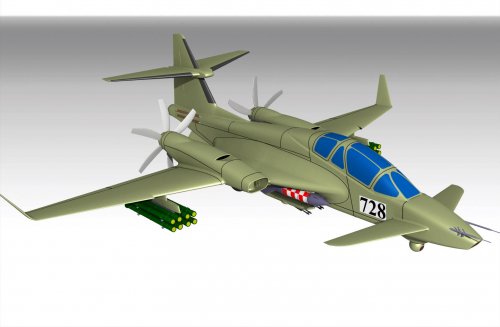

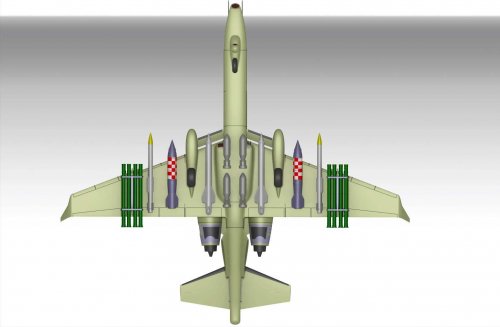

Attachments

  • T-728 12_165.jpg
    T-728 12_165.jpg
    69.7 KB · Views: 146
  • T-728 11_203.jpg
    T-728 11_203.jpg
    100.6 KB · Views: 158
  • T-728 10_156.jpg
    T-728 10_156.jpg
    80.7 KB · Views: 160
  • T-728 8_172.jpg
    T-728 8_172.jpg
    104.9 KB · Views: 169
  • T-728 7_204.jpg
    T-728 7_204.jpg
    118.1 KB · Views: 174
  • T-728 6_246.jpg
    T-728 6_246.jpg
    107.2 KB · Views: 166
  • T-728 3_569.jpg
    T-728 3_569.jpg
    56.8 KB · Views: 141
  • T-728 1_1057.jpg
    T-728 1_1057.jpg
    59.6 KB · Views: 147

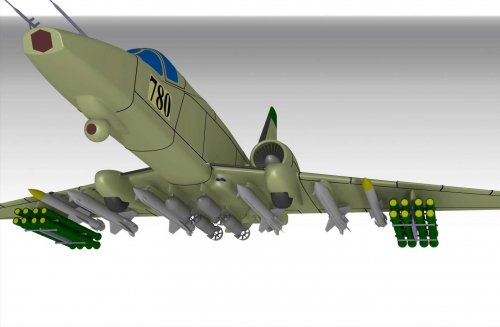

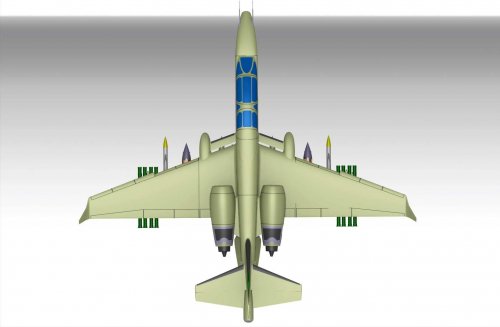

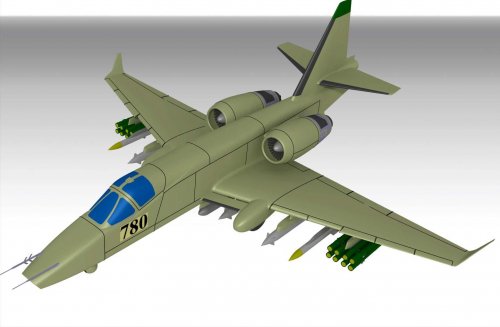

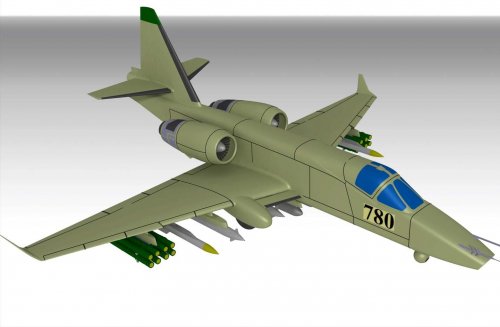

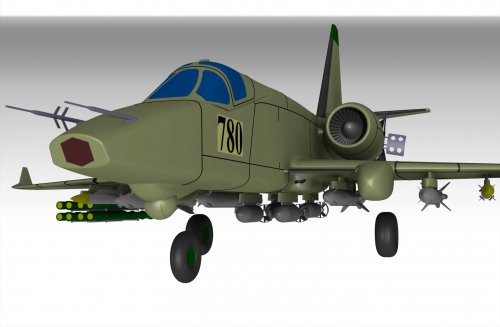

Attachments

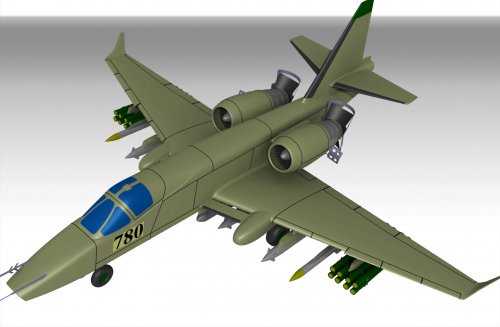

  • T-780 14_111.jpg
    T-780 14_111.jpg
    118.3 KB · Views: 146
  • T-780 13_117.jpg
    T-780 13_117.jpg
    109.5 KB · Views: 146
  • T-780 12_167.jpg
    T-780 12_167.jpg
    97 KB · Views: 132
  • T-780 9_162.jpg
    T-780 9_162.jpg
    77.6 KB · Views: 142
  • T-780 7_209.jpg
    T-780 7_209.jpg
    74.8 KB · Views: 153
  • T-780 6_250.jpg
    T-780 6_250.jpg
    76.7 KB · Views: 162
  • T-780 4_427.jpg
    T-780 4_427.jpg
    67.8 KB · Views: 147
  • T-780 3_572.jpg
    T-780 3_572.jpg
    60 KB · Views: 132

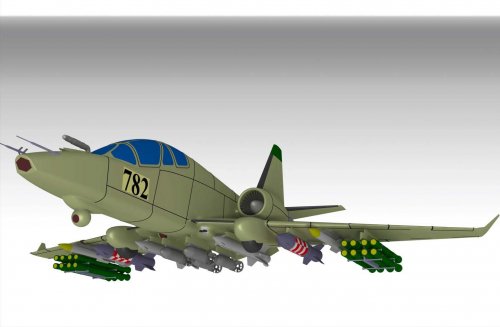

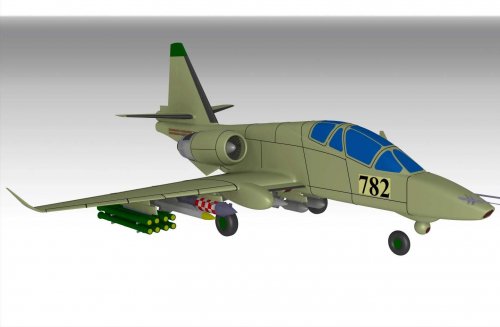

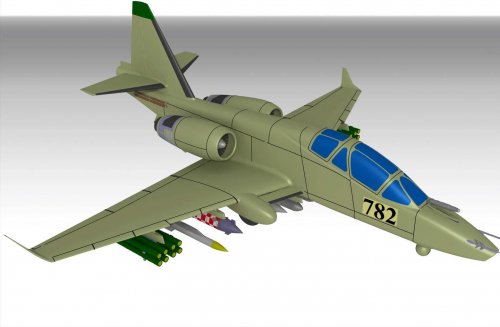

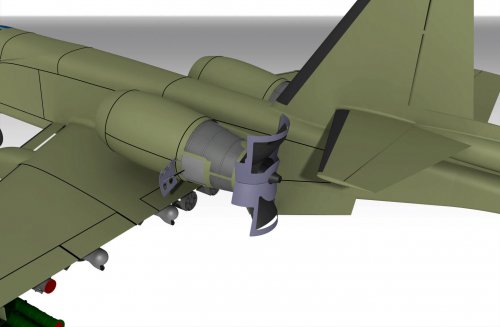

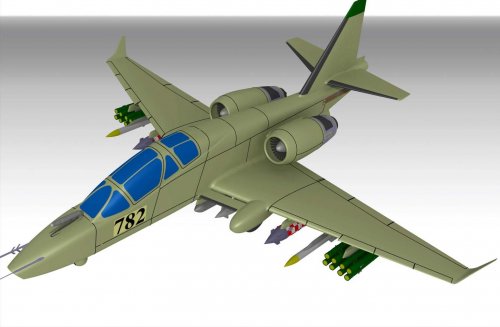

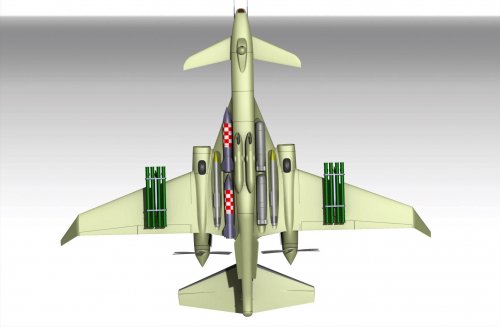

Last one of T-780, then T-782.


Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-782 10_160.jpg
    T-782 10_160.jpg
    83.1 KB · Views: 118
  • T-782 10_159.jpg
    T-782 10_159.jpg
    75.2 KB · Views: 112
  • T-782 9_163.jpg
    T-782 9_163.jpg
    72.6 KB · Views: 111
  • T-782 7_210.jpg
    T-782 7_210.jpg
    77.5 KB · Views: 114
  • T-782 6_251.jpg
    T-782 6_251.jpg
    67.3 KB · Views: 115
  • T-780 17_089.jpg
    T-780 17_089.jpg
    109.6 KB · Views: 129

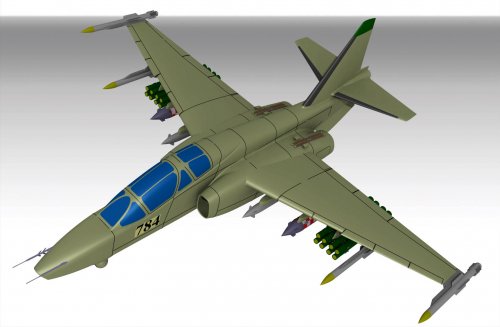

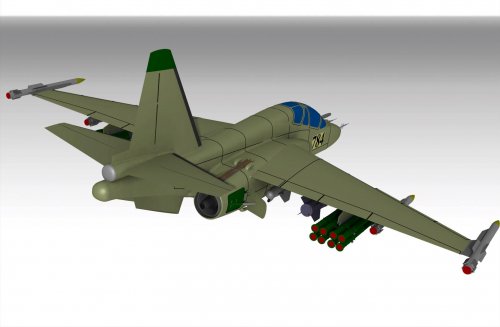

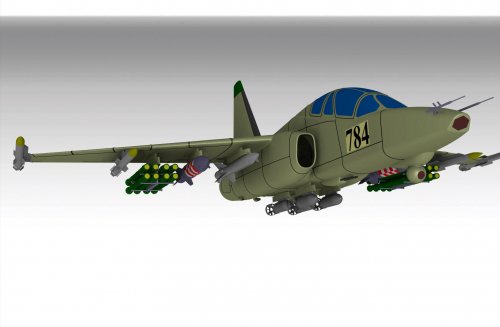

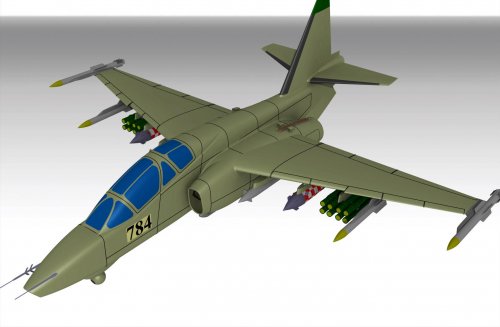

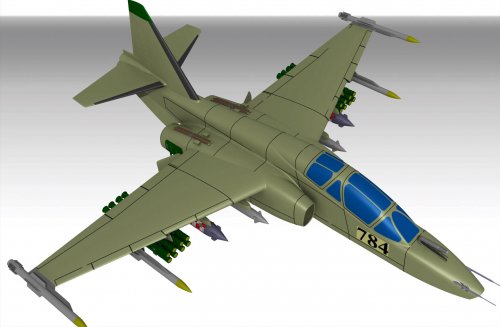

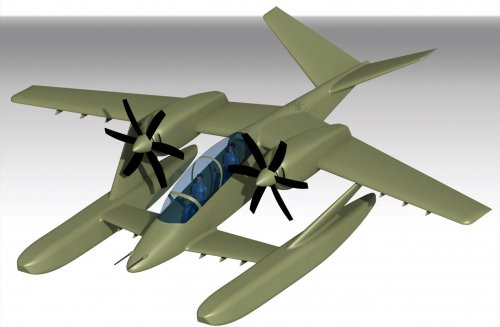

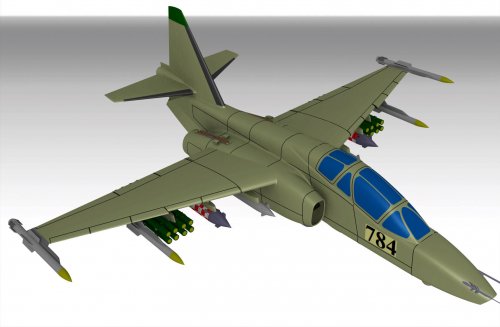

Attachments

  • T-784-1__10_.jpg
    98.7 KB · Views: 139
  • T-784-1__6_.jpg
    94.9 KB · Views: 133
  • T-784-1__5_.jpg
    122.6 KB · Views: 113
  • T-784-1__4_.jpg
    116.9 KB · Views: 119
  • T-784-1__3_.jpg
    96.2 KB · Views: 120
  • T-784-1__2_.jpg
    114.9 KB · Views: 119
  • T-784-1__1_.jpg
    112 KB · Views: 124

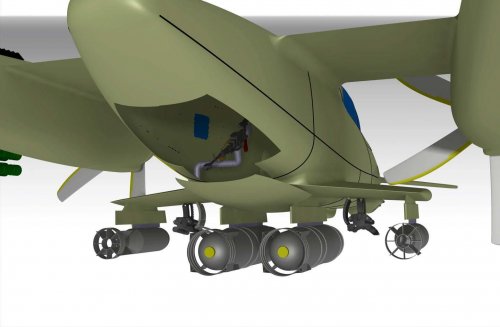

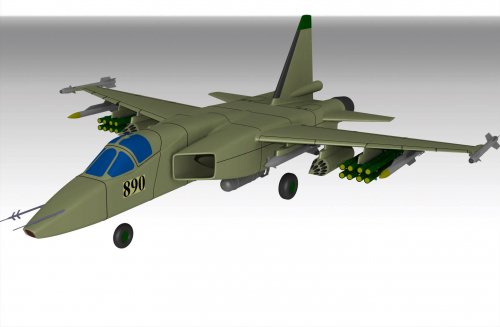

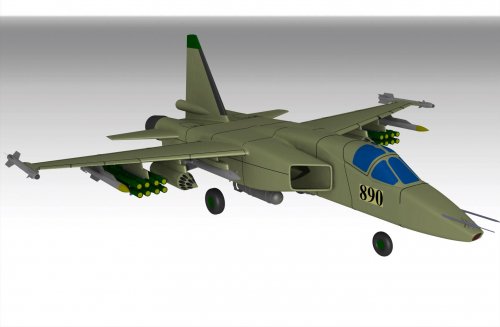

Attachments

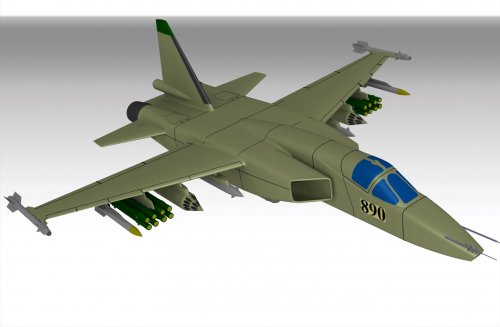

  • T-890 Ver_6__6_.jpg
    T-890 Ver_6__6_.jpg
    82.2 KB · Views: 127
  • T-890 Ver_6__5_.jpg
    T-890 Ver_6__5_.jpg
    86.2 KB · Views: 149
  • T-890 Ver_6__4_.jpg
    T-890 Ver_6__4_.jpg
    109.6 KB · Views: 153
  • T-890 Ver_6__3_.jpg
    T-890 Ver_6__3_.jpg
    102.7 KB · Views: 144
  • T-890 Ver_6__2_.jpg
    T-890 Ver_6__2_.jpg
    95.4 KB · Views: 142
  • T-890 Ver_6__1_.jpg
    T-890 Ver_6__1_.jpg
    96.9 KB · Views: 151

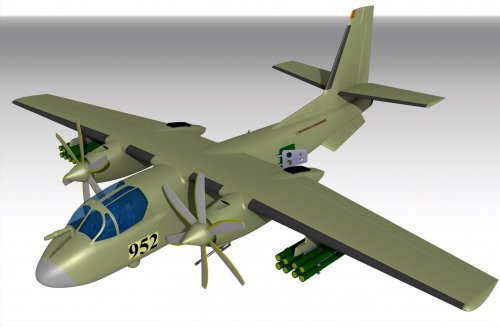

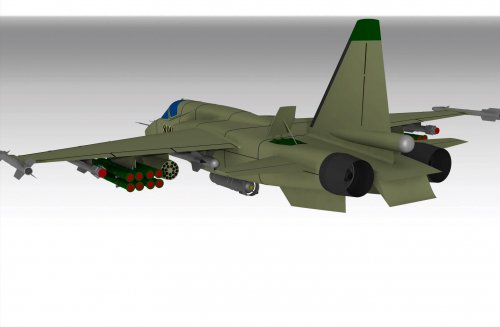

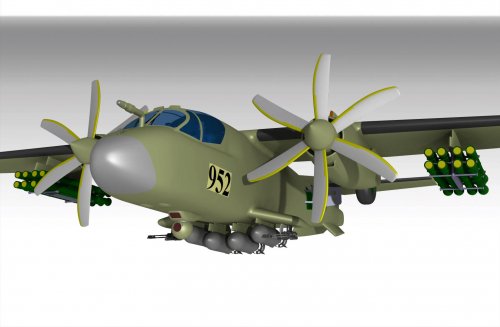

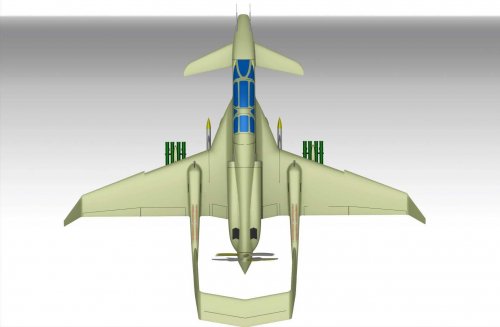

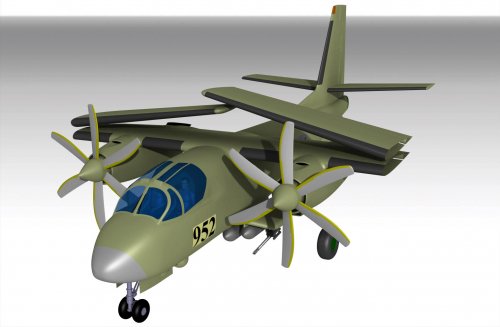

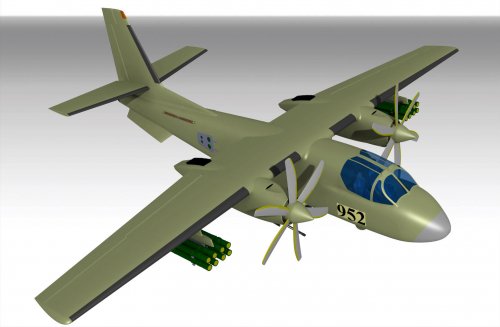

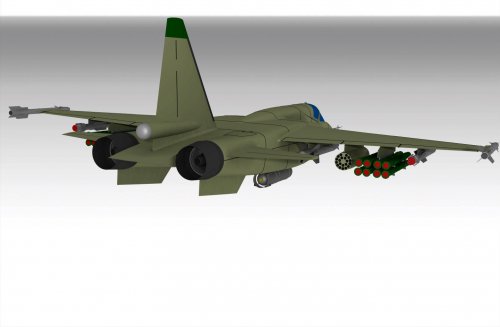

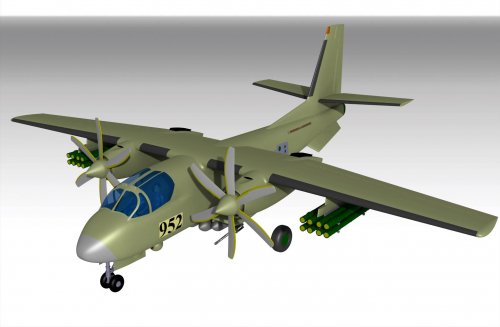

T-952 - design from 1999/2000 timeframe I believe.


Source: http://www.reaa.ru/cgi-bin/yabb/YaBB.pl?num=1228396393


Attachments

  • T-952 9_160.jpg
    T-952 9_160.jpg
    108.7 KB · Views: 155
  • T-952 9_159.jpg
    T-952 9_159.jpg
    86.4 KB · Views: 163
  • T-952 8_175.jpg
    T-952 8_175.jpg
    109.2 KB · Views: 146
  • T-952 8_174.jpg
    T-952 8_174.jpg
    76.8 KB · Views: 137
  • T-952 7_207.jpg
    T-952 7_207.jpg
    61.1 KB · Views: 135
  • T-952 4_423.jpg
    T-952 4_423.jpg
    111.3 KB · Views: 139
  • T-952 3_570.jpg
    T-952 3_570.jpg
    106.3 KB · Views: 143
  • T-952 1_1061.jpg
    T-952 1_1061.jpg
    103.9 KB · Views: 147
Talk about a treasure trove!!! Thanks for taking the time to share them all man B)

What are the time frame(s) on these designs? All from late 1990's or are some from earlier?

Thanks! I'm really stunned to see even more of these.

Two questions:

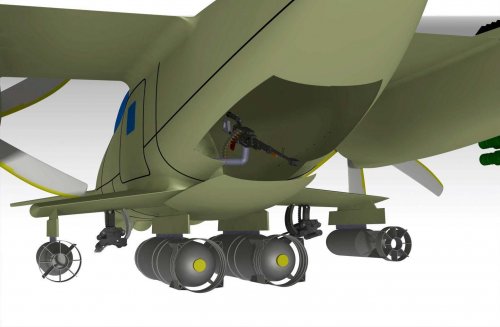

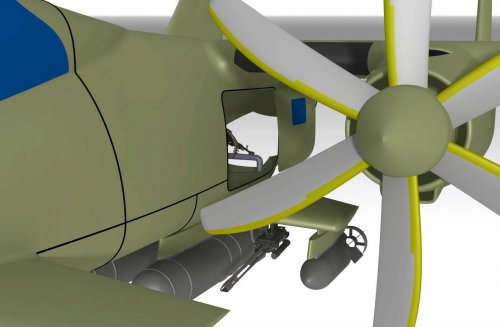

- Any idea what the under fuselage guns are (not the SPPU - but the three barrelled ones)?
- Many designs are depicted with R-77s but no acquisition radar (I assume it could be pod mounted like in the later Su-25s)?

Beautiful pictures Paul, especially the mi 24 derivatives. Do you know the purpose of the curious looking engine exhaust in the picture labeled T-780 12_167.jpg ?

Amazing find and remarkable series of posts with quite a few previously unknown T-series projects, Paul... Thank you so much for sharing!
