So, who's wing is that ?

[galgot]

Mmmhhh ?



[Archibald]

Smells like variable geometry. Perhaps from Dassault ?



[galgot]

Smells like variable geometry. Perhaps from Dassault ?

Hi Archie ! Variable geometry indeed, not Dassault.



[SteveO]

F-14 Tomcat?



[galgot]

F-14 Tomcat?

Nope.



[Trident]

I was going to guess Mirage G too, but the LE dog tooth does not match... V507? But the dog tooth seems too far inboard for that?



[galgot]

I was going to guess Mirage G too, but the LE dog tooth does not match... V507? But the dog tooth seems too far inboard for that?

Nah Sir. Not that one either. A hint, it's civilian.



[Mark Nankivil]

Nah Sir. Not that one either. A hint it's civilian.

Nah Sir. Not that one either. A hint, it's civilian.

Boeing 2707-100? Two section lap looks like the give away.....

Enjoy the Day! Mark



[galgot]

Boeing 2707-100? Two section lap looks like the give away.....

Enjoy the Day! Mark

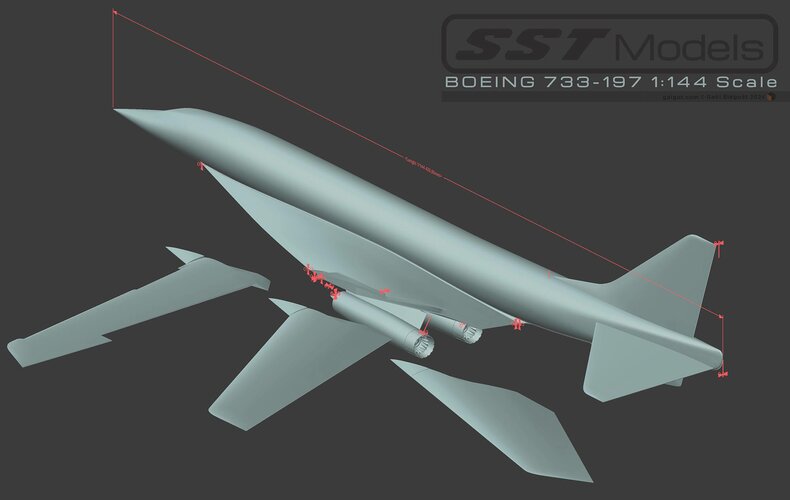

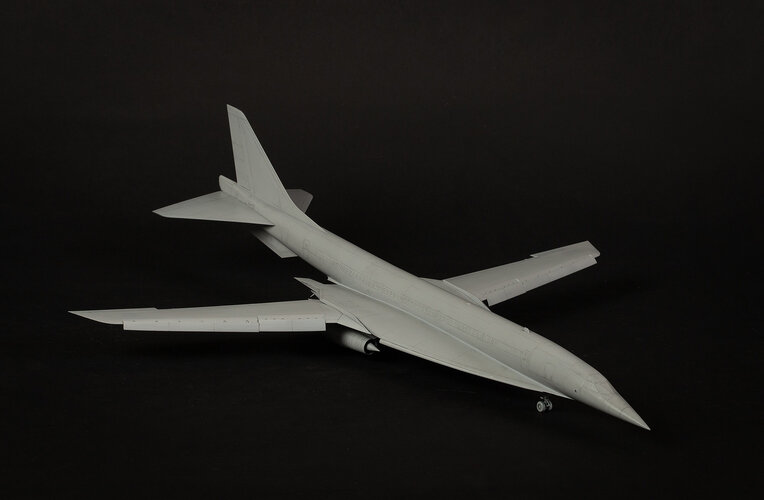

very close and related Boeing 733-197 :

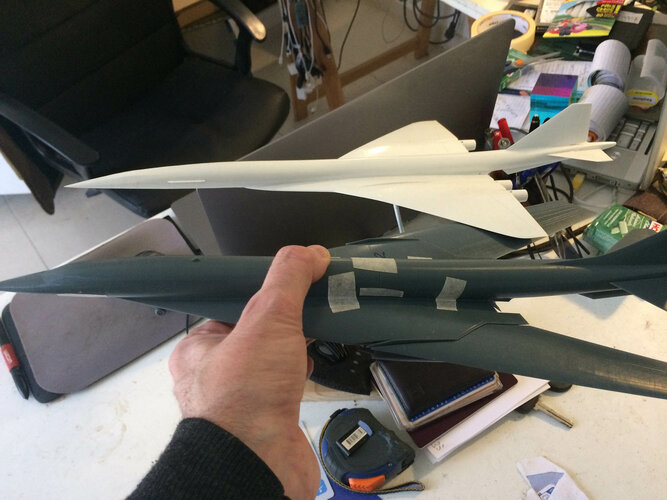

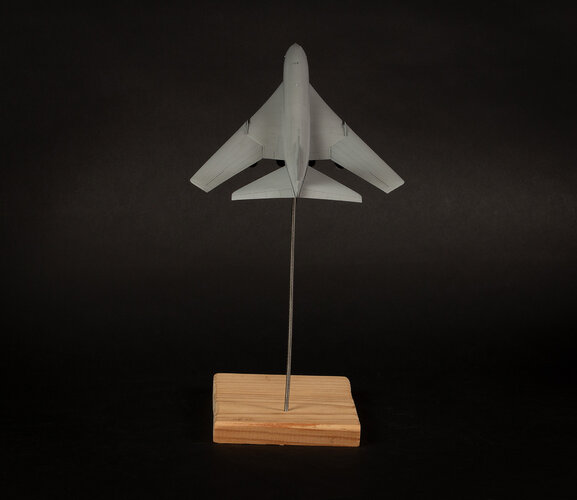

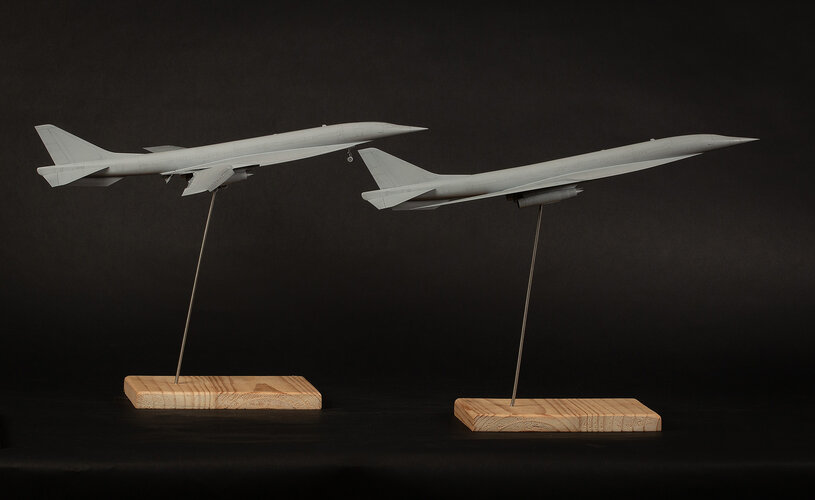

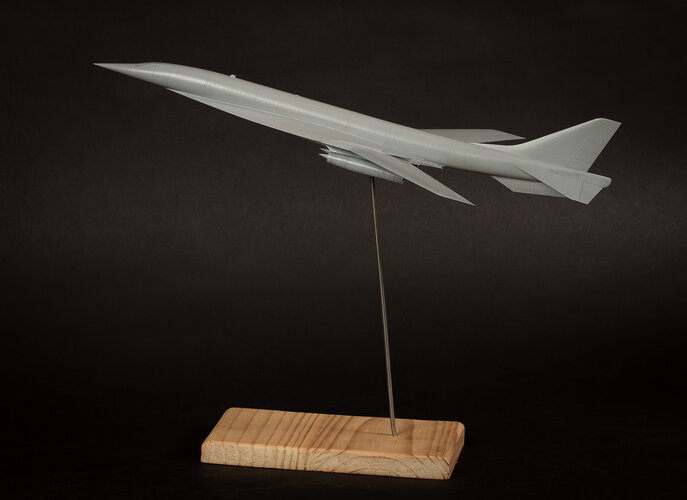

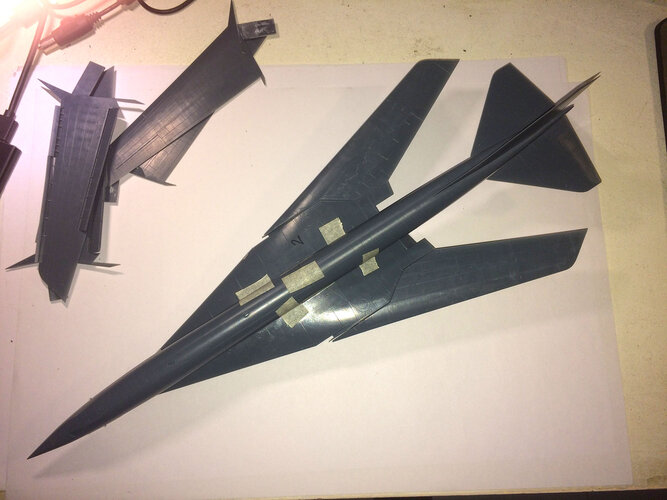

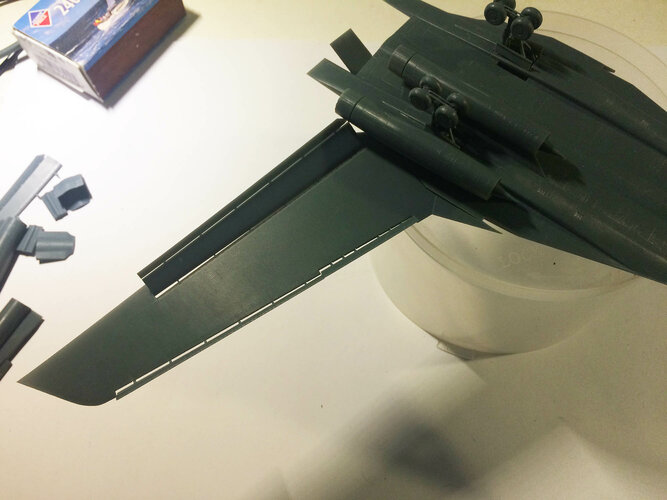

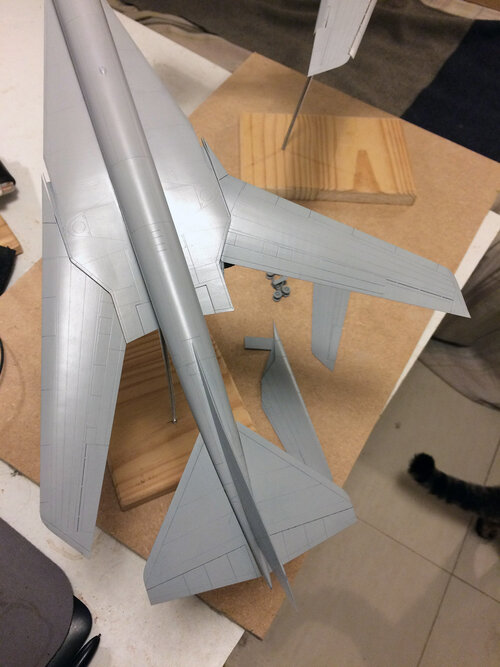

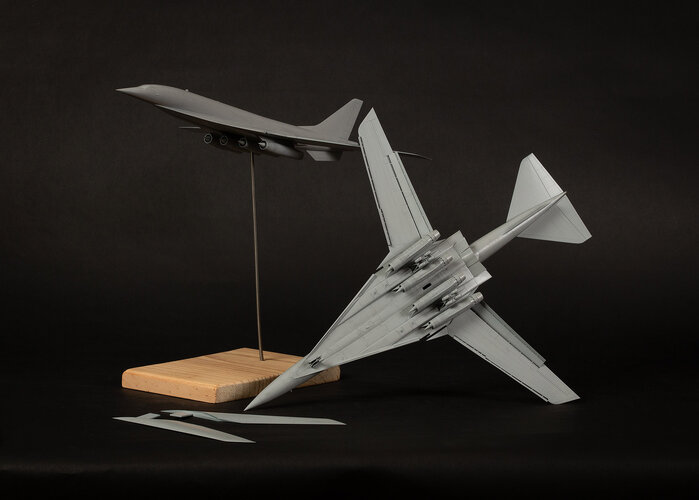

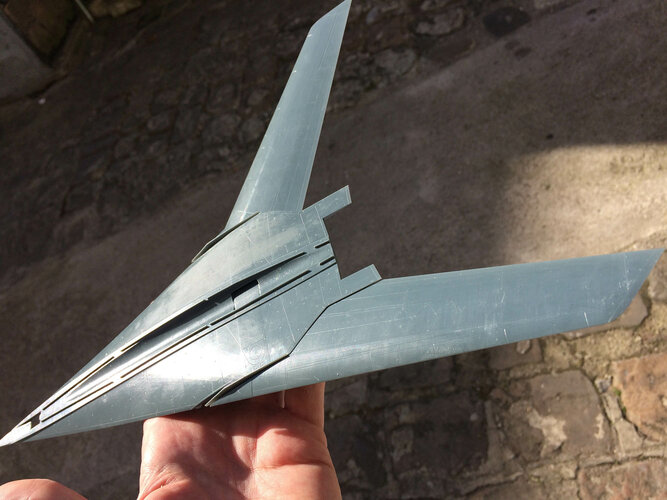

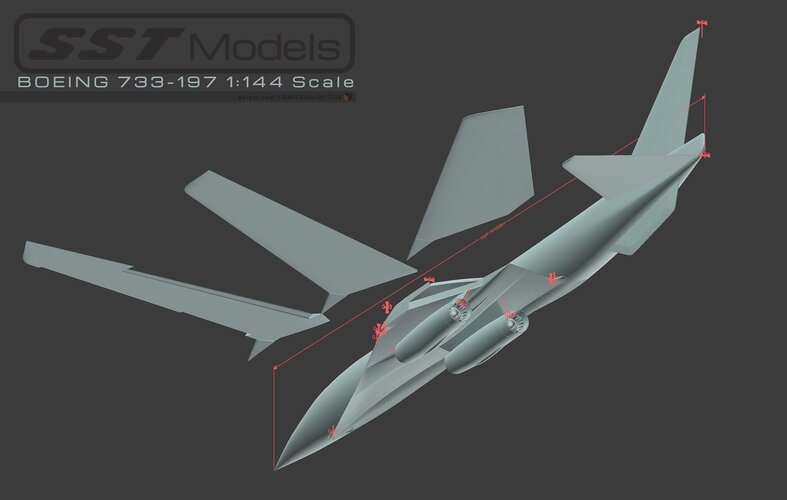

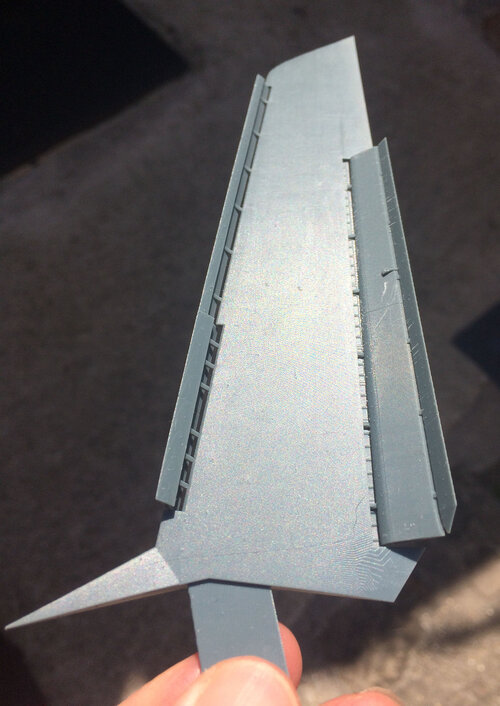

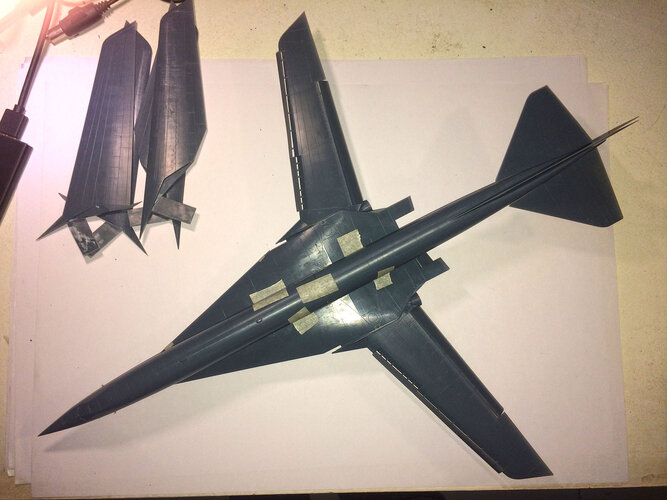

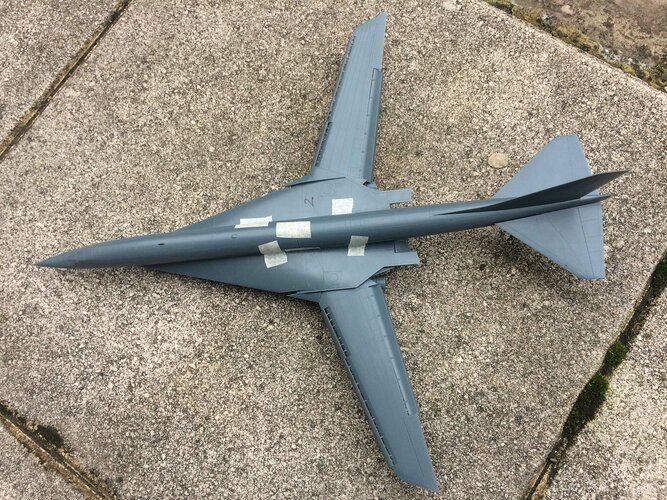

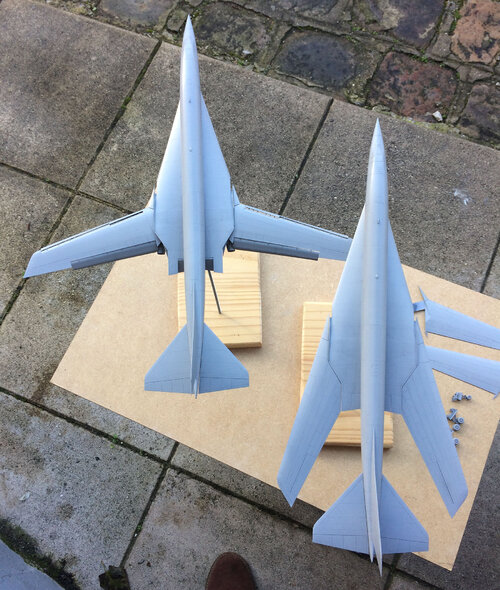

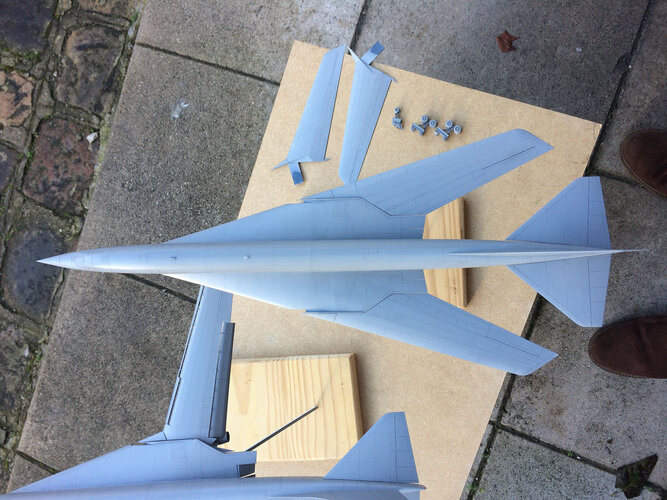

Wings will not be moveable. But there will be 3 sets, 74°, 40° and 20 all out, to be inserted in wing root. That printed wing is the first test, slats and flaps are separate pieces, turned out ok. Only some goof on the flaps underside, have to try another printing angle.
Still lot of work.



[galgot]

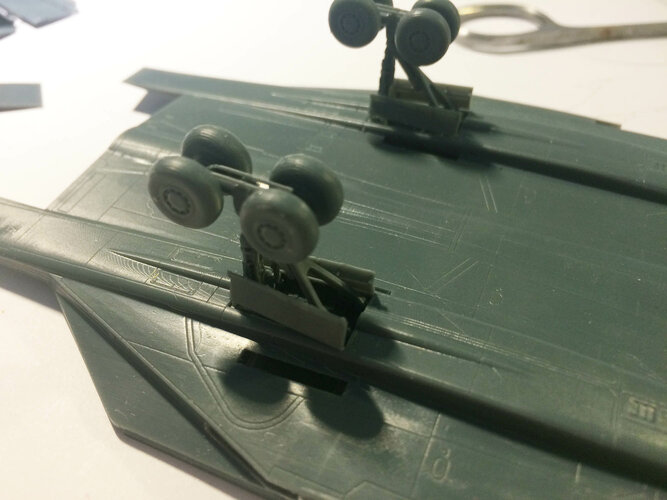

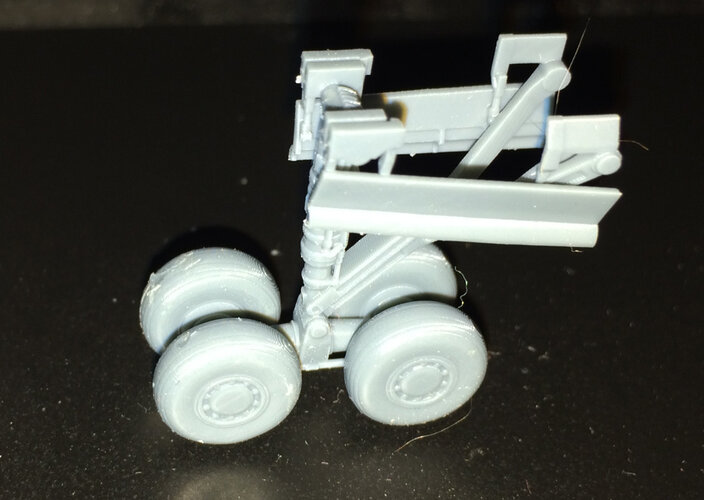

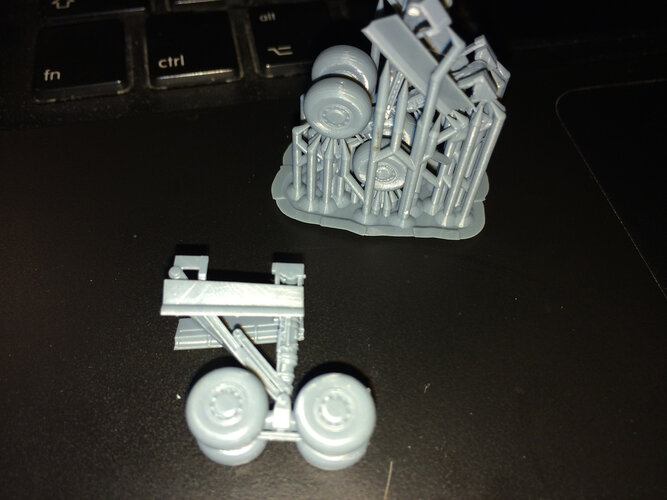

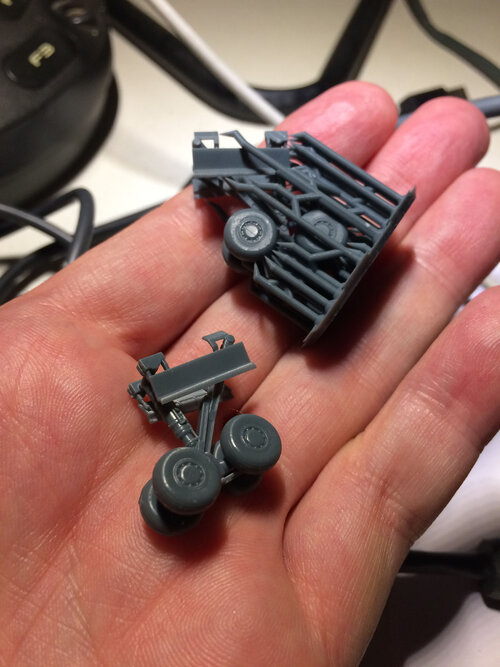

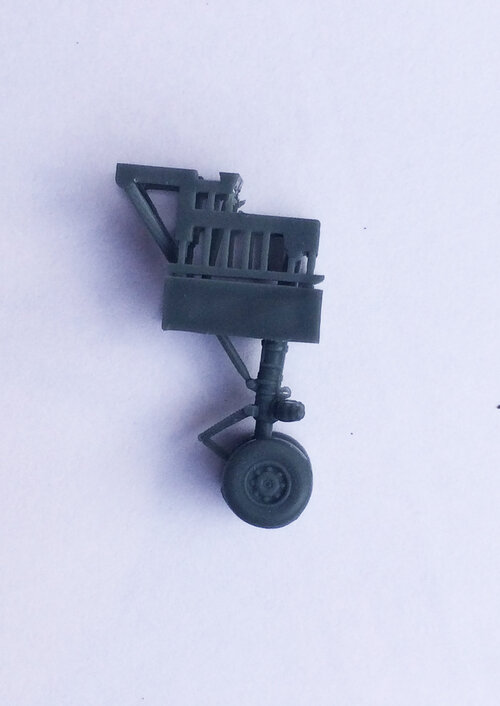

Main landing gear test prints.

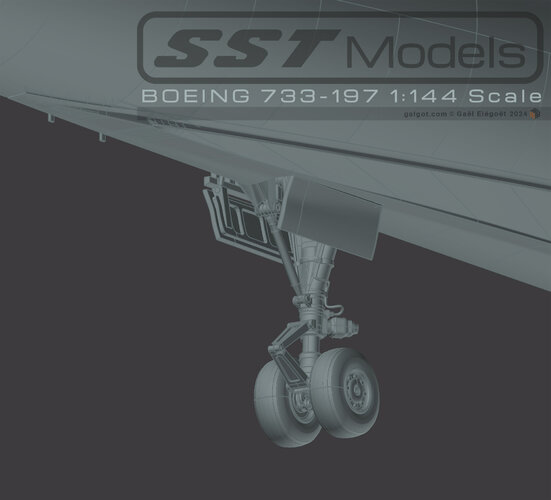

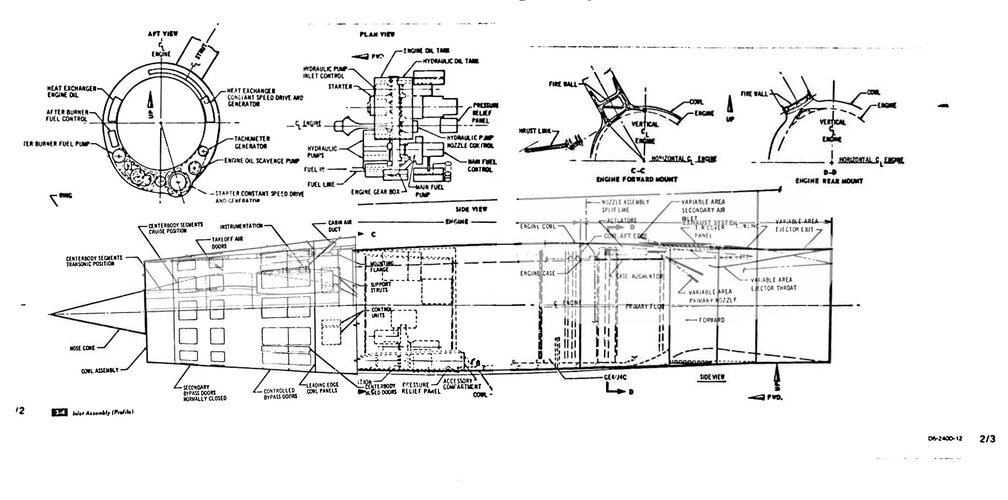

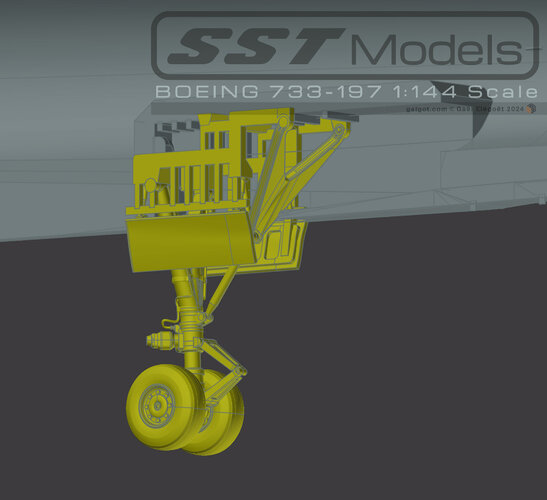

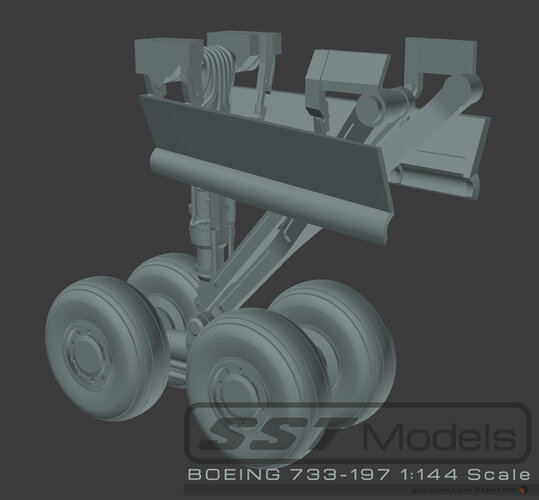

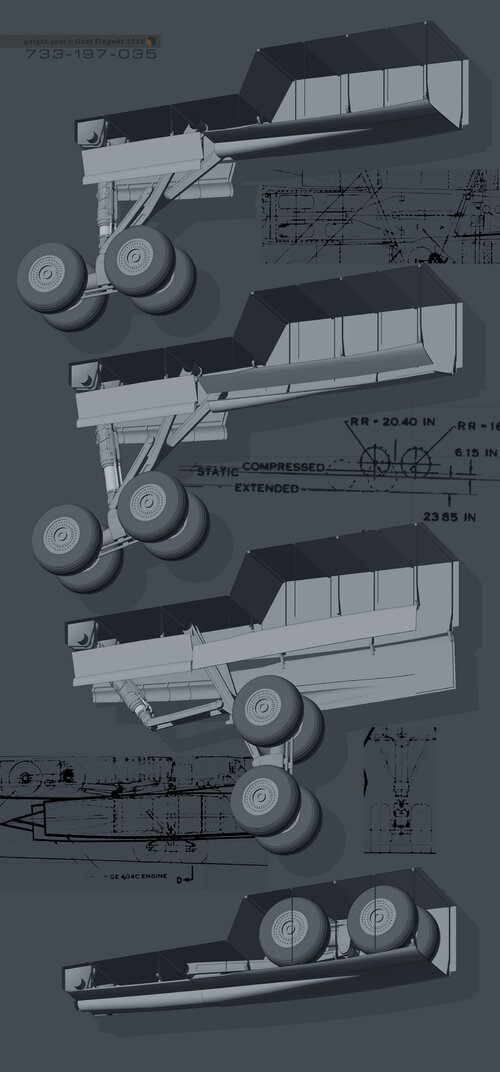

This is my interpretation of how MLG retracts & extends, following the well known Boeing cutaway sideview and plan.
Some details added are fake of course, this to give the impression of something real and functional.

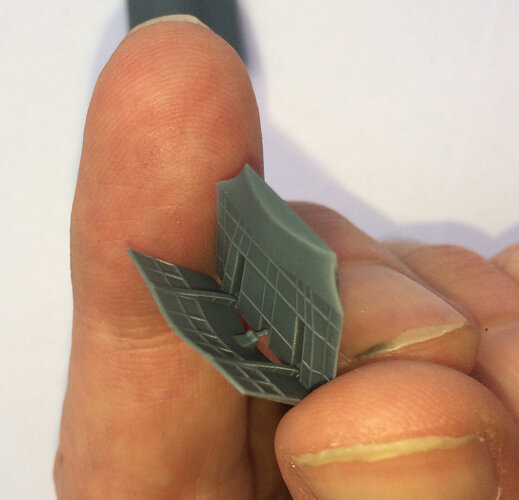

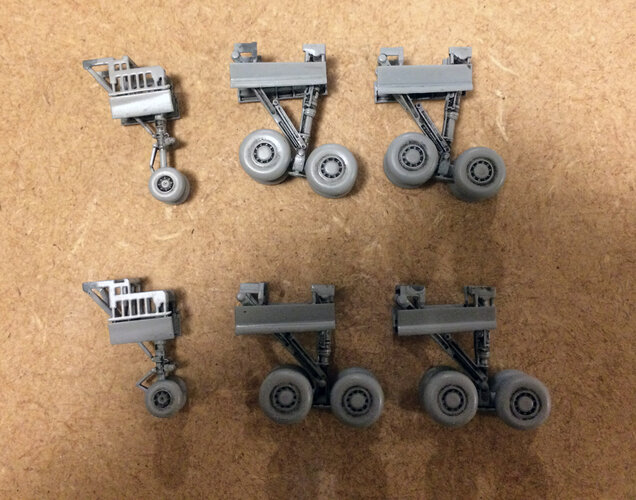

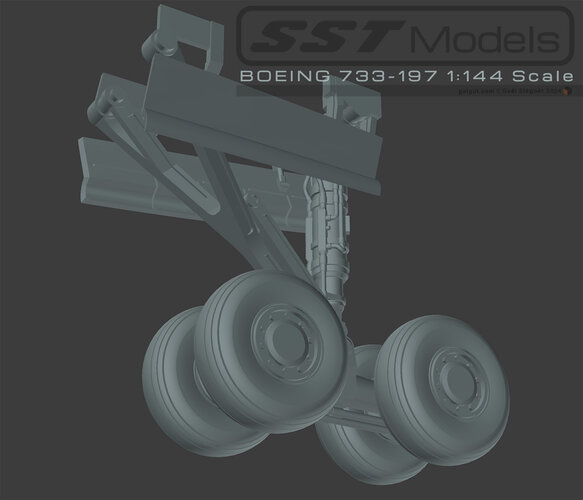

Then here is the model done for printing, some parts had to be thickened, but it turned Ok.




Cheers.



[galgot]

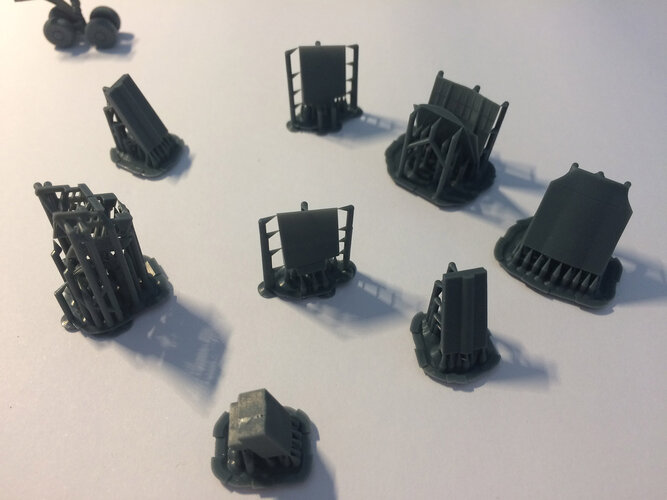

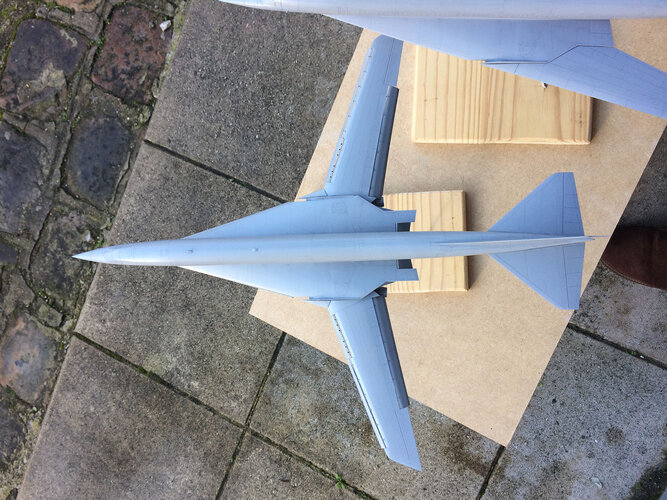

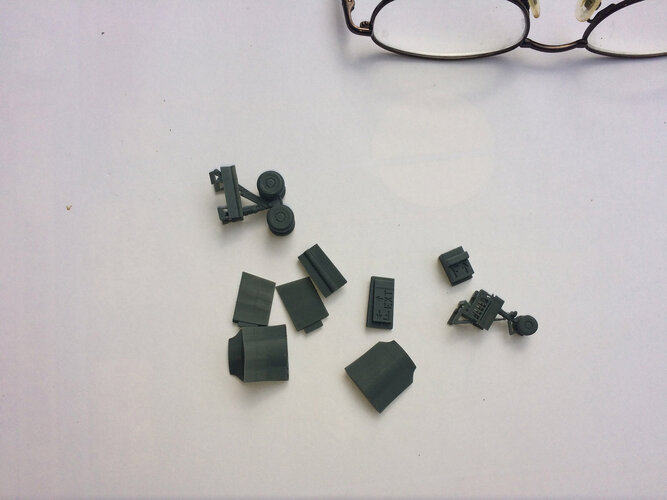

Printed more thingies.

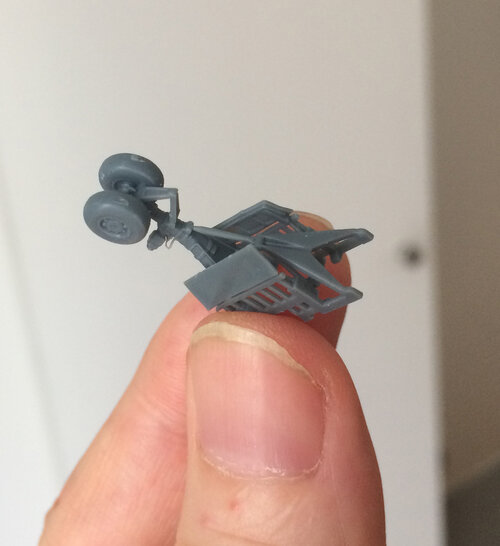

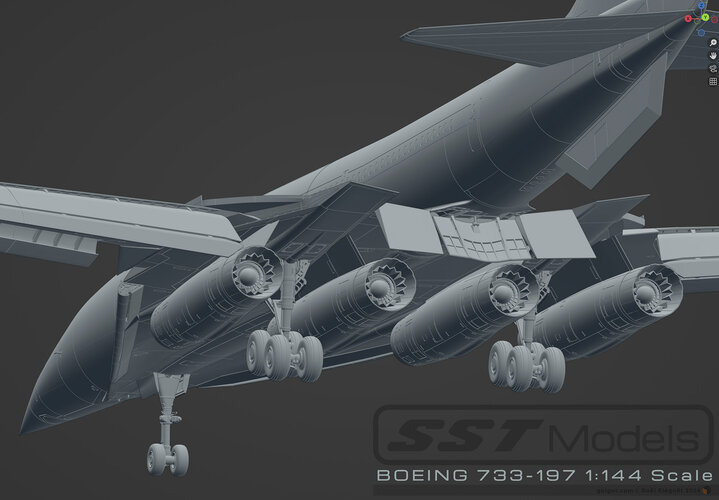

Nose gear is done :

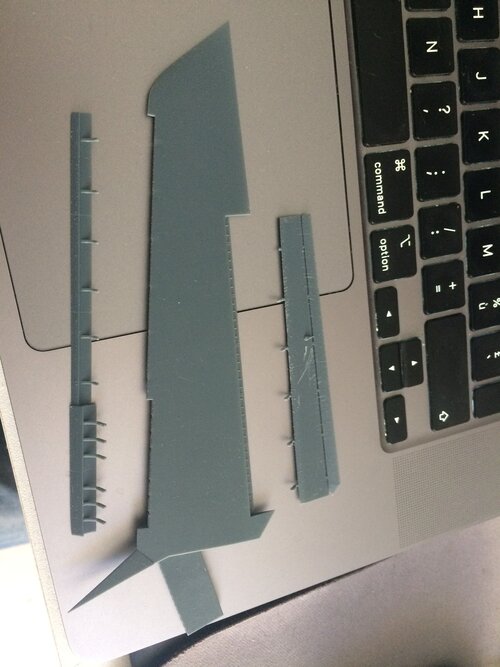

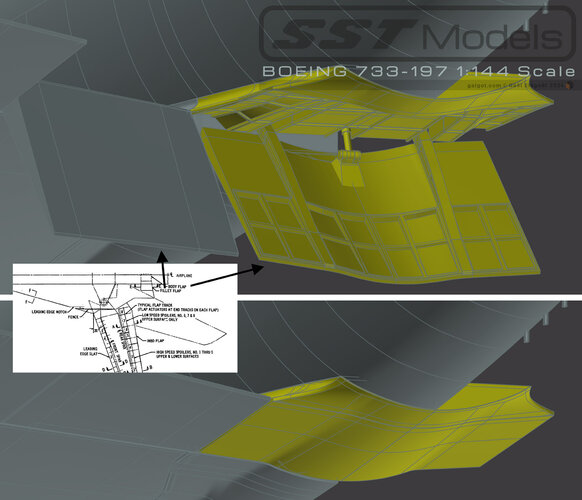

as well as the Body flap and Filet flaps, both in up and down conf.

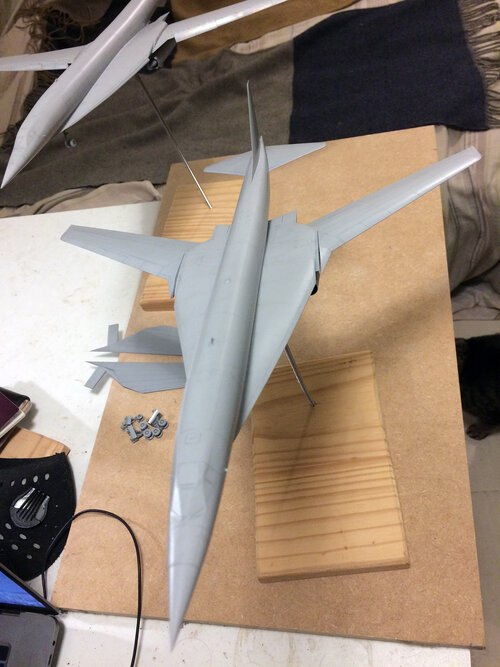

And other stuff, closed doors.. ect.

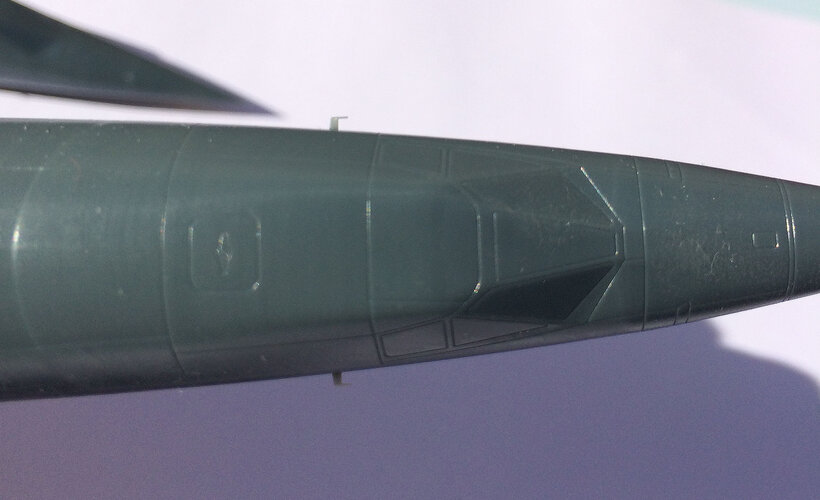

Now will start detailing the big part surface details, with line structures.



[Manuducati]

I was hoping for a Tomcat ST-21 with the improved and enlarged leading and trailing edges for a few seconds.

But awesome work nonetheless!



[galgot]

I was hoping for a Tomcat ST-21 with the improved and enlarged leading and trailing edges for a few seconds.

But awesome work nonetheless!

Ah, sorry to disappoint. I am a bit SST obsessed.

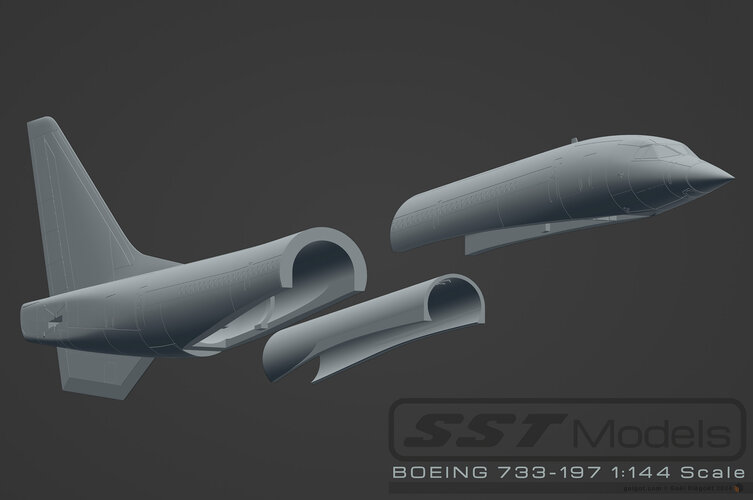

I had that 733-197, and I procrastinated when it came to texturing it. So decided to turn it "printable" for something new to do.
Turns out it's almost as much work as redoing the all thing.



[galgot]

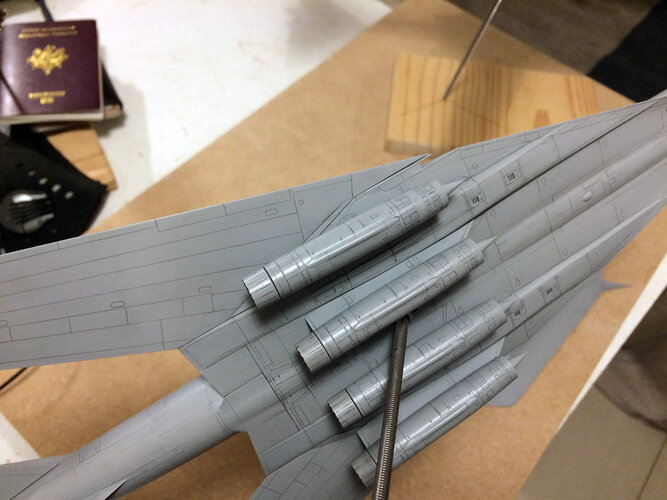

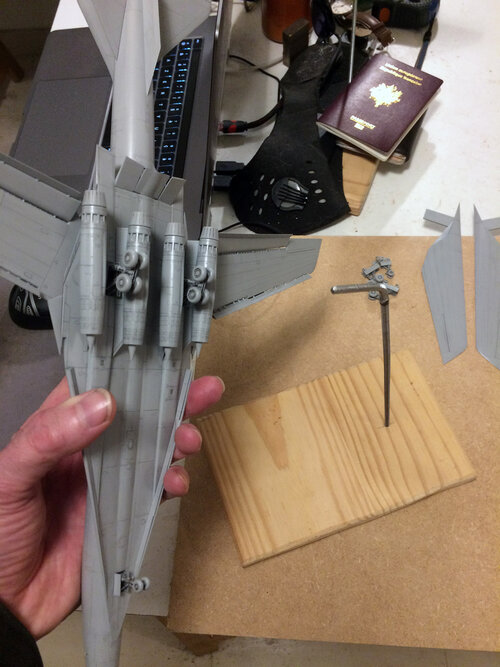

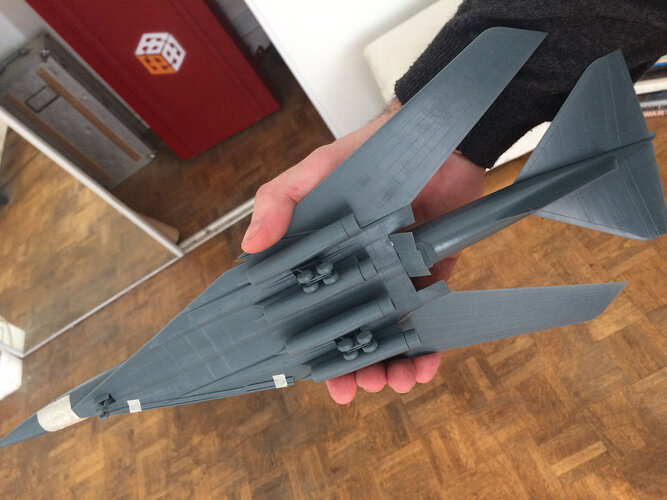

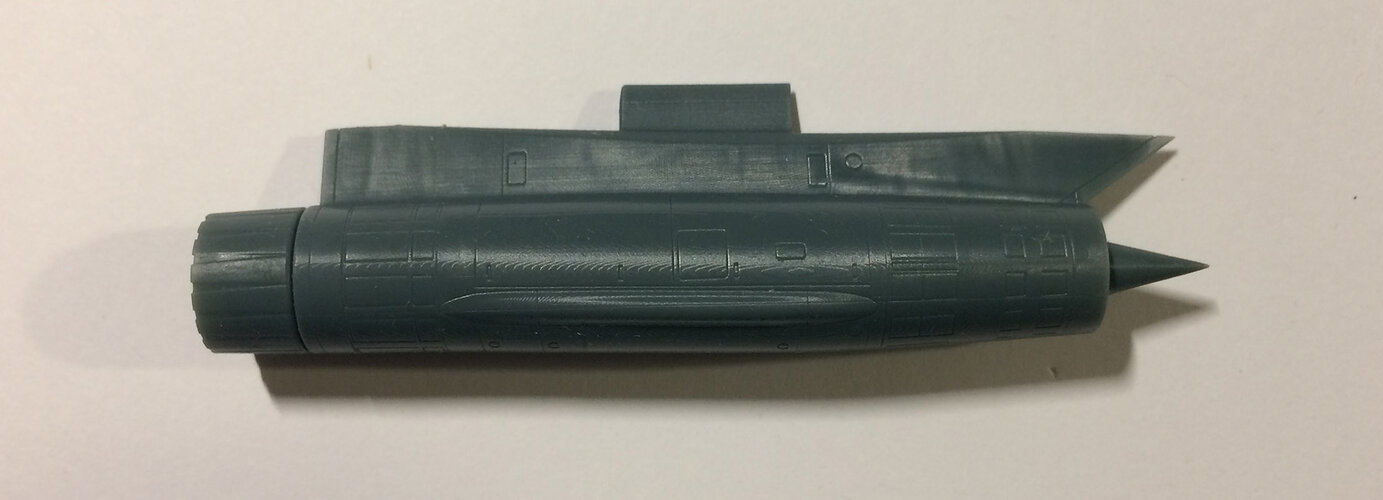

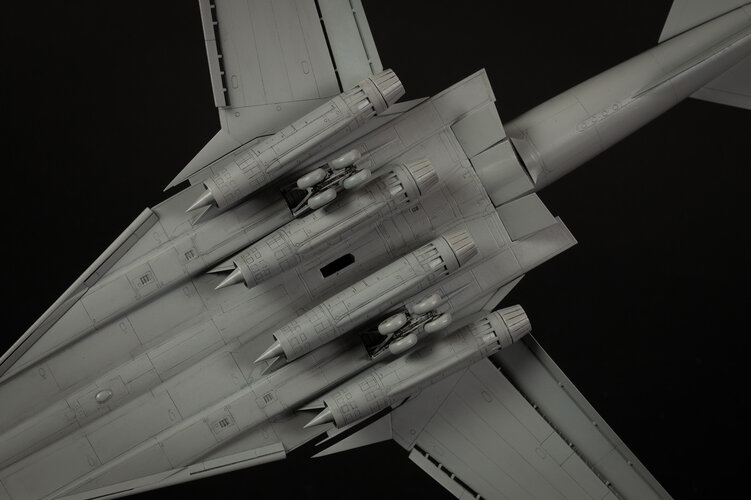

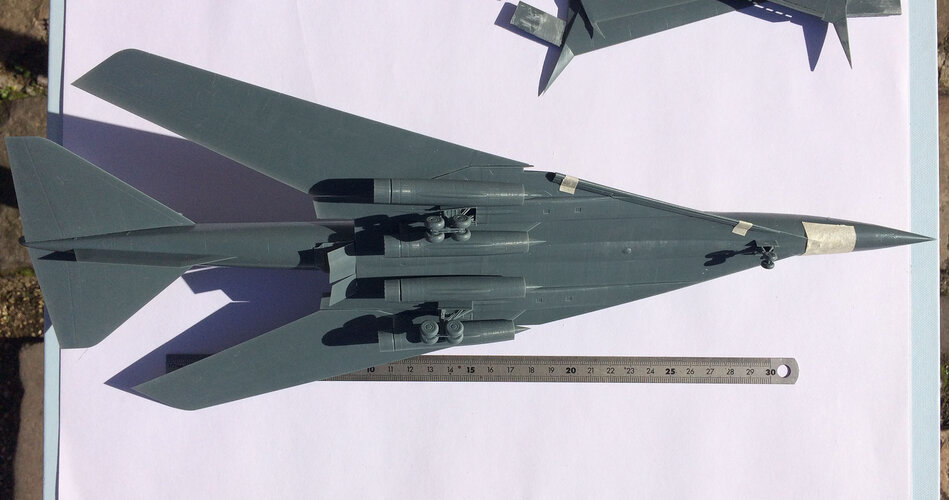

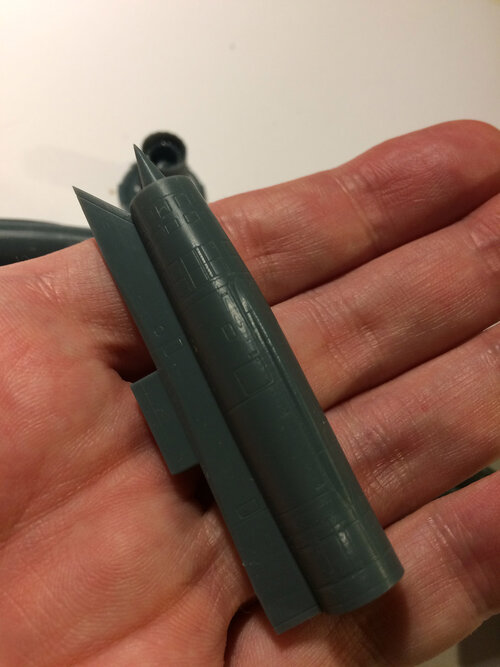

Some engines.

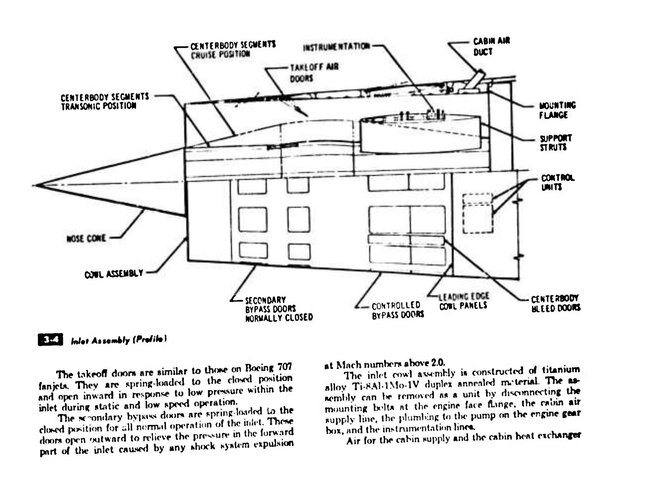

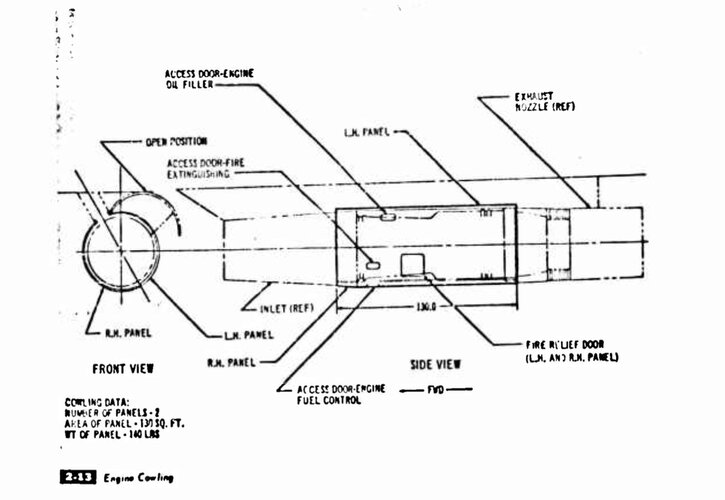

Fortunately there are few images showing how panels doors and others details could have been on the real thing :

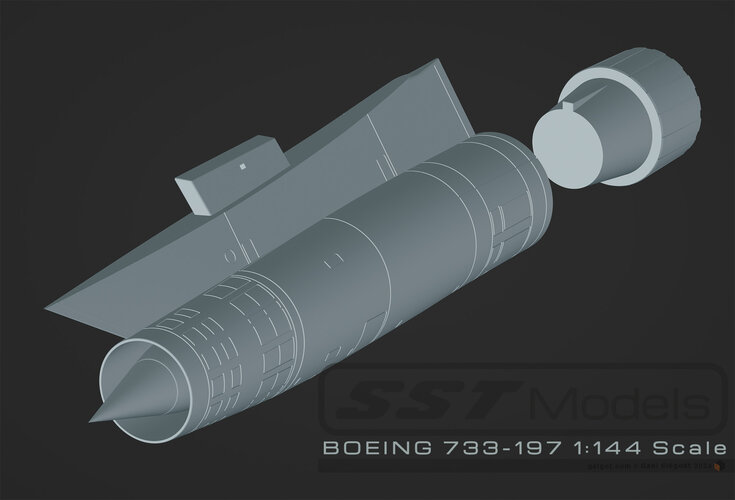

So it came up like this :

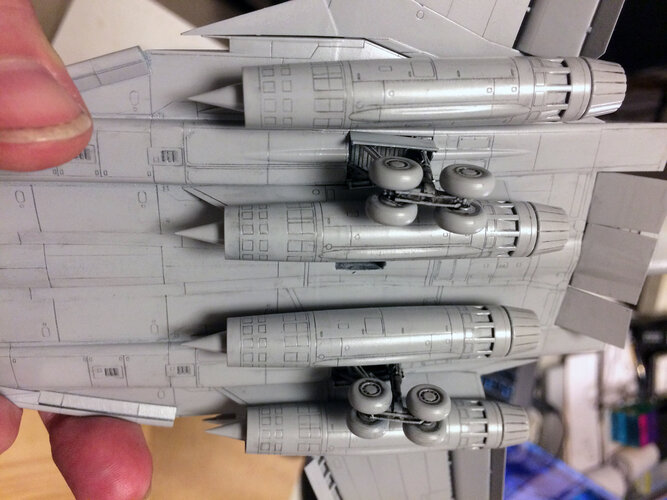

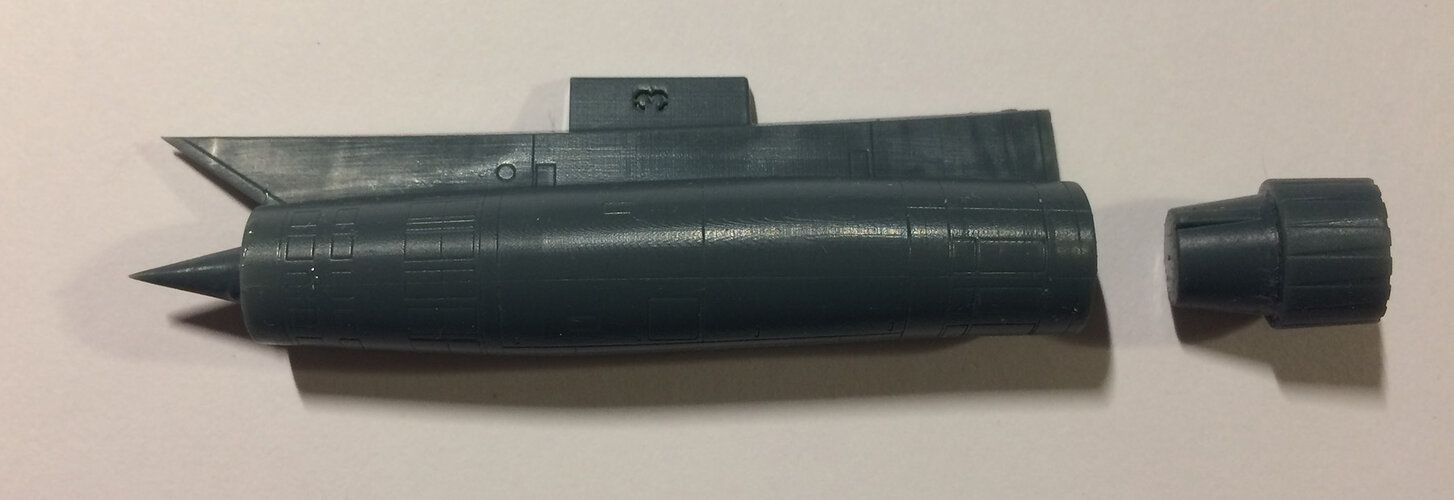

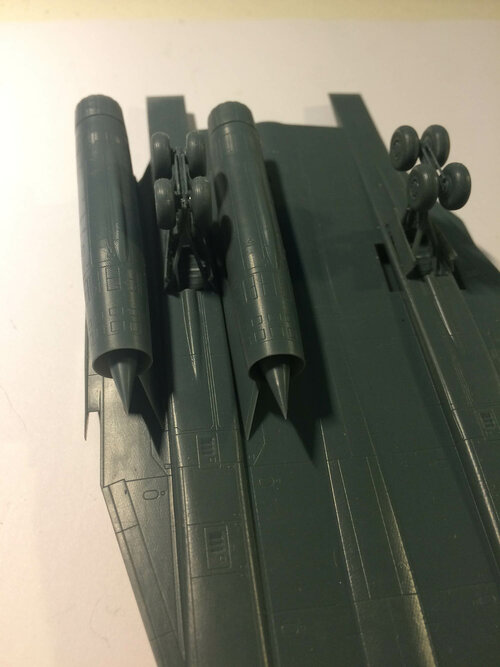

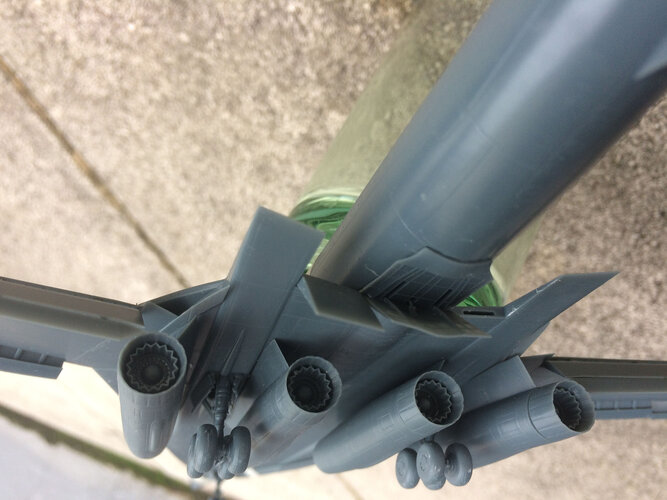

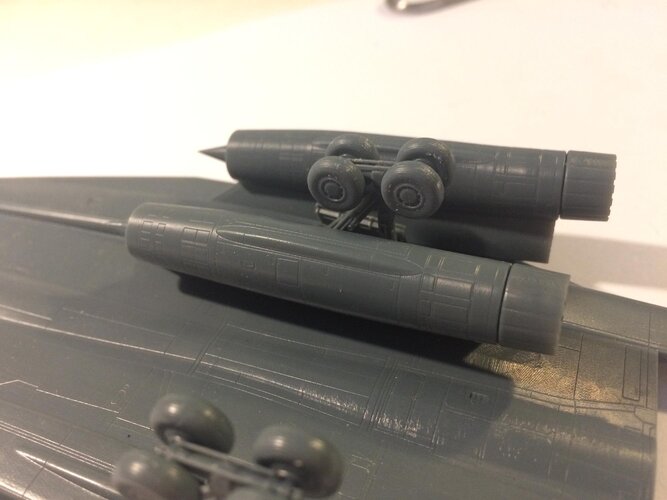

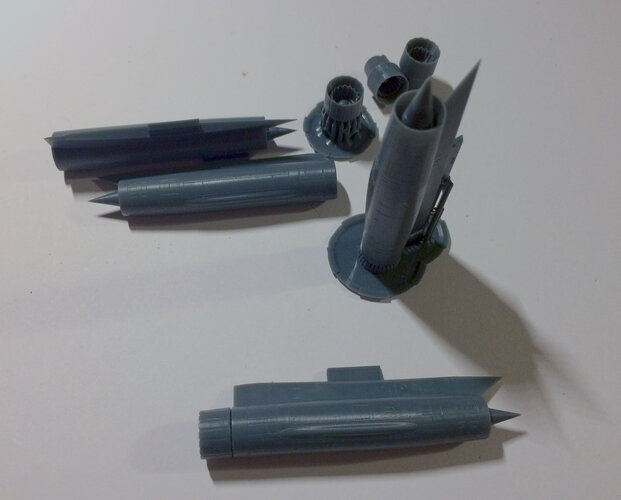

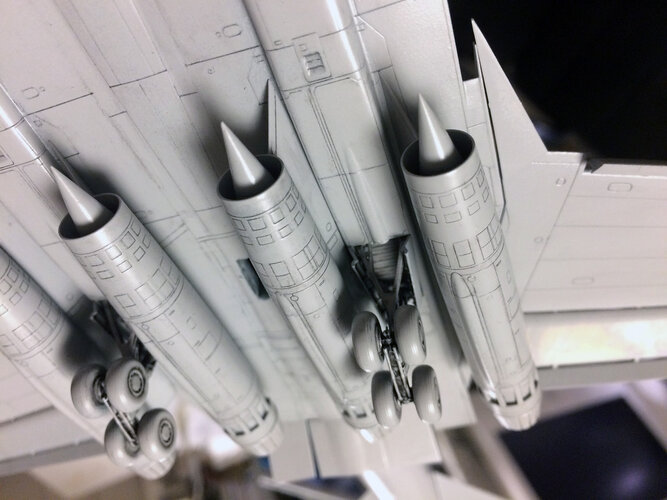

Printed :

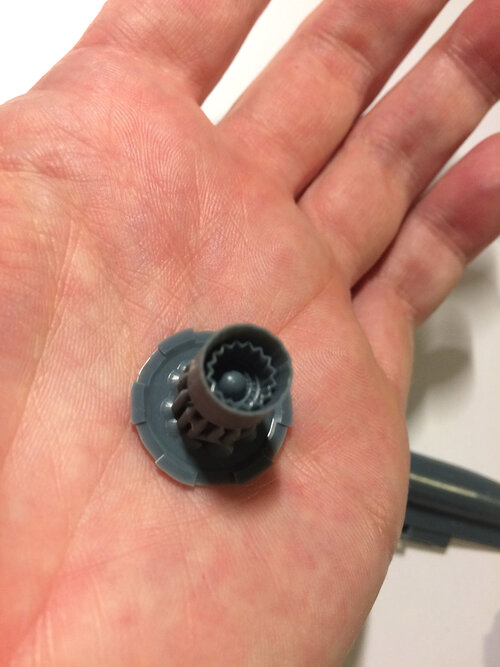

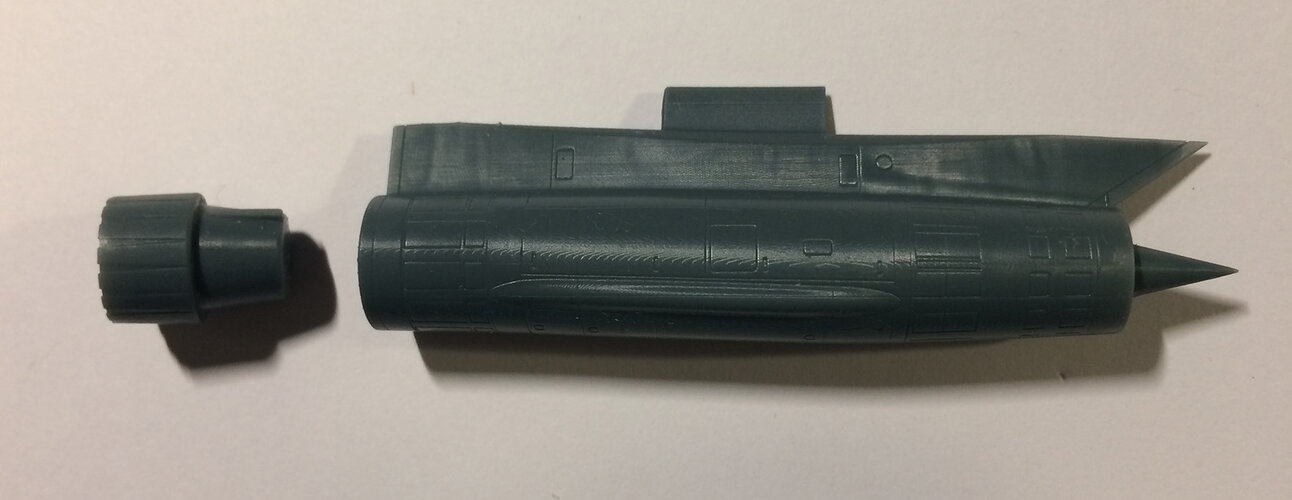

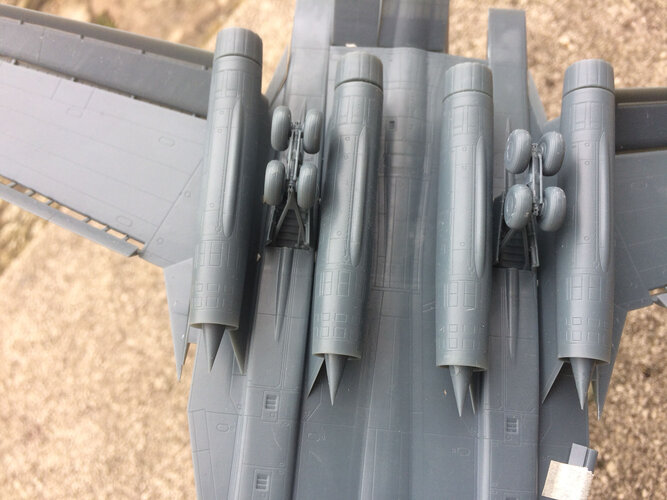

Very simplified details in the GE-4 nozzle.

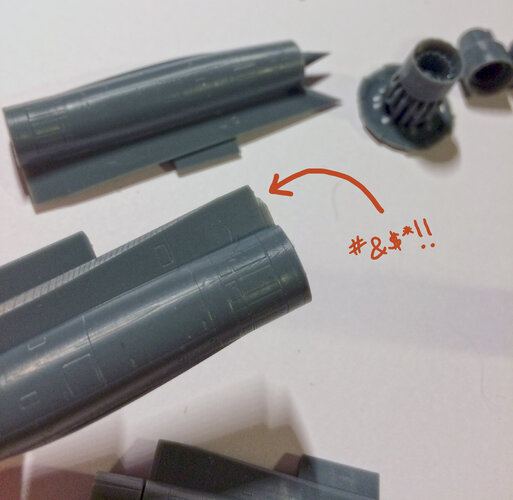

Printing all fine, then just when I had finished, engine Nmr 2 slipped of my hand, and fell on the hard kitchen floor... Hé merd...


Will have to reprint that one.



[galgot]

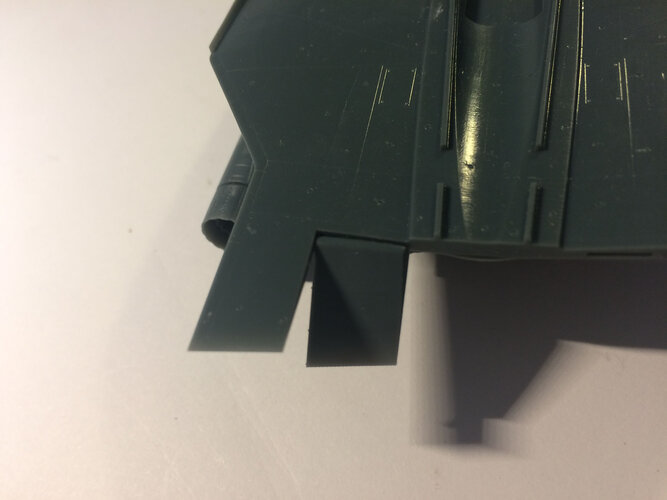

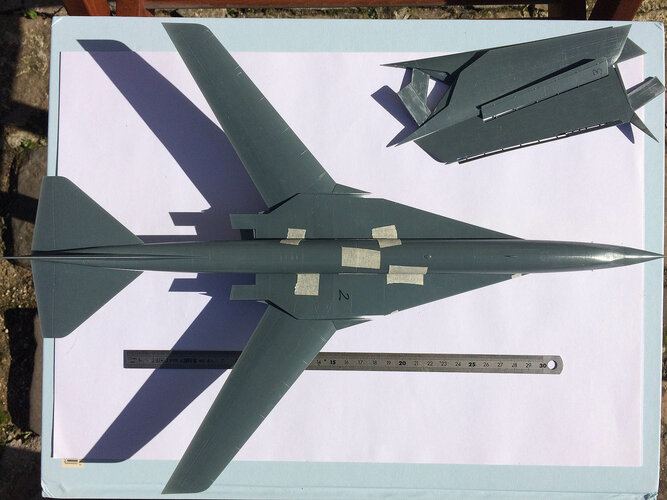

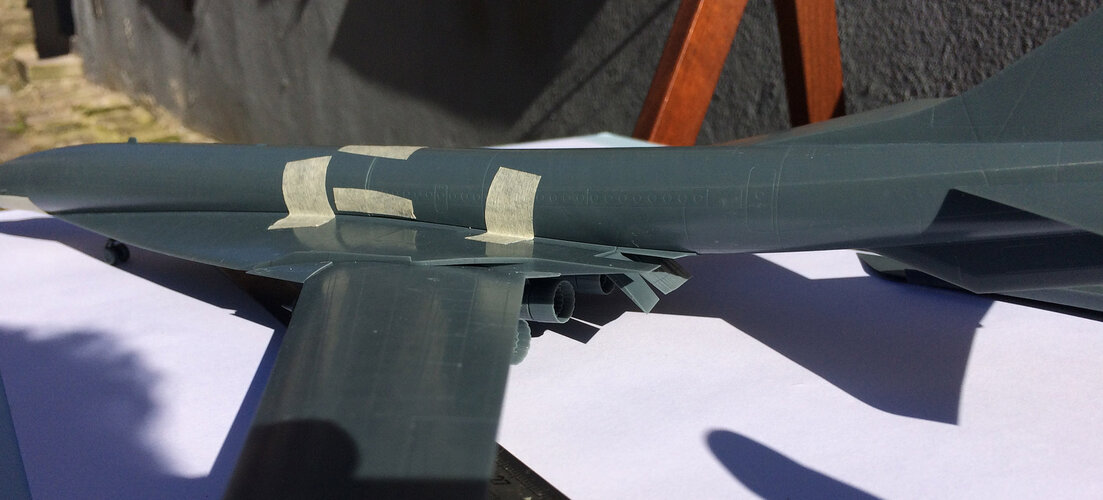

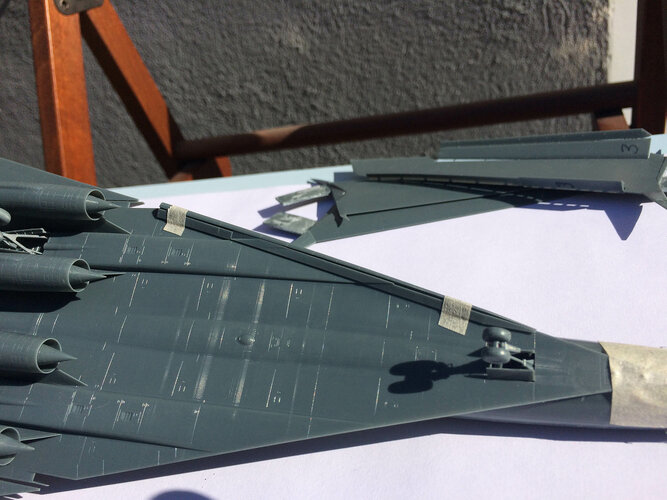

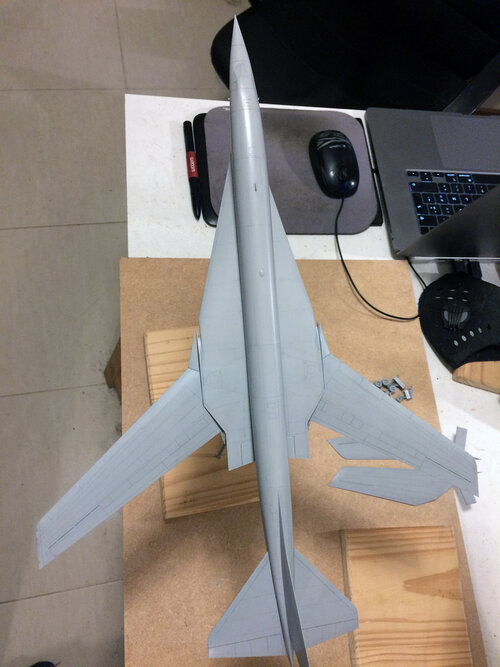

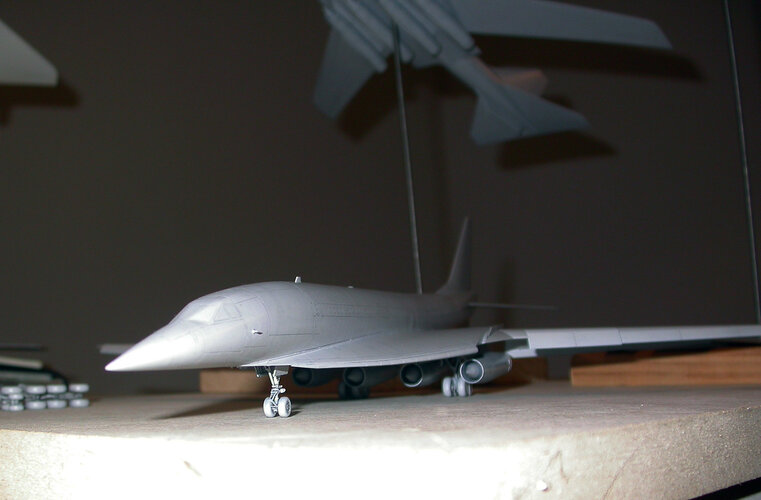

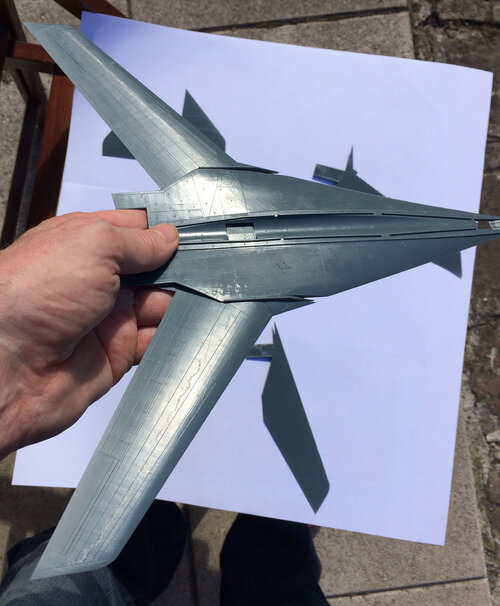

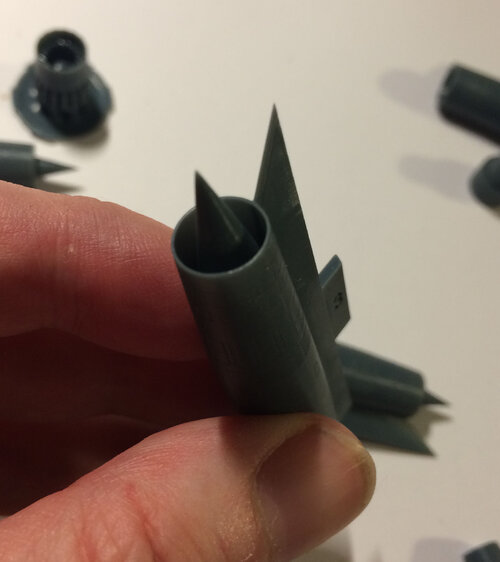

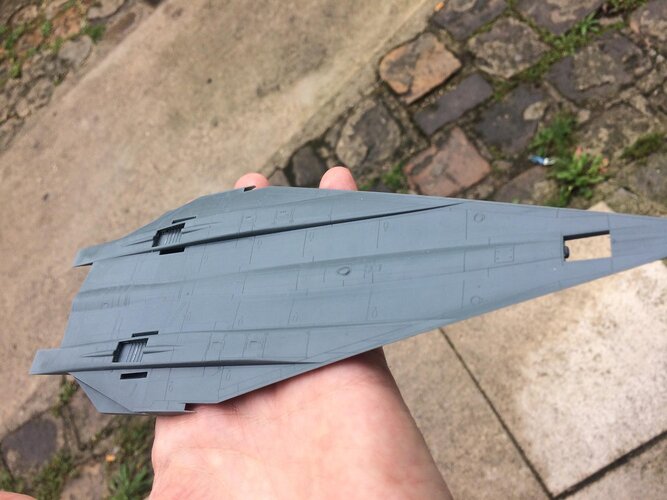

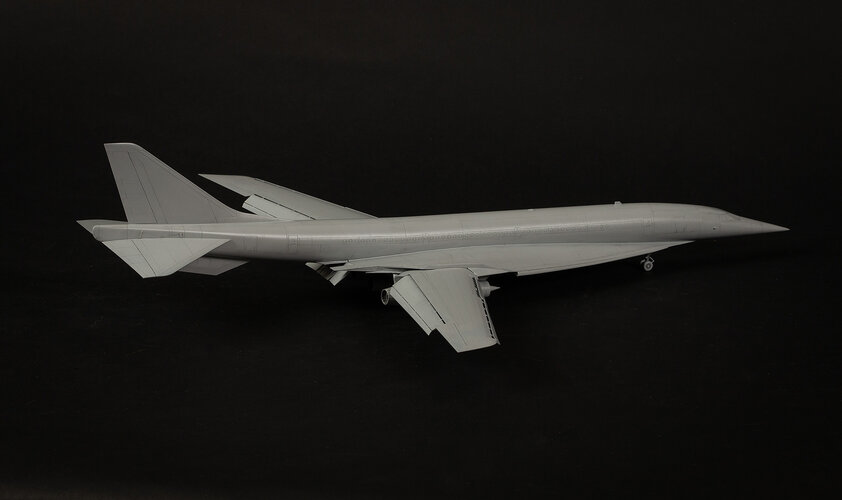

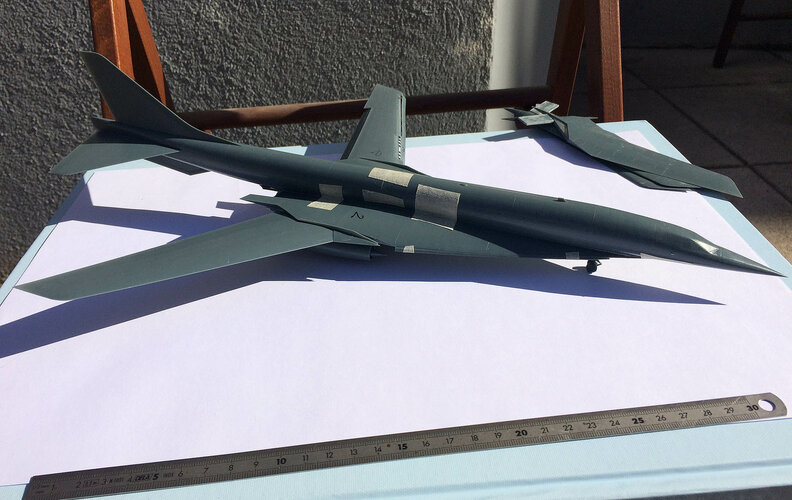

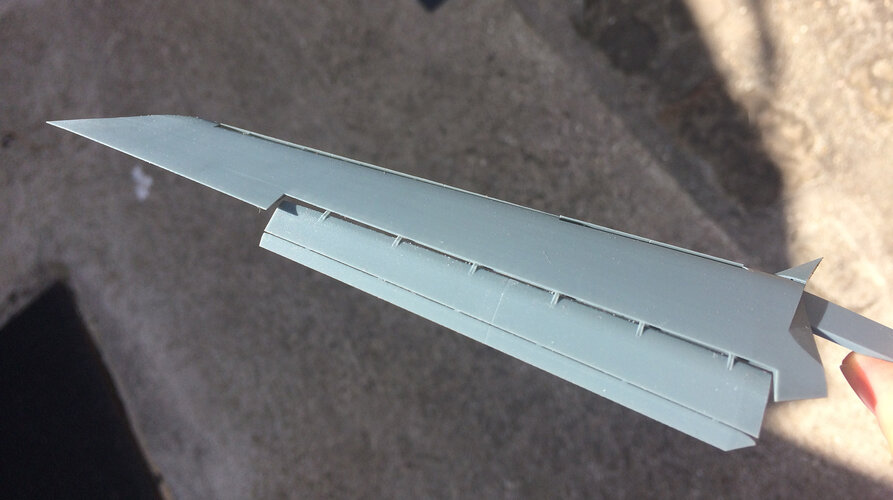

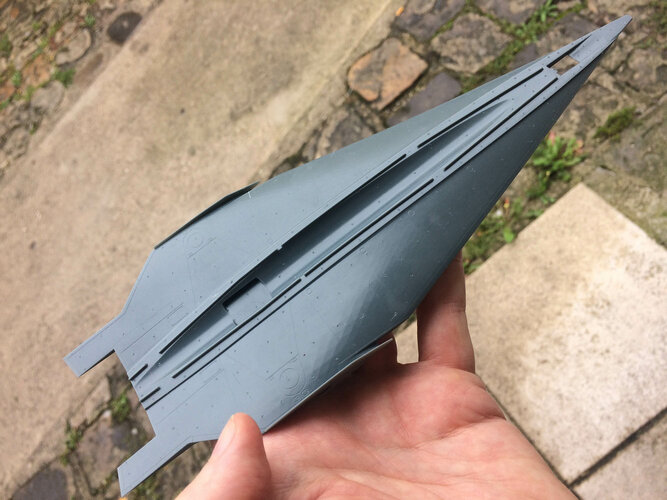

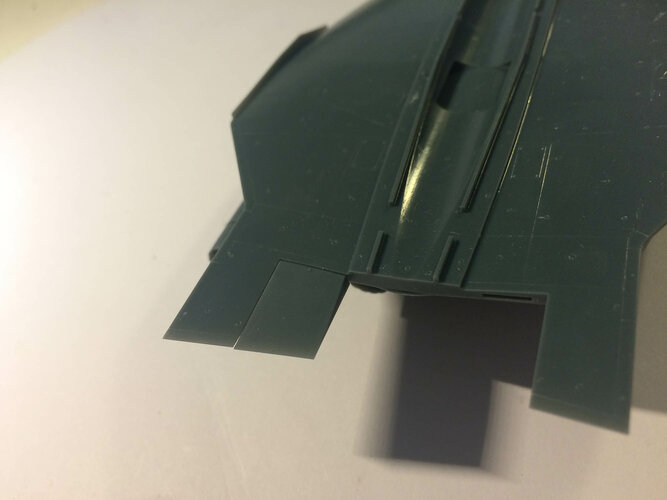

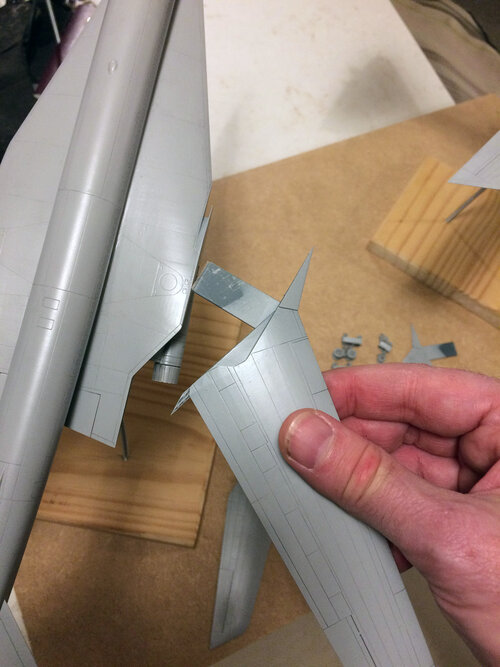

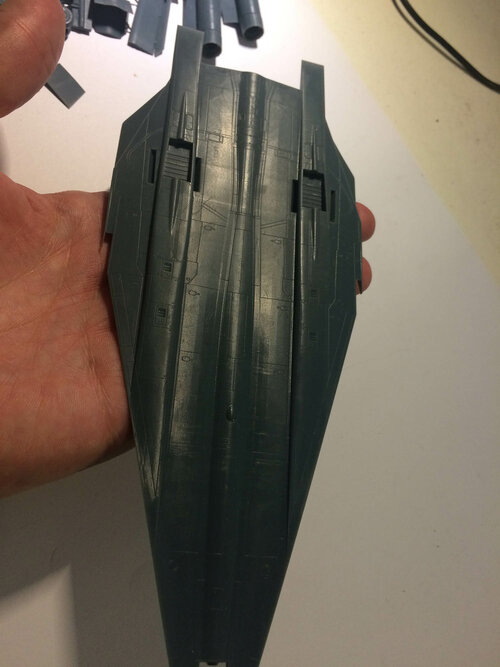

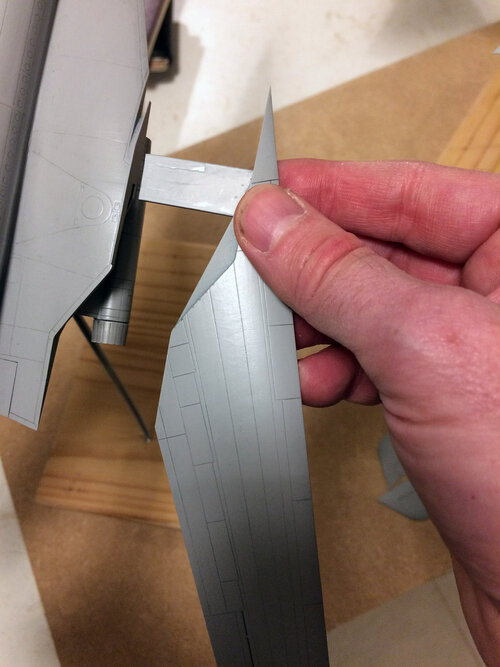

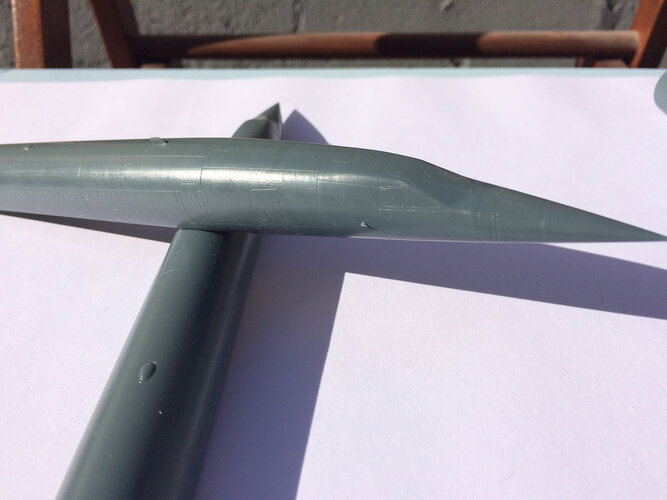

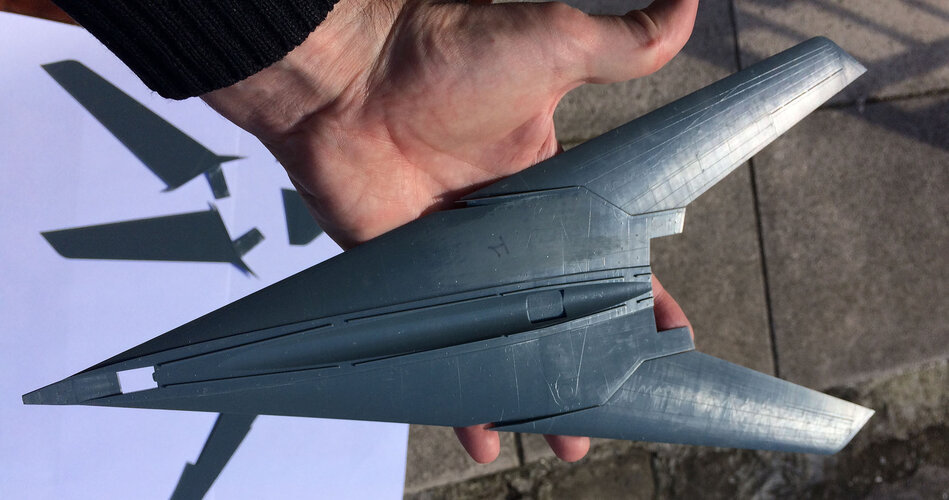

Some progress. Finished and printed the wing center section :

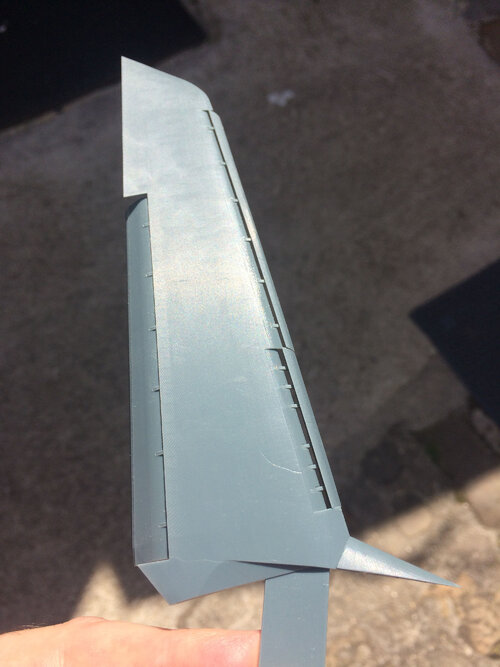

Still, too many supports "scars" on the upper side, will have to fix that for the next print.
