SNCASO (Sud-Ouest) SO.9000 « Trident »

[hesham]

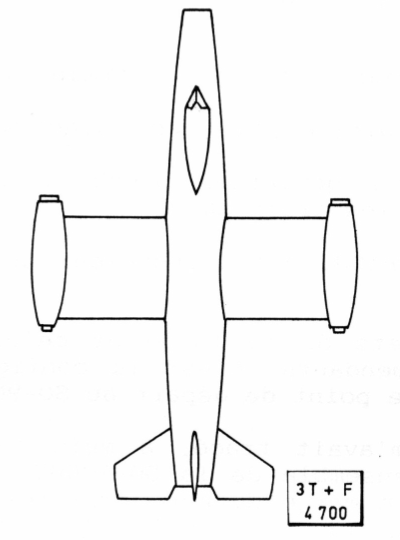

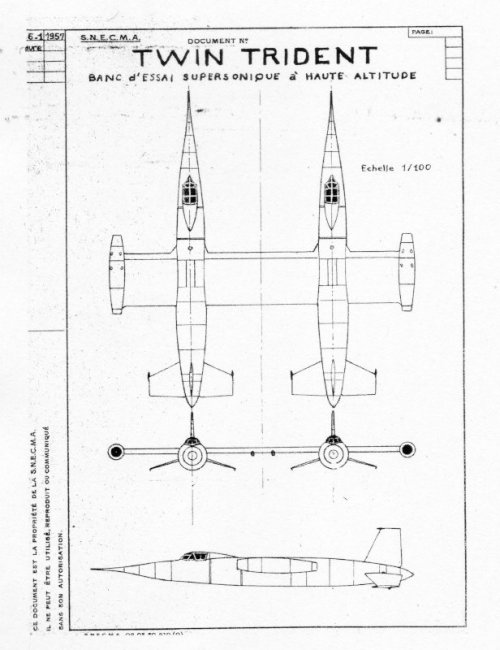

From TU 149,the patents which led to develop SNACSO SO.9000.

I prefer to divide them into 8 pieces.



[PhR]

I prefer to divide them into 8 pieces.

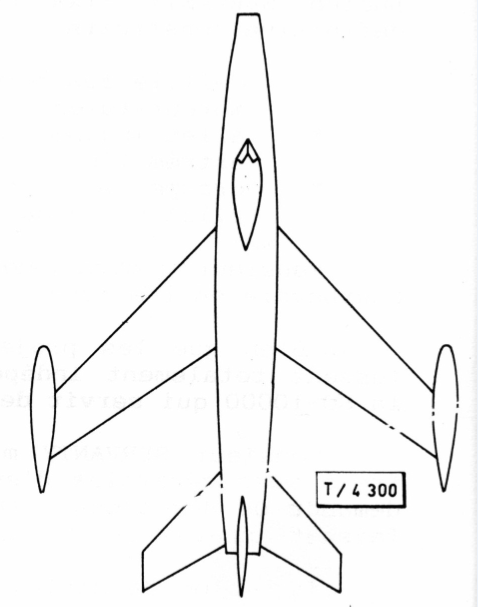

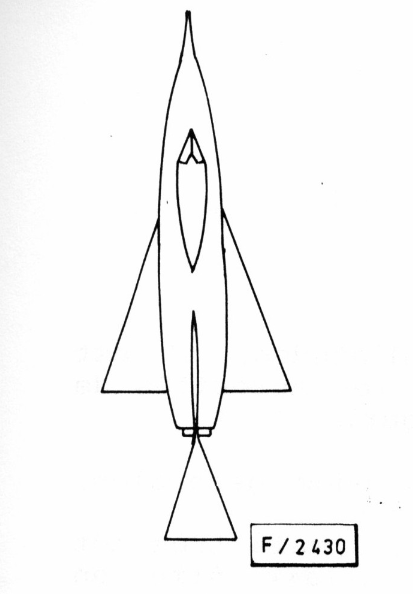

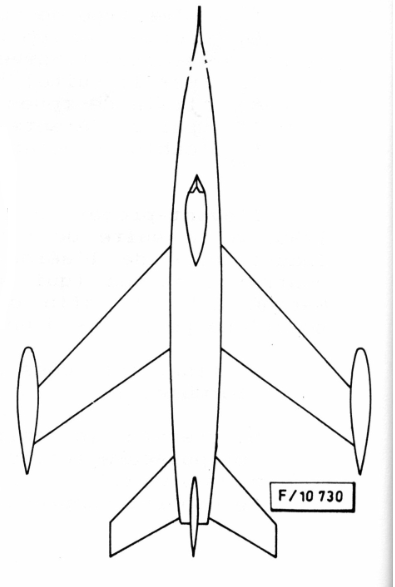

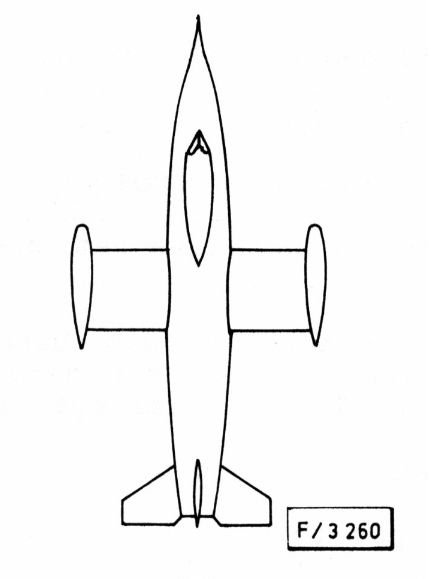

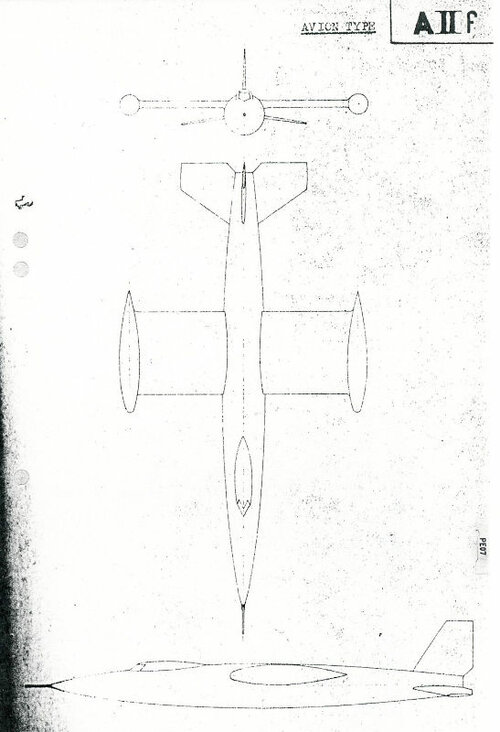

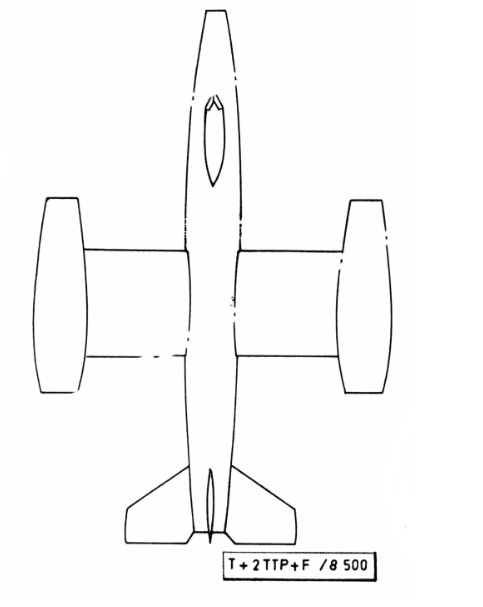

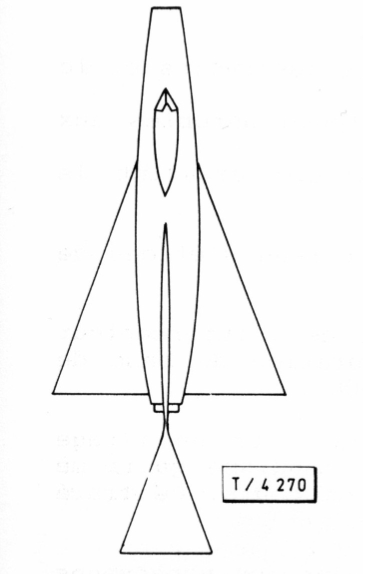

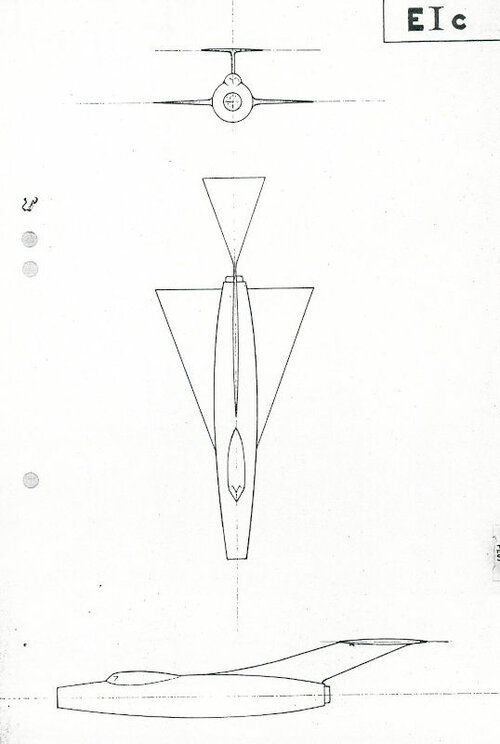

These drawings are part of a classification established by Lucien Servanty that allows 30 combinations: 5 types of airframes with 6 types of engines.
Airframes:
- Type A: rectangular wing.
- Type B: moderate swept wing.
- Type C: steeply angled wing.
- Type D: Delta wing with 45° angle.
- Type E: Delta wing with 70° angle.

Engines:
- Type I: turbojet with afterburner
- Type II: rocket
- Type III: turbojet with afterburner + ramjet
- Type IV: turbojet with afterburner + rocket
- Type V: ramjet + rocket.
- Type VI: turbojet with afterburner + ramjet + rocket.

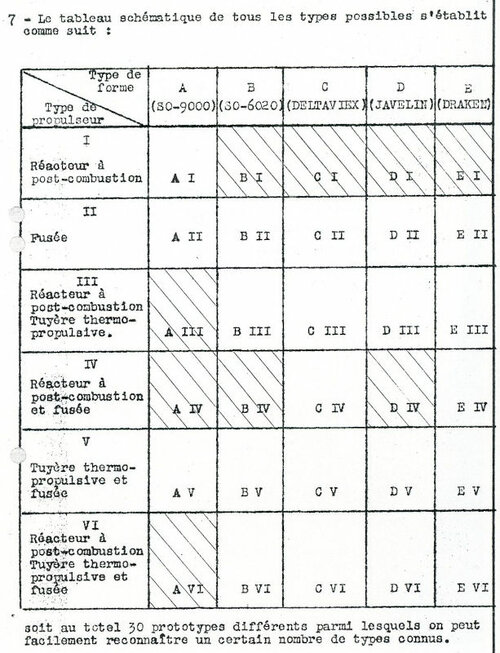

I attach the complete table, with some other examples.
