My dear Petrus,

I will send to you a private message.

My dear Petrus,

I will send to you a private message.
My dear Hesham, don't hesitate to post the info on the forum. I am sure that there are others who are interested in it.

OK my dear Petrus,and excuse me my dear Paul MM,

I will only send the info.


Attachments

  • 3.png
    93.5 KB · Views: 328
  • 4.png
    28.8 KB · Views: 133
  • 5.png
    79.2 KB · Views: 164
On 26 September 1949, M1 performed first free-flight, launched from a SNCASE Languedoc.
Terrific wee clip Blackkite, and note that in the video the carrier aircraft in use is no longer the Languedoc, but the Heinkel He 274, or AAS 01.

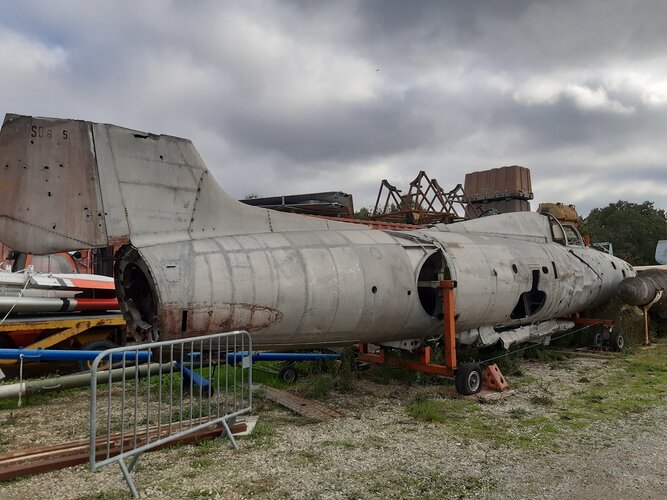

It is not a 6025. The 6025 had an additional rocket behind the air scoop.

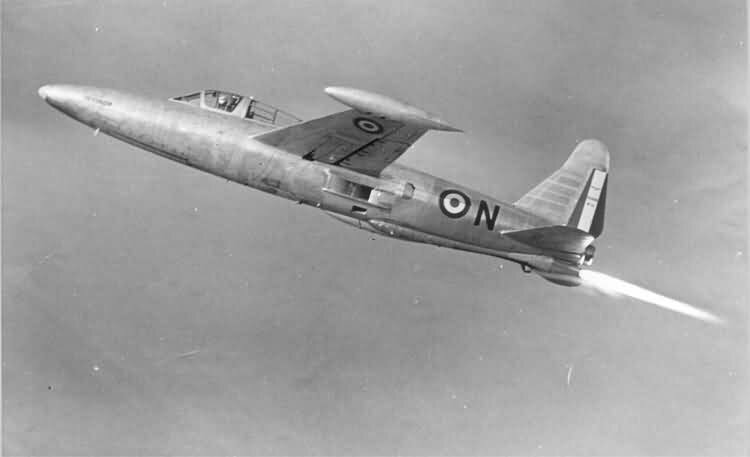

The one in the picture is the Espadon that tested the SEPR rocket motor, the third prototype. I read that it was the first French jet to exceed the speed of sound, is this the case and if so, when exactly did it do this? I believe the SEPR motors were quite volatile owing to their unique propellant/oxidiser, furaline and nitric acid, which tended to eat away at the surrounding airframe.

According to Cuny, this 3rd proto 6025 passed Mach 1 in horizontal flight on 1953-12-15.

Yes the corrosive propertities of the SEPR fuels and exhaust are surely why their tanks were moved to wingtips and the rocket to the taill on the next iteration, when the 2nd 6020 was rebuilt as 6026.
Sncaso SO-6026 Espadon 02.jpg

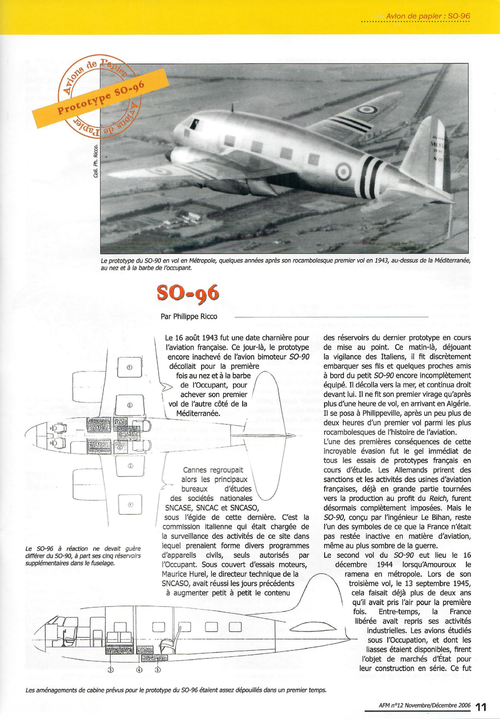

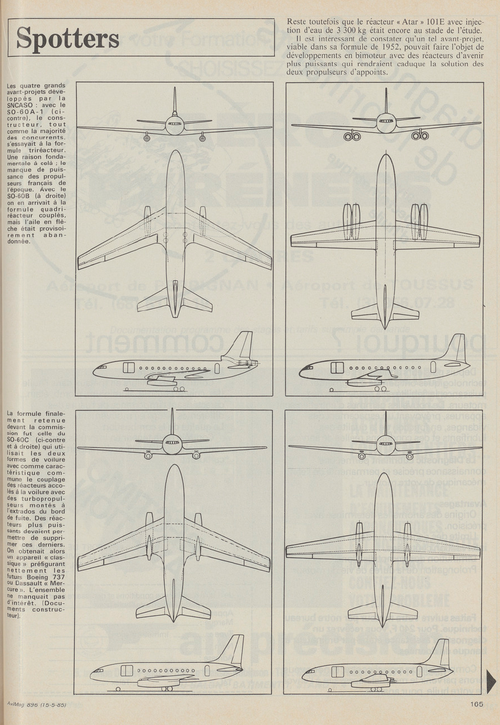

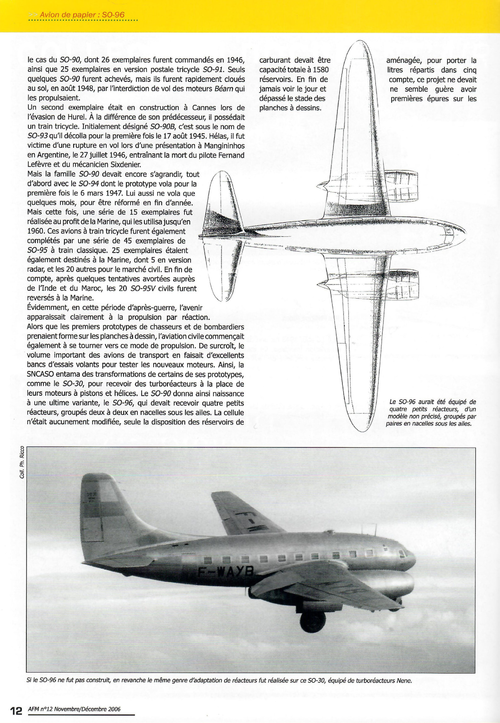

The SO.96 was described in the last issue of the AFM (no, not Airforces Monthly,
but Aviation Francais Magazine ). It was a project for a jet powered version of the
SO.90 with four unspecified jet engines.
The Whole article from the same source,as my dear Jemiba mentioned,
it's AFM12.


Attachments

  • 1.png
    3.4 MB · Views: 177
  • 2.png
    4.2 MB · Views: 172

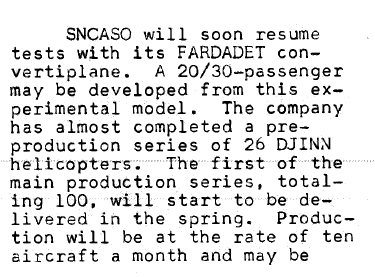

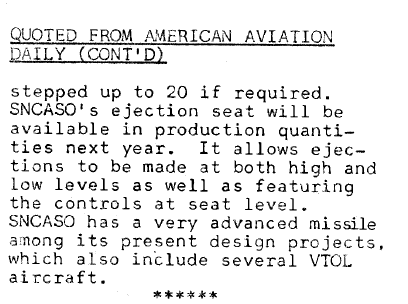

From Vertiflite 1956-1,

here is a small article,speaks about a 20/30 passenger Project
version of SO.1310,it was definitely SO.1340,and also they
mentioned the company had a several VTOL aircraft Projects ?!,
we know only SNCASO Dever !,can anyone explain that ?.


Attachments

  • 1.png
    23.9 KB · Views: 117
  • 2.png
    24.6 KB · Views: 129

Attachments

  • 1955 Aviation Magazine-20210428-067.jpg
    1955 Aviation Magazine-20210428-067.jpg
    378.5 KB · Views: 137
  • 1955 Aviation Magazine-20210428-070.jpg
    1955 Aviation Magazine-20210428-070.jpg
    1.8 MB · Views: 134
  • 1955 Aviation Magazine-20210428-001.jpg
    1955 Aviation Magazine-20210428-001.jpg
    94.5 KB · Views: 143

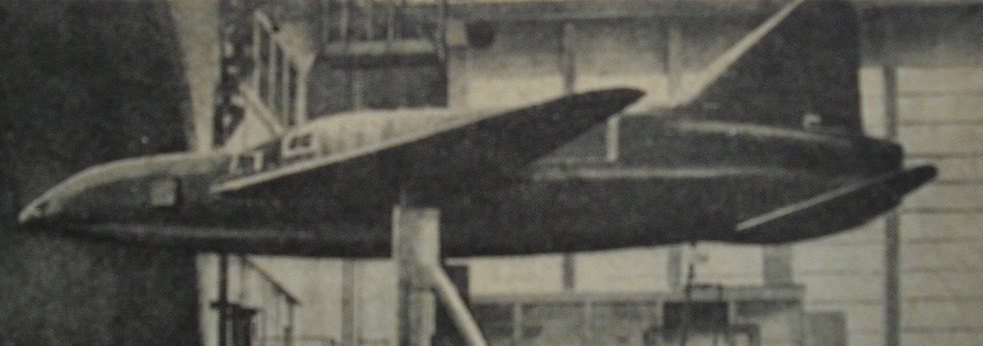

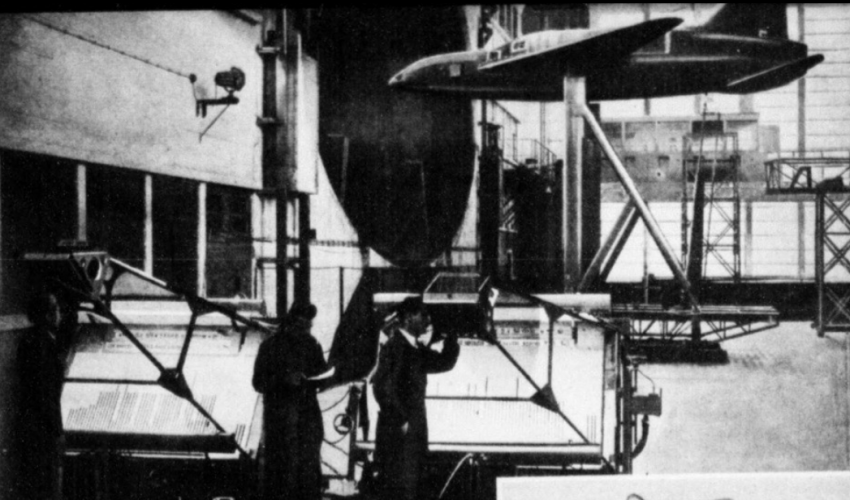

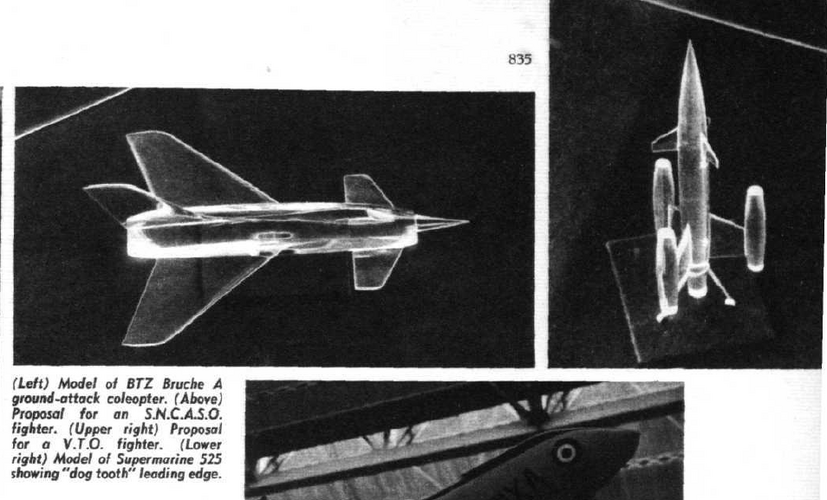

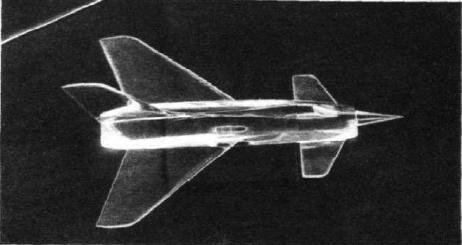

Great find dear Bazinga,

but I discovered it before,in reply # 9,and I think it was gotten the
designation between SO.1230 to SO.1290 ?.


Attachments

  • 1.jpg
    16.2 KB · Views: 259
Great find dear Bazinga,

but I discovered it before,in reply # 9,and I think it was gotten the
designation between SO.1230 to SO.1290 ?.

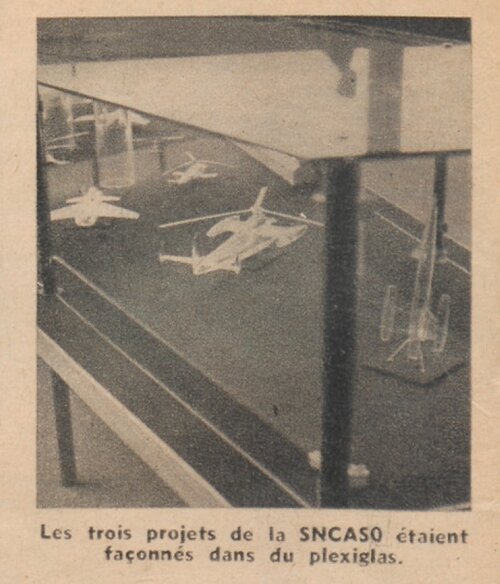

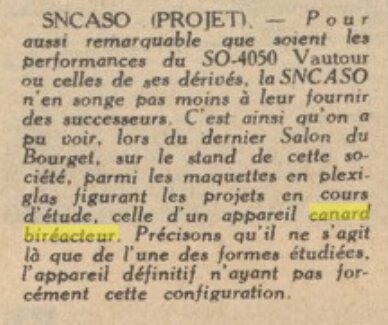

Indeed you are. The plexiglass threw me off. I always thought it was a tailsitter alike the Dever. The model is most certainly the same model.
I have searched https://gallica.bnf.fr/ for SO.1230 to 1290 incrementing the number with 5. No reference in any French archive so that numbering remain inconclusive I feel. Considering this being a fighter and the year 1955 I would "throw my darts" at the late 3000, low 4000 numbering range

Last edited:
Great find dear Bazinga,

but I discovered it before,in reply # 9,and I think it was gotten the
designation between SO.1230 to SO.1290 ?.
Indeed you are. The plexiglass threw me off. I always thought it was a tailsitter alike the Dever. The model is most certainly the same model.
I have searched https://gallica.bnf.fr/ for SO.1230 to 1290 incrementing the number with 5. No reference in any French archive so that numbering remain inconclusive I feel. Considering this being a fighter and the year 1955 I would "throw my darts" at the late 3000, low 4000 numbering range
I think it was not that designation my dear Bazinga,

and it was not even 1000s series nor 2000s,3000s or 4000s,and for
5000s to 10000,they were well known,except the 6000s,it had some
mystery sequence,as I think it is the solution ?.

Great find dear Bazinga,

but I discovered it before,in reply # 9,and I think it was gotten the
designation between SO.1230 to SO.1290 ?.
Indeed you are. The plexiglass threw me off. I always thought it was a tailsitter alike the Dever. The model is most certainly the same model.
I have searched https://gallica.bnf.fr/ for SO.1230 to 1290 incrementing the number with 5. No reference in any French archive so that numbering remain inconclusive I feel. Considering this being a fighter and the year 1955 I would "throw my darts" at the late 3000, low 4000 numbering range
I think it was not that designation my dear Bazinga,

and it was not even 1000s series nor 2000s,3000s or 4000s,and for
5000s to 10000,they were well known,except the 6000s,it had some
mystery sequence,as I think it is the solution ?.
Could very well be. I searched here but could not find the logic of the X000 series. In general, various design departments got their own series allocated. In 1955 I see 1000, 4000, 6000 and 9000 series. Not sure it worked in SNCASO like that, so the whole thing right now is speculative.

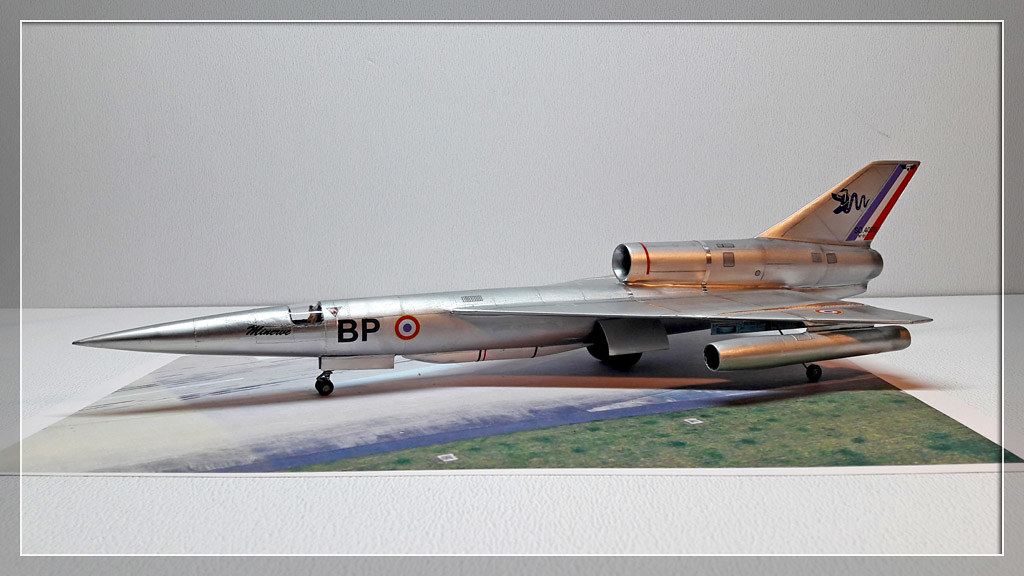

I must say that such a canard plane was some 40-50 years ahead of reality with Rafale, Gripen and Typhoon, so definitely advanced project hence my mental reference to the 4000 series with projects like SNCASO 4070 Minerve

Hi,

the SNCASO SO.4070 and SO.4080.

(from Jean Cuny "Les Avions De Combat Francais 1944-1960" volume II,Docavia,
Please, specify the sources, Hesham !)
Hi,



Attachments

  • images.jpg
    128 KB · Views: 238

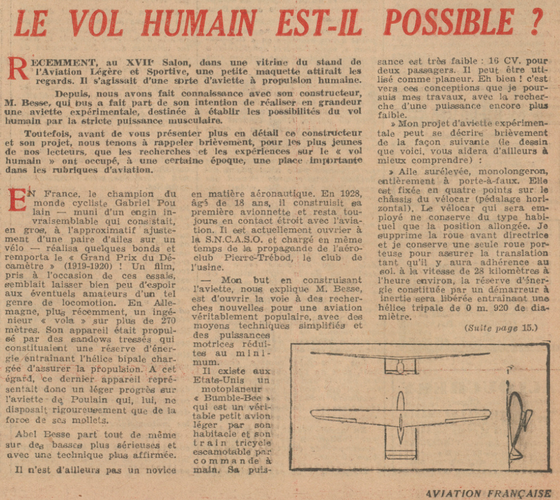

The relation with SNCASO is that Mr Abel Besse is employed as a worker by SNCASO.
It does not say that Besse's hobby is supported or condoned by the company.

I want to use this thread to ask a simple question.

Where the French Vautours ever wired to carry the Mirage IVA, strategic AN-11 / AN-21 / AN-22 nuclear weapons ?
- or AN-52 tactical nukes ?
- in the strategic role the Mirage IVA was the main option but Vautours got lots of secondary, supporting roles: tankers, trainers, and electronic warfare (Bordeaux Mérignac last squadron until 1978: nicknamed "Chipiron", like the basque cuttlefish dish.)
- in the tactical role, AN-52 found their ways on Mirage IIIEs, Jaguars (not sure about the Aéronavale Etendard / S.E before ASMP)

But I can't find any information about the Vautours nuke carrying capability.

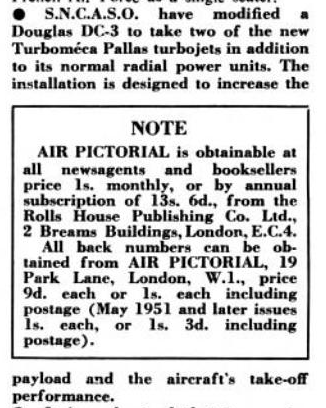

From Air Pictorial 1951,

strange Info,about the SNCASO had modified the Douglas DC-3 to take a two turbojet engines,plus
its original piston motors ?!.


Attachments

  • 7-51.png
    123.7 KB · Views: 105
From Revue Aeronautique 1951.


Attachments

  • 3.png
    305 KB · Views: 104
From Air Pictorial 1951,

strange Info,about the SNCASO had modified the Douglas DC-3 to take a two turbojet engines,plus its original piston motors ?!.


Great find dear Bazinga,

but I discovered it before,in reply # 9,and I think it was gotten the
designation between SO.1230 to SO.1290 ?.

Both of these two project are from SNCASO as I think.


Attachments

  • 27.png
    517.6 KB · Views: 67

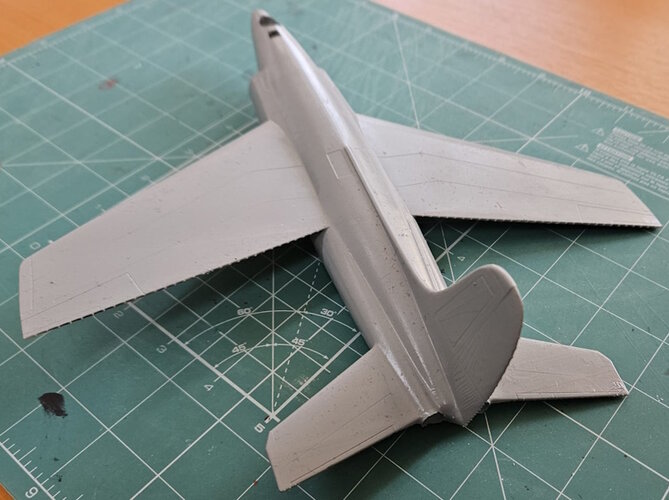

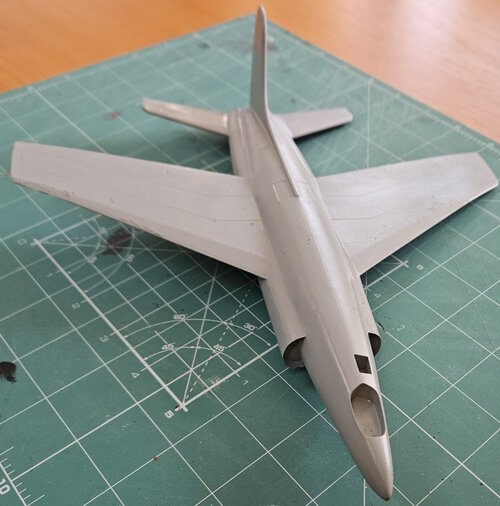

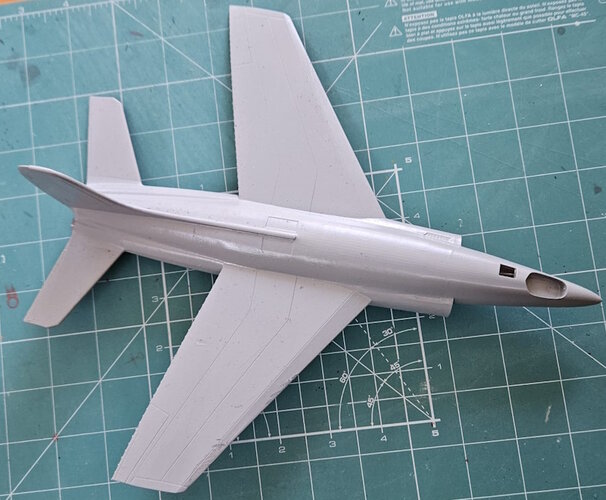

Here is the progress the International Resin Modellers Association -IRMA is making on IRMA Kit No.12 SNCASO SO.4000 in 1/72. This model will be US $190 + shipping or US $160 + shipping with an IRMA Membership of US $25. If you are interested, we can be reached at info@internationalresinmodellers.com. There is no definite release date yet, however, you ran reserve one now. We are planning a small run of 30 kits at this time.


Attachments

  • IRMA Kit No.12 SNCAC SO.4000 box art.jpg
    IRMA Kit No.12 SNCAC SO.4000 box art.jpg
    107.3 KB · Views: 40
  • Altoona Works 2-8-8-2 PRR Class L5 Fore.jpg
    Altoona Works 2-8-8-2 PRR Class L5 Fore.jpg
    277.7 KB · Views: 35
  • SNCASO SO.4000 Master Above.jpg
    SNCASO SO.4000 Master Above.jpg
    175.9 KB · Views: 31
  • SNCASO SO.4000 Master Back.jpg
    SNCASO SO.4000 Master Back.jpg
    144.1 KB · Views: 33
From Air Pictorial 1951,

strange Info,about the SNCASO had modified the Douglas DC-3 to take a two turbojet engines,plus
its original piston motors ?!.

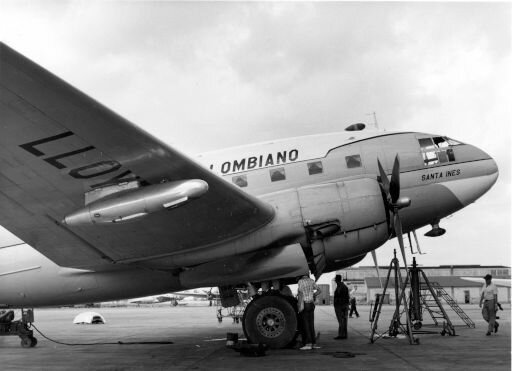

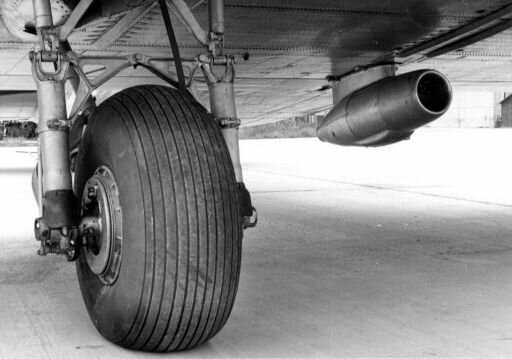

SNCASO has created a dedicated department for this activity: the GRA (Groupe des Réacteurs d'appoint).
They modified not only DC-3, but also C-46 and SO-30P with one or 2 additional Turboméca Palas jet engines underneath.
Attached photos come from my own collection.


Attachments

  • C-46 modifié Palas (Mesnard2).jpg
    C-46 modifié Palas (Mesnard2).jpg
    30.6 KB · Views: 23

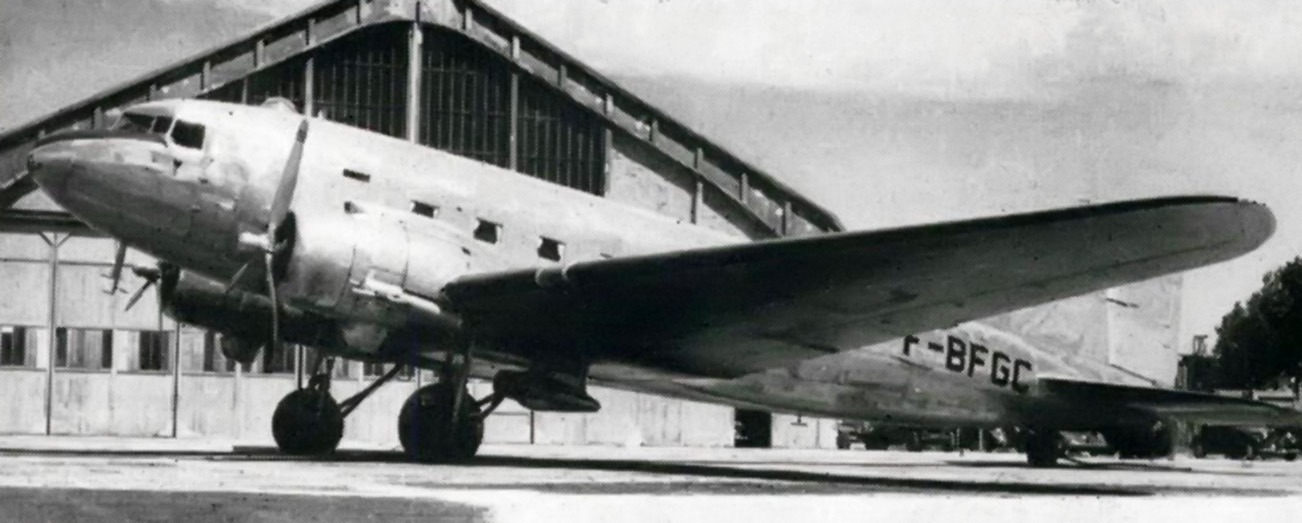

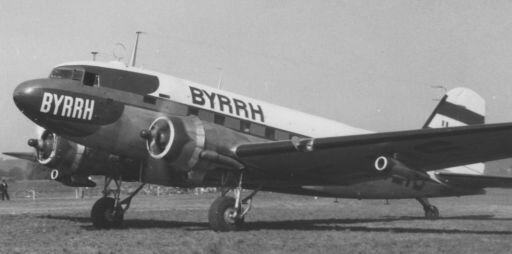

  • DC-3 'Byrrh' équipé de réacteurs Palas par la SNCASO (PhR).jpg
    DC-3 'Byrrh' équipé de réacteurs Palas par la SNCASO (PhR).jpg
    21 KB · Views: 28
  • SNCASO installation Palas (PhR).jpg
    SNCASO installation Palas (PhR).jpg
    34.7 KB · Views: 41
Last edited:

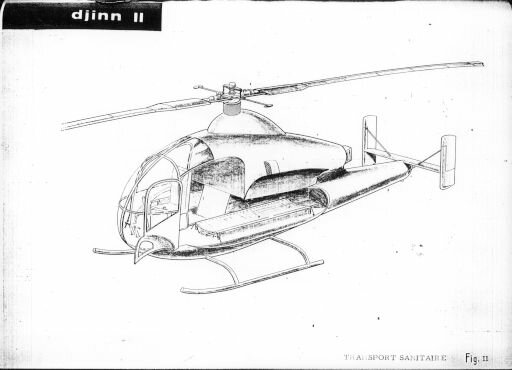

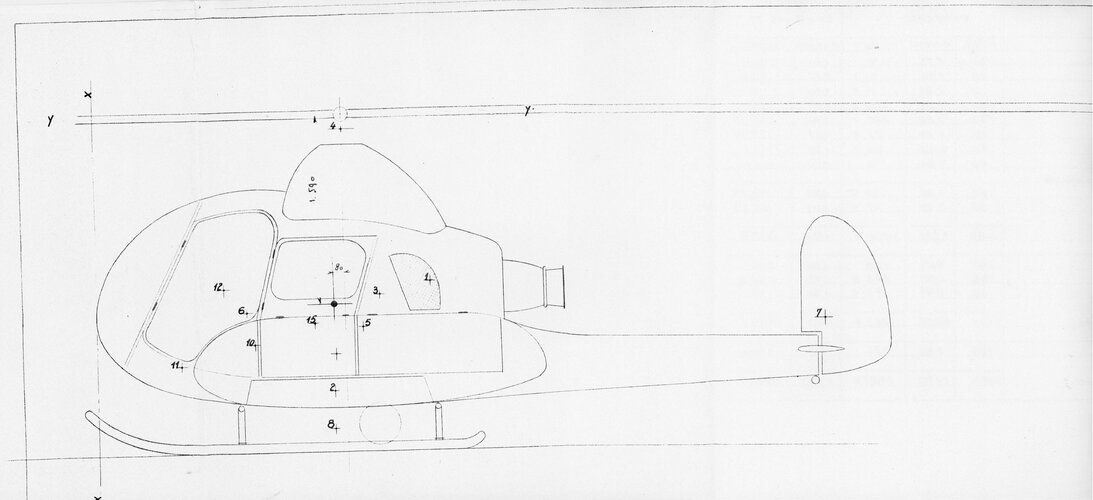

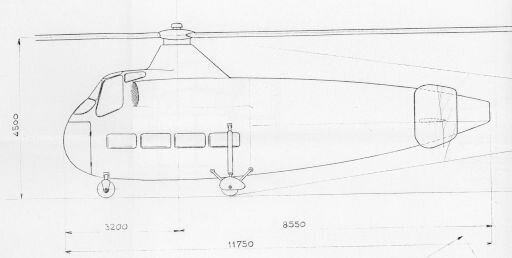

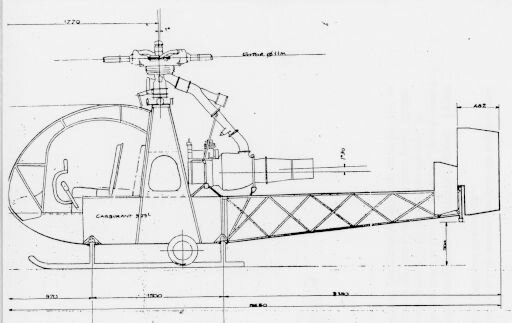

Various helicopter projects derived from SO-1220/1221 Djinn: SO-1225 "Djinn II" (became SA-1225), the "Djinn III" (unknown number), SO-1230 and SO-1250.
All from my collection.


Attachments

  • SO-1225 Djinn II (PhR).jpg
    SO-1225 Djinn II (PhR).jpg
    25.8 KB · Views: 36
  • SO Djinn III (PhR).jpg
    SO Djinn III (PhR).jpg
    27.4 KB · Views: 33
  • SO-1230 (PhR).jpg
    SO-1230 (PhR).jpg
    2.5 MB · Views: 37
  • SO-1250 (PhR).jpg
    SO-1250 (PhR).jpg
    16 KB · Views: 40
Can anyone advise who I would contact to obtain copies of SNCASO heritage documents from their archives? Would it be Airbus?
