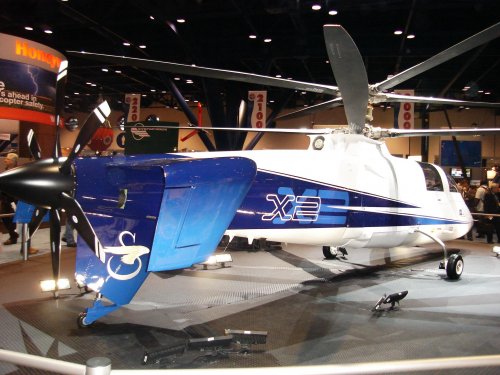

yasotay said:Has anyone seen a photo of the recently unveiled X-2 Tech Demonstrator? Understand it was introduced at the Houston Heli-Expo.
dragon72 said:There's probably 2 reasons for no ducting. Firstly this a tech demonstrator so NOE and safety issues aren't that important. The second reason, and probably most important, is that adding a ducted rotor adds weight and cost.Since it seems Sikorsky is picking up the bill for this they'd want to save as much money as possible.
Personally I think a ducted rotor is essential for any low flying helicopter with a prop but for a tech demonstrator it isn't necessary.
Also given Americas crazy patent laws they might not have the rights to make a ducted rotor.
yasotay said:dragon72 said:There's probably 2 reasons for no ducting. Firstly this a tech demonstrator so NOE and safety issues aren't that important. The second reason, and probably most important, is that adding a ducted rotor adds weight and cost.Since it seems Sikorsky is picking up the bill for this they'd want to save as much money as possible.
Personally I think a ducted rotor is essential for any low flying helicopter with a prop but for a tech demonstrator it isn't necessary.
Also given Americas crazy patent laws they might not have the rights to make a ducted rotor.
Point taken on the cost and weight factor for it being a demonstrator. While I agree with your comment on the patent laws, considering all of the ducted fan work that Sikorsky did in their ABC work and early LHX (a.k.a. Comanche), which had a ducted thruster, I suspect that they could whip up a proprietary fan without too much difficulty. Of course to do so would throw the CG of the X-2TD out and they would have to add weight to the front of the airframe, etc.

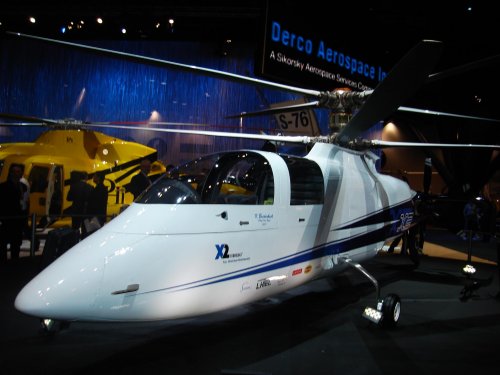

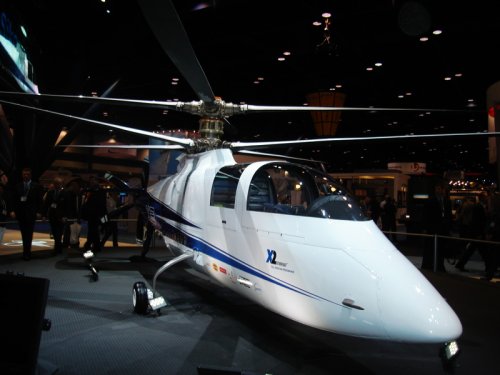

Video:Sikorsky unveils its highly anticipated X2 demonstrator and says it will make its first flight when it's ready.
F-14D said:yasotay said:dragon72 said:There's probably 2 reasons for no ducting. Firstly this a tech demonstrator so NOE and safety issues aren't that important. The second reason, and probably most important, is that adding a ducted rotor adds weight and cost.Since it seems Sikorsky is picking up the bill for this they'd want to save as much money as possible.
Personally I think a ducted rotor is essential for any low flying helicopter with a prop but for a tech demonstrator it isn't necessary.
Also given Americas crazy patent laws they might not have the rights to make a ducted rotor.
Point taken on the cost and weight factor for it being a demonstrator. While I agree with your comment on the patent laws, considering all of the ducted fan work that Sikorsky did in their ABC work and early LHX (a.k.a. Comanche), which had a ducted thruster, I suspect that they could whip up a proprietary fan without too much difficulty. Of course to do so would throw the CG of the X-2TD out and they would have to add weight to the front of the airframe, etc.

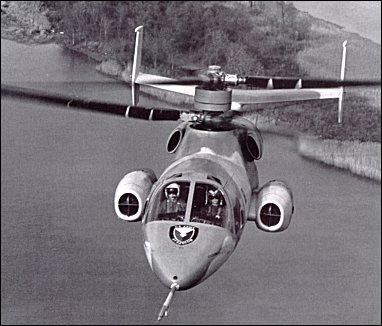

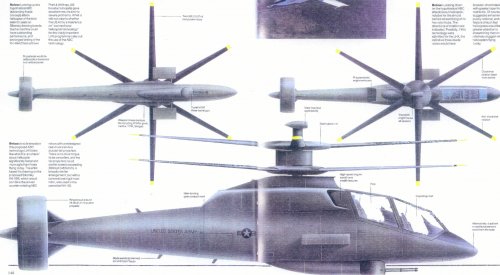

The original ABC demonstrator, the XH-59A, did not have a ducted thruster. It actually had a tail that resembled that of the XV-15, and no tail rotor, the contrarotating rotor eliminating the need for any anti-torque. While it showed that the ABC concept worked, it also wasn't significantly faster than a conventional helicopter. It became apparent that for ABC to achieve speeds much higher, the ABC portion could allow a rotor to move faster through the air, but the rotor itself did not provide any meaningful speed increase. Some form of auxiliary propulsion was needed to actually get the speed up. After the first unit crashed, the second was fitted with a pair of J60 jets and it was this one, with the jets furiously thrusting, that achieved the speed results in the history books. Of course, endurance and range was poor with those two engines converting large amounts of fuel to heat and noise. Here's a picture of the second XH-59A. Since then, all ABC concepts looking for higher speed have featured some form of auxiliary propulsion beyond the rotor, including the X2.
On the RAH-66, that wasn't so much a ducted thruster as an advanced technology shrouded tail rotor (a concept actually pioneered by France).
LowObservable said:Just a thought - why does the pusher have to even rotate at low speed or on the ground? You've got to have cyclic, so you have some low-speed propulsion, and there is no torque reaction.
yasotay said:LowObservable said:Just a thought - why does the pusher have to even rotate at low speed or on the ground? You've got to have cyclic, so you have some low-speed propulsion, and there is no torque reaction.
Good point but it would make for more complexity to decouple the pusher. You ought to be able to use differential torque, like a Kamov helicopter at lower speeds. I wonder if the mechanical mechanism would be would be less weight than a shroud over the prop?
lol - I just had a vision of a five speed shifter on the right side of the cockpit.
F-14D said:yasotay said:LowObservable said:Just a thought - why does the pusher have to even rotate at low speed or on the ground? You've got to have cyclic, so you have some low-speed propulsion, and there is no torque reaction.
Good point but it would make for more complexity to decouple the pusher. You ought to be able to use differential torque, like a Kamov helicopter at lower speeds. I wonder if the mechanical mechanism would be would be less weight than a shroud over the prop?
lol - I just had a vision of a five speed shifter on the right side of the cockpit.

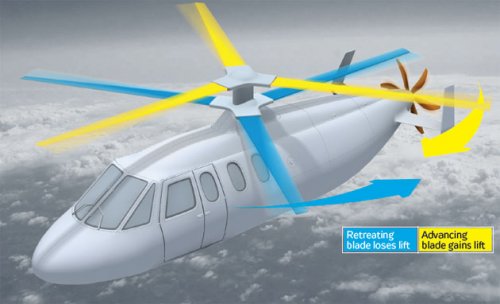

Some statements from Sikorsky at the beginning of the program were to the tune that "this will not be an autogyro", and that the rotors would function "..as a wing". This might imply that unlike the previous ABC demonstrator, the rotors may function only in a lifting, not propulsive capacity (this is just a speculative observation on my part). This would simplify rotor design, reduce drag and weight of the rotor system, but would make some form of auxiliary propulsion absolutely necessary. For the record, the XH-59 operating only with its rotor system offered not big speed advantage over regular helos. It only got really fast when they hung a pair of turbojets on it. Possibly this is why what appears to be a variable pitch pusher on the craft. Note that on the AH-56 the pusher was also unshrouded, and it wasn't a demonstrator.
It will be interesting, I hope it'll work out. When Sikorsky announced the program in mid 2005, they said X2 would be demonstrating 250 knot speeds by the end of 2006. Here we are in April 2008 and it has yet to fly. The technology may not be as simple and mature as the PR implies it is...
yasotay said:F-14D said:yasotay said:LowObservable said:Just a thought - why does the pusher have to even rotate at low speed or on the ground? You've got to have cyclic, so you have some low-speed propulsion, and there is no torque reaction.
Good point but it would make for more complexity to decouple the pusher. You ought to be able to use differential torque, like a Kamov helicopter at lower speeds. I wonder if the mechanical mechanism would be would be less weight than a shroud over the prop?
lol - I just had a vision of a five speed shifter on the right side of the cockpit.
Some statements from Sikorsky at the beginning of the program were to the tune that "this will not be an autogyro", and that the rotors would function "..as a wing". This might imply that unlike the previous ABC demonstrator, the rotors may function only in a lifting, not propulsive capacity (this is just a speculative observation on my part). This would simplify rotor design, reduce drag and weight of the rotor system, but would make some form of auxiliary propulsion absolutely necessary. For the record, the XH-59 operating only with its rotor system offered not big speed advantage over regular helos. It only got really fast when they hung a pair of turbojets on it. Possibly this is why what appears to be a variable pitch pusher on the craft. Note that on the AH-56 the pusher was also unshrouded, and it wasn't a demonstrator.
It will be interesting, I hope it'll work out. When Sikorsky announced the program in mid 2005, they said X2 would be demonstrating 250 knot speeds by the end of 2006. Here we are in April 2008 and it has yet to fly. The technology may not be as simple and mature as the PR implies it is...
Very good point about the AH-56. I just think the safety guru's will get a tick in their eye about it. 03.00 in the FARP with very tired troopers moving fuel and bullets can make for a very disaster rich environment. Would rather they put a duct around it. Ought to help with the acoustics as well... I think.
LowObservable said:"Of course, people do keep walking into them."
Not true.
They only do it once.

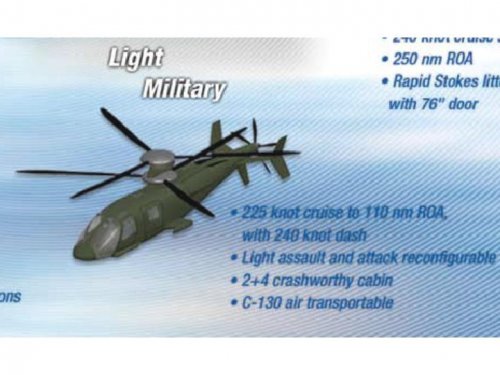

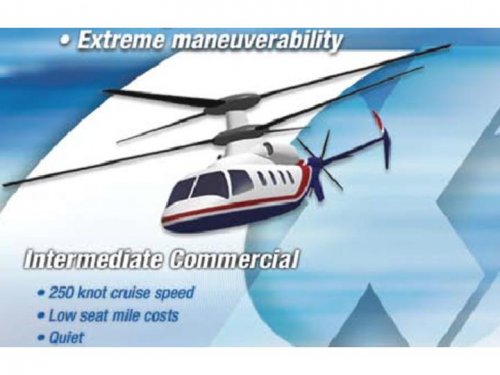

Source:AVIATION WEEK - Ares A Defense Technology Blog - Ideas on Show at Helo Forum in Montreal (Posted by Graham Warwick at 5/2/2008 11:48 AM CDT)This 240kt-dash light tactical helicopter is one of several applications Sikorsky is studying for its coaxial-rotor X2 Technology. The company's technology demonstrator should be beginning ground runs with its blades on right around now, and fly fairly soon.
airman said:interestint prototype ! :
on wikipedia more informations :
http://en.wikipedia.org/wiki/Sikorsky_X2
seems have good performance !
yasotay said:From Aviation Week: http://www.aviationweek.com/aw/generic/story.jsp?id=news/X205218.xml&headline=Sikorsky%20X2%20In%20Blades-On%20Ground%20Tests&channel=defense
Sikorsky X2 In Blades-On Ground Tests
May 21, 2008
By Graham Warwick
Sikorsky has begun "blades-on" ground tests of its X2 Technology coaxial-rotor high-speed helicopter demonstrator. "First flight is within our grasp," says Jim Kagdis, advanced program manager. The company-funded demonstrator is expected to fly within two months.

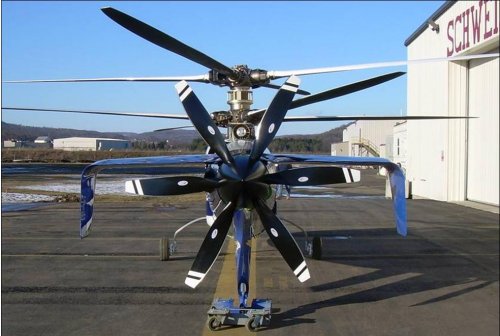

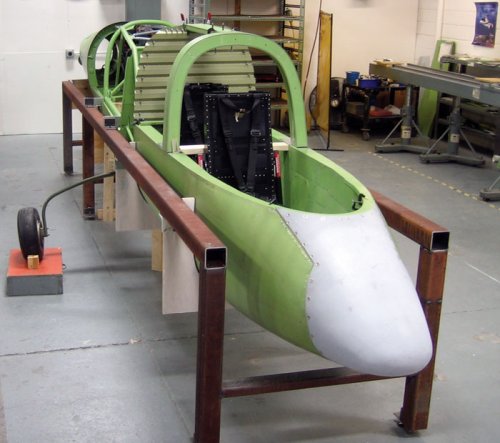

Testing is under way at the company's Schweizer Aircraft rapid prototyping facility in Horseheads, N.Y. Sikorsky's goal is to demonstrate a cruise speed of 250 kt, compared with around 160 kt. for a conventional helicopter. To achieve this, the X2 Technology demonstrator combines variable-speed rotors with low-drag hub fairings and advanced rigid blades, integrated engine/rotor/propulsor system, fly-by-wire and active vibration control.

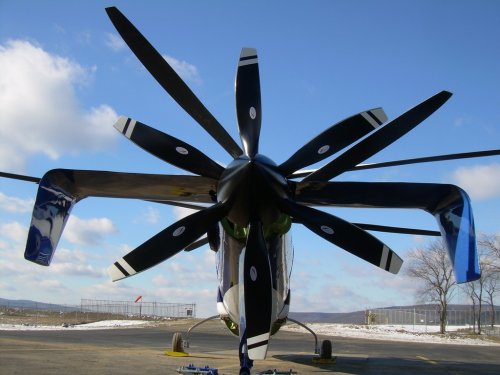

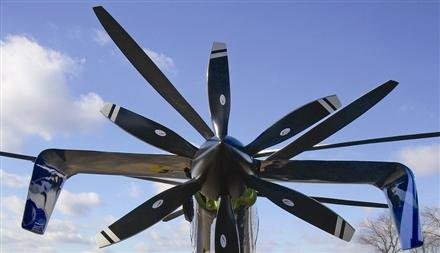

The T800-powered X2 will fly initially with the tail-mounted propeller installed, but not connected, Kagdis says. The demonstrator will be used as a "flying wind tunnel" to determine the aerodynamic interaction between the rotor and propulsor. Other areas on interest will include optimization of the rotor shaft angle for performance and blade tip clearance for maneuvers, the company says.

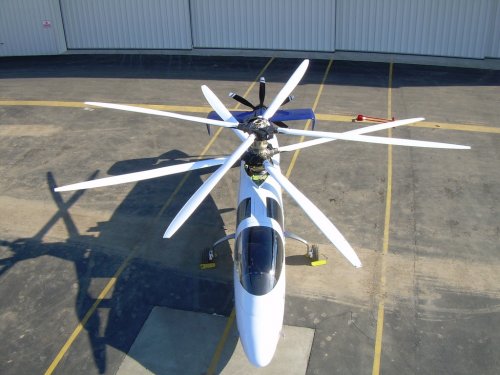

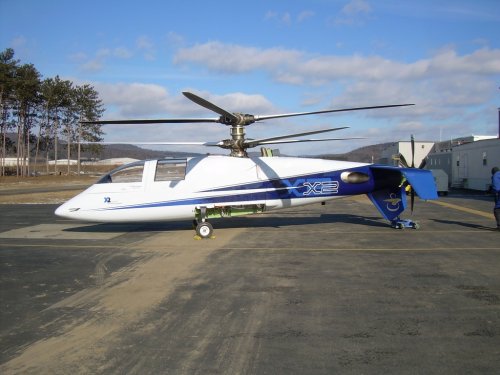

Photo: Sikorsky

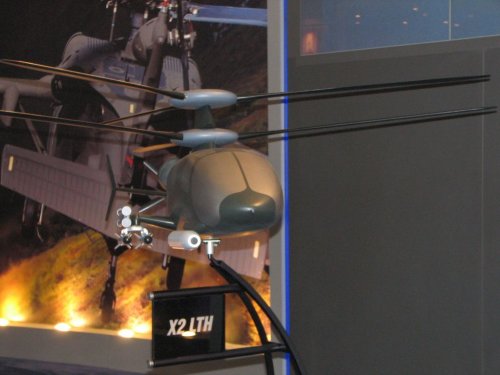

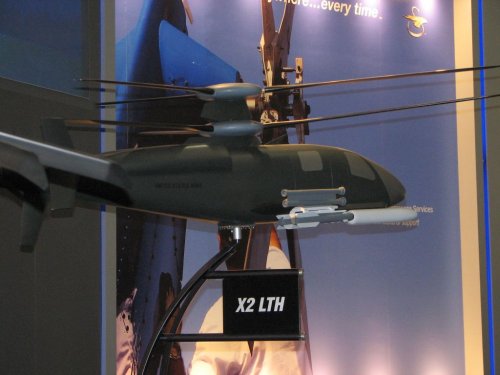

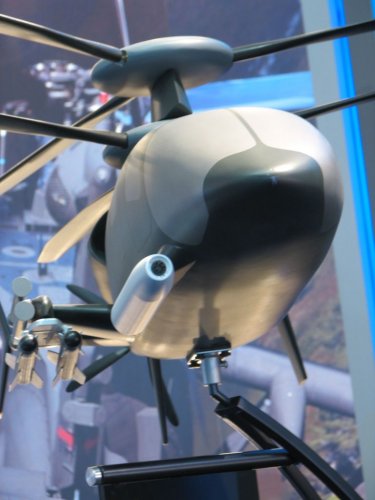

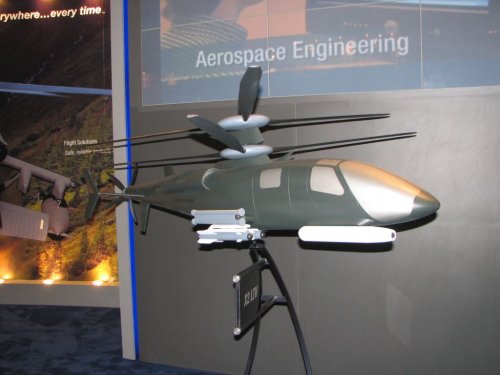

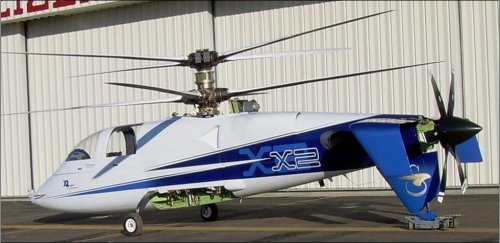

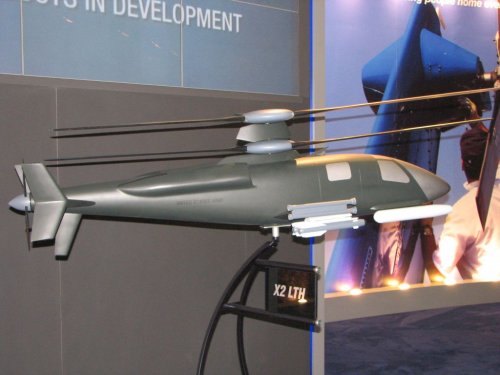

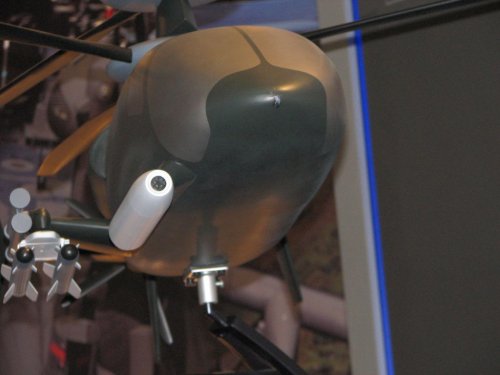

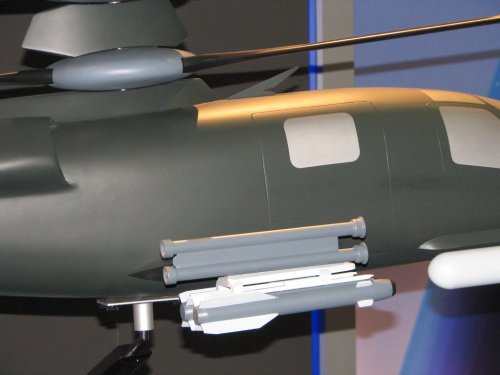

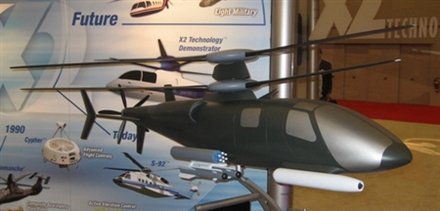

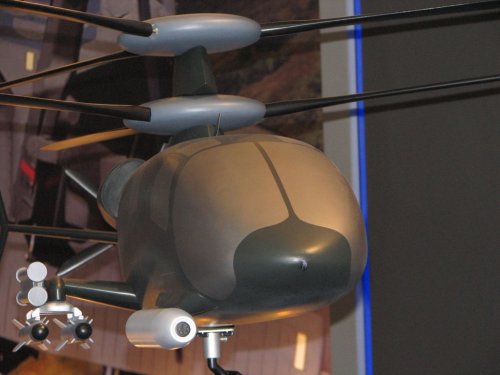

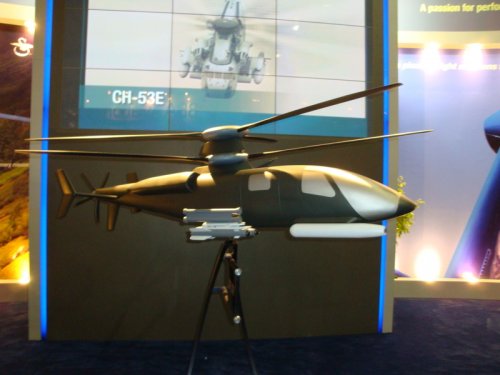

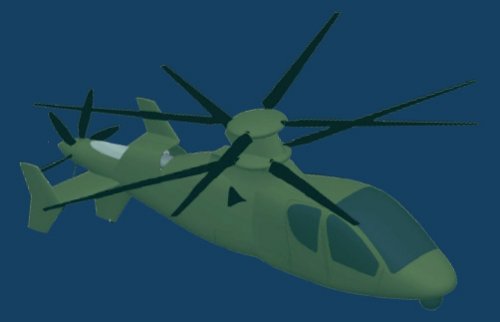

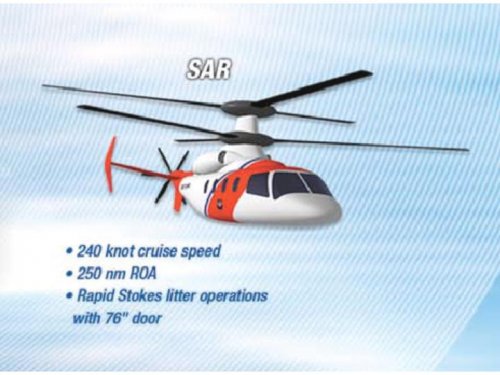

overscan said:My Farnborough 2008 armed X2 pics
yasotay said:Wonderful pictures of X-2 and concepts. Thanks overscan and RavenOne. Although I am still mystified at the unprotected prop. Even if it is more efficient that way there are too many reasons not to leave it out there.
It seems that the first flight of the X-2 demonstrator remains imminent... within the next year. Had opportunity to talk with some Sikorsky folks last week and got all of the nervous laughs and "when its ready" responses. While unimpressed with the "so busy building helicopters" response (it strikes me that they would be a different set of engineers), I can, however, believe that with a fair chunk of IRAD tied up in the bird they want to make sure it does not pull a CRW demo on them.
Of course they are not waffling any worse than Bell is with the 609. With first deliveries now...six years (?) overdue. All of the "who's in charge" on that program ought to raise an eyebrow.
F-14D said:yasotay said:Wonderful pictures of X-2 and concepts. Thanks overscan and RavenOne. Although I am still mystified at the unprotected prop. Even if it is more efficient that way there are too many reasons not to leave it out there.
It seems that the first flight of the X-2 demonstrator remains imminent... within the next year. Had opportunity to talk with some Sikorsky folks last week and got all of the nervous laughs and "when its ready" responses. While unimpressed with the "so busy building helicopters" response (it strikes me that they would be a different set of engineers), I can, however, believe that with a fair chunk of IRAD tied up in the bird they want to make sure it does not pull a CRW demo on them.
Of course they are not waffling any worse than Bell is with the 609. With first deliveries now...six years (?) overdue. All of the "who's in charge" on that program ought to raise an eyebrow.
Actually, there's quite a difference. The 609 pretty much flew on schedule ands did not fall behind schedule because of technical issues. Bell publicly stated after early flight tests that it was changing its strategy and would suspend work on the program in order to devote their Tilt-Rotor resources to getting the V-22 into service and deployed, work with the FAA or developing powered lift criteria and would restart later on, which is more or less what has happened.
As much as I want it to work, in the case of X2 they are updating a concept from a not terribly successful program of the early '80s (around the same time as the wildly successful XV-15) and haven't been able to get it in the air despite repeated predictions of first flight.
