Sikorsky models and designations

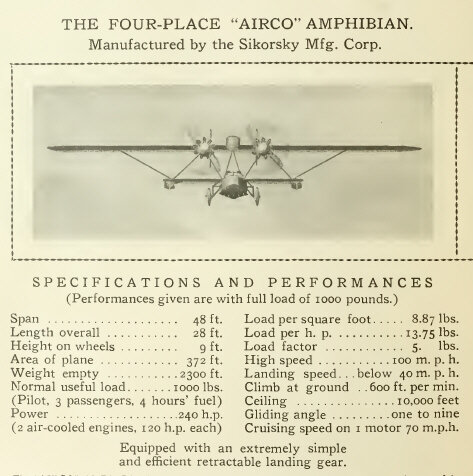

From Aero Digest 1926,

what was this ?.


Attachments

  • 17.png
    817.4 KB · Views: 14
From Aero Digest 1926,

what was this ?.
I shared this one elsewhere on the forum a few years ago, it's the Airco Messenger.
It was a smaller, four-seat version of the S-34 with two 120hp Super-Rhône engines and a simplified retractable gear. It was designed by Igor Sikorsky for the Aircraft Corp. of America (Airco), advertised in 1926, but not built.


Attachments

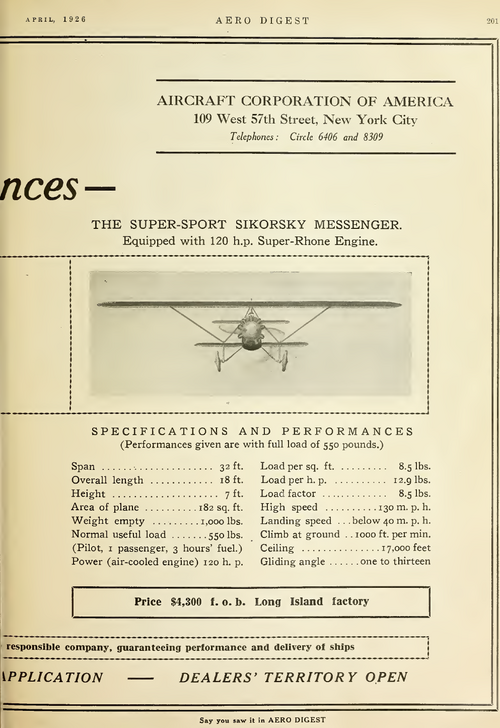

  • 1926 Sikorsky (Airco) project.jpg
    1926 Sikorsky (Airco) project.jpg
    114.2 KB · Views: 12

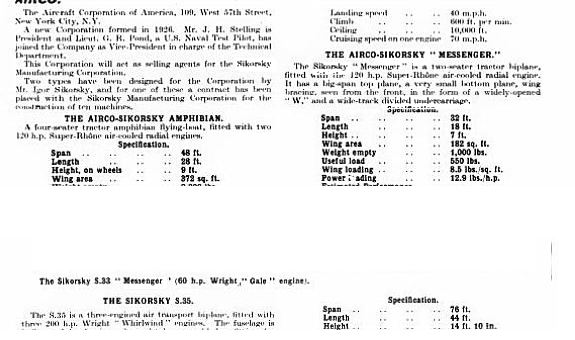

  • Airco-Sikorsky (excerpts from Jane's, 1926).gif
    Airco-Sikorsky (excerpts from Jane's, 1926).gif
    84.7 KB · Views: 13
By the way, Airco was to act as selling agents for Sikorsky Manufacturing Corp., but the deal fell through.
Since the Airco "Messenger" was not pursued by Sikorsky, it didn't get an "S-" designation.
The Airco "Amphibian", of course, became the S-34.


Attachments

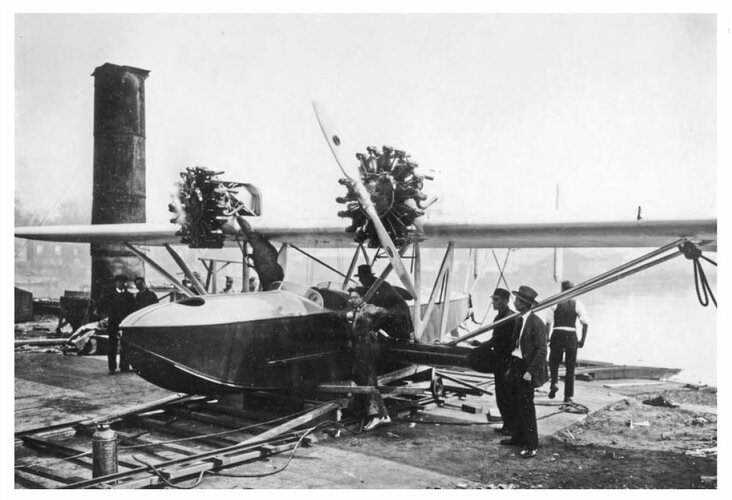

  • S-34 mooring (E.R. Johnson book).jpg
    S-34 mooring (E.R. Johnson book).jpg
    114 KB · Views: 10

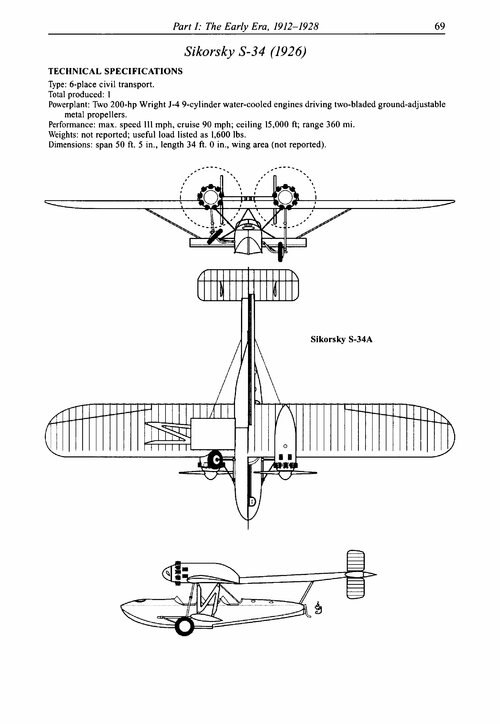

  • S-34 three-view (Lloyd S. Jones).jpg
    S-34 three-view (Lloyd S. Jones).jpg
    396.3 KB · Views: 12
