SECM/Amiot Designations

hesham said:
Via my dear Tophe,and from TU 128.
Click to expand...

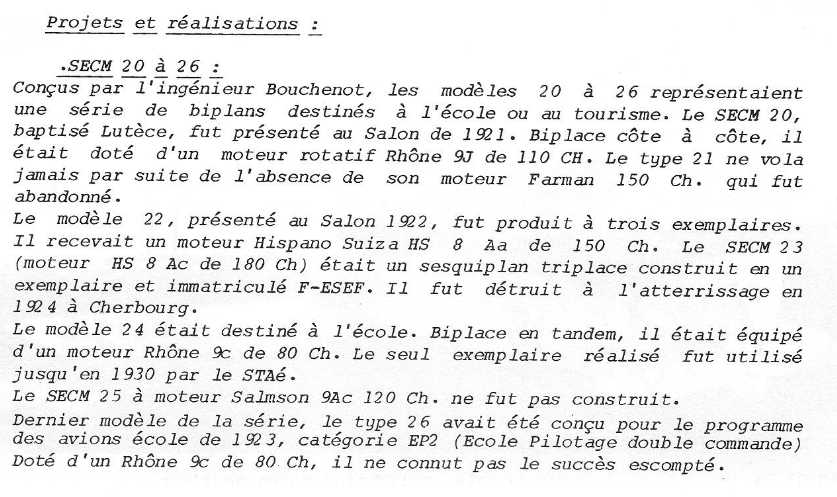

Projects and achievements:

SECM 20 to 26:

Designed by engineer Bouchenot, models 20 to 26 represented a series of biplanes intended for school or touring. The SECM 20, baptized Lutèce, was presented at the 1921 Salon. A side-by-side two-seater, it was fitted with a 110 hp Rhone 9J rotary engine. The type 21 never flew due to the absence of its 150 hp Farman engine, development of which was abandoned.

The model 22, presented at the 1922 Salon, was produced in three copies. It received a 150 hp Hispano Suiza HS 8As engine. The SECM 23 (180 hp HS 8Ac engine) was a three-seat sesquiplane. One example was built and registered F-ESEF. The SECM 23 destroyed in a Cherbourg landing accident in 1924.

The model 24 was intended for training. A tandem-set biplane, it was equipped with a Rhône 9c engine of 80 hp. The example produced was used until 1930 by the STAé.

The SECM 25, intended to be powered by a Salmson 9Ac 120 hp engine, was not built.

The last model of the series, the type 26, had been designed to a 1923 school training the program - category EP2 (École Pilotage double commande). Endowed with an 80 hp Rhône 9c, the type 26 was not a successful candidate.
Click to expand...
______________________________________

Thanks hesham ... details added.

hesham said:
hesham said:
120S was a seaplane or flying boat Project,maybe developed from Type-110S ?
Click to expand...
As in reply # 29,it was just a float seaplane version of Amiot-120.
Click to expand...

The SECM 120 S (Spécial) is described in the clipping in reply #29 as "Raid". So, a long-distance record attempt aircraft. Photos of the 120S (modified 120-02 prototype) show it on the usual wheeled land undercarriage. So, not a floatplane variant.

Perhaps, but we have no non-circumstantial evidence to back that up.

Odd about those "CLM Junkers of 500 hp". Were these a coupled version of the CLM Lille 6As (licensed Jumo 205)? If so, that engine produced 650 hp back in August 1936 when the Bernard 86 was fitted with that diesel. Did CLM Lille really need to derate this engine for coupling three years later?

Hello from Germany,

I've just discovered in the issues of JAWA's 1928-1930, the Amiot 101 C1 Single-Seat fighter. This a/c is in most other publications the Amiot 110 C1. But why should they use the same number for completely different aircraft (Amiot 110 C1 Fighter, Amiot 110 S Seaplane).
Could that be possible, that Jane's did the same mistake for a wrong number for 3 years?


Attachments

  • Screenshot 2022-01-31 150709.jpg
    231.1 KB · Views: 22
Welcome aboard Holger,

this mistake was done by many encyclopedias,they meant Amiot-110.

Last edited:
Holger Loersch said:
Hello from Germany,

I've just discovered in the issues of JAWA's 1928-1930, the Amiot 101 C1 Single-Seat fighter. This a/c is in most other publications the Amiot 110 C1. But why should they use the same number for completely different aircraft (Amiot 110 C1 Fighter, Amiot 110 S Seaplane).
Could that be possible, that Jane's did the same mistake for a wrong number for 3 years?
Click to expand...

You will see more details in my book with Mr. Jamesw Davilla about
French Military Aircraft 1919-1945.

I have attempted to reorganize the Amiot-SECM list in a more synthetic manner in the following Excel chart.
I am of course open to comments, corrections and additions.


Attachments

  • AMIOT - SECM.xlsx
    23.6 KB · Views: 12
Very great work,

and I want to explain how there are many arrangements of this designer,and
how he made many re-allocations to the series,it's very complicated;

- When he began from his company, Type X (later type 100),XI,XII (later type 120),XIII & XIV.

- Then started from 1923 to 26,Type 100,110,120,130 ?,140T,150T,160T & 170T.

- By 1927 to 1934; Type 110,120 (not used,because the Amiot-120 still there),130,
140s,140T,150,160T,170,180,190 & 200

- from 1934 and up to end,there is two different sequences;
A- Type 150,160 & 170
B- Type 200 to 300,310,320,330,340s,350s,360,360/II,370s,380s,390,400s,410,
410/II,410/III,420,430 raised to 530 and 540

PhR said:

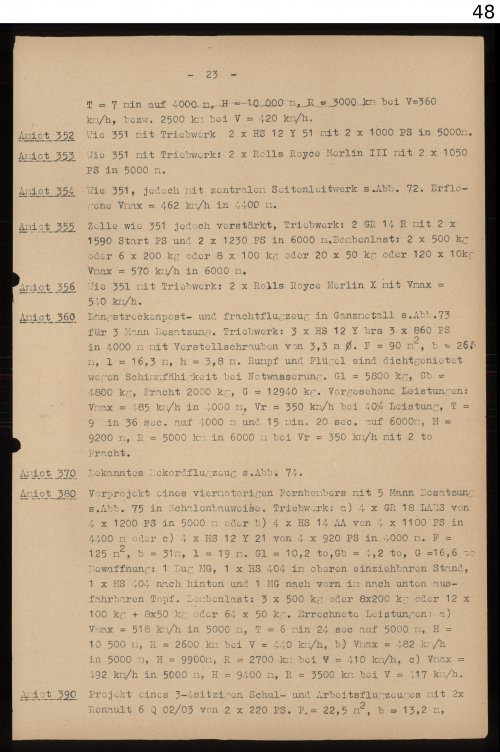

I think this is just a mistake from Air Ministry: they wrote by error Amiot 180 for B5 instead of Amiot 380. I found some documents about Amiot 380 study under the same purchase order reference: 1302/7.
In any case, your explanation is no more than an hypothesis, not a proof.
Click to expand...

Amiot-380 was appeared in 1937/38,how come it had been belonged to 1934 competition ?.

hesham said:
Amiot-380 was appeared in 1937/38,how come it had been belonged to 1934 competition ?.
Click to expand...

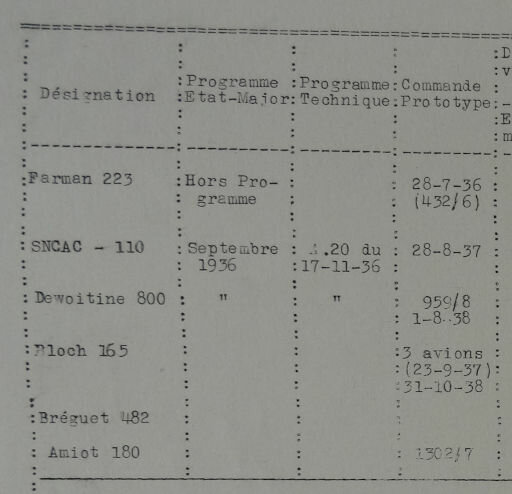

The Amiot 180 is a BN5, derived from Amiot 143 with 4 engines, for TGP program (1930-1933).

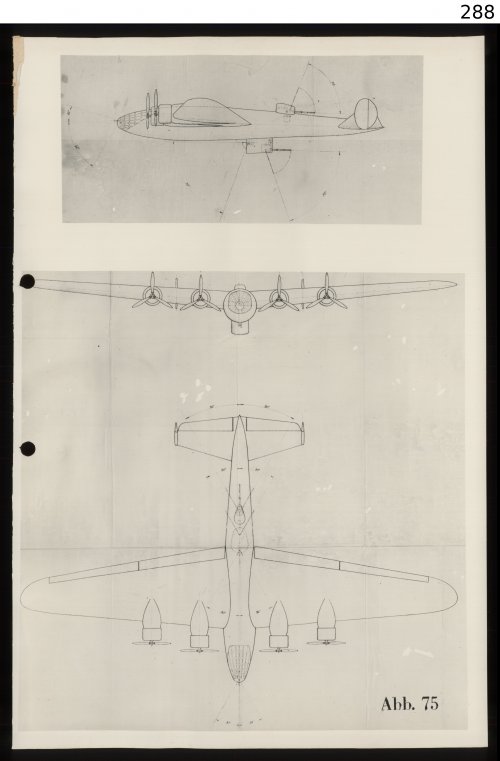

The 1938 attached document lists the concurrents of A20 program fo B5 (1936-1938), not 1934. This is why I suspect that this is in fact the Amiot 380 (4-engine derived from Amiot 350) instead of Amiot 180.


Attachments

  • DSC06187.JPG
    49.6 KB · Views: 6
PhR said:
The Amiot 180 is a BN5, derived from Amiot 143 with 4 engines, for TGP program (1930-1933).
The 1938 attached document lists the concurrents of A20 program fo B5 (1936-1938), not 1934. This is why I suspect that this is in fact the Amiot 380 (4-engine derived from Amiot 350) instead of Amiot 180.
Click to expand...

No need to rush,we don't have all Amiot documents ?!.

hesham said:

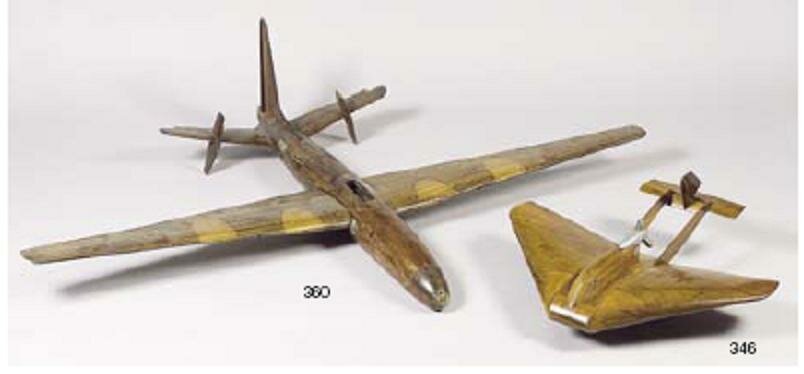

I think they meant this one,the Model on the right ?.
Click to expand...

Those are two projects for Amiot,but they were not related to Amiot-540,
because it was just a wing configuration (not aircraft).
