Republic F-84 Thunderjet & Thunderstreak: Prototypes and Projects

[Antonio]

From Le Fana Horse 16.

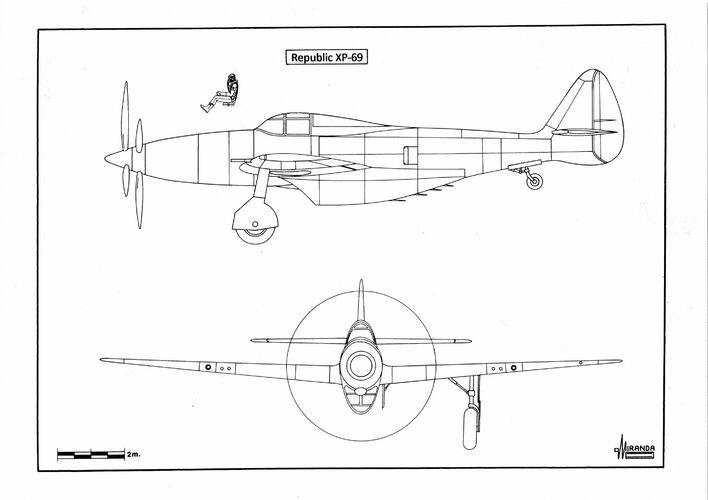

Looking at this drawing...where the jet exhaust was supposed to be placed?



[Justo Miranda]

From Le Fana Horse 16.

Looking at this drawing...where the jet exhaust was supposed to be placed?

Hi



[fightingirish]

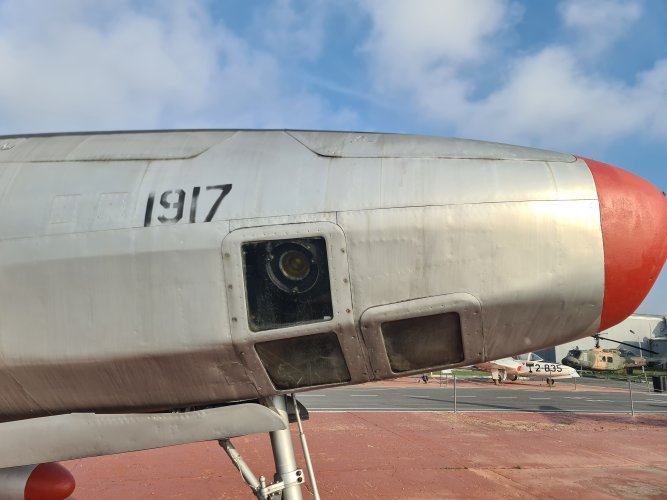

A Republic F-84 Thunderjet once had new flush air ducts to test a possibile installation of a radar.
Pictures:

https://cdm16694.contentdm.oclc.org/digital/api/singleitem/image/p16694coll109/32501/default.jpg

https://cdm16694.contentdm.oclc.org/digital/api/singleitem/image/p16694coll109/34265/default.jpg

https://cdm16694.contentdm.oclc.org/digital/api/singleitem/image/p16694coll109/34249/default.jpg

https://cdm16694.contentdm.oclc.org/digital/api/singleitem/image/p16694coll109/34262/default.jpg

Source: Cradle of Aviation Museum
If this is the false topic or these pictures have been posted before, please let me know.



[TomcatViP]

Just a nice video with early F-84 Thunderjets in Korea. Good quality footage in color with exquisite paint schemes to inspire modelers (plenty of yellow decorated bombs also).

View: https://youtu.be/Pf7147SpmwA?si=2EhbxoTUaAoQaVdO
