Regia Aeronautica Long Range Bomber Competition - 1938

[blackkite]

Hi Ca.204.
crew-8 people
maximum speed is 500 km/h
the minimum speed is 130 km/h
range-4000 km at a speed of 400 km/h and at an altitude of 4000 meters
small arms-6 machine-guns and 1 Cannon
bomb load at least 20 bombs weighing under 100 kg
strength class-7

http://italianaircraftwwii.blogspot.jp/2015/03/caproni-ca204.html

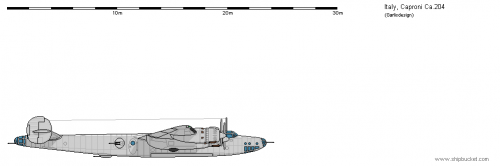

http://shipbucket.com/images.php?dir=Misc%20Drawings/FD%20Scale%20Vehicles/Air%20Vehicles%20-%20Unbuilt/C/Caproni%20Ca.204.png
http://www.aviarmor.net/aww2/projects/ita/caproni_ca204.htm

Bottom model inboard engine nacelle is longer than drawing inboard engine nacelle.



[blackkite]

Hi Ca.211.
crew-8 people
maximum speed is 500 km/h
the minimum speed is 130 km/h
range-4000 km at a speed of 400 km/h and at an altitude of 4000 meters
small arms-6 machine-guns and 1 Cannon
bomb load at least 20 bombs weighing under 100 kg
strength class-7

http://www.aviarmor.net/aww2/projects/ita/caproni_ca211.htm

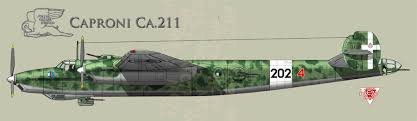

MC72-san's drawings are excellent. I want to see Ca.211 three side view drawing.



[blackkite]

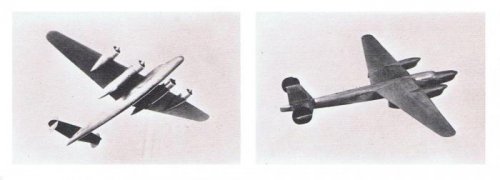

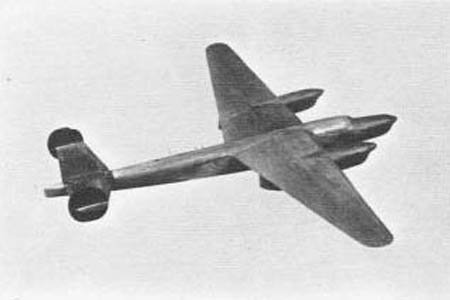

Ca.204 and Ca.211.



[blackkite]

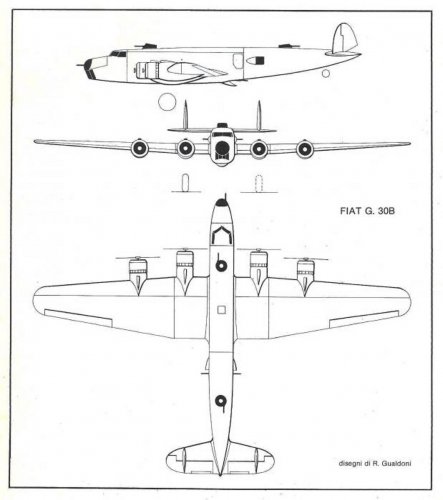

Hi FIAT G.30B.
http://shipbucket.com/images.php?dir=Misc%20Drawings/FD%20Scale%20Vehicles/Air%20Vehicles%20-%20Unbuilt/F/FIAT%20G.30B.png
http://alitaliche.blogspot.jp/2013/05/fiat-g30b-storia-alternativa-di.html



[blackkite]

Hi Piaggio P.112.
http://flickrhivemind.net/blackmagic.cgi?id=7203110774&url=http%3A%2F%2Fflickrhivemind.net%2FTags%2Fp108%2FRecent%3Fsearch_type%3DTags%3Btextinput%3Dp108%3Bphoto_type%3D250%3Bmethod%3DGET%3Bnoform%3Dt%3Bsort%3DDate%2520Posted%252C%2520new%2520first%23pic7203110774&user=&flickrurl=http://www.flickr.com/photos/78171386@N07/7203110774

http://www.aviarmor.net/aww2/_photo_projects/_ita/piaggio_p112/piaggio_p112_1.jpg



[ermeio]

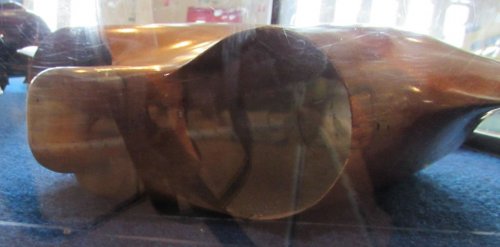

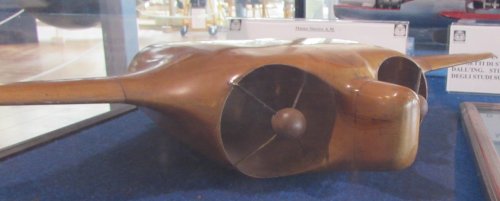

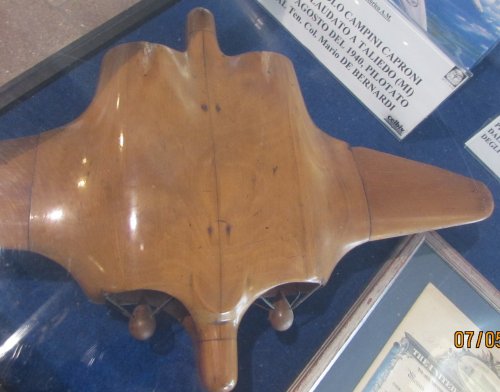

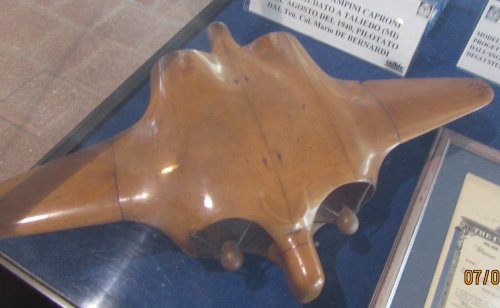

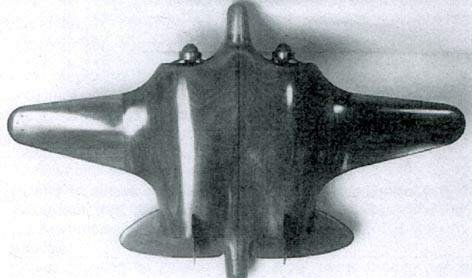

please find attached some images of a Sipa 404 windtunnel model, which is preserved at the Italian Air Force Museum in Bracciano.
Apologize for the bad quality, but the model is enclosed in a showcase and it is difficult to take pics in a convenient light.



[blackkite]

Thanks super!! I can see wind shield.
But horizontal and vertical tail stabilizer are removed from this wind tunnel test model. Why? ???
Did anyone throw those away? Restration is needed. ;D



[hesham]

Great find Ermeio.



[airman]

Hi FIAT G.30B.
http://shipbucket.com/images.php?dir=Misc%20Drawings/FD%20Scale%20Vehicles/Air%20Vehicles%20-%20Unbuilt/F/FIAT%20G.30B.png
http://alitaliche.blogspot.jp/2013/05/fiat-g30b-storia-alternativa-di.html

Second link it's one of my blogs of alternate history where i immagine what if Fiat G-30B was produced

I was inspired by this article : http://www.alieuomini.it/pagine/dettaglio/uomini,5/un_bombardiere_strategico_per_la_regia_aeronautica,149.html



[blackkite]

Hi!

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=236.0;attach=561987;image

https://jp.pinterest.com/pin/485544403553222173/



[airman]

https://web.archive.org/web/2018011..._strategico_per_la_regia_aeronautica,149.html - for recover specific page
