Potez pre-1945 projects

[Justo Miranda]

Hi



[Sherman Tank]

Hi

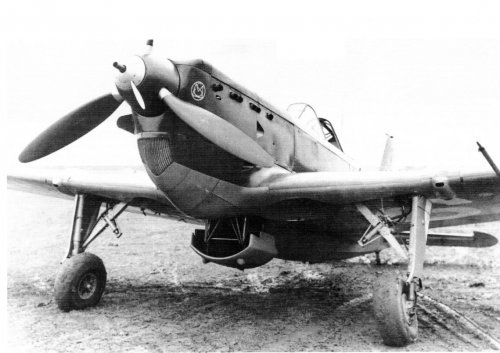

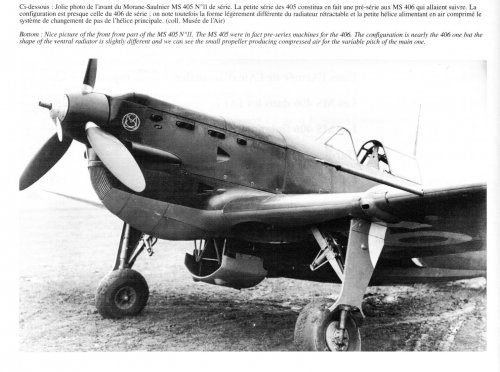

What gives with the second tiny propeller-looking thing?



[blackkite]

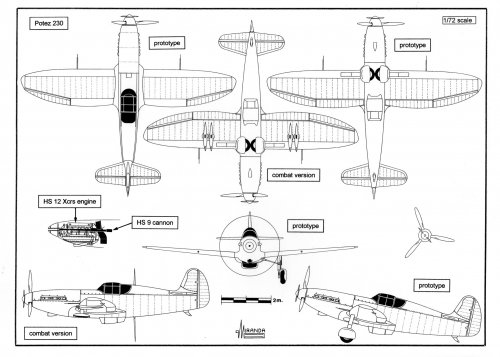

Ecellent three side view drawing as usual Justo-san. Thanks a lot.
I have a same question. Generator drive propeller?



[malcolm]

Is the second little propeller thingy something to do with propeller pitch control as on the bf108?



[blackkite]

Oh!!! Thanks a lot.



[Justo Miranda]

pitch control



[blackkite]

I see!!. Thanks a lot.
What mechanism?



[hesham]

Also in my files,

there was a Project for Potez at 1940,called A2-40 and was not related or developed from C1-40
fighter Project,maybe a two-seat observation airplane,does anyone hear about it ?.



[blackkite]

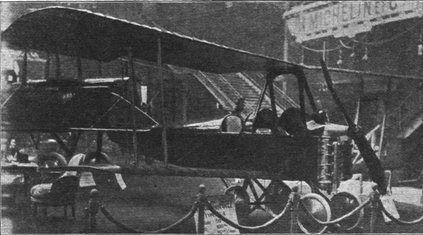

Hi! Potez VIII prototype with unusual Potez A-4 engine.

https://en.wikipedia.org/wiki/Potez_VIII

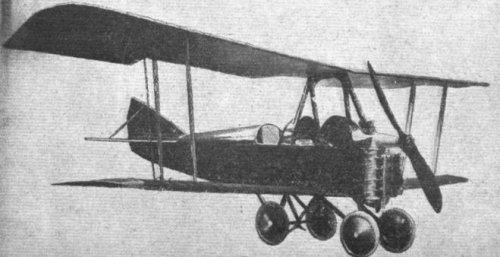

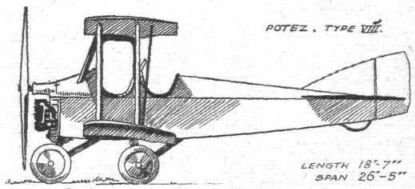

"The Potez VIII was a French training aircraft which first flew in 1920. Originally it had a very unusual vertical inline engine and a four-wheeled undercarriage, though the production version was more conventional."

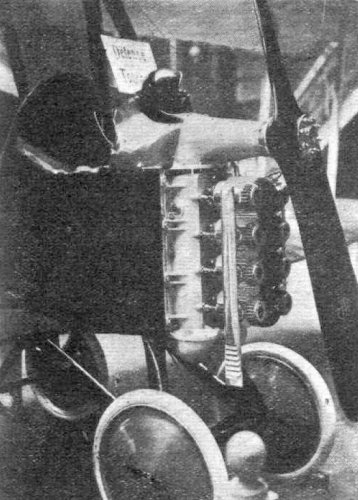

"The engine of the 1919 aircraft was also a Potez design, the 41 kW (55 hp) A-4. This was a four-cylinder inline built to run with its crankshaft vertical. It was mounted with its exposed cylinders pointing forwards for cooling and had gearing that turned the output through 90° to drive a two-blade propeller. Although the Potez A-4 was unsuccessful, its configuration produced the high power line and low centre of gravity of later inverted inline engines, allowing a shorter undercarriage, easier access to the cockpits and a better forward view over a shorter, lower nose than its inline contemporaries. The high propeller shaft also allowed a shorter undercarriage; a four-wheeled unit protected the propeller tips from contact with the ground."

http://aviadejavu.ru/Site/Crafts/Craft32694.htm

https://www.flightglobal.com/pdfarchive/view/1920/1920%20-%200071.html



[blackkite]

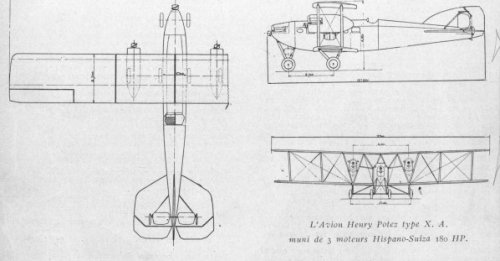

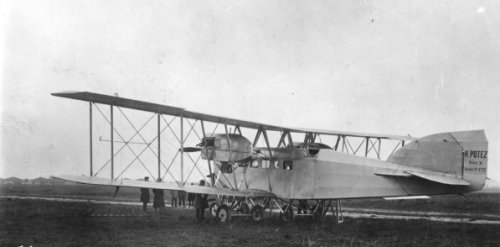

Hi! Potez Ⅹ.

http://aerophile.over-blog.com/article-71-potez-10-114939803.html

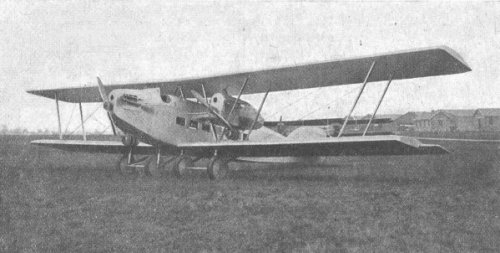

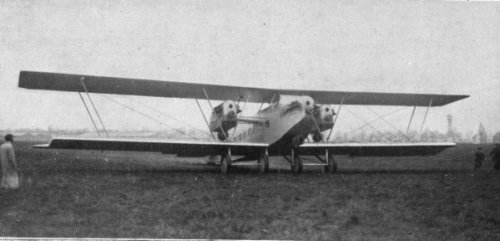

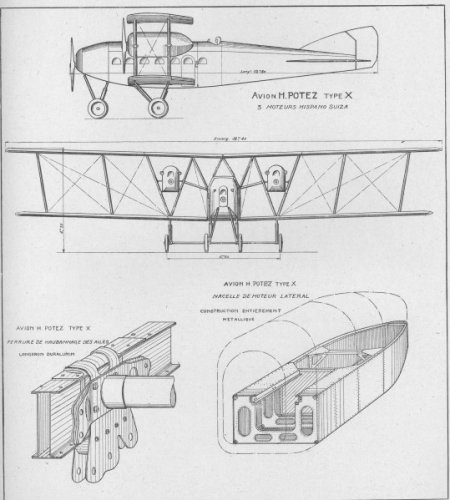

"The Potez X was originally designed to provide transportation to the "colonies", it obviously had to be strong and withstand the rough tracks and bad weather.The program responded to a request from STAé that the aircraft was the first three-engine, a configuration that met a need for total power to fly a device with not powerful enough engines and cells lack aerodynamics.
It was almost exclusively metallic except the wing covering. The aircraft was initially equipped with three Hispano-Suiza 8Aa engine of 140 hp (a motor dating from the war) this power allowed the transport of its 10 passengers to 160 km / h, but that seemed insufficient and Potez changed the engine to realize the Potez Xa which was in fact the same device re-engined with three engines Hispano-Suiza type 8 Ab of 180 hp.
Then later the engines were replaced by HS 8Bec of 280 hp, then HS 8Fb of 300 hp which gave it’s speed of 200 km / h, but the apparatus was abandoned without further developments.
The Potez X was introduced at the 1921 show where it attracted attention, passenger aircraft were, at the time, in their infancy.
It had been designed to have easy operation and maintenance, with proven engines, the cab which had a length of 5 meters and an average width of 1.30 m, provided for 12 passengers was at the front between the engine and the cockpit located at the rear, but not carinated, the pilot being in the open air.
The aircraft was modified several times in particular by changes of engines but it was still quickly abandoned. "

"Characteristics of Potez XA

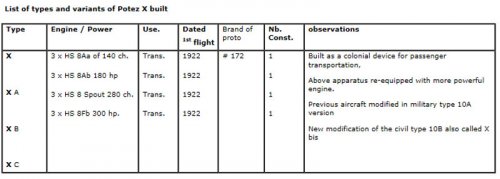

Missions : civil transport , Date of the first flight : 1922 , Constructions : mixed , Number built : 1
Dimensions
Wingspan : 18,40 m, Length : 12.95 m , Height : 4.15 m, Wing area : 95 m² , Allaire load : 39 kg / m²
Mass : Empty mass : 2300 kg, Total mass laden : 3720 kg
Performances: Max speed : 170 km / h, Cruising speed : 165 km / h , Climbing speed: Climb time at 2000m: 10 mn, Autonomy : 1000 km
Ceiling : 5000 m "

Engine : Hispano-Suiza, Number: 3, Type : 8Ab (this engine was an engine used by military planes during World War I)
Configuration : 8 V cylinders , Cooling : Liquid, Supercharging : no, Normal ground power : 180 hp at 2100 rpm
Bore : 120 mm, Stroke : 130 mm, Total cylinder capacity : 11.76 liters, Compression ratio : 5.3: 1, Length: 1.31 m, Width: 0.85 m
Height: 0.87 m, Dry weight: 230 kg , Number of blades : 2 "

I can see some cockpit position.



[hesham]

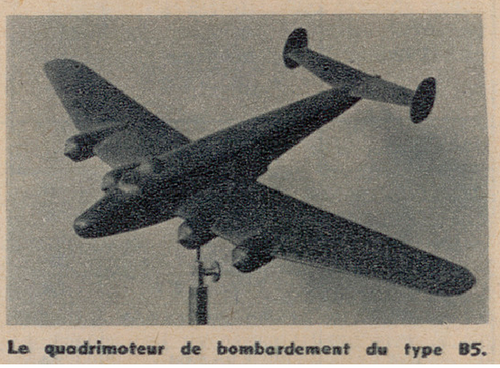

A Potez bomber project for a heavy B5-type project (bomber, 5-place) 1936 competition

From Aviation magazine 1969.



[hesham]

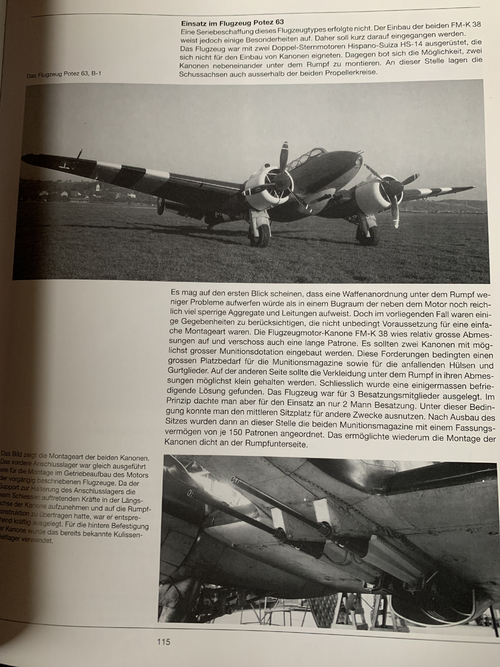

From Air Magazine 16,

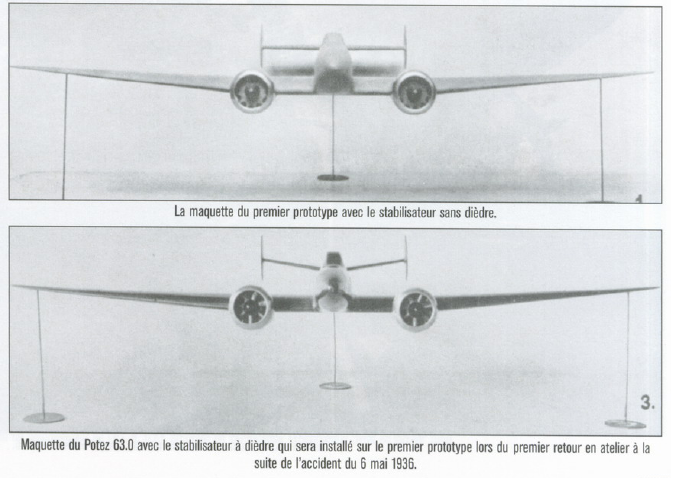

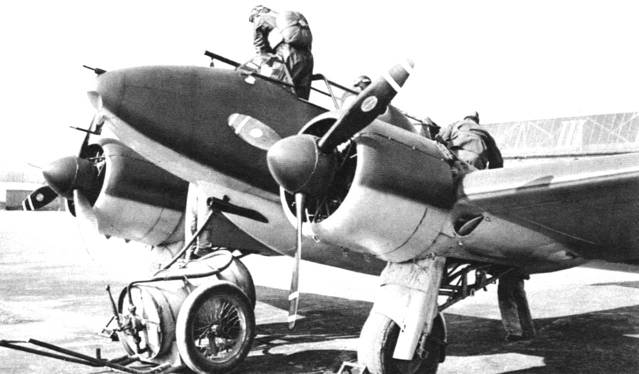

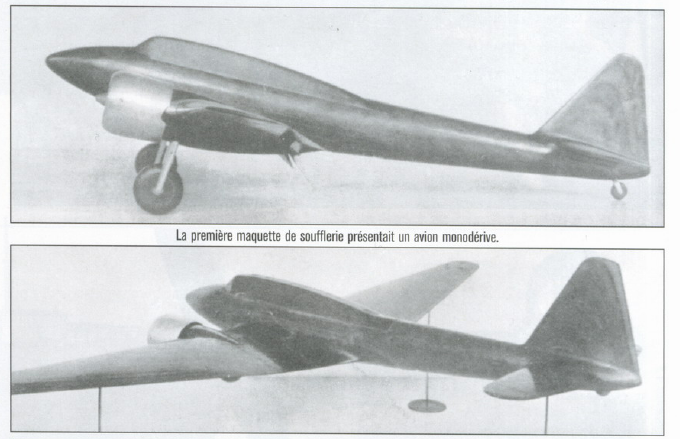

the original Model for Potez 63,please notice the differences.



[blockhaj]

Anyone have anything on the Swiss gunpod? "berceau-canons ventral". I have always assumed its carrying 34 mm flabkan derivatives but i have never found anything written on the subject.



[blockhaj]

when u speak of the devil



[hesham]

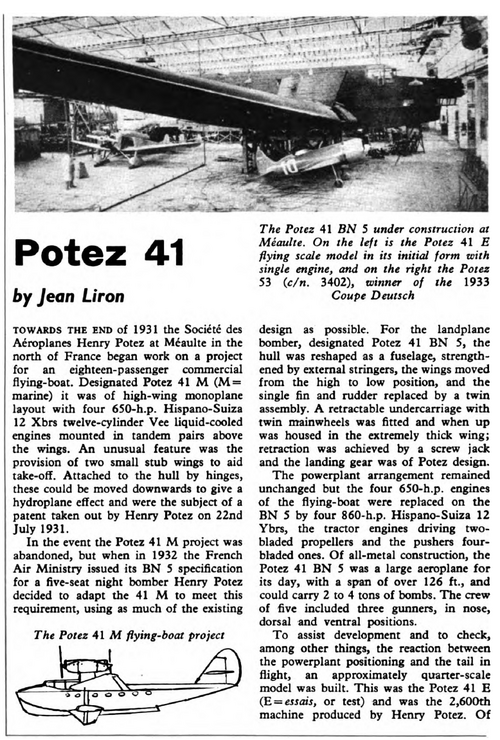

Hi,

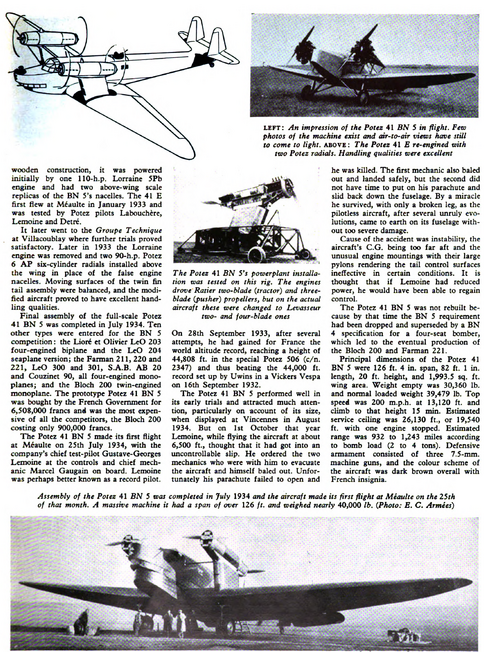

here is the Potez 41 was a large high-wing flying boat project,powered
by four engined,mounted each two engines in tandem above pylons,the
Potez 41 M was actually built as BN.5 five seat night bomber aircraft.

L'Aerophile 2/1933

We can merge those topics;
http://www.secretprojects.co.uk/forum/index.php/topic,15859.msg76713.html#msg76713

Also from Air Pictorial 166.



[hesham]

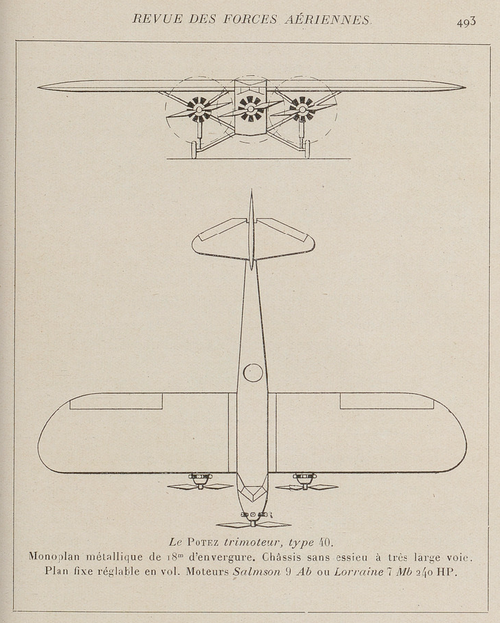

From, Revue_des_forces_aériennes 1929.
