Hi,


I want a help from my dears and my friends in this designation;


P-1 single seat mid-wing touring monoplane aircraft
P-2 single seat low-wing fighter of 1923
P-3 four-engined night bomber biplane of 1923
P-4 (Pc.2) racer seaplane project
P-5 tandem two seat recce biplane,pwoered by single engine
P-6 catapult-launch recce floatplane of 1926
P-7 (Pc.7) single seat racer seaplane of 1928
P-8 parasol wing recce floatplane of 1928
P-9 single engined strut-braced high-wing cabin monoplane of 1929
P-10 three-seat recce biplane floatplane of 1930
P-11 licence built Blackburn Lincock as two-seat aerobatic trainer version
P-12 licence built Blackburn Segrave twin-engined four-seat light transport aircraft.
P-13 ------?

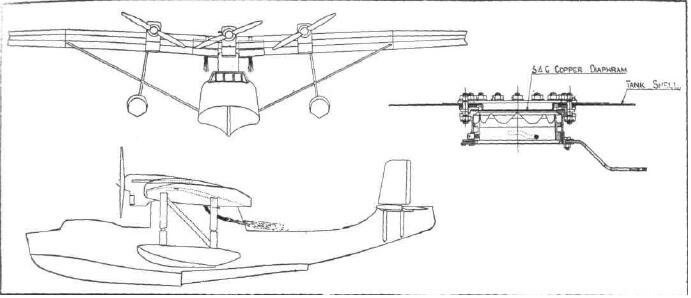

P-14 was a 10-seat, 3-engine monoplane flying boat with sponson stabilisers tendered by Blackburn to meet a specification issued by Piaggio in September 1930. Basically a variant of the Nile design
P-15 ------?
P-16 three-engined shoulder wing monoplane heavy bomber of 1933
P-17 ------?
P-18 floatplane recce aircraft project,to compete IMAM Ro.43
P-19 ------?
P-20 floatplane recce aircraft project,to compete IMAM Ro.43
P-21 ------?
P-22 ------?
P-23M shoulder-wing four-engined commercial transport monoplane of 1935
P-23R three engined low-wing cantilever record breaker transport/bomber monoplane
P-24 ------?
P-25 two seat recce biplane project of late 1920s,powered by Isotta Fraschini Asso 500 engine
P-26 ------?
P-27 ------?
P-28 ------?
P-29 ------?
P-30 ------?
P-31 ------?
P-32 twin-engined low-wing medium bomber monoplane of 1937
P-33 ------?
P-34 to P-49 -------?
P-50 shoulder-wing four-engined heavy bomber monoplane of 1937
P-51 to P-99 probably not used
P-100 ------?
P-101 four-engined heavy bomber,later became P-108B
P-102 ------?
P-103 ------?
P-104 ------?
P-105 ------?
P-106 ------?
P-107 ------?
P-108 four-engined strategic heavy bomber of 1938

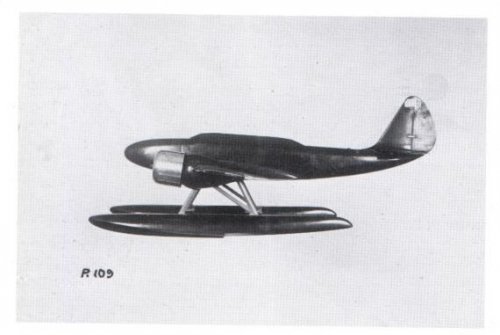

P-109 twin-engined recce shipborne floatplane to 1938 competition
P-110 long range maritime strategic recce floaplane,intended to compete Fiat RS.14
P-111 twin-engined high-altitude research aircraft of 1938
P-112 was a variant of P-108 with Piaggio P.XXII engines

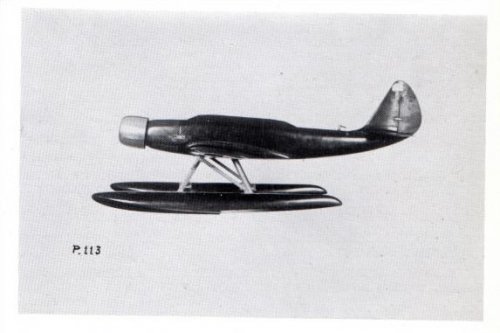

P-113 single-engined recce floatplane,also for 1938 competition
P-114 floatplane version of P-108,for long range bomber competition of 1938
P-115 ------?
P-116 ------?
P-117 patrol observation seaplane for large ships,competition of 1939
P-118 single seat fighter similar in configuration to USA Bell P-39
P-119 single seat fighter powered by one Piaggio P.XV RC.45 radial engine
P-120 recce aircraft project,to requirements of May 1938
P-121 ------?
P-122 twin-engined dive bomber to compete Breda Ba.201
P-123 new designation given to P-23R since 1942
P-124 floatplane project to requirements of July 1939 and May 1940
P-125 twin fuselage single seat fighter project
P-126 four-engined transport version of P-108,transatlantic airliner project
P-127 six inline engined transport project for transatlantic competition
P-128 ------?
P-129 single seat fighter developed from P-119 with Daimler Benz DB-605 engine
P-130 four-engined high-altitude pressurized long range bomber
P-131 ------?
P-132 single seat fighter developed from P-119 with Piaggio P.XV RC.60 engine
P-133 advanced version of P-108B with better engines and increased bombload,never
completed
P-134 twin-engined light transport aircraft,powered by two 800 hp engines
P-135 twin-engined shoulder-wing light transport project,with two 1014 hp engines
P-136 twin-engined gull-wing amphibian flying boat
P-137 four-seat twin boom light transport aircraft,powered by one 215 hp Franklin engine,
looks like French SECAN Courlis.
P-138 twin-engined project ,powered by two 1825 hp engines
P-139 probably was an iteration of P-138
P-140 four-engined medium transport aircraft project,derivative of P-108
P-141 four 1200 hp engines project
P-142 twin 450 hp engines project
P-143 unfinished tandem two seat primary trainer,powered by one 215 hp engine
P-144 single 1010 hp engine project
P-145 twin-engined medium transport aircraft project
P-145/II re-allocated to advanced trainer project,in the same class of T-33
P-146 single seat jet fighter project,resemble Lockheed P-80
P-147 four 1010 hp engines project
P-148 two seat primary or aerobatic trainer
P-149 four seat utility or liaison aircarft
P-150 two-seat low-wing trainer aircraft
P-151 ------?
P-152 ------?
P-153 single-engined low-wing light transport aircraft
P-154 ------?
P-155 twin-engined amphibian flying boat to compete Breguet Atlantic
P-156 derivative of P-155
P-157 patrol and recce flying boat,with high-wing monoplane,powered by one Armstrong-Siddeley Double-Mamba engine
P-158 twin-engined executive aircraft
P-159 circa 1955,may be a fighter
P-160 ------?
P-161 ------?
P-162 ------?
P-163 ------?
P-164 ------?
P-165 designed 1958. Tri-engine high-wing, land monoplane as SAR, surveillance and attack, mine
placement and transport project
P-166 twin-engined pusher-type utility amphibian aircraft
P-167 derivative of P-166
P-168 project designation of P-166DL-3
RP-168 commercial quiet STOL project
P-169 I suspect in RP-196 design,it was four-engined high wing light transport
aircraft,but I believe,it was RP-169 with misprint
P-170 ------?
P-171 ------?
P-172 ------?
P-173 ------?
P-174 ------?
P-175 ------?
P-176 ------?
P-177 ------?
P-178 ------?
P-179 ------?
P-180 twin-engined pusher turboprop powered,as a business aircraft
P-181 pre-project of a twin-jet executive aircraft

Last edited:
Pictures and data here:-

http://www.collezionarecartoline.it/home.php?base=altre_cartoline&id_comune=955&id_ritorno=955

P1 was a single-seat touring aircraft, not a fighter

The Piaggio P.18 wasn't a bomber. Both the P.18 and P.20 were reconnaissance float aircraft projects to the 1933 Regia Marina requirement filled by the Ro.43.

I've seen the Piaggio P.33 linked to the Caproni Ca.616. So, presumably a Giovanni Pegna design?

Thank you my dear Apophenia,


I will re-set the list,and for P.33,you said it was in link with Caproni Ca.616,may
be you meant Ca.316.

Hi Hesham. I'm not sure what to make of that P.33/Ca.616 reference. All of the aircraft/projects in the Caproni-Predappio Ca.600-block were light aerobatic aircraft and nove, AKAIK, reached those designations reached '616 :-\

Thank you my dear Apophenia,


and may be it was aerobatic aircraft project.

Hi friends,
firstly, my apolgises for the long silence on this blog: as you probably know, Italy is enduring an harsh crysis and I'm multiplying my efforts to rising some money...
About Piaggio designations, I have the sensation that P-34 to P-49, and P-51 to P-99 never were allocated.
About P.101 I found only rumours about an iteration of P.50 or an early configuration of four-engined bomber that became the P.108B (that, in fact was itself a re-engineering of the P.50 with metal airframe).
P.120 was a reconnaissance aircraft, answering a requirement of may 1938.
P.124 was the projet of a floatplane submitted for the requirements of July 1 1939 and May 1, 1940.
P.138: I know only that was a project to be powered by two 1.825 HP engines.
P.139: probably was an iteration of P.138.

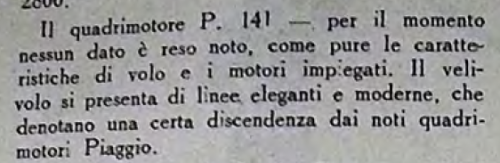

P.141: I know only that was a project to be powered by four 1.200 HP engines.
P.142: I know only that was a project to be powered by two 450 HP engines.
P.144: I know only that was a project to be powered by single 1.010 HP engine.
P.145: perhaps was a designation applied twice; I have also indication of an advanced trainer in the same class of T-33.
P.147: I know only that was a project to be powered by four 1.010 HP engines.
P.156: only rumours abot a derivative of the P.155 family.
P.157: trasport aircraft designed in 1956 (no more info).
P.158: perhaps named Executive (twin engine, no more info)
P.159: circa 1955, perhaps fighter aircraft (no more info).
P.167: rumours about a derivative of the P.166 family.
P.168: project designation of P.166DL-3.
RP.168: project of a commercial "quiet STOL".
P.181: rumours about a pre-project of a twin jet entry level executive.
RP.196: four-engined light transport
P.1XX is a provisional designation for a twin jet entry level executive in development for some years.
Nico

Excellent Nico,many thanks,


I will re-set the list with your new projects.

Dear friends,
Do you have more informations and pictures or drawings about the Piaggio P.3 Bomber?
If someone is interest, I have found an eBay seller who sells a nice picture of the aircraft.
Here it is the link

P.165 Designed 1958. Tri-engine high-wing, land monoplane as SAR, surveillance and attack, mine placement and transport

PD.808 1962 joint Piaggo and Douglas aircraft, twin-jet executive monoplane with 7-10 seats. One built 1964.

Hi boys,
during a short holiday pause, I found some notes about a Piaggio designation list. I pick the occasion for an update of the complete list of our Hesham
Eng. Pegna projects
P-1 single seat mid-wing touring monoplane aircraft
P-2 single seat low-wing fighter of 1he occasion t923
P-3 four-engined night bomber biplane of 1923
P-4 (Pc.2) racer seaplane project
P-5 tandem two seat recce biplane,pwoered by single engine
P-6 catapult-launch recce floatplane of 1926
P-7 (Pc.7) single seat racer seaplane of 1928
P-8 parasol wing recce floatplane of 1928
P-9 single engined strut-braced high-wing cabin monoplane of 1929
P-10 three-seat recce biplane floatplane of 1930
P-11 licence built Blackburn Lincock as two-seat aerobatic trainer version
P-12 licence built Blackburn Segrave twin-engined four-seat light transport aircraft.
P-13 ------?
P-14 ------?
P-15 ------?
P-16 three-engined shoulder wing monoplane heavy bomber of 1933
P-17 ------?
P-18 floatplane recce aircraft project,to compete IMAM Ro.43
P-19 ------?
P-20 floatplane recce aircraft project,to compete IMAM Ro.43
P-21 ------?
P-22 ------?
P-23M shoulder-wing four-engined commercial transport monoplane of 1935
P-23R three engined low-wing cantilever record breaker transport/bomber monoplane
P-24 ------?
P-25 two seat recce biplane project of late 1920s,powered by Isotta Fraschini Asso 500 engine
P-26 ------?
P-27 ------?
P-28 ------?
P-29 ------?
P-30 ------?
P-31 ------?
P-32 twin-engined low-wing medium bomber monoplane of 1937
P-33 possibly Caproni Project
P-34 to P-49 -------?
P-50 shoulder-wing four-engined heavy bomber monoplane of 1937
the development was continued by Eng. Casiraghi.
P-51 to P-100 not assigned

I'm continuing with Casiraghi pre-war and wartime projects:


Eng. Casiraghi Projects 1936-1943
P-100 not used
P-101 four-engined commercial landplane (four IF Asso XIR engines)
P-102 probably as P-101 but with for Jumo
P-103 commercial flying boat with four Wright Cyclone
P-104 commercial flying boat with smaller hull (four Asso XIR)
P-105 commercial flying boat with medium hull (sic) with same Asso
P-106 military patrol version of P-105
P-107 commercial flying boat derived form P-104/105 w/ larger hull
P-108 four-engined strategic heavy bomber of 1938
P-109 twin-engined recce shipborne floatplane to 1938 competition
P-110 long range maritime strategic recce floaplane,intended to compete Fiat RS.14
P-111 twin-engined high-altitude research aircraft of 1938
P-112 was a variant of P-108 with Piaggio P.XXII engines
P-113 single-engined recce floatplane,also for 1938 competition
P-114 floatplane version of P-108,for long range bomber competition of 1938
P-115 commercial transport landplane (two P.VII RC.35)
P-116 military multipurpose landplane (sic) with one P.XI RC.40
P-117 patrol observation seaplane for large ships,competition of 1939
P-118 single seat fighter similar in configuration to USA Bell P-39
P-119 single seat fighter powered by one Piaggio P.XV RC.45 radial engine
P-120 recce aircraft project,to requirements of May 1938
P-121 commercial transport landplane (8-seat) with two IF Delta RC.35
P-122 twin-engined dive bomber to compete Breda Ba.201
P-123 new designation given to P-23R since 1942
P-124 floatplane project to requirements of July 1939 and May 1940
P-125 twin fuselage single seat fighter project (Santangelo project)
P-126 four-engined transport version of P-108,transatlantic airliner project
P-127 six inline engined transport project for transatlantic competition
P-128 torpedo bomber lansplane (two P.XI RC.35)
P-129 single seat fighter developed from P-119 with Daimler Benz DB-605 engine
P-130 four-engined high-altitude pressurized long range bomber
P-131 military multipurpose landplane (two unspecified 1.000 CV/HP)
P-132 single seat fighter developed from P-119 with Piaggio P.XV RC.60 engine
P-133 advanced version of P-108B with better engines and increased bombload,never completed.

...and now postwar designations and other class of projects:


Postwar development
P-134 twin-engined light transport aircraft,powered by two 800 hp engines
P-135 twin-engined shoulder-wing light transport project,with two 1014 hp engines
P-136 twin-engined gull-wing amphibian flying boat
P-137 four-seat twin boom light transport aircraft,powered by one 215 hp Franklin engine,
looks like French SECAN Courlis.
P-138 twin-engined project ,powered by two 1825 hp engines
P-139 probably was an iteration of P-138
P-140 four-engined medium transport aircraft project,derivative of P-108
P-141 four 1200 hp engines project
P-142 twin 450 hp engines project
P-143 unfinished tandem two seat primary trainer,powered by one 215 hp engine
P-144 single 1010 hp engine project
P-145 four-engined medium transport aircraft project
P-145/II re-allocated to advanced trainer project,in the same class of T-33
P-146 single seat jet fighter project, resemble Lockheed P-80
P-147 four 1010 hp engines project
P-148 two seat primary or aerobatic trainer
P-149 four seat utility, liaison and training aircarft
P-150 two-seat low-wing trainer aircraft
P-151 ------?
P-152 ------?
P-153 single-engined low-wing light transport aircraft (commercial and military)
P-154 ------?
P-155 twin-engined amphibian flying boat to compete Breguet Atlantic
P-156 derivative of P-155
P-157 transport aircraft project of 1956
P-158 twin-engined executive aircraft
P-159 circa 1955, may be a fighter
P-160 ------?
P-161 ------?
P-162 ------?
P-163 ------?
P-164 ------?
P-165 designed 1958. Tri-engine high-wing, land monoplane as SAR, surveillance and attack, mine
placement and transport project
P-166 twin-engined pusher-type utility amphibian aircraft
P-167 perhaps derivative of P-166
P-168 project designation of P-166DL-3
RP-168 commercial quiet STOL project
P-169 I suspect in RP-196 design,it was four-engined high wing light transport
aircraft,but I believe,it was RP-169 with misprint
P-170 ------?
P-171 ------?
P-172 ------?
P-173 ------?
P-174 ------?
P-175 ------?
P-176 ------?
P-177 ------?
P-178 ------?
P-179 ------?

Eng. Alessandro Mazzoni projects
P-180 twin-engined pusher turboprop powered,as a business aircraft
P-181 pre-project of a twin-jet executive aircraft, probably the renamed P-1XX
RP-196: four-engined commercial transport
P-1HH HammerHead optionally manned drone based on P-180 Avanti II airframe.

Corradino D'Ascanio projects:
PD.1 1934 helicopter with P.VII 390 HP engine
PD.2 1939 helicopter with Alfa Romeo 130 HP engine
PD.3 PD.2 rebuilt in 1949
PD.4 1952 tandem rotors helicopter with Franklin 215 HP engine

Licence-built aircraft
FBA seaplane
Caproni Ca.46
Caproni Ca.47
Dornier Wal
Macchi M.7
SIAI-Marchetti S.55
SIAI-Marchetti S.62
SIAI-Marchetti S.78
Blackburn Lincock
Blackburn Segrave
SIAI-Marchetti S.81 Pipistrello
Nardi FN.305
CRDA Cant.Z.506 Airone
CRDA Cant.Z.1007 Alcione
Douglas PD-808 Vespa-Jet

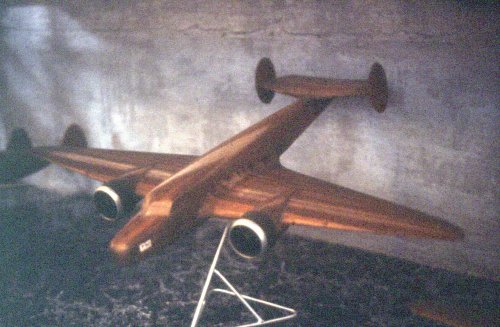

...again on the Piaggio theme, I found a rather bad slide of an unidentified wooden wind-tunnell test model. As you know, modern scanners have some trouble with 35-mm slides, and, moreover, this particular shot is out of focus. I suppose that the label on the nose could read P.142, ma it's also possible that the aircraft is the P.115 or one of the various derivative of the P.32 family that Piaggio apparently continued for some time even when eng. Pegna joined Caproni-Reggiane.
I cannot say "enjoy it" as I'm well aware that the picture is very bad
Nico


Attachments

  • Unknown Piaggio.jpg
    Unknown Piaggio.jpg
    595 KB · Views: 364
Many many thanks to you my dear Nico,you made my day,


and may be we can explain many of those Piaggio mysteries;


Attachments

  • Aircraft.jpg
    59.4 KB · Views: 343
Hi Hesham and all,

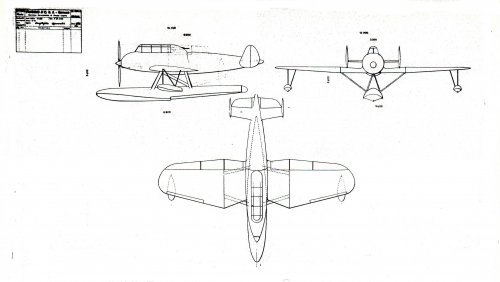

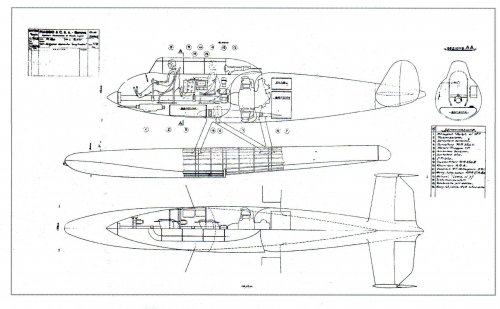

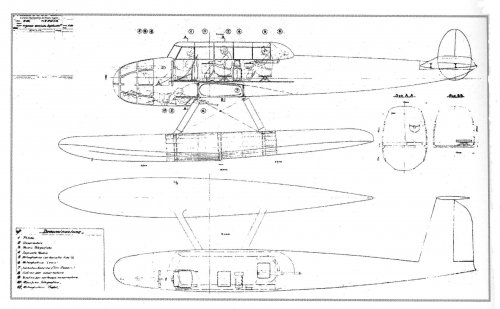

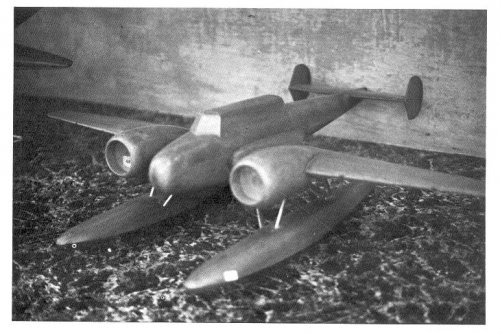

continuing on the same subject, I found, on the already mentioned issues of "Aero Fan" and in my archives, some pictures of the lesser known Piaggio projects of late thirties.
All are related to shipborne seaplanes, answering the various Regia Aeronautica/Regia Marina requirements for reconnaissance aircraft destined to battheships and cruisers.

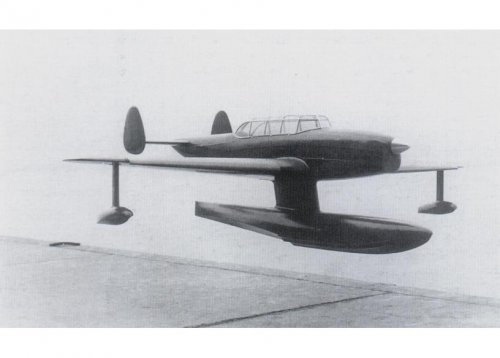

There are the P.109, P.113, P.117, P.120 and P.124. Some are wooden small scale wind tunnell models and others are preliminary technical drawings. The seaplane seemingly flying in front of the pier of the Piaggio's Finale Ligure Marina plant (where seaplanes were built) is probably tha same model or mock-up appearing in the "Luce" movie, already shown on Secret Projects.
I hope you can enjoy all the matter
Nico


Attachments

  • P.124_2.jpg
    40.4 KB · Views: 107
  • P.124.jpg
    359.8 KB · Views: 115
  • P.120_2.jpg
    369.3 KB · Views: 110
  • P.120.jpg
    195.1 KB · Views: 121
  • P.117_2.jpg
    84 KB · Views: 124
  • P.117.jpg
    372.5 KB · Views: 303
  • P.113.jpg
    24.8 KB · Views: 319
  • P.109.jpg
    23.4 KB · Views: 321
Oh my God,excellent my dear Nico,


you made my day again,many thanks.

Hi,


I heard that the Piaggio P.102 was also a heavy bomber project,is that right ?.

My Dears,
unfortunately I failed to find any further hint about the P.102. It seems that it was for sure a four-engined plane but I cannot say if commercial or bomber.
By the way, about the Piaggio lineage, in my previous post I wrote that the P.1HH Hammerhead is an optionally manned drone. In fact, only the technology demonstrator was such an aircraft as the definitive prototype is only unmanned.


Nico

Hi,

my dears and my friends,I am sure that,I saw from long time ago a book for Piaggio aircraft
company,I don't remember its name,can someone help ?.

Loren said:
Volare Avanti
Click to expand...

Hi Loren,

that book as I think about Avanti aircraft only,but I meant the Piaggio company from the beginning
to the end.

Hi,

a small Info about P.141,a four engined 30-40 passenger airplane Project.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201949%2005.pdf


Attachments

  • 141.png
    201.6 KB · Views: 70
By the way,

P-138 was medium size amphibian twin engined Project.
P-145 was twin engined (not four) transport aircraft Project.

P.2HH MALE drone. Larger wing and airframe than the P.1HH Hammerhead, with more composites making up it's airframe. Maximum endurance of 30h. Development plan was costed at €766 million. Work on the programme, for which Leonardo would supply the mission system, was to begin in 2017, with first deliveries 55 months later. The procurement plan was presented to parliament in February 2018. Program currently in limbo as of late 2018 due to the new Italian government.
https://www.secretprojects.co.uk/forum/index.php/topic,19814.msg340918.html#msg340918

P.14 was a 10-seat, 3-engine monoplane flying boat with sponson stabilisers tendered by Blackburn to meet a specification issued by Piaggio in September 1930. Basically a variant of the Nile design.

Schneiderman said:
P.14 was a 10-seat, 3-engine monoplane flying boat with sponson stabilisers tendered by Blackburn to meet a specification issued by Piaggio in September 1930. Basically a variant of the Nile design.
Click to expand...

OMG,please my dear Schneiderman,can you display it if there is a drawing ?,and thanks.

Last edited:
hesham said:
OMG,please my dear Schneiderman,cn you display it if there is a drawing /,and thanks.
Click to expand...
The Blackburn brochure has been located but still searching for any associated drawings..............................................but if they are found then they will most likely find their way into a book or article

Schneiderman said:
The Blackburn brochure has been located but still searching for any associated drawings..............................................but if they are found then they will most likely find their way into a book or article
Click to expand...

Maybe something like this ?.


Attachments

  • 12.JPG
    24.8 KB · Views: 26
Yes, that is the Nile, used to illustrate Blackburn's fuel dump system

i have ordered " Volare Avanti " on Ibs/Feltrinelli (italian bookstore) @ good price than Amazon. I think it's an interesting book .

airman said:
i have ordered " Volare Avanti " on Ibs/Feltrinelli (italian bookstore) @ good price than Amazon. I think it's an interesting book .
Click to expand...

Good news my dear Airman,and I hope you get more projects.


Similar threads

Please donate to support the forum.

Back
Top Bottom
