Lottie said:Hi

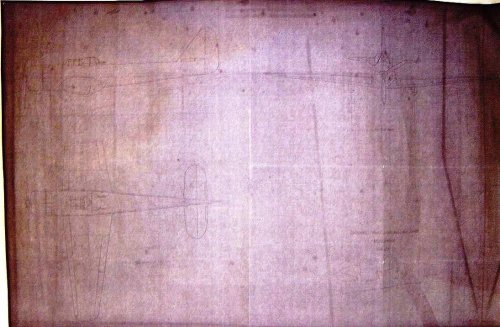

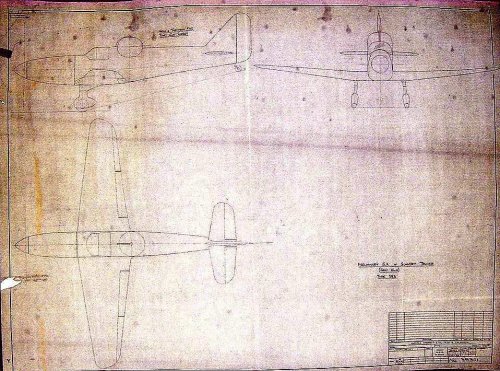

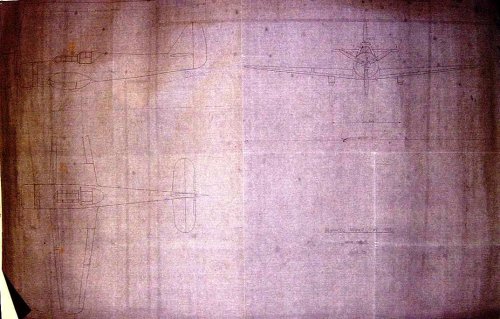

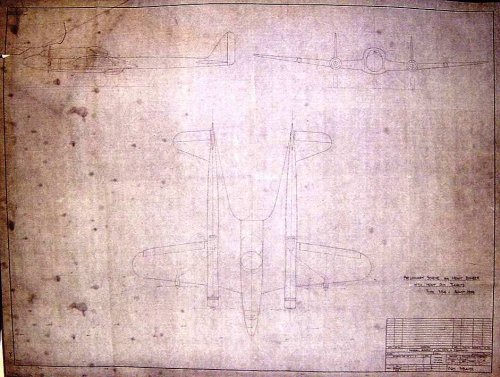

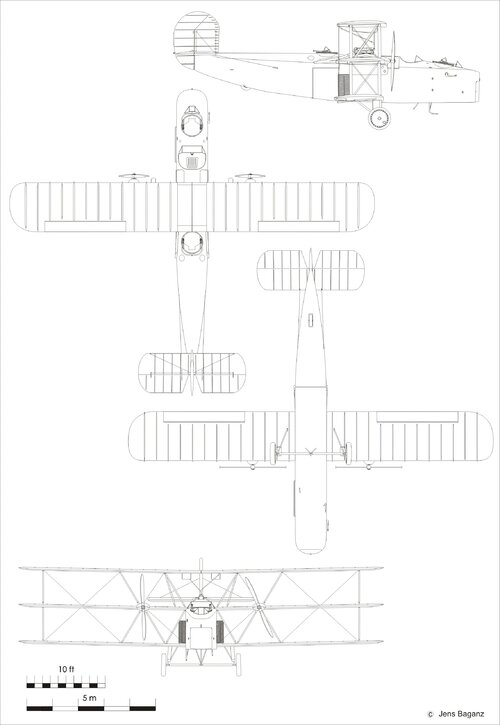

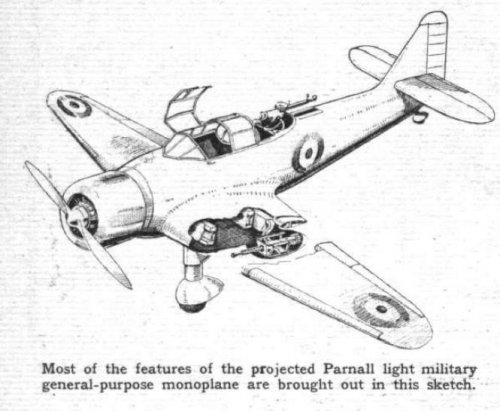

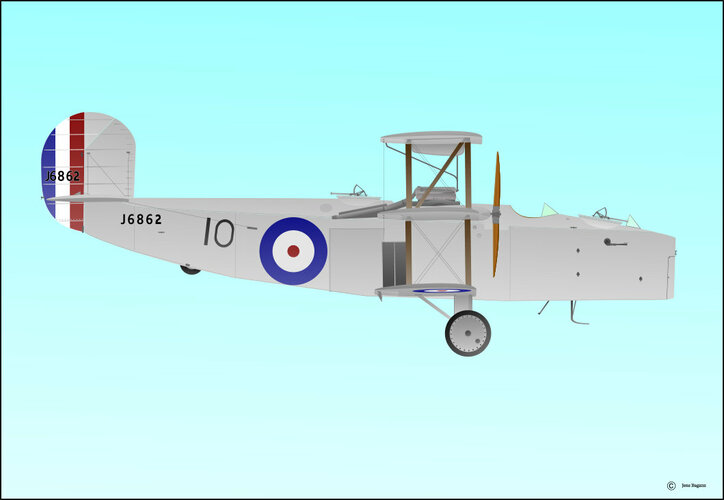

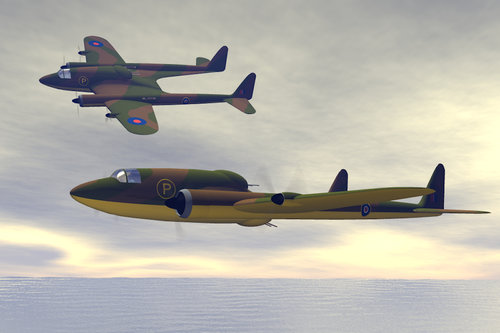

I served my engineering apprenteship at Parnall's when K Wixey was researching for Putnam book. We found some cylinders of drawings the most interesting of which I kept copies. Attached the type 384 Heavy bomber. Generally as described by yourself. Also note engine layout outer props driven bi lineshafts? ,experimented layout in Parnall Possum of 1923. I also have other drawings of projects as per attached sheet.
Regards
HmHm.....Anyway very ambitious design.Schneiderman said:Worth cross-checking with this
https://www.secretprojects.co.uk/forum/index.php/topic,20030.0.html
As a bomber design it looks highly suspect to me; unreasonably complex engine drive system, double blind spots for the guns, restricted bomb bay as a result of large twin turrests. Possible, vaguely, to B.1/39 but probably just conceptual to illustrate how low drag turrets could be installed
Schneiderman said:As a bomber design it looks highly suspect to me; unreasonably complex engine drive system, double blind spots for the guns, restricted bomb bay as a result of large twin turrests. Possible, vaguely, to B.1/39 but probably just conceptual to illustrate how low drag turrets could be installed
I'll have to diagree with that. Complex and unproven drives are most unlikely to have been considered acceptable and in a world where tail turrets were ubiquitous this layout offers a poor substitute. You may be right regarding the bomb load.JFC Fuller said:The turrets are probably meant to be quads. With the exception of the complex drive system the other "weaknesses" you reference would have been very acceptable to the RAF in 1937/38. Bomber designs were being specified to only carry small bombs (hence the wing cells on multiple types and the ludicrous bomb bay/door arrangement on the Stirling) so a restricted bomb bay would have been fine and both the turrets have firing arcs that cover the areas from which bomber command thought fighter attacks were possible.
Schneiderman said:I'll have to diagree with that. Complex and unproven drives are most unlikely to have been considered acceptable and in a world where tail turrets were ubiquitous this layout offers a poor substitute. You may be right regarding the bomb load.
I think what kills this for me is that Parnall really had no significant design capability at this time. Nash and Thompson bought-out Parnall mainly to acquire the factory space required to undertake their ever-expanding order book for turrets and the residue of the Hendy business was hardly up to the task of taking on a project of this size. To me the 381 was a quick and simple suggestion to enable low profile turrets to be tested and this 348 is a conceptual design for a bomber equipped with such a design. It would seem that Boulton Paul's turret was prefered, for reasons unknown, but that, too, was soon abandoned.
Hood said:....Maybe Parnall had their ear to ground or more likely heard about the spec from Nash & Thompson. I would agree with Schneiderman that Nash & Thompson were probably the inspiration behind Parnall drawing up this study. It makes sense the turret manufacturer might have wanted a aircraft designer's opinion of the feasibility of the Ideal Bomber specification before embarking and investing on a new development. Indeed, the unofficial status of the design might have given Parnall the confidence to play with the driveshaft-driven outer props, in a sense they had nothing to lose.
You are absolutely right, the B.1/39 contenders are all equally compromised in arc of fire, so the Parnall concept is no worseJFC Fuller said:The only way of mounting the heavy quad cannon turrets was to have them near the center of gravity so all the B.1/39 designs mounted them in upper and lower configurations towards the center of gravity (see the Bristol Type 159 as an example of this)....

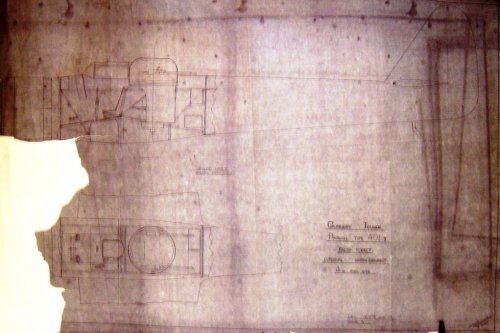

Gunnery trainers? Oh no, no, no......far too boring....,please can you make this with Model-383 and Model-401 ?,and thanks.
See #19. There are radials for the inner props and some type of V water-cooled driving the outers. These engines are located in the booms adjacent to the wing trailing edge and drive the outer props via long diagonal shafts. A totally impractical installation which is one reason why I see this scheme as no more than schematic and not aimed at any particular specificationAre the outboard engines smaller than the inboard ones?
