Order Procellariiformes
- Family Sturmvögel = Procellariidae - fulmarine petrels, gadfly petrels, prions and shearwaters
- Family Albatrosses = Diomedeidae, Genera - Diomedea, Thalassarche, Phoebastria, Phoebetria
- Family Northern storm petrels = Hydrobatidae
- Family Southern storm petrels = Oceanitidae
- Family Pelecanoididae - diving petrel
Albatrosses and Sturmvögel (shearwaters, various petrels, etc.) are related but separate families.
- Family Sturmvögel = Procellariidae - fulmarine petrels, gadfly petrels, prions and shearwaters
- Family Albatrosses = Diomedeidae, Genera - Diomedea, Thalassarche, Phoebastria, Phoebetria
- Family Northern storm petrels = Hydrobatidae
- Family Southern storm petrels = Oceanitidae
- Family Pelecanoididae - diving petrel
Albatrosses and Sturmvögel (shearwaters, various petrels, etc.) are related but separate families.
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

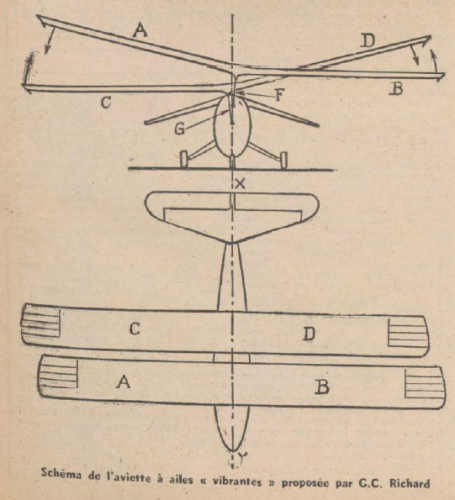

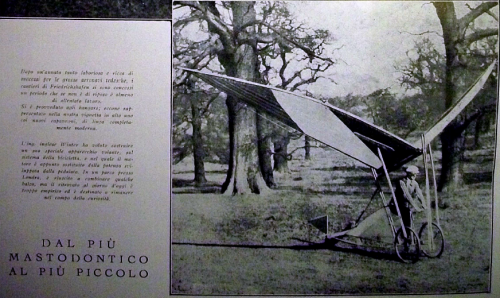

From Ailes 3/1/1959,

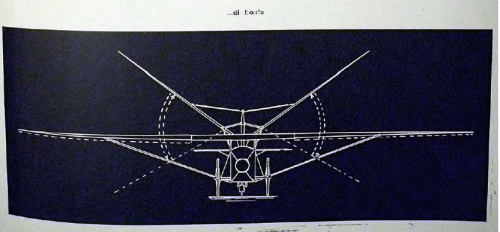

again and again,Mr. G. C. Richard and his new ideas.
again and again,Mr. G. C. Richard and his new ideas.
Attachments
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

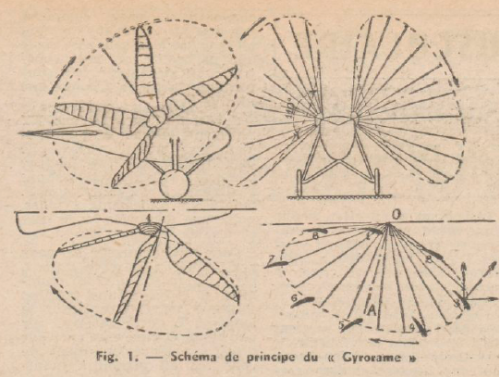

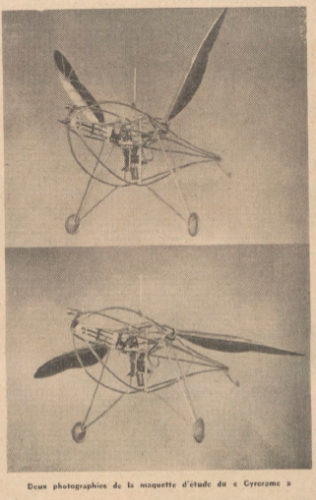

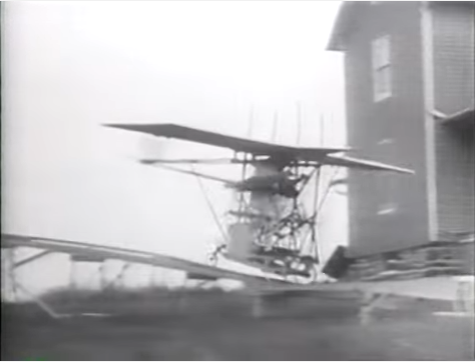

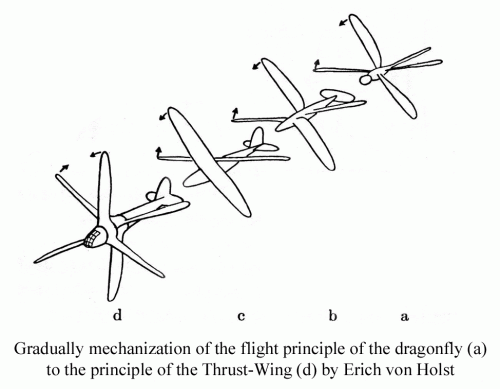

The first time to hear about Gyrorame ?.
Attachments
richard
ACCESS: Top Secret
- Joined
- 1 May 2006
- Messages
- 578
- Reaction score
- 133

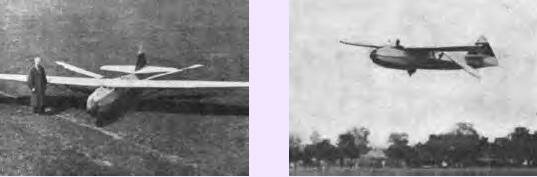

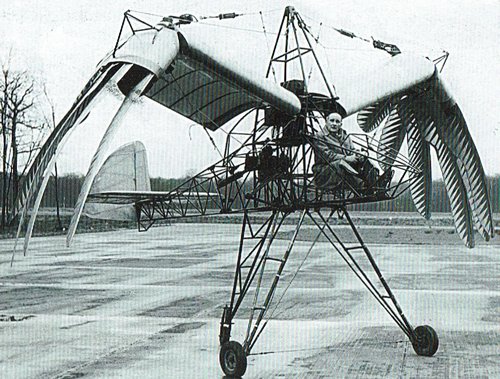

About the Oskar Dinort "Schwingenflugzeug" (post 31,#5 picture)
Oskar Dinort was before and during WW II a well known sailplanes and aircraft pilot .

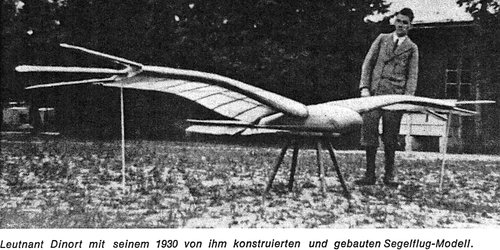

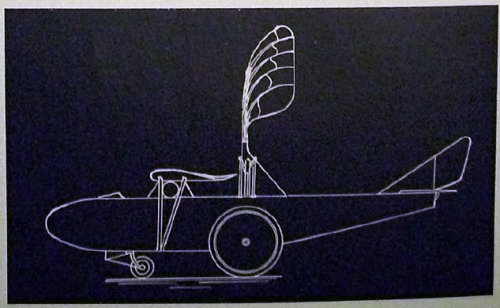

In 1930 , he was already interested in ornithopters :

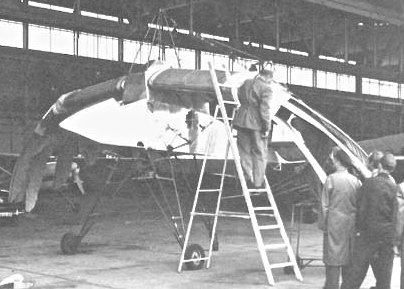

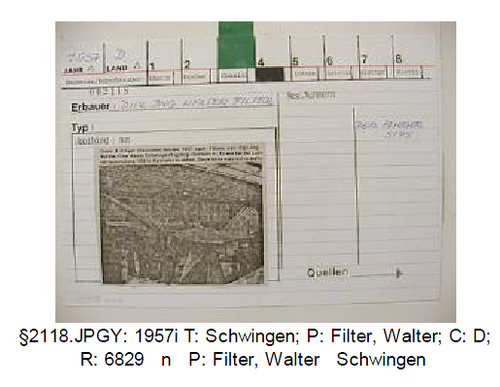

After the war , in 1957 , he built the ornithopter shown in picture 5 / post 31 : (here , fromJet&Prop Foto-Archiv Band 5)
I never saw before a picture of the finished bird (from "digit.wdr.de" then SUCHEN : "Flugzeughallen") :
Oskar Dinort was before and during WW II a well known sailplanes and aircraft pilot .
In 1930 , he was already interested in ornithopters :
After the war , in 1957 , he built the ornithopter shown in picture 5 / post 31 : (here , fromJet&Prop Foto-Archiv Band 5)
I never saw before a picture of the finished bird (from "digit.wdr.de" then SUCHEN : "Flugzeughallen") :
Last edited:
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

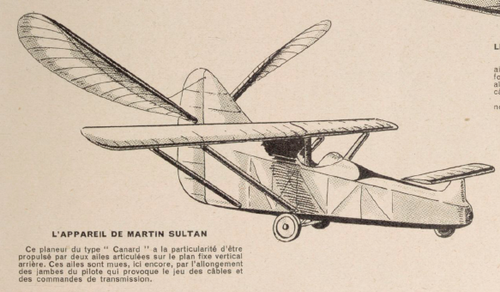

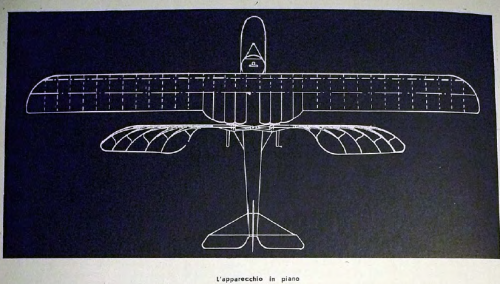

From L'Air Revue 1939,

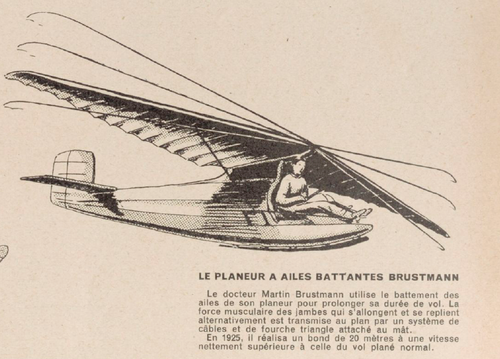

here is an ornithopter glider,designer by a German Martin Brustmann

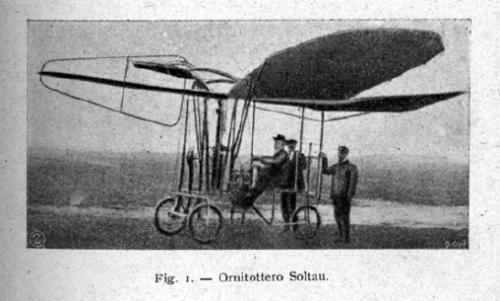

in 1925,also a look like ornithopter,designed by Mr. Martin Sultan.
here is an ornithopter glider,designer by a German Martin Brustmann
in 1925,also a look like ornithopter,designed by Mr. Martin Sultan.
Special Types of Rotary Wing Aircraft
books.google.com.eg
Attachments
Last edited:
Rhinocrates
ACCESS: Top Secret
- Joined
- 26 September 2006
- Messages
- 2,616
- Reaction score
- 6,212
The entomopter is unmanned and an insect-analogue rather than a bird-analogue (hence different aerodynamics on the wing), but more relevant here than anywhere else.
Links to publications here:
Video here:
Links to publications here:
Video here:
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

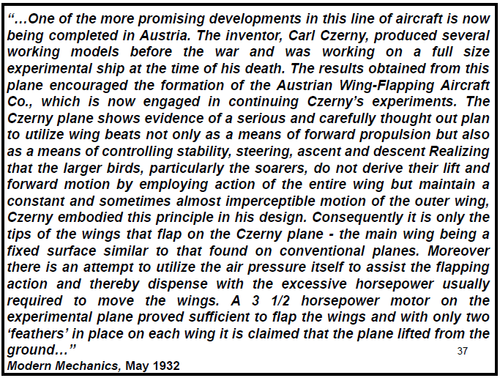

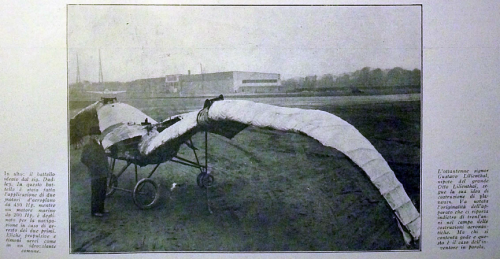

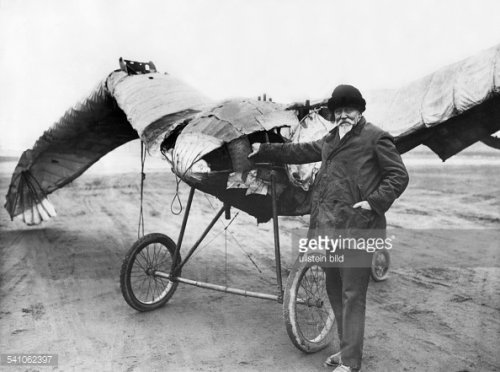

About Carl Czerny;

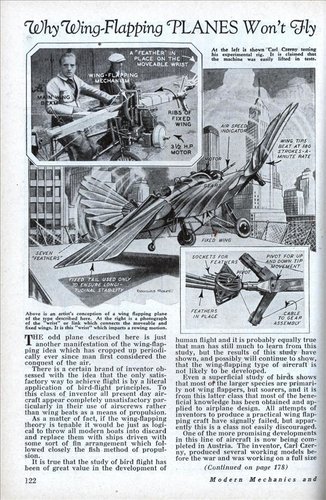

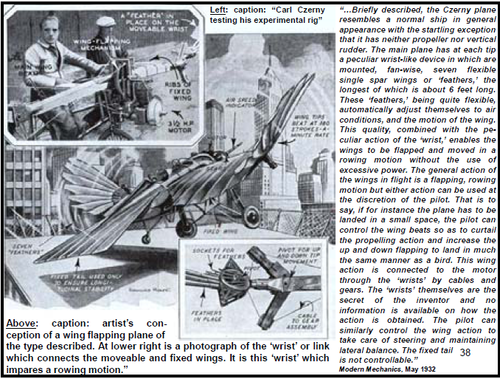

Why Wing-Flapping PLANES Won't Fly - Modern Mechanix (May, 1932)
THE odd plane described here is just another manifestation of the wing-flapping idea which has cropped up periodically ever since man first considered the conquest of the air. There is a certain brand of inventor obsessed with the idea that the only satisfactory way to achieve flight is by a...
blog.modernmechanix.com
Attachments
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

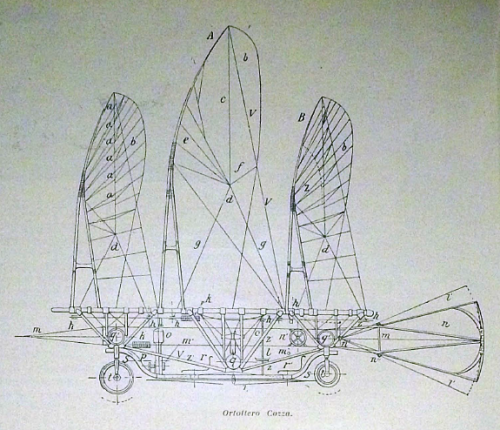

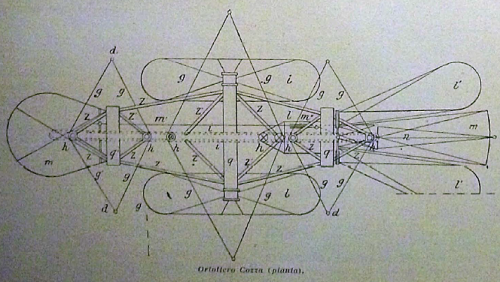

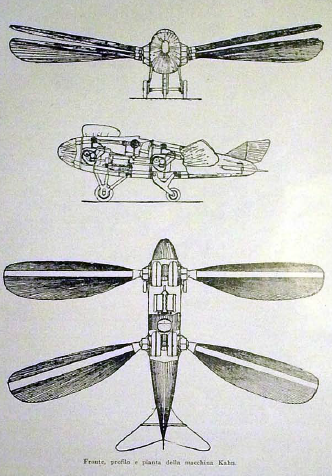

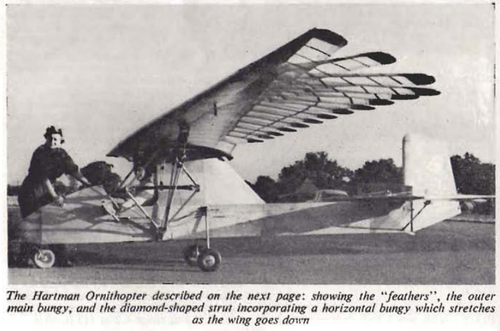

Attachments
- Joined
- 18 June 2009
- Messages
- 1,353
- Reaction score
- 2,270
Kazuhiko Kakuta is an innovative and prolific creator of ornithopters. His models mimic nature and the fantasy creatures and machines of Hayo Miyazaki's anime films.
In his spare time, he is a doctor of allergies and pediatrics.
In his spare time, he is a doctor of allergies and pediatrics.
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703

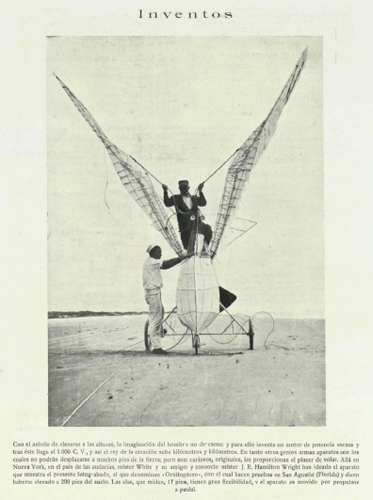

Attachments
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703
Hi,
Jacob Bennek (Jakub Bennek) was a polish designer;
On November 27, 1913, Jakub Bennek obtained protection from the German Patent Office for Utility Model No. 583,728 of an aircraft with movable wings.
The patent related to an ornithopter flying apparatus with a movable lobe. This solution was to be characterized by the fact that the wings were set in a periodically-variable movement, from the front back to the bottom. In this system, the ornithopter lobes could act as a supporting and propelling surface at the same time.
Jacob Bennek (Jakub Bennek) was a polish designer;
On November 27, 1913, Jakub Bennek obtained protection from the German Patent Office for Utility Model No. 583,728 of an aircraft with movable wings.
The patent related to an ornithopter flying apparatus with a movable lobe. This solution was to be characterized by the fact that the wings were set in a periodically-variable movement, from the front back to the bottom. In this system, the ornithopter lobes could act as a supporting and propelling surface at the same time.
- Joined
- 26 May 2006
- Messages
- 33,575
- Reaction score
- 13,703
Hi,

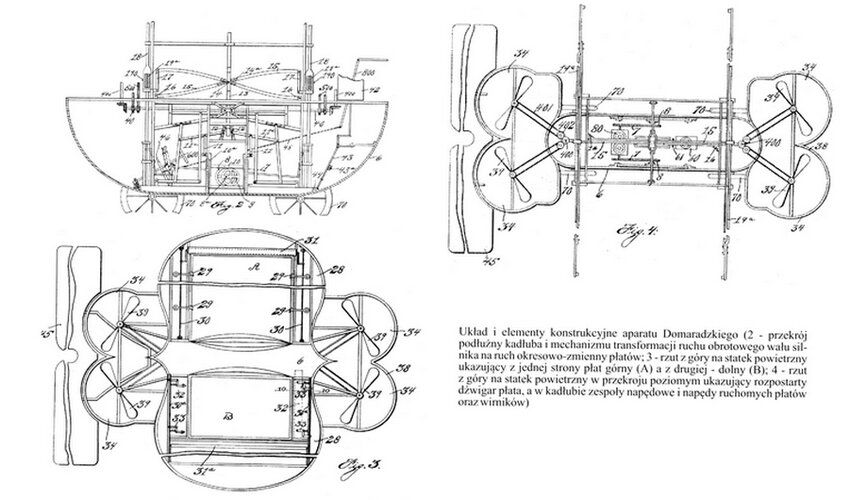

On June 24, 1913, Adalbert Domaradzki submitted a patent for a flying machine in the USA. Patent No. 1,098,024 was issued to him on May 26, 1914.
It was an aircraft (consisting of a fuselage, biplane airfoils, tail, propellers and propeller-driven rotors driven by an internal combustion engine) characterized by the mechanism of changing the rotational movement of the propeller shaft into periodically variable movement of wings, a mechanism enabling the transformation of movable airfoils into permanent and vice versa in that the propeller stream of the main rotors is directed against them in order to increase the effectiveness of the movable airfoils. The fuselage on a wheeled chassis houses the crew of the aircraft, engines and on the booms - supporting wings, propellers and drive transmission mechanisms.
The lower and upper blades, connected by posts, work on a combined drive from a common engine. They are based on articulated divided beams. Through the belt transmission, the rotational movement of the drive motor shaft is transmitted to the cam disc, and from there to the corresponding frame moving from top to bottom. Through appropriate connections and pushers, the periodically variable motion is transferred to the spar of the upper lobe. As this airfoil moves up and down, its angles of attack are simultaneously changed. The lower wings, with a shorter span, similarly move in a periodically alternating motion from top to bottom, with their drive mechanism being coupled to the mechanism of the upper wings movement. The upper wings can be immobilized and, at the same time, by tightening the gap between the panel and the frame within which the wings made a waving motion, a fixed panel can be obtained. Similarly, the lower lobe can be used as a fixed lobe. Moving wings and a set of four main rotors, seated in pairs in front of and behind the blades, work in the ascending flight. In horizontal flight, the main role is played by fixed airfoils and two propellers on horizontal axes, the arrangement of which is shown in the drawings. The aircraft is equipped with a tail for height and direction.
The patent memorandum indicates that his attention was focused on the mechanism of transforming the rotational movement of the propeller shaft into periodically variable movement of the wings, as well as on the creation of a mechanism enabling the transformation of movable airfoils into fixed airfoils, as well as increasing the efficiency of the movable wings, which he wanted to achieve by bringing underneath the propeller jet of the main rotors.
On June 24, 1913, Adalbert Domaradzki submitted a patent for a flying machine in the USA. Patent No. 1,098,024 was issued to him on May 26, 1914.
It was an aircraft (consisting of a fuselage, biplane airfoils, tail, propellers and propeller-driven rotors driven by an internal combustion engine) characterized by the mechanism of changing the rotational movement of the propeller shaft into periodically variable movement of wings, a mechanism enabling the transformation of movable airfoils into permanent and vice versa in that the propeller stream of the main rotors is directed against them in order to increase the effectiveness of the movable airfoils. The fuselage on a wheeled chassis houses the crew of the aircraft, engines and on the booms - supporting wings, propellers and drive transmission mechanisms.
The lower and upper blades, connected by posts, work on a combined drive from a common engine. They are based on articulated divided beams. Through the belt transmission, the rotational movement of the drive motor shaft is transmitted to the cam disc, and from there to the corresponding frame moving from top to bottom. Through appropriate connections and pushers, the periodically variable motion is transferred to the spar of the upper lobe. As this airfoil moves up and down, its angles of attack are simultaneously changed. The lower wings, with a shorter span, similarly move in a periodically alternating motion from top to bottom, with their drive mechanism being coupled to the mechanism of the upper wings movement. The upper wings can be immobilized and, at the same time, by tightening the gap between the panel and the frame within which the wings made a waving motion, a fixed panel can be obtained. Similarly, the lower lobe can be used as a fixed lobe. Moving wings and a set of four main rotors, seated in pairs in front of and behind the blades, work in the ascending flight. In horizontal flight, the main role is played by fixed airfoils and two propellers on horizontal axes, the arrangement of which is shown in the drawings. The aircraft is equipped with a tail for height and direction.
The patent memorandum indicates that his attention was focused on the mechanism of transforming the rotational movement of the propeller shaft into periodically variable movement of the wings, as well as on the creation of a mechanism enabling the transformation of movable airfoils into fixed airfoils, as well as increasing the efficiency of the movable wings, which he wanted to achieve by bringing underneath the propeller jet of the main rotors.
Attachments
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,249
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,249
Kazuhiko Kakuta
23.1K subscribers
SUBSCRIBE
Dragon72-1 Dragon Ornithopter : 2nd Flight Test Wing 20mm Gear Center-Arm point 9.5mm Stainless steel Shaft (11g up) Temporary Arm was broken . Then I made powered Arm. Width 280cm Length 178cm Weight Now 691g battery Lipo1000mAh3cell 84g Total flight weight 813g . Making process of Dragon72-1 and 72-2 https://www.youtube.com/playlist?list... Making of Dragon73 --- Small Dragon fly by AutoPilot https://www.youtube.com/playlist?list...
Rhinocrates
ACCESS: Top Secret
- Joined
- 26 September 2006
- Messages
- 2,616
- Reaction score
- 6,212
A couple of videos explaining the aerodynamics of ornithopters.
View: https://www.youtube.com/watch?v=BRH0OW7OMos
View: https://www.youtube.com/watch?v=hAnrlf476po
The following chatty text might perhaps be of interest.
ingeniumcanada.org

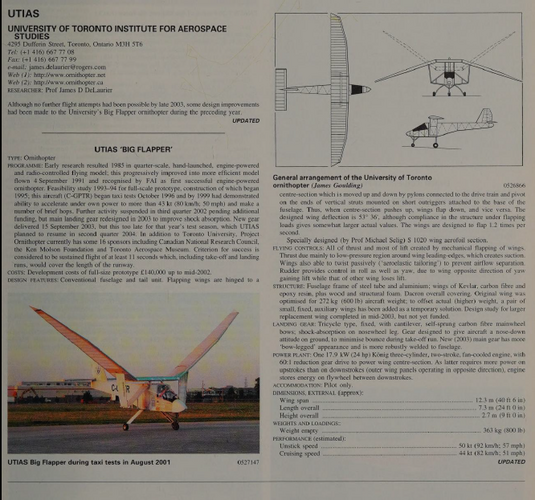

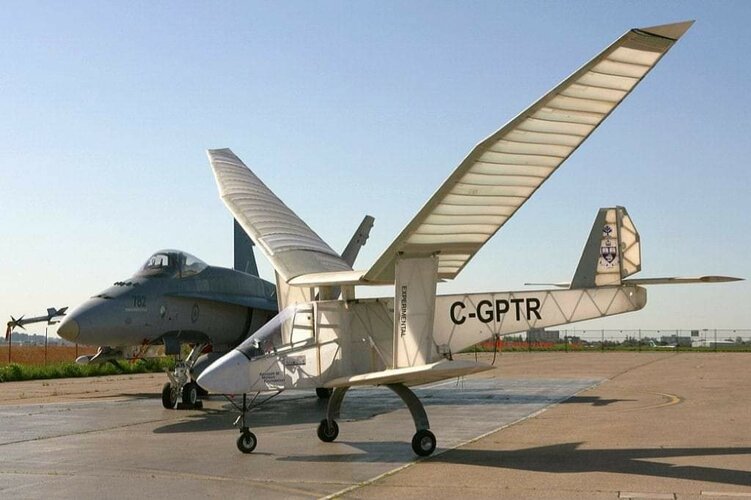

To dream, perchance to fly: The saga of the Great Flapper | The Channel
Five years ago, the Canada Aviation and Space Museum, in Ottawa, Ontario, acquired a priceless fl
ingeniumcanada.org
