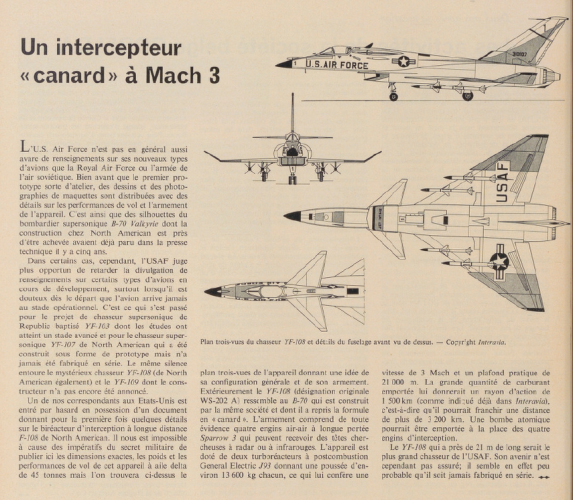

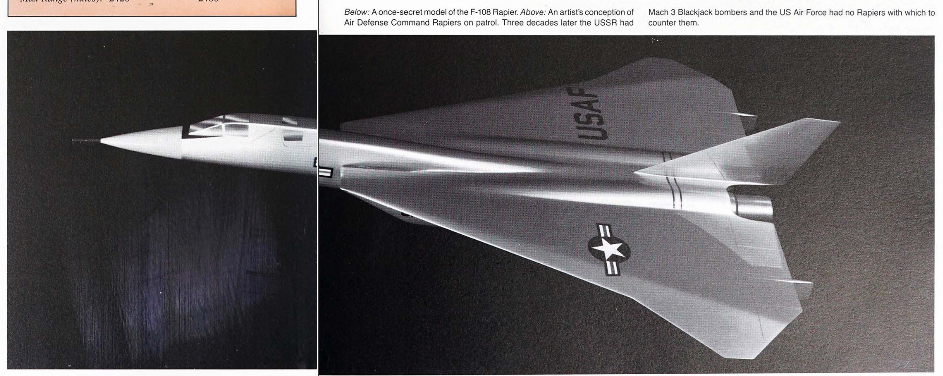

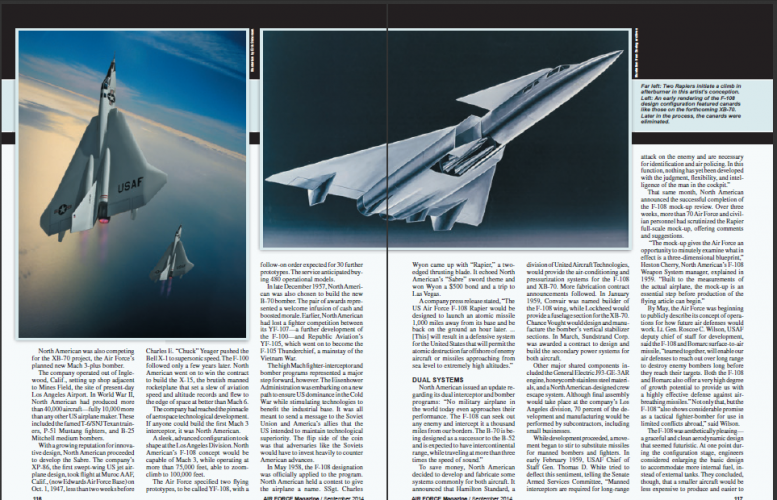

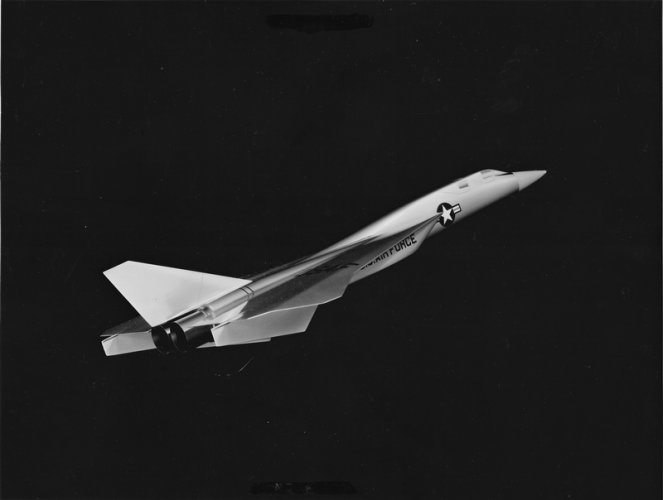

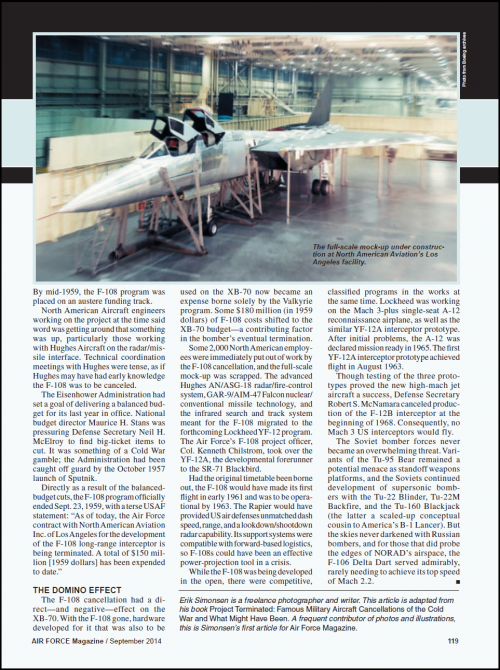

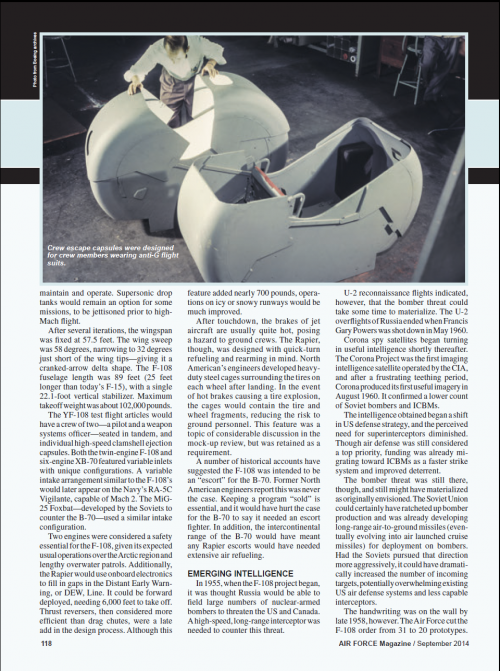

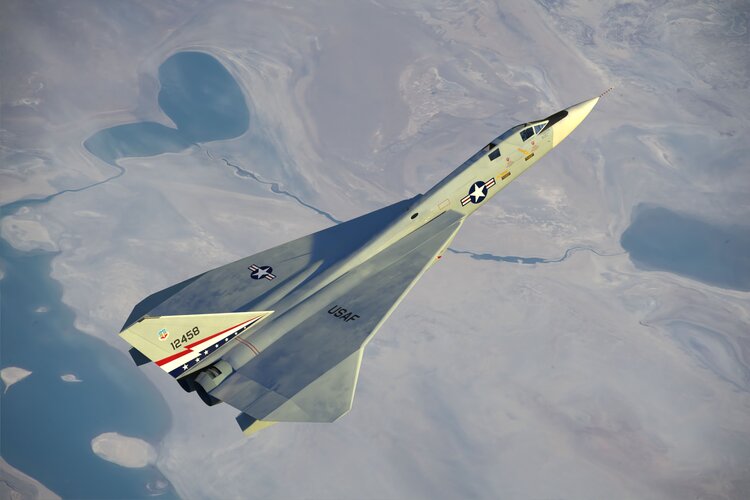

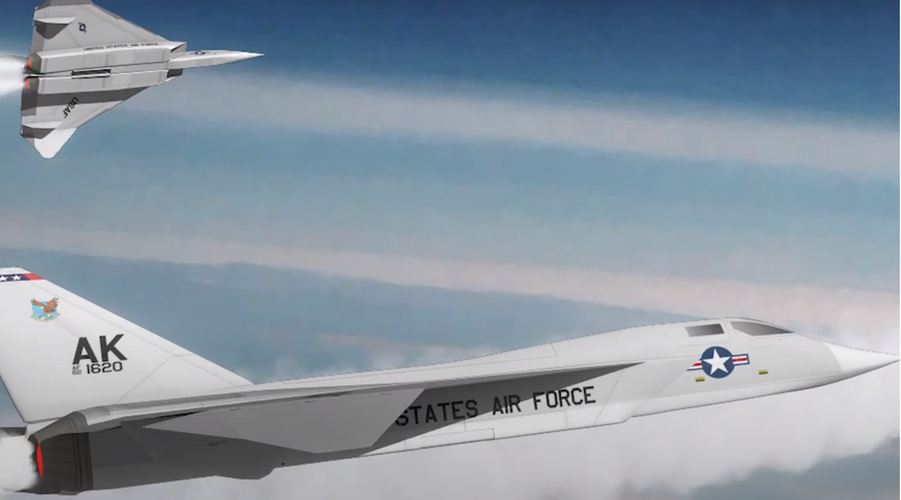

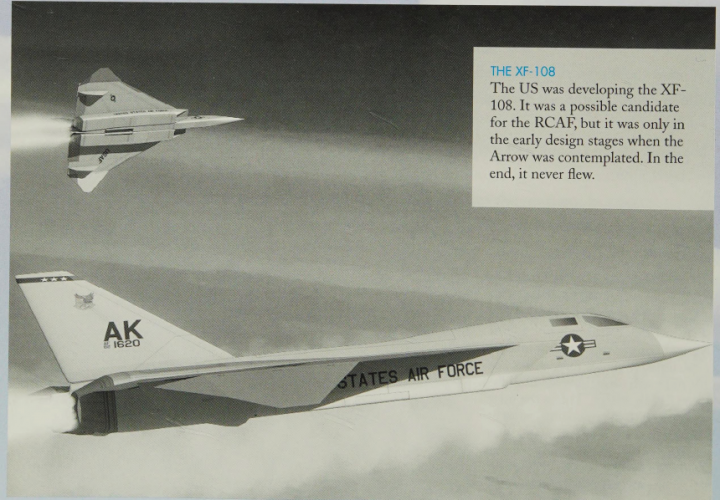

North American XF-108 (F-108) Rapier

archipeppe said:
As far as I know the F-108 would behave like a sort of scaled down version of the B-70, so the tips should bend down like the Valkyrie's ones....
Click to expand...
Nope. Wings were fixed. It did, however, have large fixed ventral fins near the wingtip that served much the same function as the dropped wingtips of the B-70, without the added complexity of the hinges. Might have even weighed less.

Orionblamblam said:
Nope. Wings were fixed. It did, however, have large fixed ventral fins near the wingtip that served much the same function as the dropped wingtips of the B-70, without the added complexity of the hinges. Might have even weighed less.
Click to expand...
Have you seen anything that would indicate if the wingtips angle down slightly? Not a twist but a bend.

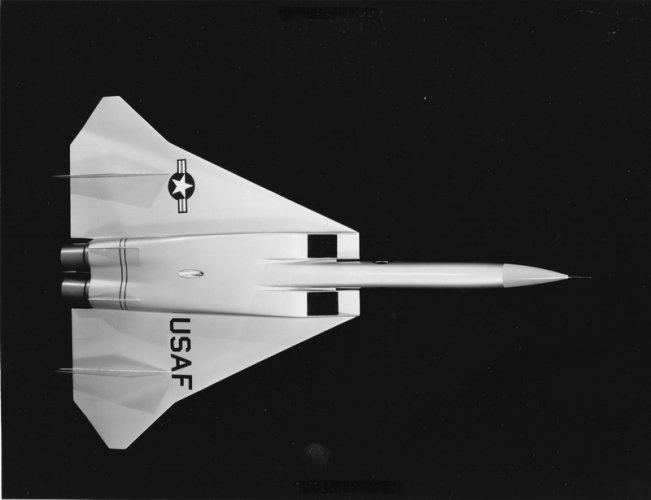

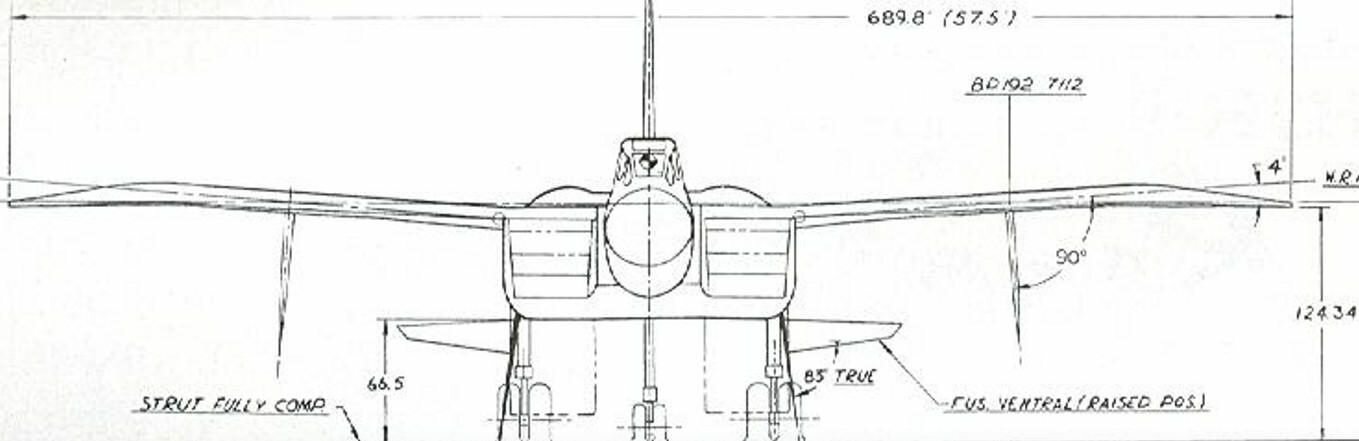

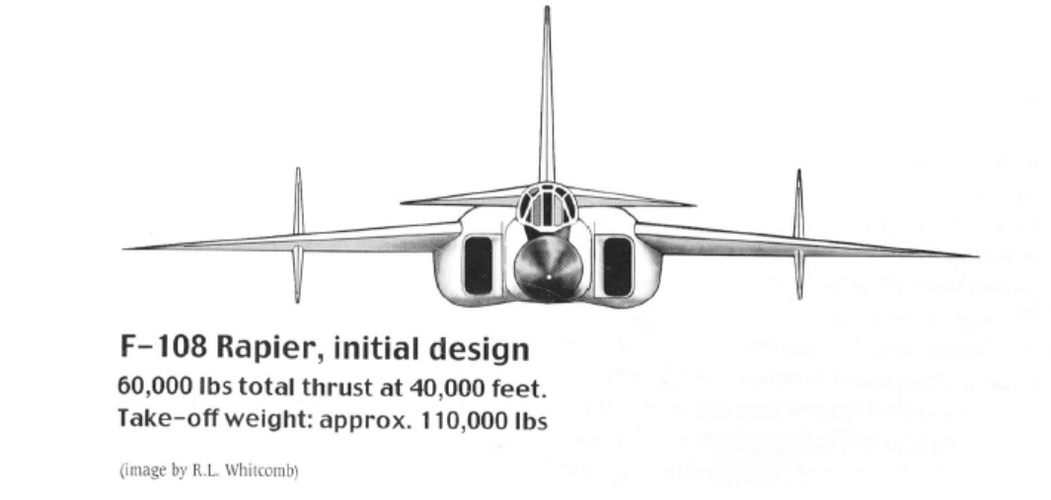

Did you clip those letters off on the right on purpose? :p It almost looks like a 4° dihedral wing with wing tips twisted so they're 0°.

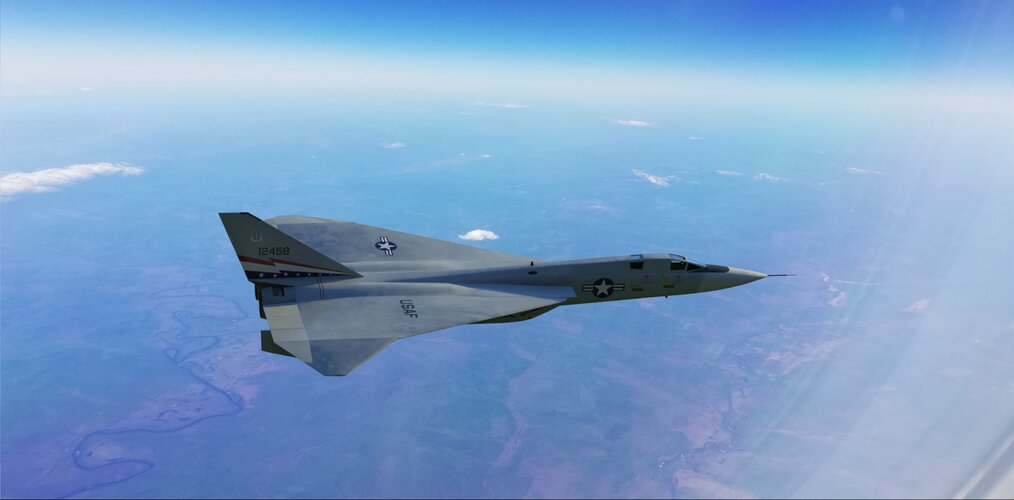

The outer large ventral fins could probably have been done away with in a production version. They are only there for stability like the big center-hinged ventral on the YF-12A, which, as it was discovered later, was unnecessary. Stability augmentation systems could handle the relaxed stability which would also reduce weight, drag, and improve maneuverability.
I have the Anigrand 1/72 XF-108 and if its correct (which I believe it is) the outer wingtip does not have any dihedral, it is indeed a different twist for that portion of the wing in combination with the reduced sweep which makes it look like it has a dihedral.

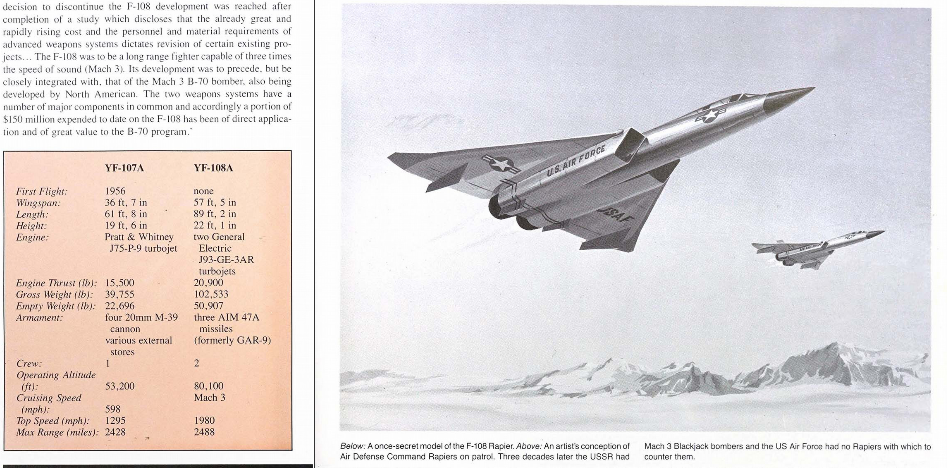

Another observation. 3 AIM-47's is paltry for such a large aircraft. However, the electronics bay takes up a lot of space and weight. With modern electronics the F-108 could easily carry 6 AIM-47 size missiles plus at least 2 ASRAAM's for close-in defense.
