NASA Advanced Transport Technology (ATT) or Mach 1 Airliner program

[Sundog]

By comparison, the Cessna Citation X is also area ruled, which helps to make it the fastest biz jet around. Though I have heard the new Gulfstream may be faster.



[Triton]

Model in a better shape... Boeing 767-701

Thank you for sharing, Skybolt. I hope that you are feeling much better.



[codeone]

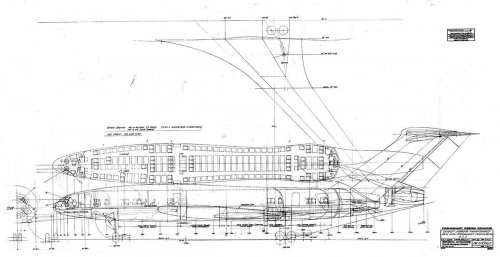

ATT drawing from Convair found in our latest batch of archive drawings (attached). Higher res just posted in our Aviation Archeology gallery.

http://www.codeonemagazine.com/article.html?item_id=114



[Stargazer]

Wow. The GD/Convair stuff you have salvaged from oblivion/destruction is beautiful... and to know that this may only be the tip of the iceberg yet is quite a promising perspective! Thanks again codeone for all the efforts.



[Triton]

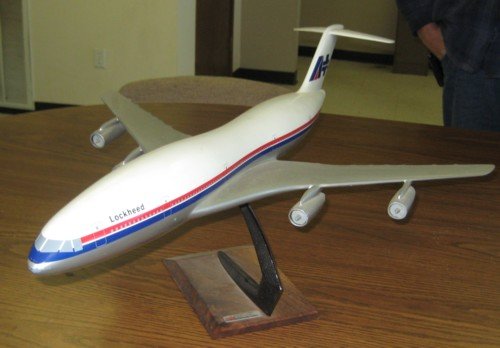

Model of Lockheed ATT concept

Source:
http://www.airliners.net/aviation-forums/general_aviation/read.main/5293520/



[hesham]

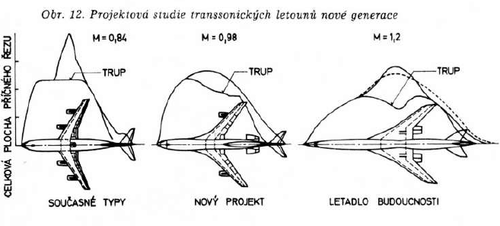

from L + K 9/1973,


I found a strange drawing to NASA ATT concept (far right).



[Stargazer]

I found a strange drawing to NASA ATT concept (far right).

Unless I'm mistaken, a Mach 1.2 design would no longer quite fit the ATT specifications, right? I believe this design is not ATT-related, and that the diagram only shows how the near-Mach 1 ATT would fit between a conventional airliner and a supersonic one.



[hesham]

Unless I'm mistaken, a Mach 1.2 design would no longer quite fit the ATT specifications, right? I believe this design is not ATT-related, and that the diagram only shows how the near-Mach 1 ATT would fit between a conventional airliner and a supersonic one.

My dear Stargazer,


but the same wing,and may term Mach 1 Airliner meant also the 1.2 M,only my speculation.



[Triton]

From AviationWeek, October 1974 a photo of a model of the GD design:
(sorry for the distortion, it was scanned from a bound volume)



[tab28682]

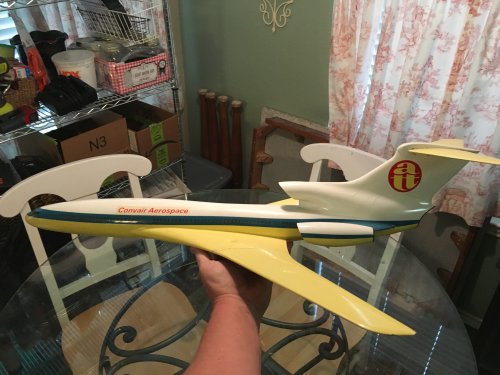

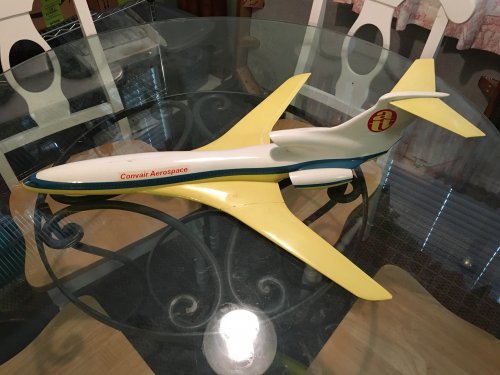

I recently came into possession of the model of the Convair Aerospace ATT tri-jet shown in the vintage pictures in the second post of this thread. This model was built in the GD model shop in Fort Worth circa 1970-71, by one of the two men that hired me to work there in 1986. The model was given to me by the estate of a good friend who was a well known test pilot at GD.

Not in bad shape. Just a little light crazing in the paint. The "mod" style of the ATT logo is .......interesting.



[_Del_]

The area ruling really stands out with the model. Thanks for the pics!



[hesham]

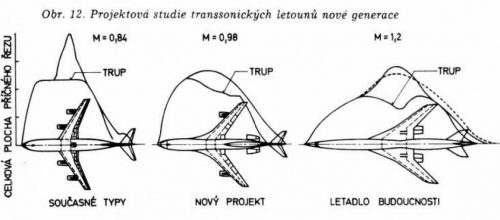

From L+K 9-8/1973,

I tried to collect the first one by my self.



[galgot]

Is this related ?


Seems to be an area ruled fuselage, but never seen that high wing configuration before.
Image from here :

CP Air's Fleet of the Future

On June 5, 1963, President John F. Kennedy formed the National Supersonic Transport program, which committed the government to subsidizing ...

cpair.blogspot.com



[Orionblamblam]

Is this related ?
View attachment 617991

I've seen that one before. My *vague* memory on it says that the caption on it at the time said it was a design for an nuclear-powered airliner. memory could be wrong, caption could have been wrong. But it is durned goofy lookin'.



[galgot]

Thks, never had seen that one before. Indeed looks like a python who swallowed two elephants...
See on the same link there is a hypersonic in CPAir livery too.



[Arjen]

From L+K 9-8/1973,

I tried to collect the first one by my self.

There is a better image over here: https://www.secretprojects.co.uk/th...e-bottle-configurations-etc.16601/post-168592



[N1011N]

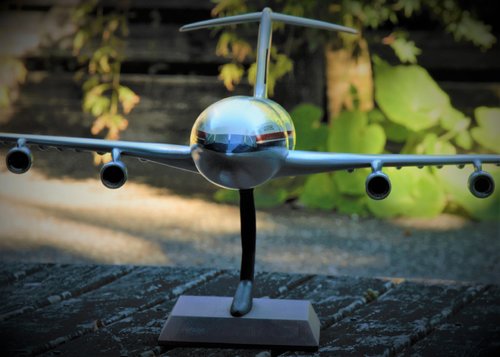

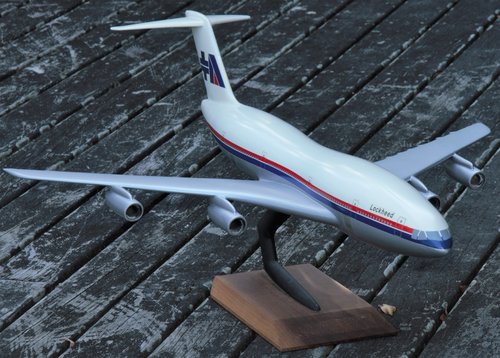

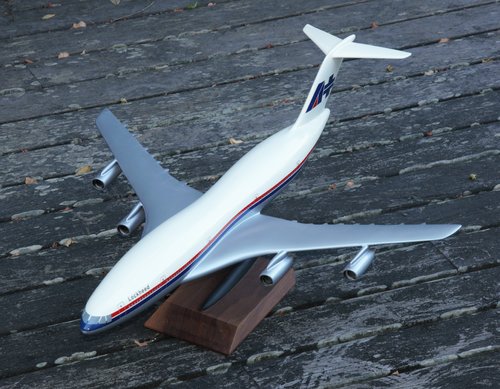

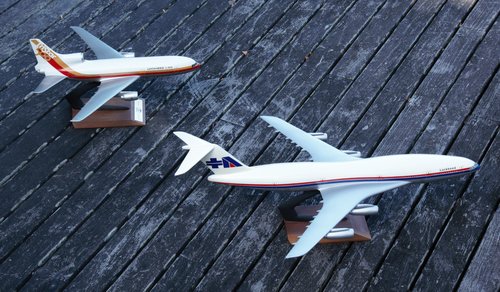

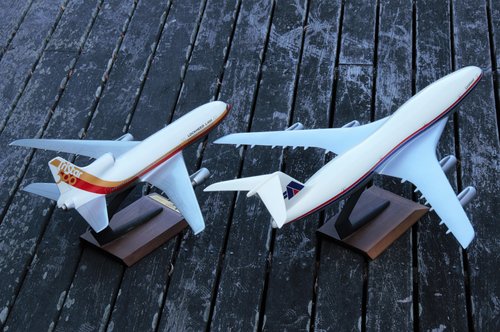

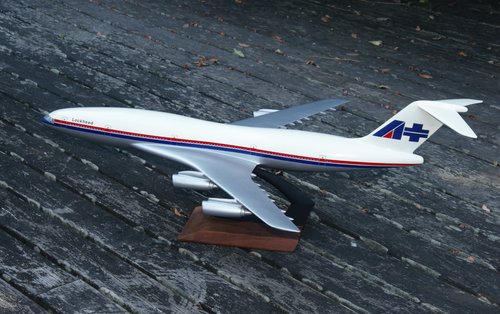

ATT-95 Concept. L1011-500 for comparative purposes.



[N1011N]

Is this related ?
View attachment 617991

I've seen that one before. My *vague* memory on it says that the caption on it at the time said it was a design for an nuclear-powered airliner. memory could be wrong, caption could have been wrong. But it is durned goofy lookin'.

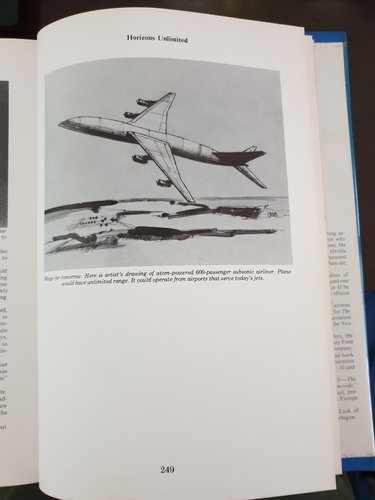

I suspect it may have come from Douglas Ingles book in 1973? He mentions a nuclear powered transport which looks very similar to the CP air proposal.



[hesham]

Welcome aboard N1011N,

and that's new for me,the 600-passenger,thanks.
