Nagler / Voljet / Phoenix Helicopters and Projects

[hesham]

Hi,

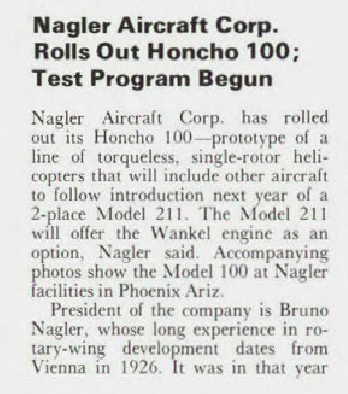

the Model-211 was developed from Honcho-100,but with two-seat.



[hesham]

Hi,

maybe that's a Nagler project ?,very strange concept.

http://hoytstearns.com/AHSpresentation/



[Jemiba]

maybe that's a Nagler project ?

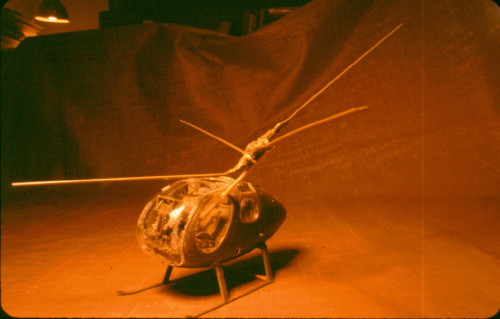

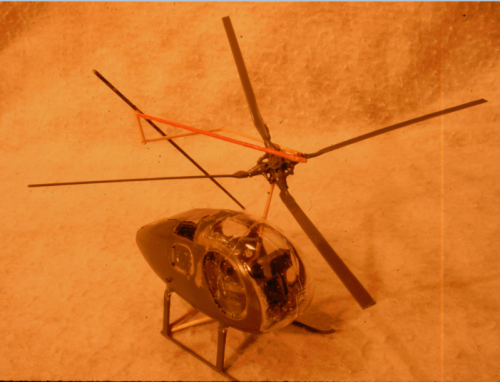

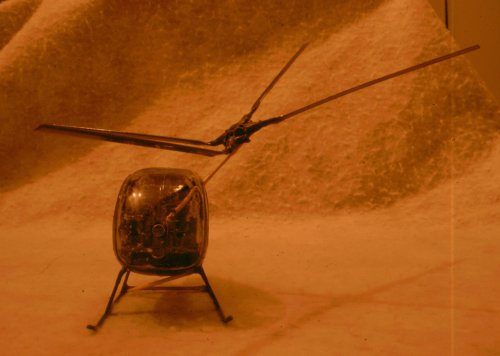

To my opinion not. The model just shows, what a helicopter using a cross flow fan driven rotor
could look like. And for this purpose, the inventor used the model of an OH-6 Cayuse, you can
see the "non needed parts" in the photo above of those you posted.



[hesham]

OK my dear Jemiba.



[kenneth]

hesham

are you sure about the Model 211 - shouldn't that be the Model 200 and Model 202?

can you quote your source?



[hesham]

are you sure about the Model 211 - shouldn't that be the Model 200 and Model 202?

can you quote your source?

Hi Kenneth,

I don't remember it now,but I am sure about this.



[Stargazer]

maybe that's a Nagler project ?,very strange concept.

To my opinion not. The model just shows, what a helicopter using a cross flow fan driven rotor could look like. And for this purpose, the inventor used the model of an OH-6 Cayuse, you can see the "non needed parts" in the photo above of those you posted.

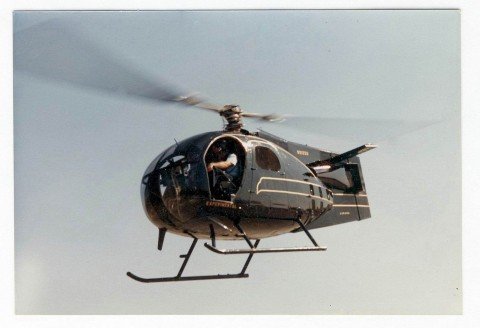

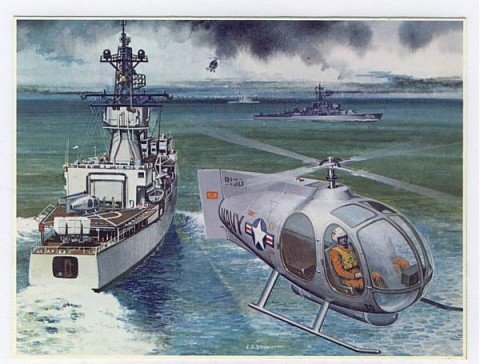

Nagler used the basic OH-6 Cayuse airframe for several of their projects, including the Model 205 (not built) and the Model 255 Shehana (test-flown, see photo). However, their rotor arrangement was conventional and nowhere near as odd as this idea.



[hesham]

Thank you my dear Skyblazer for this Info.



[Motocar]

Post #276 Section "User Artwork" Motocar's Cutaway drawings

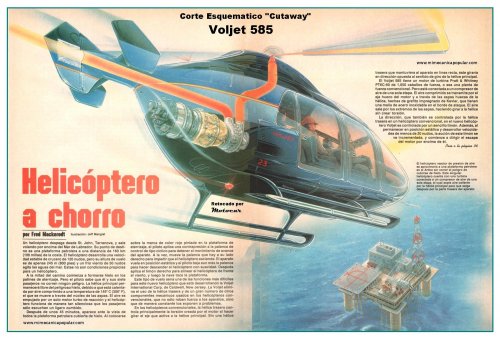

Cutaway Voltjet 585, a more modern proposal of the concepts presented by the British in the early fifties of the rotor driven by small burners on the tip of the blades as the design submitted by the firm Farey Ultralight Helicopter firms, this new project belonging to US firm Voltjet International Corp. Voltjet also used a turboshaft light to move a small compressor and fuel burners tips of the blades, the advantages is that the torque of the rotor is removed, but did not use a small rotor control yaw but a flap controlling the exhaust of the engine at Pratt & Whitney PT-6 c-30, this in theory favored use on oil rigs in the North Sea where were diriguidos their marketing efforts and where helicopters convecionales have difficulty landing in stormy or rough water conditions, the project has not advanced beyond the proposal and published an article in Popular Mechanics magazine february 1987 and April 1987 in its edition in spanish, the illustrator was the artist Jeff Mangiat and retouched by Motocar to clean and unite the two images, was taken from the web mimecanicapopular.com
http://www.mimecanicapopular.com/vergral.php?n=2416



[hesham]

Nice work my dear Morocar.



[persil]

Hi folks.

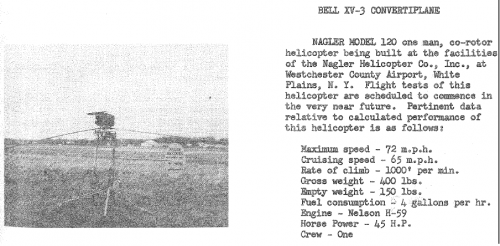

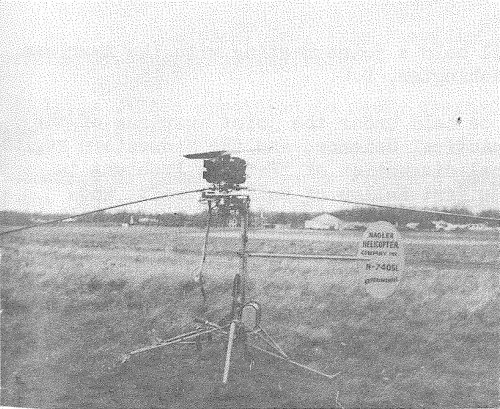

Just to complete this thread, I am uploading the picture of the NH-120, which I have found in the American Helicopter Society newsletter form the February of 1955. The aircraft registration is N74054. Visible is the flat 4 boxer engine installed between the rotors.

Seems that up tho this time google images does not have this one

Enjoy!



[hesham]

Nice find Persil,and welcome aboard,

here is with text also.



[hesham]

Hi,

In 1926 ,the Austrian Bruno Nagler filed a patent for a cyclogyro airplane with two 4-blade cycloidal propellers on the sides (possibly GB No. 280849).

http://www.buch-der-synergie.de/c_neu_html/c_08_08_04_antriebs_varianten_b.htm



[Maveric]

Nagler Vertigyro VG-1 in colours



[hesham]

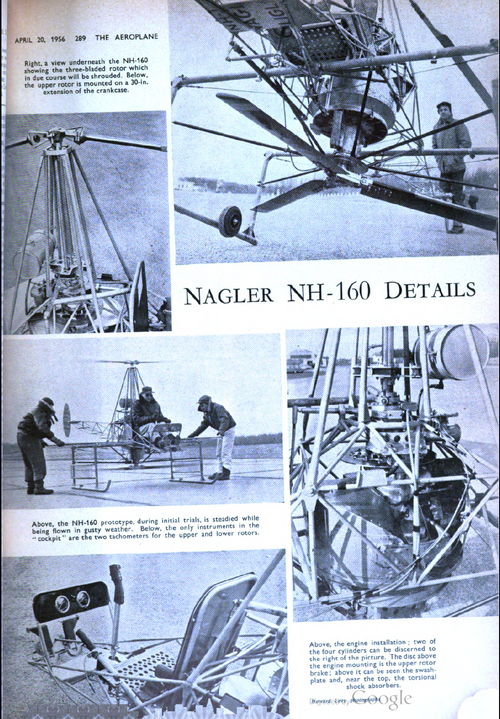

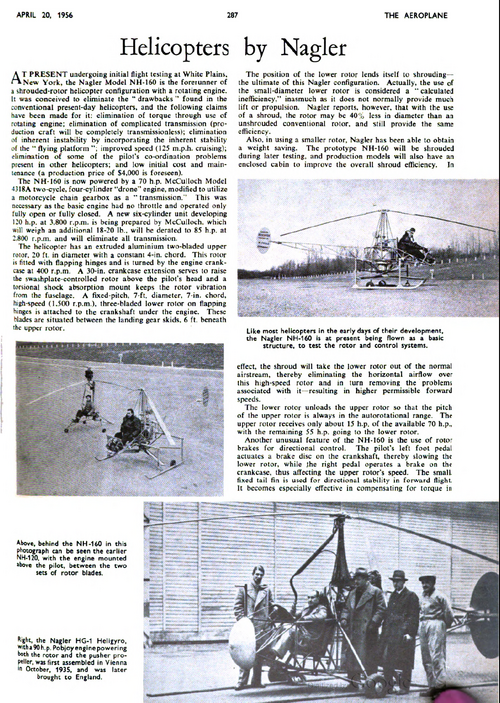

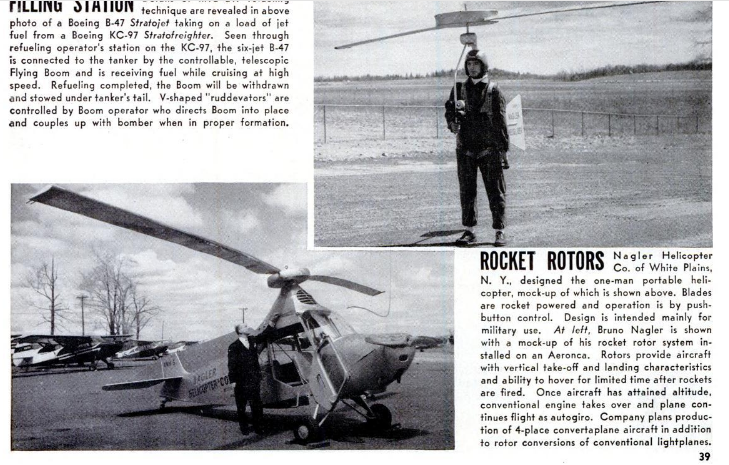

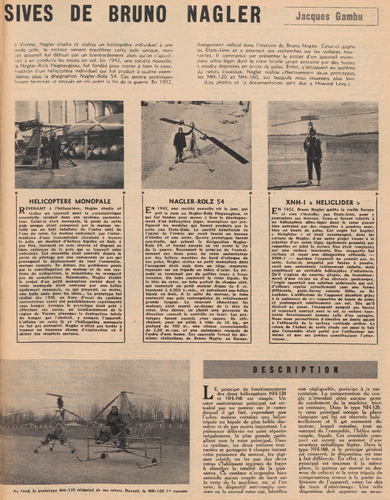

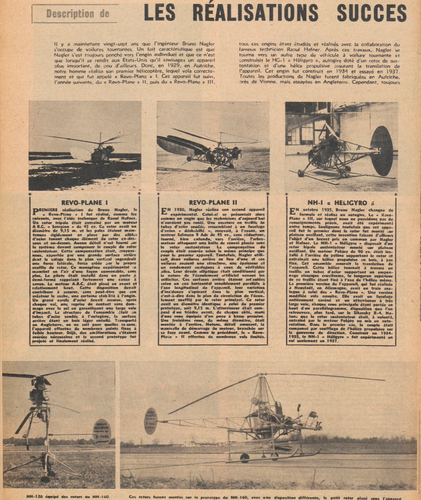

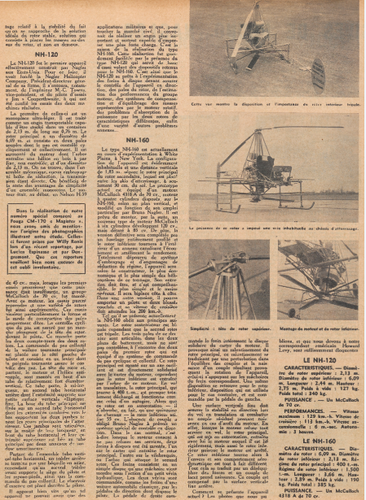

From Aviation magazine 1956.



[hesham]

Hi,

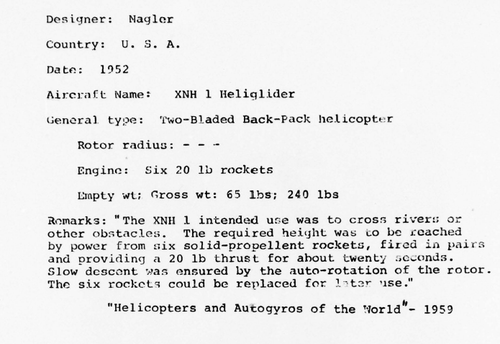

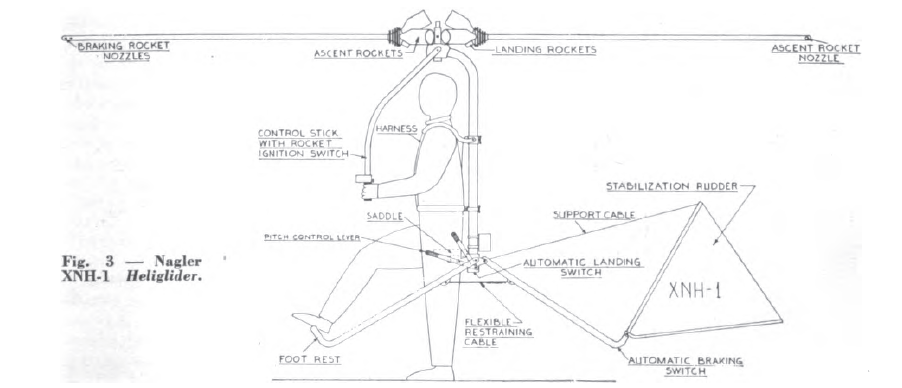

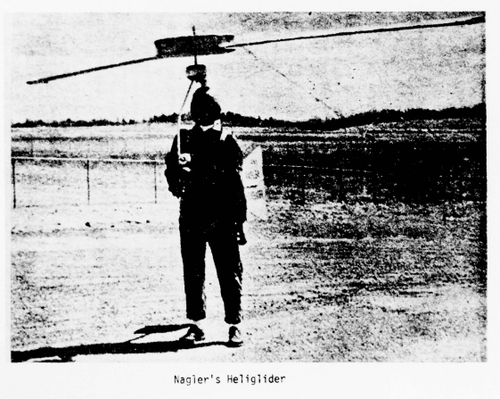

here is Nagler XNH-1.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a045375.pdf



[hesham]

From Flying 1953-8.



[Robert H.]

I am tring to learn about Nagler Helicopter company back in 1955, whether they were consolidated by another company or what have you. I own shares but have no idea what they were transfered to. someone can help me appreciated. Rob 941.284.1433
clearwaternew1@gmail.com



[hesham]

Welcome aboard Robert H,

you can find all think about it in this topic,and also there was a three PDFs,
you can find many Infos.



[Robert H.]

From USA,

Nagler helicopters:
the NH-120,NH-140 and NH-160 were a single seat light helicopters
the Honcho 100 (cold-jet) tip driven single seat helicopter,was deve-
loped into Honcho 200, a two seat research helicopter with enclosed
cabin,the Honcho 202 was a production version of 200, Model-421
was a four seat helicopter and S 11 was four/five seat compound
helicopter.

What did the nadler H company do with there stock holders ?



[Robert H.]

Just want to learn about these stocks that I own.



[Robert H.]

I am restricted



[hesham]

Welcome aboard Robert H,

you can find all think about it in this topic,and also there was a three PDFs,
you can find many Infos.

Please see this.



[hesham]

From Vertifilte 1972.



[hesham]

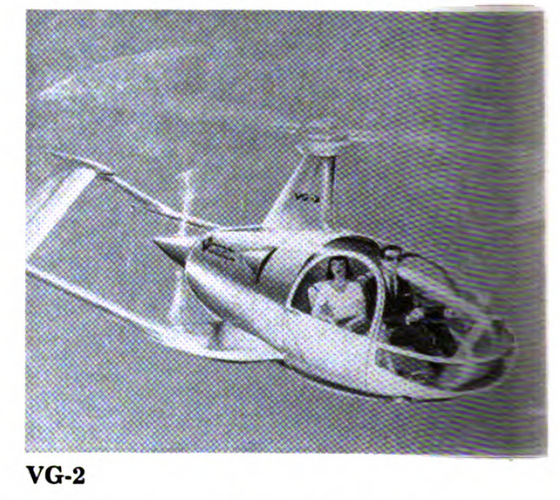

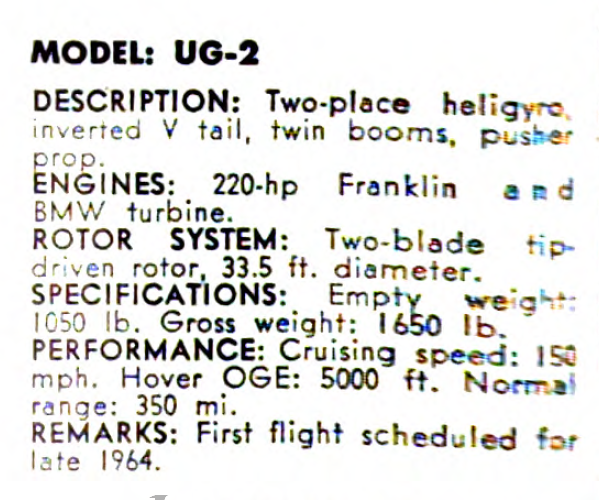

From American Aviation 1964.



[hesham]

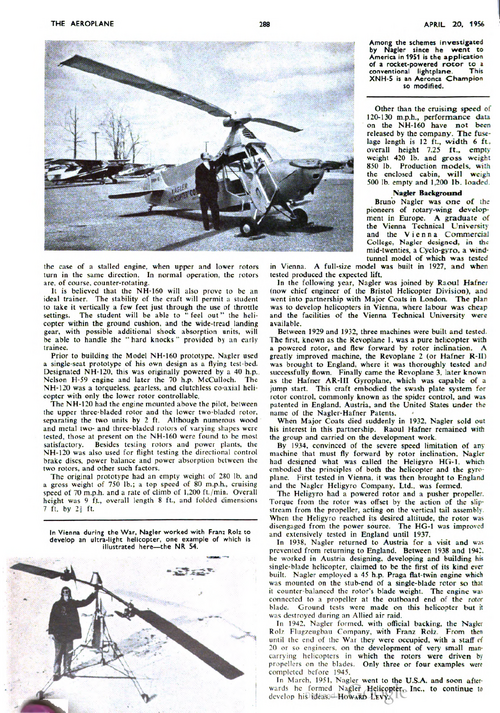

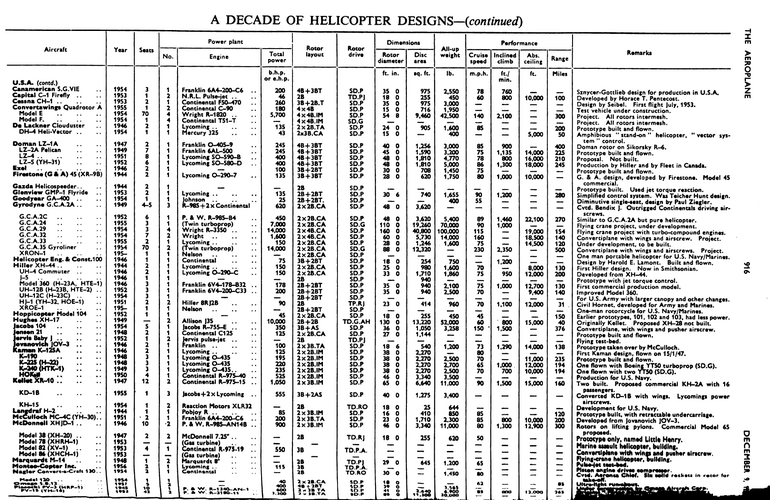

From Aeroplane 1955,

a more Info about Model 120 & 130.



[hesham]

Model S11 was a four/five-seat compound helicopter

I think that was a misprint from JAWA,and they meant Model 411 ?.



[hesham]

From Aeroplane 1956.



[hesham]

From Aero Digest 1955,

it's as in reply # 40,but with more details.



[hesham]

From, Helicopters_and_Autogyros_of_the_World,

the NH-130.



[fightingirish]

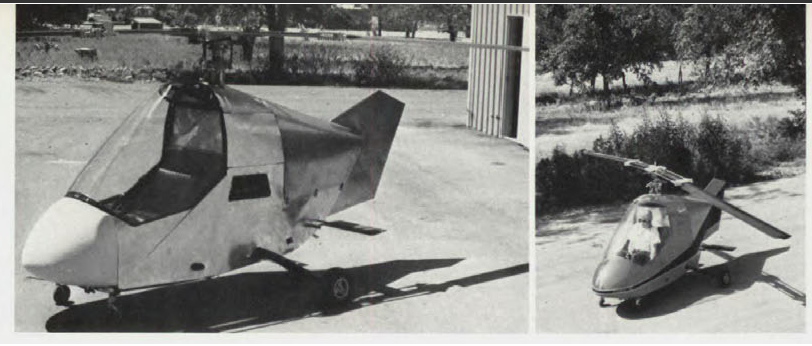

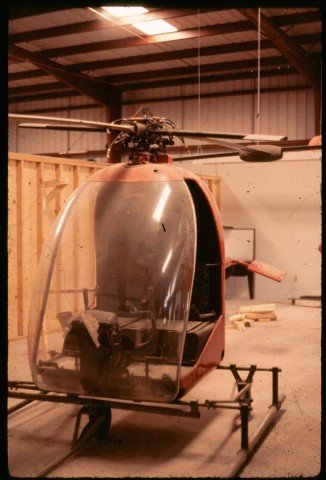

Voljet Introduces Remake Version

Video:

View: https://youtu.be/GMfy5izAFY4?si=bThitQlfpKXSQI-A
