Thanks so much, this is beautiful, in my humble opinion ,This is the most beatiful plane , I enjoy the collecting images and projection planes of family Mirage, especially looking forward designs where we can see the collective heritage of simplicity, but subtile aerodynamic lines, the planes resulting in a series of one to other project , as Mirage F1, F2, and F3 with sweptwings, and of course the Mirage III with delta wings. Particularly interesting are the planes of the series Mirage G, with variable geometry wings. When gradually put the images and schematic view, in line, we gets the full review, into the ease design and visual beauty of each airplane with a finely implemented new solutions and ideas in accordance with the new requirements
Thank you all, forthis wonderfulforum
Greetings
Thank you all, forthis wonderfulforum
Greetings
I think the first pic you posted with the 3-views shows pre-prod aircraft 02, not prototype 01. The antennas on each side of the fin weren't there on 01 and the shape of the fin itself looks like the definitive one as used on 02/03/04. And now that I've opened the book from Lela Presse, it's indeed Mirage F1 02 just before its first flight.
The place is Istre, BA125, Centre d'Essais en Vol, 1975. Pilot is Guy Mitaux-Maurouard, Dassault test pilot.
Thanks for these picts.
Thanks for these picts.
- Joined
- 19 July 2016
- Messages
- 4,006
- Reaction score
- 3,053
Quite something to see how small these were. Amazing they did so much with the footprint they had.
Michel Liébert varied books on the prototypes and unbuild Mirages shed some light about why the Mirage F1M53 never found its way onto French carriers. Basically the wings was a little too small and the M53 not powerful enough. The French Navy had very precise requirements, notably time to climb to 50 000 ft, patrolling 100 miles from the carrier, loaded with Magic or Super 530, those kinds of things. Well the basic F1M53 fell short of the OR. Would have needed a slightly larger wing or a M53P2 (9700 kgp of thrust, but not before the late 80's).
Still by 1971-73 it came an hairbreadth from entering service with the Aeronavale. Things went as far as the prototype making approaches and go-around (but no touchdowns, of course) on the Foch or Clemenceau.
What is really a shame is that the Iraqis managed to load an Atar Mirage F1 with two Exocets and a large drop tank - and got honorable performances out of it, in very high temperatures probably diminishing performances even further. Admittedly, this was no carrier ops by any mean, but makes one think about an Aeronavale F1... plus the Super Etendard that had an Atar without a reheat.
Still by 1971-73 it came an hairbreadth from entering service with the Aeronavale. Things went as far as the prototype making approaches and go-around (but no touchdowns, of course) on the Foch or Clemenceau.
What is really a shame is that the Iraqis managed to load an Atar Mirage F1 with two Exocets and a large drop tank - and got honorable performances out of it, in very high temperatures probably diminishing performances even further. Admittedly, this was no carrier ops by any mean, but makes one think about an Aeronavale F1... plus the Super Etendard that had an Atar without a reheat.
Thks for these infos.
I also remember reading that Fr Navy staff was very "US Navy" minded. In that i mean that what ever you presented them as a fighter , it wasn't good enough if it wasn't used by the US Navy. Problem with that is that it kept delaying the Crusader replacement...
I also remember reading that Fr Navy staff was very "US Navy" minded. In that i mean that what ever you presented them as a fighter , it wasn't good enough if it wasn't used by the US Navy. Problem with that is that it kept delaying the Crusader replacement...
Last edited:
All this is a little sad, because (as I said many times since, what, 2006 ?) the Mirage F1E-M53 could have pulled a Rafale three decades before, in the sense of a versatile, multirole type for both Aeronavale and Armée de l'Air.
I once calculated it could have replaced everything but the kitchen sink - Etendard IV, Super Etendard, Crusader on one side, Mirage F1-Atar, Mirage V, Mirage IIIC/E, Jaguar, Mirage 2000 on the other (mixing obsolete, present, and future types, altogether).
One major combat aircraft for everyone but the Mirage IV role, there it was too short ranged.
Although a Mirage F-1B is relatively close from a 2000B/D/N... which replaced the Mirage IV in our universe. I'm left wondering if an ASMP would fit a Mirage F1M53; then again, even the Super Etendard carried one, and dissymetrically with that, with a fuel tank on the opposite side to balance it. Plus the 2000D delta wing was not optimal for low level flight, the F-1 might have a small advantage there, kind of miniature TSR-2.
What's more, while the Mirage F1 was made deliberately as small as possible because of its anemic Atar, it was actually a 0.8 scaled Mirage F3, itself a single-seat, smaller F2, both with the large TF306. Now imagine if the slightly larger F3 had gotten a M53P2 circa 1975-80... the right spot between a F1 and a Phantom, somewhat a Viggen in size and thrust. And better armed against the F-16 in the deal of the century, available right from 1971 with a turbofan.
Pretty fun when you think about it: had the F3 not been scrapped in 1967, it would have been pretty close from a F1M53 some years in advance. What surprised me when I red Liébert book was something subtle, not easy to grasp at first glance.
That in the 1967-70 era the M53 was NOT a successor to the TF306E, because the difference in thrust was too large - 8200 kgp for the early M53 against 10 000 kg+ for the TF306E. Obviously the Aeronavale and Armée de l'air badly needed the TF-306E huge thrust. Except that engine was far larger, heavier, expansive to procure...(Uncle Sam, meh) and also its reputation was abysmal, thanks to the F-111.
what is remarquable is that the difference in size and weight and thrust between M53 and TF306E was such, the engines were not interchangeable between aircraft. For example, the F3 with a M53 ? forget it. The TF306E had made the airframe too heavy for the diminutive M53.
In the end all the above is even more stupid when one realize that the M53P2 of the late 80's had a leap in thrust (9700 kgp) enough it could have matched a TF306E... but it was 15 years too late.
It says a lot about how the Atar monoculture damaged SNECMA, to the despair of Dassault...
I needs to write this two TLs in parallel - Mirage F3-M53 and Mirage F1-M53, what might have been... F1M53 is easier (it flew) but F3-M53 might be more ambitious, since it would start earlier and get slightly better chances in the Deal of the Century (start with Belgium, Tindemans 1973, hint).
I once calculated it could have replaced everything but the kitchen sink - Etendard IV, Super Etendard, Crusader on one side, Mirage F1-Atar, Mirage V, Mirage IIIC/E, Jaguar, Mirage 2000 on the other (mixing obsolete, present, and future types, altogether).
One major combat aircraft for everyone but the Mirage IV role, there it was too short ranged.
Although a Mirage F-1B is relatively close from a 2000B/D/N... which replaced the Mirage IV in our universe. I'm left wondering if an ASMP would fit a Mirage F1M53; then again, even the Super Etendard carried one, and dissymetrically with that, with a fuel tank on the opposite side to balance it. Plus the 2000D delta wing was not optimal for low level flight, the F-1 might have a small advantage there, kind of miniature TSR-2.
What's more, while the Mirage F1 was made deliberately as small as possible because of its anemic Atar, it was actually a 0.8 scaled Mirage F3, itself a single-seat, smaller F2, both with the large TF306. Now imagine if the slightly larger F3 had gotten a M53P2 circa 1975-80... the right spot between a F1 and a Phantom, somewhat a Viggen in size and thrust. And better armed against the F-16 in the deal of the century, available right from 1971 with a turbofan.
Pretty fun when you think about it: had the F3 not been scrapped in 1967, it would have been pretty close from a F1M53 some years in advance. What surprised me when I red Liébert book was something subtle, not easy to grasp at first glance.
That in the 1967-70 era the M53 was NOT a successor to the TF306E, because the difference in thrust was too large - 8200 kgp for the early M53 against 10 000 kg+ for the TF306E. Obviously the Aeronavale and Armée de l'air badly needed the TF-306E huge thrust. Except that engine was far larger, heavier, expansive to procure...(Uncle Sam, meh) and also its reputation was abysmal, thanks to the F-111.
what is remarquable is that the difference in size and weight and thrust between M53 and TF306E was such, the engines were not interchangeable between aircraft. For example, the F3 with a M53 ? forget it. The TF306E had made the airframe too heavy for the diminutive M53.
In the end all the above is even more stupid when one realize that the M53P2 of the late 80's had a leap in thrust (9700 kgp) enough it could have matched a TF306E... but it was 15 years too late.
It says a lot about how the Atar monoculture damaged SNECMA, to the despair of Dassault...
I needs to write this two TLs in parallel - Mirage F3-M53 and Mirage F1-M53, what might have been... F1M53 is easier (it flew) but F3-M53 might be more ambitious, since it would start earlier and get slightly better chances in the Deal of the Century (start with Belgium, Tindemans 1973, hint).
Last edited:
It's odd how the Spey didn't figure in the early years of the F1 F2 F3....considering how it did figure in IV offerings and not just to the UK.
Perhaps if there had been a alternative from Bristol? SNECMA did work with them on the M45....
Perhaps if there had been a alternative from Bristol? SNECMA did work with them on the M45....
According to Libéert, it WAS considered, as was the J79. The Mirage F1, since it was too small for the TF306E, got subvariants, not only with the M53, but also with the Spey and J79. They remained paper projects. The Spey was probably a far better engine than the TF306E, smaller, less expensive, more reliable - and finally, closer from the future M53.
SNECMA pre-M53 high power jet engines (1959-1974) is somewhat a lot of missed opportunities. Had the Medway (or Spey) been considered from 1958 to power the Mirage IVB (= France very own B-58 Hustler) things might have been vry different. It actually happened in the civilian world, with Concorde and the Olympus; would have made more sense.
1959: Mirage IVB with Medway, or 1964: Mirage IV* with Spey. Concorde cement cooperation, then from 1963 onwards the Mirage III-T, F2, F3, G, fly with the Spey. No need for the Mirage F1 in this case, France take a spey licence and derives the M53 out of it.
Snecma M53 - Wikipedia

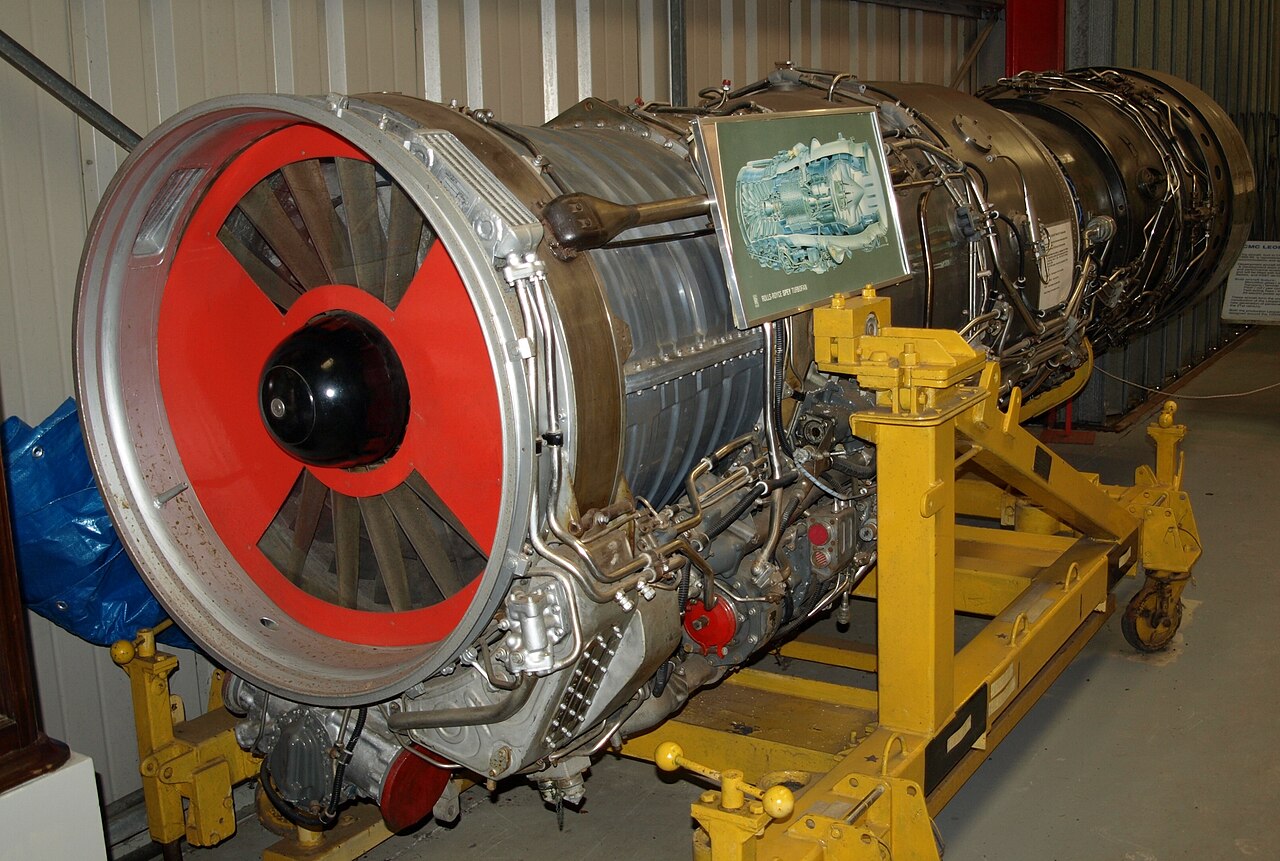

Rolls-Royce Spey - Wikipedia
Good points I'd either forgotten or didn't know so thank you for the response!
The diameter of the M53 intrigues me, this is not far from RB.153 territory or indeed the earlier BE.30....
It's as if there is a strongly rational reason to get decent power engines of around 30 inches diameter. Something I've come to when pondering ideal aircraft for the RN.
However the earlier RB.153 rather suggests a technical limit of the times for turbofans.
I really do think the F1 is a far better MRI delivery system than the Jaguar and had politics been less idiotic, then some Franco-British F3 type system hits a sweet spot and could have swept up a lot of orders.
Though the times would likely prefer the Mirage G.
The diameter of the M53 intrigues me, this is not far from RB.153 territory or indeed the earlier BE.30....
It's as if there is a strongly rational reason to get decent power engines of around 30 inches diameter. Something I've come to when pondering ideal aircraft for the RN.
However the earlier RB.153 rather suggests a technical limit of the times for turbofans.
I really do think the F1 is a far better MRI delivery system than the Jaguar and had politics been less idiotic, then some Franco-British F3 type system hits a sweet spot and could have swept up a lot of orders.
Though the times would likely prefer the Mirage G.
NUSNA_Moebius
I really should change my personal text
- Joined
- 26 May 2012
- Messages
- 233
- Reaction score
- 133
It's cool to know that a good number of Mirage F1s are close by at Fort Worth Alliance Airport with ATAC. I'm sure they'll be on display at the Alliance Air Show in a couple months.
- Joined
- 18 October 2006
- Messages
- 4,094
- Reaction score
- 4,500
Arguably my favorite French jet fighter. It strikes me as the quintessential jet fighter: pointy nose, small cockpit, proportioned intakes, solid wings, solid tail and elevators, one big nozzle at the back.
Johnbr
ACCESS: Top Secret
- Joined
- 6 May 2007
- Messages
- 753
- Reaction score
- 312
While the Mirage F1 looks stunning (particularly without the ugly IFR probe) I can't look at photos of the first prototype without a pinch to the heart.
It flew on December 23, 1966 yet only six months later, on May 19, 1967 that bastard lost its horizontal tail to flutter and slammed into the ground, killing Dassault chief test pilot René Bigand.
In a sense, I prefer to think the Mirage F1 real story started afterward, with prototypes 02, 03 and 04 that looks better on the pictures above...
It flew on December 23, 1966 yet only six months later, on May 19, 1967 that bastard lost its horizontal tail to flutter and slammed into the ground, killing Dassault chief test pilot René Bigand.
In a sense, I prefer to think the Mirage F1 real story started afterward, with prototypes 02, 03 and 04 that looks better on the pictures above...
blackkite
Don't laugh, don't cry, don't even curse, but.....
- Joined
- 31 May 2007
- Messages
- 8,603
- Reaction score
- 6,872
blackkite
Don't laugh, don't cry, don't even curse, but.....
- Joined
- 31 May 2007
- Messages
- 8,603
- Reaction score
- 6,872
Hi!
"I would like to propose the implementation of the Super Mirage F1, a modification of the well-known French multirole fighter, the Mirage F1. This version boasts an improved engine, a new HUD, and access to advanced weaponry.
HISTORY
The story of this plane began in 2004 when AEROSUD purchased the remaining South African Mirage F1AZs. The intent was to upgrade them to remain relevant in the skies of the 2000s. To achieve this, a collaboration was established with Marvotech, which provided a new engine, updated avionics, and new armament. Two Mirages underwent this modification. However, a deal made by the South African government regarding the procurement of Gripens led to the project’s termination. According to AFP, these two planes participated in Ghana’s independence celebrations in 2008, marking their last public demonstration.
PERFORMANCE
The Super Mirage F1 was equipped with the SMR 95, a modified version of the RD-33, famously used in the MiG-29. This engine can produce up to 50.0 kN (11,230 lbf) dry thrust and 81.3 kN (18,285 lbf) with afterburner. Tests revealed that this new engine provided the F1 with 16% more thrust than the older Atar. At 15,000 ft (4.7 km) with two AA missiles, a full gun, and half the maximum fuel, the plane demonstrated improved turning capabilities and acceleration. The new HUD integrates an in-built helmet visor, allowing pilots to lock onto a target with the missile simply by looking at it."
forum.warthunder.com
"I would like to propose the implementation of the Super Mirage F1, a modification of the well-known French multirole fighter, the Mirage F1. This version boasts an improved engine, a new HUD, and access to advanced weaponry.
HISTORY
The story of this plane began in 2004 when AEROSUD purchased the remaining South African Mirage F1AZs. The intent was to upgrade them to remain relevant in the skies of the 2000s. To achieve this, a collaboration was established with Marvotech, which provided a new engine, updated avionics, and new armament. Two Mirages underwent this modification. However, a deal made by the South African government regarding the procurement of Gripens led to the project’s termination. According to AFP, these two planes participated in Ghana’s independence celebrations in 2008, marking their last public demonstration.
PERFORMANCE
The Super Mirage F1 was equipped with the SMR 95, a modified version of the RD-33, famously used in the MiG-29. This engine can produce up to 50.0 kN (11,230 lbf) dry thrust and 81.3 kN (18,285 lbf) with afterburner. Tests revealed that this new engine provided the F1 with 16% more thrust than the older Atar. At 15,000 ft (4.7 km) with two AA missiles, a full gun, and half the maximum fuel, the plane demonstrated improved turning capabilities and acceleration. The new HUD integrates an in-built helmet visor, allowing pilots to lock onto a target with the missile simply by looking at it."
Super mirage F1 the dart aiming to pierce the sun
poll I would like to propose the implementation of the Super Mirage F1, a modification of the well-known French multirole fighter, the Mirage F1. This version boasts an improved engine, a new HUD, and access to advanced weaponry. HISTORY The story of this plane began in 2004 when AEROSUD...
forum.warthunder.com
Last edited:
- Joined
- 21 May 2006
- Messages
- 2,834
- Reaction score
- 1,919
Btw :
www.thedrive.com
The First Flight Of A Mirage F-1 Belonging To A Private Aggressor Company Has Occurred
The Airborne Tactical Advantage Company has put the first of its 63 second-hand Mirage F-1s into the air for the first time.
www.thedrive.com
Of 720 Mirage F1 build, 63+22 = 85 are now agressor aircraft. Which mean 12% of the fleet is now in the United States. Pretty fascinating when you think about it. Mirage F1, Draken, Tiger II, Kfir, Hunter, Skyhawk: hell of a private air force they created. Shame the Viggen could not be present at the party.
It is a topic made for technothriller books. USN / USMC agressor squadrons are already pretty cool (A-4 / F-5 / F-16 / F-15 in soviet livery and roundels !) but a private air force joining them with such exotic aircraft, is even better. Iron Eagle, here we go !
imagine, the sight of a pack of bomb-laden Hunters and Skyhawk with a close escort of F-5Es, Drakens and Cheetahs. That whole low-flying attack force is essentially cannon fodder of obsolete machines, sure. Yet lurking above are Mirage F1s and Kfirs at medium height with F-15s (in Su-27 camo, of course) flying cover at high altitude.
The whole "red" force described above is then attacked by "blue / friendly" F-16s, F-18s. Chaos and mayhem follow in the skies of Nevada.
I WANT to see that.
It is a topic made for technothriller books. USN / USMC agressor squadrons are already pretty cool (A-4 / F-5 / F-16 / F-15 in soviet livery and roundels !) but a private air force joining them with such exotic aircraft, is even better. Iron Eagle, here we go !
imagine, the sight of a pack of bomb-laden Hunters and Skyhawk with a close escort of F-5Es, Drakens and Cheetahs. That whole low-flying attack force is essentially cannon fodder of obsolete machines, sure. Yet lurking above are Mirage F1s and Kfirs at medium height with F-15s (in Su-27 camo, of course) flying cover at high altitude.
The whole "red" force described above is then attacked by "blue / friendly" F-16s, F-18s. Chaos and mayhem follow in the skies of Nevada.
I WANT to see that.
Last edited:
- Joined
- 19 July 2016
- Messages
- 4,006
- Reaction score
- 3,053
A bigger Gnat.
- Joined
- 13 June 2007
- Messages
- 2,101
- Reaction score
- 2,709
I saw one of the Mirages back in November 2019 at Ft. Worth Alliance Airport. Loved seeing it and they now have one in a digital camo scheme. Hope to see more later this year.
Enjoy the Day! Mark
Attachments
- Joined
- 27 March 2006
- Messages
- 1,843
- Reaction score
- 1,528
Following on from the A4 French naval thread, I looked through this thread again on the topic of the F1M.
Was the plan to increase wing area, or have a blown wing/flaps system in place?
Was the plan to increase wing area, or have a blown wing/flaps system in place?
NUSNA_Moebius
I really should change my personal text
- Joined
- 26 May 2012
- Messages
- 233
- Reaction score
- 133
Makes me wish I had continued on with my A&P instead of being a straight up welder. Don't live too far from Alliance.
Larger win area, just like the Jaguar M - same year, 1971. Problem was, the aéronavale very limited budget allocated to renew the attack wing of the fast-jet force, would never allow for it.
There are good reasons why the Super Etendard option was picked up above much better aircraft: Dassault knew how to get the lowest possible price, and deliver accordingly (and fast).
Fact was the S.E was a cheap and efficient procurement thing:
- January 1973: French Minister of Defense Michel Debré picks it
- October 1974: first aircraft flies
- 1978: IOC
I don't have the Liébert book, only small tidbits of it, but I can't find them on my crowded HD...
