Merriman's Submarine Modelling Masterclass

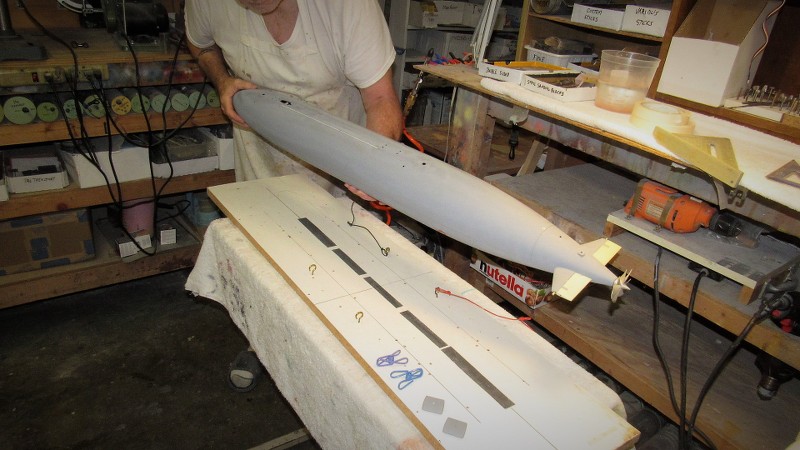

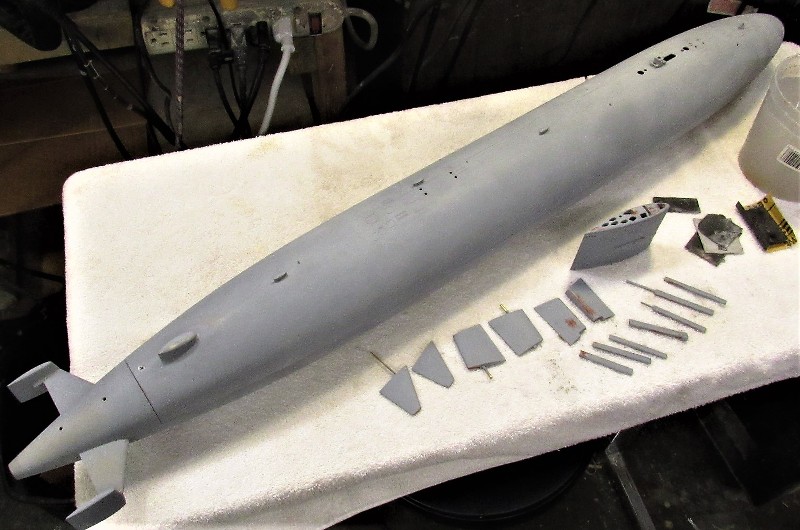

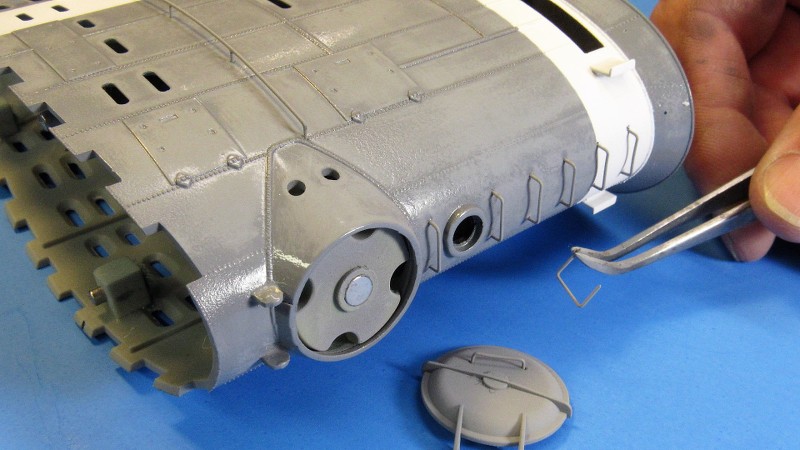

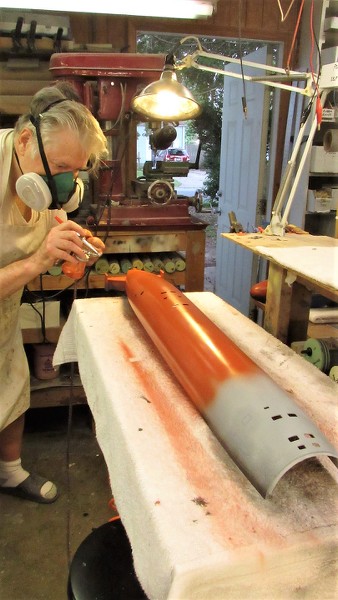

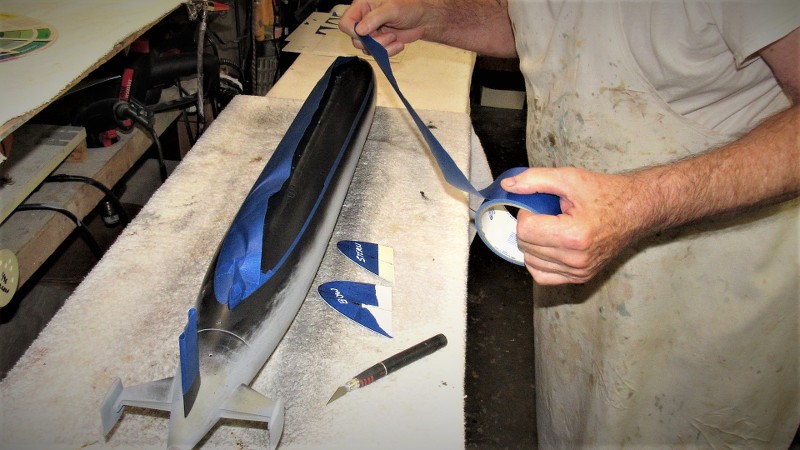

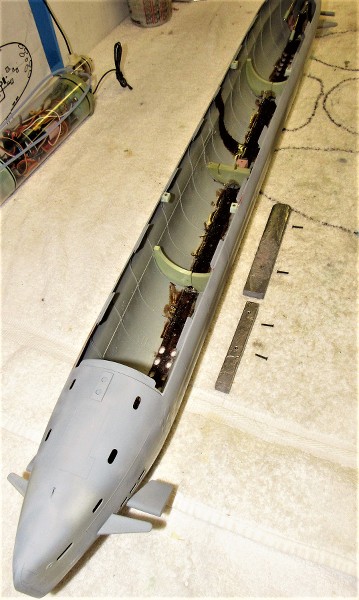

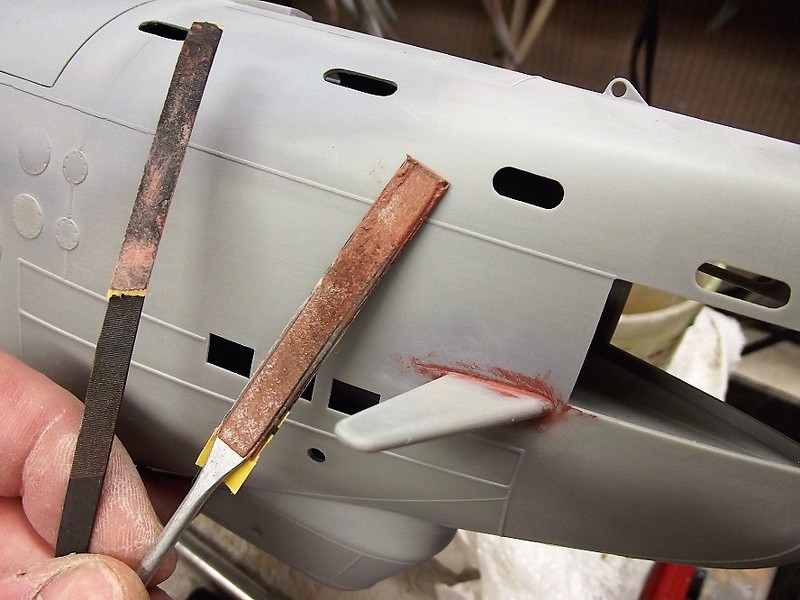

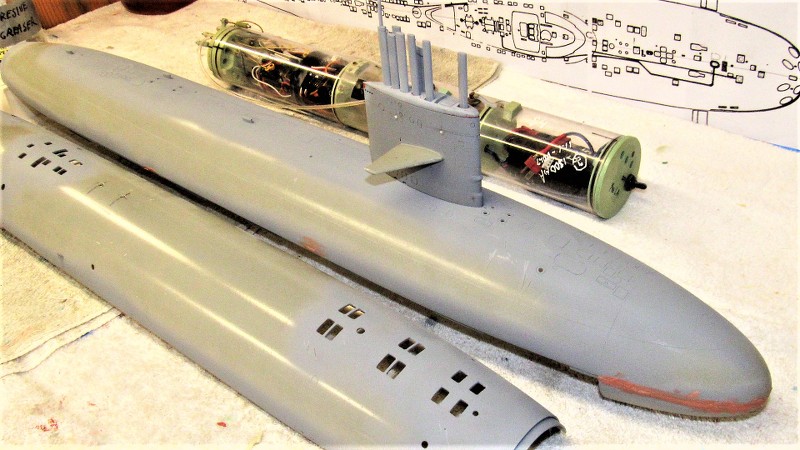

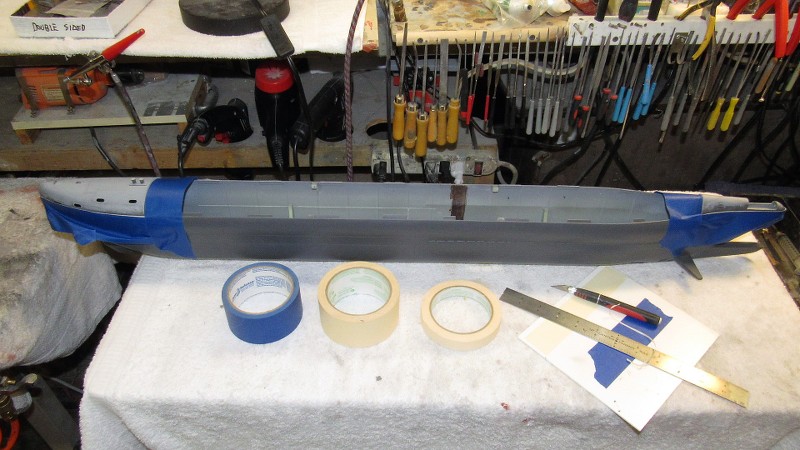

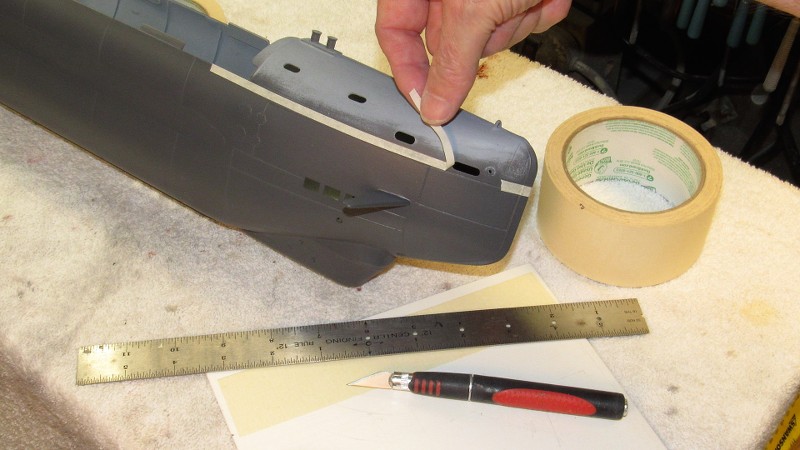

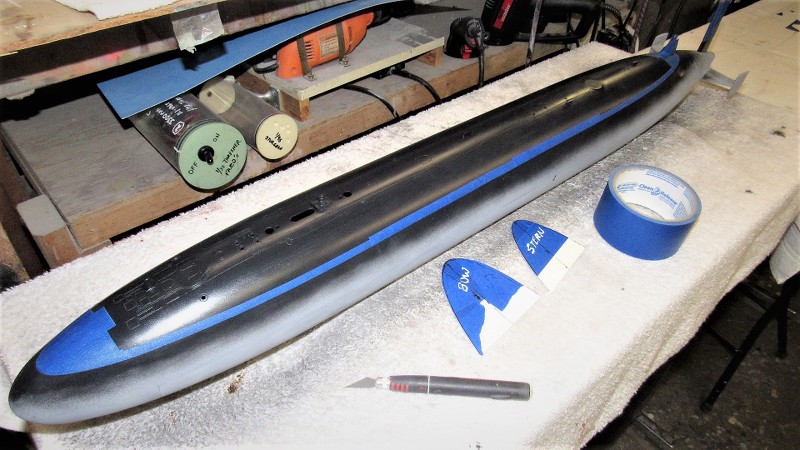

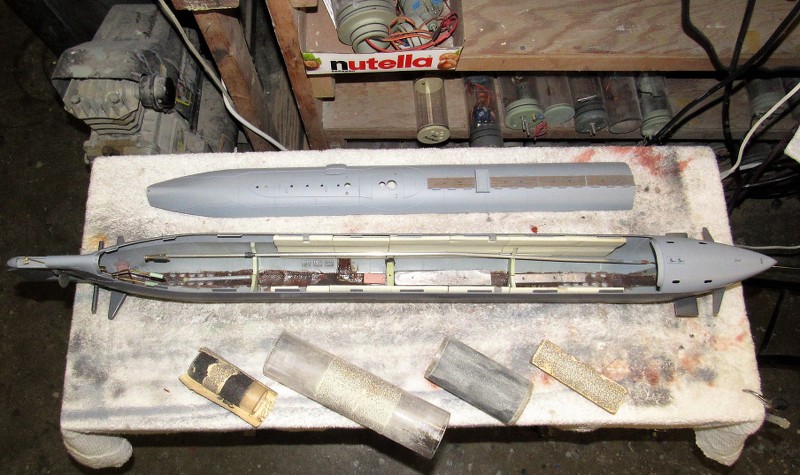

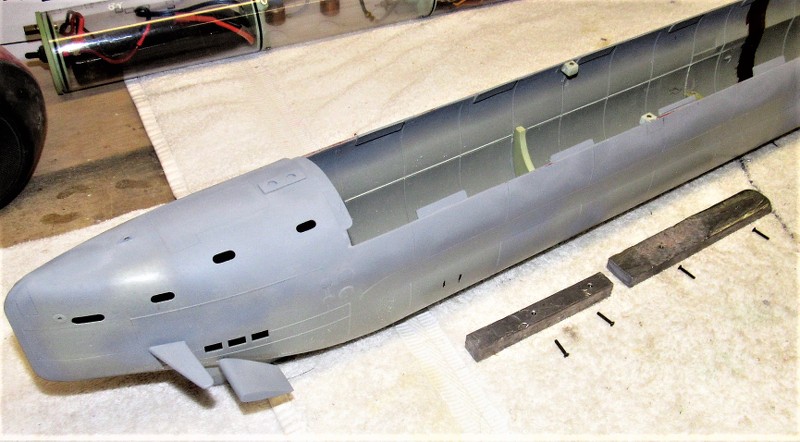

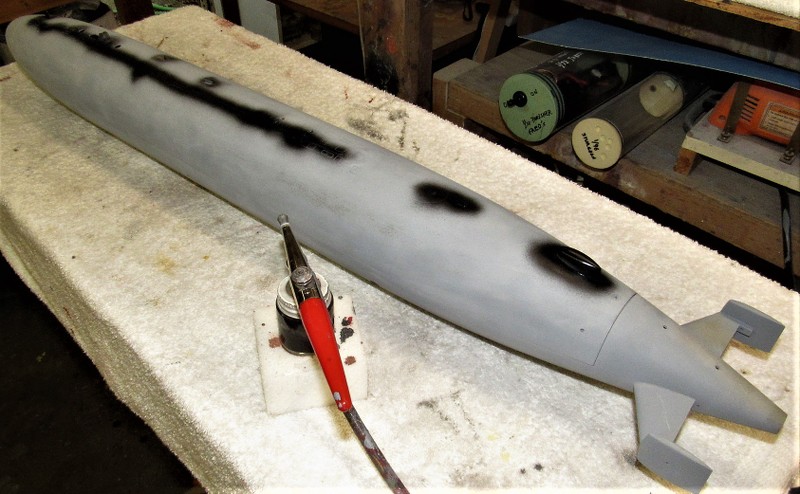

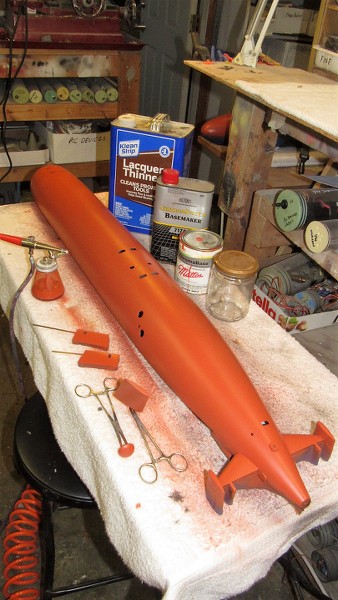

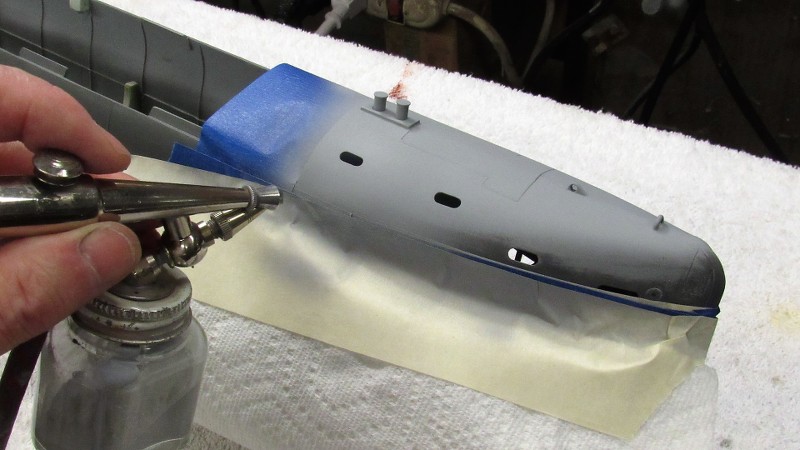

Well over a year ago I agreed to 'improve' a 1/96 STURGEON set of masters Bob received for kit production. That job (finally) is nearing completion and Nautilus Drydocks will soon be offering GRP-resin-metal kits for sale. Below is a build-up 'proof' kit to give you an idea of how the eventual product will look.



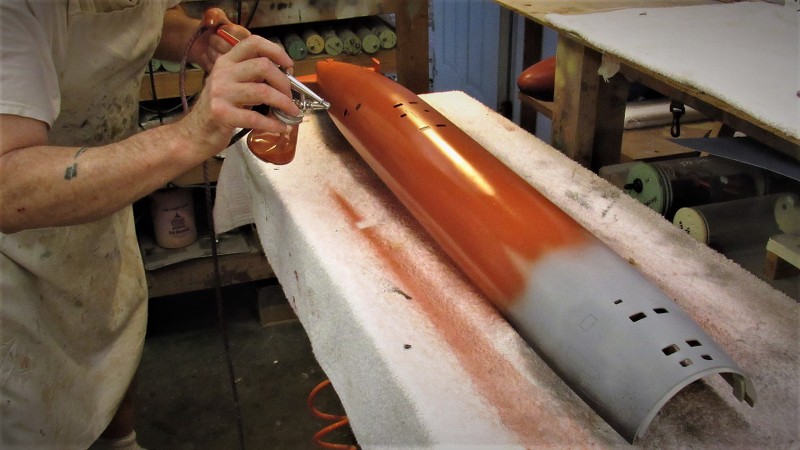

The following is a quick re-cap of the work done to correct some flaws found on the hull masters. New masters were created to further enhance the accuracy and ease of assembly of the eventual kit parts. And, finally, the creation of the production tools Bob and his crew will use to manufacture kits for sale.

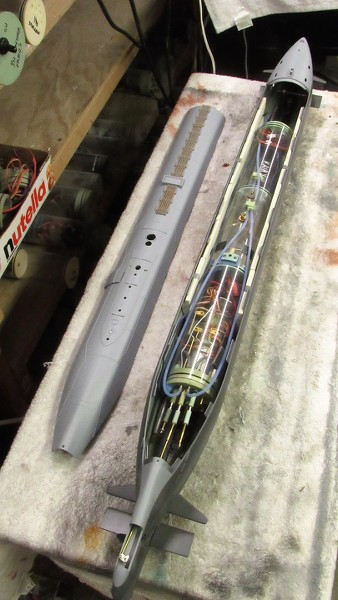

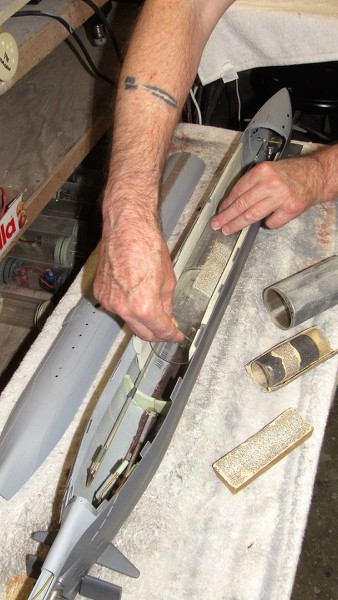

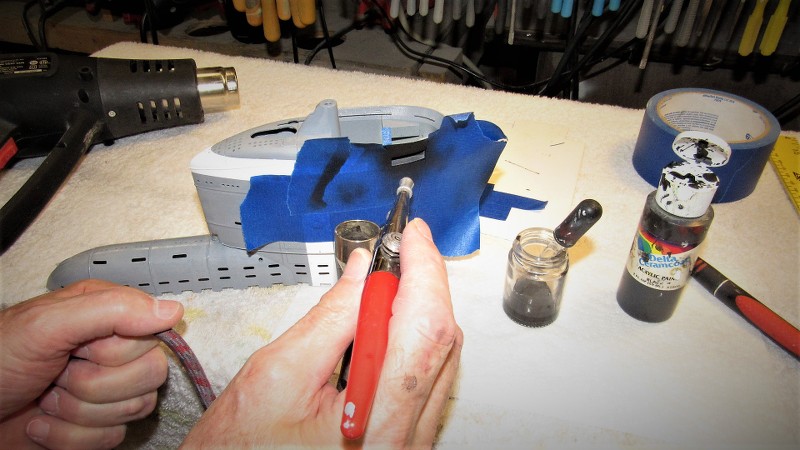

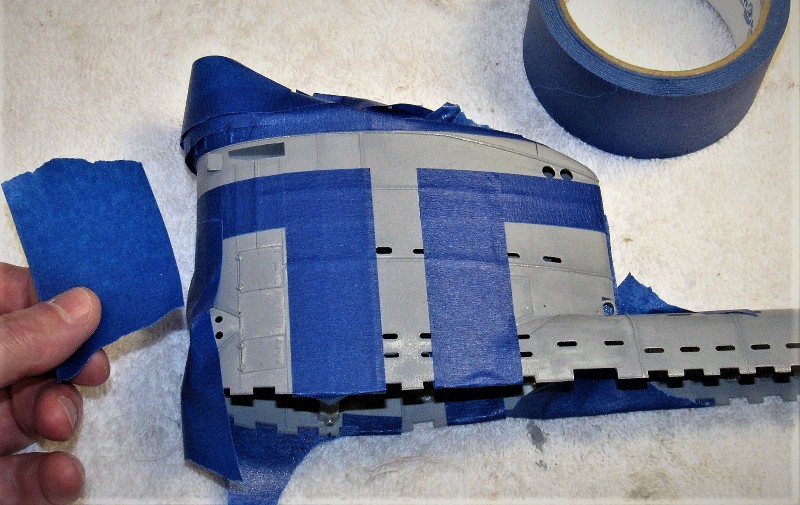

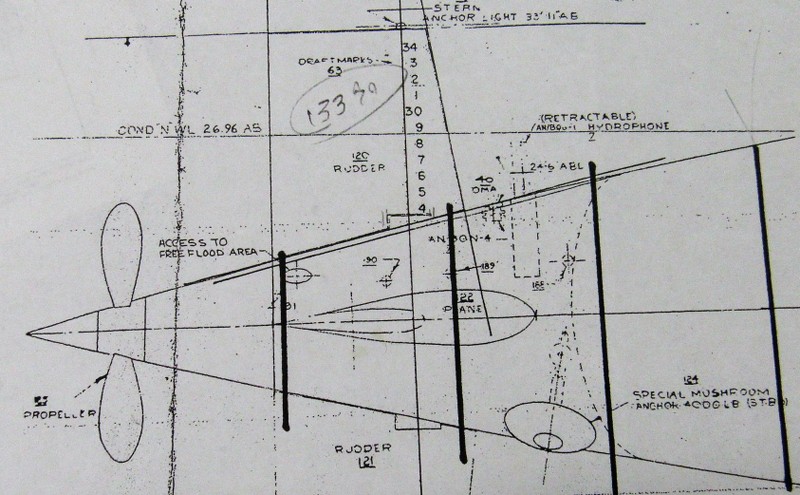

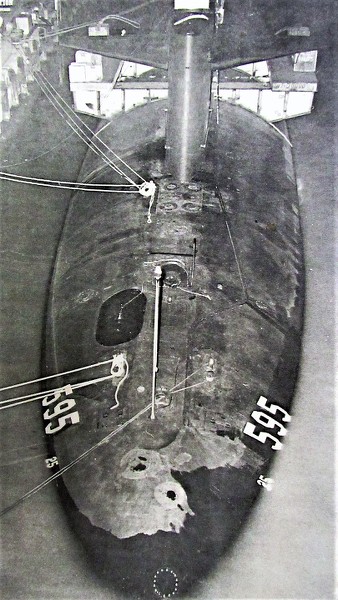

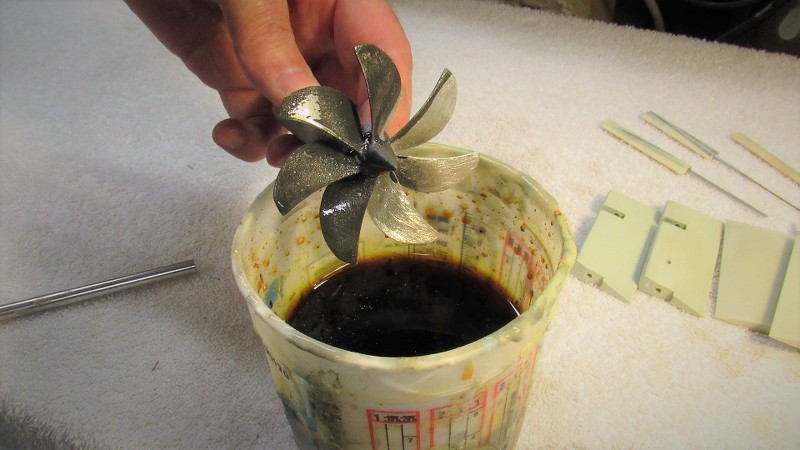

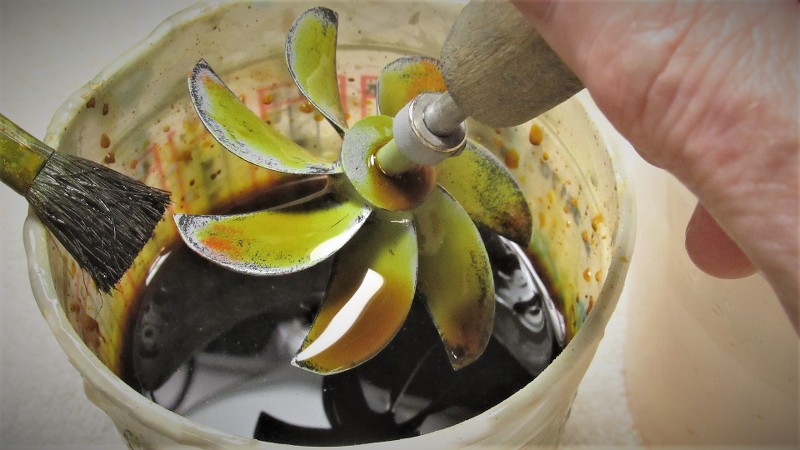

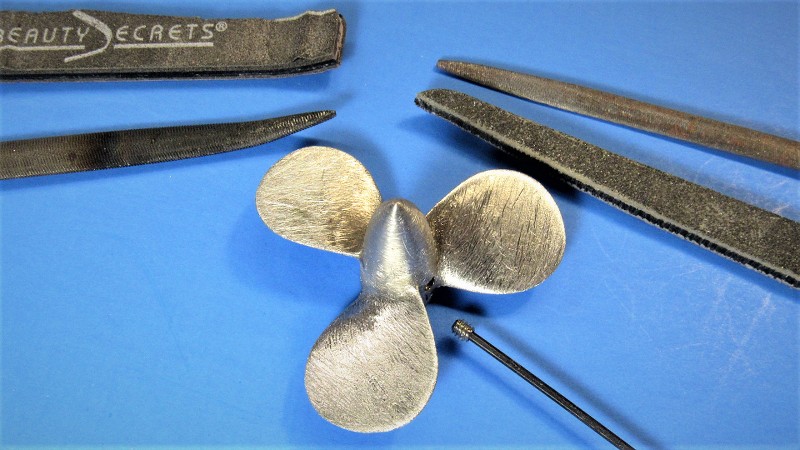

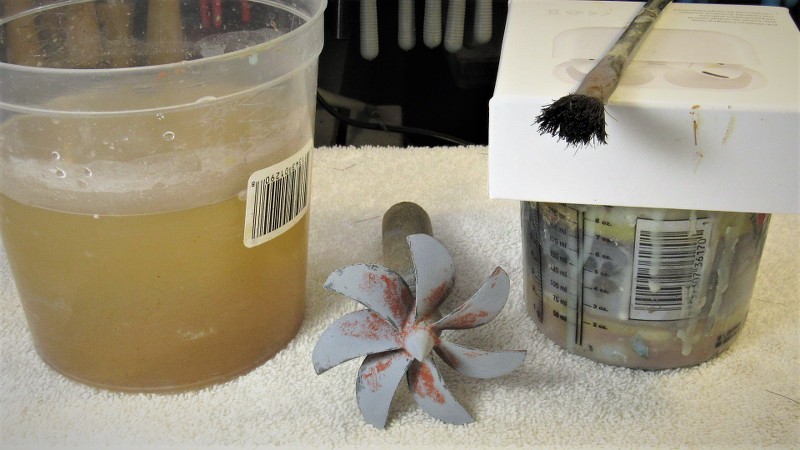

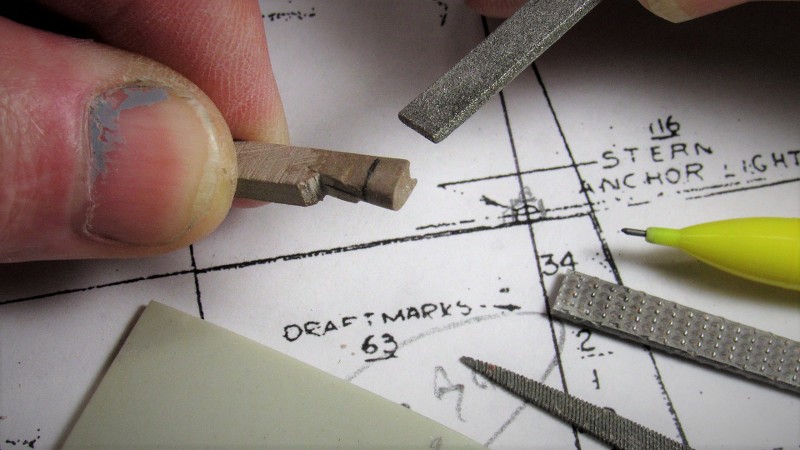

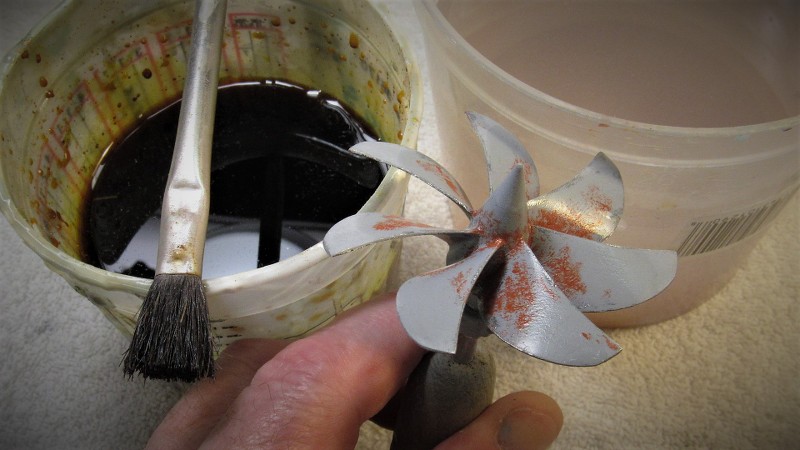

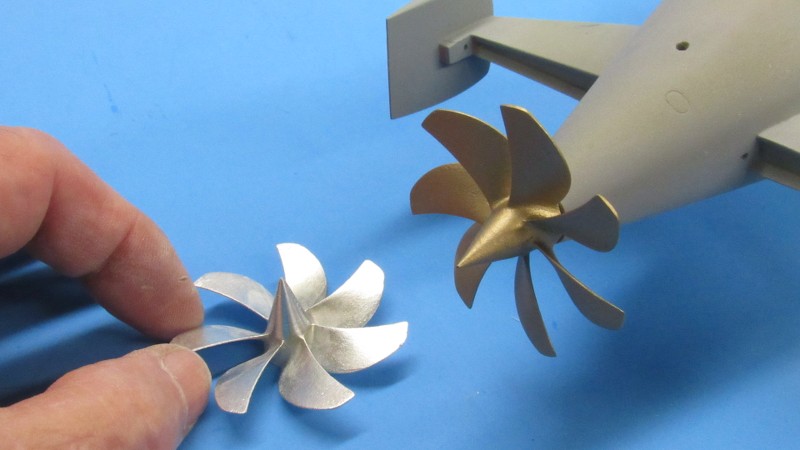

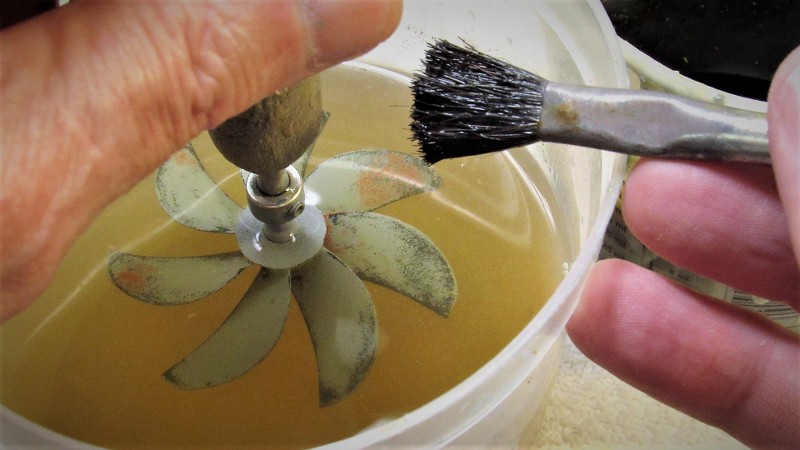

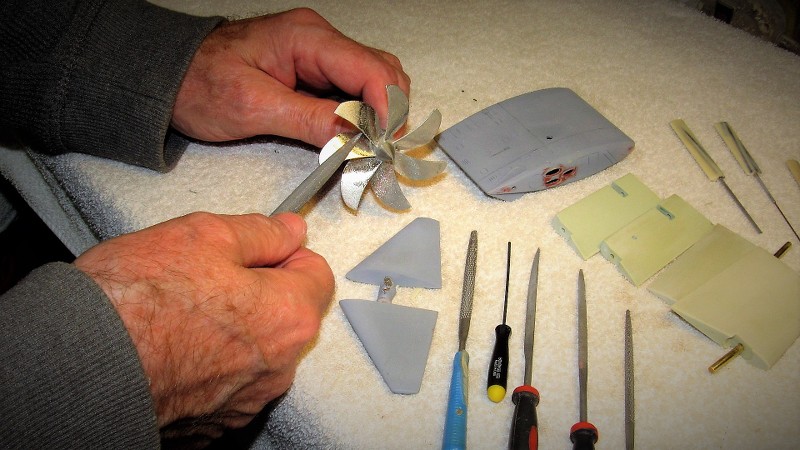

When we received the masters, I broke out my copy of the excellent Greg Sharpe (Deep Sea Design) plans of the STURGEON and opened up the hard drive to spill out all the STURGEON stuff I had collected over the decades. These resources used to validate/correct the hull master, as it was found during this validation phase that I would be better served to scratch-build my own tail-con, sail, propeller control surfaces, and appendage masters and tools. The job started out as an assumed quick upgrade, but quickly took on the proportions of a major re-work; it grew from simply making production tooling to a complete rehab!

Fuck!



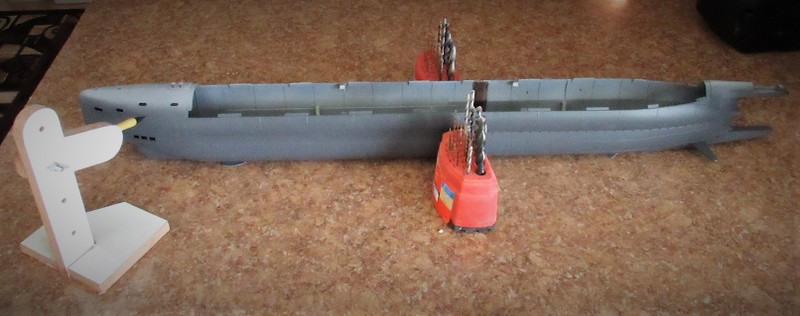

The only useful original item of the package I received for improvement and tool making was the two halves of the hull master. The rest were put into safe storage for eventual return to Bob. This job was going to turn into a handful!

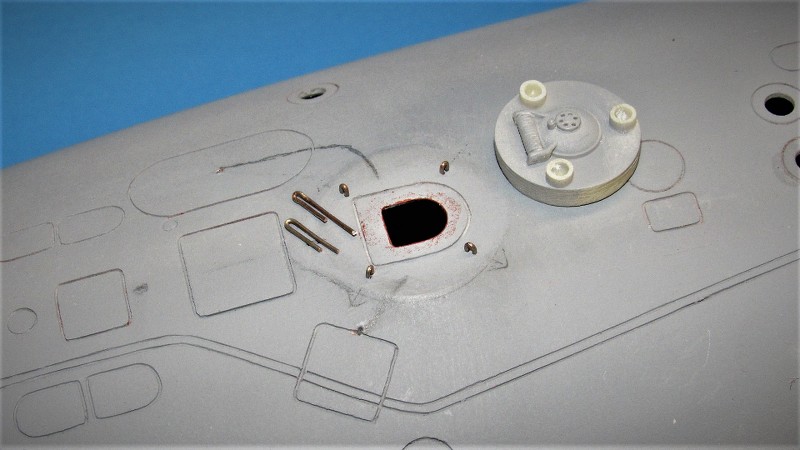

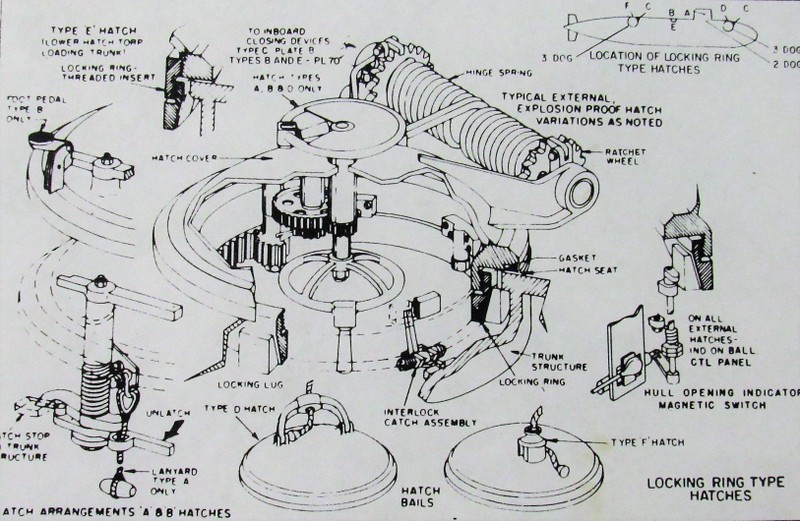

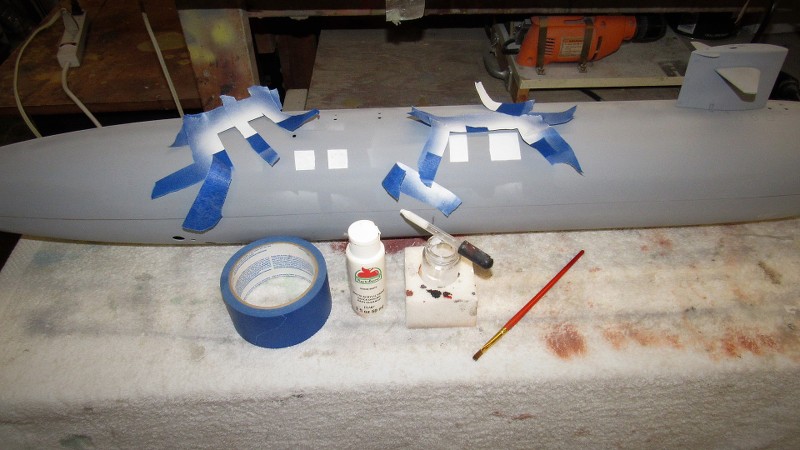

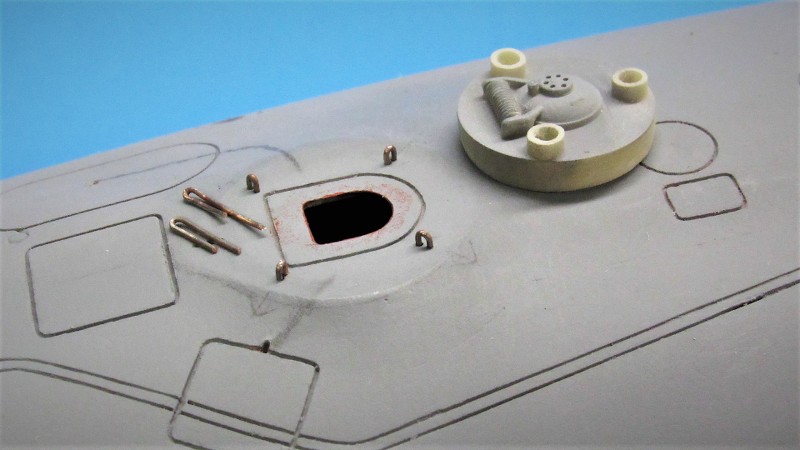

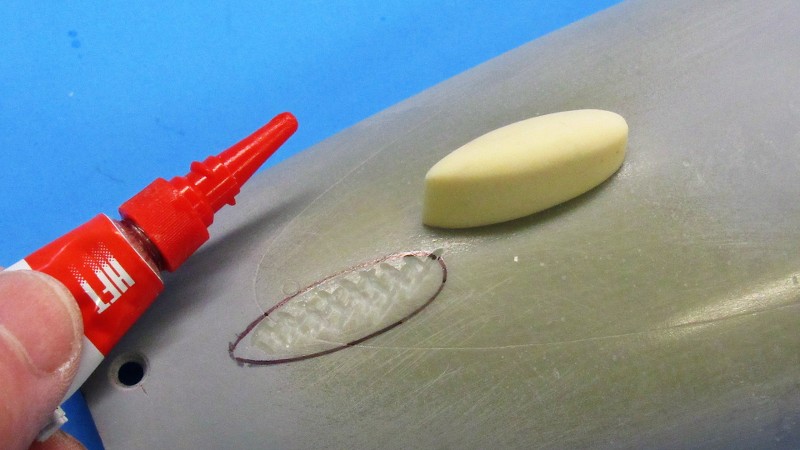

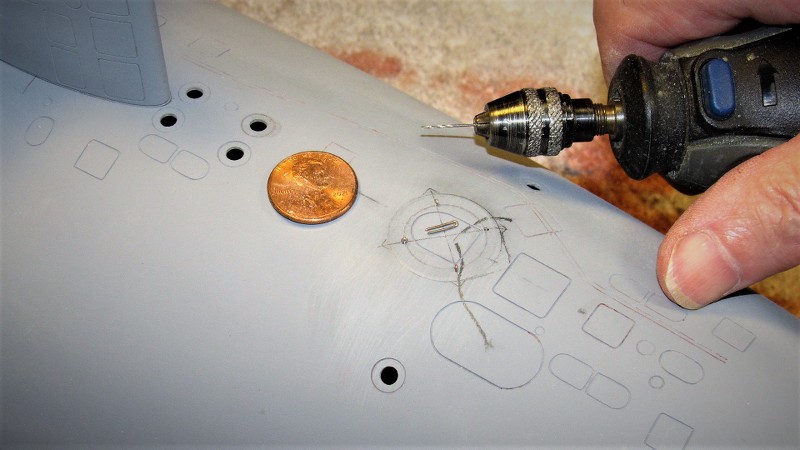

I found the hulls scribed (engraved) detail to be fine -- no wonder, I did that part of the work for the originator of this kit about 25-years ago! However, for some unfathomable reason, he raised the two escape trunk hatch flats well above deck level!

Nope.

Aint' so on the real boats. So that had to be fixed.

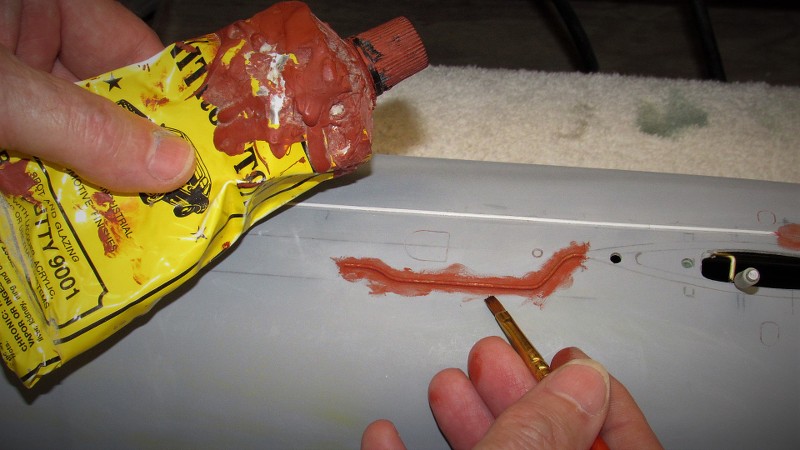

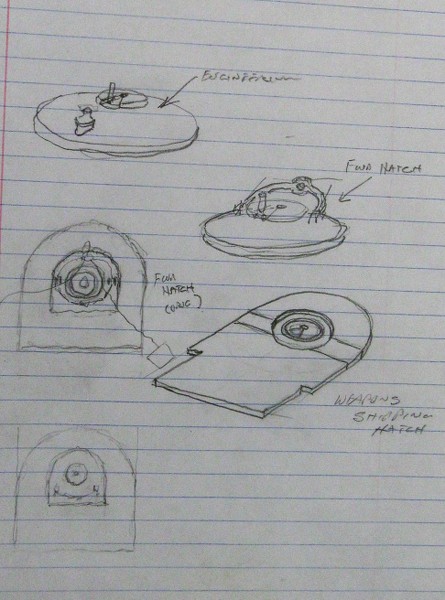

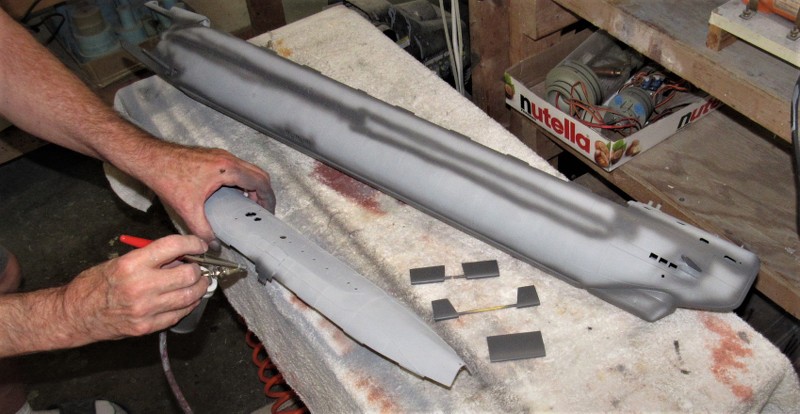

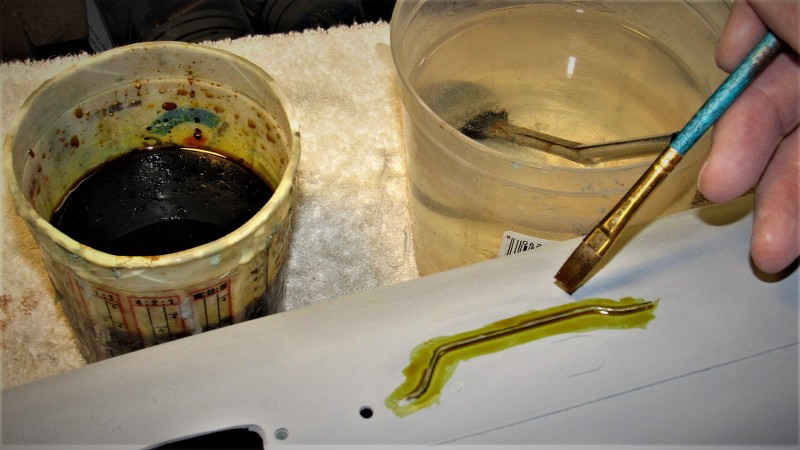

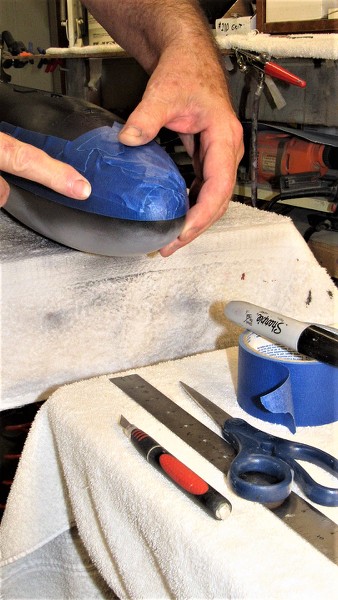

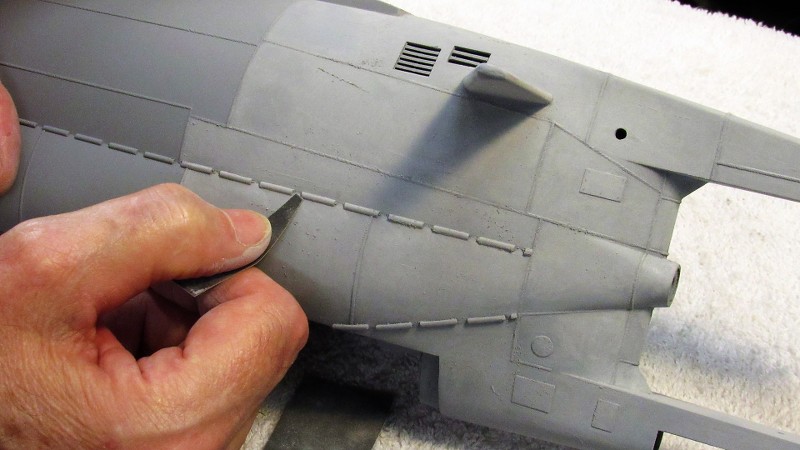

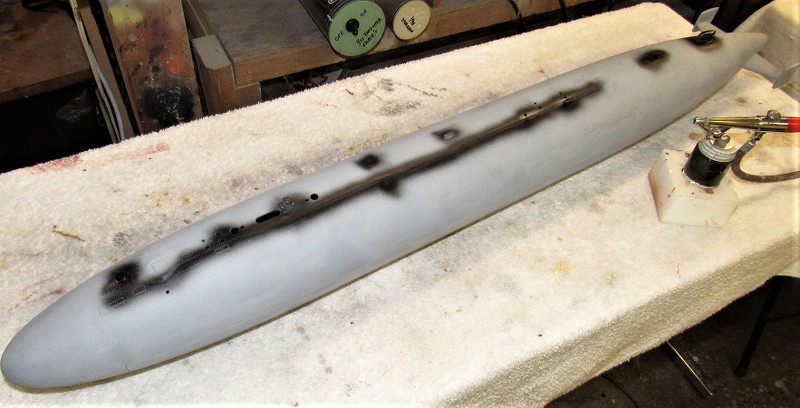

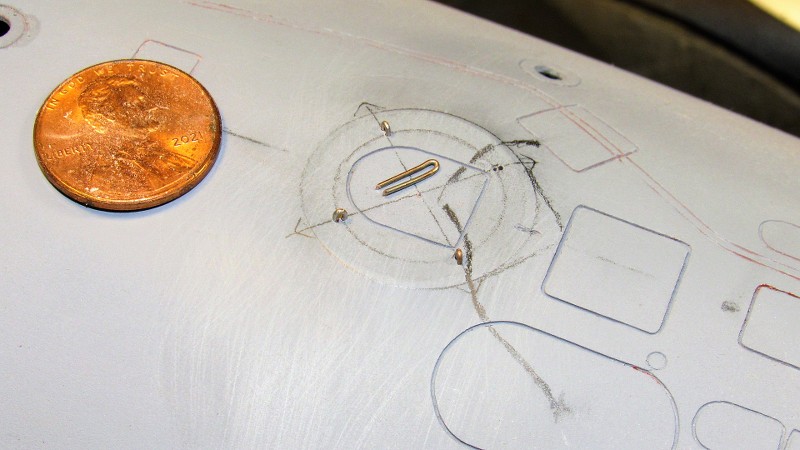

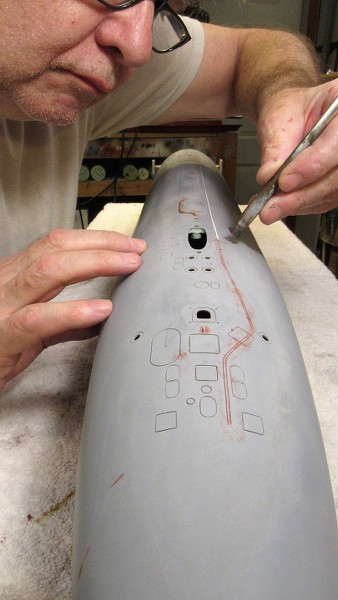

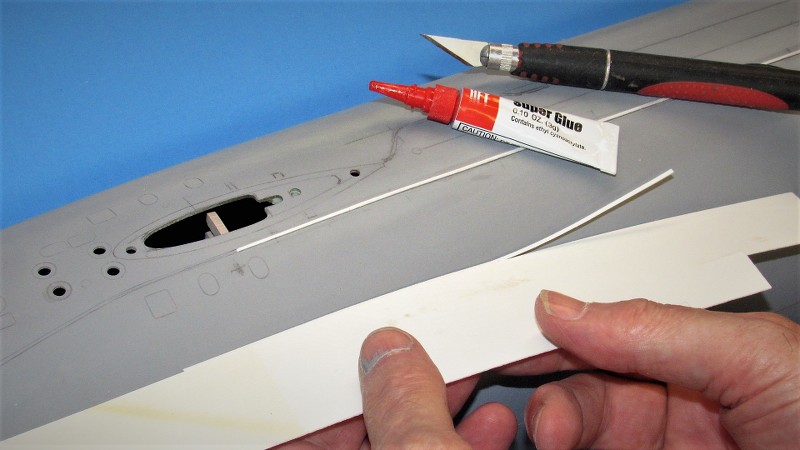

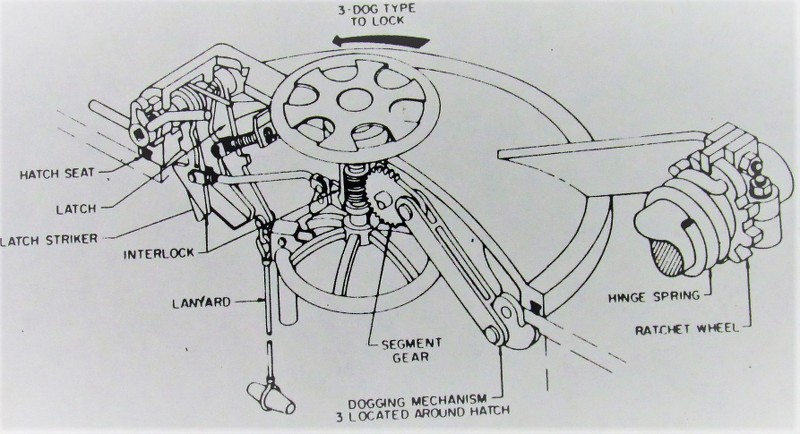

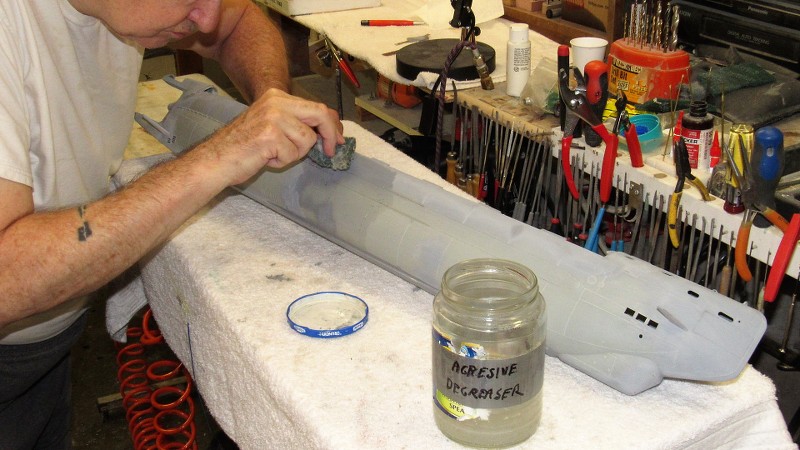

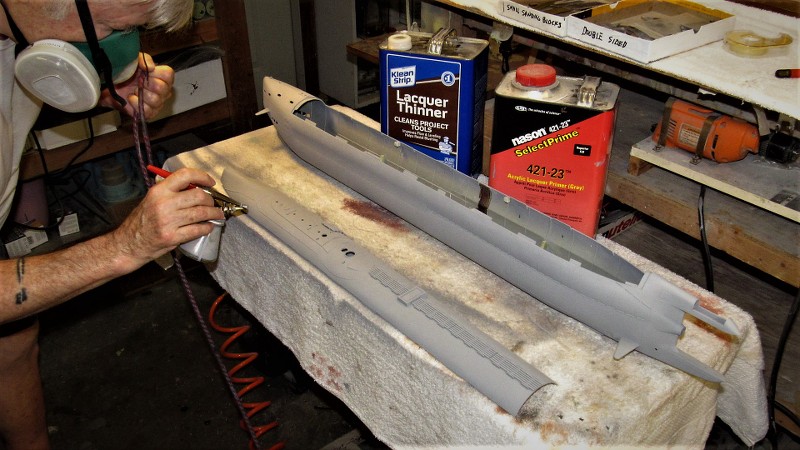

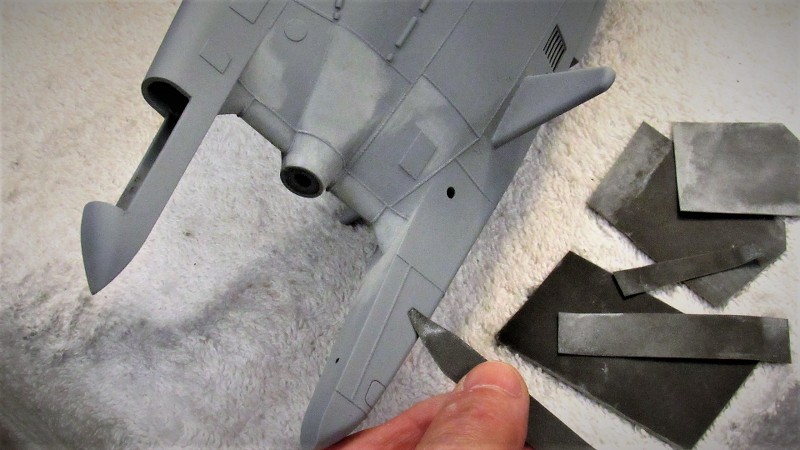

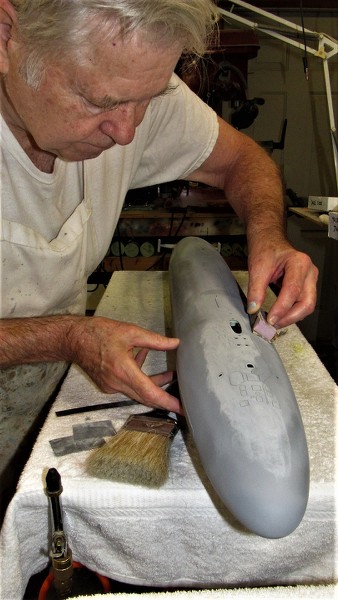

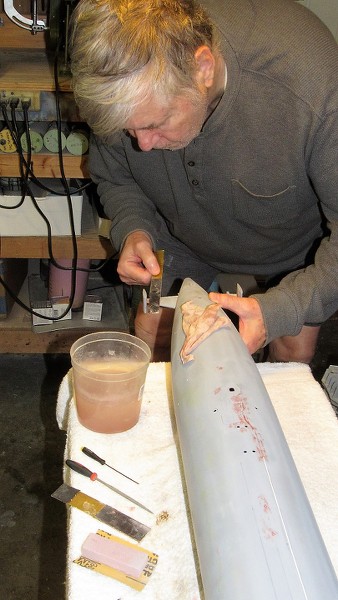

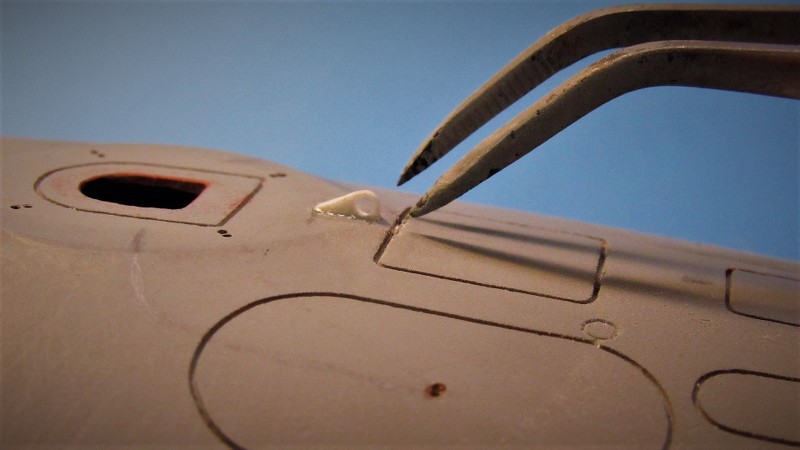

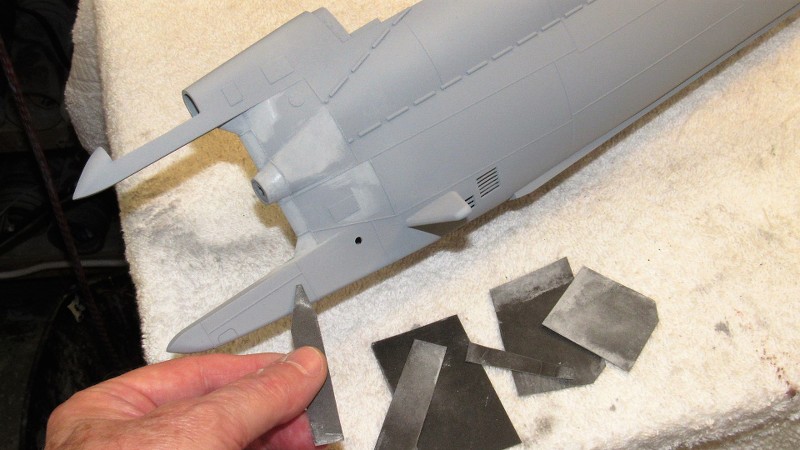

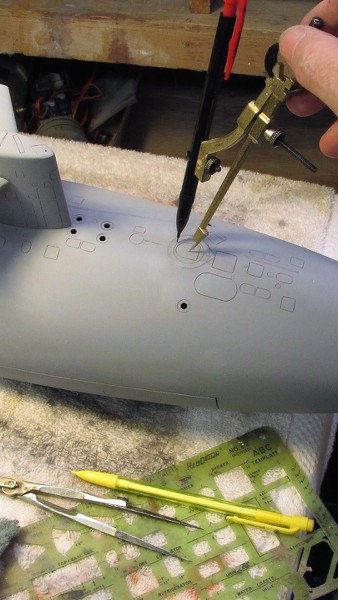

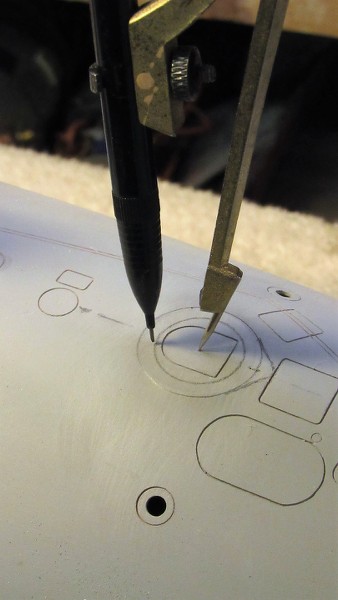

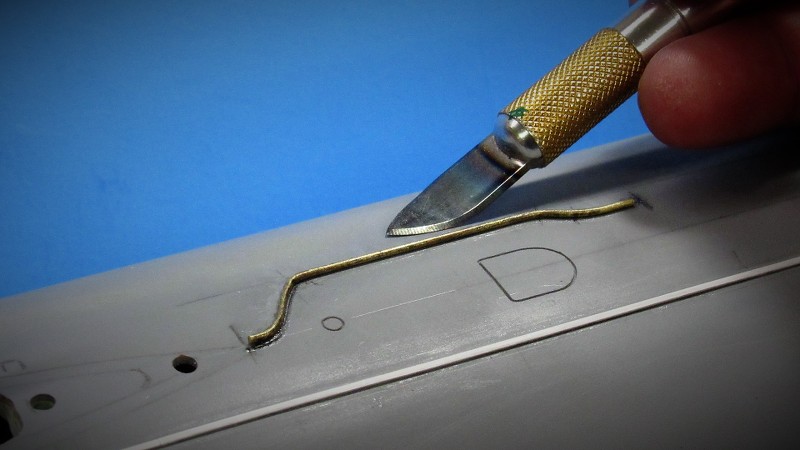

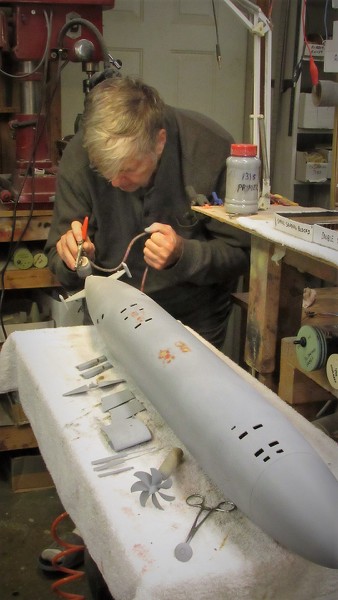

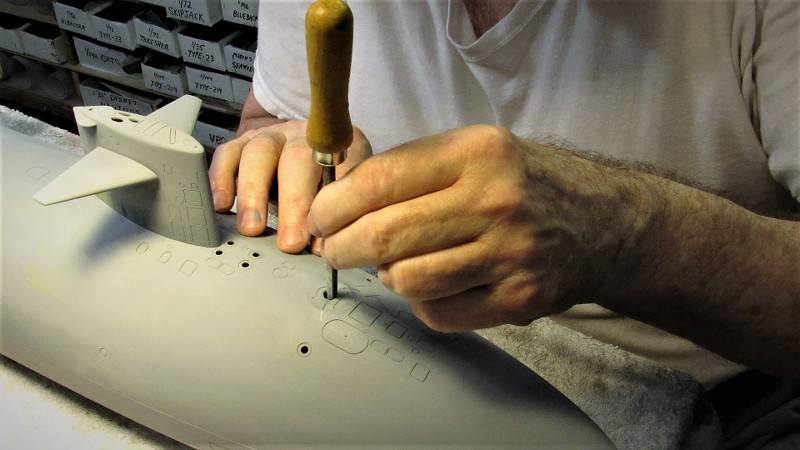

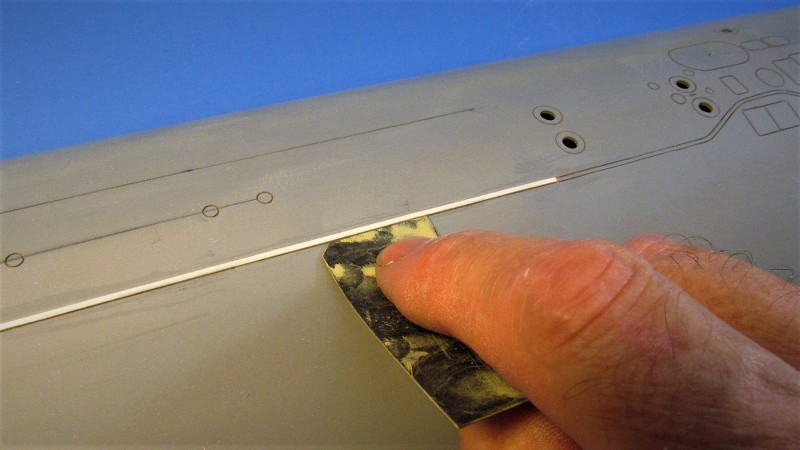

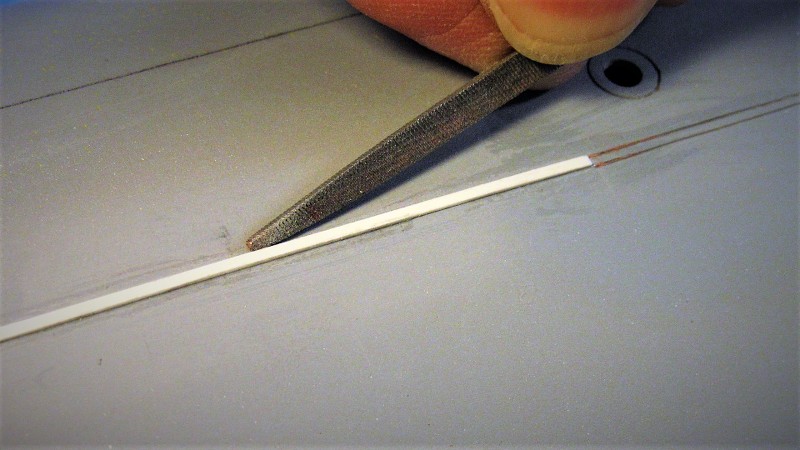

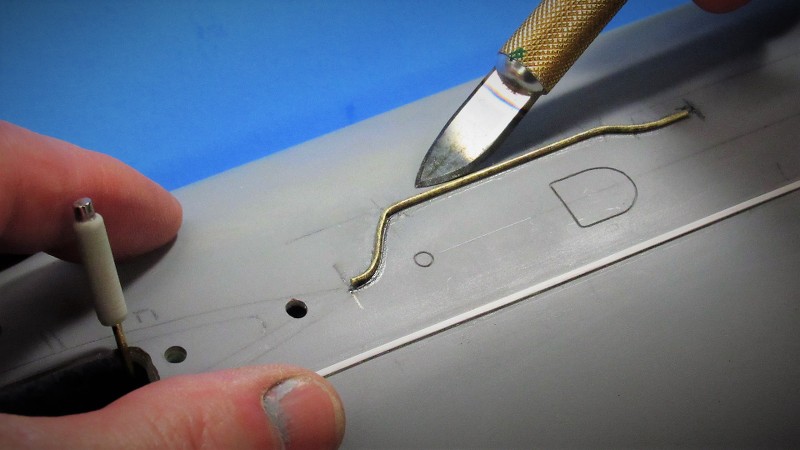

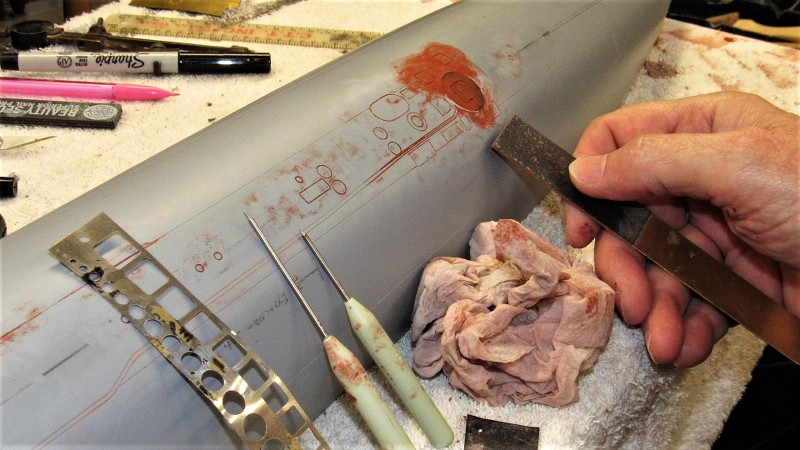

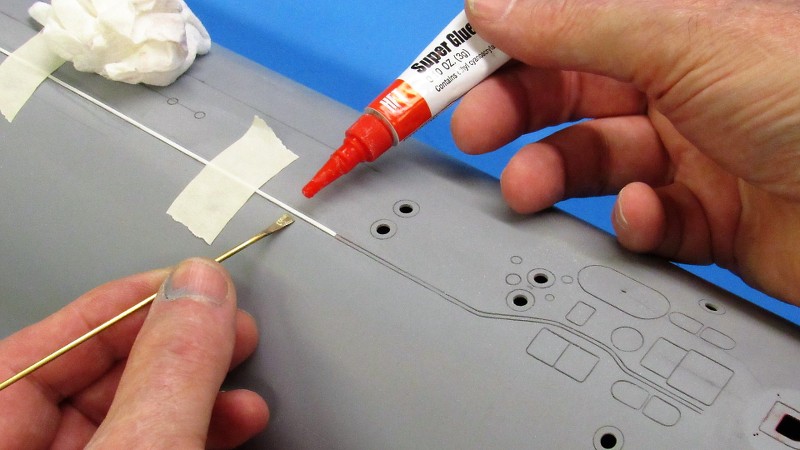

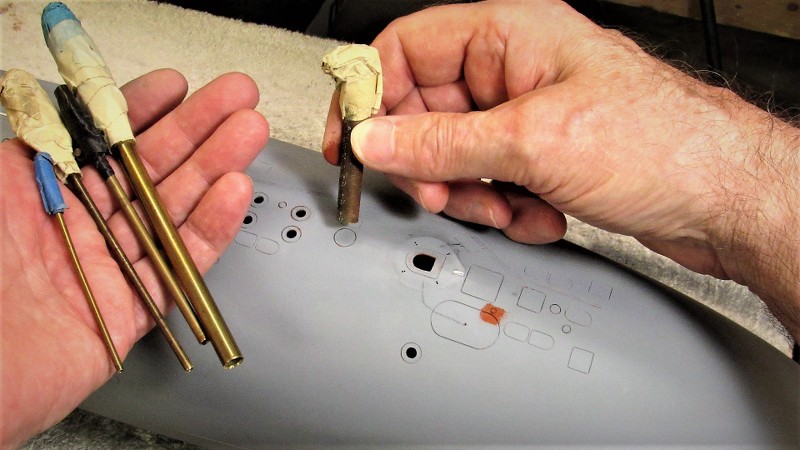

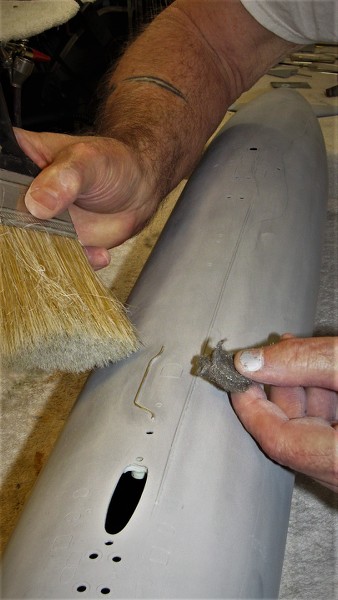

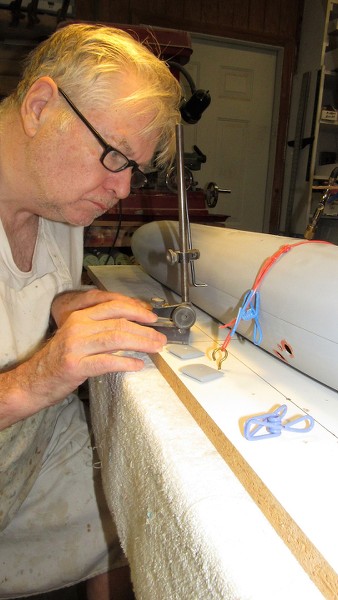

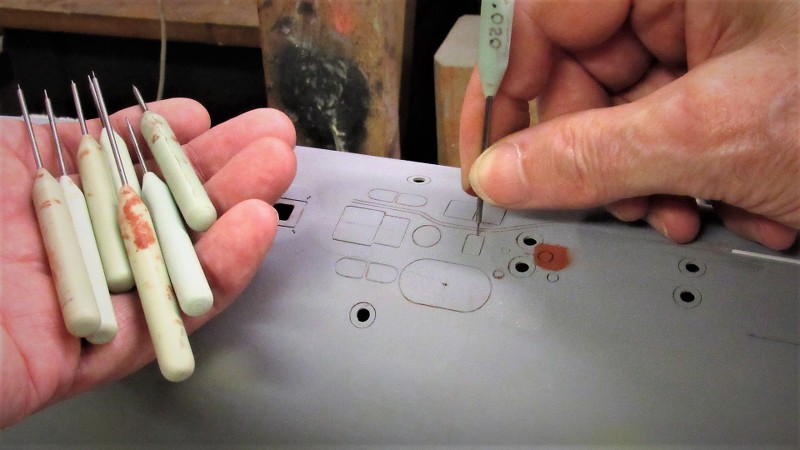

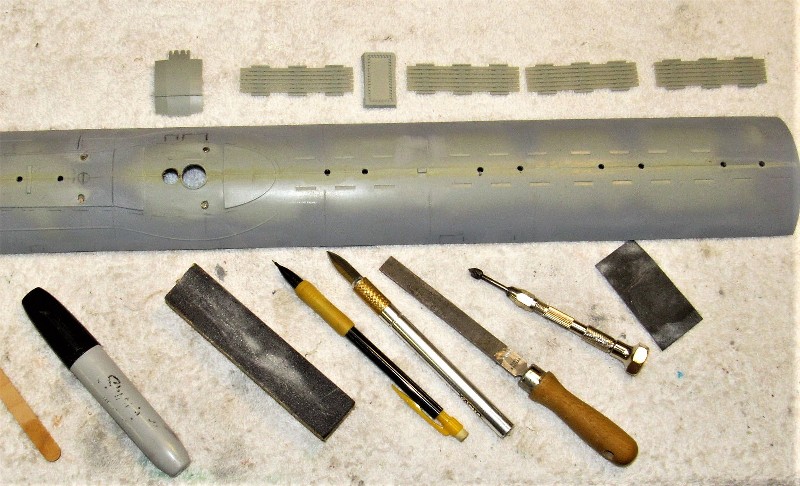

The existing engraved lines were deepened and enhanced -- I've learned a few more things about STURGEON class boats since my initial work scribing the master. By the way, what I received was not the original wooden master, but a 'copy-master'. This master [sic] formed from GRP. Who knows how many 'masters' of this hull are floating around the world as I write this? I hear the originator sold masters to several kit producers. Did the originator inform those guys that they do not have an exclusive deal?

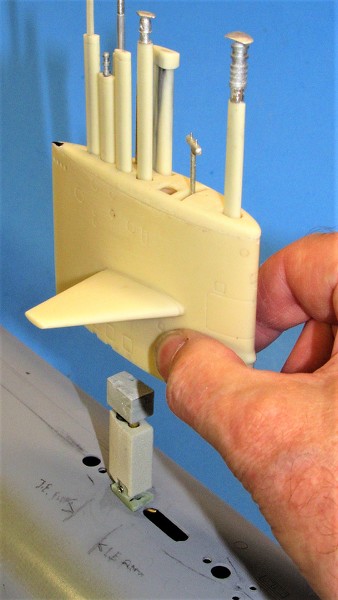

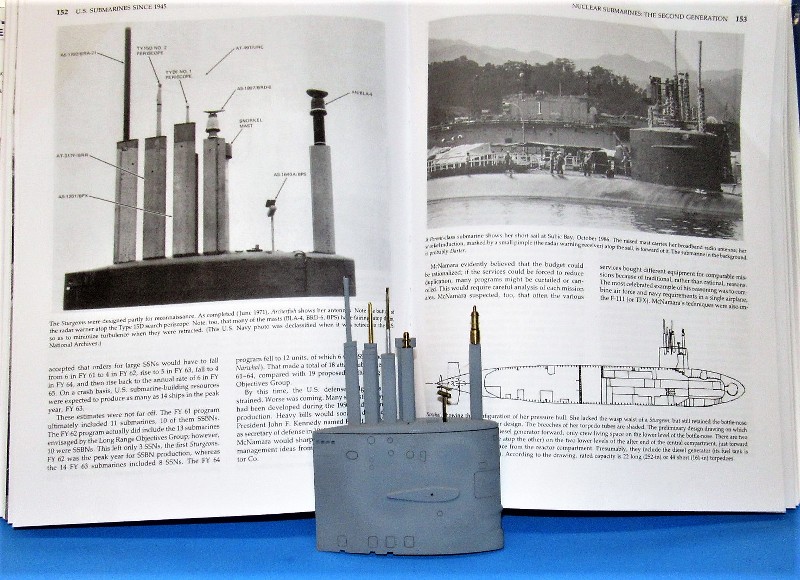

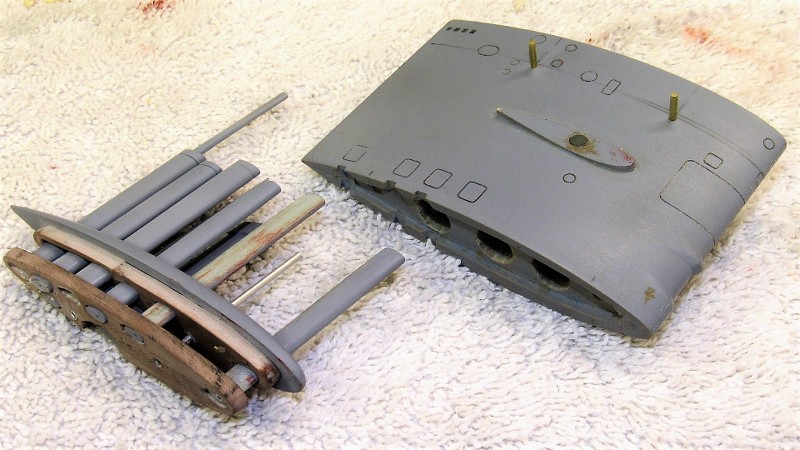

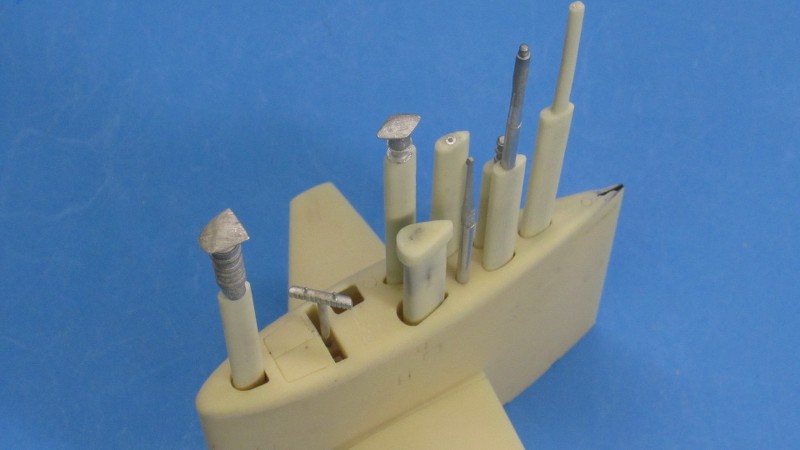

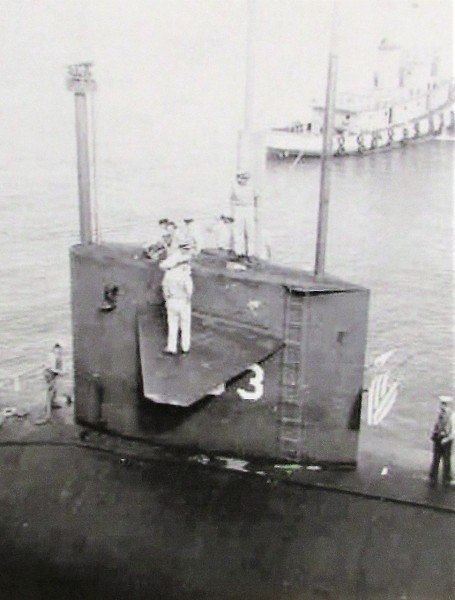

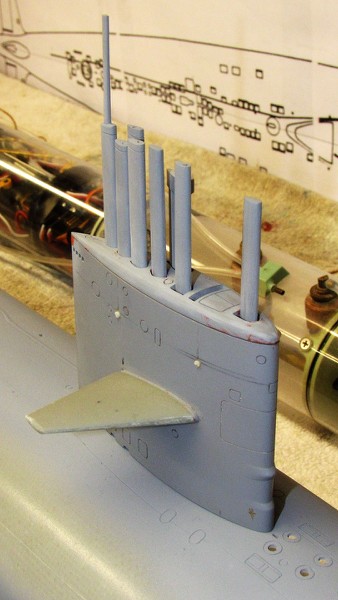

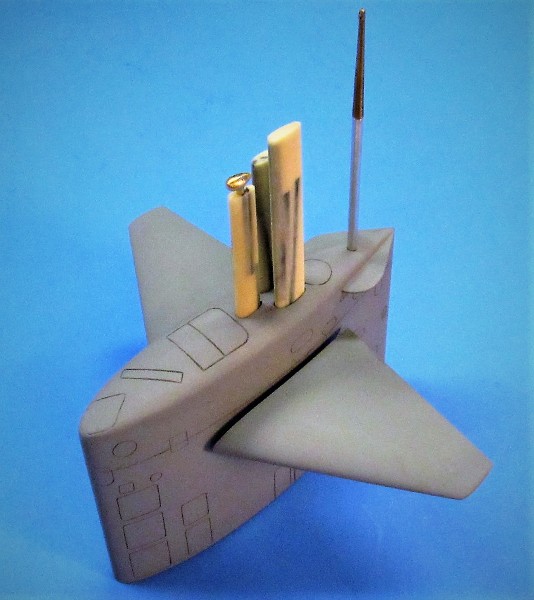

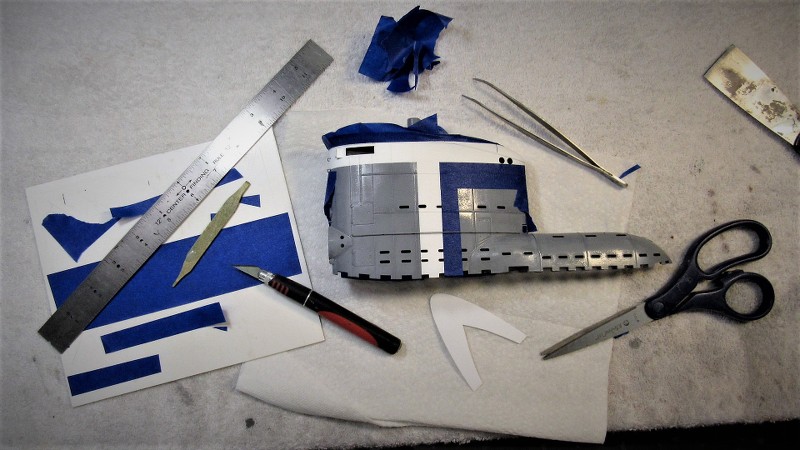

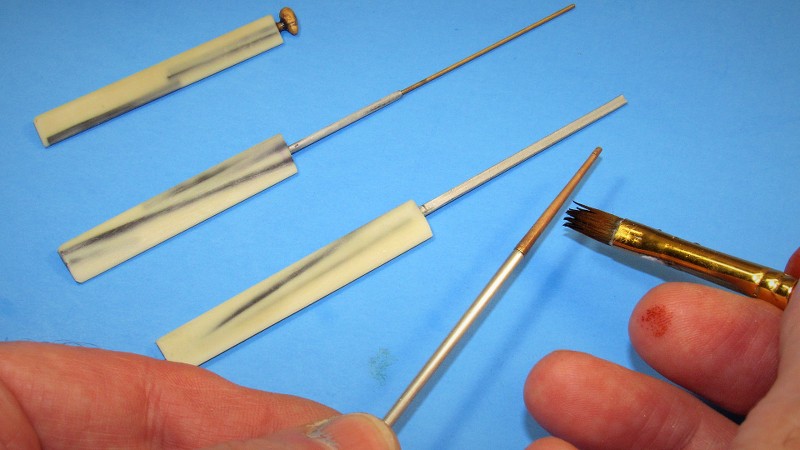

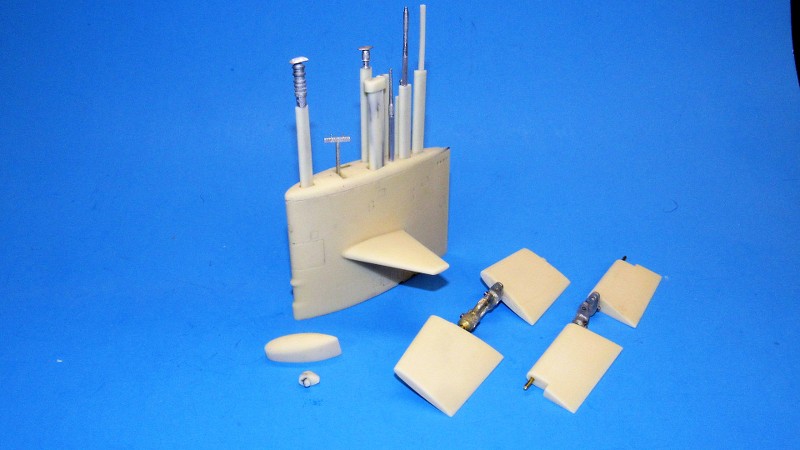

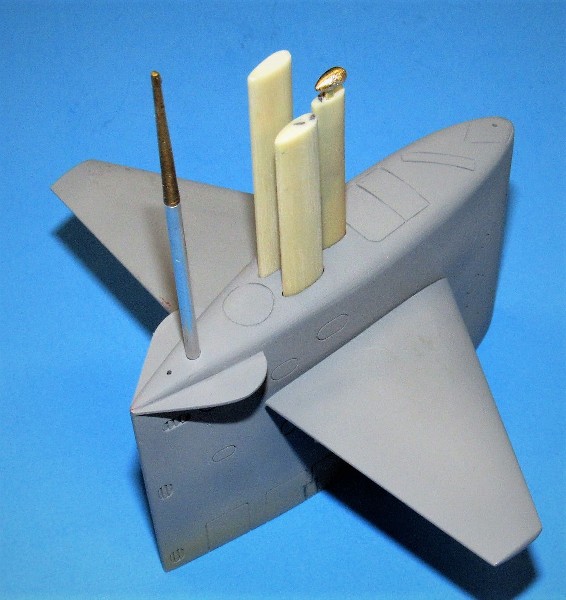

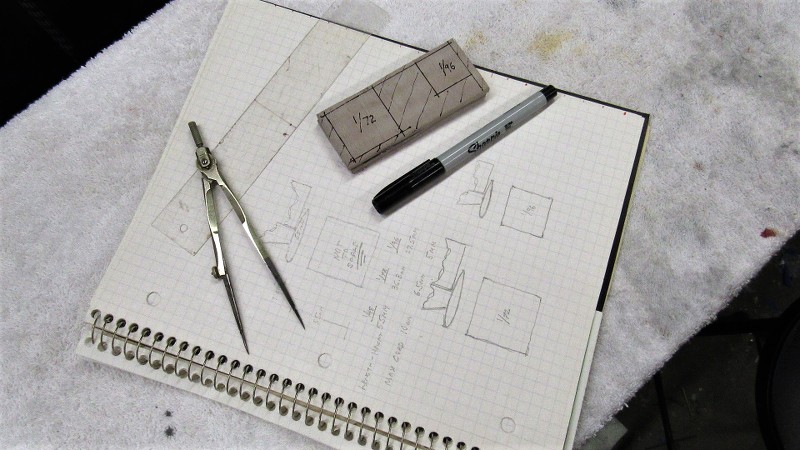

The completed sail and mast-antenna masters I scratch-built in support of this job. Note the use of Norman Friedman's excellent book, U.S Submarines Since 1945 as one of my sources on this class of submarines.

One must be careful as to who is your source of documentation, as there is a lot of bull-shit and repetitive crap out there. Vet your sources:

Friedman, Rossler, Christley, Sharpe, Traplet Publications -- good.

Palmar, Batchelor, Weisswesser, Challenge Publications -- iffy or just plain crap.

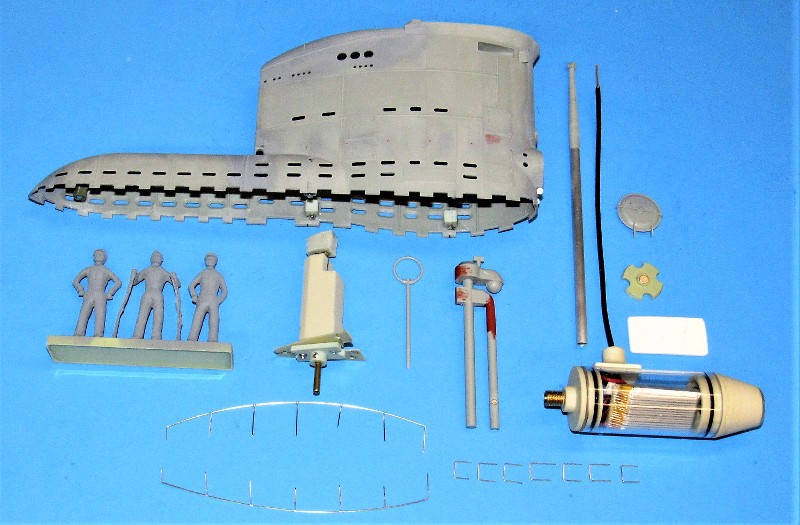

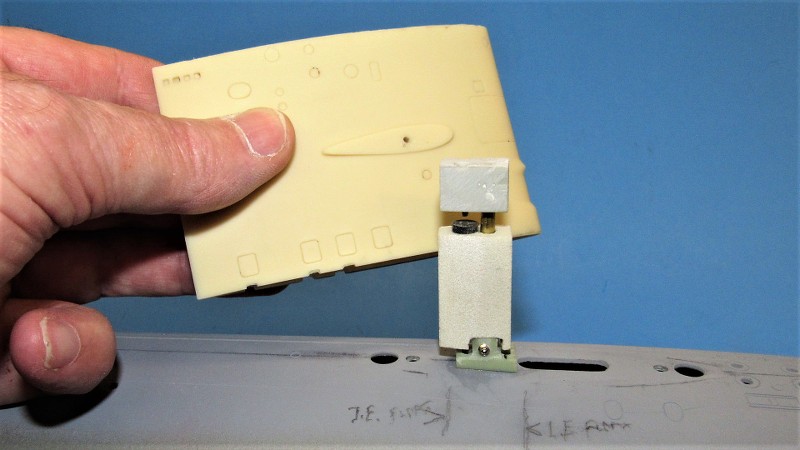

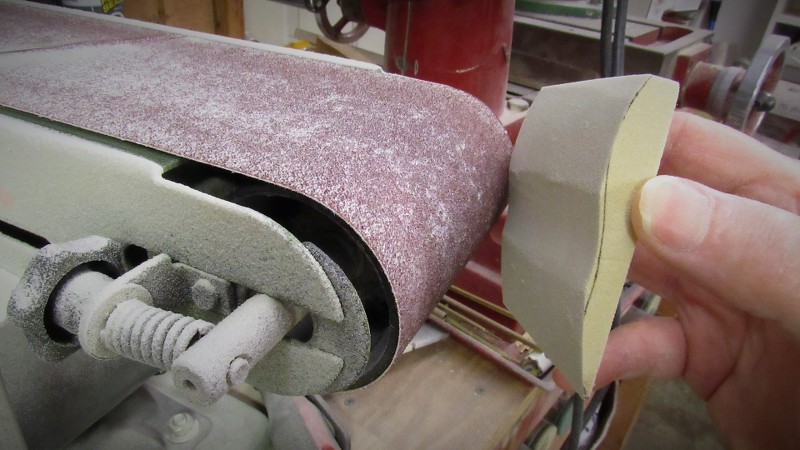

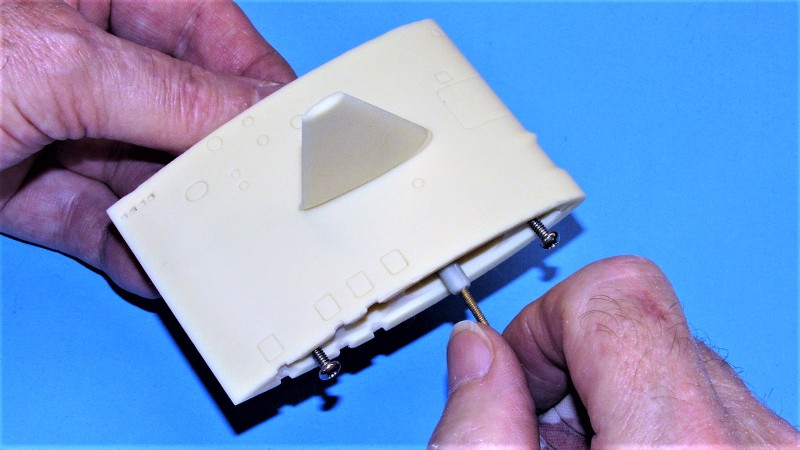

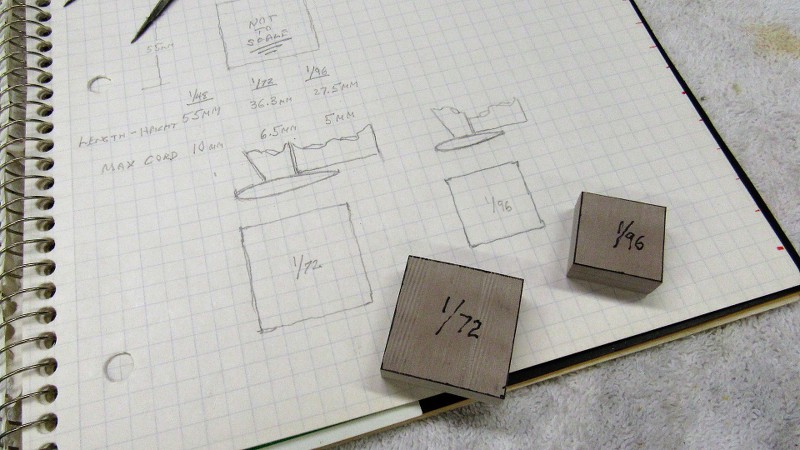

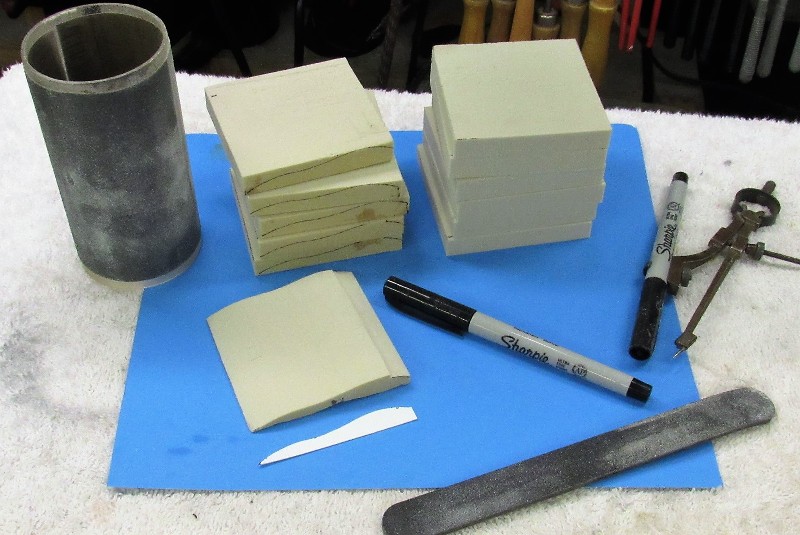

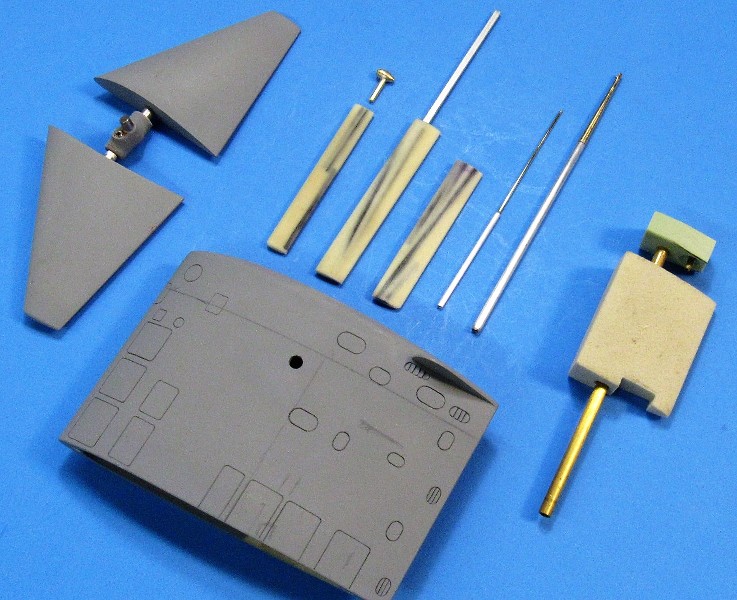

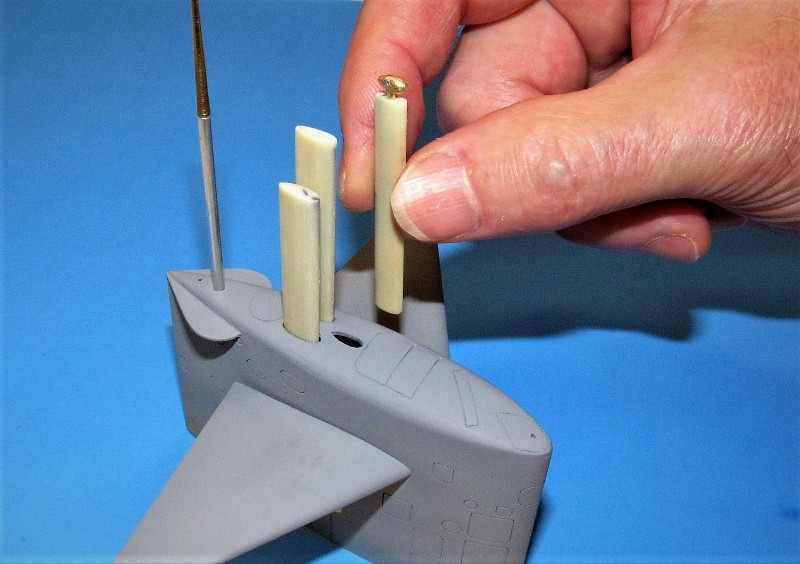

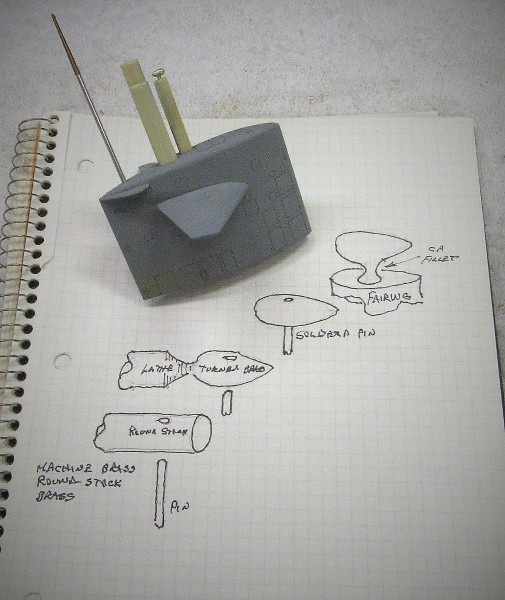

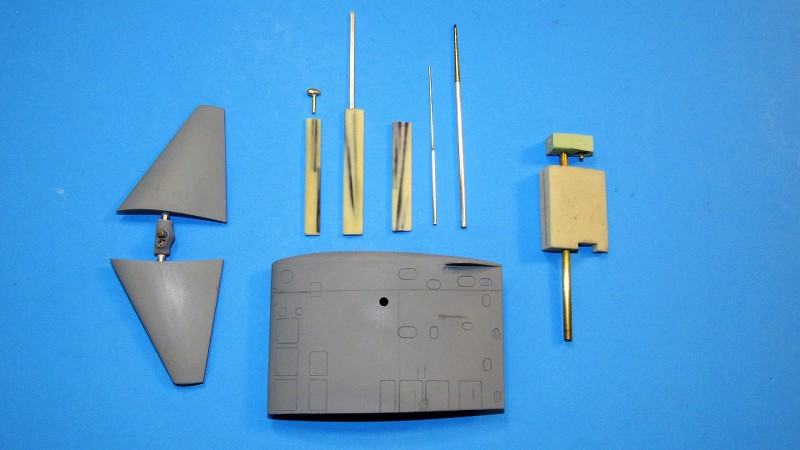

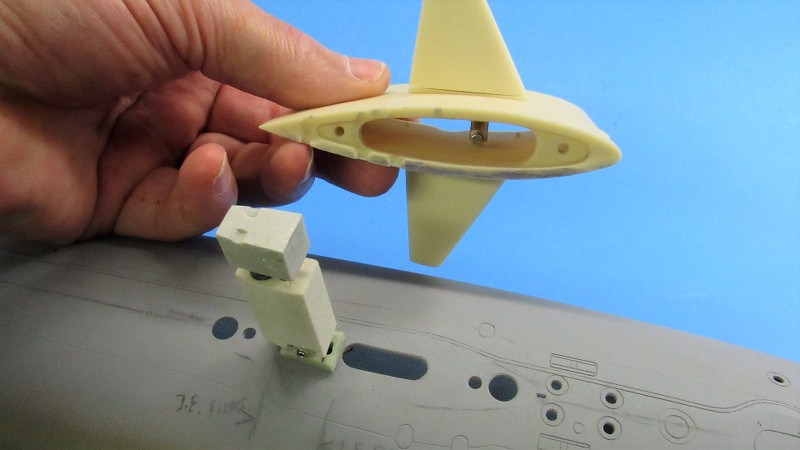

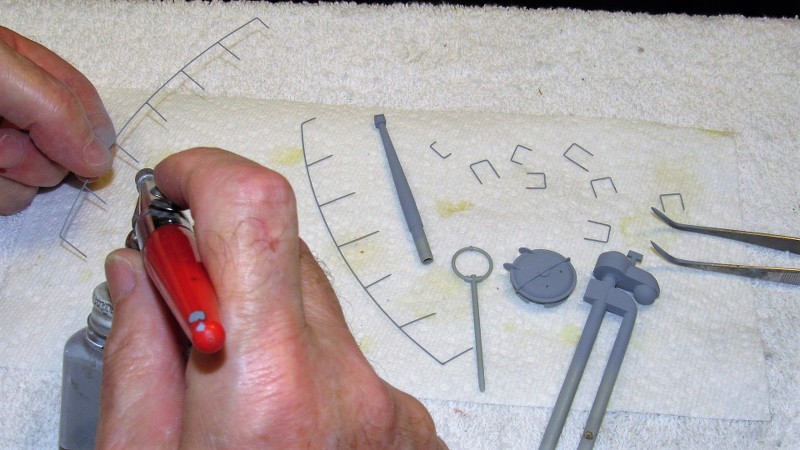

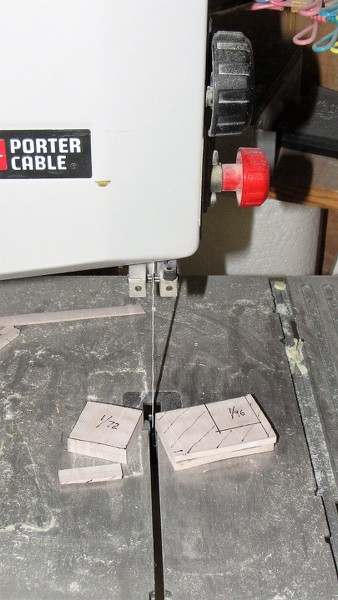

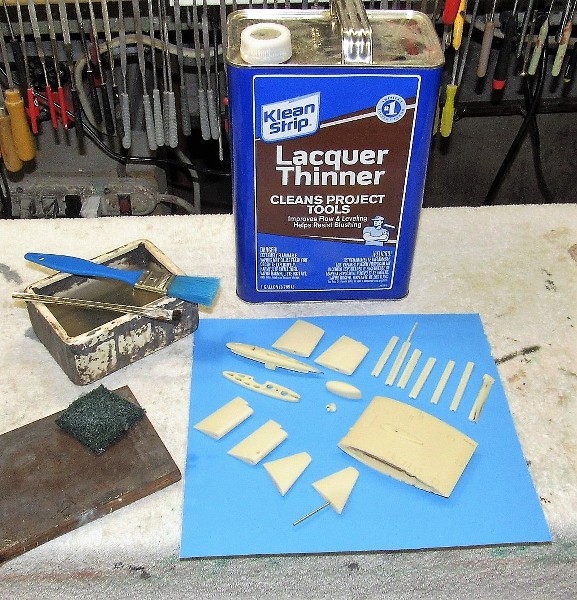

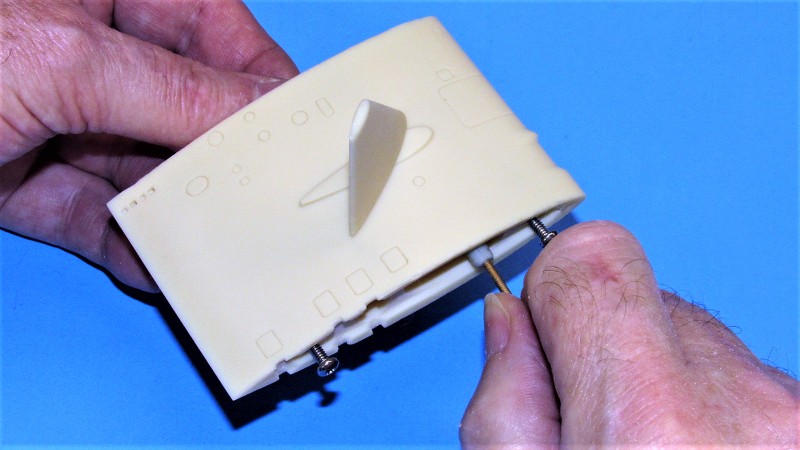

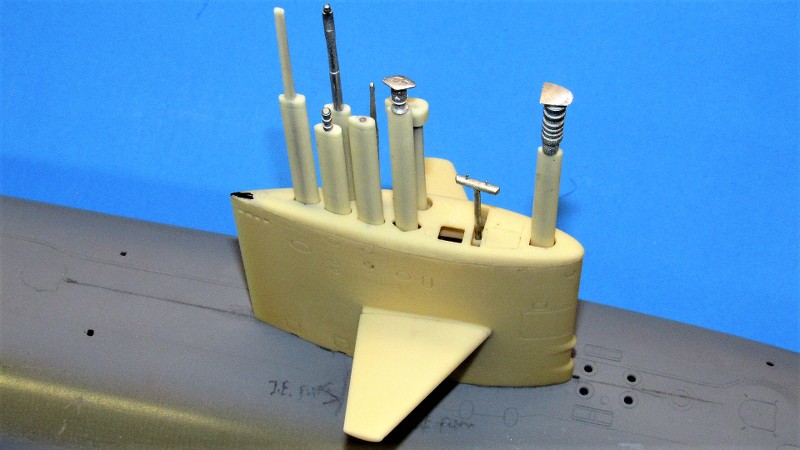

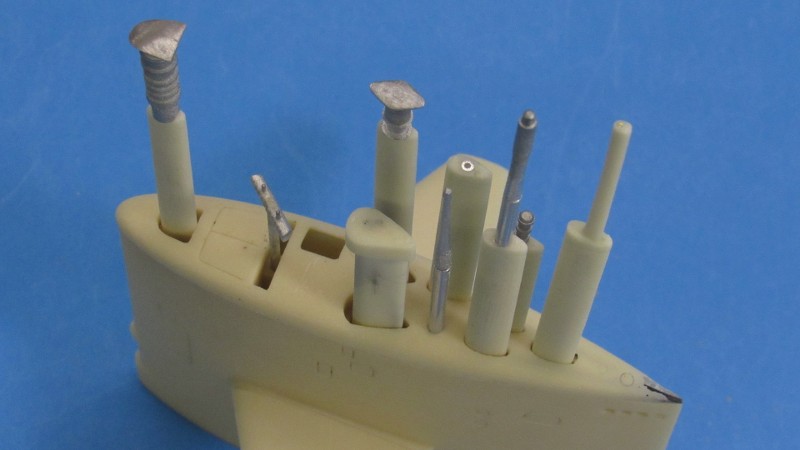

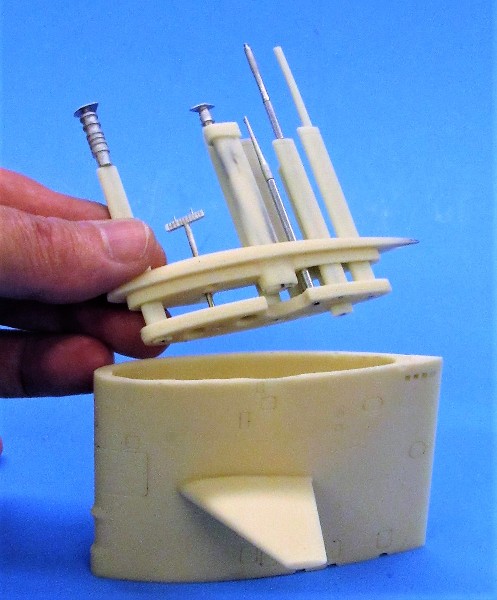

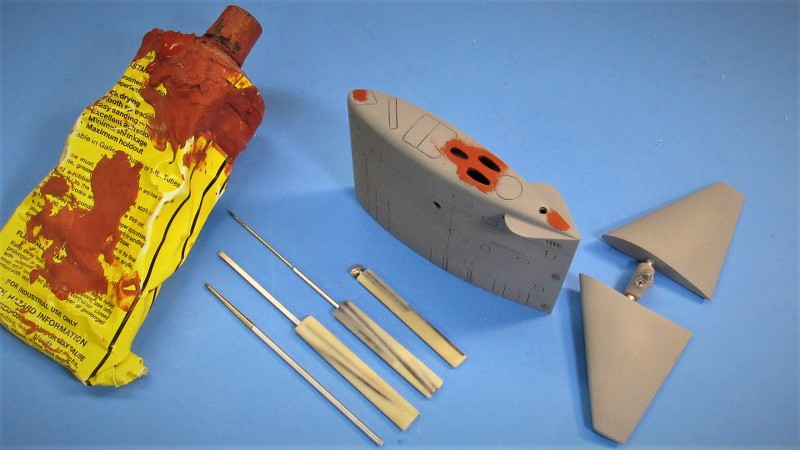

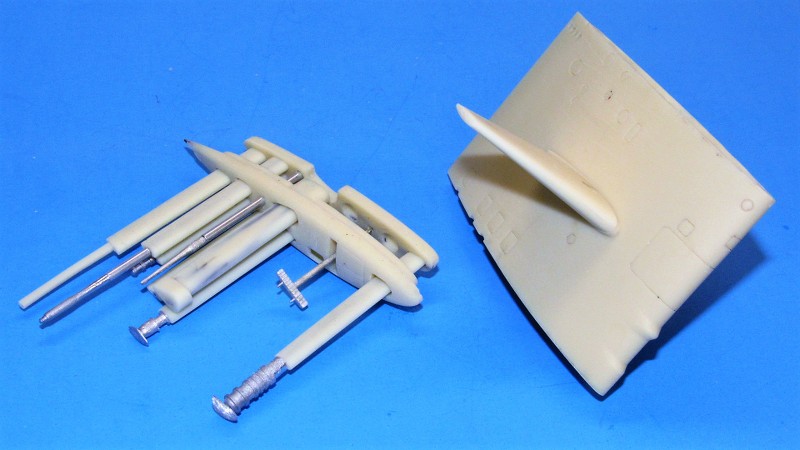

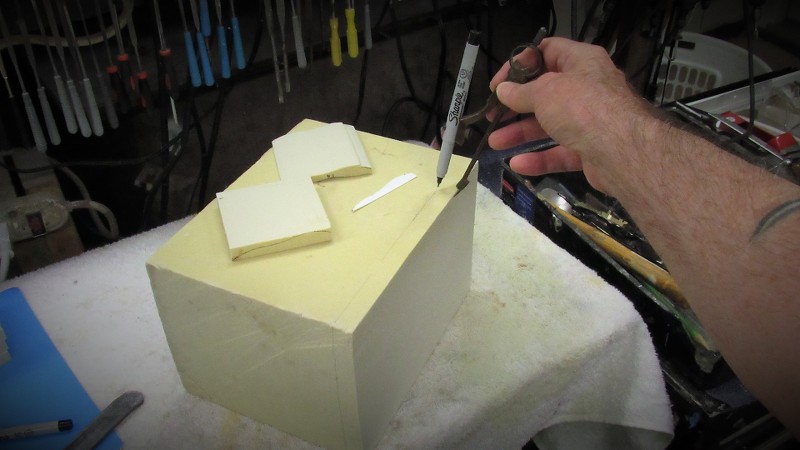

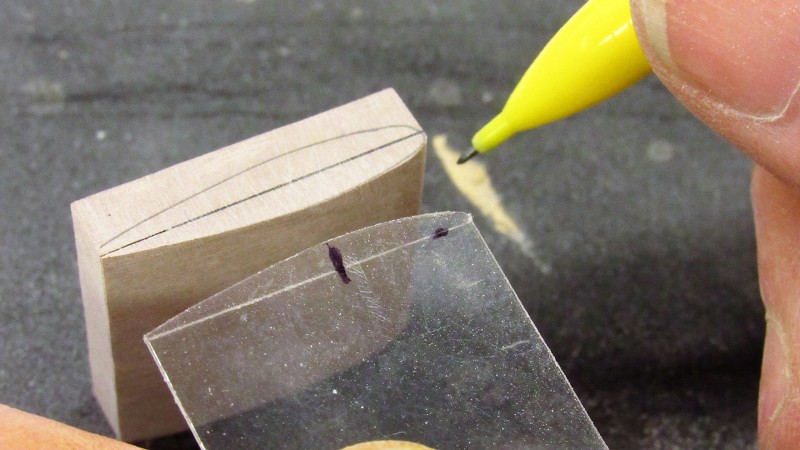

Always endeavor to give the customer more than they expect. These are the masters of the sail, sail top, mast foundation, and fairings. Most of these built up from dense RenShape.


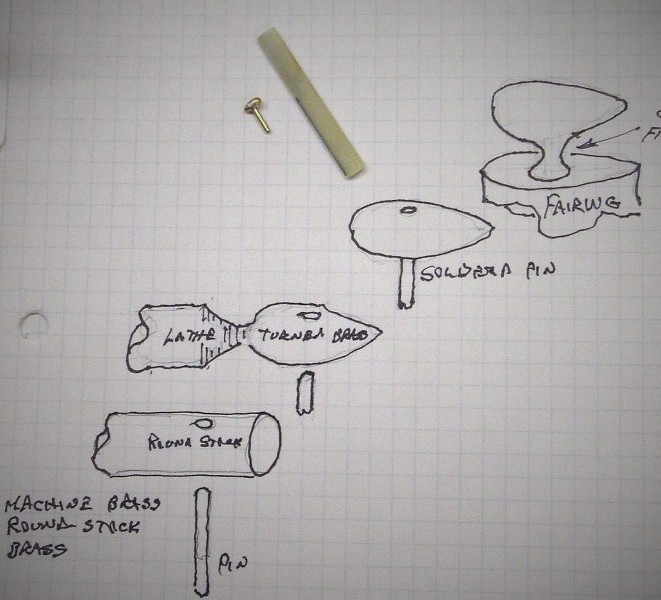

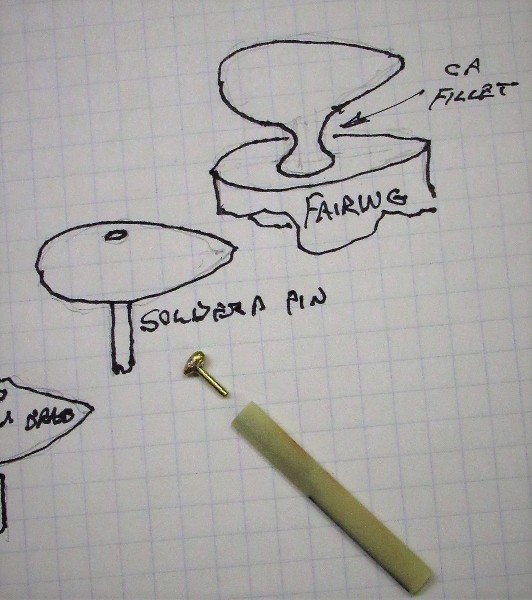

A model plane's cockpit is the first thing you look at. Likewise, a model submarines sail with its distinctive array of masts and antennas will draw the viewers eyes. So, I took the effort to provide the sail with the entire array of fairings, antennas and scopes unique to the STURGEON class. I've engineered things so the fairings and masts can be easily installed/removed. For an r/c submarine I leave most of them off and in safe storage when running, and only mount the entire array when the model is on static display.

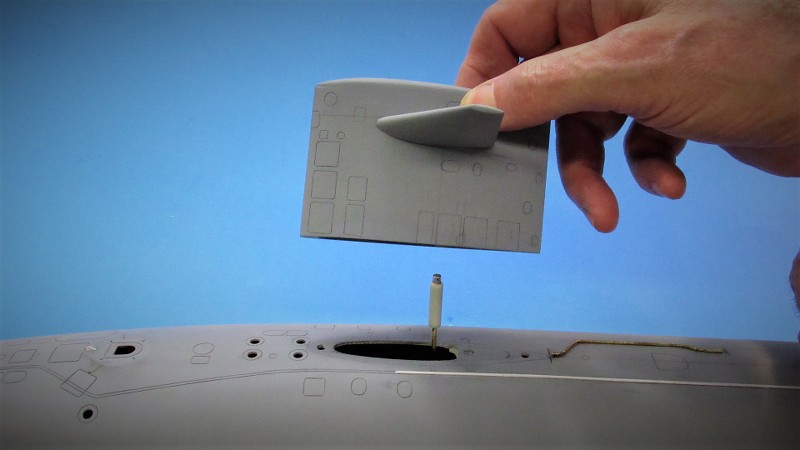

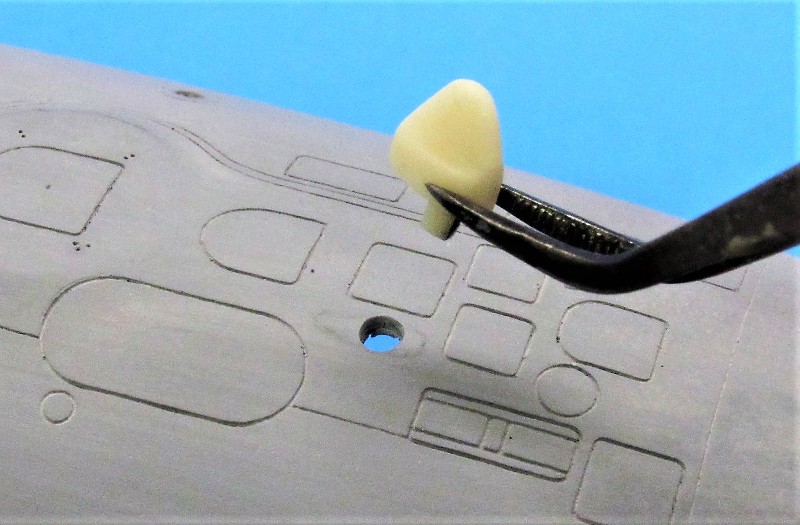

Yes, I'm a dumb-ass! at this point in the work I stupidly provided a fairing sticking through the lookout opening atop the sail... I have since fixed that screw-up.


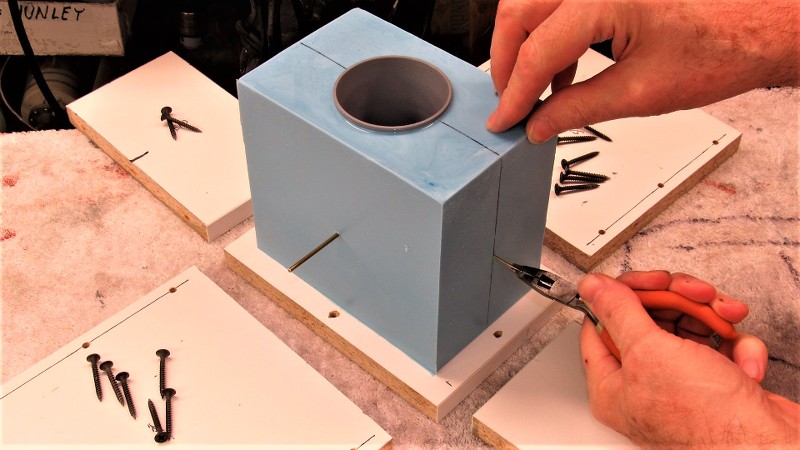

Once the masters were completed, I used them to give form to the production tooling needed for kit production.

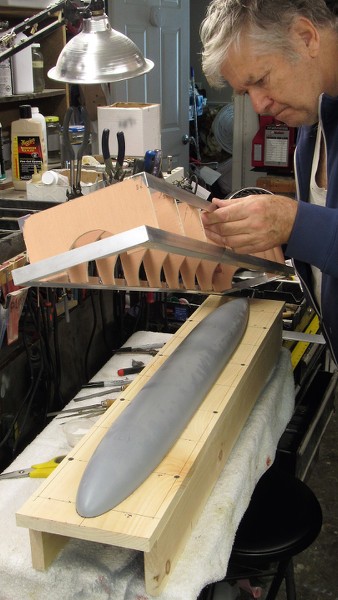

Making the hull tools started by assembling an 'egg-crate' structure that eventually is secured to the mother-mold of the tool. This structure both produces a stout, non-warp superstructure to each tool half, it also provides for a stable work stand when inverted for GRP part lay-up.

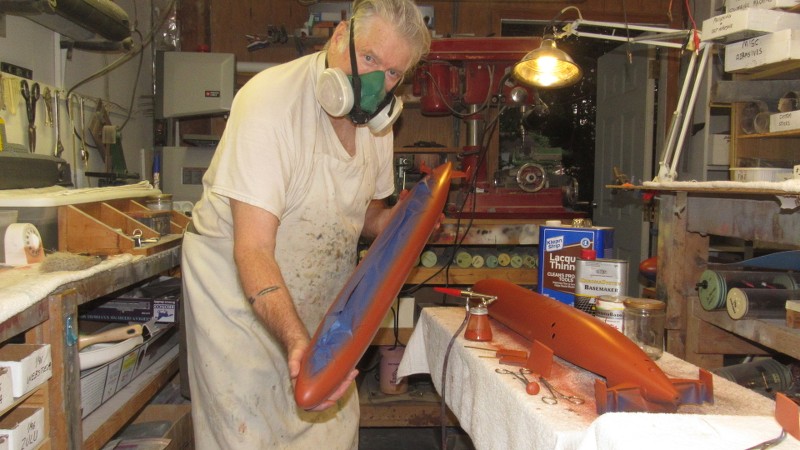

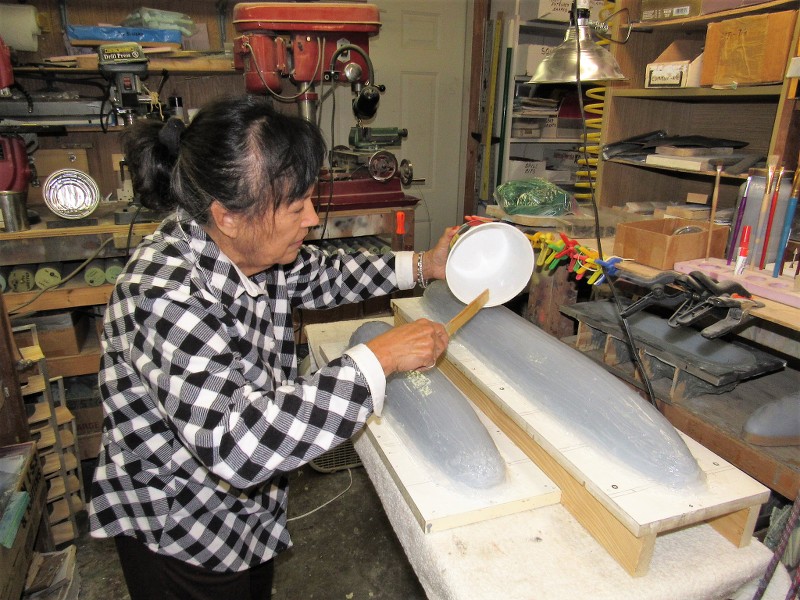

With each detailed hull half master mounted to its respective moldboard, Ellie mixed up and applied four layers of 'brushable' tool making rubber. This will form the flexible glove element of the hybrid tool. As this process took a few days I busied myself with control surface, tail-cone, and yoke master fabrication tasks.

Years of experience taught us both the dance moves required to work around each other in the tight confines of a converted one-car garage.

Once the last layer of brushable rubber had cured, Ellie rubbed everything down with part-release wax, preparing the surface for creation of the supporting mother-mold.


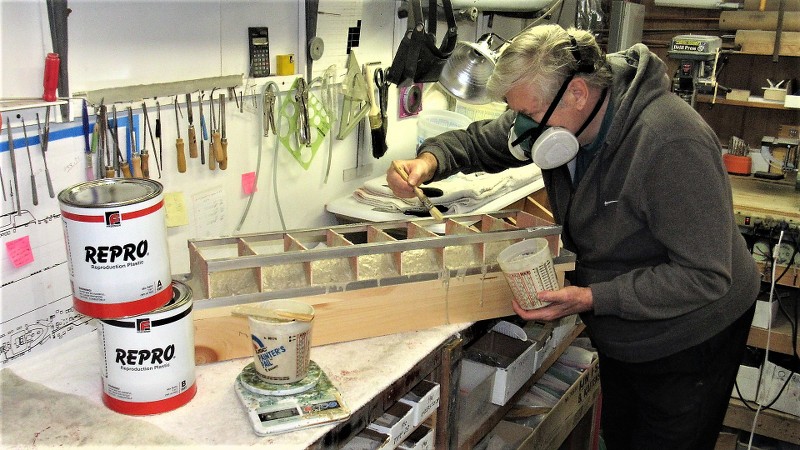

Once the glove had cured I secured an egg-crate superstructure to the mold board and built up several layers of a polyurethane tooling resin that had been mixed with fiberglass shards to further stiffen and make warp resistant the eventual mother-mold.

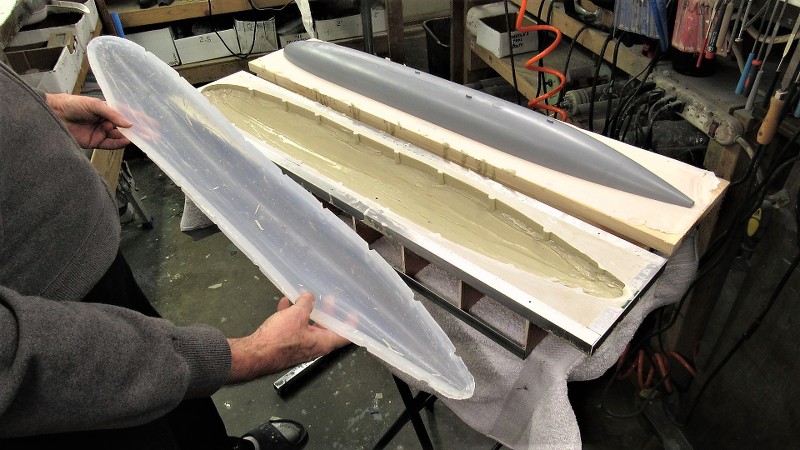

The flexible rubber glove-mold will impart the most involved engraving and even negative draft undercuts to the eventual GRP part. As you can see, the glove can be removed/inserted with perfect registration between it and the mother-mold. Part extraction starts with removal of the GRP part still attached to the rubber glove that gave it form. Once the glove is free of the mother-mold it's an easy task to peel the rubber glove away from the GRP part.


Another great feature of using a rubber glove is that the only part-release needed are several air-gun shot coats of polyvinyl alcohol (PVA). That's all that is needed to keep the GRP's epoxy laminating resin from attacking the surface of the rubber tool. Lay down a coat of PVA, dry it with a hot-air gun, and repeat those steps about five times,
and you're ready to do the glass work.

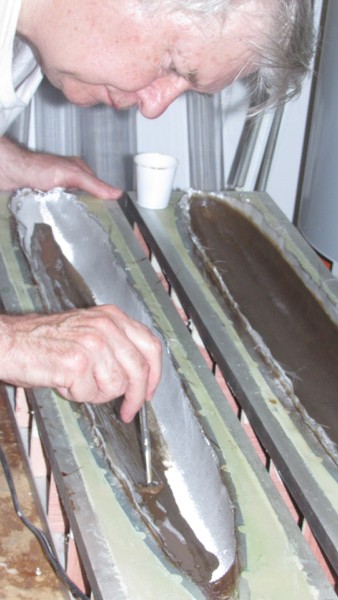

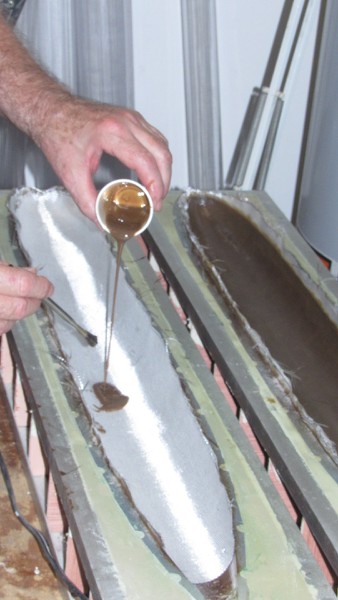

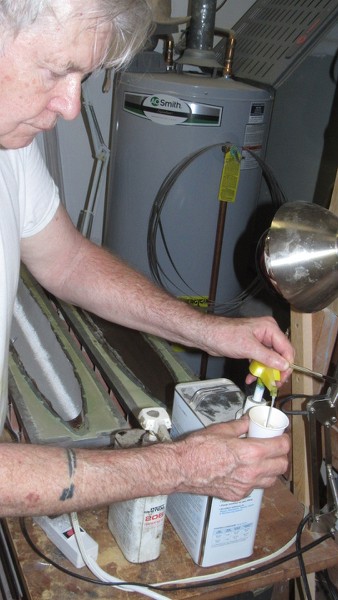

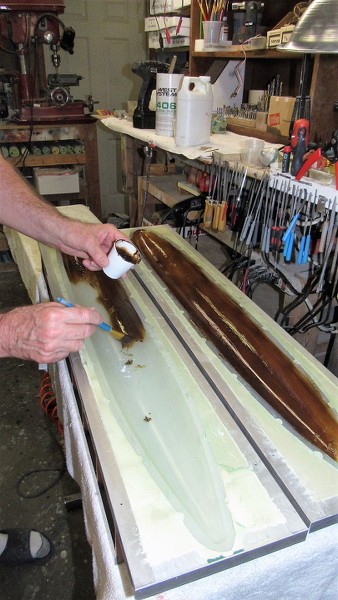

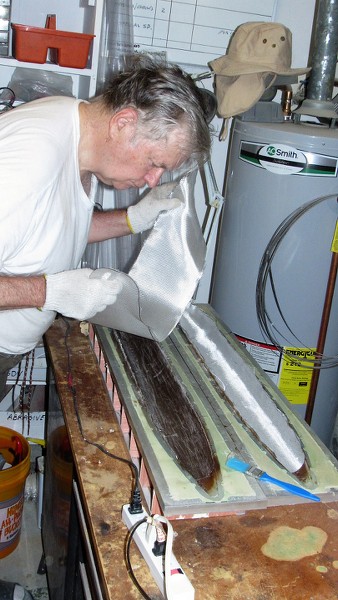

West System laminating epoxy is what I use to wet out the 6-10 ounce fiberglass cloth I use with this sort of GRP construction. It typically is a 5:1 ration between resin and hardener. I use their paired hand-pumps to insure this ratio is maintained as I prepare a mix for wetting out.


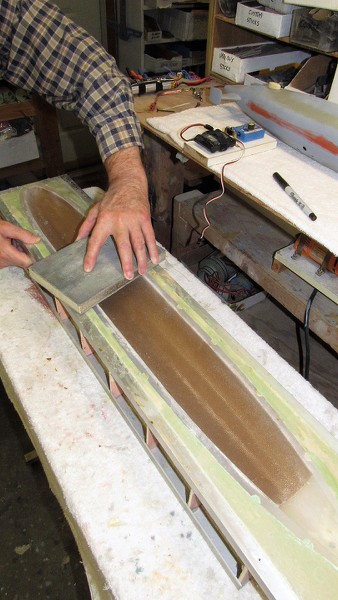

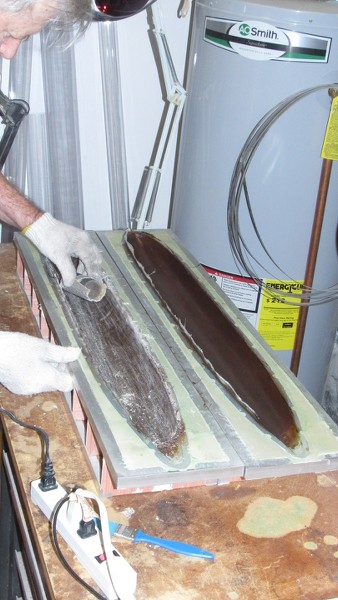

As I'm using the lightweight 6-ounce cloth (one square yard of cloth weighs 6 ounces) it took three laminates to achieve the nominal .080" wall thickness desired for the GRP hull halves. Lay down a laminate, wait for it to cure reasonably hard, then rough sand the interior, remove the dust, lay in another layer of glass and wet out with epoxy.

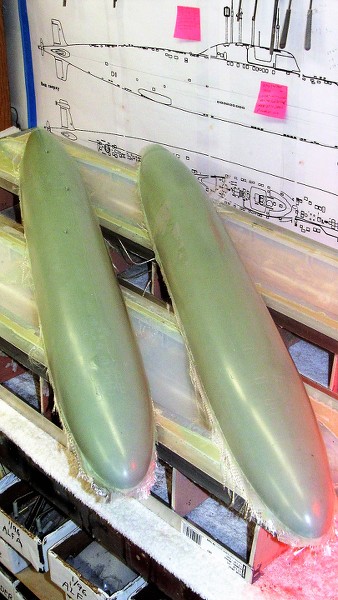

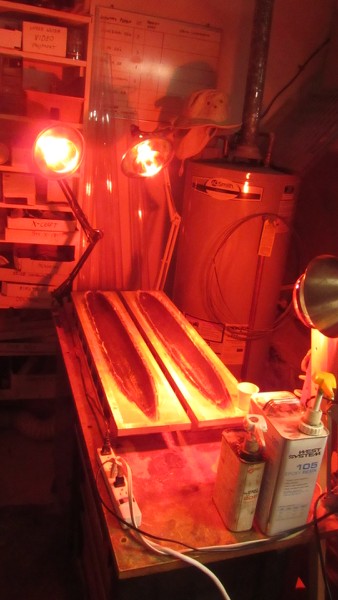

A couple of days under the lamps and I'm ready to strip the parts out of the gloves.

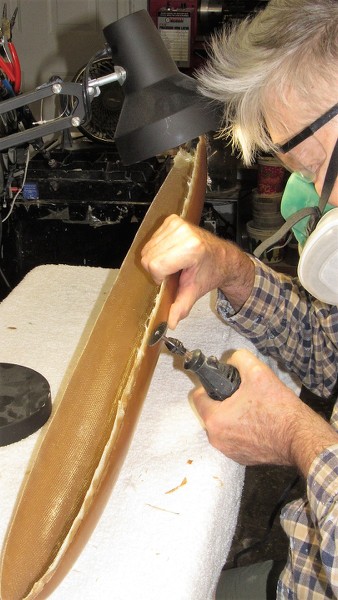

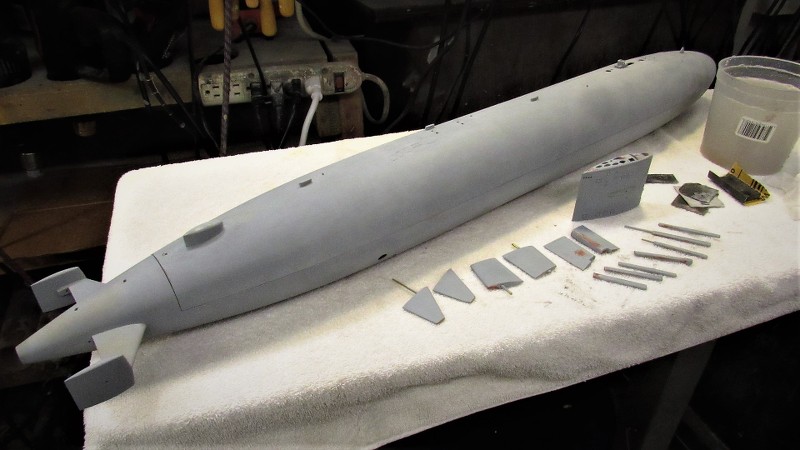

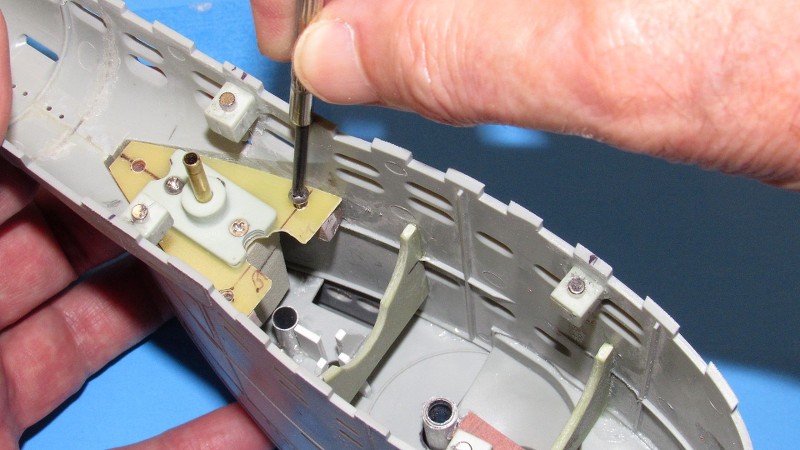

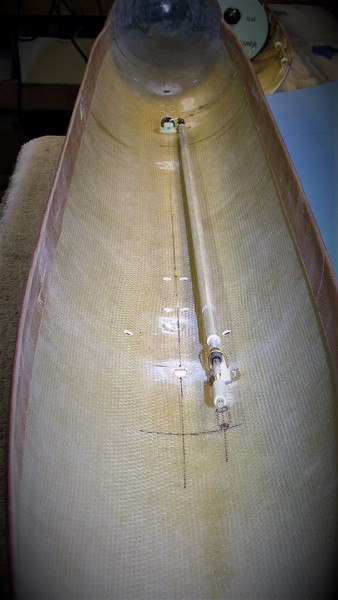

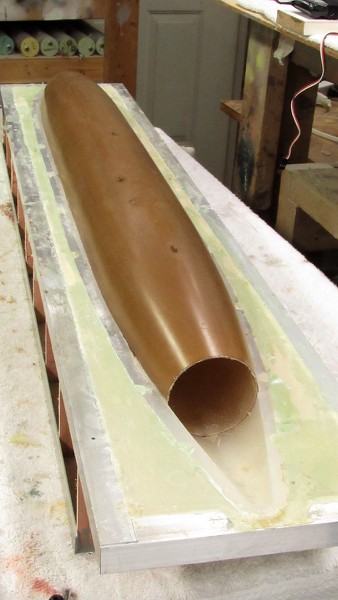

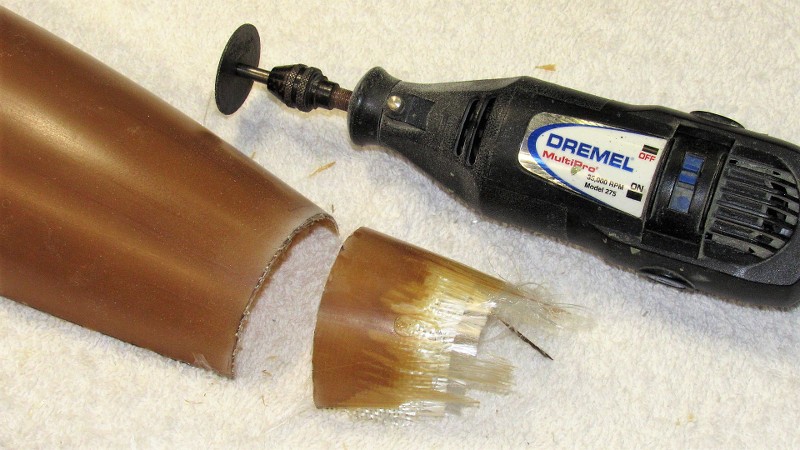

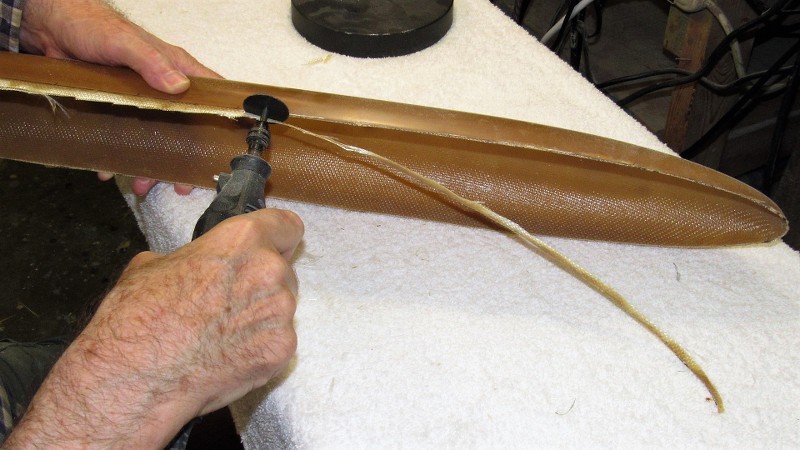

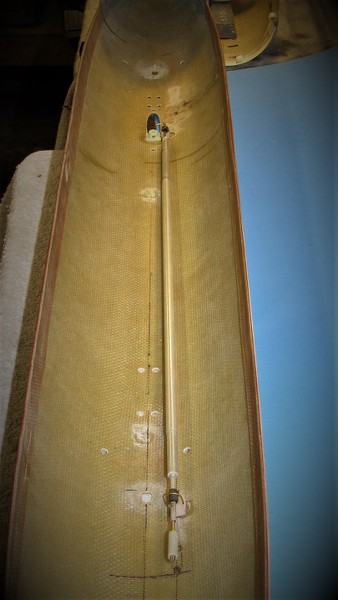

The GRP hull halves are yanked out of the tools and the PVA removed with a rinsing of water and a good soap-and-water scrubbing.

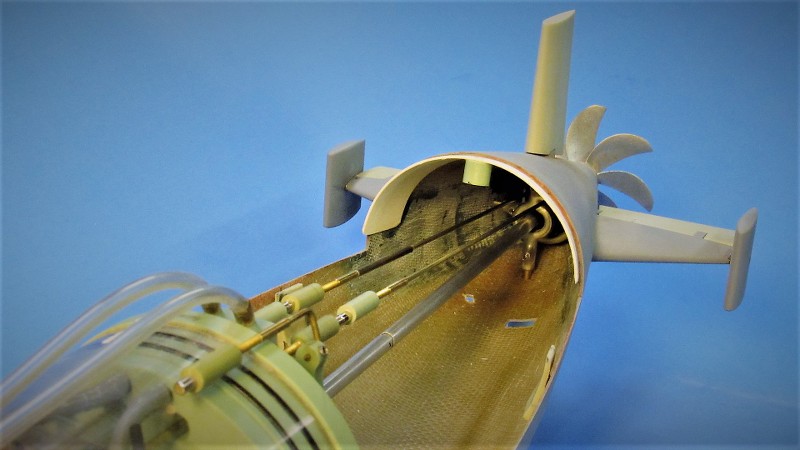

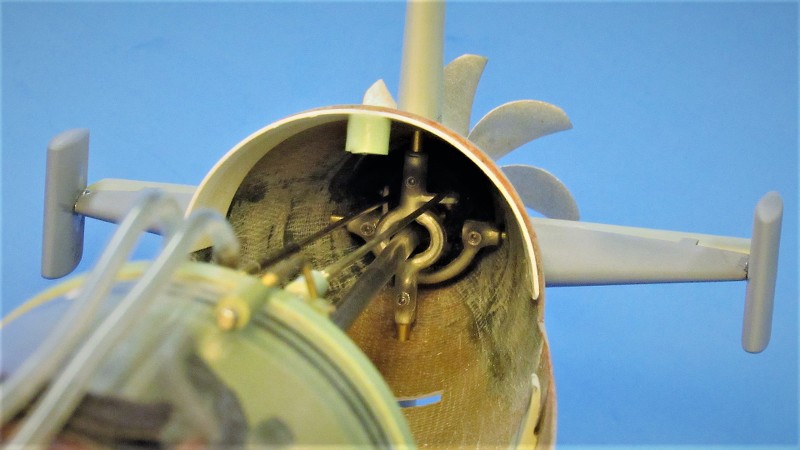

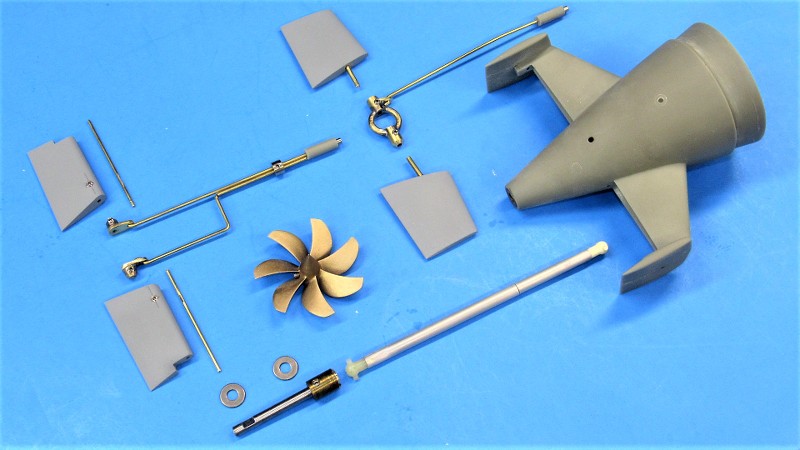

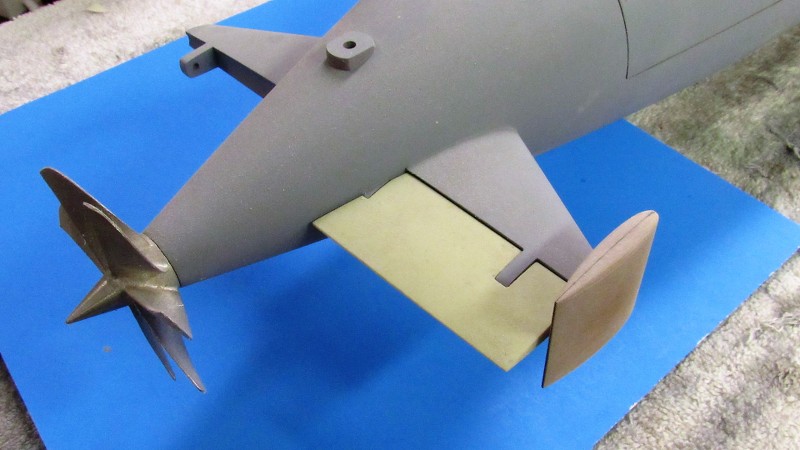

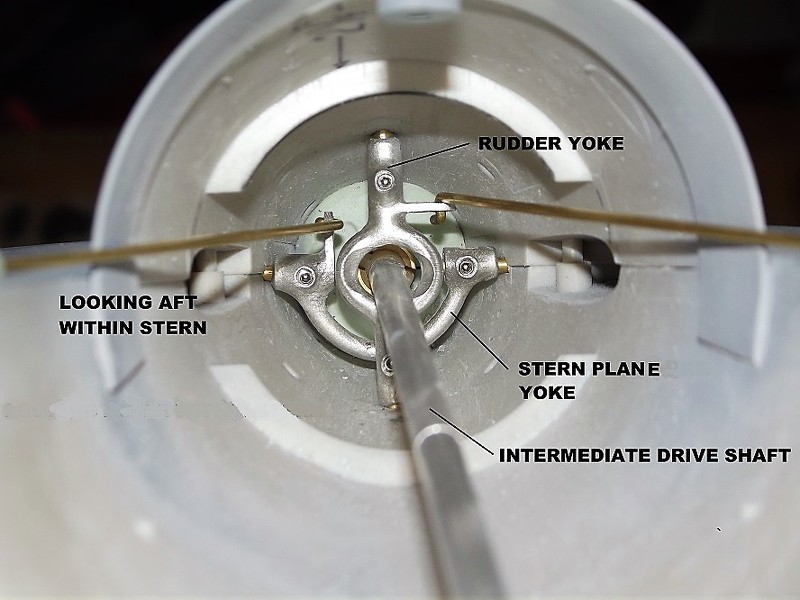

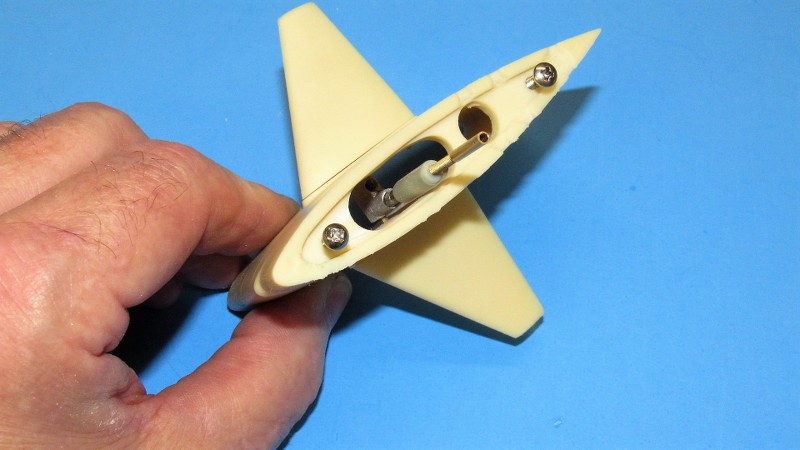

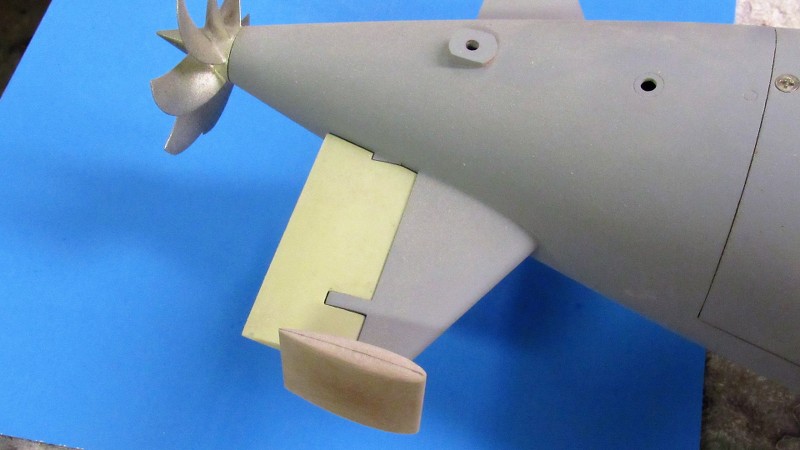

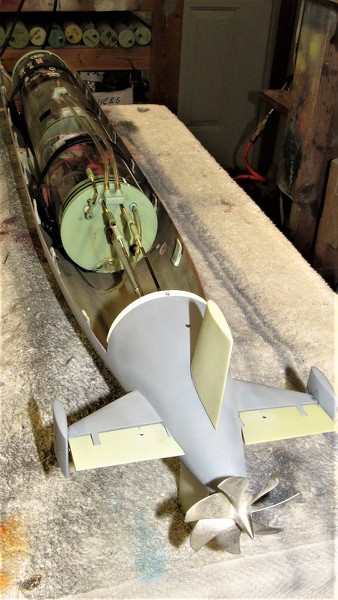

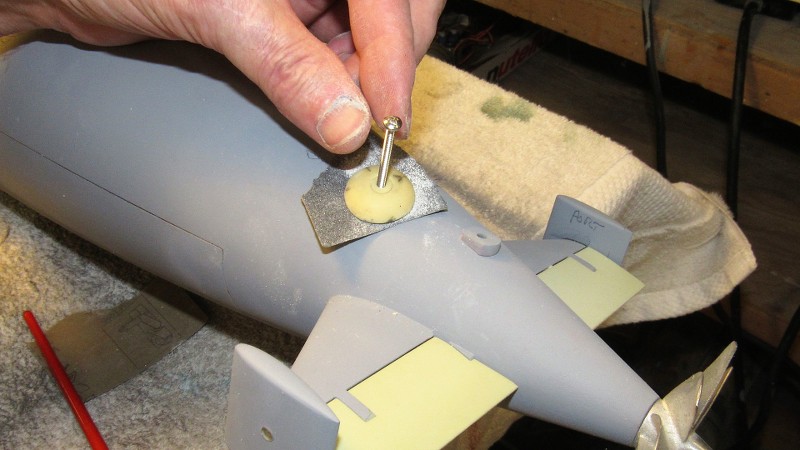

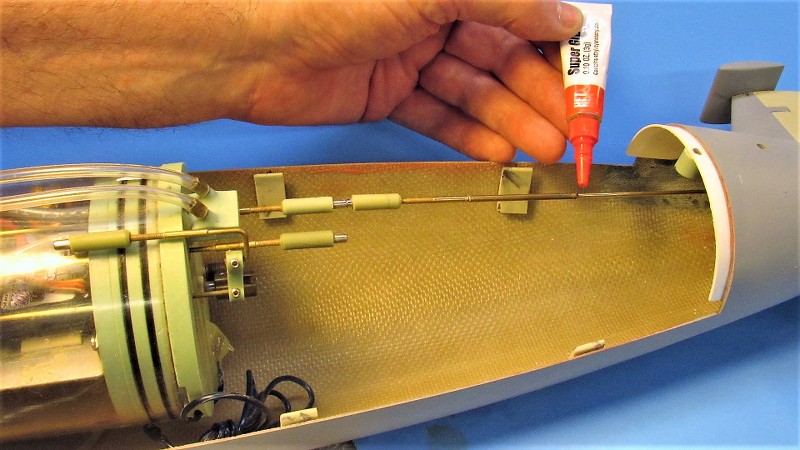

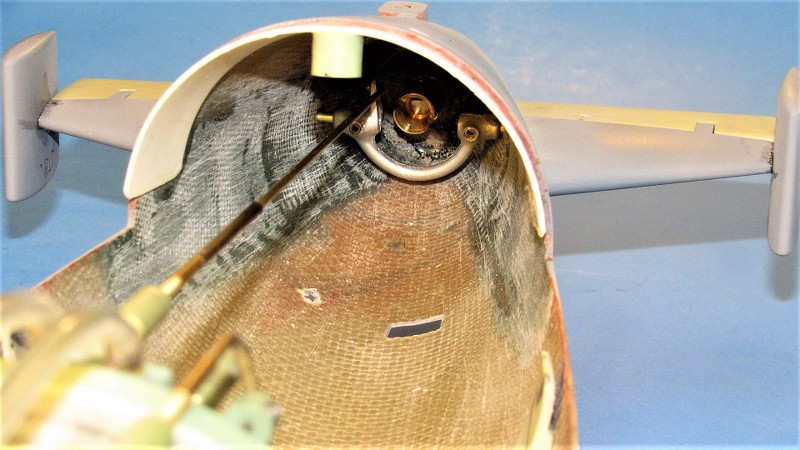

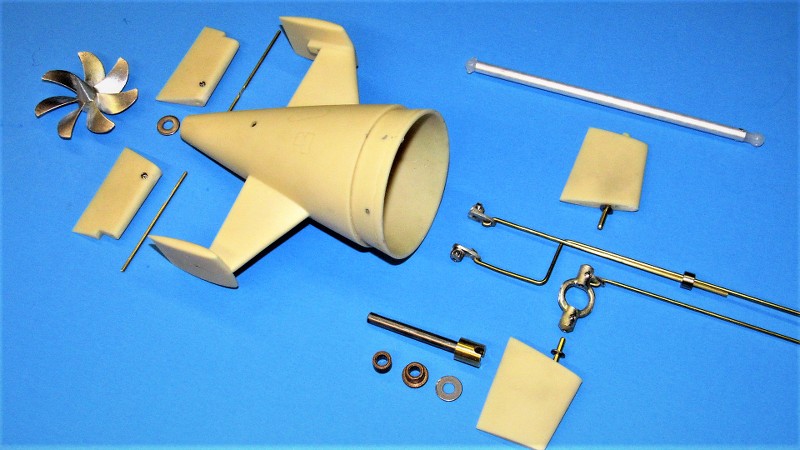

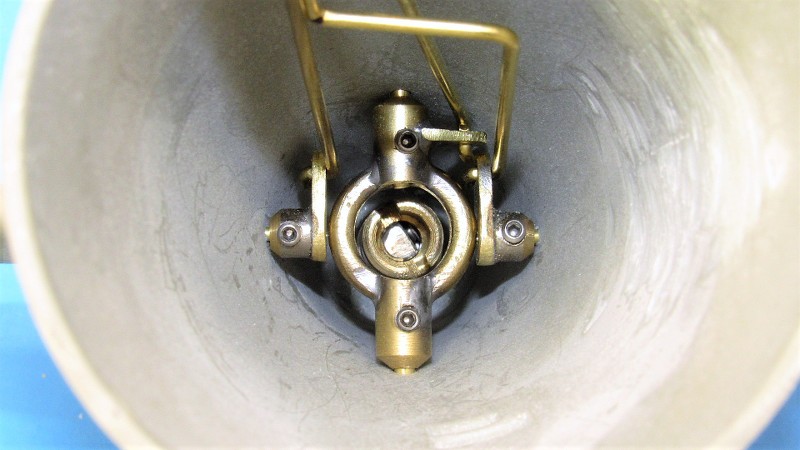

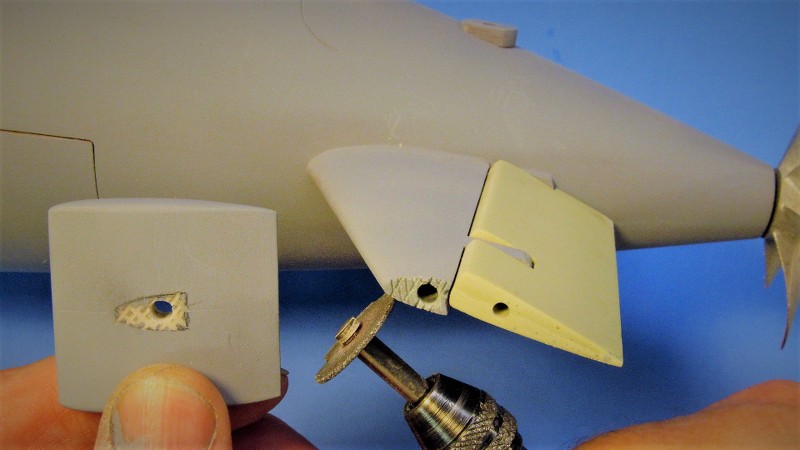

I built an entirely new ass-end for this model submarine kit. Instead of requiring the customer to glue horizontal stabilizers to the tail-cone, I produced a tool that would produce a tail-cone with the horizontal stabilizers -- with their outboard vertical stabilizers -- cast as integral parts of the assembly. This greatly reduced the work-load of the customer and assured near perfect symmetry at the same time. As you can see, a lot is going on within the tail-cone: the yokes, pushrods, and drive shaft all have to fit within, and do so in such a manner as to not to interfere with one another when things are in motion. No small trick!

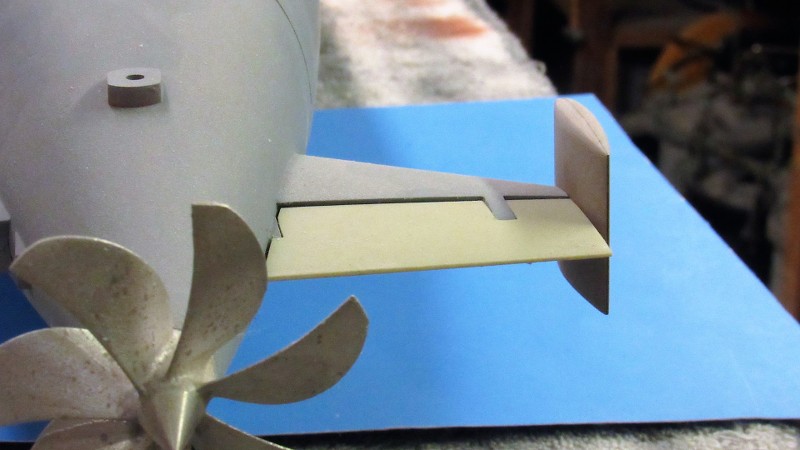

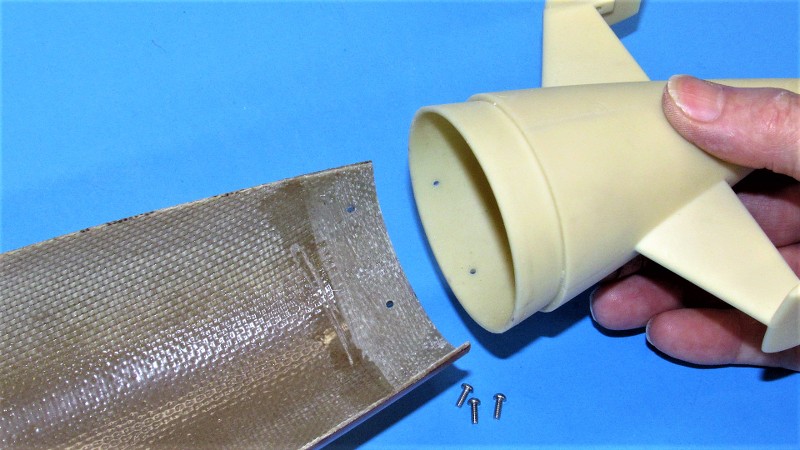

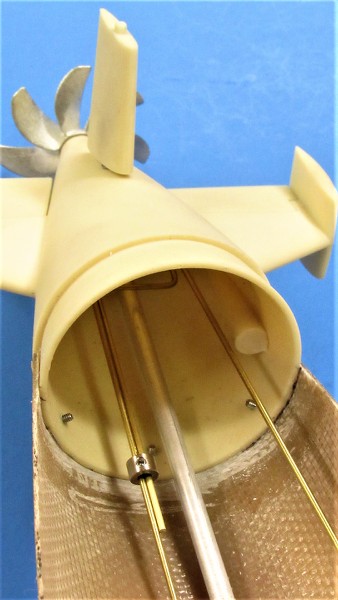

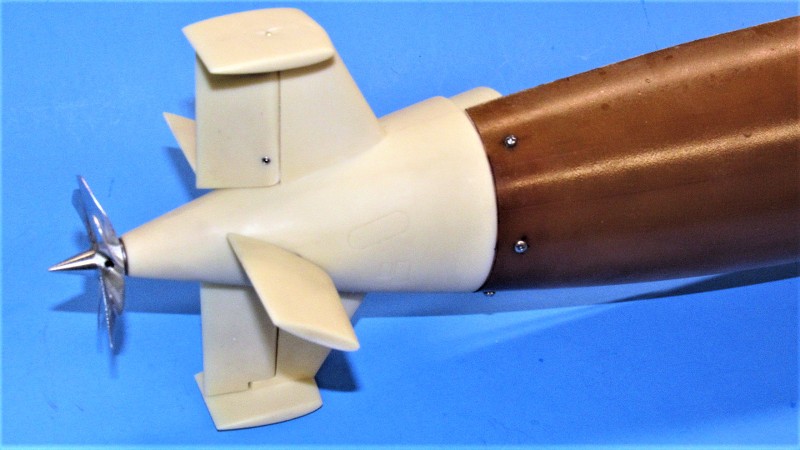

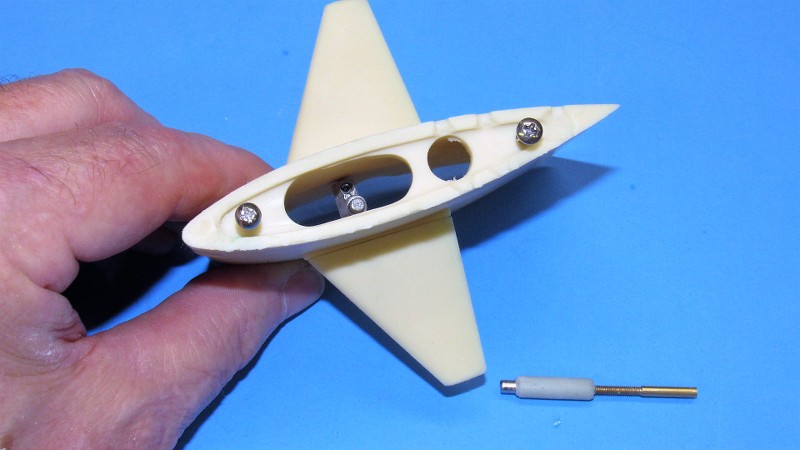

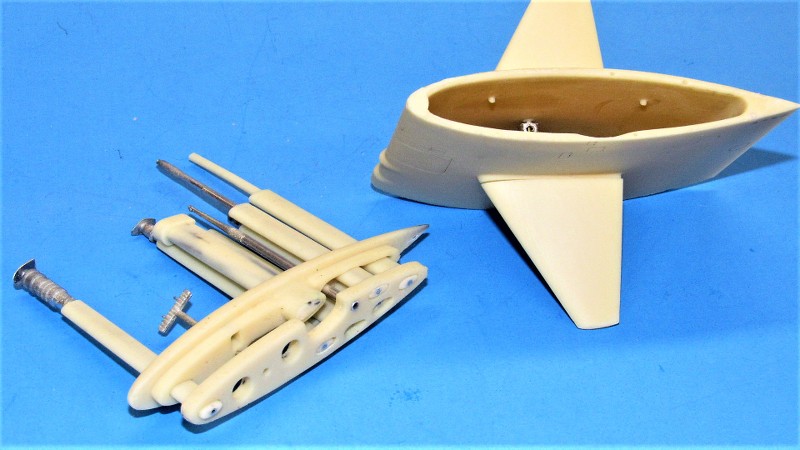

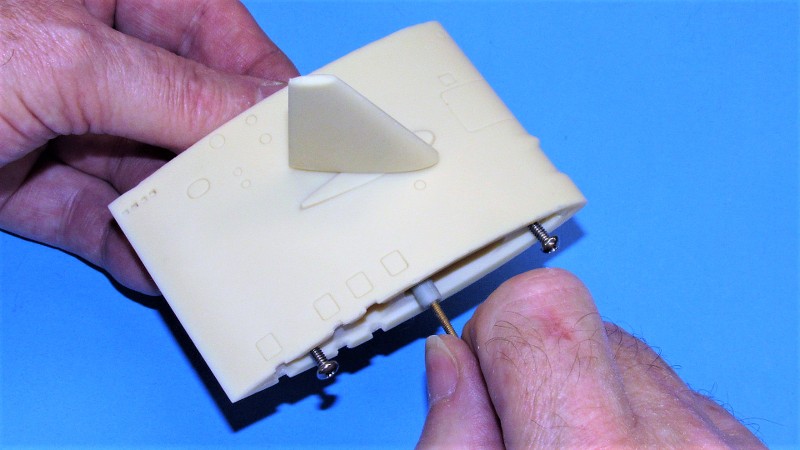

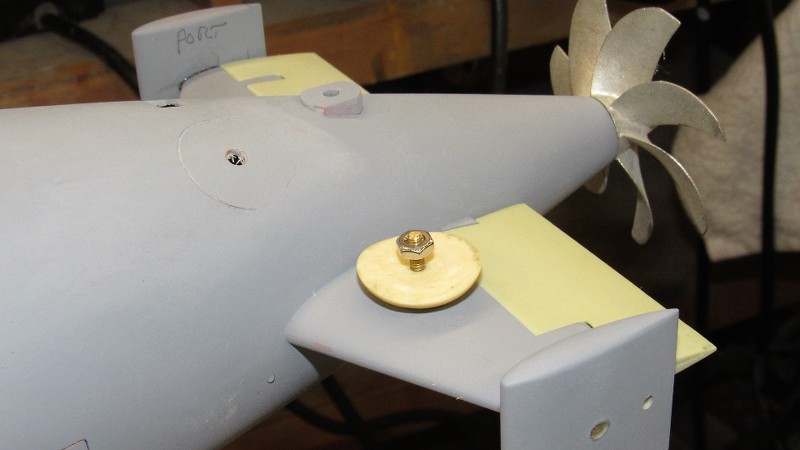

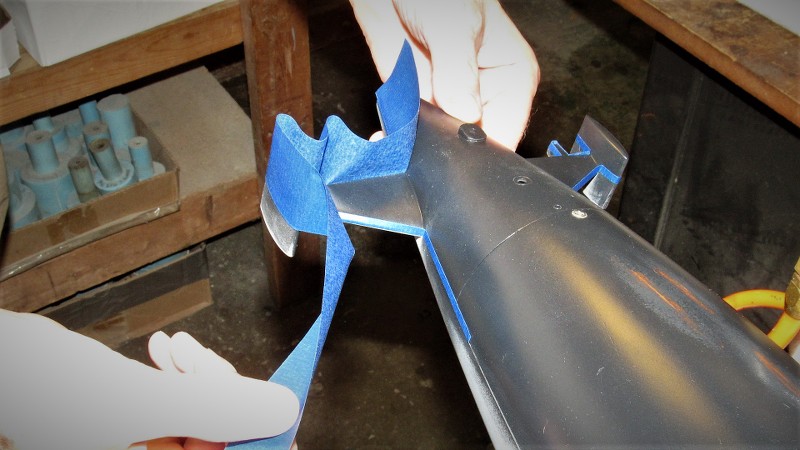

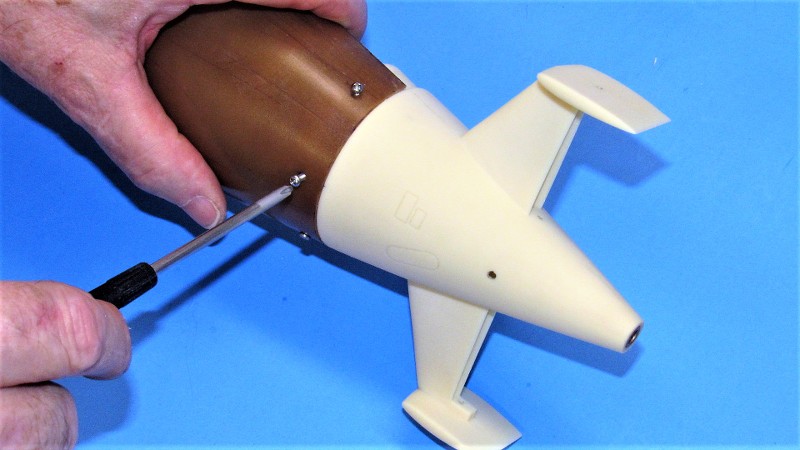

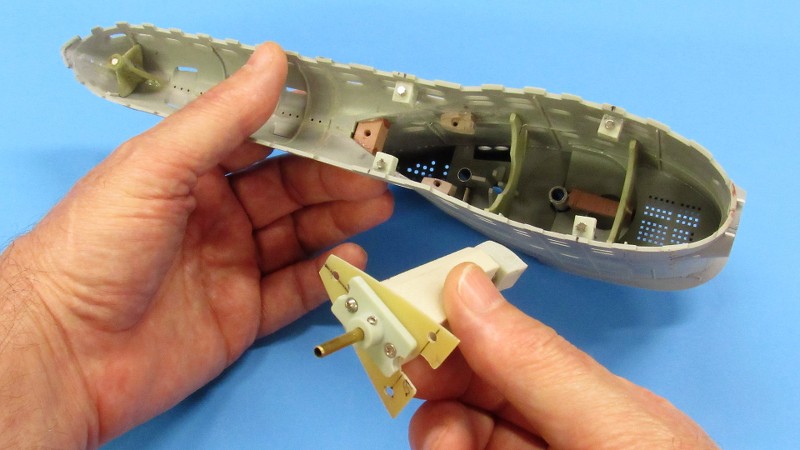

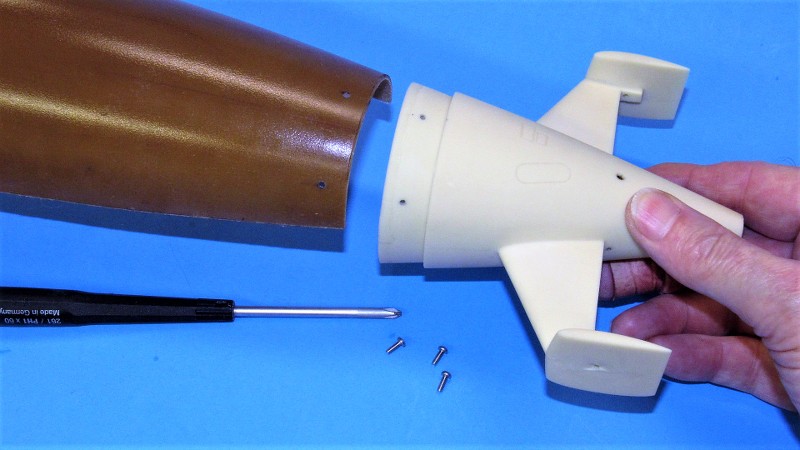

Here a hollow, cast resin tail-cone shows off how its radial flange is used to bond itself to the after end of the GRP lower hull. The upper half of the tail-cone radial flange is a seating surface upon which the upper GRP hull after end sits and held in place with a single machine screw.

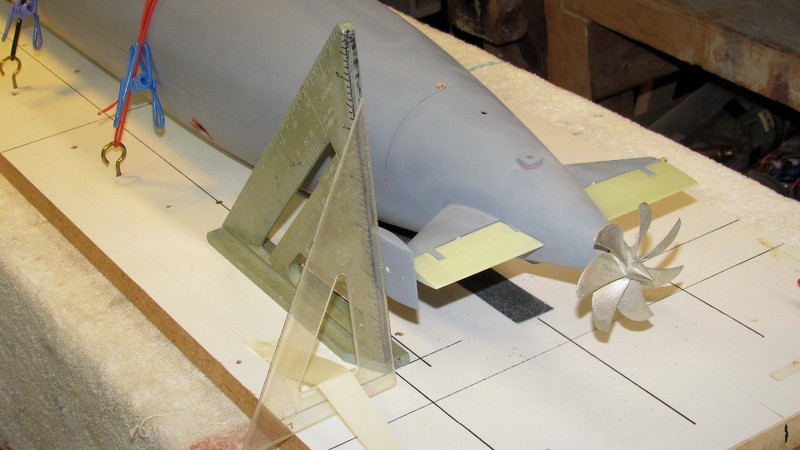

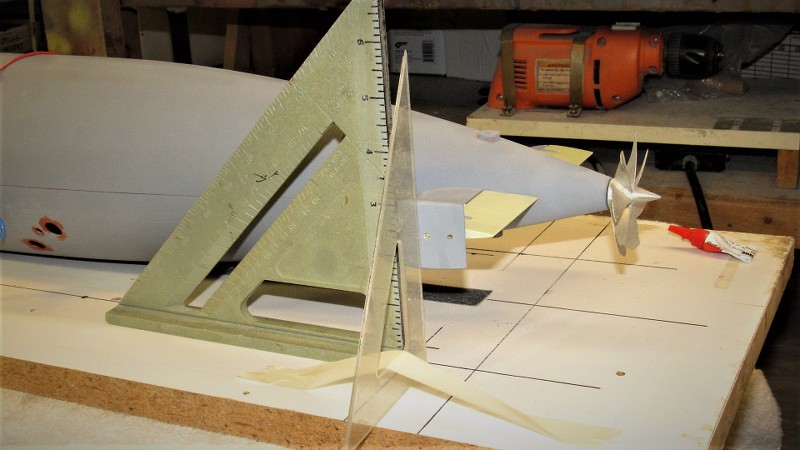

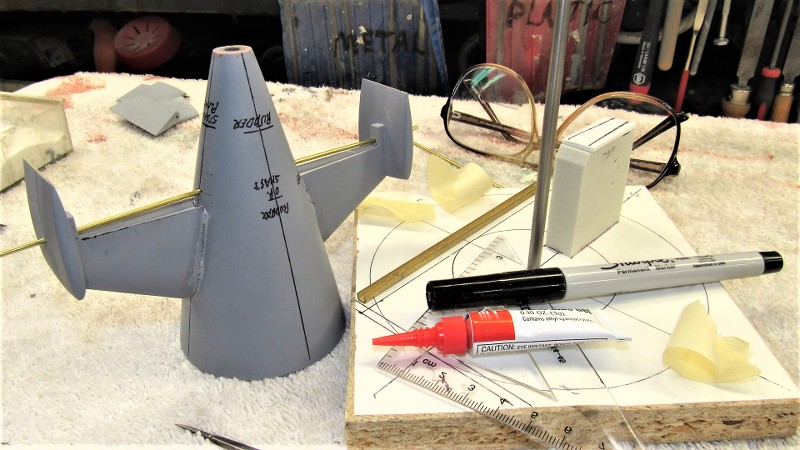

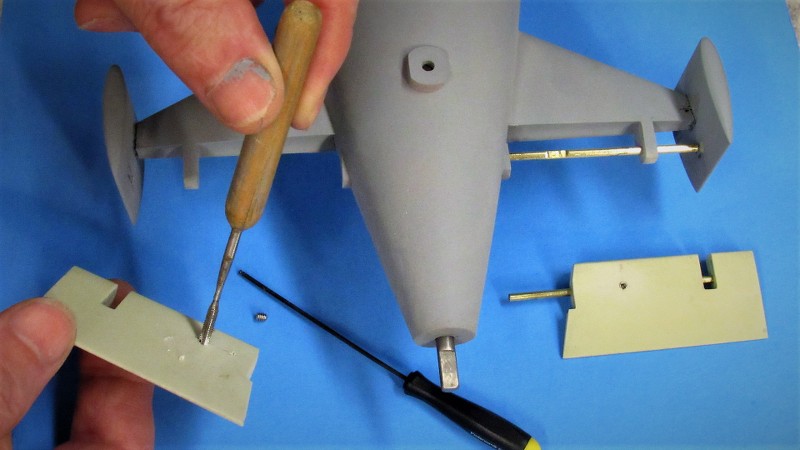

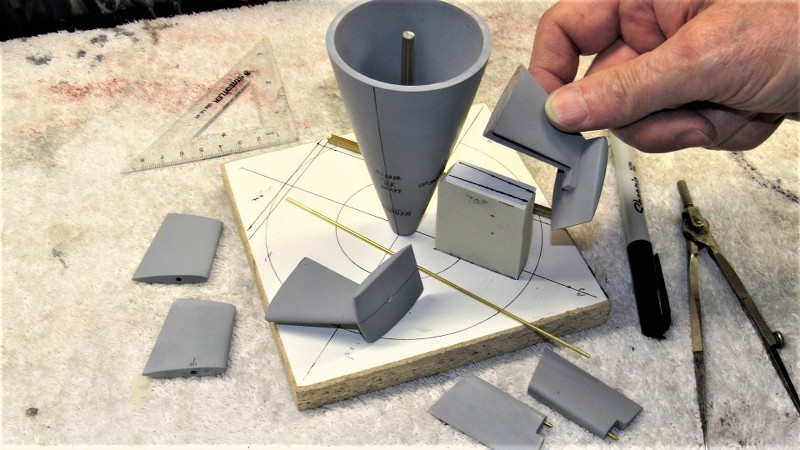

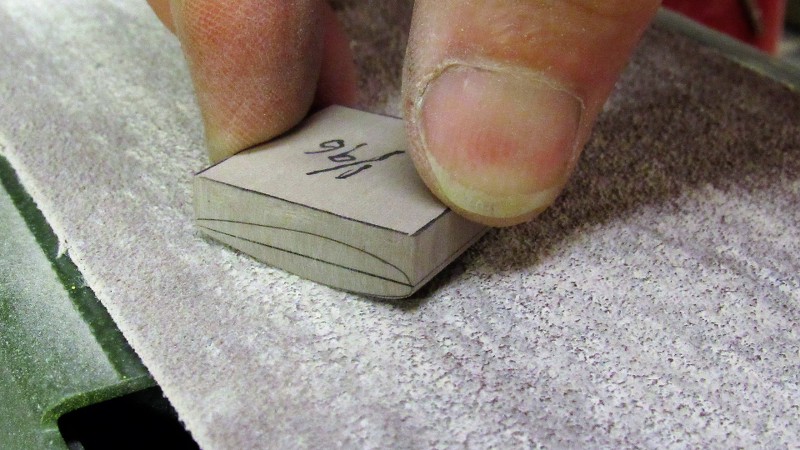

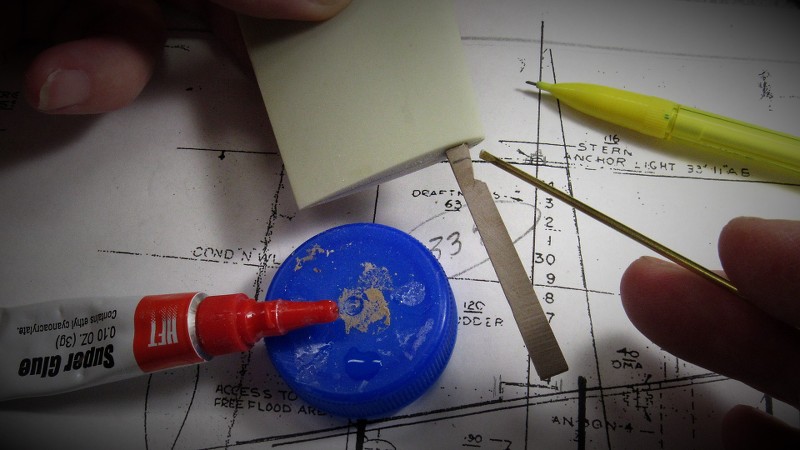

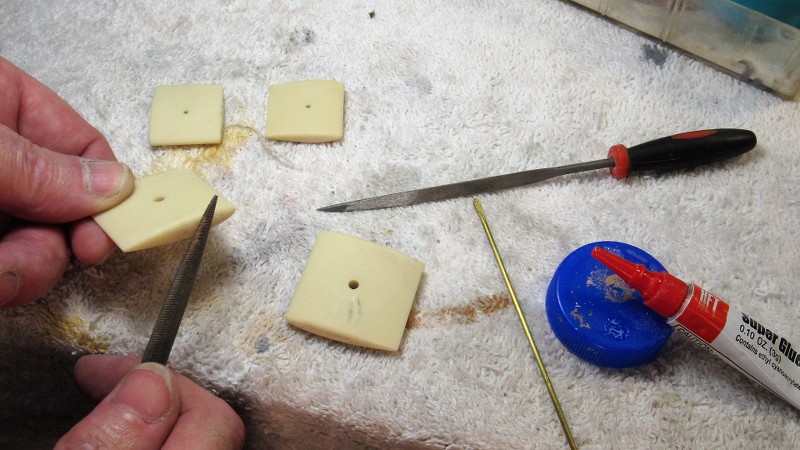

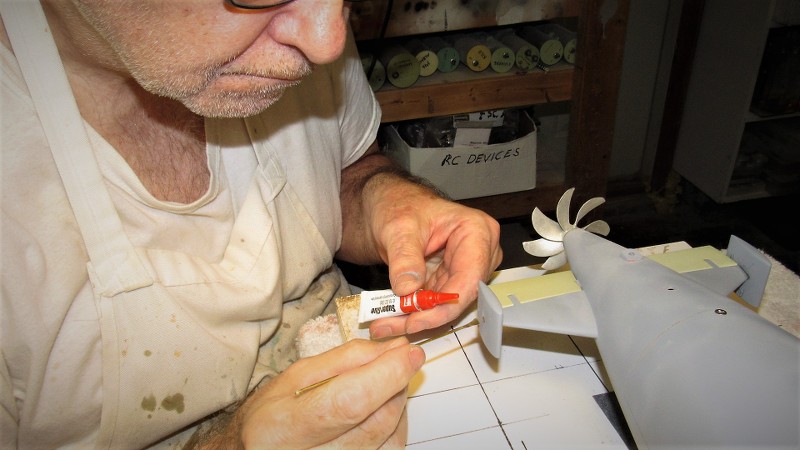

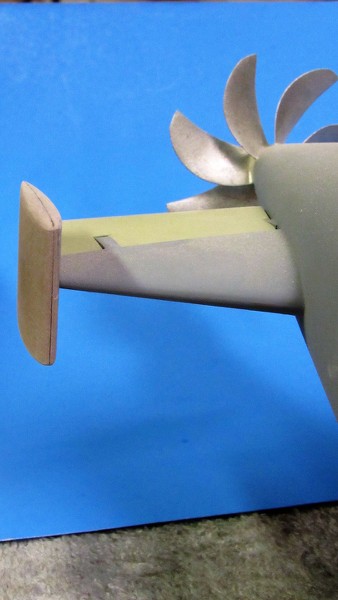

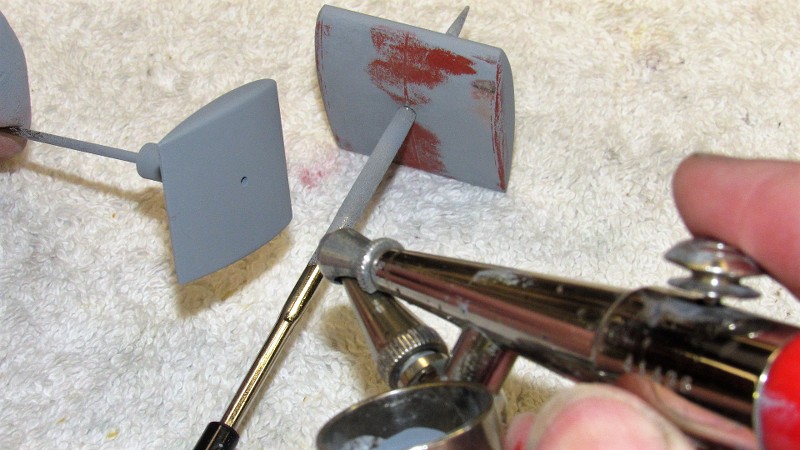

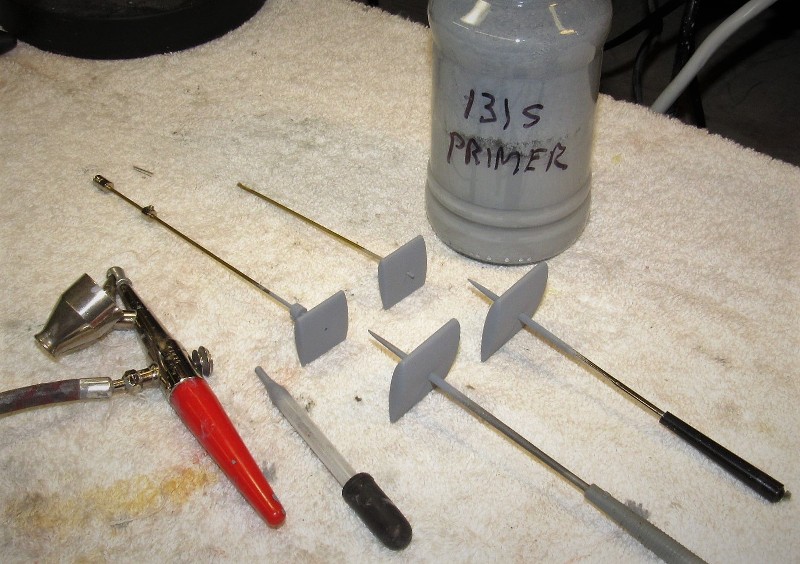

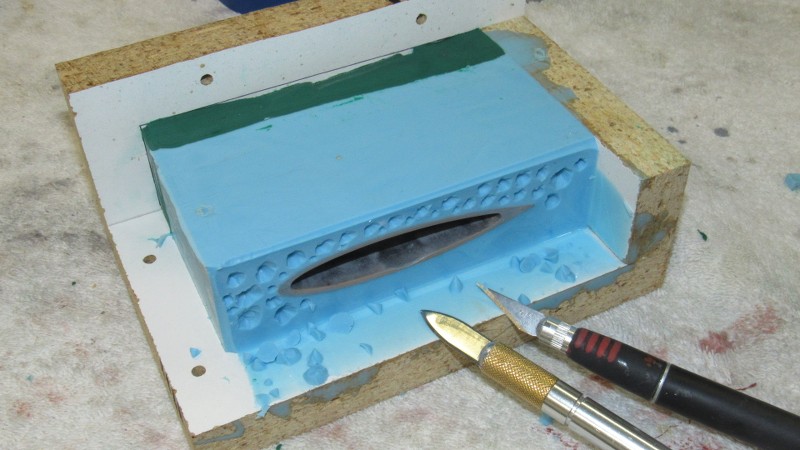

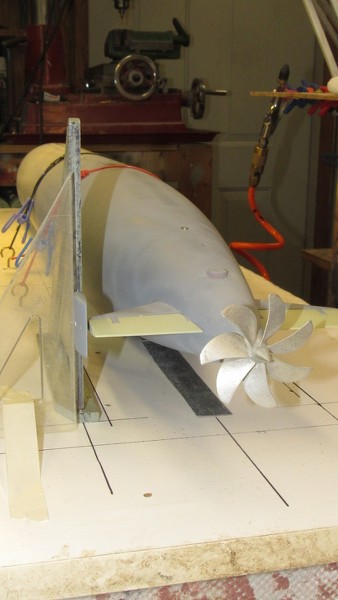

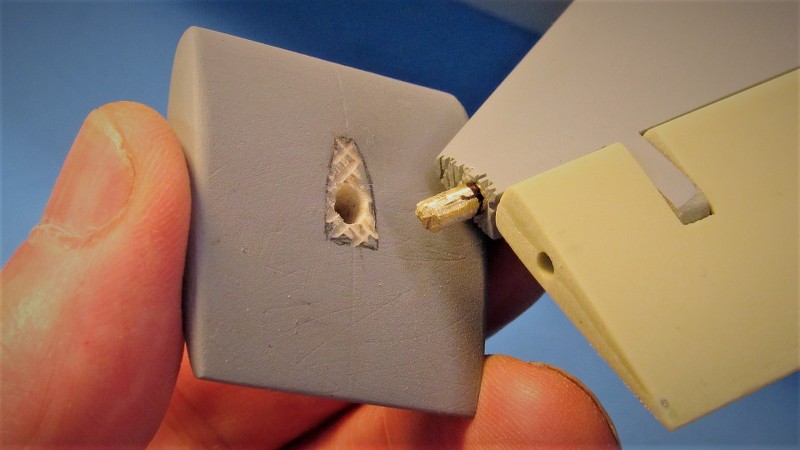

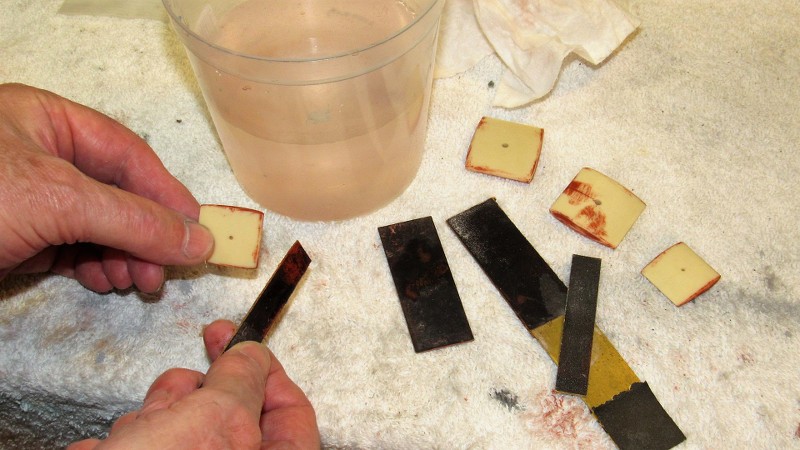

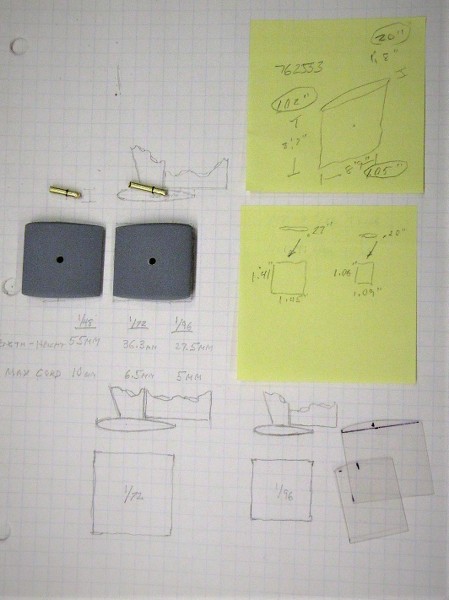

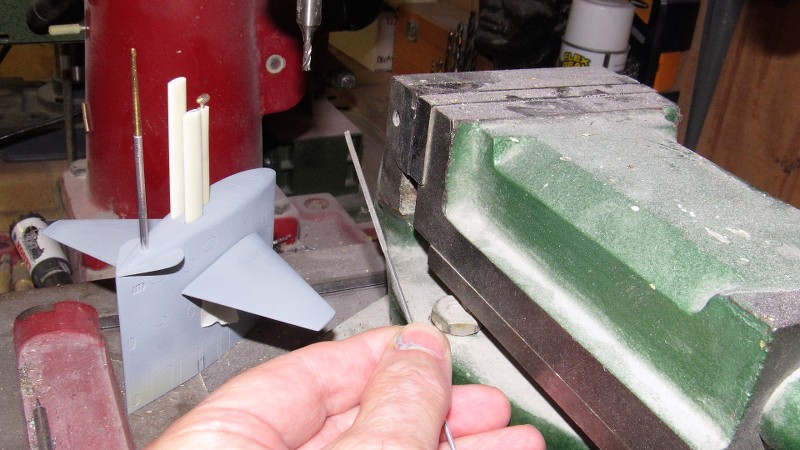

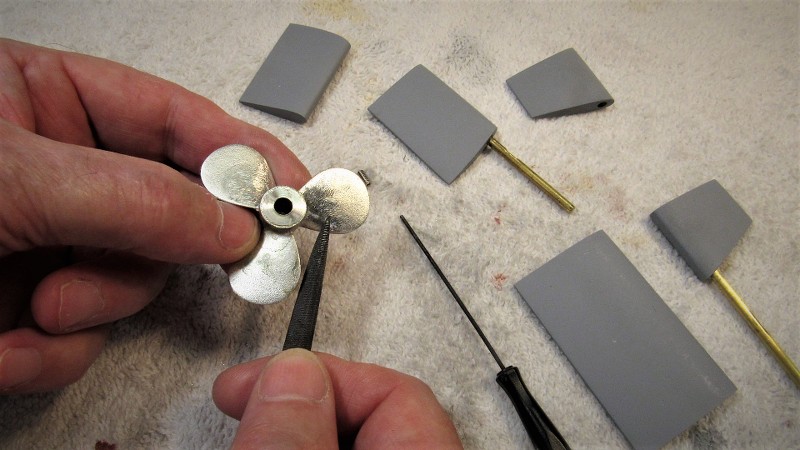

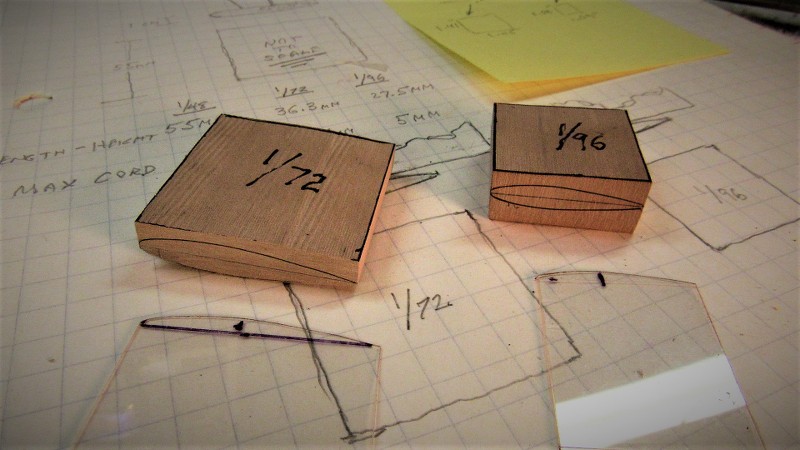

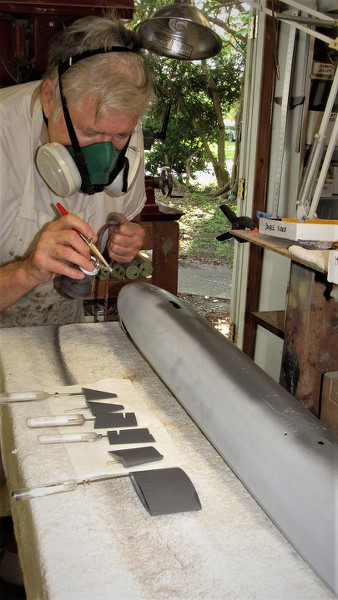

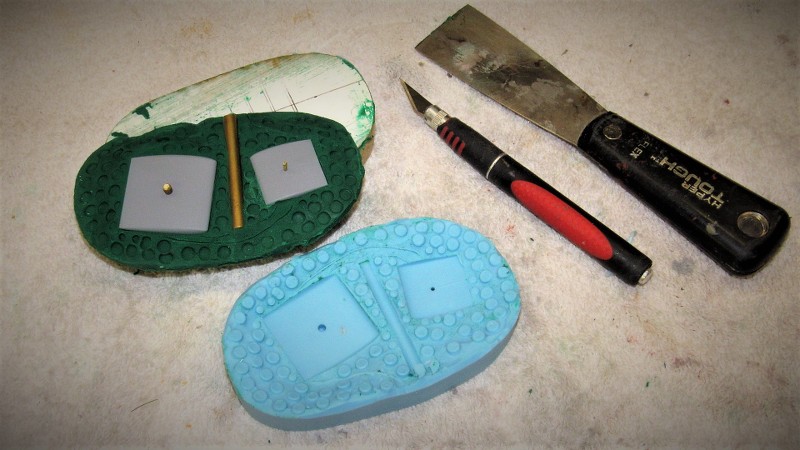

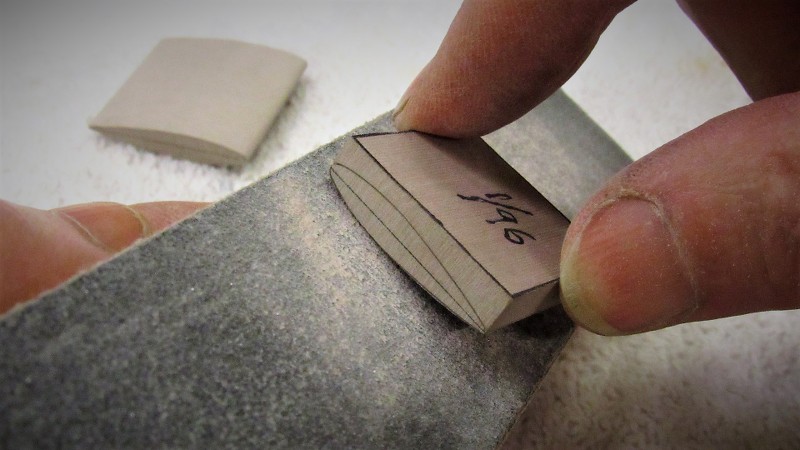

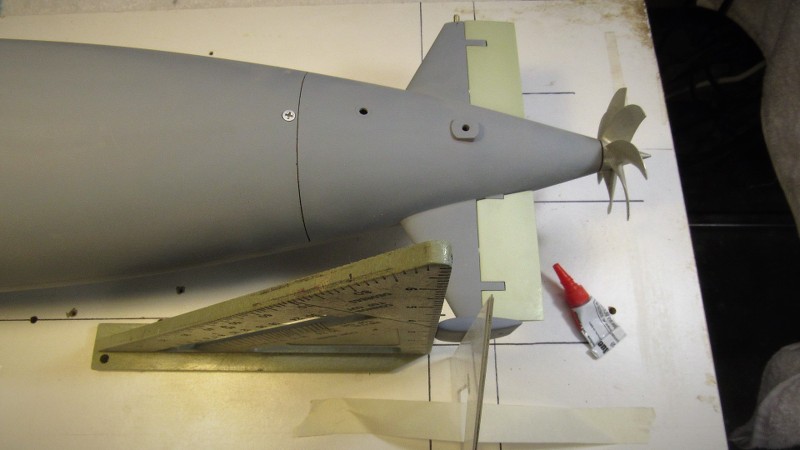

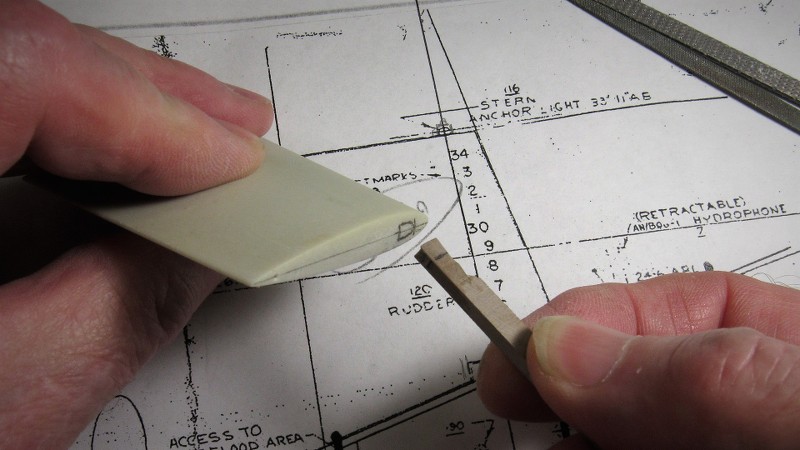

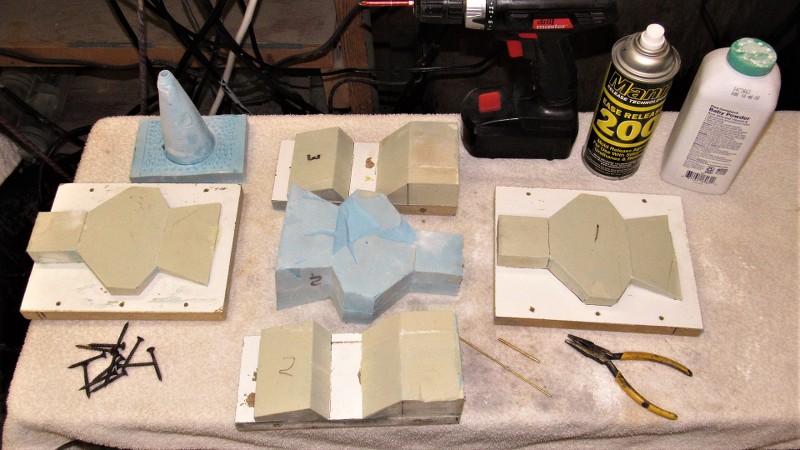

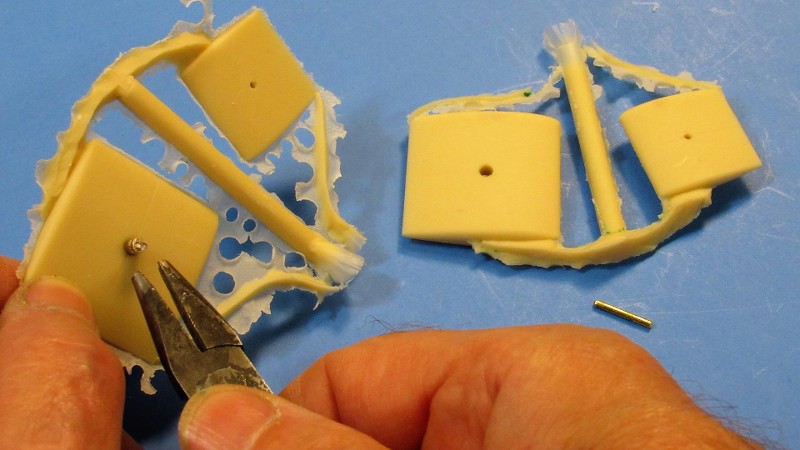

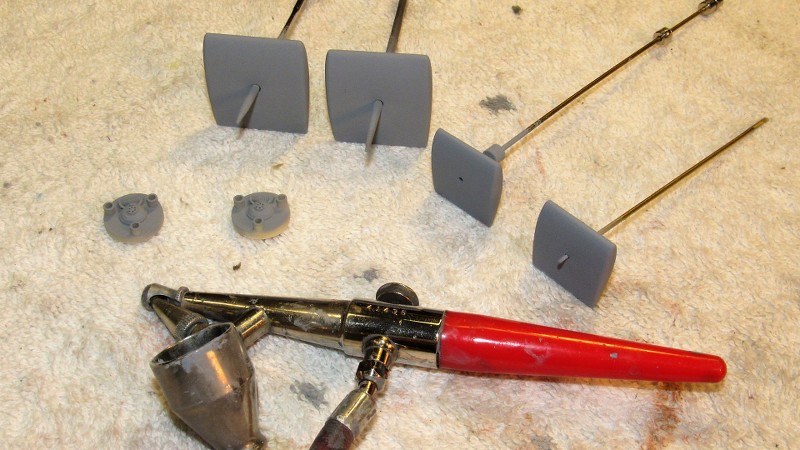

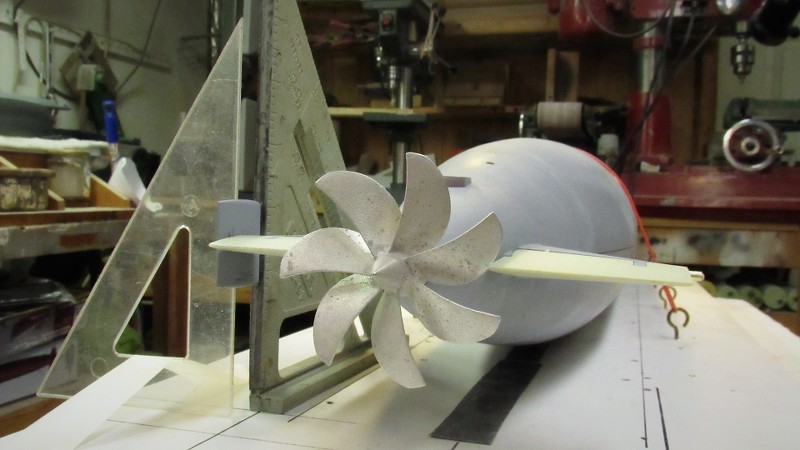

I turned a hollow tail-cone from dense RenShape and mounted it on a horizontal stabilizer assembly jig -- a rig that insured correct alignment between stabilizers (both horizontal and vertical) and the tail-cone. Preceding this work was creation of the stabilizer and control surface masters and tools from which intermediate masters were cast and seen here being glued and test fitted to what will eventually be a complete tail-cone master.

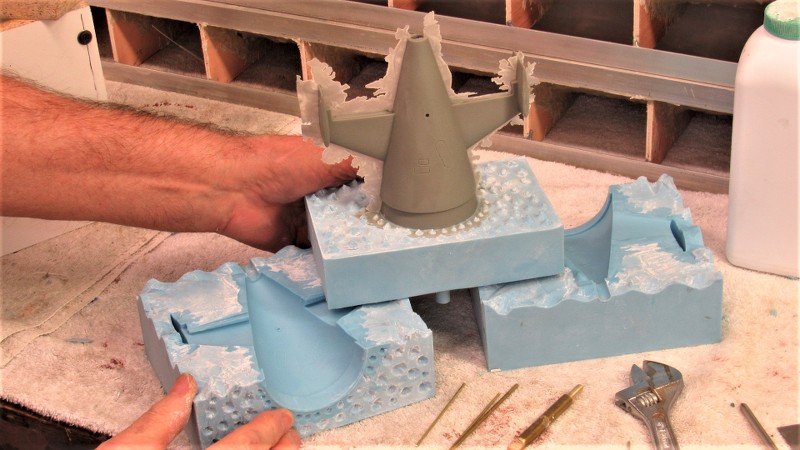

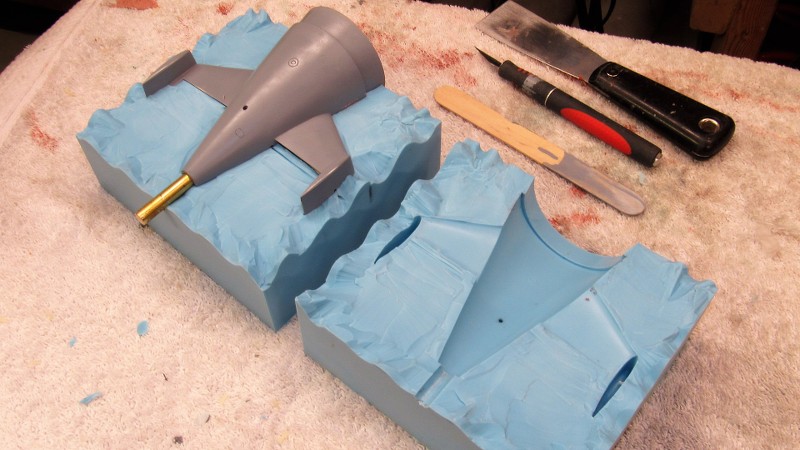

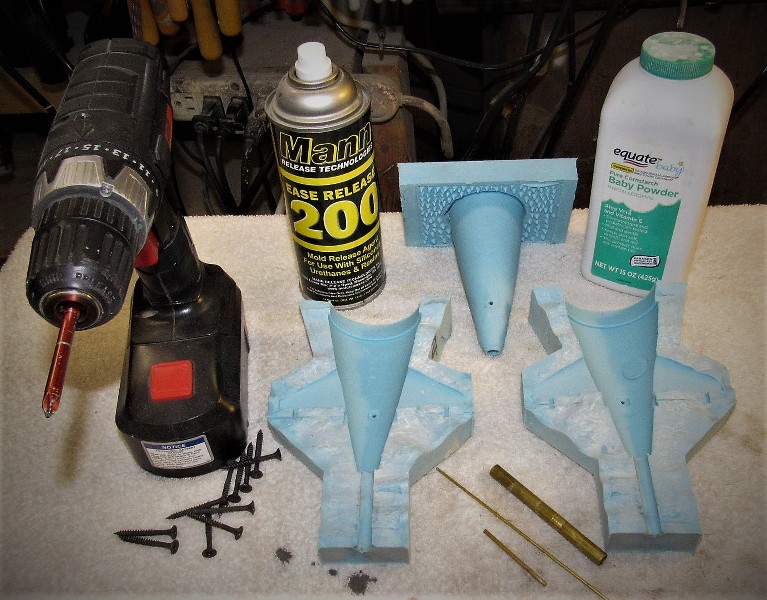

The completed tail-cone master was then used to make the rubber production tool used to create resin kit parts.





Wa-la!



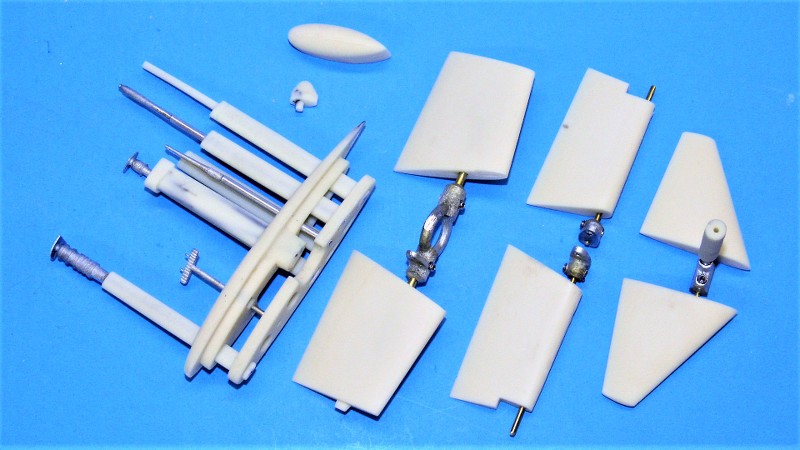

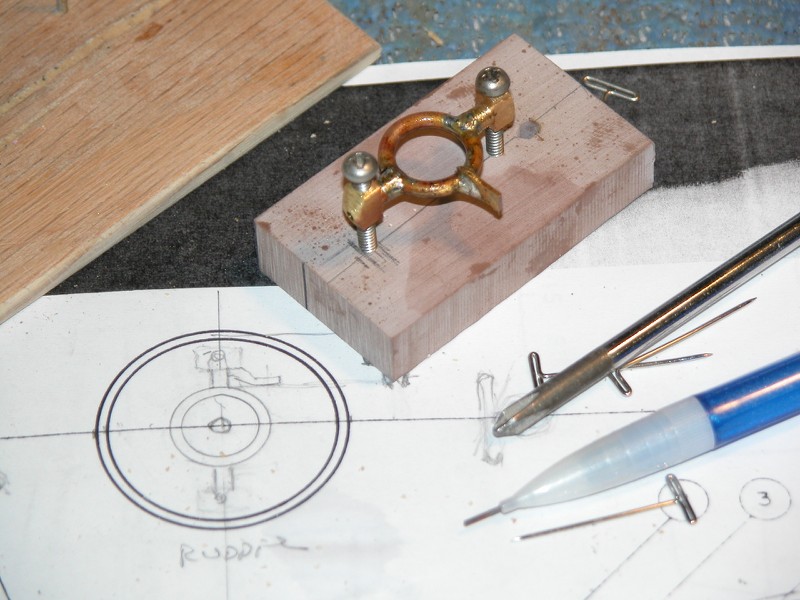

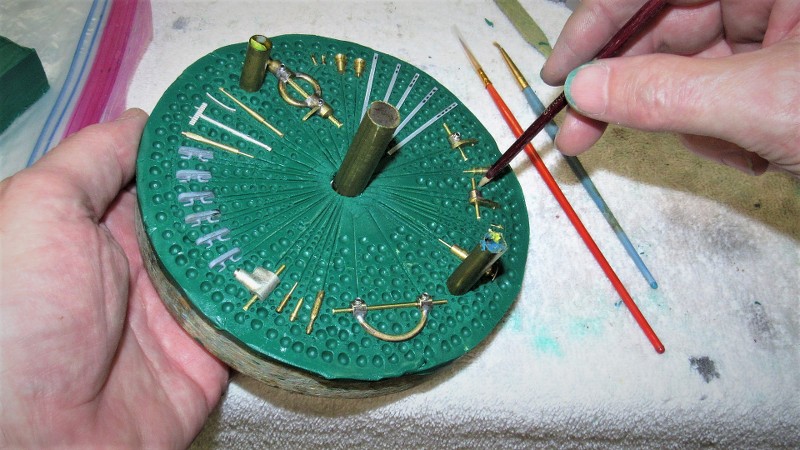

Just some of the brass work done to make the yoke, control horn, and other masters needed to eventually produce the spin-casting rubber tool used to form cast white-metal production parts.

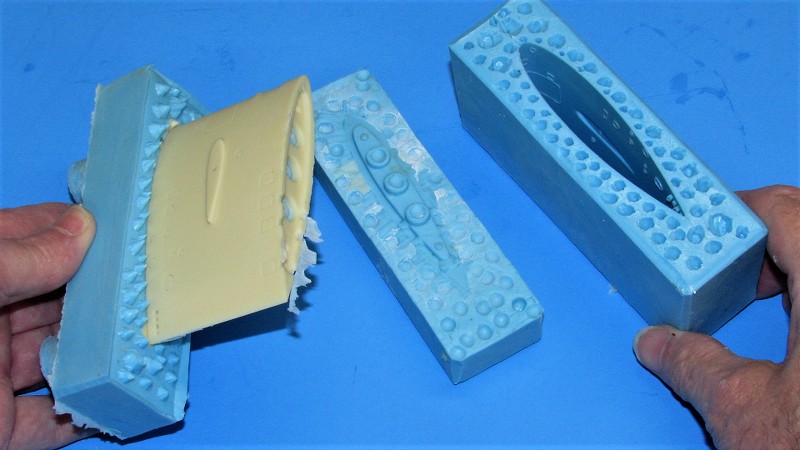

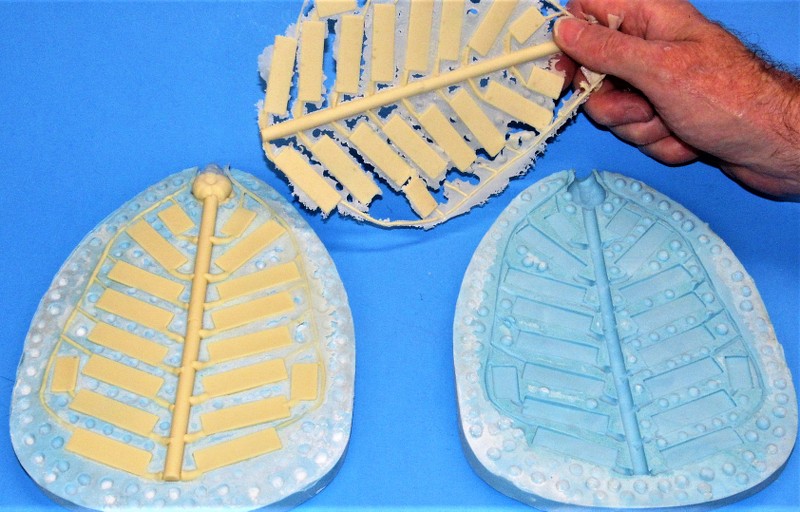

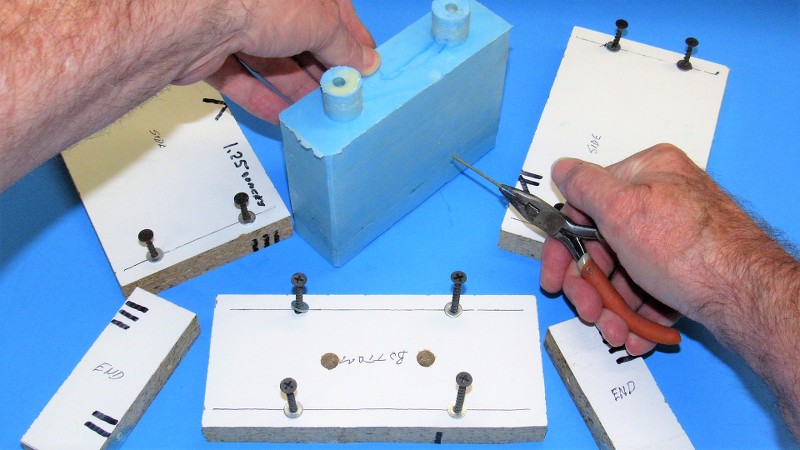

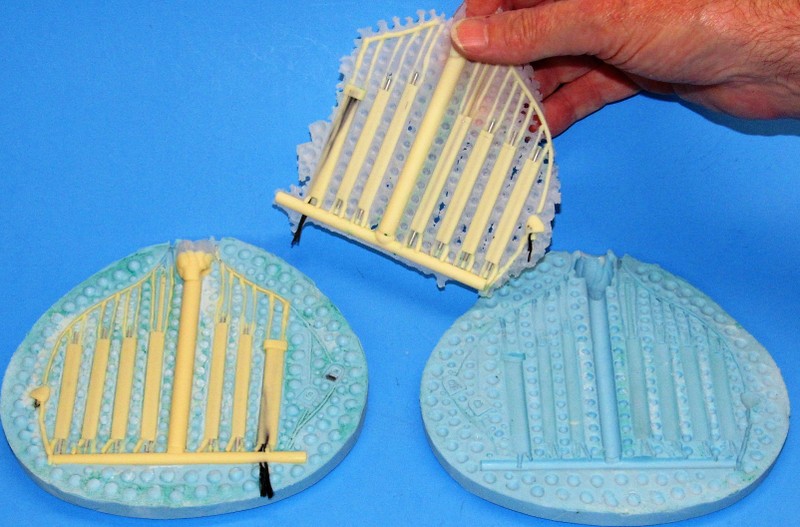

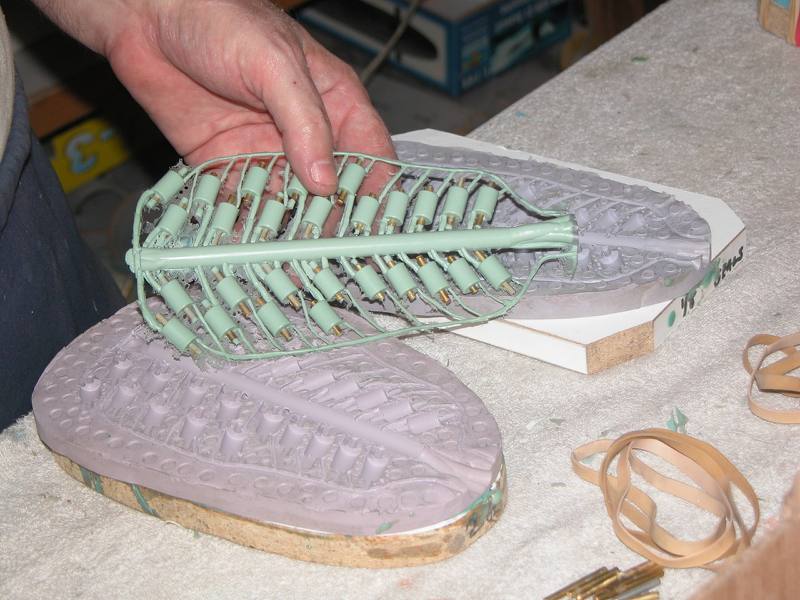

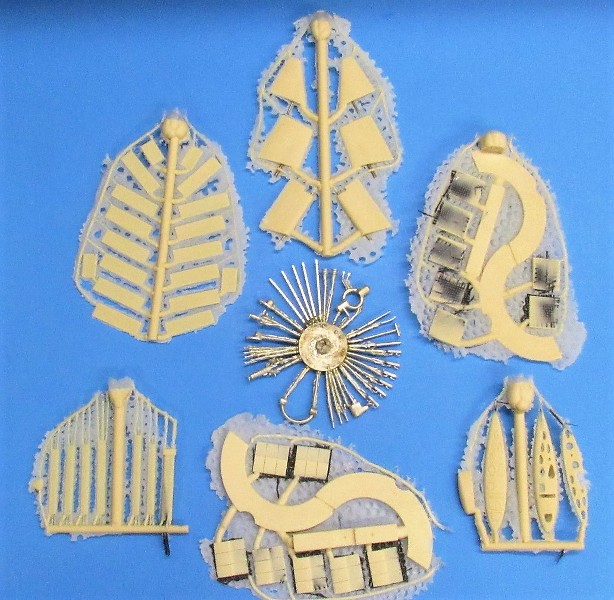

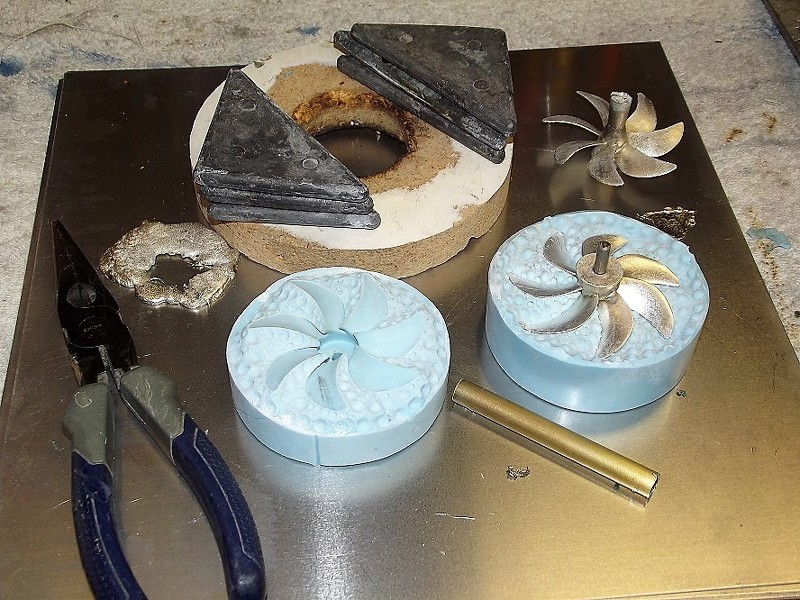

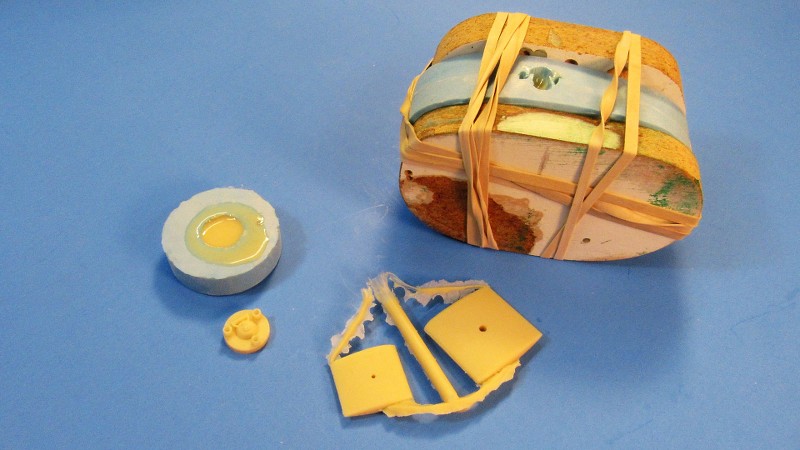

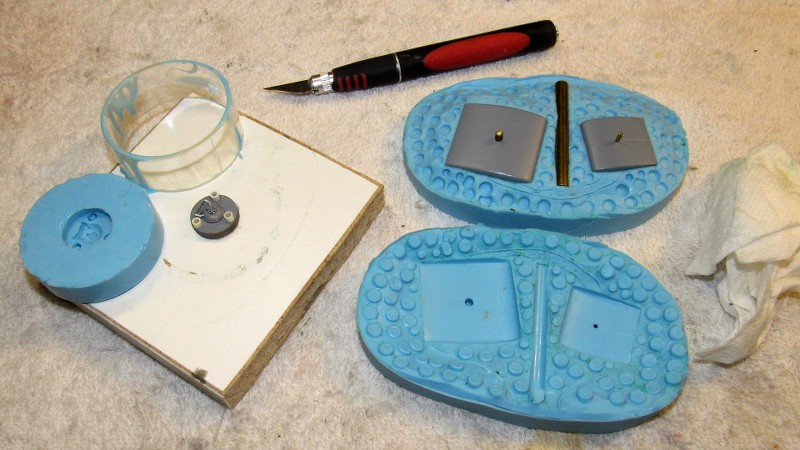

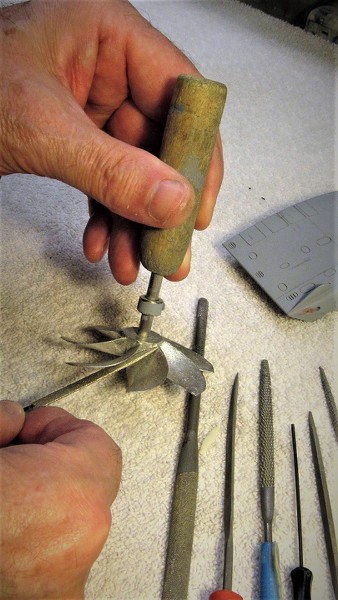

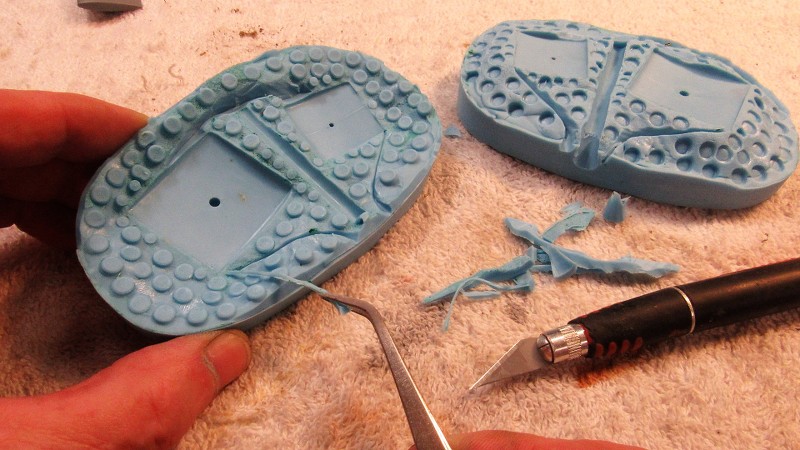

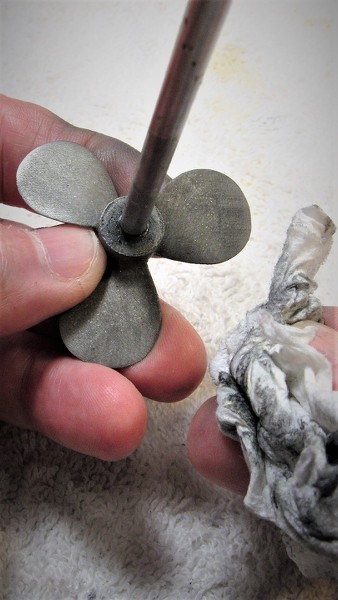

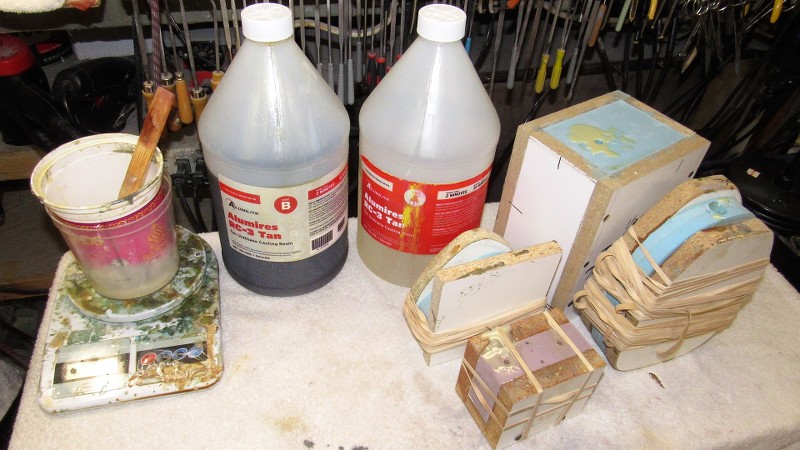

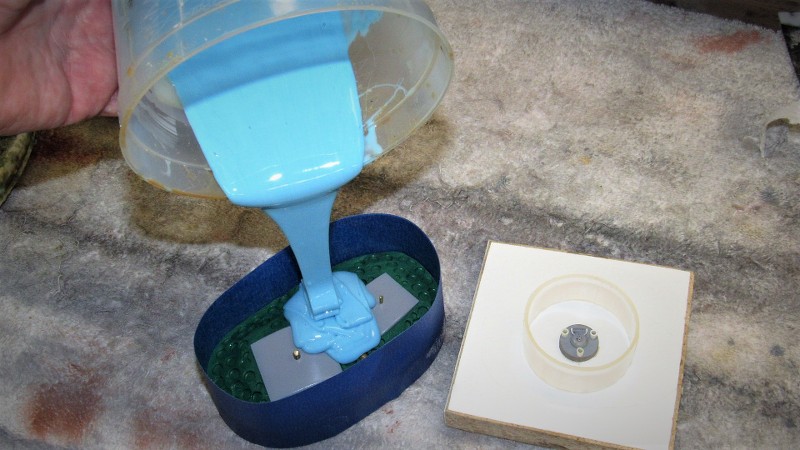

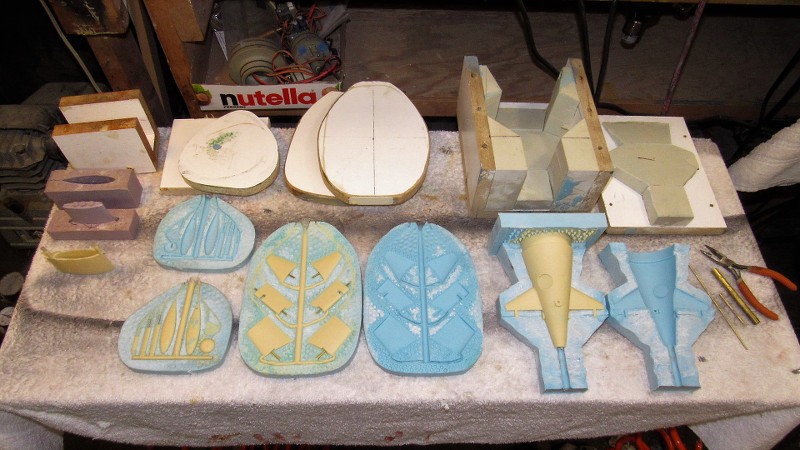

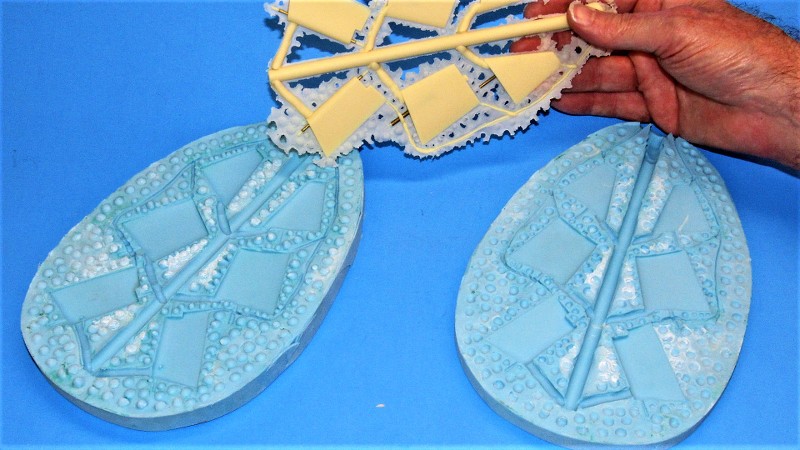

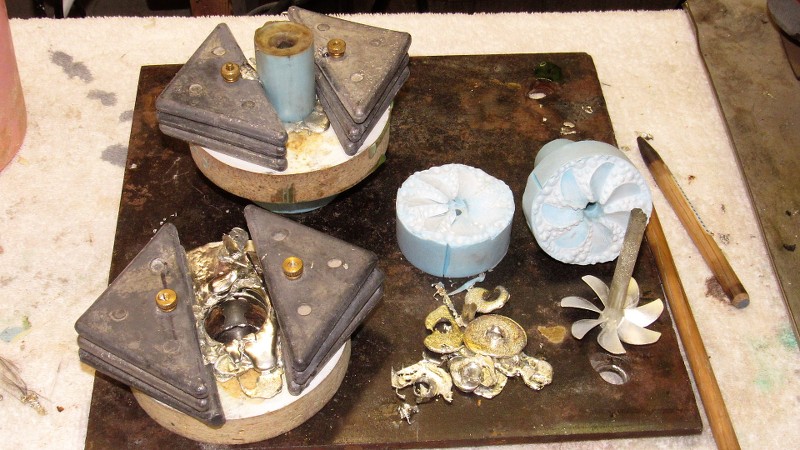

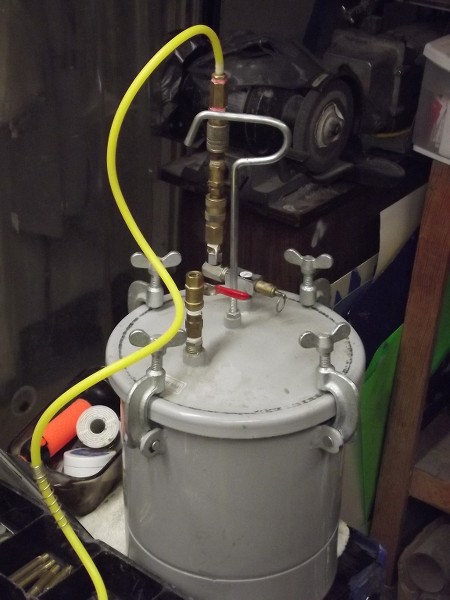

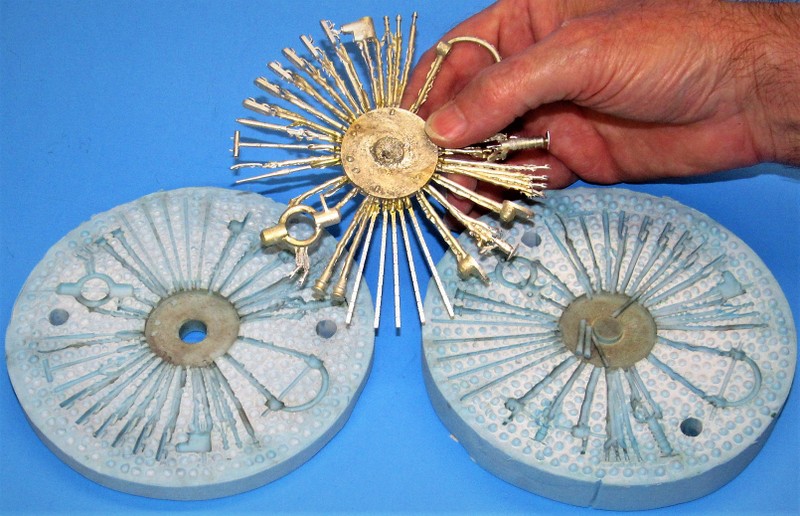

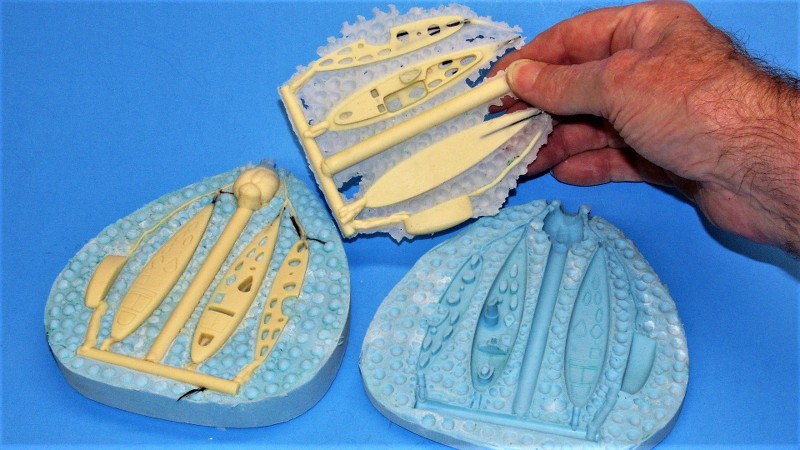

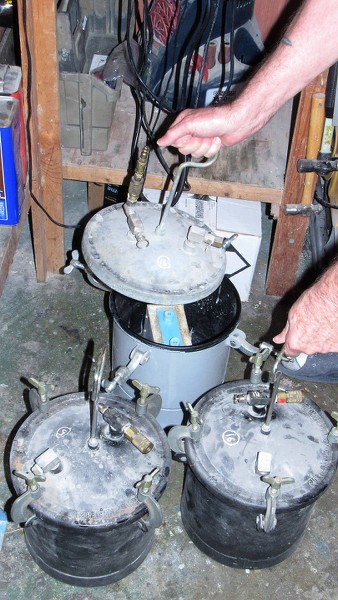

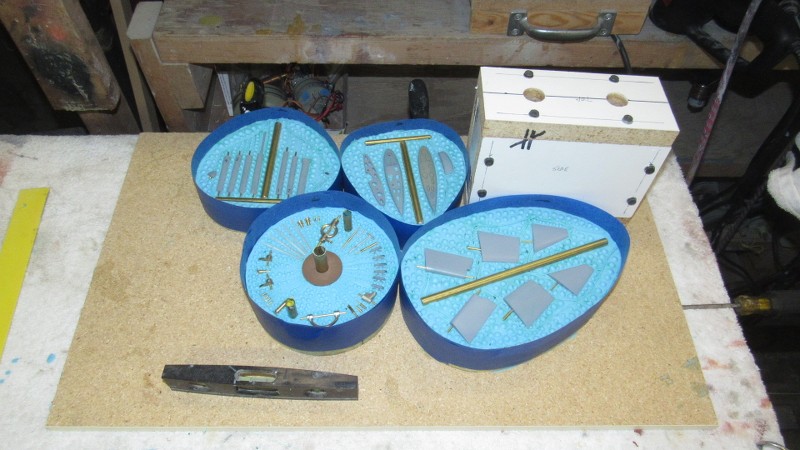

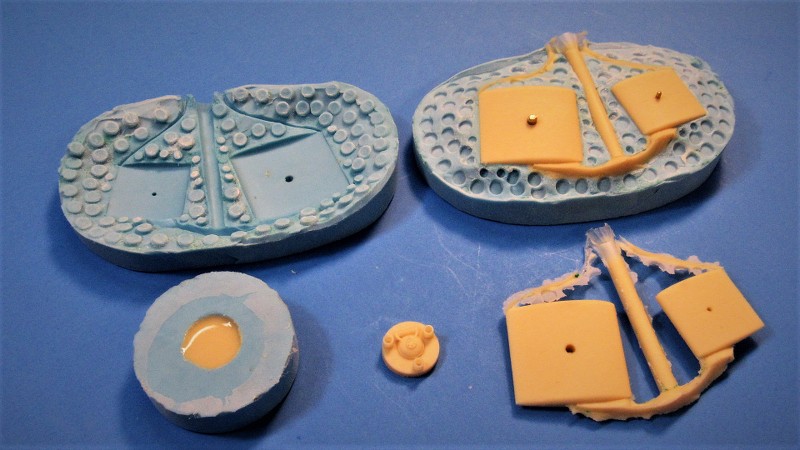

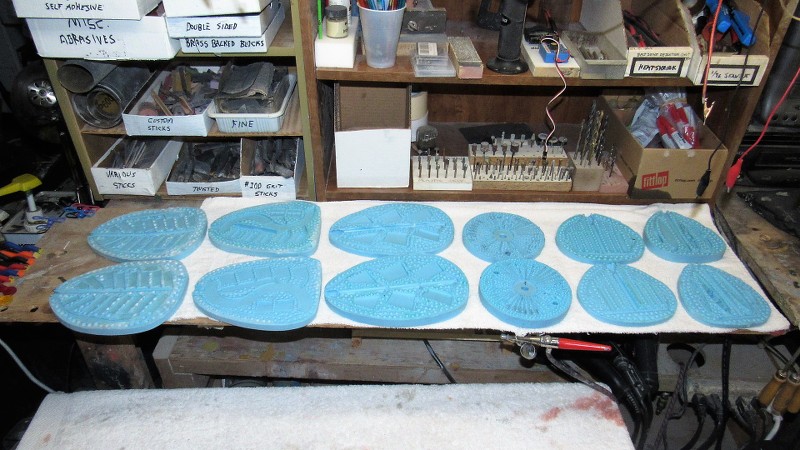

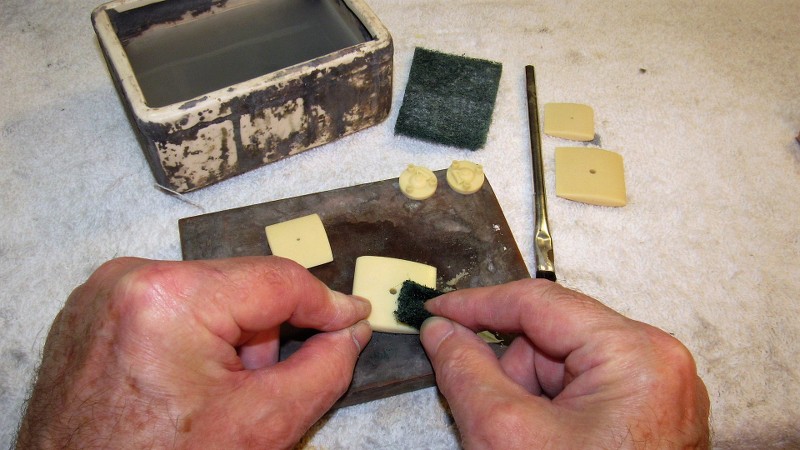

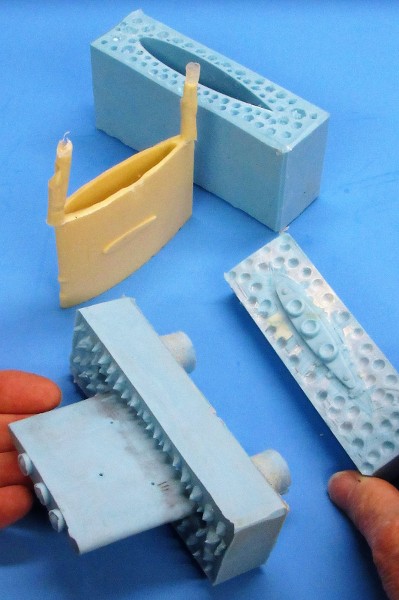

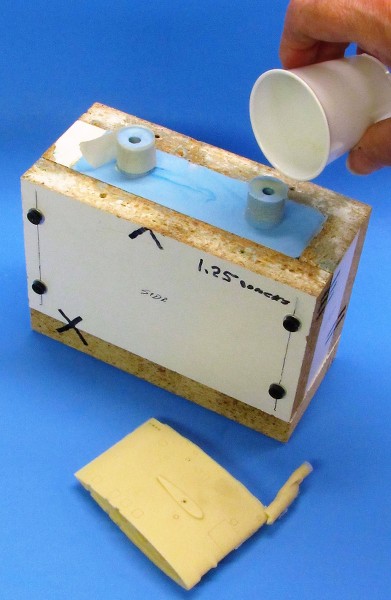

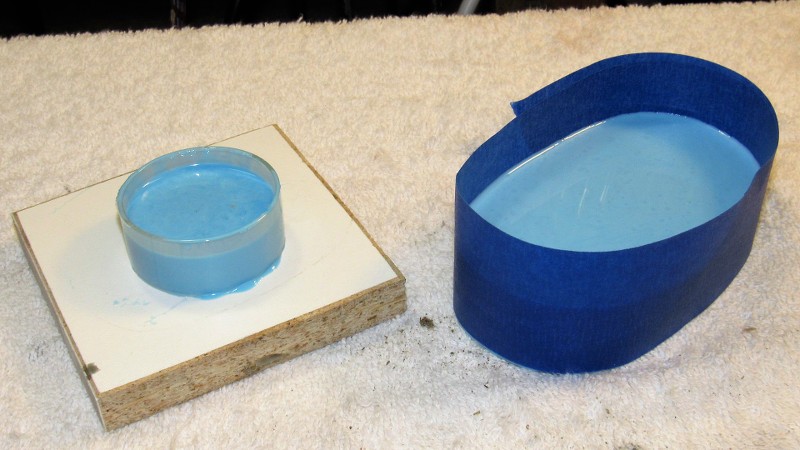

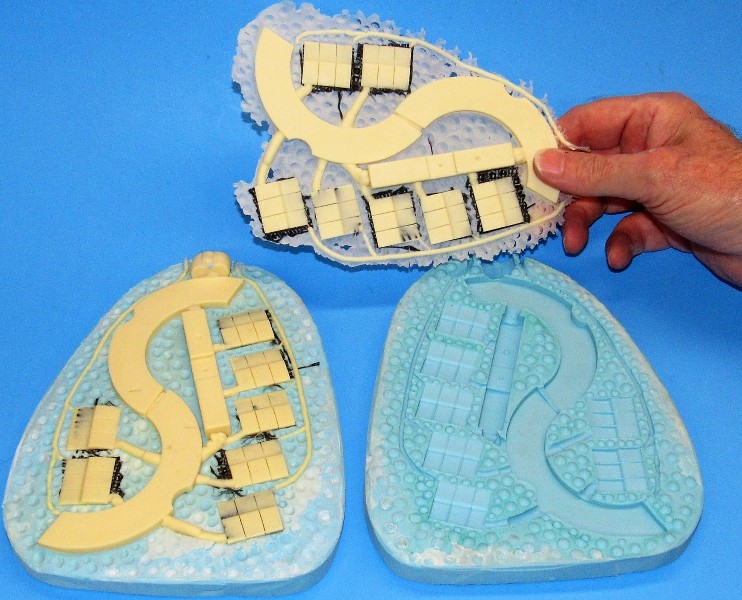

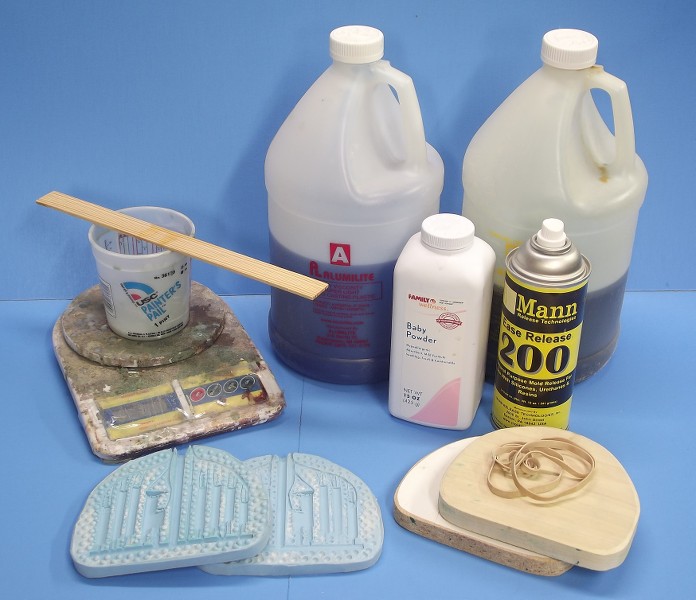

All masters are eventually used to produce two or three-piece tools used to cast production parts either from polyurethane resin or whit-metal (95% Tin, 5% Antimony).










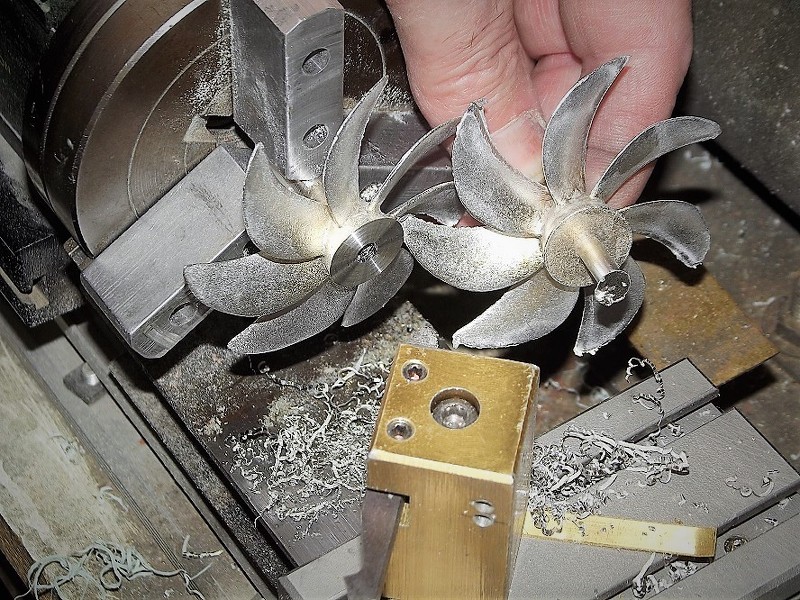

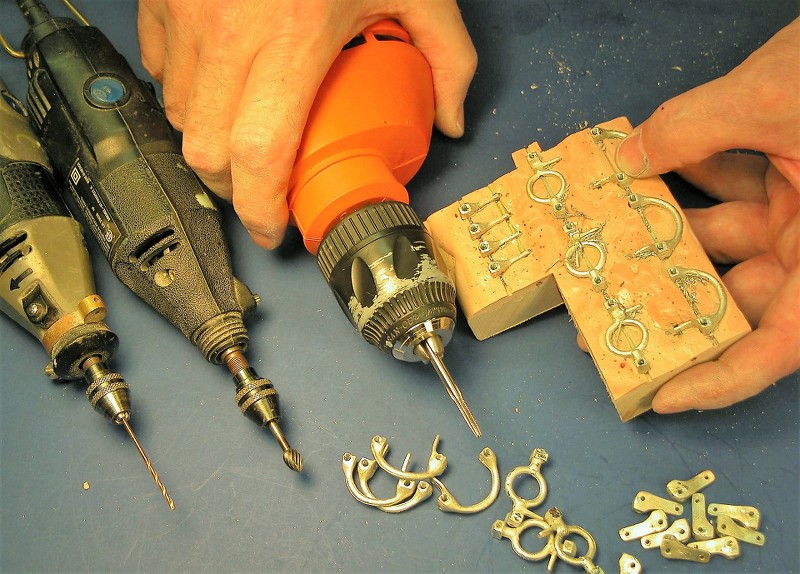

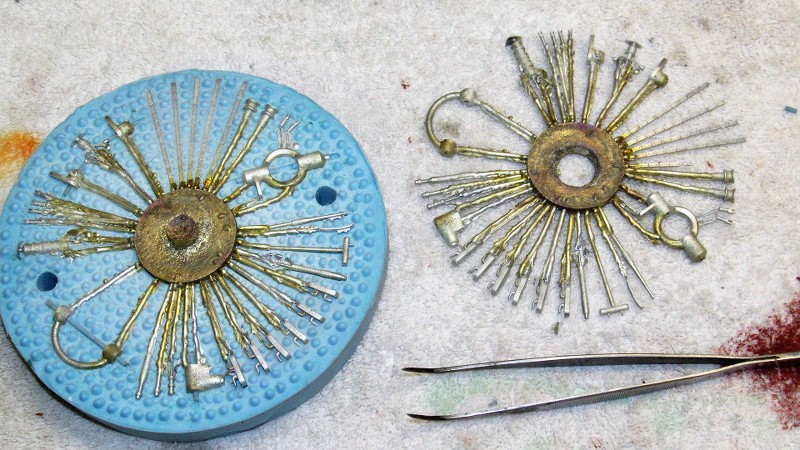

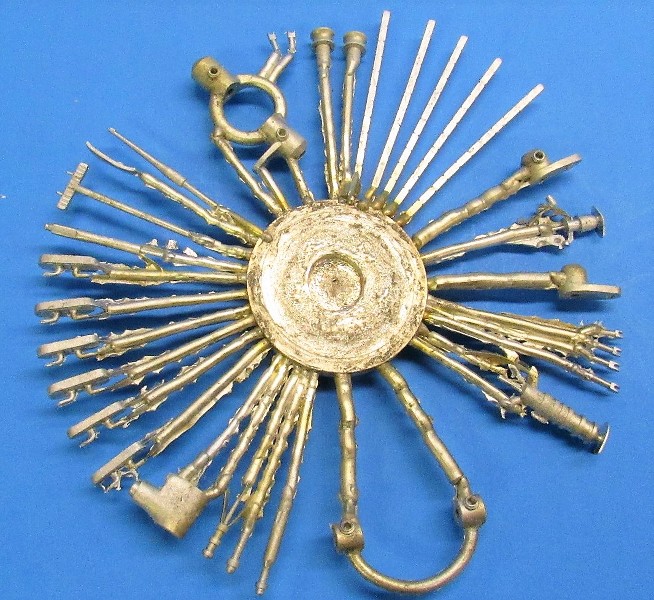

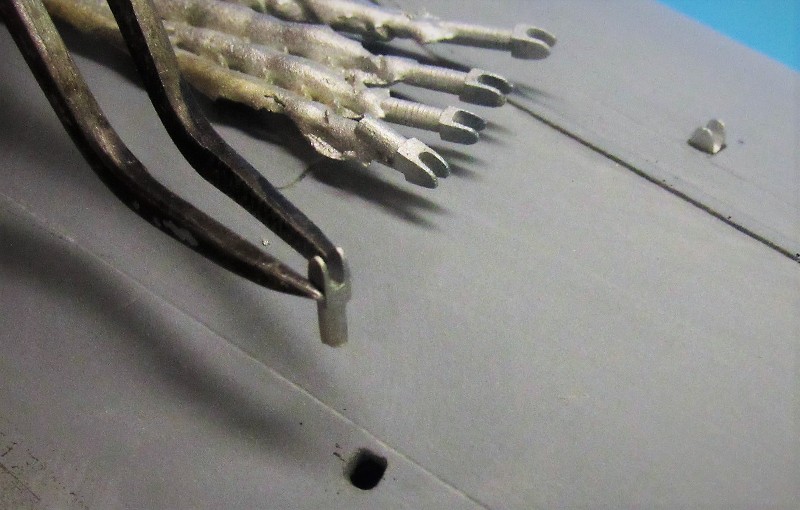

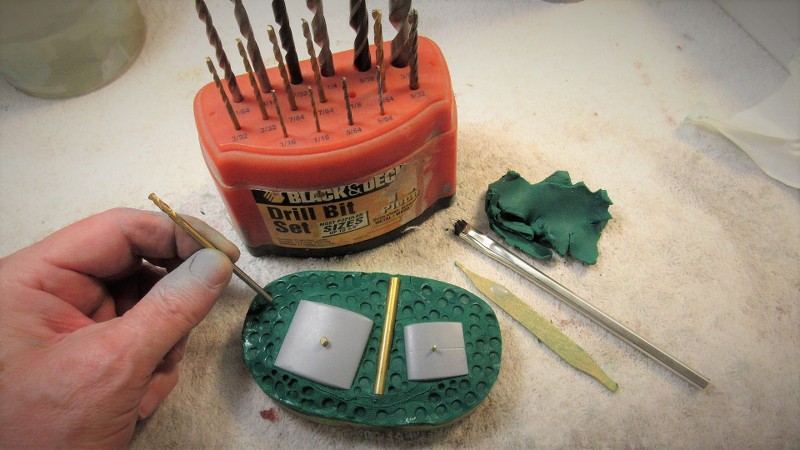

Small metal parts that require machining are best secured in a firm, aligning support, or 'fixture' -- a structure to hold the parts as they are drilled, taped, milled, or polished. This tree of spin-cast metal parts for a 1/96 STURGEON kit is an example of where a fixture is best employed to hold parts that require machining.

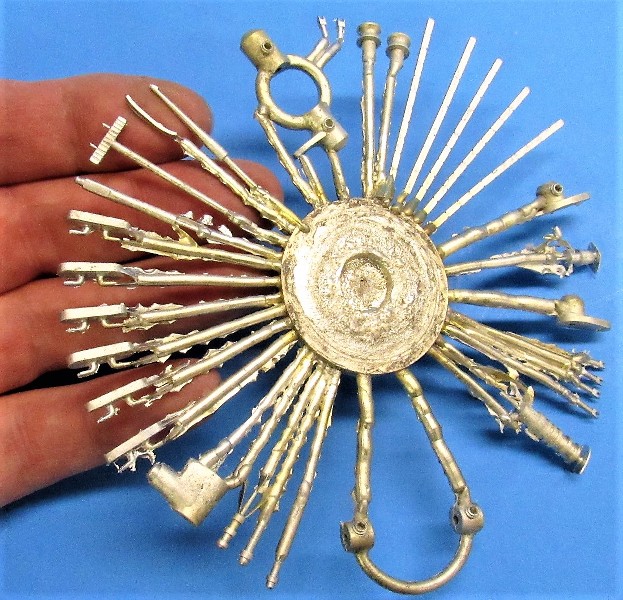

Though most of the parts seen here, once snipped away from the sprue, are adequately secured between pinkies or simple hand augmentation holding tools like tweezers, hemostat or pin vice chuck. However, on this tree are five items that will become elements of the models control surface linkages and will require a purpose-built fixture to hold them in place while they are machined.



What is a 'fixture'?

A two-jaw milling, table or bench vice is a fixture; as is a simple set of securing strong-backs pressing the work down securely on the bed of a milling machine. In production work, where not only registration of the work to the cutting tool is primary, the supporting fixture may also accommodate duplicate parts, thereby speeding production. Such is the case with the Bondo fixture I made to hold the white-metal yokes and horns that accompany the eventual 1/96 STURGEON kits to be available this year from Nautilus Drydocks. Nautilus Drydocks Online Store (rc-submarine.com)

Properly defined as a fixture, this device permits exacting holding of the raw metal pieces while the parts it holds are drilled and tapped. This fixture permits simultaneous machining of three sets of metal parts with one sitting.



All of the operations involve punching holes, then tapping them with a 4-40 thread. The fixture assures a rigid mounting of each part while it is machined; a mounting that orients the desired bore of the hole perpendicular with the drill bits longitudinal axis.

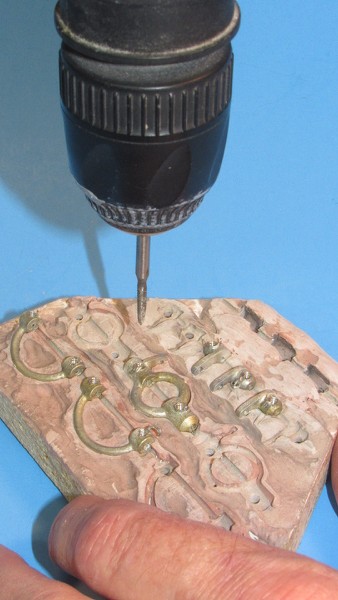

The initial hole is done on the drill press followed by a variable-reversible hand-held drill driving the tap to create the threads. All drilling and taping is preceded by a drop of 3-and-1 oil. Any burs left around the bores are knocked off with a moto-tool.

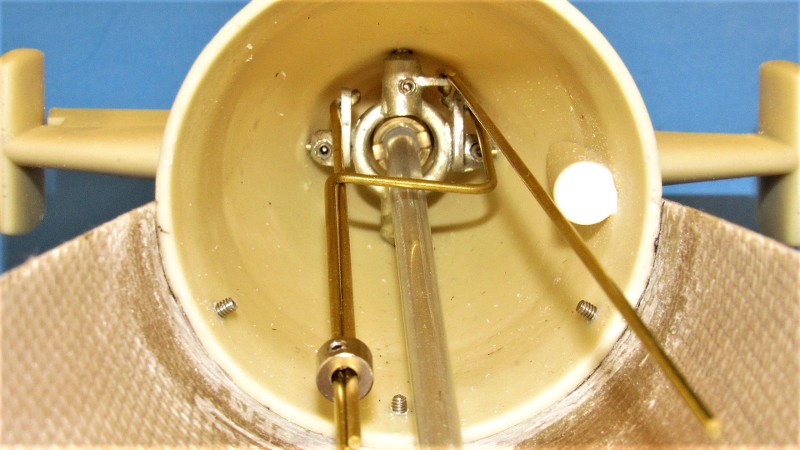

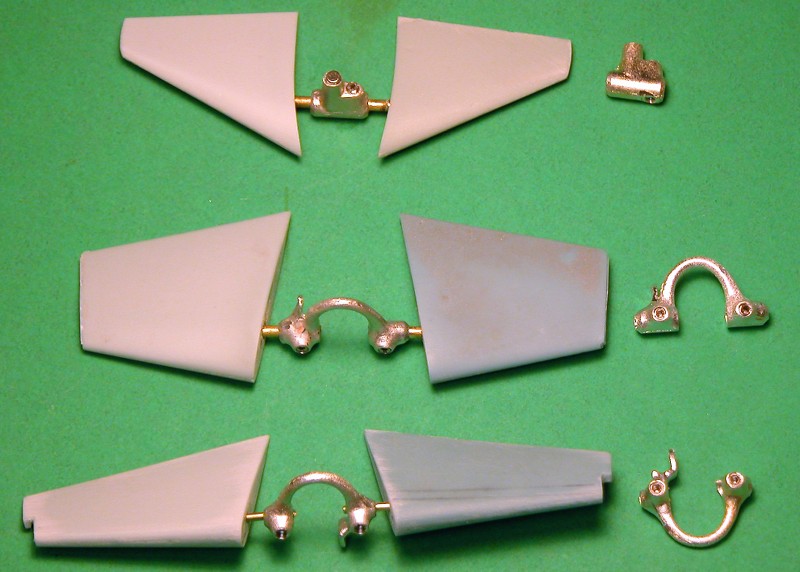

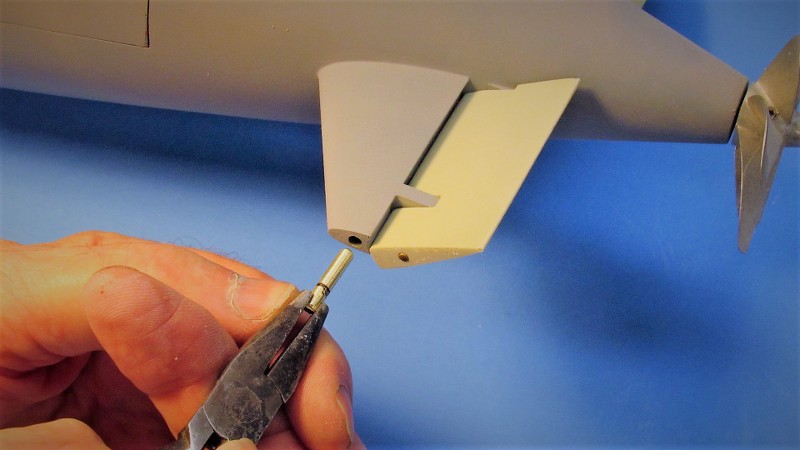

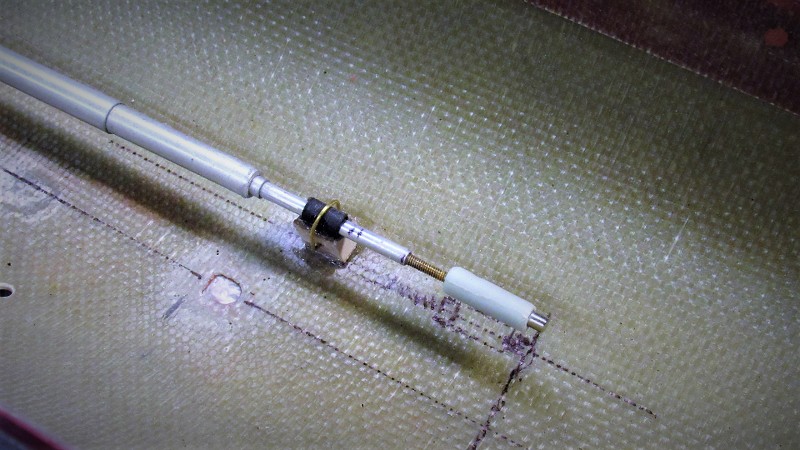

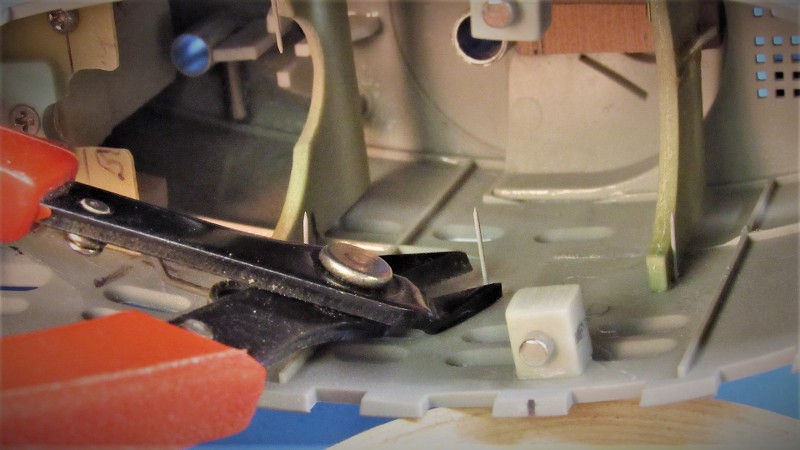

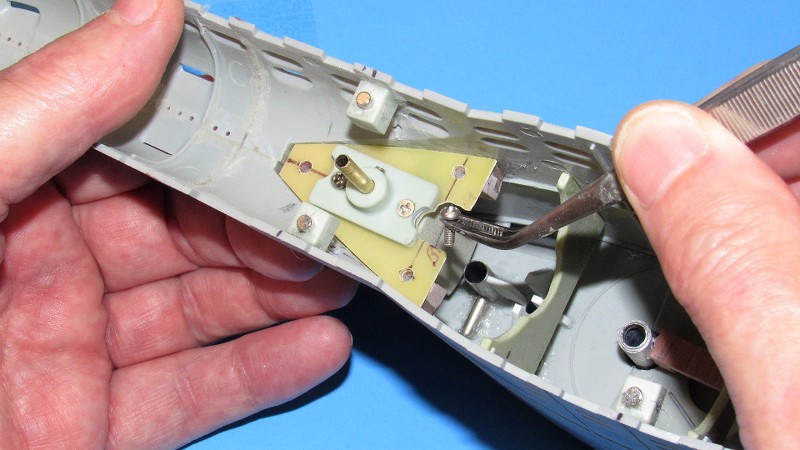

This is how the metal parts are used, as elements of the control surface linkages needed to make the 1/96 STURGEON model a practical r/c submarine. The need for metal -- with its able to take the stress of repeated motion without significant ware or breakage -- is what drives the requirement for a stout holding fixture in the first place. Small resin or injected plastic parts can be hand-held. Not so with parts made of metal: even a soft one like white-metal is best handled via a purpose built fixture.



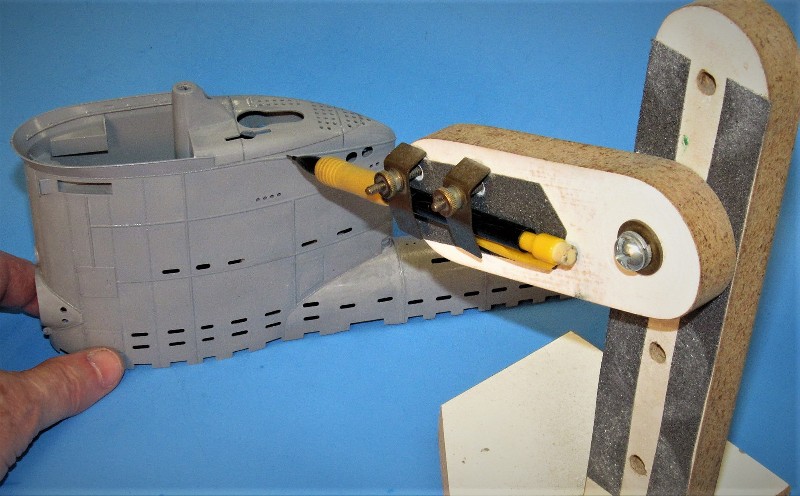

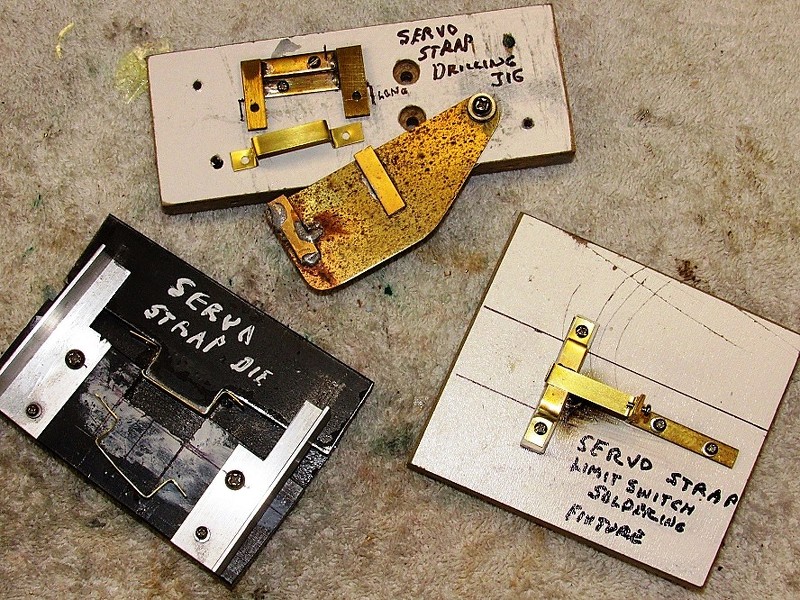

Fixtures are differentiated from 'jigs' in that a fixture holds the work, but does not guide the cutting tool. Jigs, on the other hand, not only hold the work in proper position, it also guides the cutting tool into the work. Such as this jig (top of picture) made to hold die-formed straps securely as a drill bit is guided into the work.

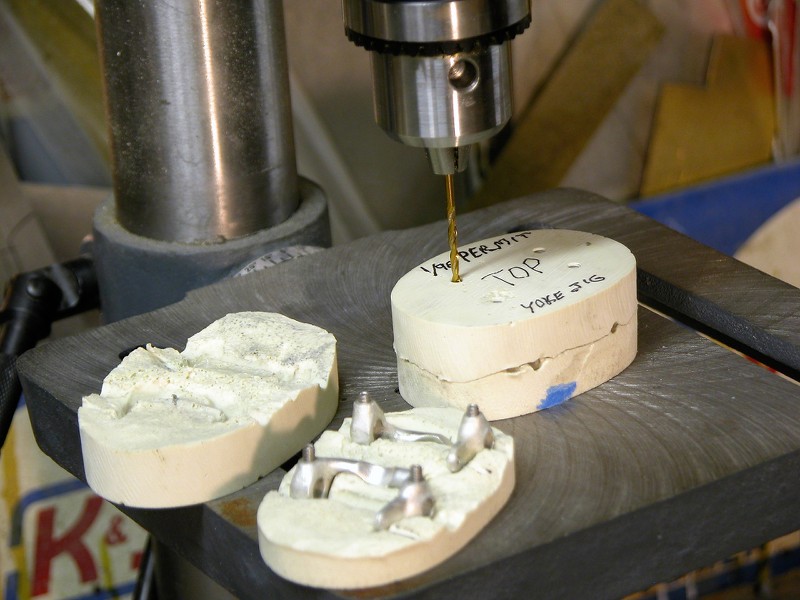

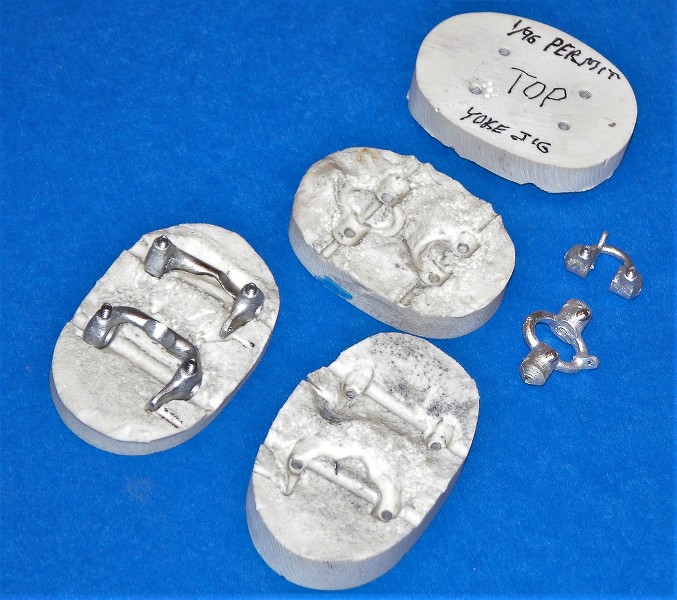

This jig is used to machine threaded bores into the metal yokes for the 1/72 ALFA and 1/96 THRESHER/PERMIT kits. What makes these two tools a jig and not a fixture is that they not only hold the work, but also guides the cutter -- just one of several defining characteristics between jig and fixture.





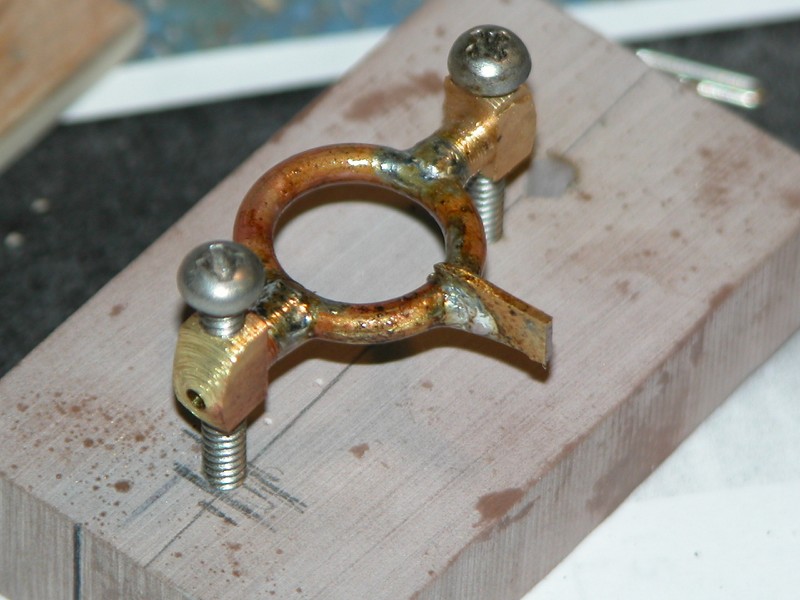

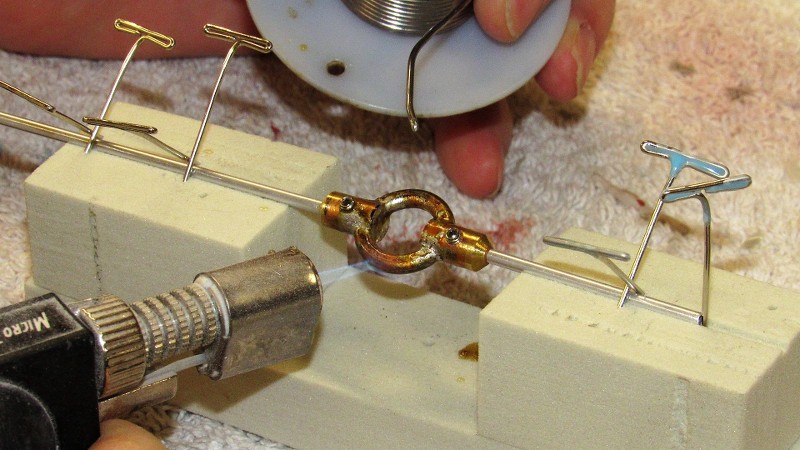

Jigs are also defined as tools that hold two or more parts in correct alignment for joining (soldering, gluing, welding, riveting, screw fasteners, binding, etc.).

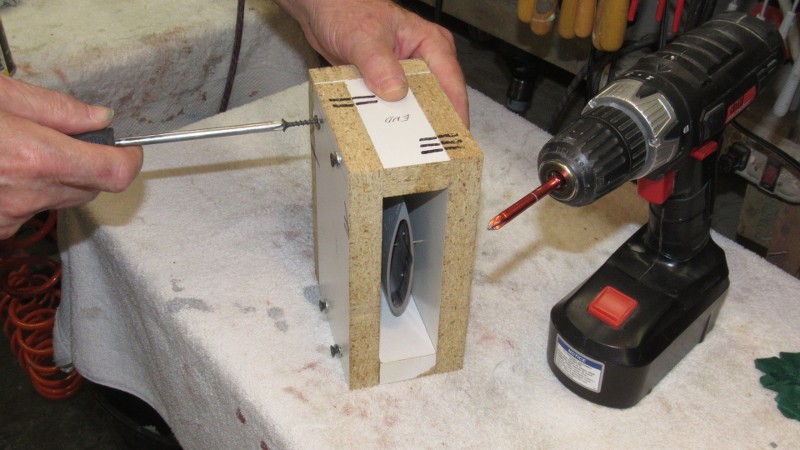

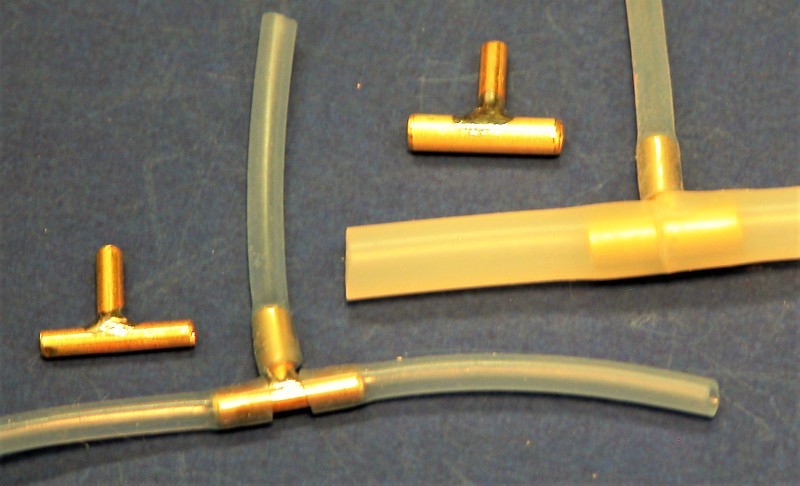

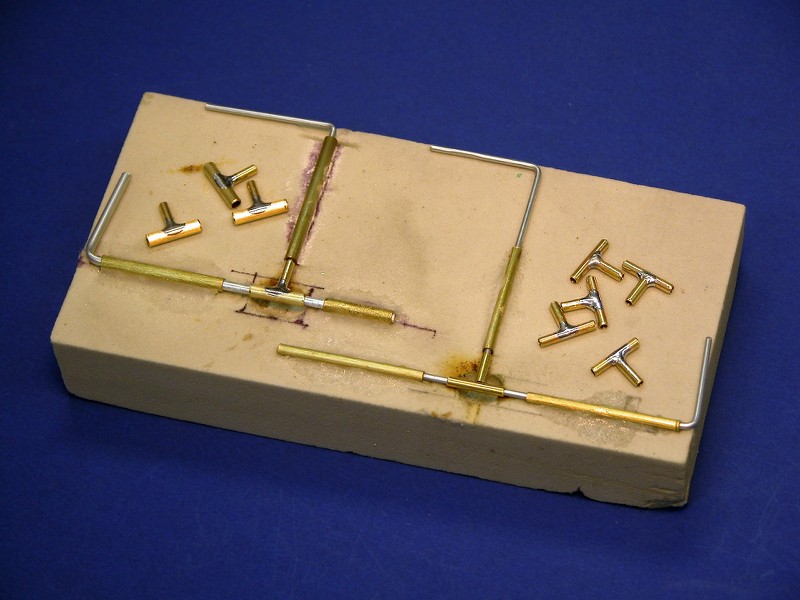

For example, this assembly jig is used to produce three-way 'T' fittings for pneumatic or hydraulic systems.

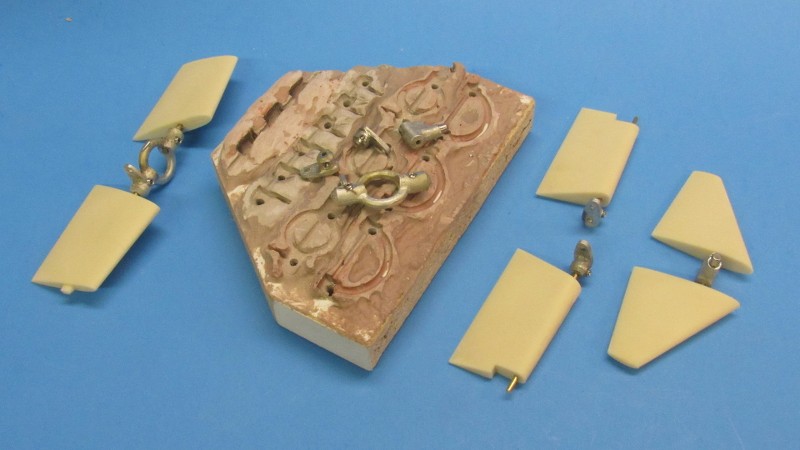

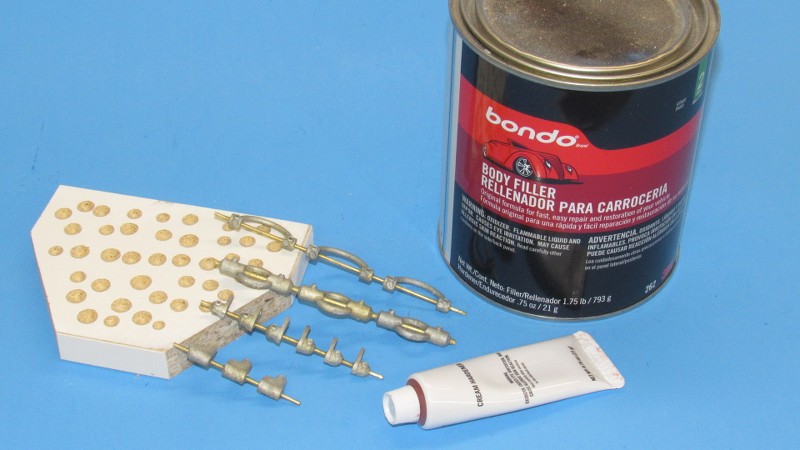

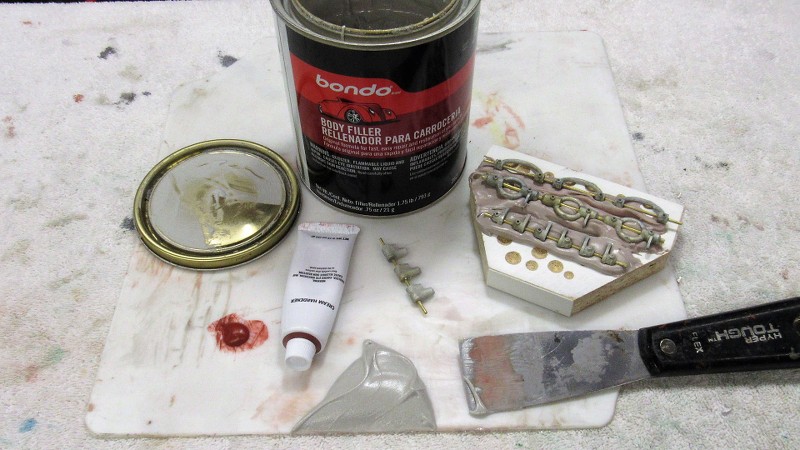

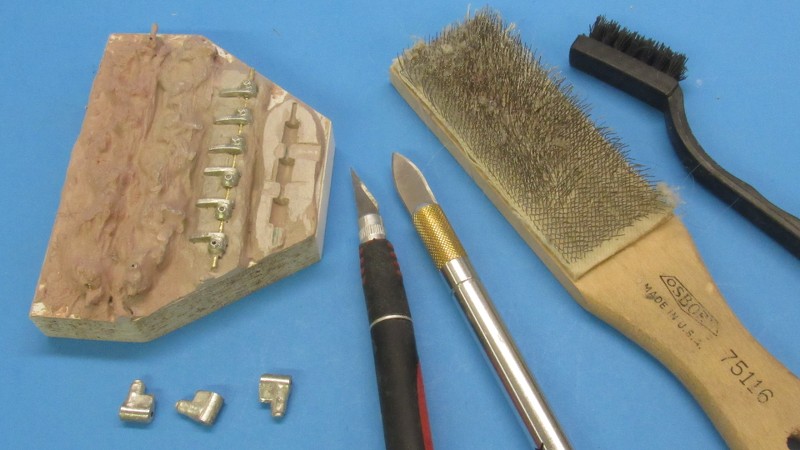

The 1/96 STURGEON control horn and yoke holding fixture was given form by embedding half of each part -- temporarily used as masters -- in Bondo, the Bondo secured to a stout foundation, in this case .5" thick shelving board that had been keyed with shallow holes to give the cured Bondo something extra to hold it in place once cured hard.

Note that I've created a fixture that can handle three sets of parts at once. Time is money!

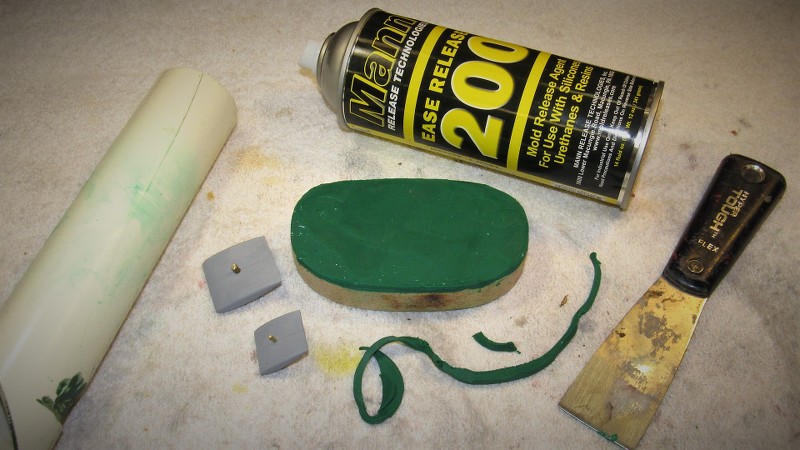

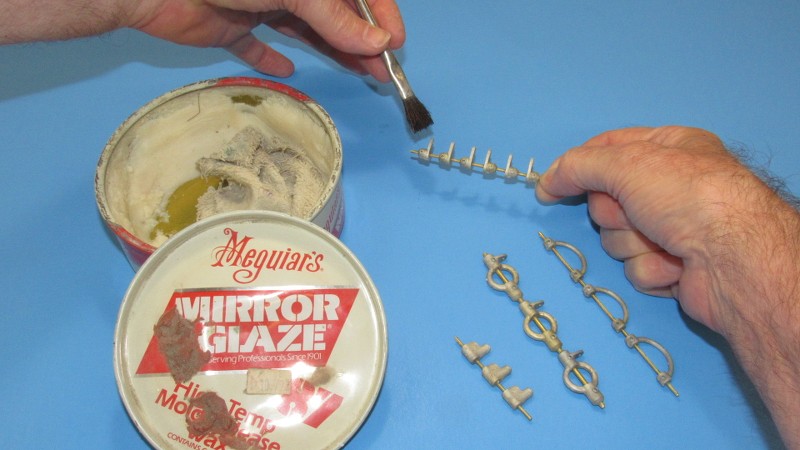

To ease removal of the parts after creating the cavities they nestled in from the rather tenacious Bondo I first coated them with wax.

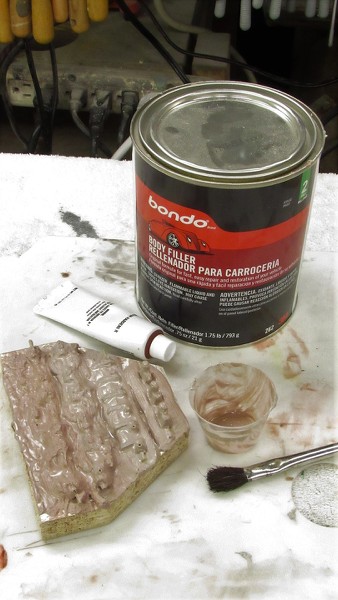

Once the parts were set in the first layer of catalyzed Bondo a second application of lacquer thinned Bondo was brushed on to completely cover the work -- this to insure that Bondo got into every crevasse missed during the initial embedding.



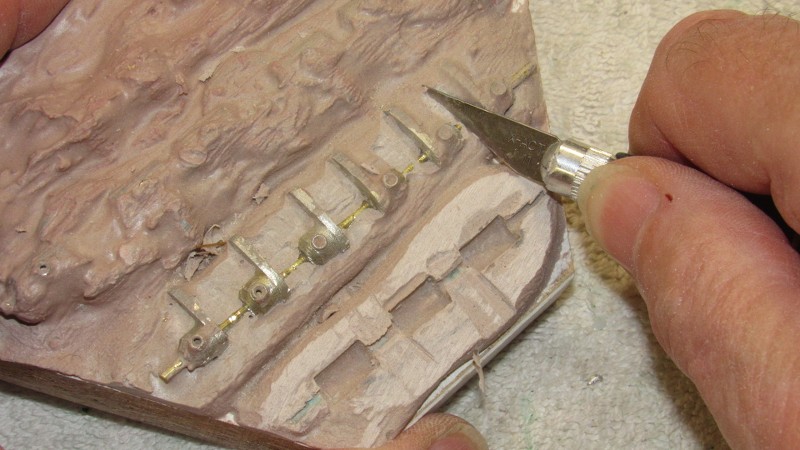

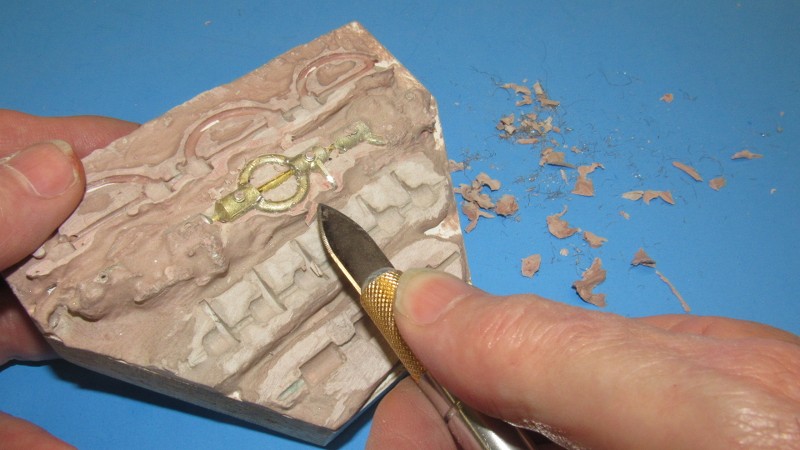

After a few hours under a heat-lamp, the Bondo was as hard as it was going to get. At that point I chipped away the hardened Bondo atop the parts.



This part of the job would have been a screaming nightmare had I not waxed all the parts first!

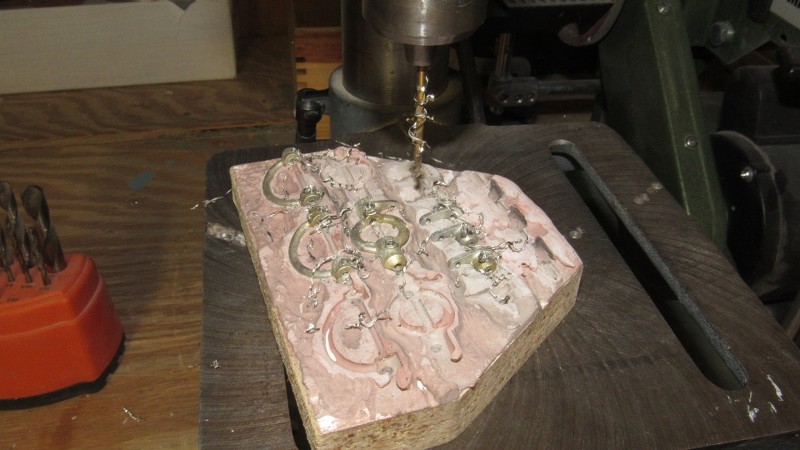

And, finally, after all that nonsense, the fixture put to work machining production kit parts.


AN IMPROVED PUSHROD SEAL​

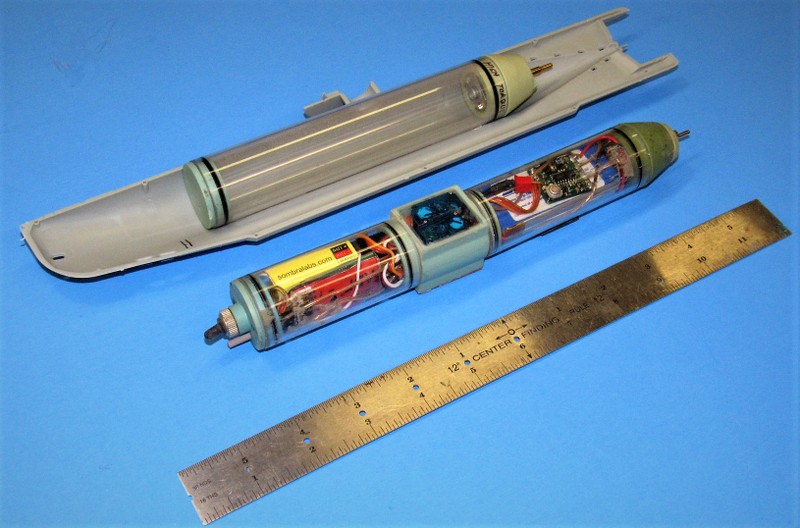

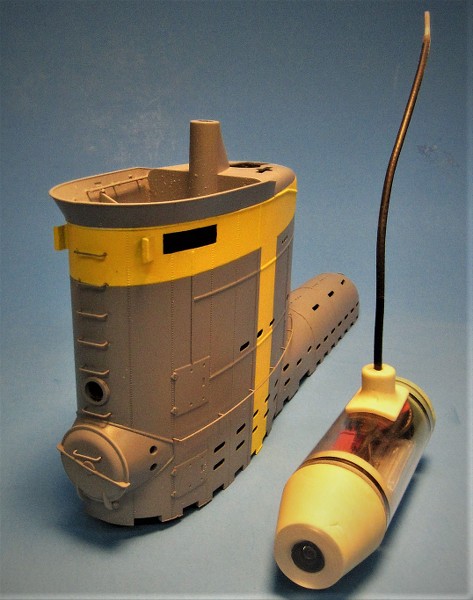

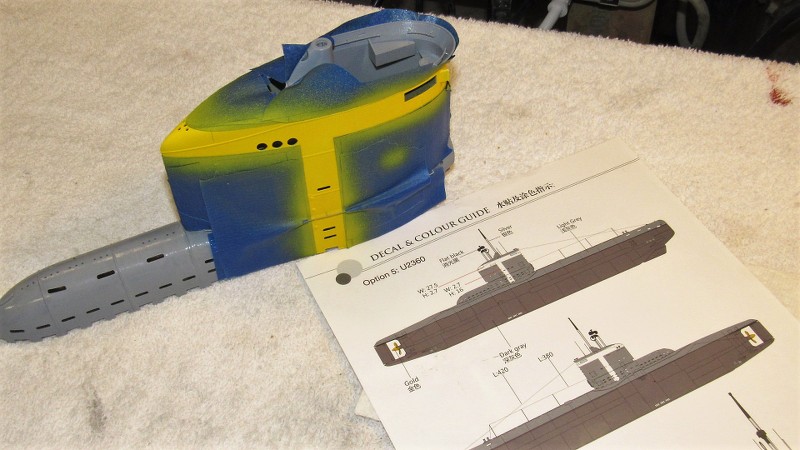

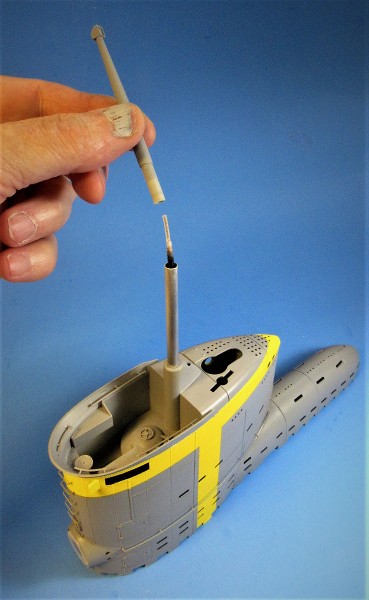

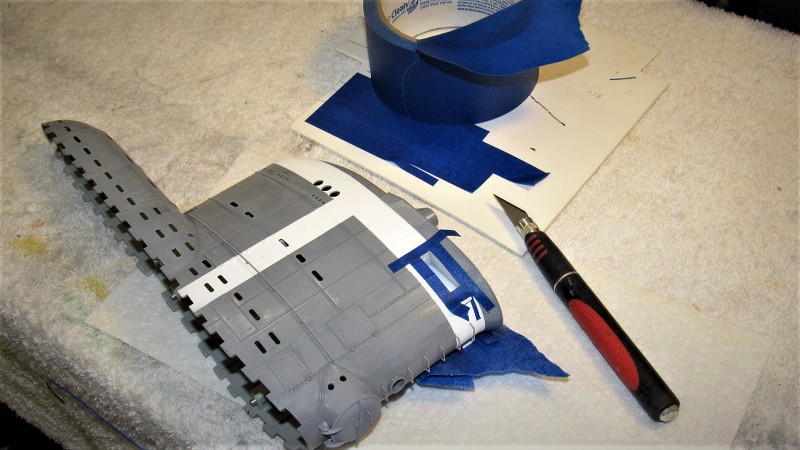

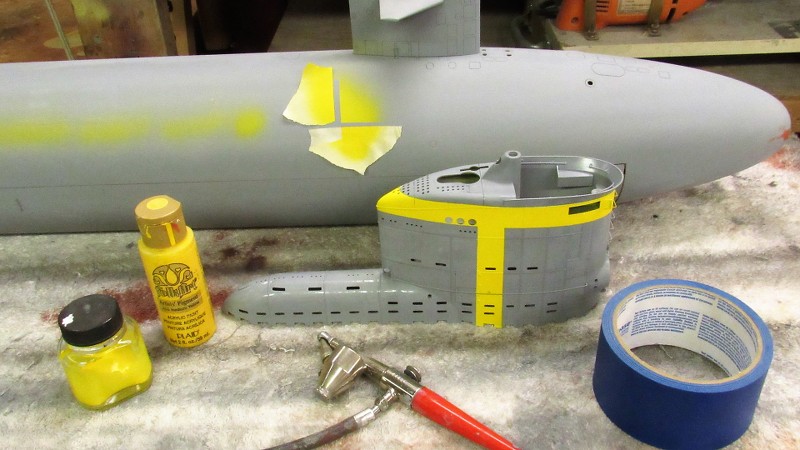

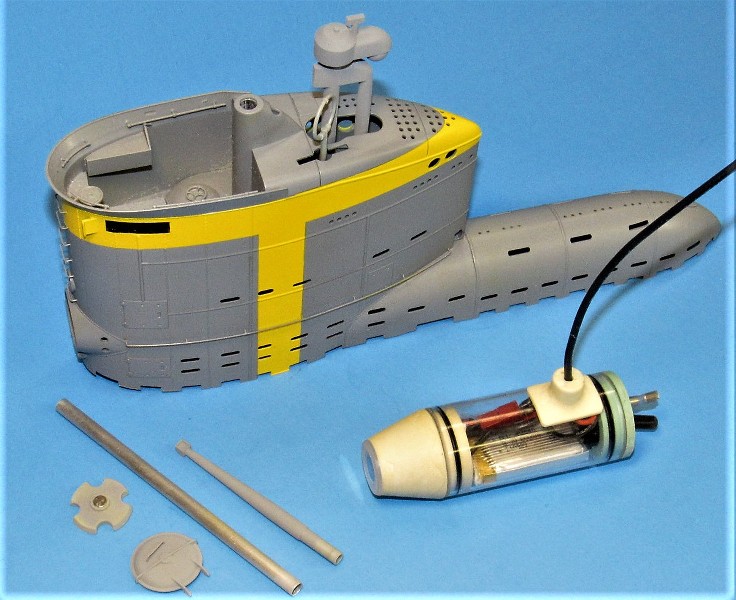

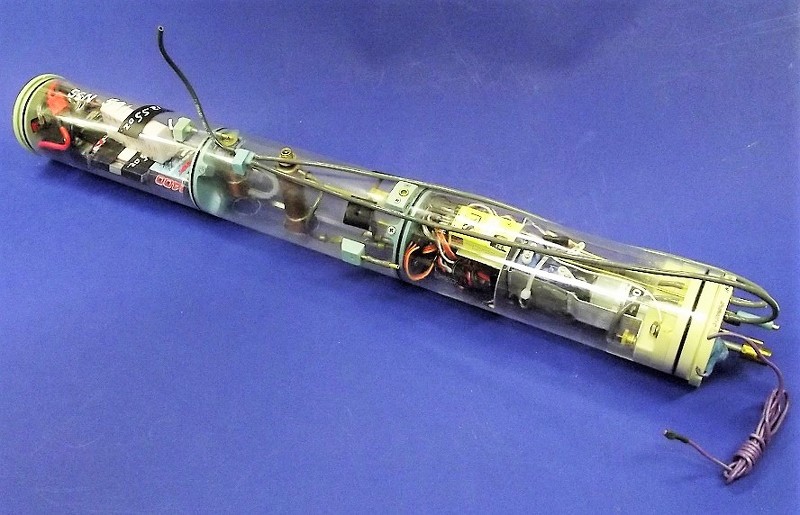

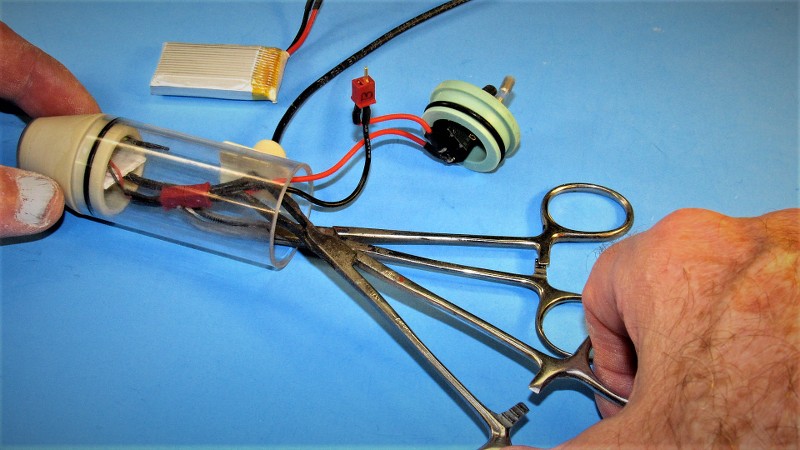

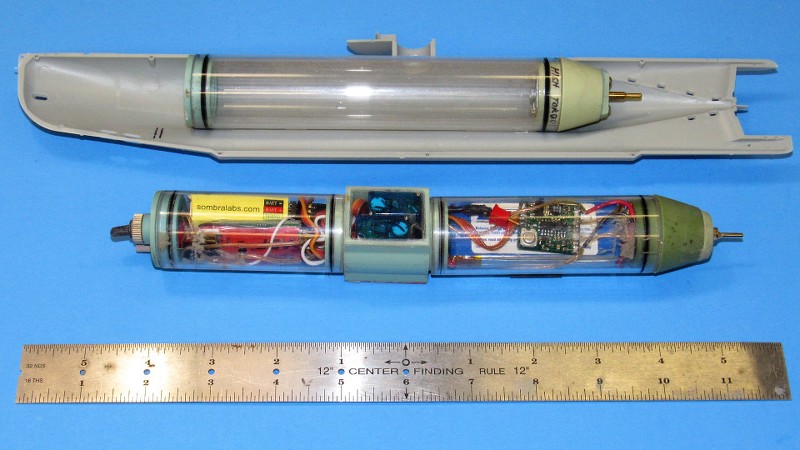

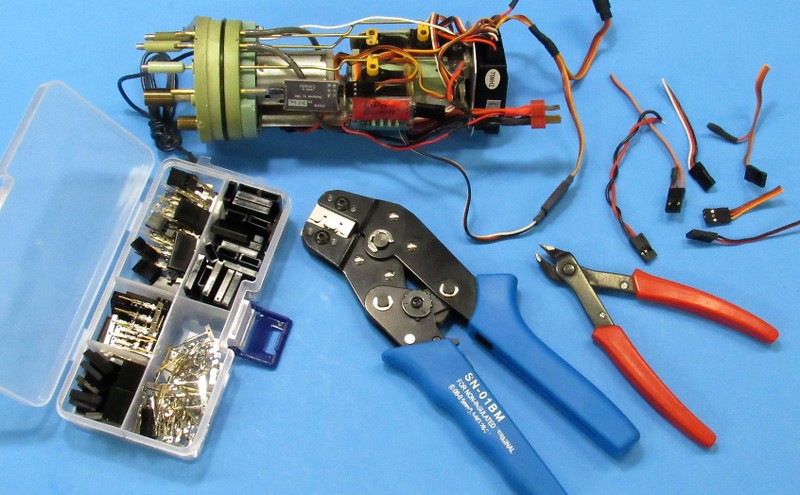

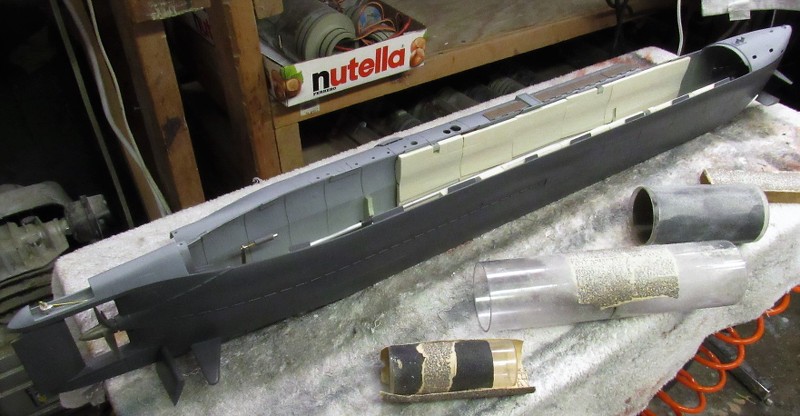

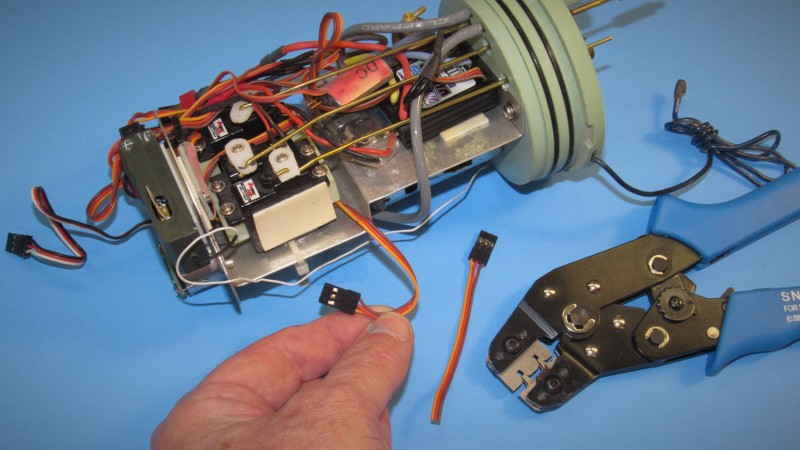

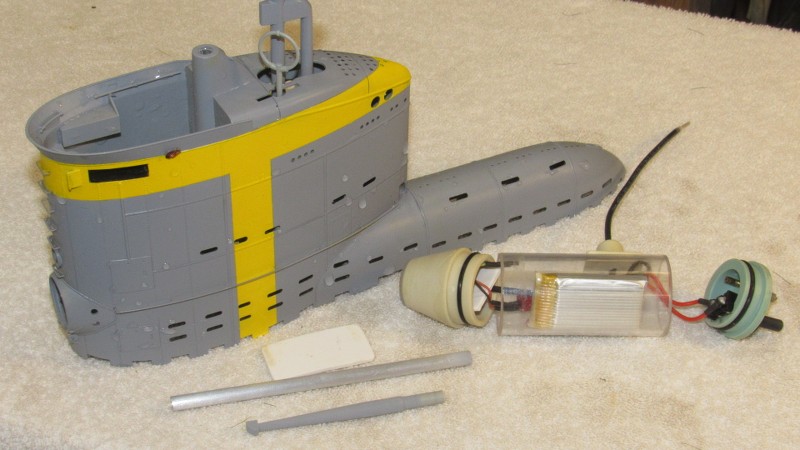

Two of my old watertight cylinders (WTC) were recently pulled out of long-term storage and readied for shipment to new homes. The 2.5" diameter unit was unique in that it had three motors and was used aboard my 1/72 FOXTROT class model. The smaller, 2" WTC, featured two motors and that unit used aboard my little 1/72 Type-7 r/c model submarine.

We've been producing WTC systems for over three decades, and in that time, they have seen much improvement and enhancements. Recently I improved the seals used to make watertight the servo pushrods that form part of the model submarines control surface linkages.

I'll chronicle here the installation of those new seals as well as a quick look at what it takes to re-certify a retired and upgraded WTC for use.

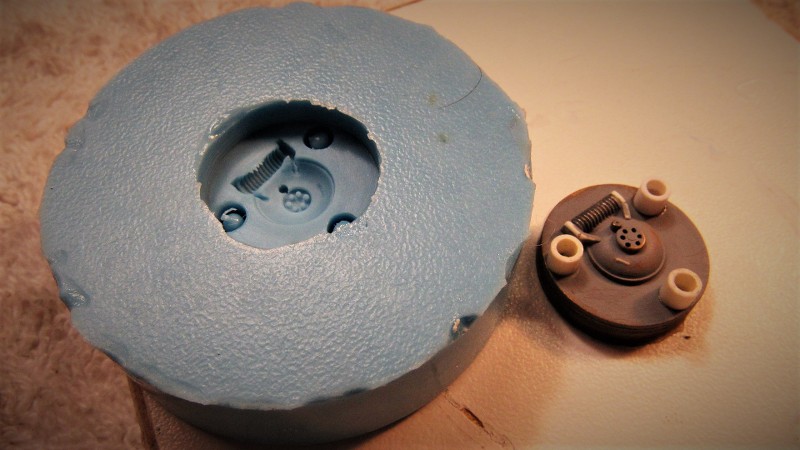

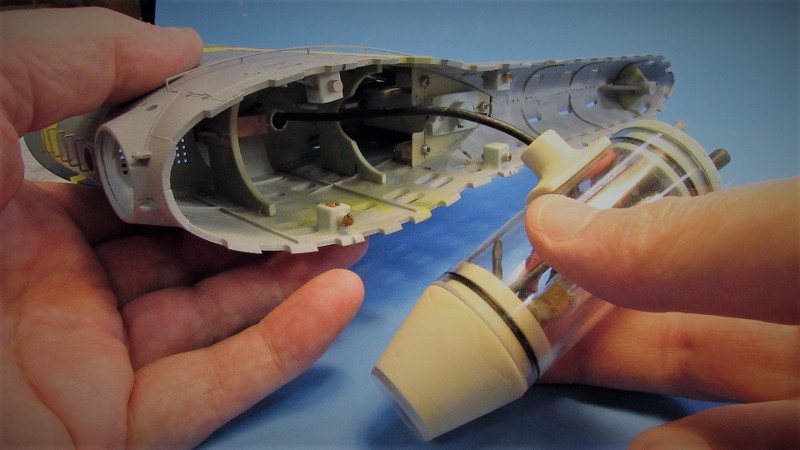

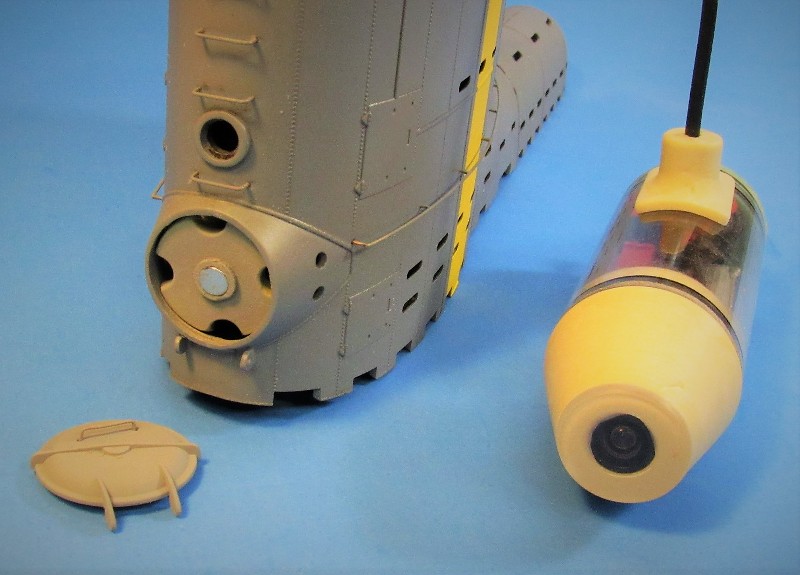

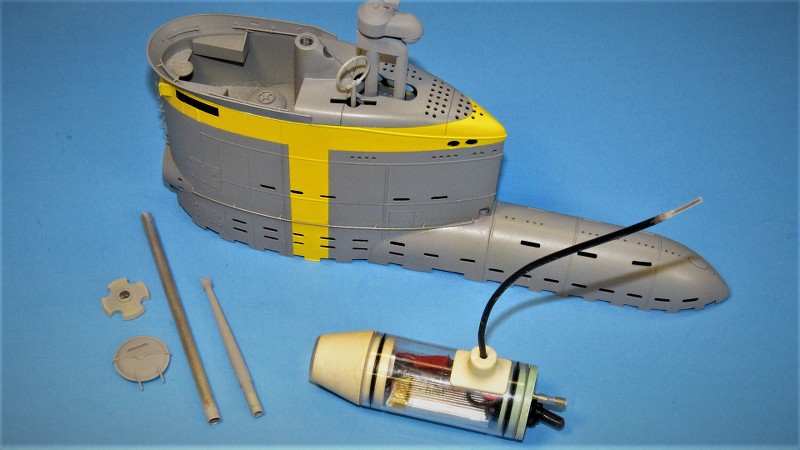

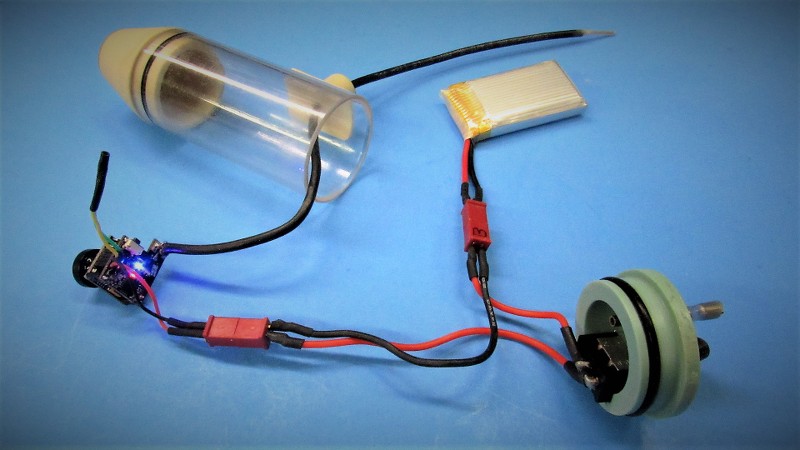

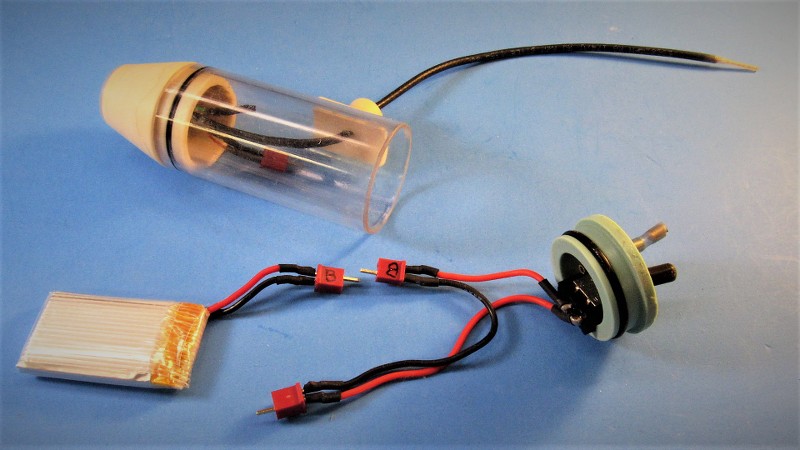

What makes r/c submarines unique from all other r/c vehicles is the need to 'keep the water out'. It's not enough to provide the watertight enclosure -- typically a length of transparent Lexan cylinder capped with cast resin bulkheads at each end -- the system also requires watertight seals to pass drive shaft(s) and pushrods. Internal bulkheads divide the system into three separate compartments: forward dry space, where the battery and mission switch reside; ballast tank; and after dry space, where most of the control and propulsion devices are located.

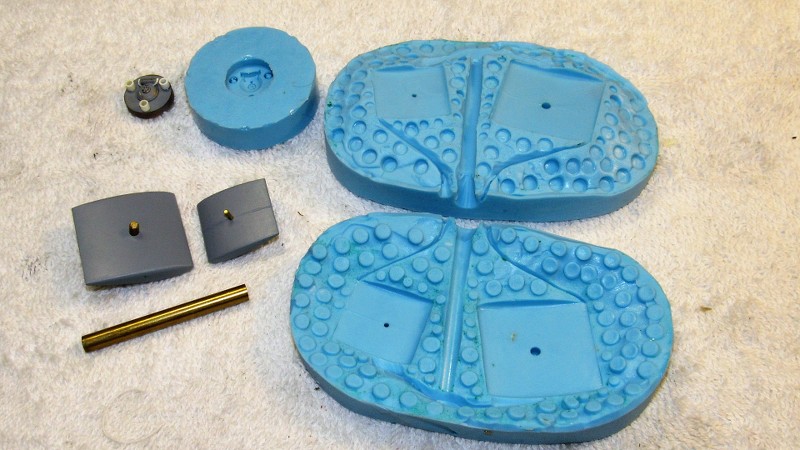

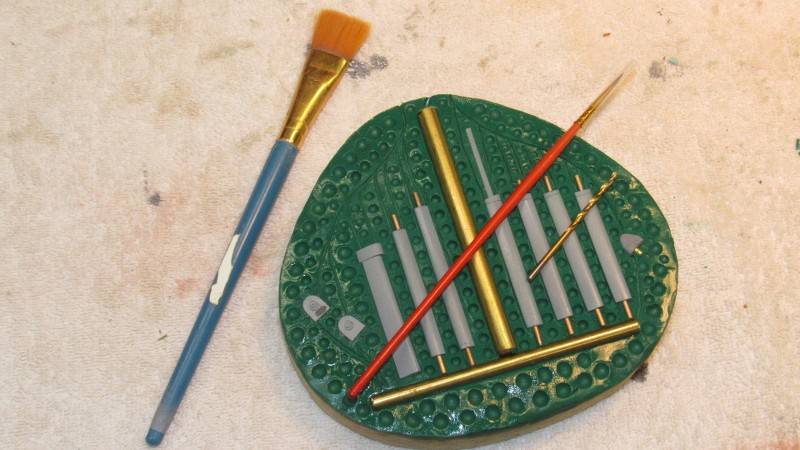

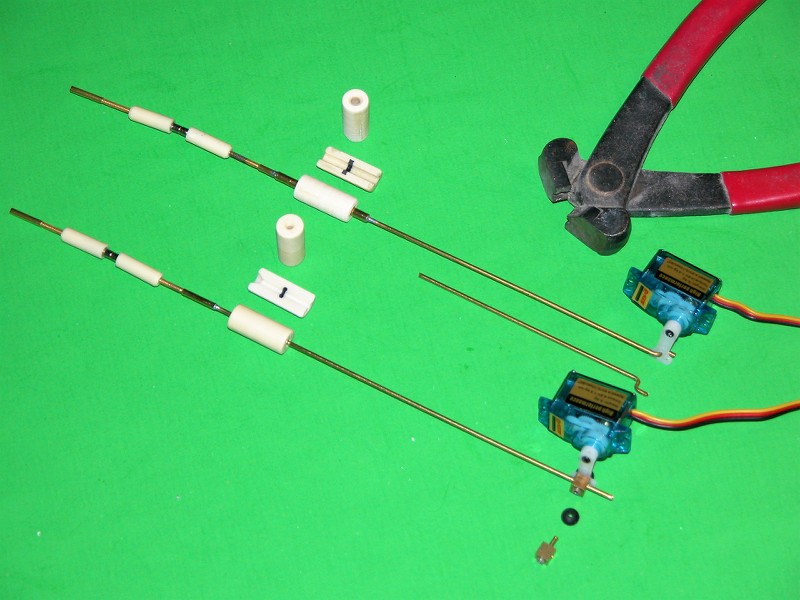

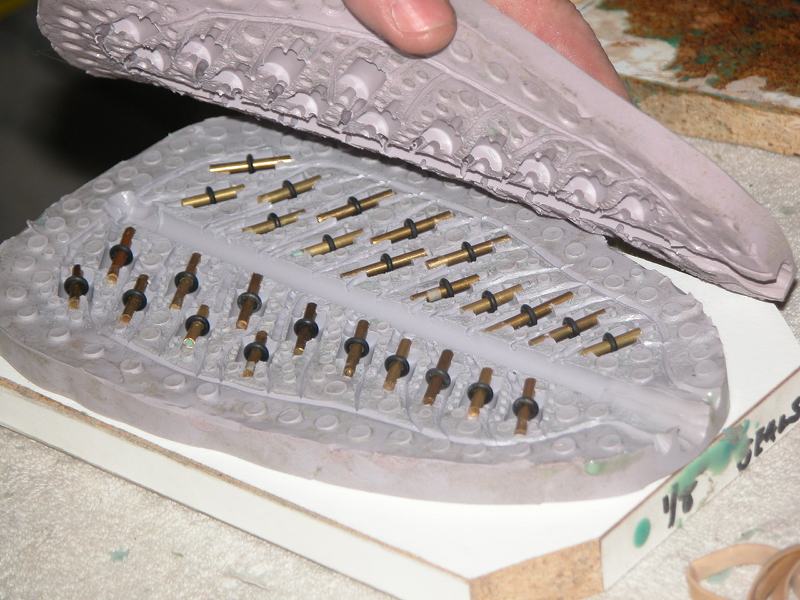

About twenty-five years ago I started mass producing pushrod seals through the expediency of casting an O-ring within a resin body.

Typically, this type of pushrod seal is secured within the after 'motor-bulkhead' of the system with RTV adhesive. The RTV around the seal body, and the O-ring within the bore of the seal effecting a water barrier between sea and WTC interior. The internal O-ring making an interference fit between itself and the pushrod. However, the use of only one O-ring, over time, results in a loosening of the fit between seal and pushrod and leaking results. Recently I resolved this pushrod seal design shortcoming by simply employing two, not one, O-ring within the seal body.

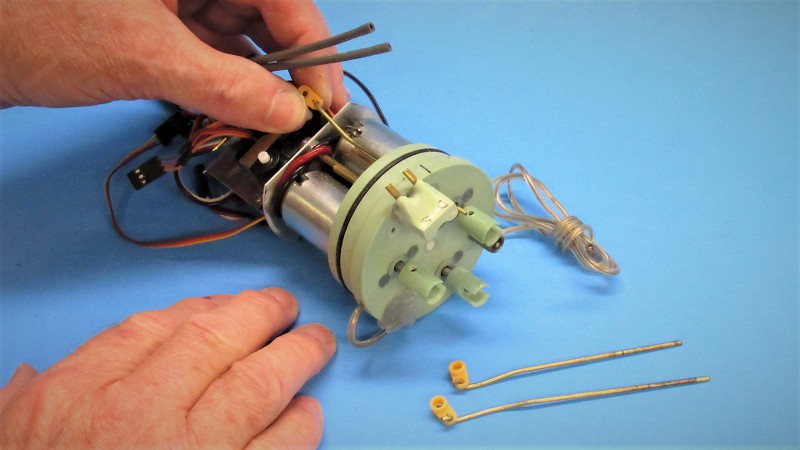

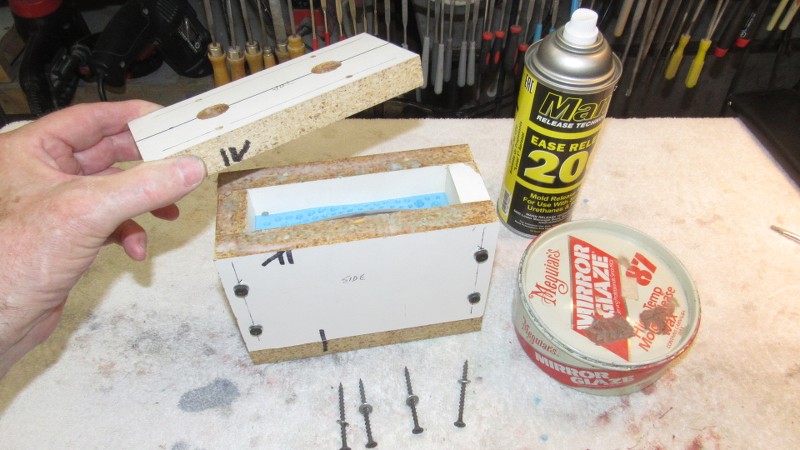

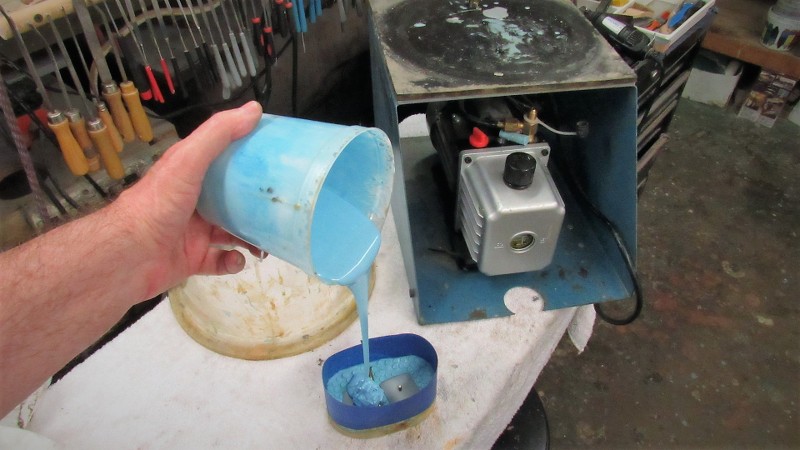

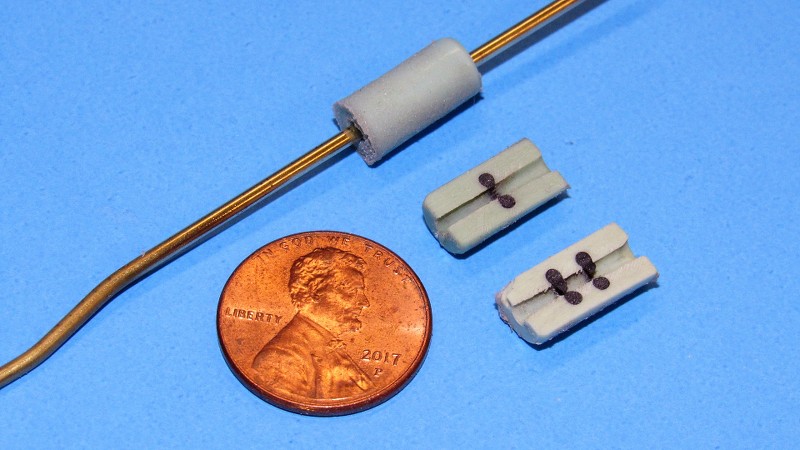

And here you see the difference between the two versions of the pushrod seal. No need to create new tooling for the upgrade. Just jam in two instead of one O-ring during tool preparation. Make the pour and extract a dual O-ring pushrod seal. Simple as that!





The single and dual O-ring pushrod seals share the same body geometry. Only difference is the number of encapsulated O-rings within.



This particular motor-bulkhead featured three direct-drive 380 sized motors that drove my 1/72 FOXTROT model. A friend needed it for his recently completed FOXTROT model -- I had not operated my FOXTROT WTC for over ten-years, so I sent it somewhere where it would see further good use.

(I pulled the 75mHz receiver from that WTC and kept it for myself. Yeah! Oh? well... screw him, tough shit -- he can come up with his own receiver. 75mHz equipment is no longer in production and has to be husbanded... 'My Precious!!').

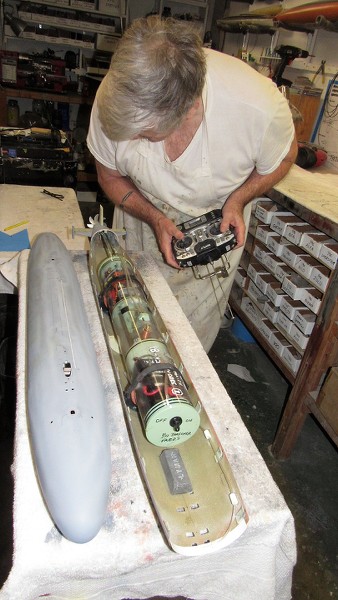

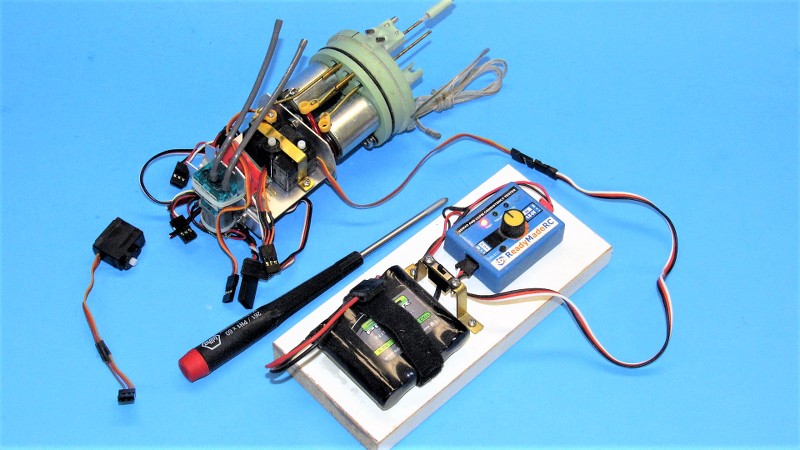

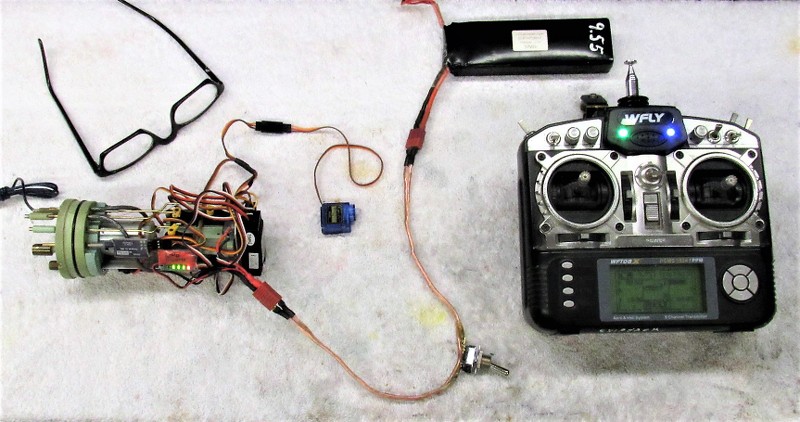

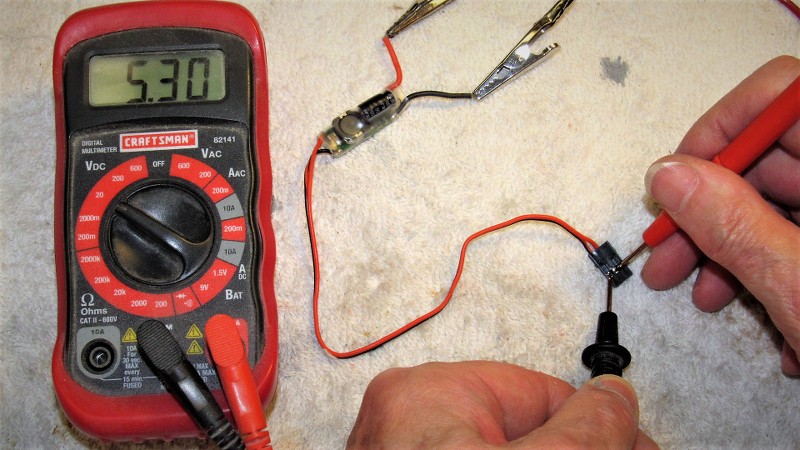

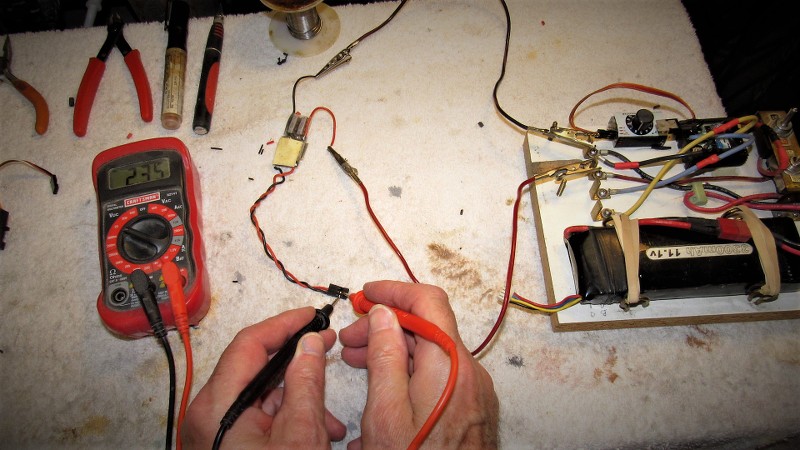

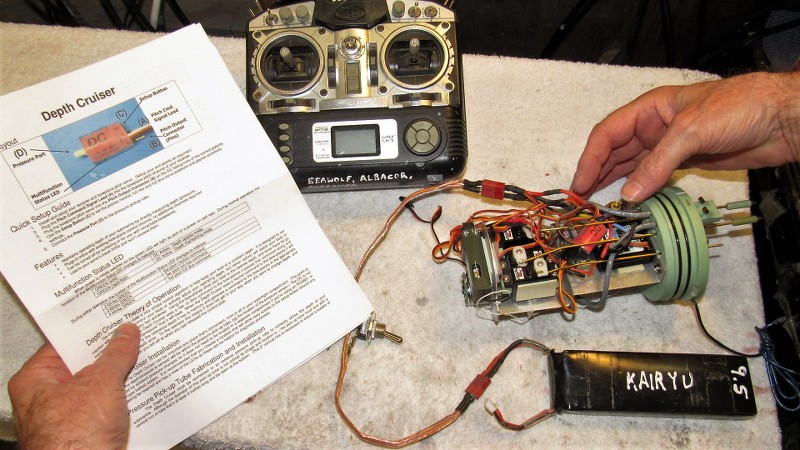

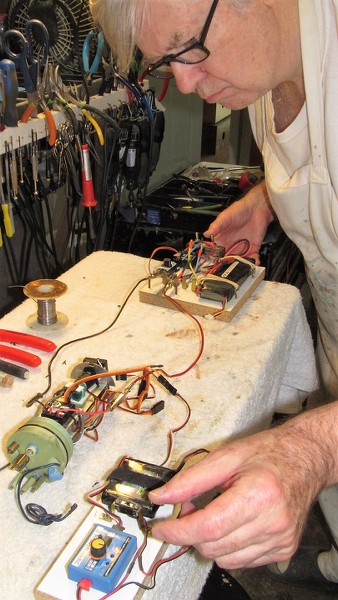

So. re-certification started with a function test of all the devices: servos, angle-keeper, battery monitor-fail safe, electronic speed controller, low pressure blower, and battery eliminator circuit. During those checks I found that the rudder servo was dead... tits-up... deceased... broke-dick... kaput!... had assumed room temperature.

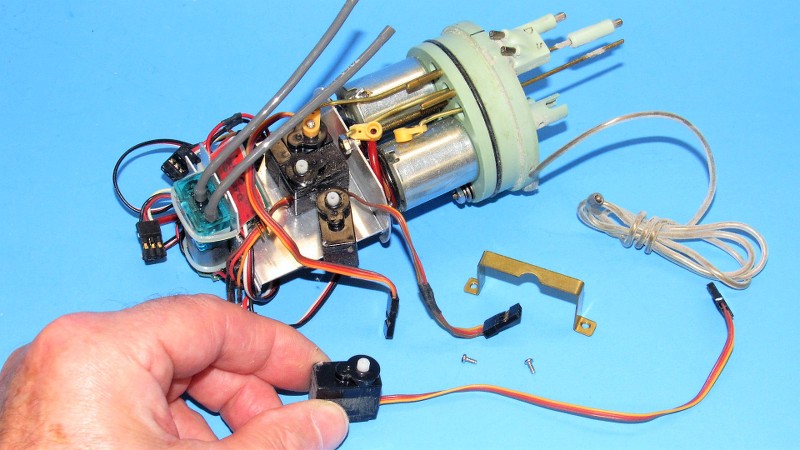

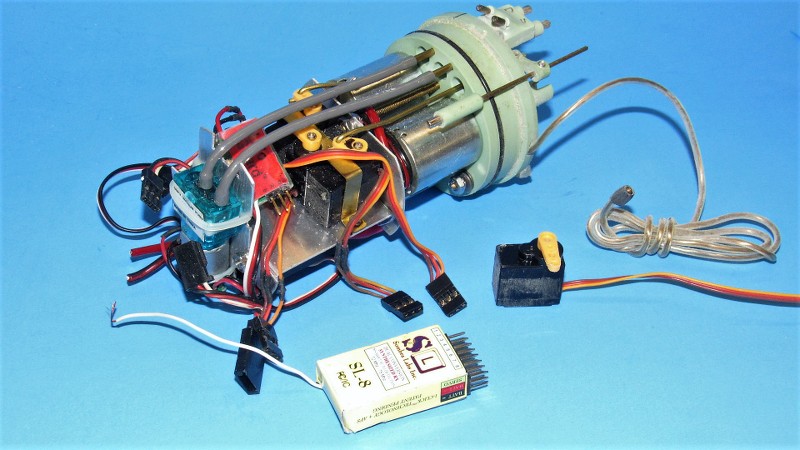

Here, just forward of the pulled receiver, you see the replacement servo ready to be installed.



Replacement of the bum servo started with removal of the control horn and pushing it and attached pushrod aft and out of the way. Then the brass retaining strap was removed. It was then a simple matter to yank the offending servo -- hurling it viciously against the shop wall -- and install the good servo. The strap was made up. Hobbies are great stress relievers!



The newly installed servo is tested after being cinched down with the common brass strap used to hold all three servos down securely on the device tray.

Note that two of the pushrod horns have already been popped off their servos and those pushrods pushed well aft. The after ends of the pushrods are now well clear of the after face of the motor-bulkhead, this to permit application of a torch flame without damage to the motor-bulkhead itself.



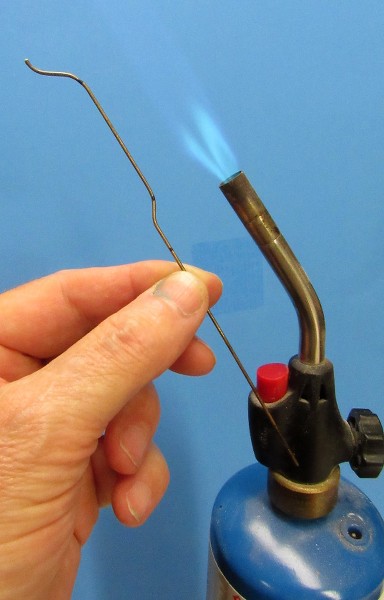

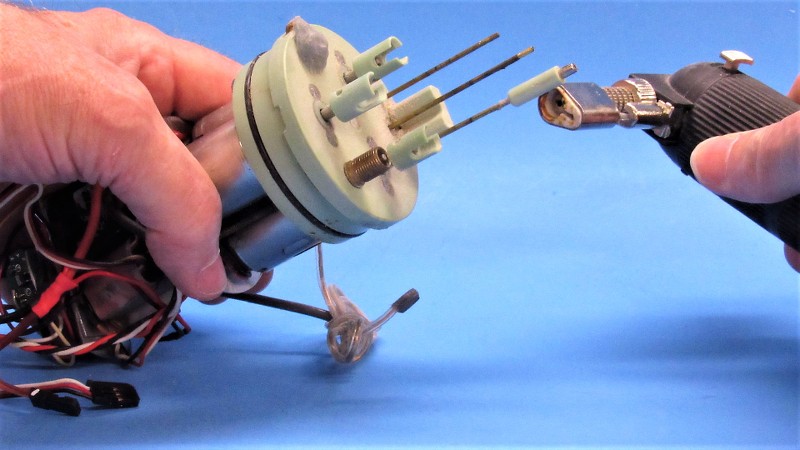

In order to pull the pushrods out of their respective seals I had to clear the magnetic couplers from the after, wet side of each pushrod. I applied heat to an extended pushrod with a torch till the CA holding the magnetic coupler failed. With a little care, by pulling the pushrod aft as far as possible, provides enough distance between torch flame and motor-bulkhead to prevent damage to both motor-bulkhead and magnetic coupler, as you see in this picture.



The bare pushrods were then pulled forward and clear of the seals and motor-bulkhead. If need be, to protect the after face of the motor-bulkhead from flame, a wet hunk of rag would be used as a heat-sink/flame barrier.



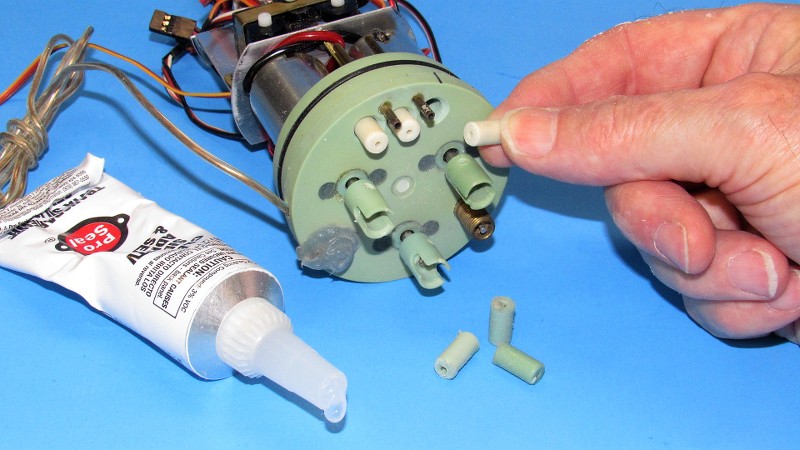

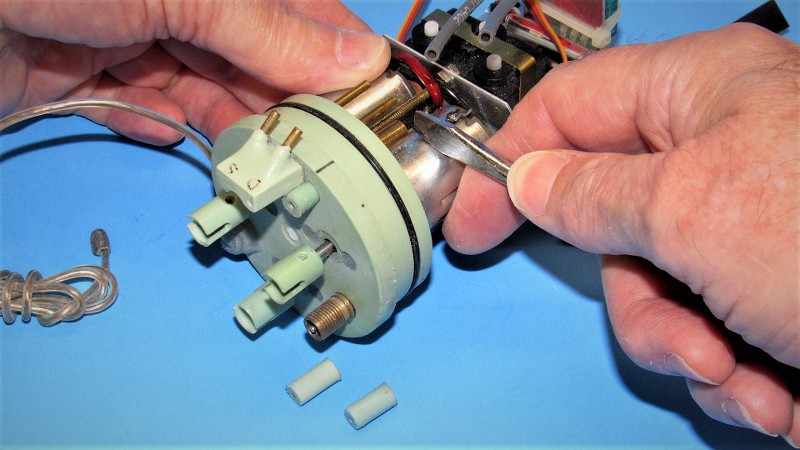

Popping out the old, single O-ring, pushrod seals was an easy mater as they are secured and made watertight within the motor-bulkhead by flexible, relatively weak gripping RTV silicon gasket-making 'glue'. You see me using a short length of brass .25" rod as a pushpin to force each seal aft and away from the motor-bulkhead. Easy-peasy.



Swap out of the three pushrod seals was a straight-forward operation and only took a few minutes.

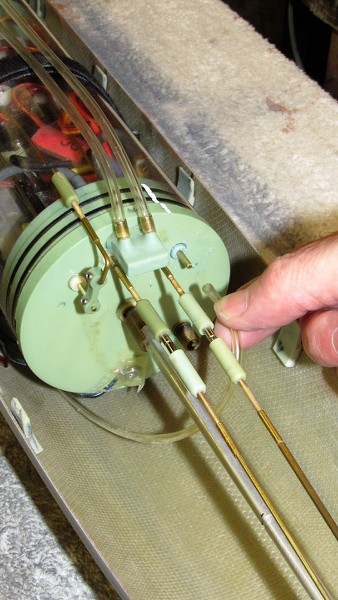

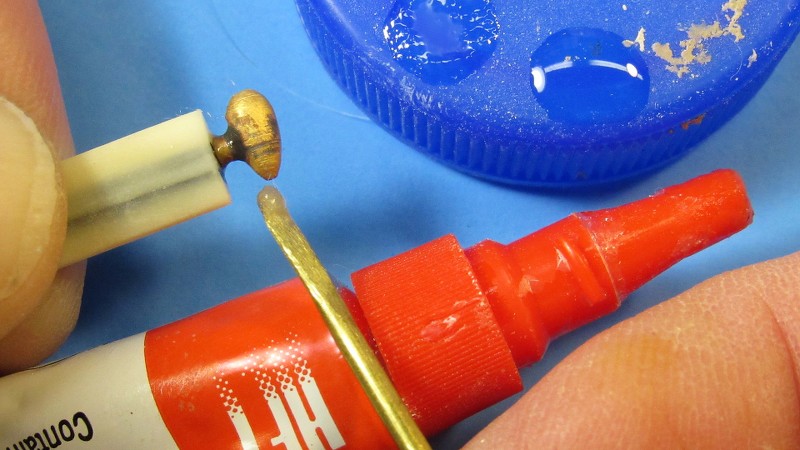

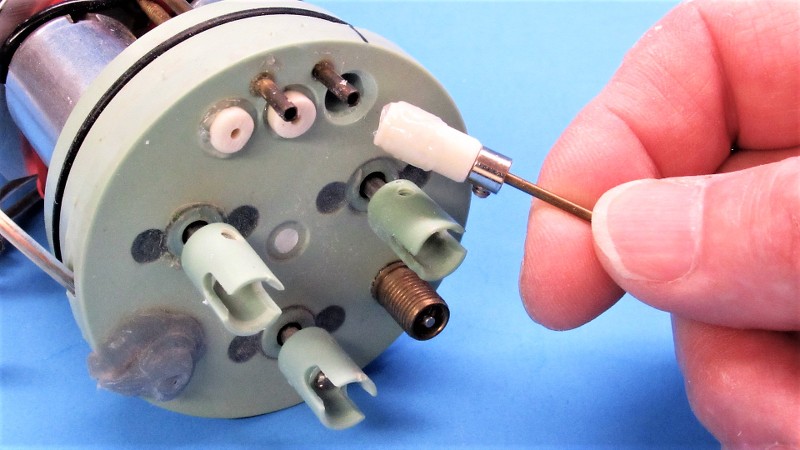

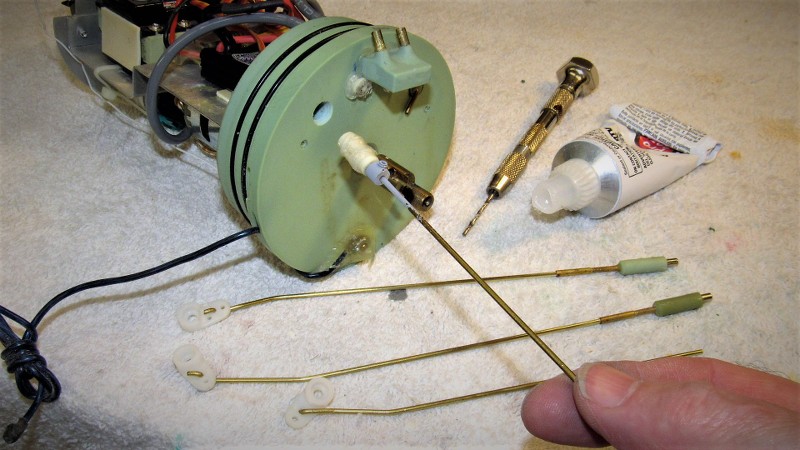

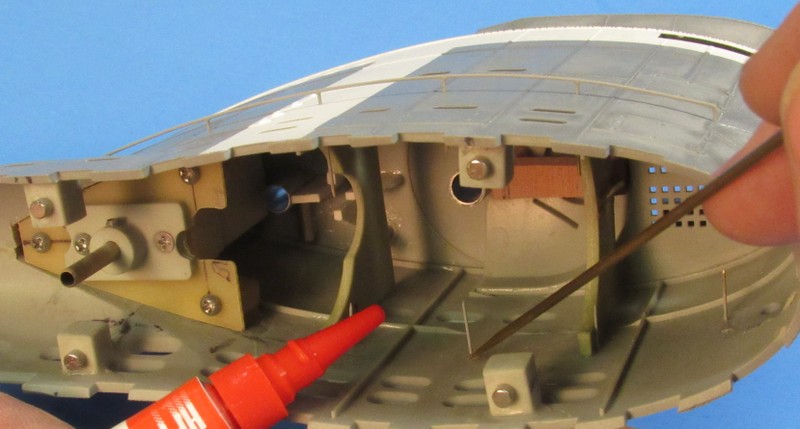

A length of .063" brass rod was used as an 'insertion tool'. I mounted a seal on it, slathered on some RTV, then jammed that sucker in there! Didn't even have to buy it dinner!



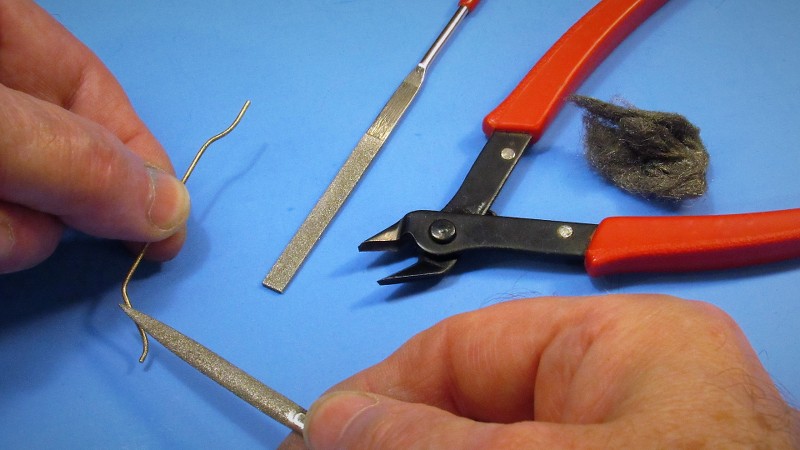

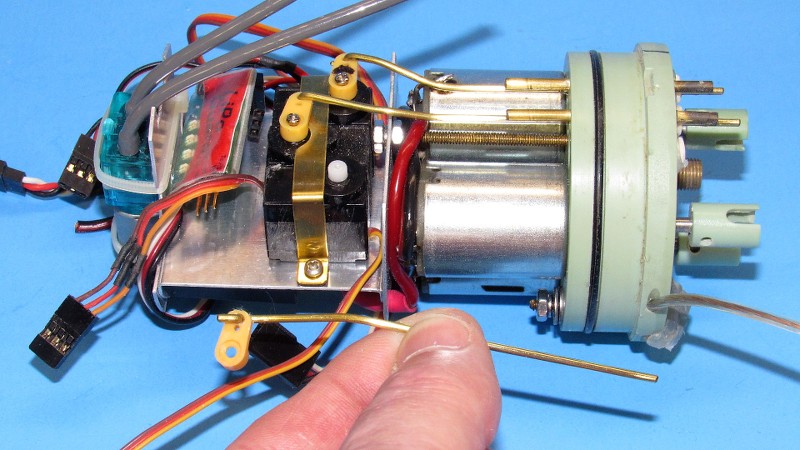

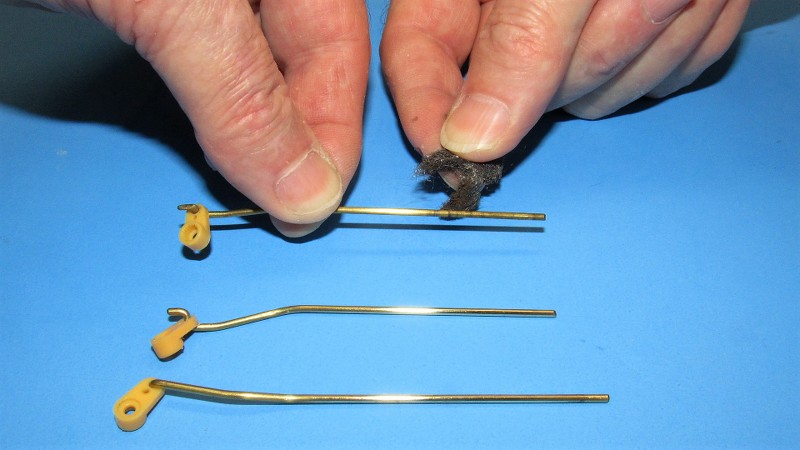

Before re-inserting the pushrods, I cleaned them up with a wad of '000' steel wool. Each was then coated with silicon grease.



... and inserted.



The same operation done on 2" WTC's pushrods. As each pushrod was pushed through its respective seal, and the forward control horn made up to the servo, the servo was cycled back and forth with the aid of a 'servo setter'. Any binding between pushrod and seal was reduced by careful bending of the pushrod, up-down-left-right, at its forward end. An acquired skill, I can assure you.



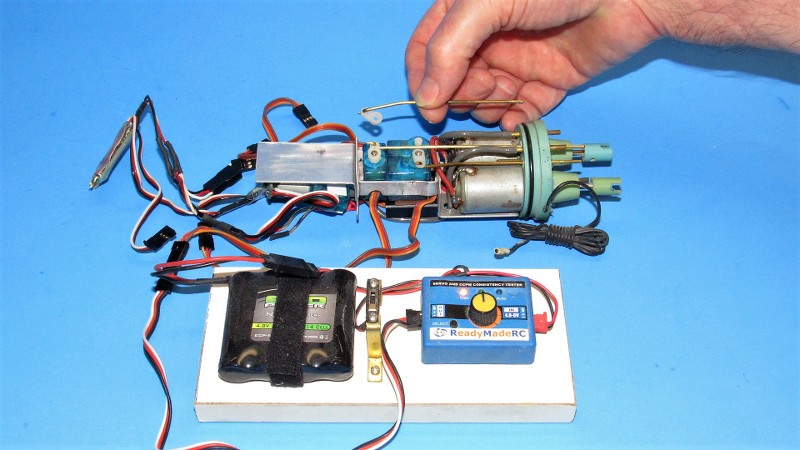

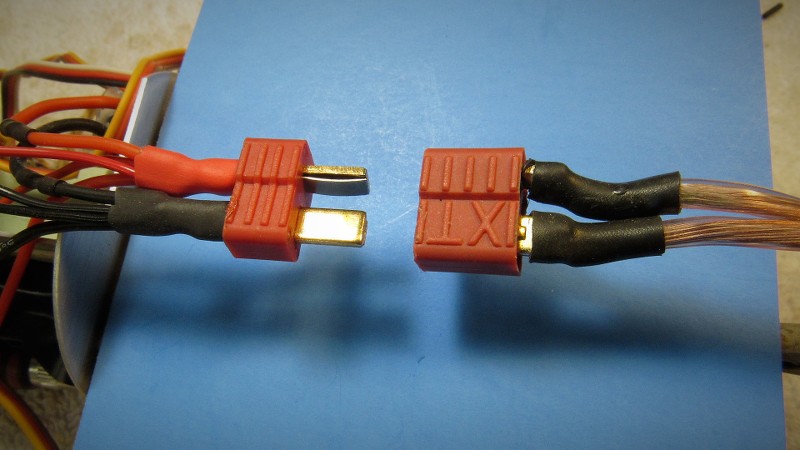

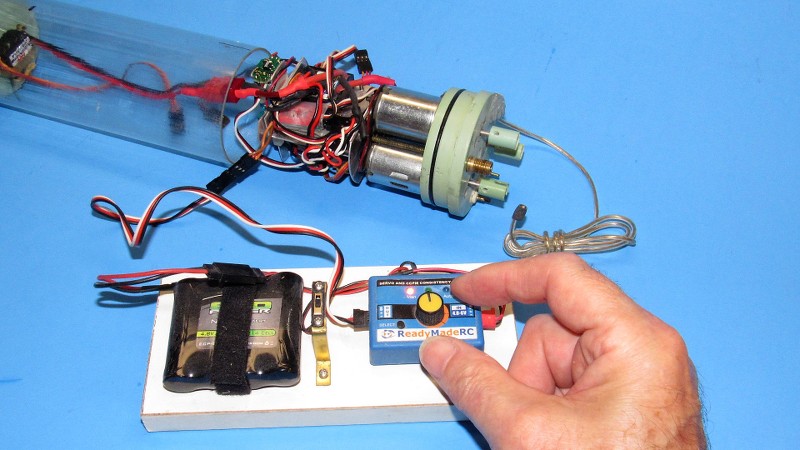

Re-certification included checking for proper motor and drive-train operation. The propulsion battery was hooked up to the ESC, and the servo setter made up to the ESC's lead that normally would make up to the receiver. In this usage the servo setter is used to command motor direction and speed, just as though you were using the transmitter throttle stick -- but without all the hassle of breaking out the transmitter and hooking in the (now removed) receiver.

Testing of the LPB was done the same way.

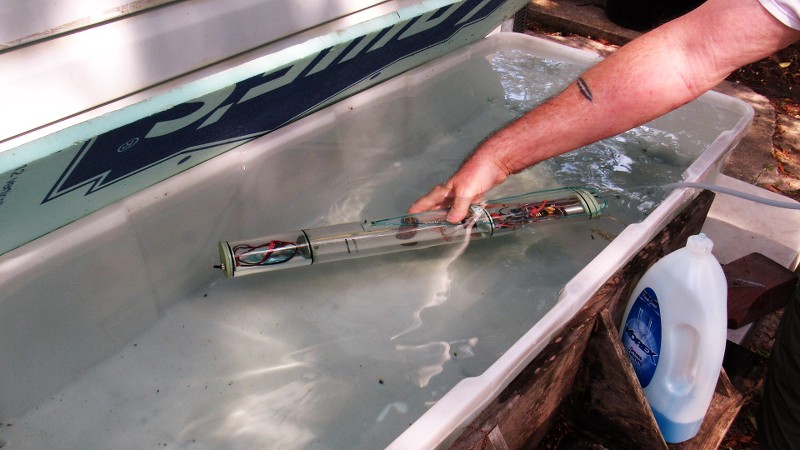

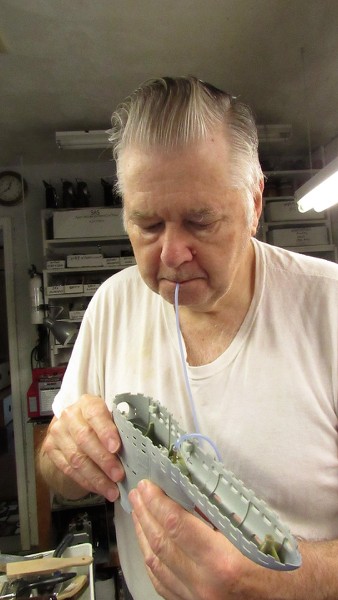

The WTC mechanics all in working order, the last step to re-certification is a leak test. The equalization valve (a common Schrader, tire-valve), projecting from the wet side of the motor-bulkhead, had its core removed and a flexible hose slipped over the valve body. This permitting me to blow air into the cylinder. The WTC was immersed completely in water as I blew into the hose and looked for air-bubbles escaping from the system. Most leaks result from gaps between a seal body and bulkhead -- these are fixed by dabbing a small amount of RTV sealant over the offending area and drawing a suction on the test hose to draw the sealant into the void. A few minutes later the water test is repeated to affirm a watertight system.

And I'm done.




[/URL]


























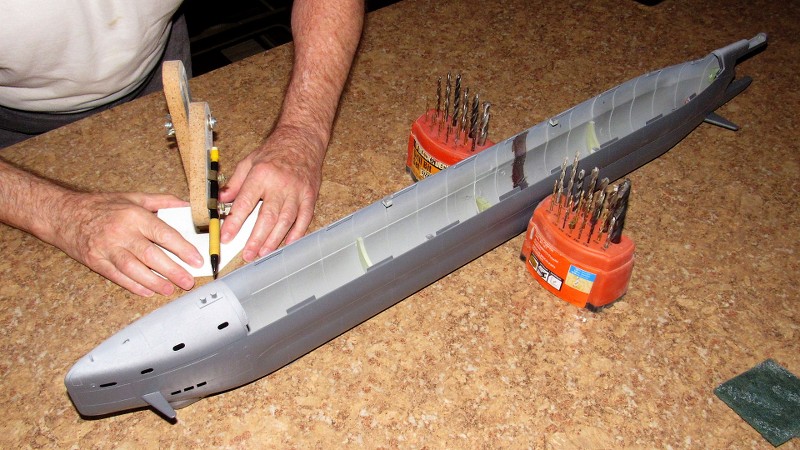

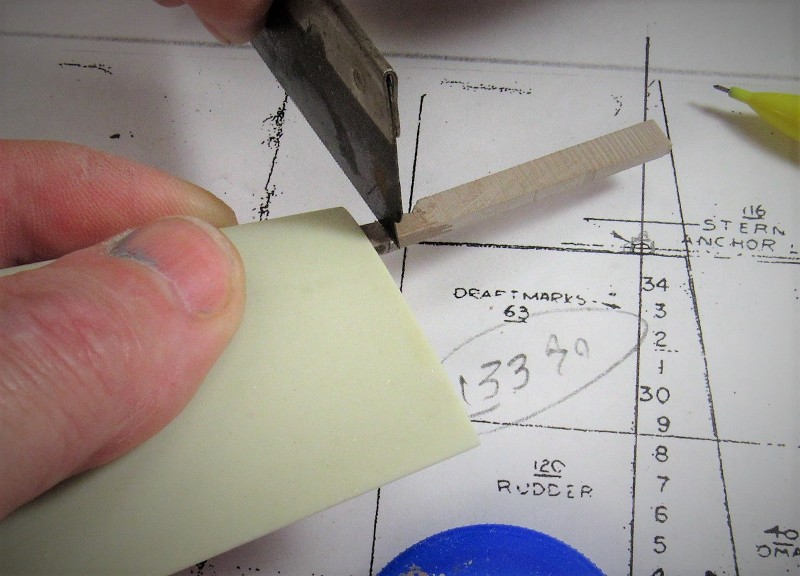

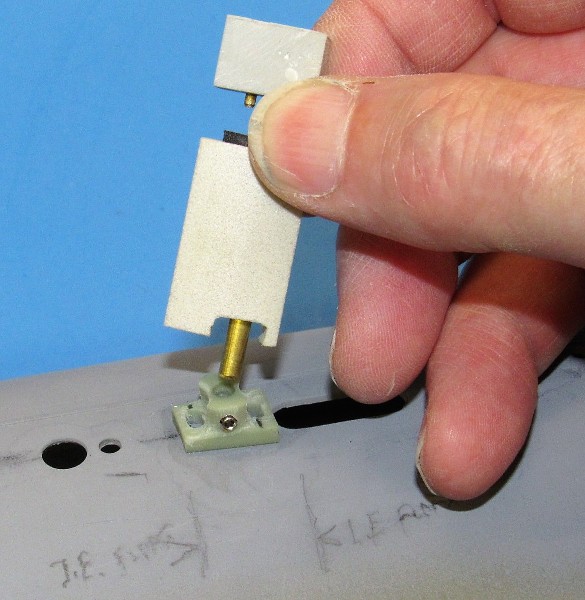

Some interesting detail images there.

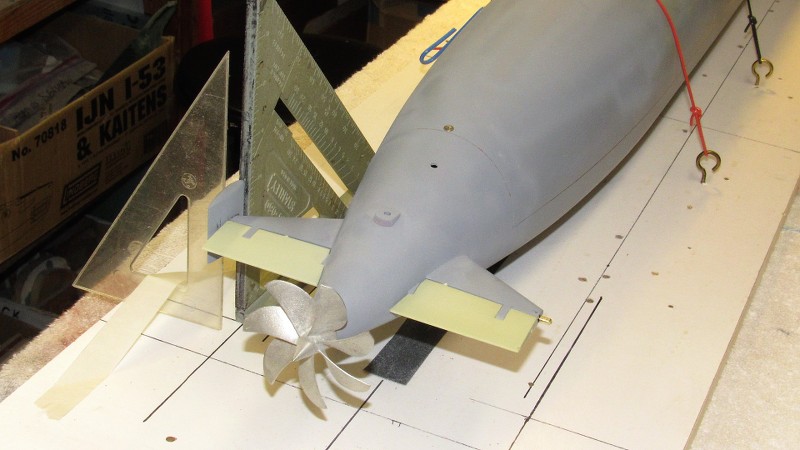

Am looking at those triangles and smiling since mine from school in the 1980s are presently on the model boat building table in the other room. They are rather handy things, especially for "off label" uses.

Some interesting detail images there.
Am looking at those triangles and smiling since mine from school in the 1980s are presently on the model boat building table in the other room. They are rather handy things, especially for "off label" uses.
No stepper-motors, or numerically driven robots of any kind in this shop!

Old-School. I still use factory equipment though: My brain and hands.

David

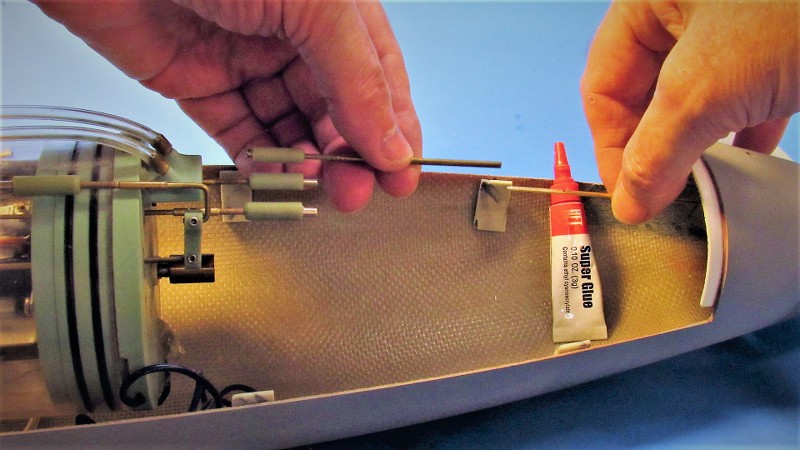

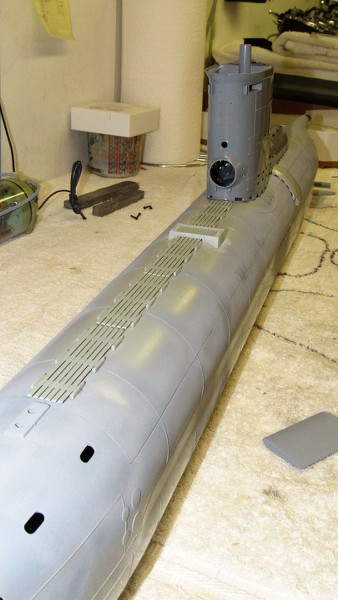

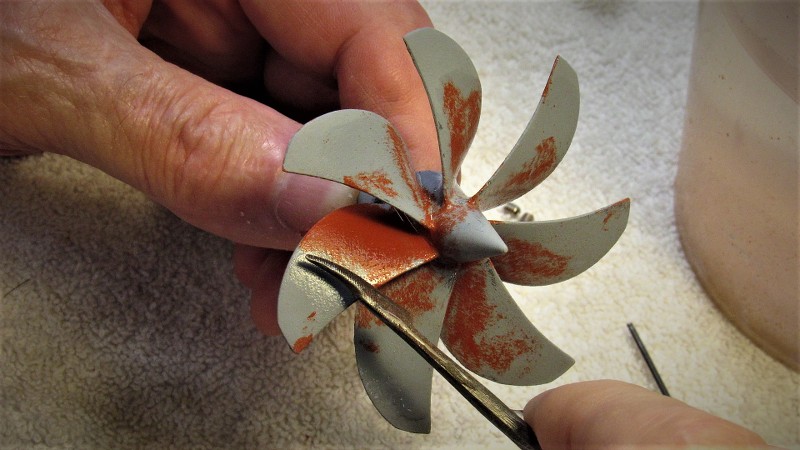

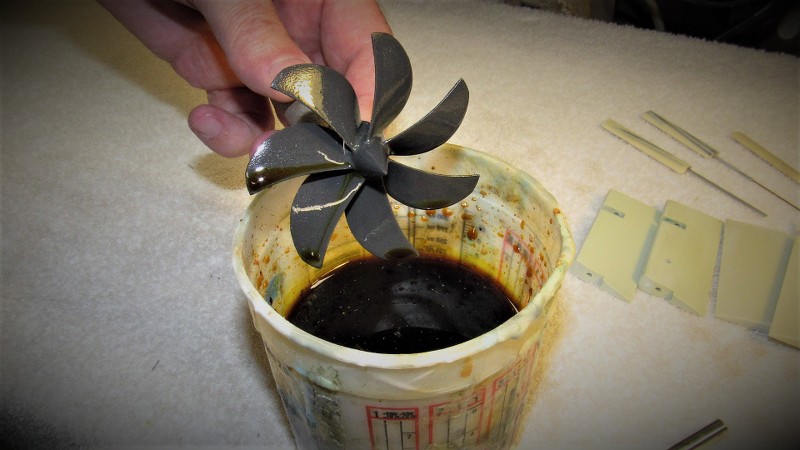

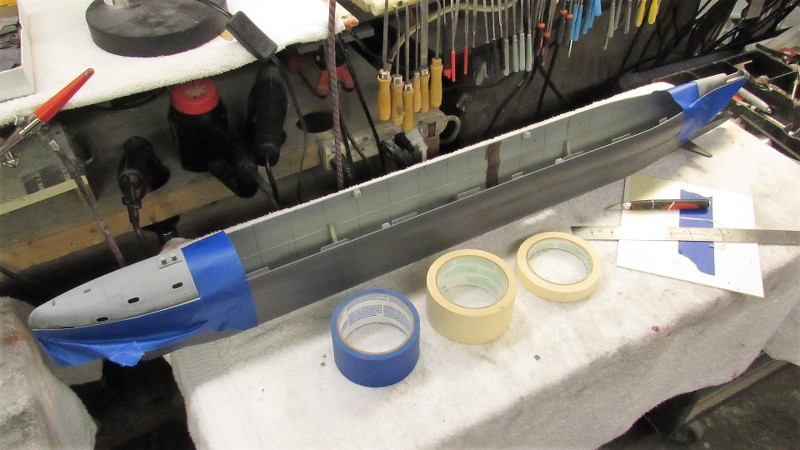

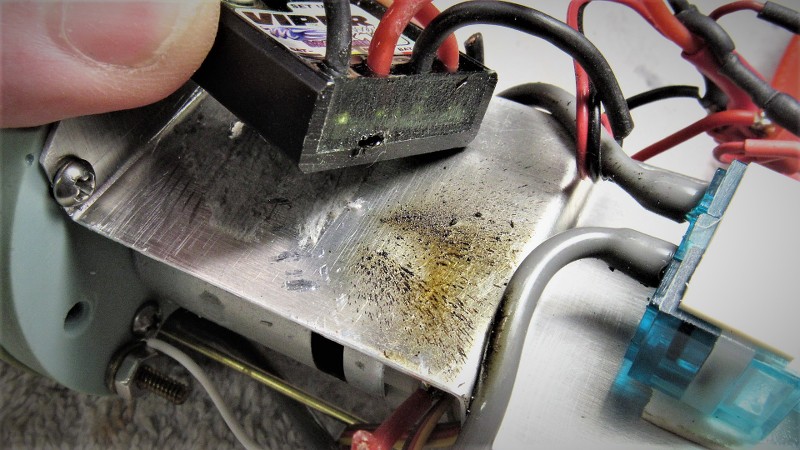

Progress just keeps happening, cool stuff. :cool:

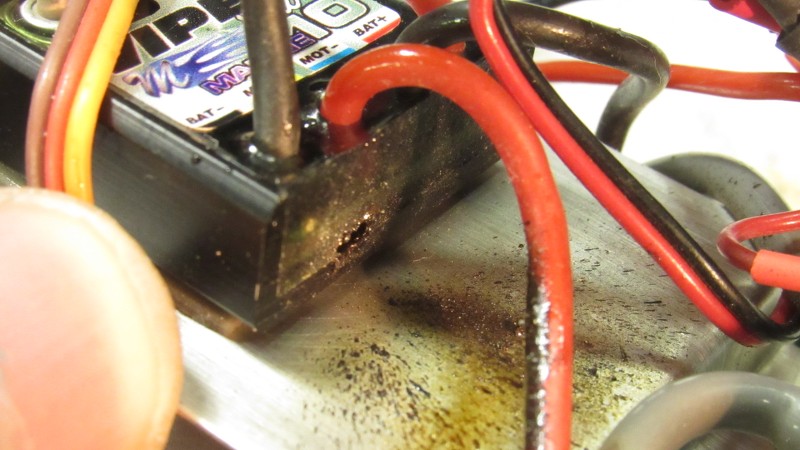

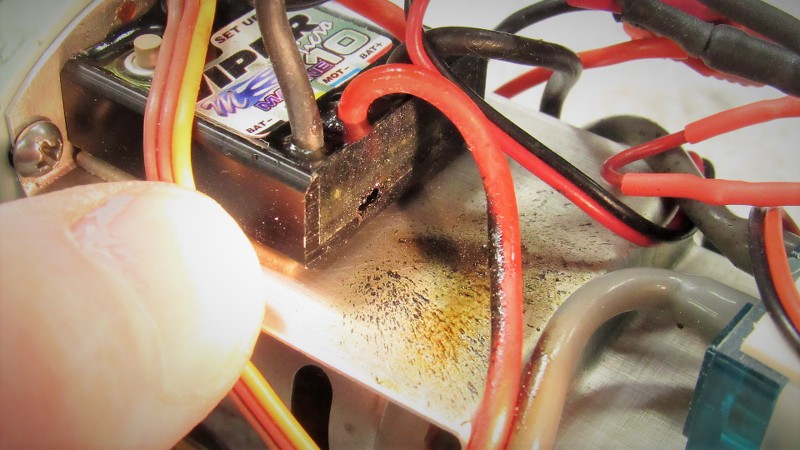

Even with the occasional electronic misadventures.

Looking several posts back up the line at that U connecting the stern planes brings to mind that a rubber band powered Jules Verne Nautilus I'm intending to build over the fall and winter is going to require similar for its not-literally-by-the-book dive planes.

Probably use brass rod or more likely bar stock for that.

Progress just keeps happening, cool stuff. :cool:
Even with the occasional electronic misadventures.

Looking several posts back up the line at that U connecting the stern planes brings to mind that a rubber band powered Jules Verne Nautilus I'm intending to build over the fall and winter is going to require similar for its not-literally-by-the-book dive planes.

Probably use brass rod or more likely bar stock for that.

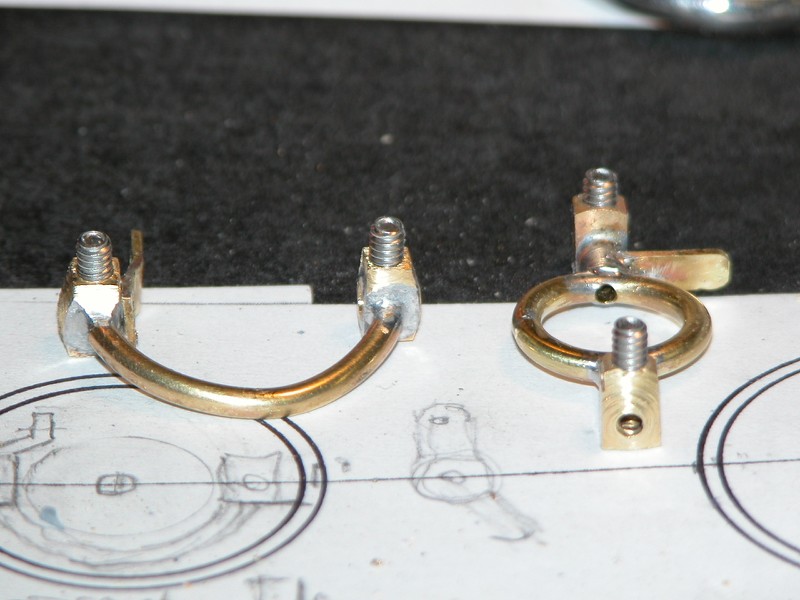

Brass rod and wheel-collars does it for me most of the time for one-off work.

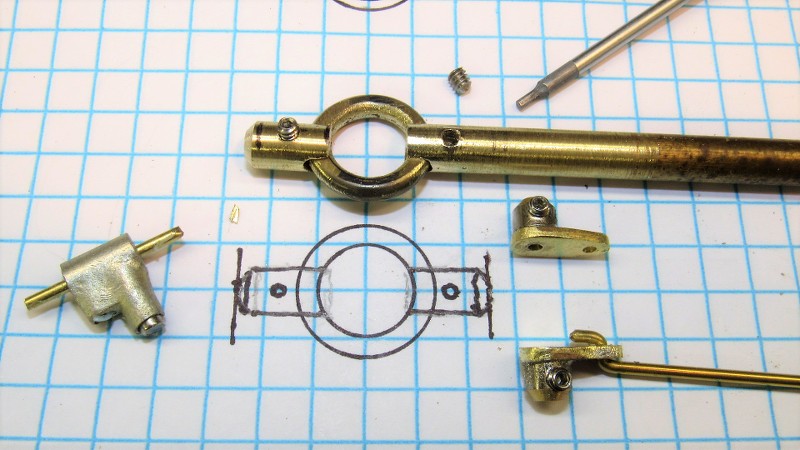

For production yokes (usually an element of a plastic model kit 'fittings kit') I make the yoke from cast white metal, and more of a functional form. II start with a large diameter operating shaft collar, bore, drill, and tap it for the control surfaces operating shaft setscrew, then turn down most of the collar to suit the diameter of the 'U'.














Thanks for the look at that nice work!

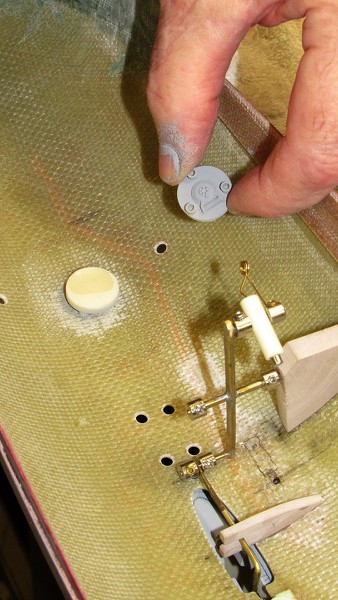

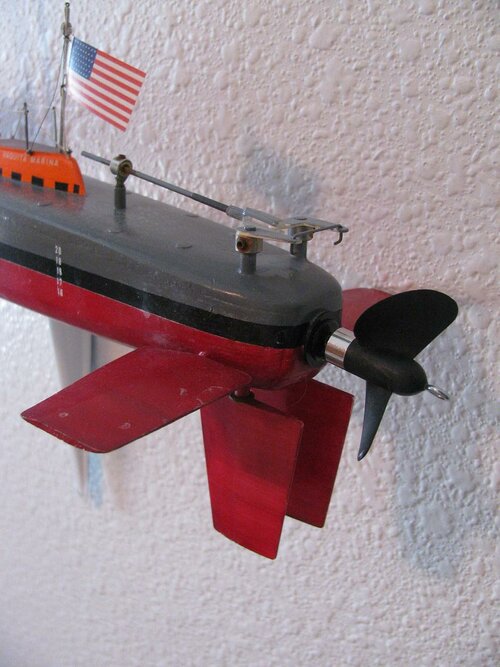

My rubber band powered balsa wood submarine, which is currently watching 2 others be built, has a simple wheel collar lock for the rudder arm.

Planes are held to setting by friction fit.


Attachments

  • IMG_8078.JPG
    124.6 KB · Views: 14
Thanks for the look at that nice work!

My rubber band powered balsa wood submarine, which is currently watching 2 others be built, has a simple wheel collar lock for the rudder arm.

Planes are held to setting by friction fit.
That is SLICK!

More pictures of your work, please.

David

That is SLICK!

More pictures of your work, please
Thanks David! :)

Simplest way for me to offer more images is links to 2 albums on Flickr.
One album has short video of that sub getting underway.
Is ballasted to float with deck awash & uses what the RC submariners call dynamic diving.
About 30 years after parents got me the book in 4th grade in the 1970s I finally got around to building a much improved version of balsa wood sub in project plans at back of book.

Sub has been as deep as 7ft while rudder set for circle on several hundred winds of 2 loops of 3/16 tan sport rubber for stick and tissue airplanes.

It will also tag the far end of an Olympic sized pool on about 320 winds.

Prop is from a Traxxis RC deep vee which was in production 2005 when sub was made.


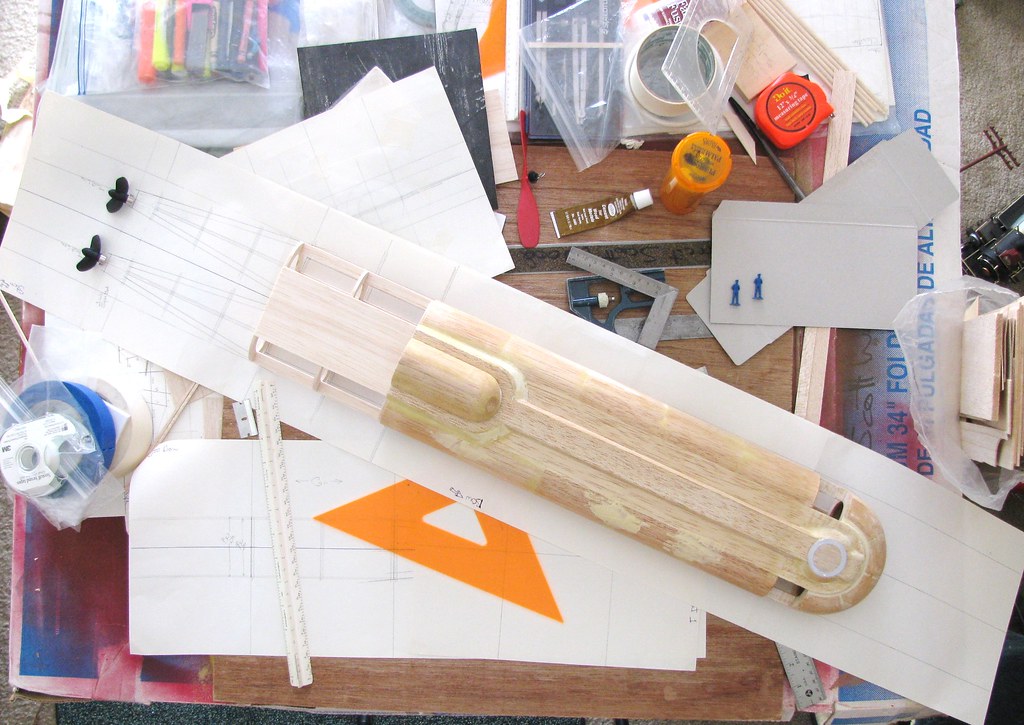

Started in 2008 and put away for a long time is a 2 screw sub inspired by hull shape of Soviet Typhoon and by shape of a Newport News/Northrop Grumman research model named NNemo 2. (yes, that's correct, 2 upper case N)


Designed but not begun is a generally 1/72 scale interpretation of Jules Verne's Nautilus - the book one, not the one from a rodent infested cartoon company in the US southwest.
It will be roughly 39 inches long with about a 4.5 inch beam.
Will have different dive planes than single set amidships as in book text.
Those will have that U yoke, pushrod, and locking wheel collar, internal to hull with center hull lifting off for access to that and for placing and replacing rubber motor.
What to do for its prop is not yet known.
