McDonnell-Douglas Model 260 VSTOL project

[Mark Nankivil]

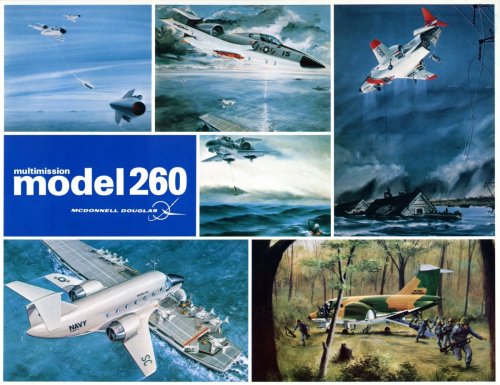

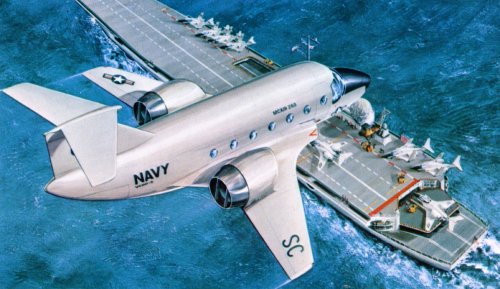

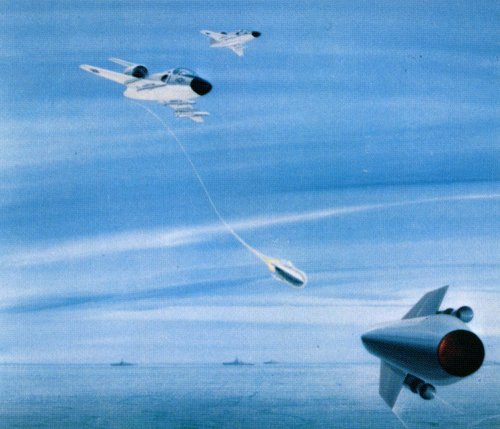

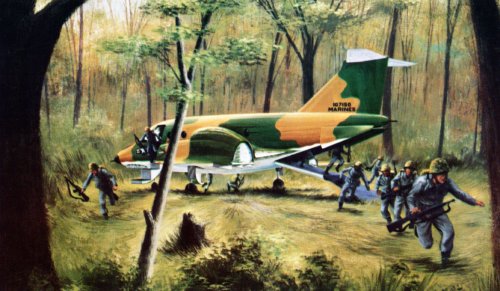

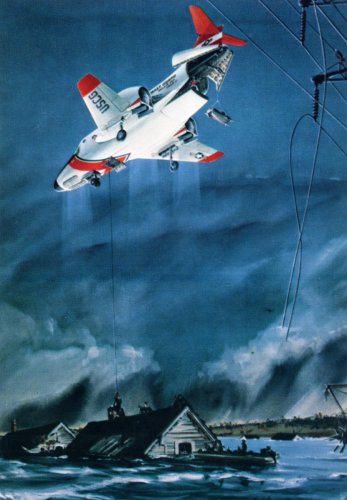

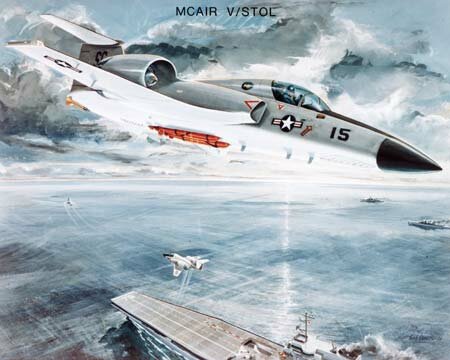

My pleasure - here's individual scans of the artwork on the info card.

Enjoy the Day! Mark



[Stargazer]

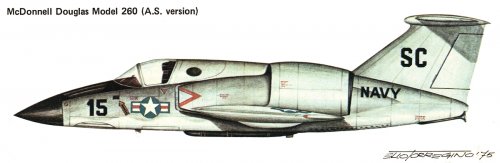

A color profile of the anti-submarine warfare variant of the Model 260 illustrated by Italian artist Elio Torregino for Interavia in 1975.



[hesham]

Hi,

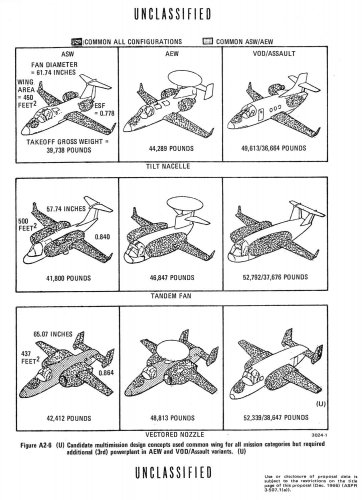

may be this was McD-260.

http://www.dtic.mil/dtic/tr/fulltext/u2/a060206.pdf



[Triton]

Thank you, Mark!



[overscan (PaulMM)]

My pleasure - here's individual scans of the artwork on the info card.

Enjoy the Day! Mark

I missed this - very nice indeed!



[overscan (PaulMM)]

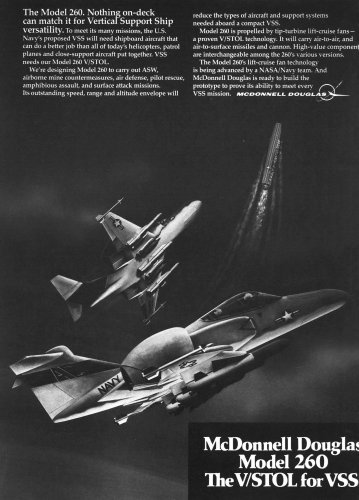

Different, higher res scan of already known Model 260 artwork.

Source: http://archive.org/details/C-1976-2208


(edited picture)



[Stargazer]

Thanks a lot Paul for sharing these magnificent scans with us. "Type A" is an all-time favorite topic for me, and it's such a pleasure to get so many updates at once!



[Stargazer]

Another key piece of the Model 260 puzzle, McDonnell Report MDC A4551:

LIFT/CRUISE FAN V/STOL TECHNOLOGY AIRCRAFT DESIGN DEFINITION STUDY: VOLUME 1 - TECHNOLOGY FLIGHT VEHICLE DEFINITION

This 246-page document is filled to the brim with diagrams and information that should satisfy every Model 260 buff like me...

Two variants are described in this report:

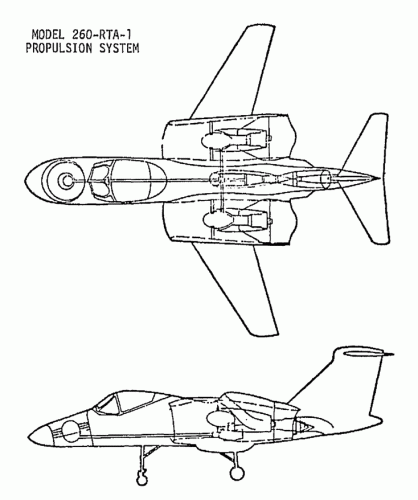

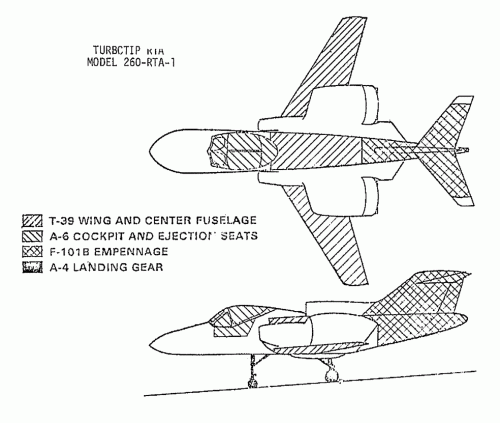

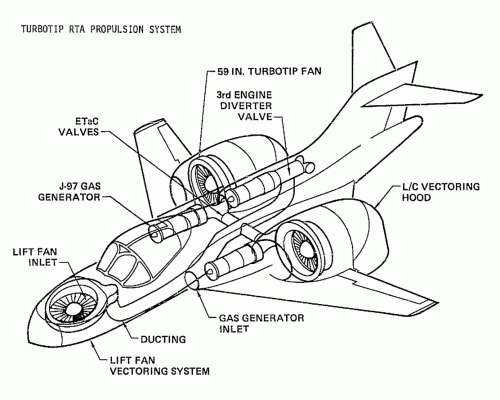

• Model 260-RTA-1, with Turbotip RTA propulsion system

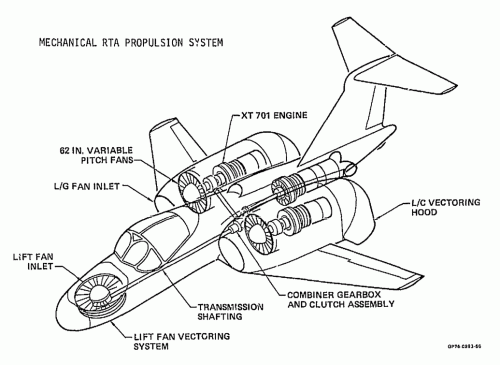

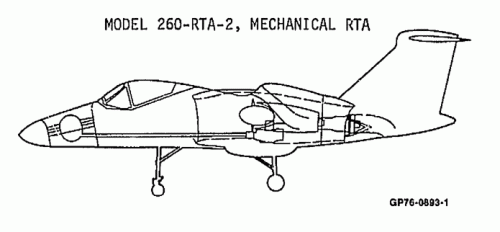

• Model 260-RTA-2, with Mechanical RTA propulsion system

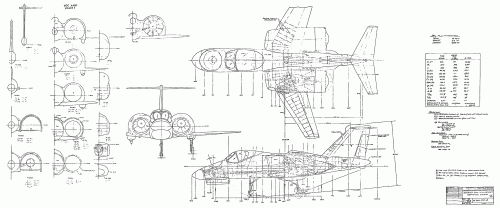

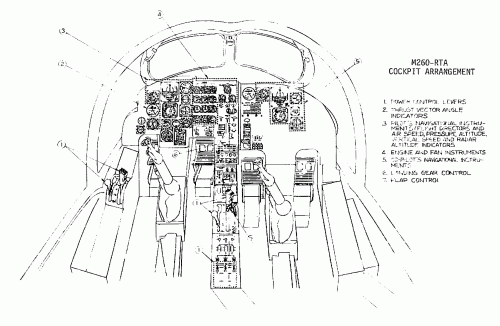

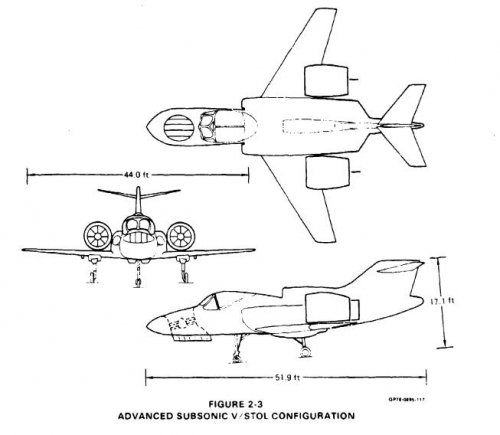

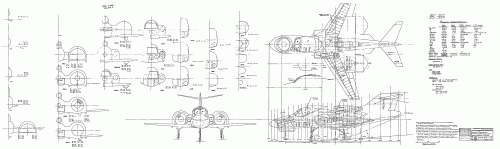

I've attached a few key images, including the painfully reconstructed blueprints (low quality, but better than nothing).



[VTOLicious]

Another key piece of the Model 260 puzzle, McDonnell Report MDC A4551:

LIFT/CRUISE FAN V/STOL TECHNOLOGY AIRCRAFT DESIGN DEFINITION STUDY: VOLUME 1 - TECHNOLOGY FLIGHT VEHICLE DEFINITION

This 246-page document is filled to the brim with diagrams and information that should satisfy every Model 260 buff like me...

Two variants are described in this report:

• Model 260-RTA-1, with Turbotip RTA propulsion system
• Model 260-RTA-2, with Mechanical RTA propulsion system

I've attached a few key images, including the painfully reconstructed blueprints (low quality, but better than nothing).

What a treasure! Thx a lot for posting the stitched blueprints - great work!



[VTOLicious]

Isn´t it interesting that McAir didn´t consider a mechanical propulsion system in previous design studys?

MDC A3440/ VOLUME 1 - NAVY OPERATIONAL AIRCRAFT
MDC A3440/ VOLUME 2 - TECHNOLOGY AIRCRAFT

...both are entirely focused on the turbotip propulsion!

Further more the Hamilton Standard 62inch variable pitch Lift Fan for RTA-2 was originally designed for Boeing only! Extract from NASA Report CR-134988:

...NASA Ames study contracts were given to McDonnell Douglas, Rockwell-International and the Boeing Company starting in late 1974. Hamilton Standard was awarded contract NAS3-19414 by the NASA Lewis Research Center to support these studies with propulsion data for shaft driven, variable pitch lift and lift/cruise fans. Of the three airframe contractors, Boeing was the only one to study an aircraft having a shaft driven, variable pitch fan, lift/propulsion system. Therefore, the criteria for the lift fans discussed in this study were derived to meet the Boeing Company aircraft concepts...

Btw, VOUGHT had a very similar nose fan+vectored nozzle concept in its shortlist (pic attached).

Rgds, Michael



[AeroFranz]

Interesting point...makes you wonder why. Maybe Boeing held patents for the shaft-drive? or more simply a case of not-invented here?
Personally I see tip drive as volume-hungry and heavy, but I'm sure we can find cons in the shaft-drive as well...



[Mark Nankivil]

Very nice find Stephane - thanks!

Enjoy the Day! Mark



[allysonca]

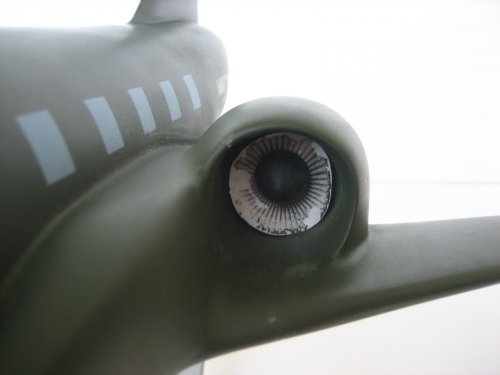

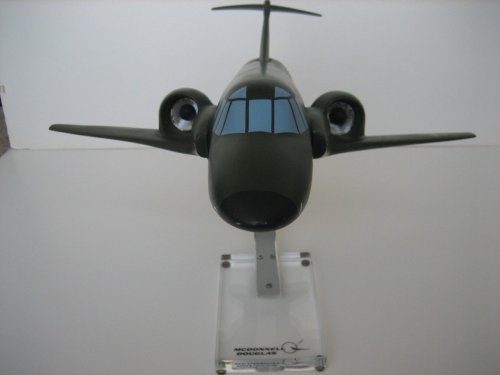

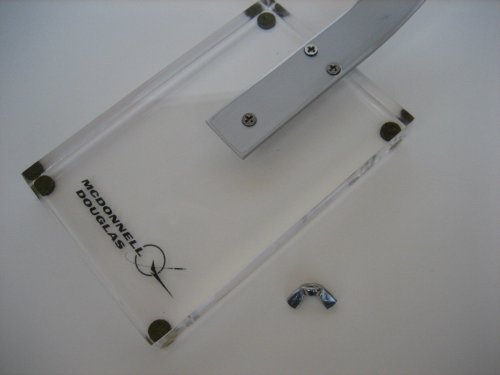

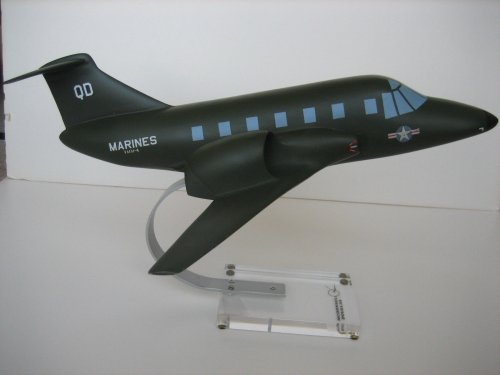

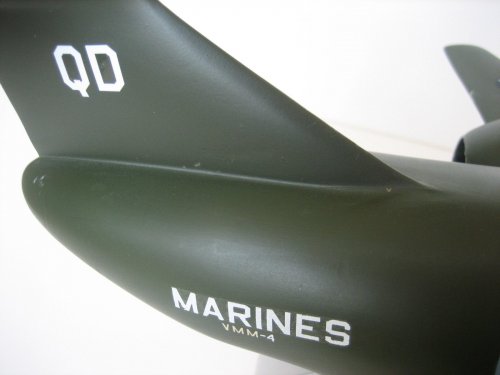

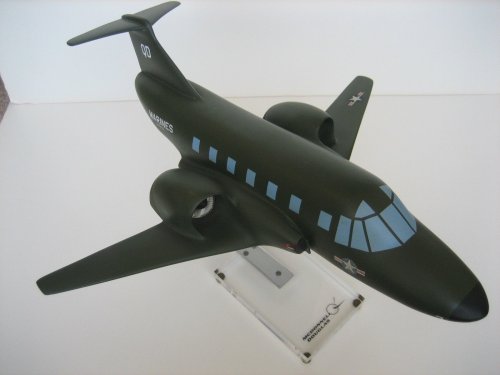

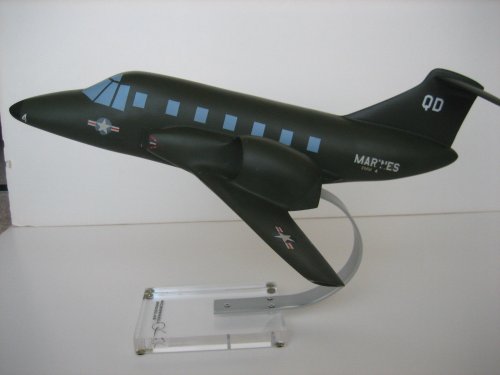

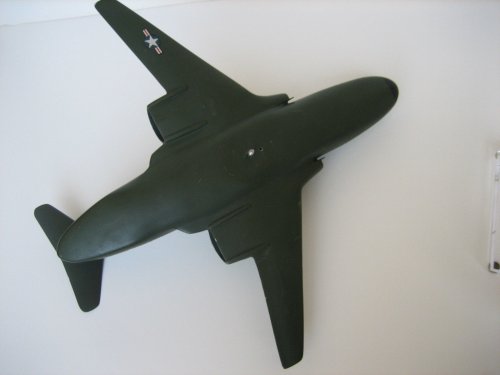

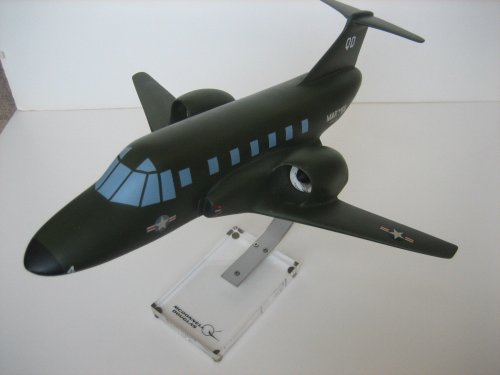

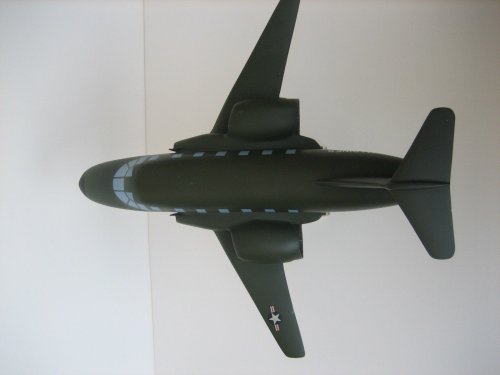

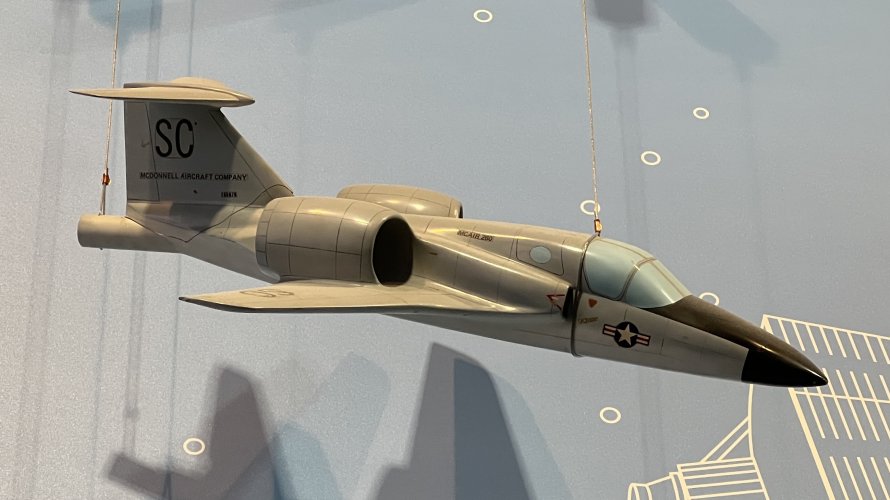

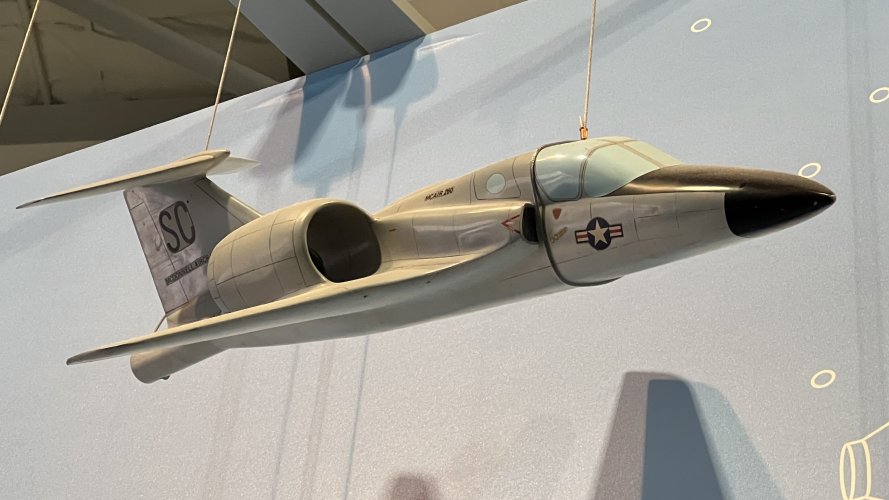

Here is one from my collection. There were 5 model variants in the series that I had using the same airframe. An ASW, AWAC's, All Weather, Transport and Attack versions. One model of 6 had interchangeable parts to make versions of the others. Scale was 1/40th I think, and Pac Min made a wonderful 1/10th scale that I would have killed for in the all weather version.



[overscan (PaulMM)]

Nice model Allyson

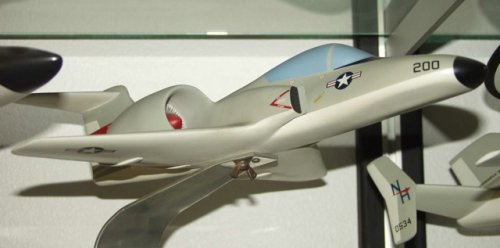

Circle-5 posted this awesome pic of the modular model earlier in the topic:



[Mark Nankivil]

Good Day All -

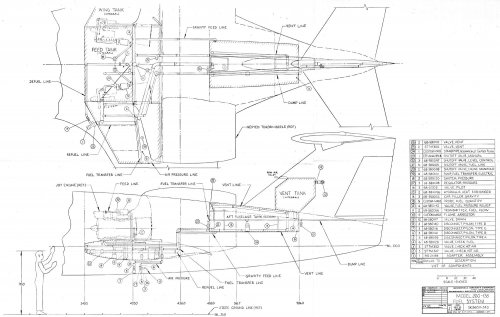

Yesterday we had a package of drawings donated to the Museum from a retired McDonnell Douglas engineer. One of the drawings was this one detailing the fuel system for the Model 260.

Enjoy the Day! Mark



[Grey Havoc]

WOW!!!!!!!!!! Makes me wish even more there had been a production of the type, at least a couple of demonstrators... :-[

Imagine what they could have done with the VOD/Marine Assault variant re. Operation Eagle Claw.

(h/t Mark Nankivil)



[RAP]

http://www.ebay.com/itm/161633819333?_trksid=p2060353.m1438.l2649&ssPageName=STRK%3AMEBIDX%3AIT



[Triton]

Nice find, RAP.



[VTOLicious]

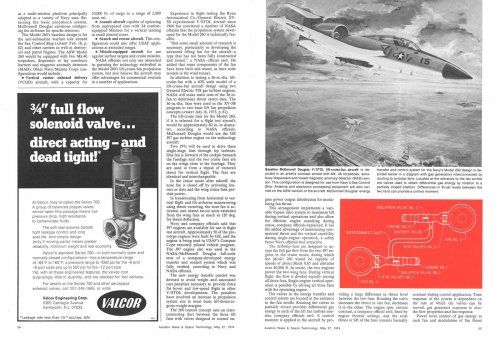

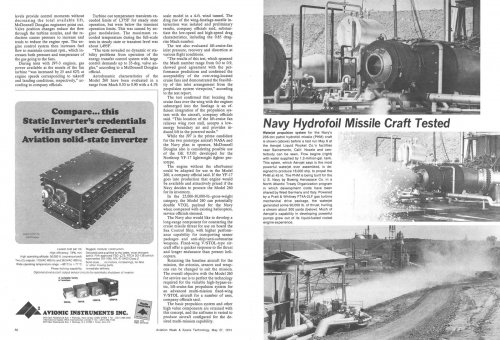

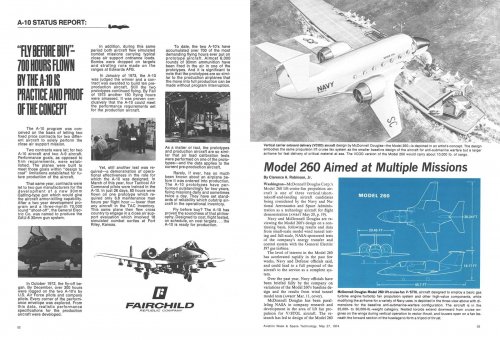

From the AW-archive:



[overscan (PaulMM)]

http://www.ebay.com/itm/161633819333?_trksid=p2060353.m1438.l2649&ssPageName=STRK%3AMEBIDX%3AIT

Posting ALL images before they disappear.



[overscan (PaulMM)]

And last few



[Motocar]

Excelent post, unknow for my....!



[Sabrejet]

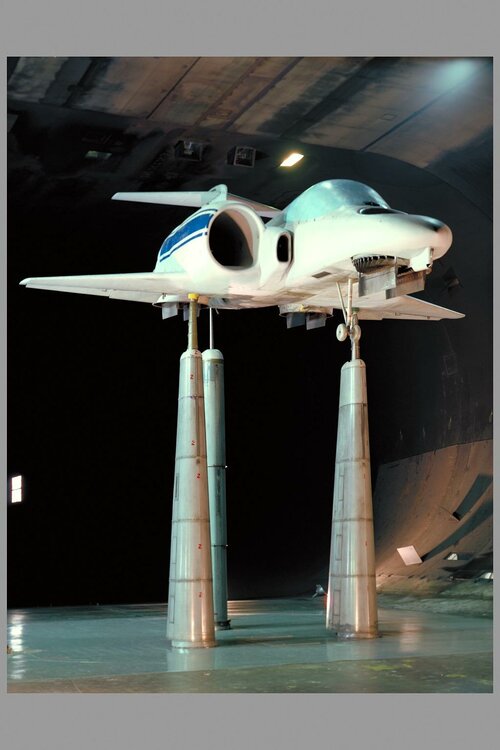

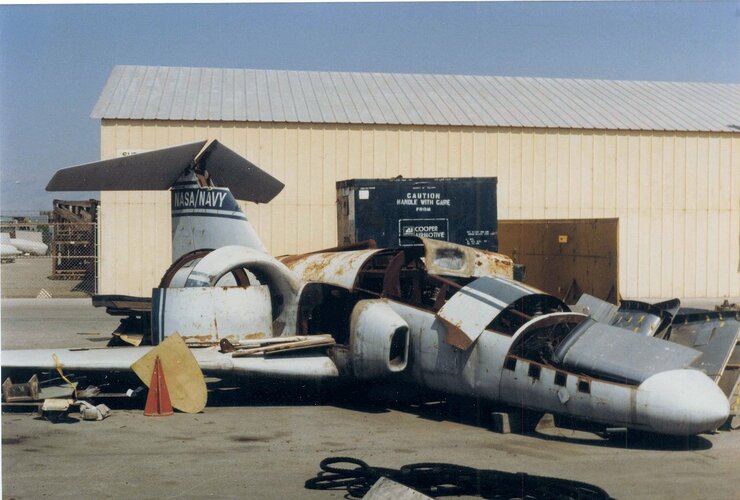

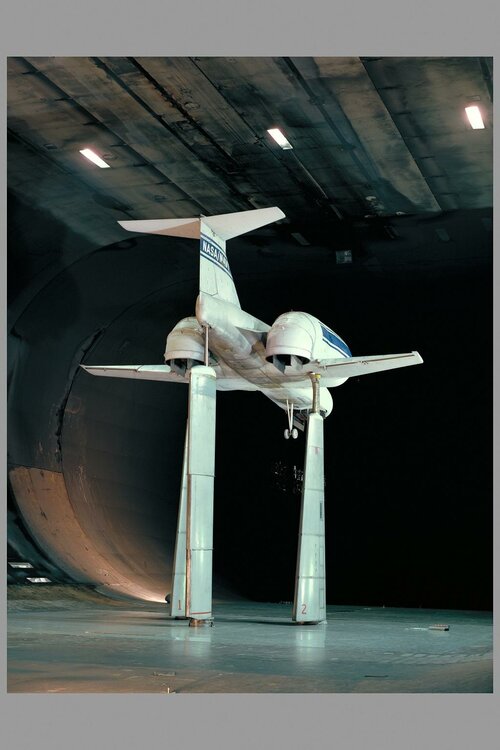

I've had this photo for some time, among a load of shots taken at (IIRC) NASA Ames. I think it was taken in the 1980s and I can see it's obviously a mock-up. But a mock-up of what?



[raptor82]

My two cents:
MDC Model 260

Thread 'US Navy "V/STOL Type A" competition'
https://www.secretprojects.co.uk/threads/us-navy-v-stol-type-a-competition.15478/

https://www.secretprojects.co.uk/threads/us-navy-v-stol-type-a-competition.15478/post-163959



[Sabrejet]

That's the one! Thanks



[publiusr]

Whew!

I thought Ed Gein was branching out…
Of course, every florist is similar if you think about it..



[hesham]

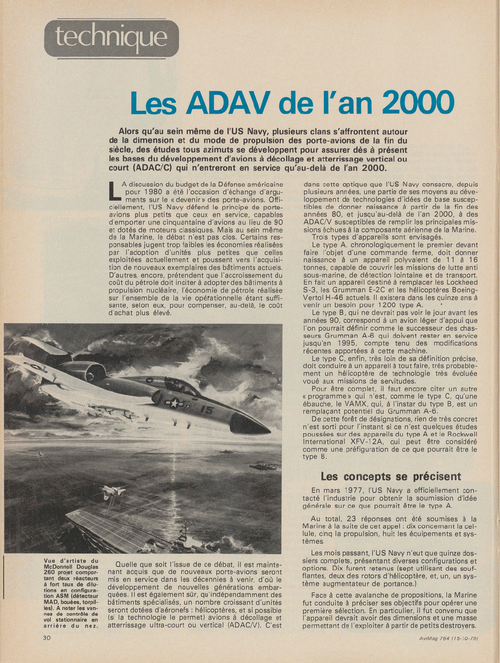

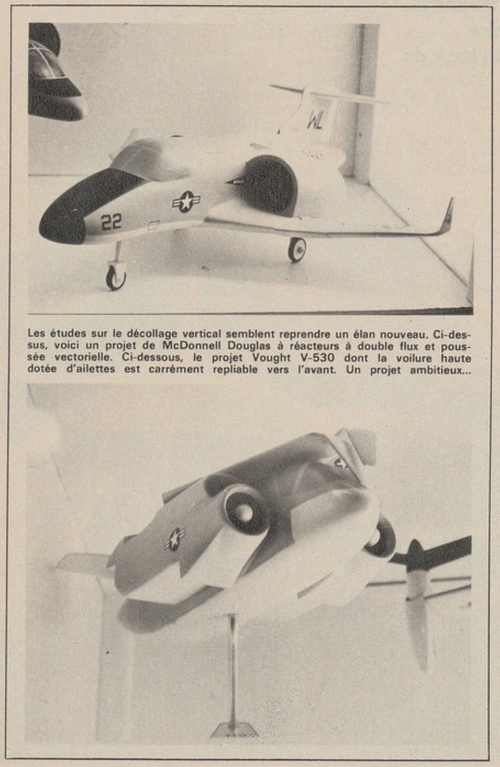

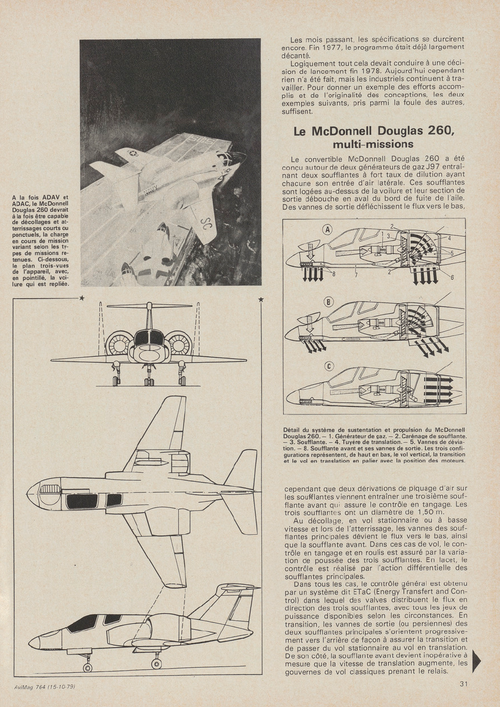

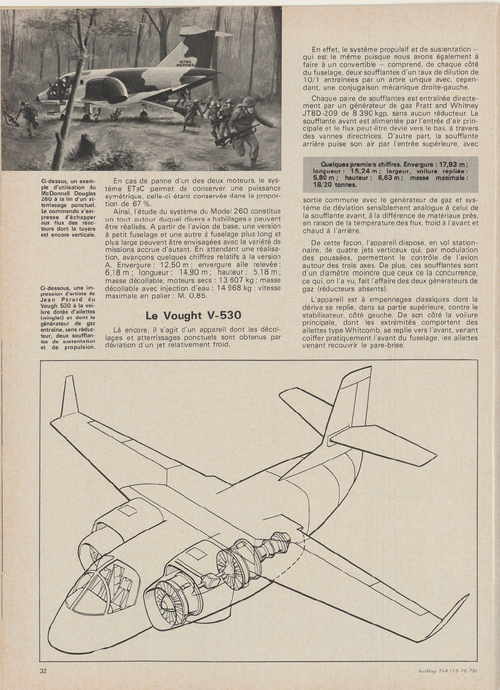

From Aviation magazine 1979.



[apparition13]

From Aviation magazine 1979.

Hesham, the last page has my personal favorite of the Type A vstol proposals, the Vought V 530. It looks like the article has more on that aircraft, and perhaps more on other proposals as well. Have you posted the entire article to the VSTOL A thread? Or perhaps the sections with other proposals to their threads, when they have one?

Thanks for posting all these by the way. Where do you have access to all these journals?



[hesham]

Where do you have access to all these journals?

Hi Apparition13,

all those stuff are from Gallica,

Gallica

Plusieurs millions de documents consultables et téléchargeables gratuitement : livres, manuscrits, cartes et plans, estampes, photographies, affiches, revues, fascicules de presse et journaux, enregistrements sonores, partitions

gallica.bnf.fr

Aviation magazine 1979.



[Archibald]

Jus asking in passing - would that work for real, or would it be doomed like the Rockwell XVF-12 ? as complicated as a gas plant, and doesn't scale well from models.
