McDonnell Douglas Little Known Airliners

[Triton]

Yep, pretty confident that it is related to the McDonnell Douglas Fokker MDF-100.



[fightingirish]

Found at Flugzeugforum.de.


More info here:

Airliners.net - Aviation Forums



[hesham]

Hi,

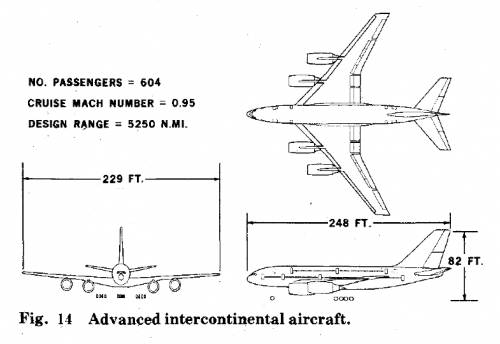

I can't ID those MD airliner projects from 1973,who can help ?.


http://arc.aiaa.org/doi/abs/10.2514/3.60224



[blackkite]

Cruise mach number 0.95.



[Jemiba]

.. and a wing, that is drifting towards a delta wing, although, with the straight trailing edge of
the center wing very Douglas/MDD like !



[hesham]

Hi,


indeed,the double deck was not familiar and never the same as Douglas and MD known
double deck designs up to this period (1973).



[hesham]

Hi,

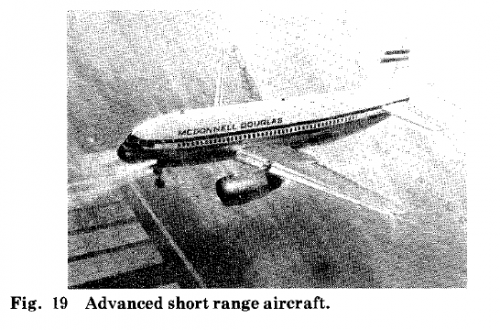

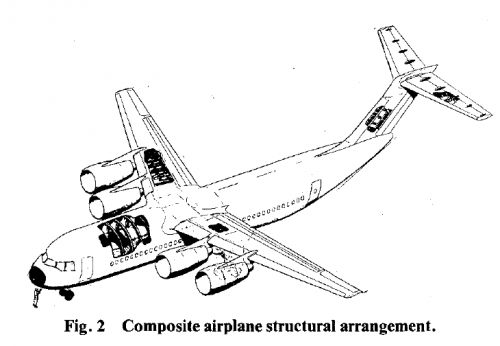

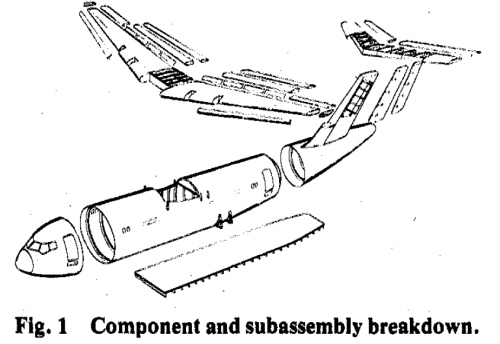

here is a MD STOL transport and airliner aircraft project,used a composite materials.


http://arc.aiaa.org/doi/abs/10.2514/3.58669



[hesham]

Hi,

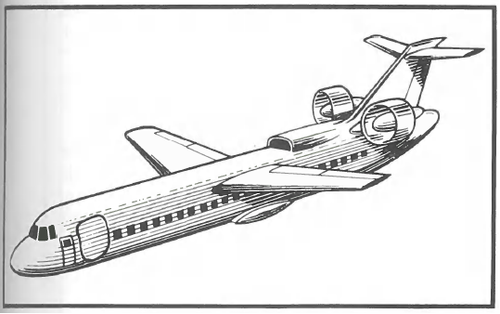

here is anther MD airliner project,but with a canard wing.



[RAP]

This seller has a number of interesting listings of artwork of aircraft I'm not familiar with.

http://www.ebay.com/itm/McDonnell-Douglas-concept-aircraft-circa-1970-original-watercolor/281904498405?_trksid=p2047675.c100005.m1851&_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D1%26asc%3D20131003132420%26meid%3D1e060b10195545a48a456eca55e82d43%26pid%3D100005%26rk%3D1%26rkt%3D6%26sd%3D281904493987



[RAP]

http://www.ebay.com/itm/McDonnell-Douglas-concept-aircraft-circa-1970-original-watercolor-/281904477969?hash=item41a2d0f711:g:CdAAAOSwKtlWkFKA



[Mark Nankivil]

McDonnell Douglas D-3301 Artwork

Hi All -

On EPay is this artwork for the D-3301 design.

http://www.ebay.com/itm/Postcard-DT31-McDonnell-Douglas-D-3301-concept-aircraft-Ltd-edn-of-30-/172170742163?hash=item28162d0993:g:a2sAAOSwKIpWBOGG

Enjoy the Day! Mark



[flateric]

Re: McDonnell Douglas D-3301 Artwork

...



[The Artist]

Sorry, no MD-94X, but the model 253, a VTOL passenger aircraft,
using a modified DC-9-10 fuselage. Vertical take-off and landing
should be achieved by fans at the wingtips and in the nose and
by two fans at the rear fuselage, which doubled as cruising engines.
(from Aviation Week, July 1973)

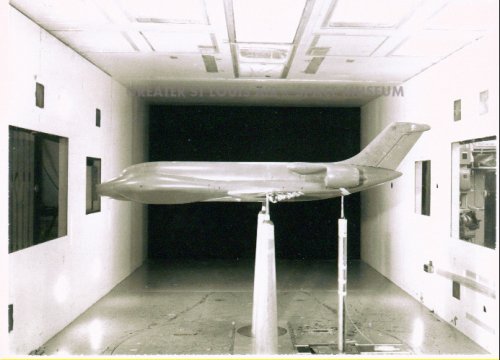

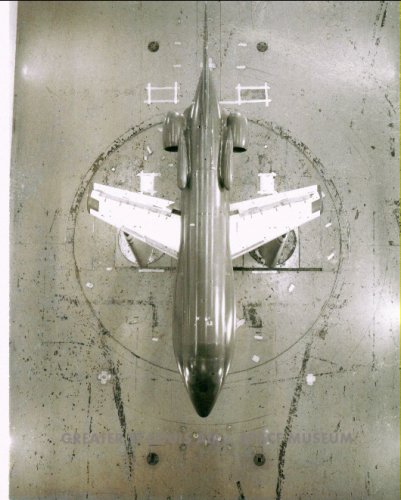

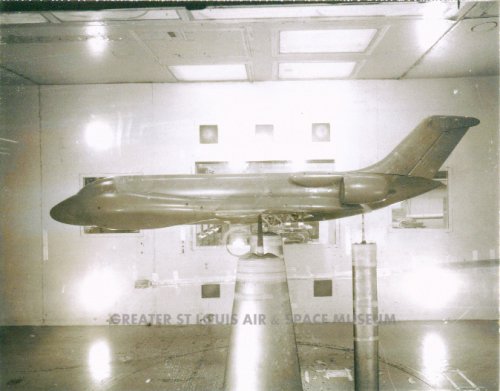

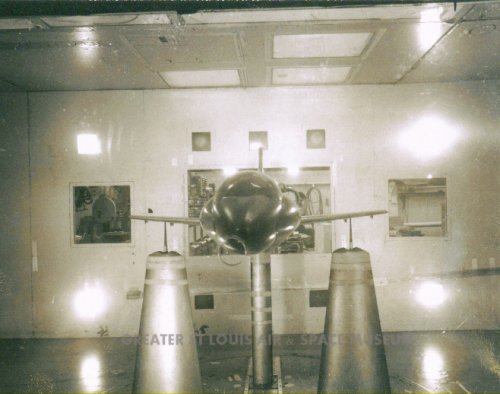

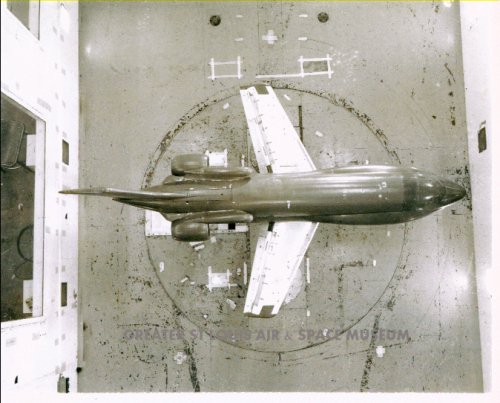

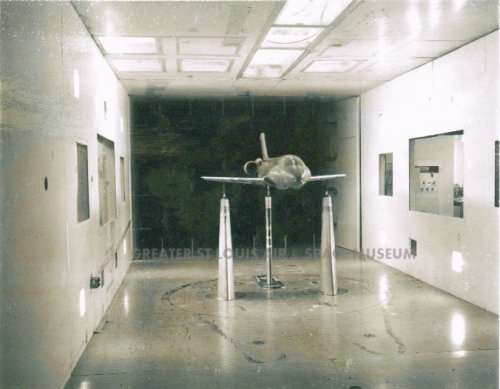

A wind tunnel model of this. These are part of a recent donation that came into the Museum.



[hesham]

Nice find.



[hesham]

Hi,

In my list,there was a MD-805 airliner aircraft,I don't know if it was a typo or not ?.



[Triton]

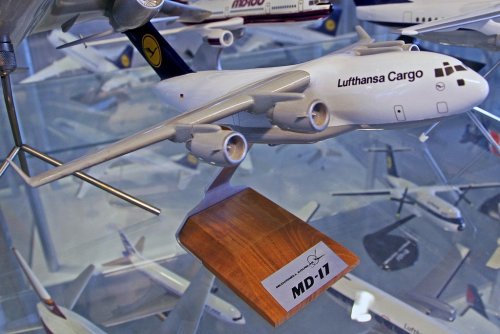

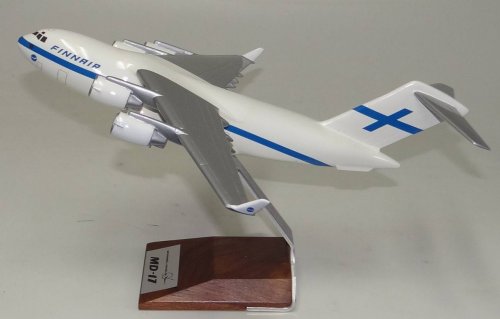

Model of McDonnell Douglas MD-17

Source:
http://airsoc.com/articles/view/id/588309bb3139445a088b4567/md-17-bc-17x



[Triton]

Model of McDonnell Douglas MD-17



[Triton]

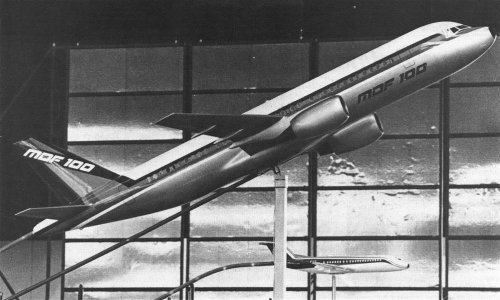

Model of MDF 100

Aviation Week & Space Technology June 8, 1981



[hesham]

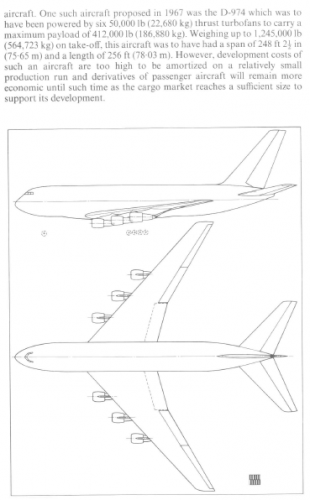

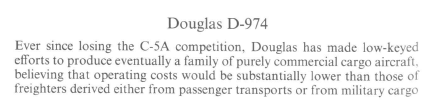

From L+K 5/1973,

and the Putnam book,the D-974.



[hesham]

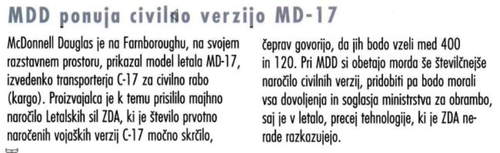

From Krila 6/1996.



[hesham]

From Icare 1967.



[hesham]

From, McDonnell Douglas A Tale of Two Giants.



[gabrielorosco]

Here's a picture of the D-974C-6, a big 1967 airliner concept with 6 engines and a GTOW of 1.2 million pounds. The logos on the base and the tail fin are from Douglas, with McDonnell added to the fuselage. The cargo version of this airplane is described in Giants of the Sky by Bill Gunston, on page 289. The smaller Boeing 747 made more sense at the time, as airports probably would have had a hard time dealing with typical D-974C-6 passenger loads.

What are the dimensions?



[Cy-27]

See also the thread https://www.secretprojects.co.uk/threads/mcdonnell-douglas-md-91x-92x-uhb-program.14780/ for more McDonnell-Douglas UHB examples.



[SinkTheBismarck]

Hello Hello Everyone,

Im looking for a blueprint of the MD-XX and MD-XX LR, thanks



[hesham]

Im looking for a blueprint of the MD-XX and MD-XX LR, thanks

Welcome aboard SinkTheBismarck,hard to find,but I will search.



[hesham]

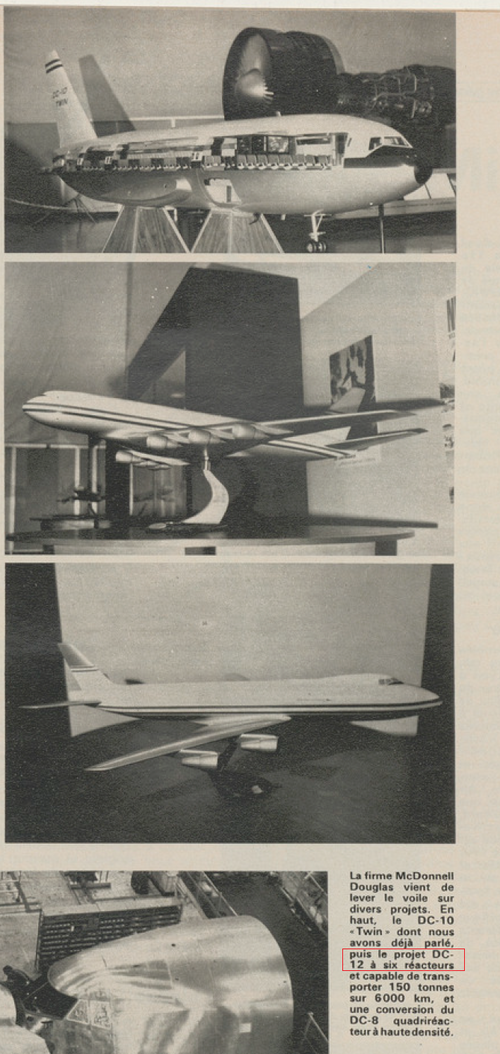

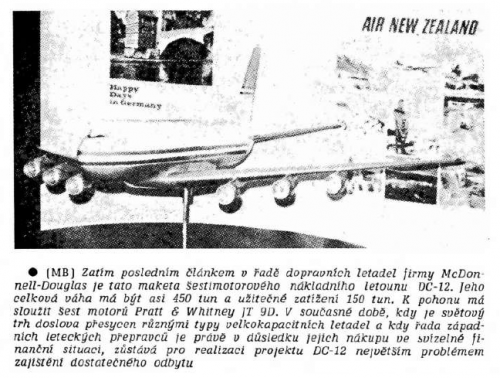

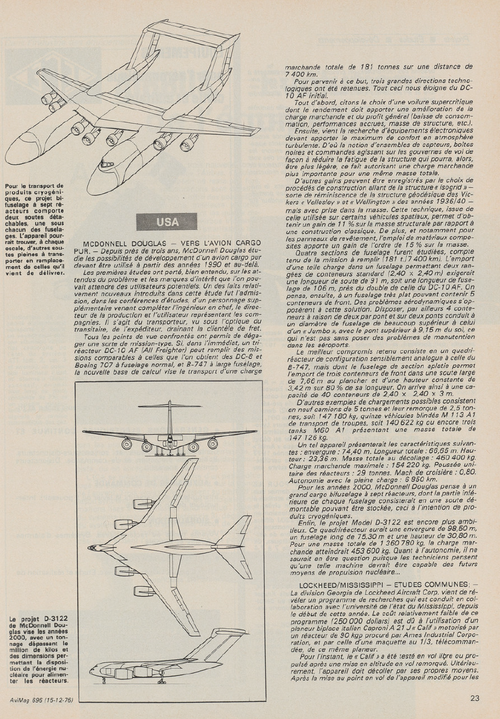

From Aviation magazine 1973,

so weird (DC-12).



[hesham]

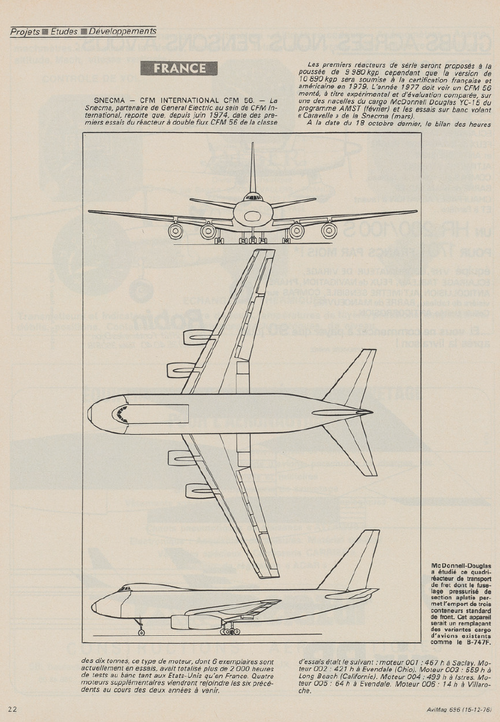

From Aviation magazine 1976.



[snapia]

Does anyone have information on the exterior height of the DC-8 fuselage as opposed to its width? I looked and looked online but can't find anything. Any help is very appreciated.



[hesham]

Welcome aboard Snapia,

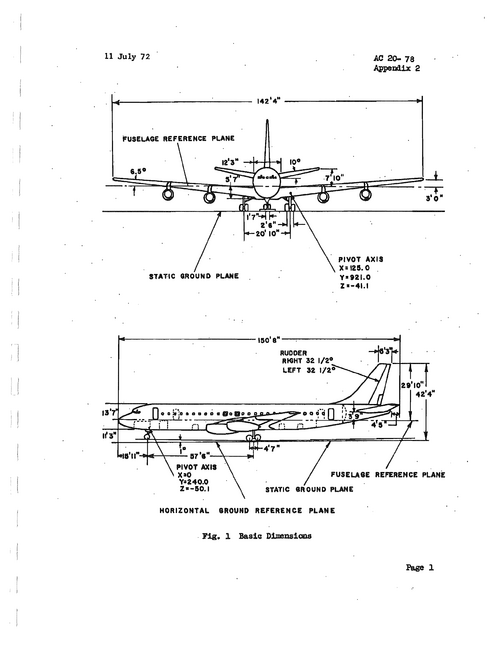

and I advice you to buy this book,and here is a dimensions of it.



[snapia]

Welcome aboard Snapia,

and I advice you to buy this book,and here is a dimensions of it.

Thank you, Hesham.



[Aeroweanie]

Does anyone have information on the exterior height of the DC-8 fuselage as opposed to its width? I looked and looked online but can't find anything. Any help is very appreciated.

According to the Maintenance Manual, fuselage height is 13' 7" and width is 12' 3"



[hesham]

From Aviation magazine 1987.



[hesham]

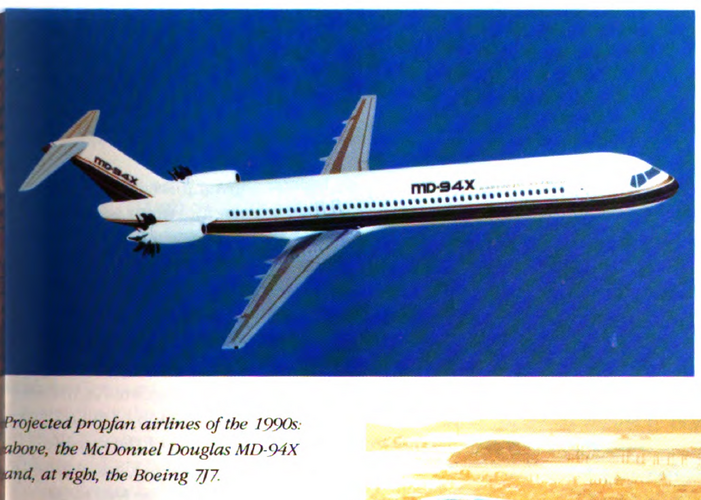

Hi,

the McDonnell Douglas MD-91X was propfan powered
aircraft project,accommodated 100 to 110 passenger
and the same also the MD-92X 150-seat and MD-94X
160 to 180 seat,they were developed from MD-80
series.

From Spinoff 1987.



[Dinson]

Hi,


here is a MD STOL transport and airliner aircraft project,used a composite materials.

http://arc.aiaa.org/doi/abs/10.2514/3.58669

I honestly want to ask, Ik It's a MD STOL but what is the aircraft called?



[hesham]

I honestly want to ask, Ik It's a MD STOL but what is the aircraft called?

Welcome aboard Dinson,and it was a MD STOL aircraft,but could be a generic design,here is the report;

https://arc.aiaa.org/doi/abs/10.2514/3.58669



[hesham]

Welcome aboard Dinson,and it was a MD STOL aircraft,but could be a generic design,here is the report;

https://arc.aiaa.org/doi/abs/10.2514/3.58669

The whole file.



[hesham]

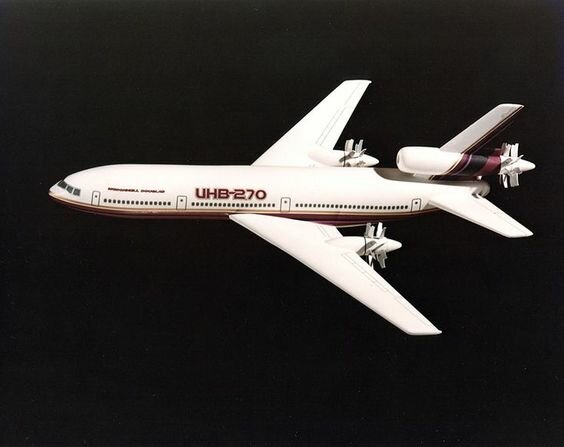

What was this designation, UHB-270 ?.

“Props” for McDonnell Douglas: The Unducted Fan Projects That Never Took Off

Airliner technology continues to evolve year-after-year, in the pursuit of better fuel economy which leads to better financial yields for operators. There’s been a number of initiatives over the years…

avgeekery.com



[fightingirish]

Hi,

another picture for the MD ATMR.
[...]

https://flic.kr/p/2pTYHMS

View: https://flic.kr/p/2pTYHMS



[Maveric]

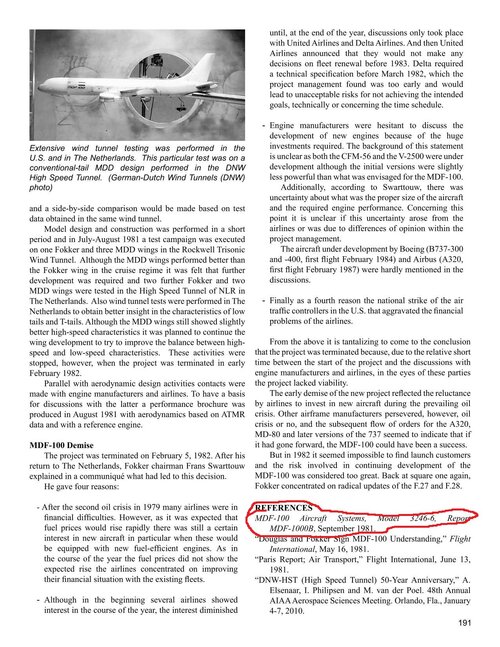

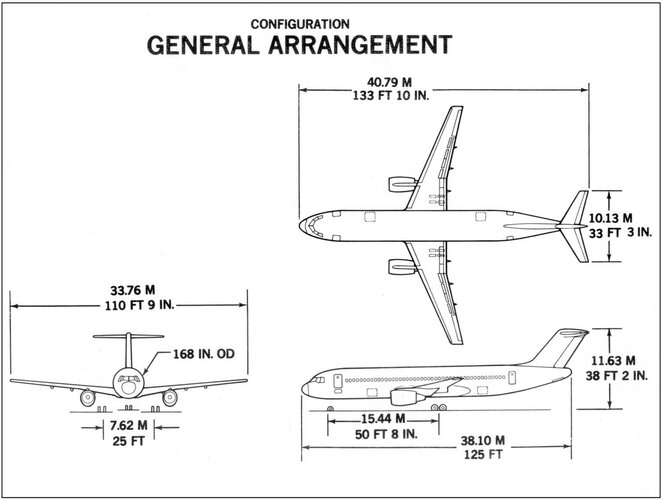

McDonnell Douglas Model 3246-6 (MDF-100)
