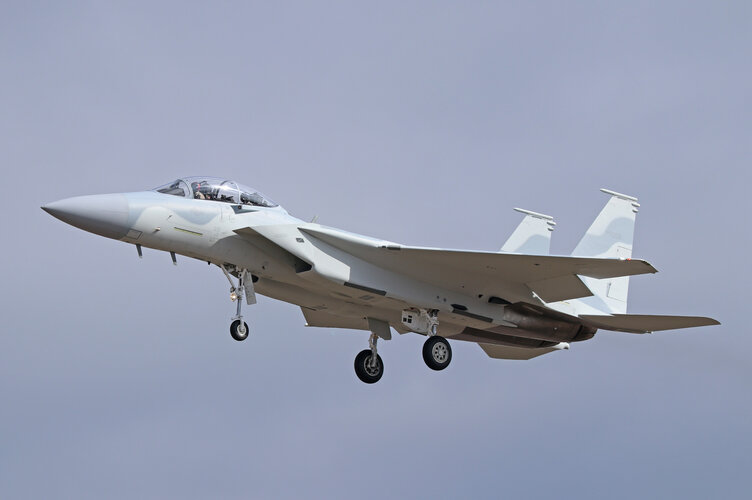

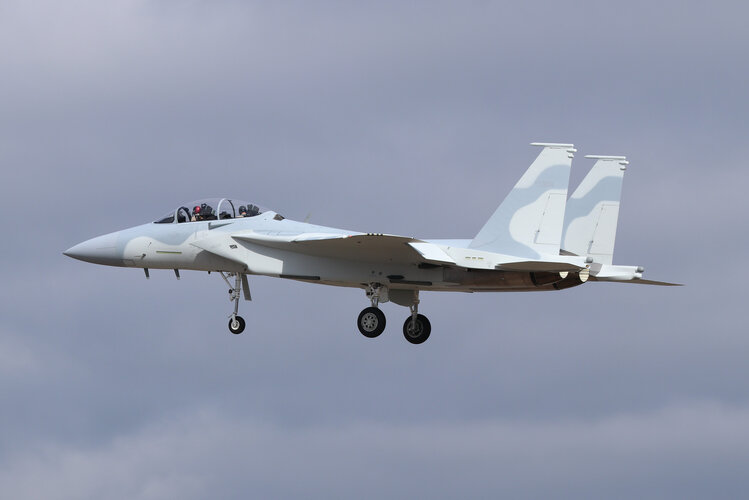

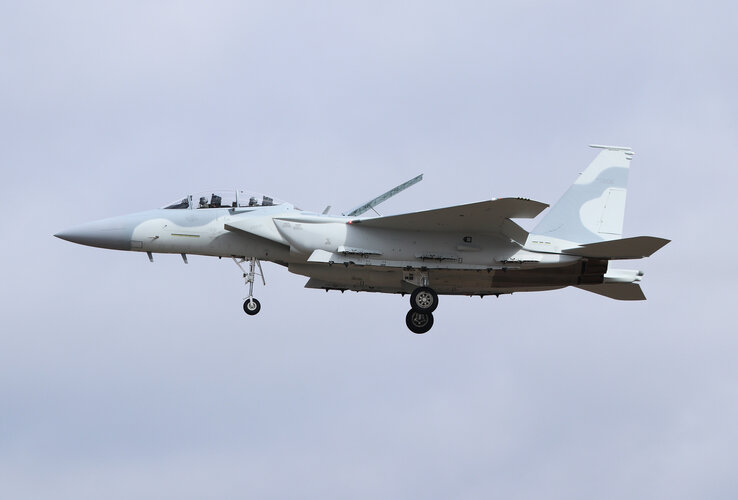

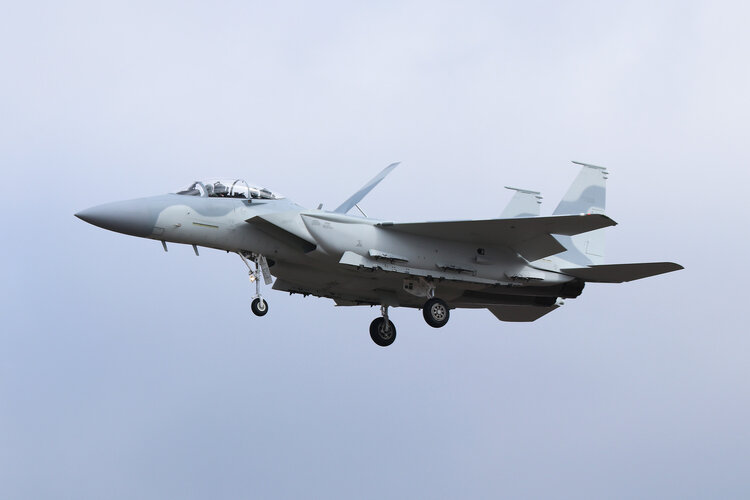

The same day F-15EX first flew, QA 006 flew and QA 008 flew for the first time and without CFTs, only the second time a QA has flown without them. Was supposed to go do M2.3 - on a first flight! The departures were special - gear up, hold it low to the end of the runway then pitch up into a Viking departure right on top of us (had my 16 year old son with me - he was enthralled!). That's when you feel noise!

Enjoy the Day! Mark



[TomcatViP]

USAF Proves Strike Eagles Can Carry 15 JDAMs | Air & Space Forces Magazine

The Air Force is testing using the F-15E Strike Eagle to deliver bombs in a different way.

www.airforcemag.com



[elmayerle]

There was a question a good while back about the radar fitted to the F-15(N-PHX). IIRC, it was an AN/APG-64 which was essentially an AN/APG-63 with the added necessary abilities to properly use the Phoenix missiles.



[aonestudio]

USA: Squadron Innovation solves decade-long issue for the F-15E

The aircraft Modification Support Team lead, Mr. Carlos Oregon, in the Operational Flight Program Combined Test Force designed and built a tester to safeguard the AN/ASQ-236 “Dragon’s Eye” Radar Pod

www.airrecognition.com



[TomcatViP]

View: https://youtu.be/v8nPXHAijds



[hesham]

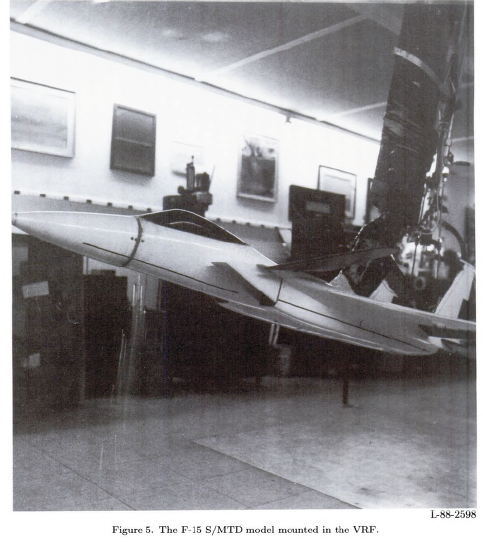

From NASA report.



[TomcatViP]

Here (but in B&W) :



[Grey Havoc]

Spotted over at Slashdot:

The F-15 Eagle: If it's up, we'll shoot it down. If it's down, we'll blow it up. -- A McDonnel-Douglas ad from a few years ago



[F-2]

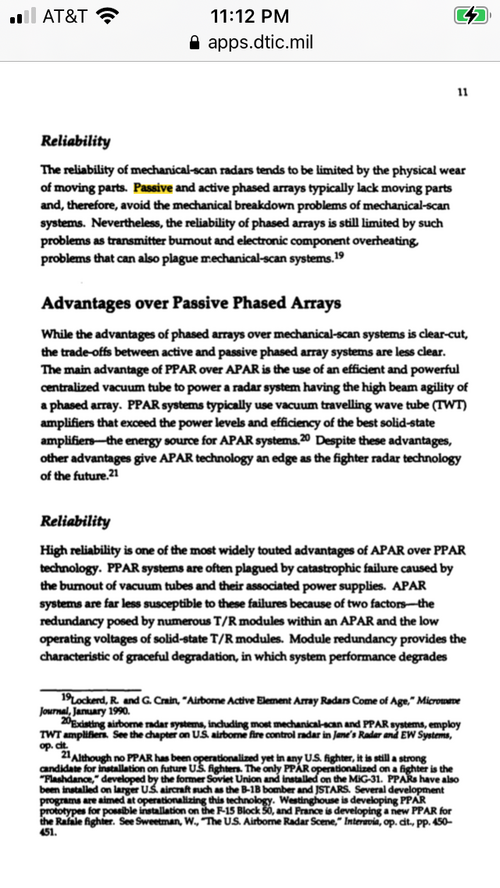

In that last citation there is a reference for a Westinghouse PESA for the F-15. I’m not familiar enough with the F-15 to know if they ever used block numbers or if the author meant F-16. The document is from 1994 so I assume apg-63(v)2 had at least begun development.



[F-2]

F-15(a?) with pw1128 engines, rated for 28000lbf of thrust each. Seems the 1128 was abandoned in favor of the 229.

https://www.nasa.gov/centers/dryden/pdf/88327main_H-1985.pdf

https://ntrs.nasa.gov/api/citations/19950026591/downloads/19950026591.pdf

https://ntrs.nasa.gov/api/citations/19860015871/downloads/19860015871.pdf



[overscan (PaulMM)]

In that last citation there is a reference for a Westinghouse PESA for the F-15. I’m not familiar enough with the F-15 to know if they ever used block numbers or if the author meant F-16. The document is from 1994 so I assume apg-63(v)2 had at least begun development.

Its a typo.

There is no Block 50 F-15 but there is a block 50 F-16.



[hesham]

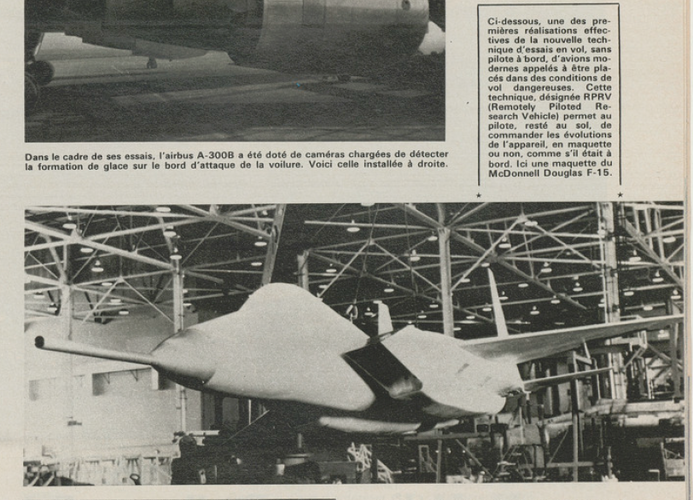

From Aviation magazine 1973.



[A Tentative Fleet Plan]

https://www.secretprojects.co.uk/threads/eagle-eye-iii-for-the-f-15.31834/post-542404



[TomcatViP]

F-15E cool video:

View: https://youtu.be/UmEzw-cru_0

Sourced from:

Get Aboard The F-15E Strike Eagle With This Amazing B-Course Video

The video lets you experience what it’s like to fly the Strike Eagle from the pilot’s perspective. Last week, we celebrated the 50th anniversary of the

theaviationist.com



[jsport]

More F-15Es to get electronic warfare upgrades in award to BAE

The Air Force this summer cleared the way to start adding EPAWSS to more F-15s, and a new contract for BAE will provide the systems to install.

www.defensenews.com



[Cjc]

I'm curious, was there ever a study done on how much it would cost to turn the stol f-15 into a production aircraft.



[quellish]

In "Tailless Vectored Fighters: Theory, Laboratory, and Flight Tests" (ADA317838 , https://apps.dtic.mil/sti/pdfs/ADA317838.pdf) there is a tailless F-15 wind tunnel model depicted that is (probably) an extension of some earlier efforts towards a reduced signature F-15 configuration.



[F-2]

Flug Revue

books.google.com

From what I gather the F-15U would have been all around slower then the F-15E.



[Cjc]

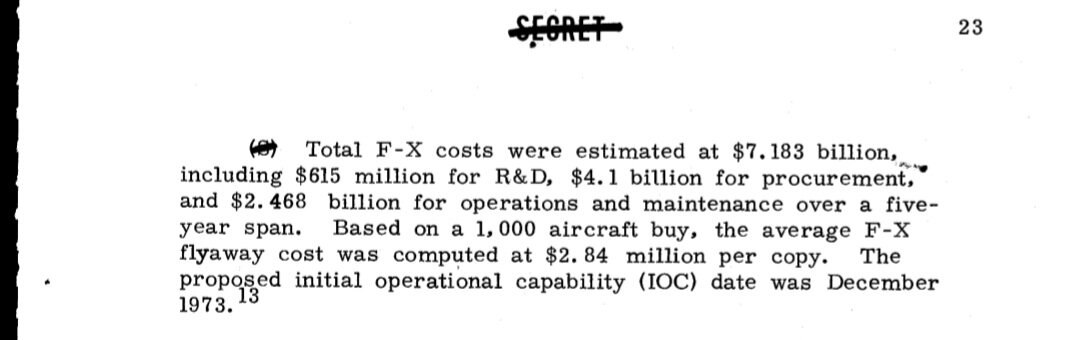

Do we have any idea of what the number of fighters requirement were for the f-15 before the f-16 came onto the scene?



[isayyo2]

F-15 Global Strike Eagle​

Flashback: F-15 Global Strike Eagle Paths

The concept of air launching vehicles from carrier aircraft is a concept that has been around for decades.

www.afmc.af.mil

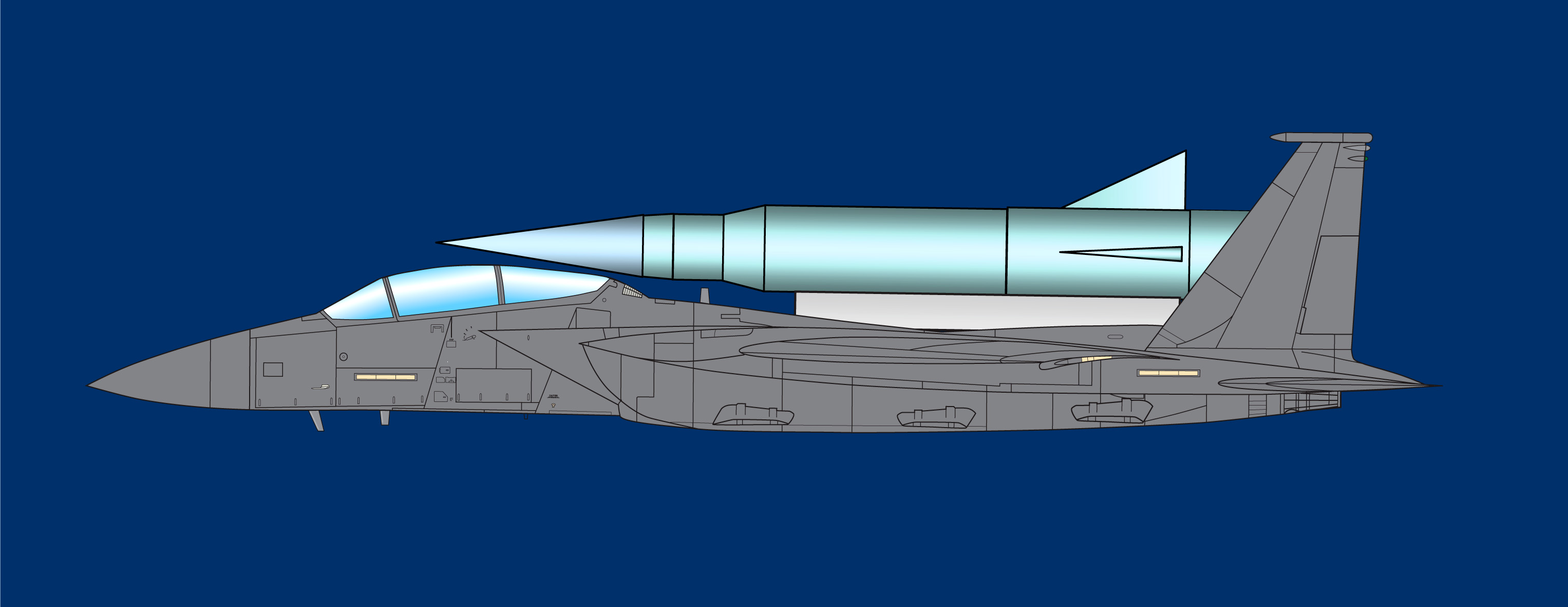

In 2006, Boeing proposed a similar concept for missile launch, this time using an unmanned variant of the F-15E Strike Eagle with the launch vehicle mounted dorsally instead of ventrally. Boeing designated this variant as the F-15 Global Strike Eagle (GSE). The concept proposed the F-15 GSE as a low-cost demonstration of global strike capability utilizing a variety of munitions including the little-known Common Aero Vehicle (CAV). Defined as a maneuverable, hypersonic reentry vehicle that has the capability of dispensing a variety of payloads inside the atmosphere, the CAV concept eventually merged with the Air Force/DARPA Falcon project. Providing a Low Earth Orbit (LEO) launch capability for micro satellites, or microsats, was another mission possibility for the F-15 GSE and, with future upgrades, delivering heavier ballistic and orbital payloads.



[Pioneer]

Do we have any idea of what the number of fighters requirement were for the f-15 before the f-16 came onto the scene?

That's an intreging question Cjc!!
I look forward to the answer.


Regards
Pioneer



[Manuducati]

Do we have any idea of what the number of fighters requirement were for the f-15 before the f-16 came onto the scene?

That's an intreging question Cjc!!
I look forward to the answer.


Regards
Pioneer

Early F-X studies were made on a 1000 fighters figure (as in 1963 and 1968).

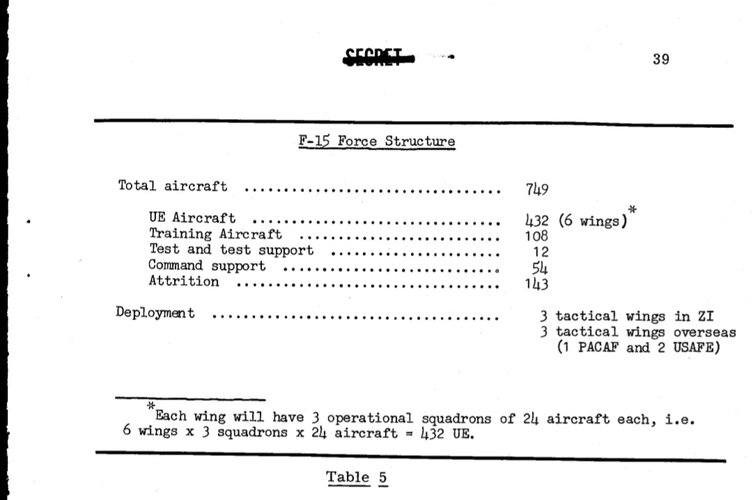

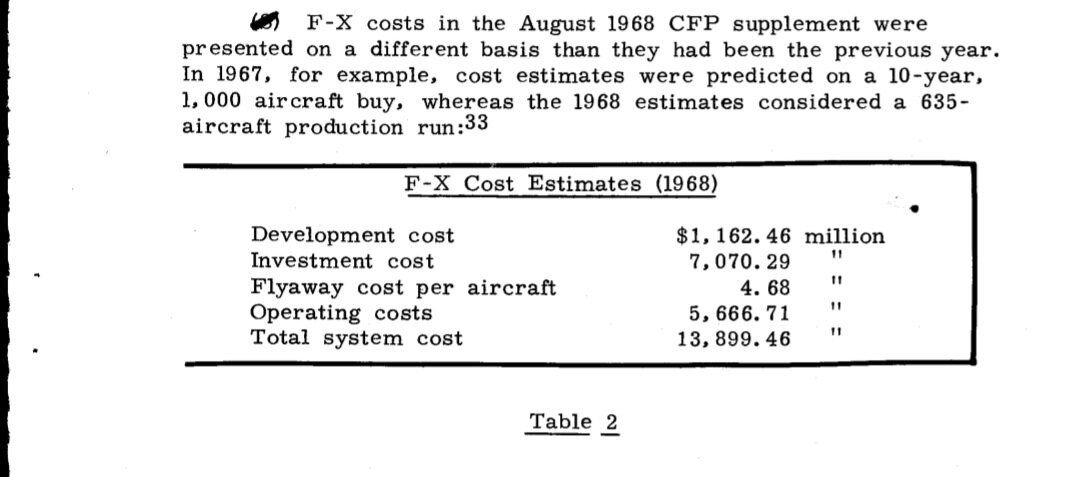

First detailed chart I've found is from 1969 (3rd picture) at 749 airframe.

Source: https://media.defense.gov/2012/May/16/2001330012/-1/-1/0/AFD-120516-036.pdf



[TomcatViP]

Historic 'MiG Killer' makes final flight to Air Force museum

DAYTON, Ohio (WKEF) -- An historic fighter jet made its final flight Tuesday at the National Museum of the US Air Force.Lt. Col. Matthew

dayton247now.com



[Kiltonge]

Single seater with wingtip missile launchers and an extended wing span?

What is the vintage of this proposal? Any details?

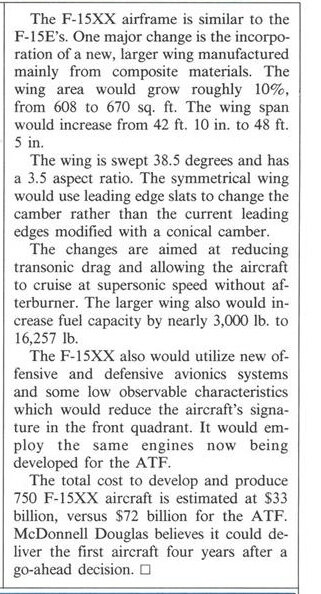

1990. Extended wing, supercruise, ATF engines and avionics.

Edit: Composite wing, span 48ft 5in for area of 670 sq ft. Swept at 38.5 deg, leading edge slats introduced. Fuel capacity increased by 3,000lb to 16,257lb. Some front-quadrant RCS reduction.

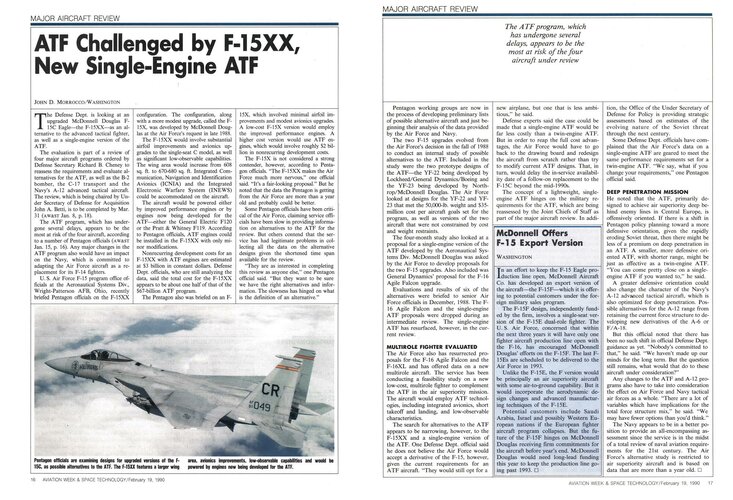

The Senate reportedly added $100 million of long-lead funding for the F-15 program to the 1991 USAF budget "to protect the option of the F-15XX", according to Flight ( and AvWeek ) from July 1990. Seems an enormous amount of money.



[flateric]

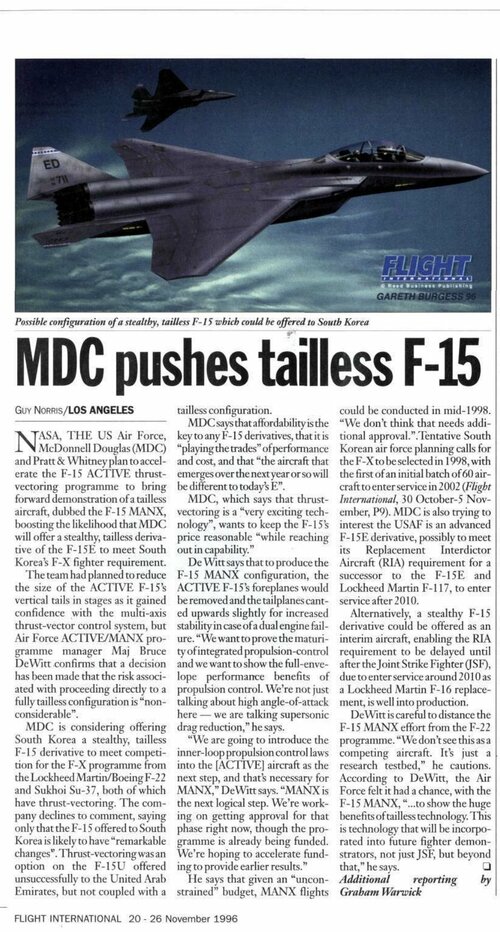

Better quality MANX piece from Flight International



[hesham]

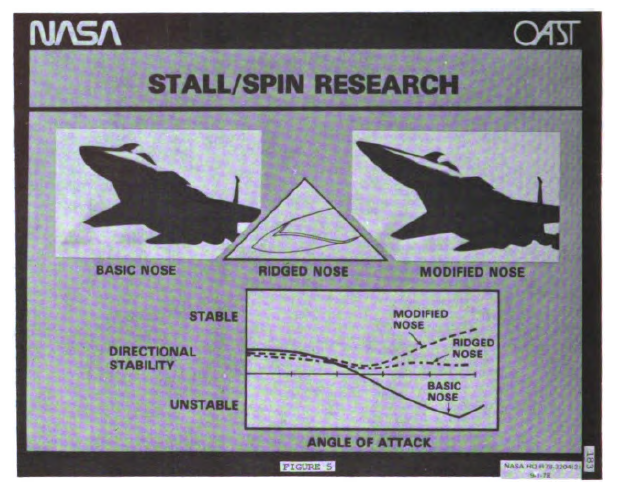

Hi,

here is the F-15 nose cone shape.

http://crgis.ndc.nasa.gov/historic/File:L-77-7776.jpg

From this report



[godstar23]

World Imagery Wayback

Wayback imagery is a digital archive of the World Imagery basemap, enabling users to access different versions of World Imagery captured over the years. Each record in the archive represents World Imagery as it existed on the date new imagery was published. Wayback currently supports all updated...

livingatlas.arcgis.com

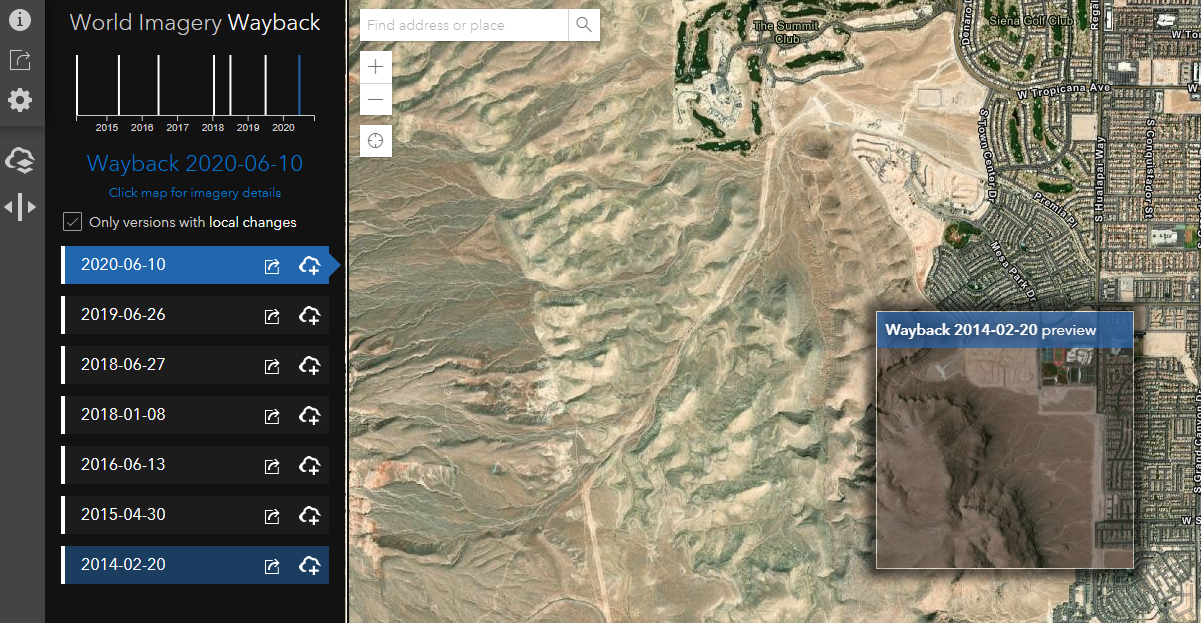

This looks like a tailless F-15 being tested at the radar range mentioned here:

https://www.secretprojects.co.uk/threads/boeing-x-45c-phantom-ray-x-46-ucas-ucas-d.2230/page-3#post-654554



[Stargazer]

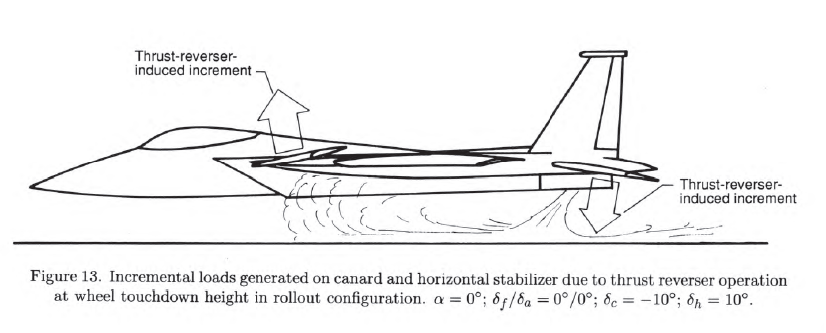

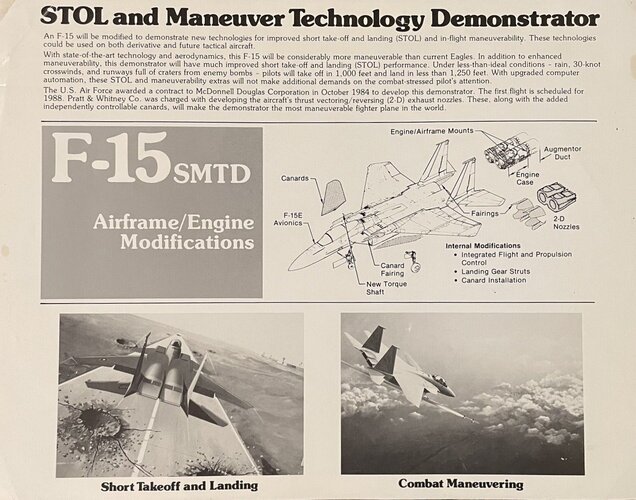

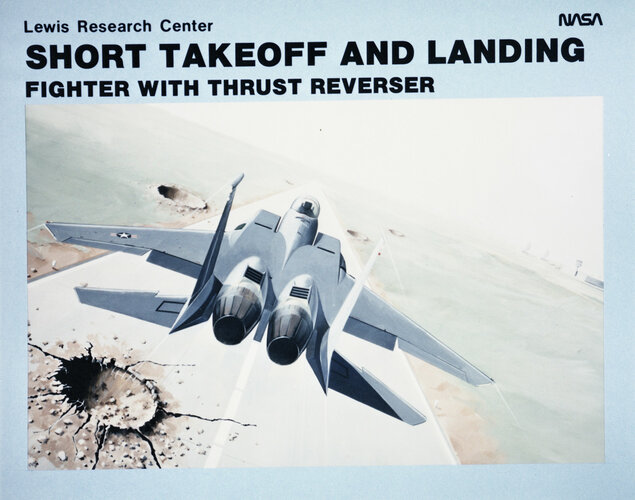

STOL F-15.
Original image: https://catalog.archives.gov/id/354545918



[sferrin]

That looks like the F-15 SMTD concept but with only the thrust reversing portion. No TVC.



[Manuducati]

And no canard neither. It must be a very early rendering.

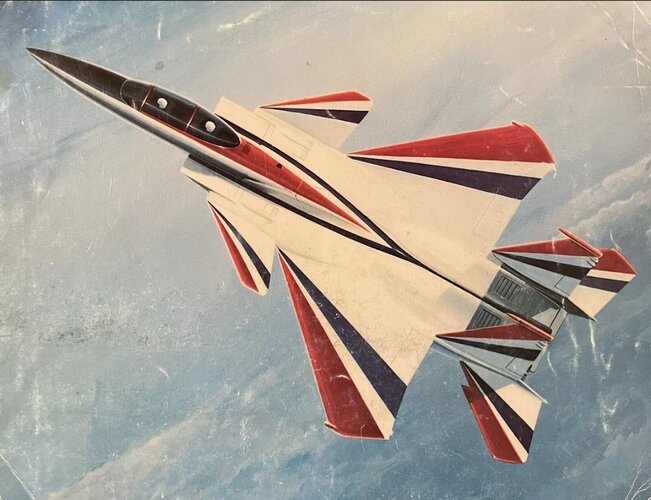

The painting was later updated with the nozzles and foreplanes, as in this vintage brochure, randomly seen on Evil-bay.
Link if anyone wants it: https://www.ebay.com/itm/115727907080



[TomcatViP]

EPAWSS IOC (to be fitted on the remaining 99 F-15E to be kept in service):

F-15 Electronic Warfare System Completes Operational Testing, IOC Looms

The F-15 EPAWSS electronic warfare system has competed operational testing and deployment will begin later this year.

www.airandspaceforces.com



[Bruno Anthony]

a friend was heavily involved

Starbaby?



[Christopher Wang]

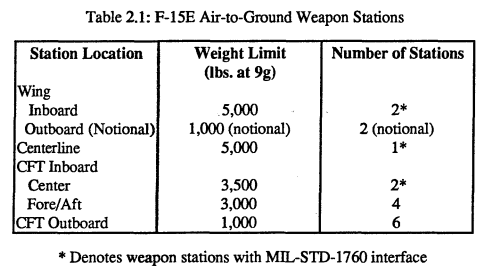

As illustrated below by King (1995), each of the F-15E Strike Eagle's weapon stations, including the unused outboard wing stations, was stressed for the following capacity (p. 2-8):

SOURCE: King, D. R. (1995). A Review of Fighter Aircraft Capability for Smart Bombs. Retrieved from https://apps.dtic.mil/sti/tr/pdf/ADA300588.pdf



[hesham]

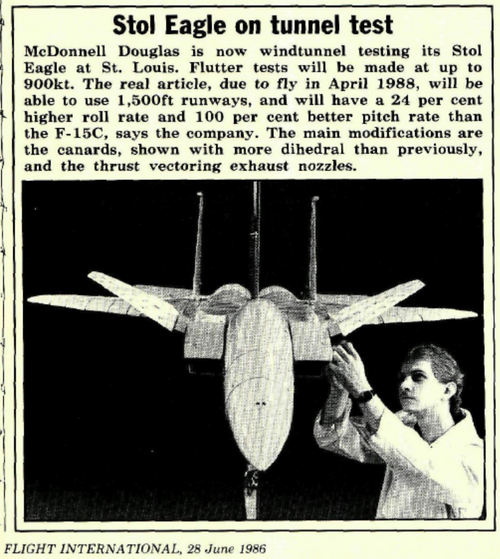

From Flight 1986.
