Lockheed Sea Shadow (IX-529)

[Thiel]

If memory serves it was offered as a museum ship, but no one took the offer.



[Sea Skimmer]

It was offered as a museum ship only if the taker also took the Hughes Mining Barge and displayed Sea Shadow inside of said barge. I don't see the horrible loss, the ship never did anything in service, it has very little on the inside for people to see other then the bridge and the engine room, and the US has too many underfunded museum ships already. Some are literally sinking at anchor.



[soundguy20000]

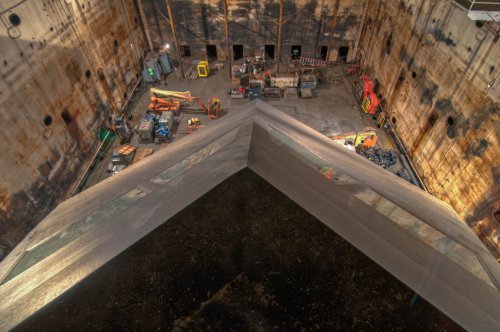

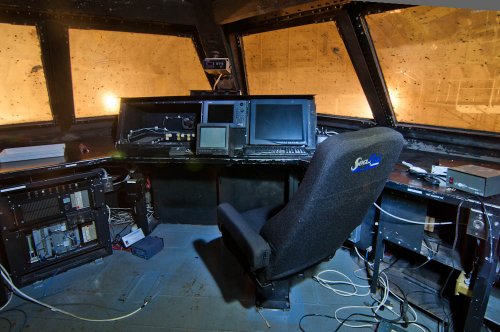

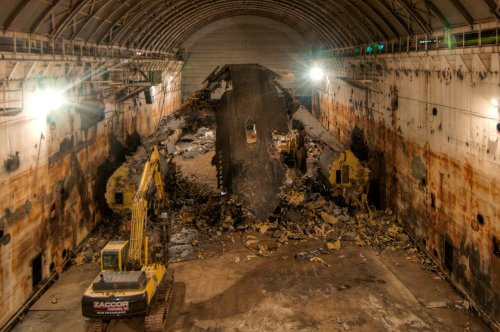

I feel it was a tragic loss that the IX-529 (Sea Shadow) was scrapped, watching the ship being ripped apart, day to day was horrifying, but before I get there a little back story. I found this forum through my Flickr stats, yes I went in January of 2010 with Amy Hieden to the G-Row of the Susuin Bay Mothball Fleet, but we never we allowed on board the Sea Shadow, merely on the HMB-1. In September of 2012 my path once again crossed with the HMB-1 at Treasure Island in San Francisco. From September 2012, until the final scrapping of the Sea Shadow in December of 2012 I made 23 visits to the ships, climbed through almost every compartment of both ships, toured the Sea Shadow with one of the Ex-Lockheed Engineers, and was one of the last people to set foot on the Sea Shadow before it was gone. Through all these visits and once of a lifetime access I developed an understanding of what the US Navy was testing on the Sea Shadow, which goes far beyond the stealth technology and reduced manning that the Navy has explained publicly. As far as I can tell my photographs tell the most complete story of the scrapping and destruction of an amazing ship. When the scrapping kicked up a notch by bringing on three four hundred excavators, the amount of difficulty the scrapping encountered was amazing, including the Sea Shadow sliding forward off it's supports, a bent nose, and the excavators burning through $7,000 heads at an unheard of rate. At the moment my Flickr set is as complete of a public library as I'm posting for now, http://www.flickr.com/photos/soundguy20000/sets/72157631960059129/with/8390152916/
Thanks for looking and reading!



[Creative]

Would it be correct to assume that FSF-1 Sea Fighter is Sea Shadow's heir?



[TomS]

Not really. The only thing they have in common is the SWATH hullform, and the FSF version is actually quite different -- more of a semi-SWATH approach. Also, FSF-1 isn't notably low-signature (look at the exposed railings, for example).



[flateric]

Thanks for looking and reading!

Thanks for sharing, Eric. What a mess...sad loss for history. :'(



[Stargazer]

Thank you so much Eric for joining and sharing this unique part of engineering history.

Was "IX-529" the official Lockheed designation for the program, or merely the vehicle's serial number?



[TomS]

IX-529 was the Navy's hull number. IX indicates "unclassified miscellaneous" and is used for all manner of unusual or uninteresting non-commissioned vessels -- everything from experimental craft like Sea Shadow to barges.



[Mr London 24/7]

Eric's Blog:


http://mulliphoto.com/?m=201303



[JimK]

The Sea Shadow may be gone, but (as a update to my previous post, Reply #34) these two sites have good virtual tours of the Sea Shadow and the Hughes Mining Barge with extensive links to further information:
http://nonplused.org/panos/seashadow/index.html & http://archive.hnsa.org/seashadow/index.php



[GWrecks]

You probably know about this already, but one of the Lockheed MP-UAV concepts appears to have a UAV carrier version of the Sea Shadow in the background. It's on Hitechweb, though I can't find it at the moment.



[covert_shores]

Anyone know which payloads were *actually* carried in the payload bay of the Sea Shadow?



[covert_shores]

Made a Covert Shores cutaway of her, article at http://www.hisutton.com/Lockheed-Sea-Shadow-Stealth-Ship.html



[muttly]

The navy is historically slow to accept new ideas.



[fightingirish]

One of Kelly Johnsons' rules was not to work with the US Navy.



[dan_inbox]

Made a Covert Shores cutaway of her, article at http://www.hisutton.com/Lockheed-Sea-Shadow-Stealth-Ship.html

Interesting article, thanks.
One minor comment, about the sentence "The twin hulls allowed for an extremely angled upper hull which looked completely unlike any ship before it."

Could instead be "...which looked strangely reminiscent of civil war ironclads like css Virginia, uss Cairo, uss Carondelet and their brethen. "

One man's opinion, anyway.



[uk 75]

Sea Shadow found its way into the toybox



[Hood]

Sea Shadow hit the zeitgeist of the time when it was revealed in 1993, I was ten at the time and thought I was looking at the future. Almost immediately Electronic Arts put it into the videogame Urban Strike in 1994 (set in 2001). Everyone assumed this was the stealth fighter for the seas but it never worked out like that and today's stealth shaping for naval vessels has never gone to these lengths. Indeed even SWATH has fallen from favour since the late 80s/early 90s too.

I'm still curious how effective it really was, it seems to have had some input into USN programmes but seems very much to have been a DARPA project that the USN never really brought into or cared about.
I'm also curious as to how much of the design work was done by Skunk Works and how much by Lochkeed Shipbuilding, being an aviation company it would seem incredible that they designed and built a novel ship from the keel(s) up without any problems when they were not nautical architects. Perhaps this was another reason why the USN distrusted the programme?



[Dew]

Lots of good info at San Francisco Maritime National Park Association website.

These would have probably been quite useful:

Sea Shadow Manual
Docking plan
'Virtual tour' panormas:

• Inside HMB-1 Sea Shadow Bow, another view
• Inside HMB-1 Under Sea Shadow
• Inside HMB-1, Sea Shadow Stern, another view
• Inside HMB-1, Starboard view of Sea Shadow
• Entry
• Payload space
• Switchgear passage, Switchgear room
• Generator room, Another view
• Galley/Passage
• Bridge
• First Platform Passage
• Berthing
• Aux Machinery Room 1
• I.C. Switch Room
• Electronics room
• Bosun's Storeroom
• Starboard Canard Room
• Starboard Pump Room
• Stb. Aft Passage
• Starboard Stabilizer Room
• Starboard Motor Room
• HMB-1 Wing Wall
• HMB-1 Ballast Control Room



[RP1]

Related to Sea Shadow; a new Covert Shores article on the stealthy submarine developed by Lockheed. This is based on a sketch I drew of a design illustrated in an issue of Armada International in the mid 1990s, so has 25 years of uncertanty associated with it.

Sonar-Invisible Submarine



[X-39]

Minute not "mintue":

View: https://www.youtube.com/watch?v=qklc16OyiNE



[flateric]

PopMech art



[flateric]

...



[Aeroengineer1]

...

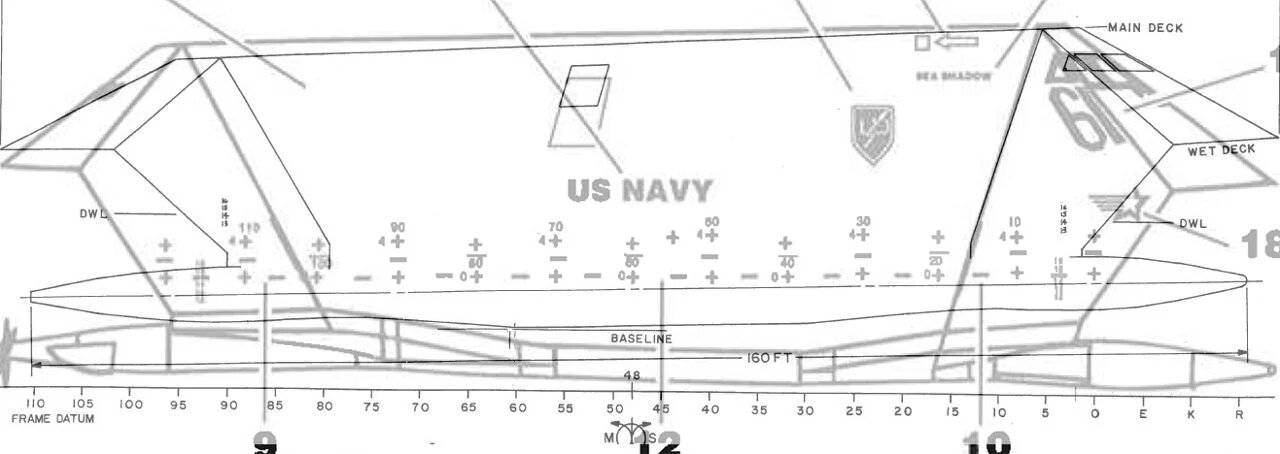

Is this a comparison of the Revel kit plans vs the Manual?



[flateric]

...

Is this a comparison of the Revel kit plans vs the Manual?

yes. note that I didn't care of getting kit drawing to scale (results would be even worse me thinks)



[H_K]

Lots of good info at San Francisco Maritime National Park Association website.

These would have probably been quite useful:

Sea Shadow Manual

Saving some of these PDFs here for posterity.

- The Sea Shadow, Naval Engineers Journal, May 1994
- Sea Shadow 1983 to 2006 (slides & photos)
- Sea Shadow manual, Navsea



[Dew]

Saving some of these PDFs here for posterity.

- The Sea Shadow, Naval Engineers Journal, May 1994
- Sea Shadow 1983 to 2006 (slides & photos)
- Sea Shadow manual, Navsea

Just edited my post, now with docking plan pdf as attachment



[Dew]

More pictures of the Sea Shadow:

Higher res (+ a few) from NARA:



[iwantmoresources]

The German Wikipedia page on the Sea Shadow makes a very interesting claim:

“Nach zwei Jahren des Testens strich der Chief of Naval Operations, Admiral James D. Watkins, 1986 das Programm schließlich, laut Rich aufgrund von Streichungen im Budget der Navy. Es hatte sich herausgestellt, dass Schiffsradare, welche die Wellen der Wasseroberfläche abbildeten, die Umrisse des Schiffes deutlich als „wellenlose Oberfläche“ auf dem Radarschirm zeigten. Um dies zu vermeiden, hätte das Schiff das Radarecho der umgebenden Wellen simulieren müssen, wäre dann aber darüber leicht elektronisch detektierbar gewesen.”

“After two years, Chief of Naval Operations Admiral James D. Watkins, cancelled the program in 1986 due to cuts in the Navy’s Budget, according to Rich. It turned out that ship radars, which depicted the waves on the surface, showed the outline of the ship clearly as “waveless surface” on the radar screen. To avoid this, the ship would have had to simulate the radar echo of the surrounding waves, which would have made the ship easily detectable by electronic means.”


It sounds very plausible, but i am not fully convinced. Does someone know more about this?

Edit: this passage didn’t have any sources, which is why i distrust it. Also, wouldn’t this mean that in any sea state detectable by radar, a stealth ship would show up as an empty outline that one could vector strike assets towards? E.g. an F-18 with radar in sea mode would be able to see the outline of a stealth ship in any sea state beyond moderate (just an example).



[fightingirish]

The German Wikipedia page on the Sea Shadow makes a very interesting claim:
It sounds very plausible, but i am not fully convinced. Does someone know more about this?

Edit: this passage didn’t have any sources, which is why i distrust it. Also, wouldn’t this mean that in any sea state detectable by radar, a stealth ship would show up as an empty outline that one could vector strike assets towards?

The passage is based by this book:
Skunk Works: A Personal Memoir of My Years at Lockheed, by Ben R. Rich and Leo Janos, chapter 13 THE SHIP THAT NEVER WAS.

[...] One of the biggest problems we had to overcome was our own extreme invisibility! The ocean waves showed up on radar like a string of tracer bullets. And if the ship was totally invisible, it looked like a blank spot—like a hole in the doughnut—that was a dead giveaway. In the stealth business, you tried like the devil not to be quieter than the background noise, because that was like a trumpet-blast warning to the enemy.

By the time we solved this problem, however, the admirals who ran the surface fleet were displaying little enthusiasm for going any speed ahead. “Too radical a design,” they told me. “If the shape is so revolutionary and secret, how could we ever use it without hundreds of sailors seeing it? It’s just too far out.” There were sexier ways of spending naval appropriations than on a small secret ship that would win few political brownie points for any admiral who pushed for it. Although the Navy did apply our technology to lower the cross section of submarine periscopes and reduce the radar cross section of their new class of destroyers, we were drydocked before we had really got launched. So I held back: I had a design for a stealthy aircraft carrier that would show up on radar no bigger than a life raft, but I had already proven Kelly’s unwritten Rule Fifteen about dealing with the Navy. Why ignore it twice?



[iwantmoresources]

Correct me if im wrong, but even if the Sea Shadow (or its derivative) was detectable because of the ship-shaped patch of perfectly calm sea, no Soviet anti ship missile would be able to target it, given the lack of radar reflections. Which means the Soviets would have to send aircraft to within visual range to sink it, and all weaponized Sea Shadow concepts i see are armed with medium/long range SAMs. Or sink it with guns.

So, even if it was detected, Soviet strike aircraft would have to evade RIM-67 or even MIM-104 and potentially RIM-7/162/116. That means the Soviets have two options: perform a mass attack from all sides to overwhelm the air defenses and experience unsustainable loss rates, or risk a ship to try and sink it with guns. And given that there would be multiple of these things in theatre, i would expect these things to at least be a massive nuisance.



[TomS]

Correct me if im wrong, but even if the Sea Shadow (or its derivative) was detectable because of the ship-shaped patch of perfectly calm sea, no Soviet anti ship missile would be able to target it, given the lack of radar reflections. Which means the Soviets would have to send aircraft to within visual range to sink it, and all weaponized Sea Shadow concepts i see are armed with medium/long range SAMs. Or sink it with guns.

So, even if it was detected, Soviet strike aircraft would have to evade RIM-67 or even MIM-104 and potentially RIM-7/162/116. That means the Soviets have two options: perform a mass attack from all sides to overwhelm the air defenses and experience unsustainable loss rates, or risk a ship to try and sink it with guns. And given that there would be multiple of these things in theatre, i would expect these things to at least be a massive nuisance.

No, that's a major oversimplification.

1) A radar-guided missile that got close enough to a stealth ship would still be able to detect and home on it. Soviet reconnaissance-strike complexes were already set up to provide the sort of off-board guidance required for this.

2) Armed Sea Shadows with the weapons described would have to emit active radar to guide their own missiles, and the Soviets would likely adapt by using passive radar homing seekers on at least some missiles.



[A Tentative Fleet Plan]

Soviets also had IR seekers on some anti-ship missiles.



[Scott Kenny]

Soviets also had IR seekers on some anti-ship missiles.

IIRC, Sea Shadow did mostly address that issue, the diesels exhausted under the hull where the hot exhaust got mixed with all the air going between the SWATH sideplates.

And it wouldn't be hard to add a cogeneration system to pull more heat out of the exhaust to bring it down to ambient temp even without mixing it under the hull.



[publiusr]

Reminds me of the old ironclads
