Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF)

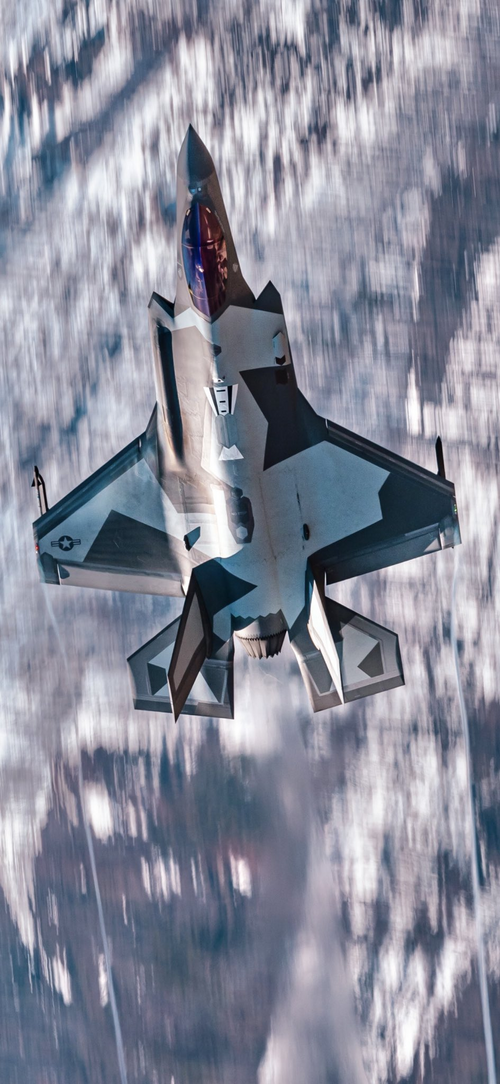

I would not think that the camoflage scheme would affect the RAM coating on the F-35 that much siegecrossbow, I am sure that they have done lots of tests on the airframe to double check if that were the case before giving the all clear for it to be used.

FighterJock said:
I used to think that the heaviest F-35 was the B model due to the fact of the lift fan but now I know that it is the C model due to the bulkheads.
Click to expand...

F-35C also has a twin rather than single nose wheel, tail hook and the larger wings. All in its 2,500 lbs heavier than a B and 4,500 lbs heavier than an A. Carries upto 1,500 lbs more internal fuel than an A but the same maximum payload capacity. B for some reason though has better gas mileage (just has smaller internal tanks) I presume as the lift fan assists in saving fuel during takeoff (and less weight carried in fuel).

Ferry
A: 8.29 lbs of fuel per km
B: 7.94 lbs of fuel per km
C: 8.97 lbs of fuel per km

Or combat range
A. 0.06789 km per lb of internal fuel
B. 0.06925 km per lb of internal fuel
C. 0.06283 km per lb of internal fuel

*From publicly available Lockheed fuel capacity/range figures

Last edited:
WatcherZero said:
F-35C also has a twin rather than single nose wheel, tail hook and the larger wings. All in its 2,500 lbs heavier than a B and 4,500 lbs heavier than an A. Carries upto 1,500 lbs more internal fuel than an A but the same maximum payload capacity. B for some reason though has better gas mileage (just has smaller internal tanks) I presume as the lift fan assists during takeoff.

A: 8.29 lbs of fuel per km
B: 7.94 lbs of fuel per km
C: 8.97 lbs of fuel per km
Click to expand...
That's odd. Does the -B have a larger fan section or something, in addition to the Liftfan up front? Or is the non-afterburning takeoff that much less fuel burned?

As has been mentioned, those combat range figures are for user specific profiles. Meaning they are not combarable. F.e. the F-35A demonstrated a 760nm radius for an A/A profile at optimal altitude/speed settings.

The stated ferry range numbers are pretty much useless. They are derived from doubling the minimal combat radius requirements - 600, 450, 600nm for the A, B and C models, also for user specific profiles.
I mean, who thinks ferry range is actually less than combat range? :D

eagle said:
As has been mentioned, those combat range figures are for user specific profiles. Meaning they are not combarable. F.e. the F-35A demonstrated a 760nm radius for an A/A profile at optimal altitude/speed settings.

The stated ferry range numbers are pretty much useless. They are derived from doubling the minimal combat radius requirements - 600, 450, 600nm for the A, B and C models, also for user specific profiles.
I mean, who thinks ferry range is actually less than combat range? :D
Click to expand...

The pure clean configuration of the A with no external stores has a maximum of 1390nm so that 760nm A/A must have been with drop tanks and so not comparable to the internal fuel only figures. The set of figures given by Lockheed/Air Force are purely on internal fuel.

The other thing about a ferry flight is that the F-35 is likely to be carrying external fuel-tanks.

Scott Kenny said:
I don't know that there's a whole lot of reinforced structure unique to the -C model. Only parts I'm positive are different are the larger wings and catapult bar twin wheel nose landing gear. The mains may well be unique to the -C as well, but I haven't seen anything that says so.

Also, every short landing looks like the typical Navy landing. Full flaps, high sink rate, plant the main gear on the numbers and have the speedbrakes pop as soon as there is weight on the wheels.
Click to expand...
Ahhah.
The irony is that for all the hate B model gets - it was neither the most difficult to develop(aside from alcoa story), nor the most different from the basic one, nor the most problematic.
All the goes to C-.

NMaude said:
So a F-35 assembly line is going to be set up in Finland, I wonder what the Russians reaction to that will be?
Click to expand...
Like, what's the difference for Russia?
I.e. nothing good, nothing can be done about it, nothing bad happens because of it.

Last edited:
Ainen said:
Ahhah.
The irony is that for all the hate B model gets - it was neither the most difficult to develop(aside from alcoa story), nor the most different from the basic one, nor the most problematic.
All the goes to C-.
Click to expand...
I was honestly disappointed when the local Air Guard base had an airshow and didn't get the USMC F-35B demo pilot to come. I mean, it was cool to see the F-35A fly live (never seen one live before, it had more bass rumble than the flight of 4 Thunderbirds in F-16s), but I wanted to see the weird stuff happen!

It has occurred to me that a long-range version of the F-35 (Call it the F-35D) could be created by mating a C's wings (With the wing-fold deleted) to an A's fuselage.

WatcherZero said:
The pure clean configuration of the A with no external stores has a maximum of 1390nm so that 760nm A/A must have been with drop tanks and so not comparable to the internal fuel only figures. The set of figures given by Lockheed/Air Force are purely on internal fuel.
Click to expand...

No, it's internal fuel only, because there are no drop tanks for the F-35. At least currently let alone in 2016. (page 7)
The increase from 669 for the USAF profile to 760nm is the result of optimised speed and altitude settings.
Btw, there was also a similar briefing for Norway for an optimised A/G profile, but can't find it anymore.

eagle said:
because there are no drop tanks for the F-35.
Click to expand...

That is a serious oversight, for example the F-22 has drop-tanks and will be getting stealth drop-tanks in the near future.

Last edited:
eagle said:
No, it's internal fuel only, because there are no drop tanks for the F-35. At least currently let alone in 2016. (page 7)
The increase from 669 for the USAF profile to 760nm is the result of optimised speed and altitude settings.
Btw, there was also a similar briefing for Norway for an optimised A/G profile, but can't find it anymore.
Click to expand...

It's interesting, because there were 460 gal drop tanks planned in the early days, then they were dropped (pun intended) because of some development issues. Supposedly the inner wing stations, at least on the A and I models, are plumbed for tanks. As of 2019, the Israelis were interested in even larger external tanks (600 gal) to get to Iran with less tanker support.

www.twz.com

Lockheed Eyes Giving F-35s More Gas With Drop Tanks And That's A Very Good Thing

The external tanks could give F-35s significantly valuable extra range and loiter time for certain key missions and circumstances.
www.twz.com www.twz.com

Scott Kenny said:
Everybody gangster till the trees start speaking Vietnamese, the mountains start speaking Pashtu, and the snow starts speaking Finnish.
Click to expand...

Hilarious. Got my own variant of it.

Rule number one of neo-colonial wars: don't pick a fight with Vietnam.
Rule number two: don't pick a fight with Afghanistan.
Rule number three: whatever happen, don't pick a fight with Vietnam nor with Afghanistan.
Rule number four: consider the fact that between 1945 and 1980 (merely one-third of a century) Vietnam humiliated in rapid succession the military of a) France b) USA and c) China. Three out of five most powerful military on this planet, at least in the Cold War days. Then Afghanistan took care of the Soviet military.

Maybe the solution to end Cold War could have been to create a commission made of Vietnamese people, with some Afghans to help them ? The mind wonders...

Forest Green said:
...and the sunflowers start speaking Ukrainian.
Click to expand...
... and the concrete brutalistic towerblocks start producing a rather brutal-sounding combination of a plethora of exotic consonants and just two vowel phonemes with an absolutive-ergative syntactic structure and an enormous morphology which we know as the Chechen language. On a more serious note, is Australia considering to purchase F-35B to operate from the HMAS Canberra?

Given Australia's large amount of Pacific and Indian oceans it has to patrol I find it surprising the RAN wouldn't try to go for some sort of light-carrier using F-35Bs.

NMaude said:
Given Australia's large amount of Pacific and Indian oceans it has to patrol I find it surprising the RAN wouldn't try to go for some sort of light-carrier using F-35Bs.
Click to expand...
Depending on how well Japanese use of the F-35B goes on their light carriers (err... helicopter destroyers to not offend those bothered by the prospect of Japan having aircraft carriers again), I imagine Australia might be convinced in a few years to buy some F-35Bs. I believe some statements have been made about HMAS Canberra not being suitable for STOVL aircraft use but considering the parent design regularly operated AV-8 Harriers I don't think it would be too expensive to make the necessary modifications to the ship.

South Korea has considered building their own light carriers and could also potentially operate the F-35B from their two existing large amphibious assault ships, but it sounds like their current administration has turned away from the carrier idea and presumably won't be buying the F-35B either. It's still a possibility they could do it later depending on how their politics go, and if they do it might also incentivize the Australians to buy some.

njiiaf said:
It is a .mil link, that's probably why. Here is the relevant screenshot. As I said, the C's profile involves loitering for the carrier landing pattern which takes up some range. I will also make note of the comments by several F-35 pilots, most notably Billie Flynn on the Afternburn Podcast, that " the A was really meant to have the C's wings". This indicates that there is a tangible range benefit to the C's wings that outweigh extra drag and weight.
View attachment 721517
Click to expand...
I'm sure those expert pilots can make a good argument, but I'd have to imagine the F-35A is still significantly more agile than the F-35C although the later might be better at a purely sustained turn. But I'd expect the F-35C to indeed have greater range and the ability to loiter in the area for longer, which for the last several sort of wars we've been in has been the more useful capability. Trying to predict how things will work in the next war though is always risky business.

It seems to me like the USN tried to get a poor-man's A-12 out of the JSF by going with the larger wings and cramming as much extra fuel in it as they could. People will say they had to adapt it to CATOBAR use, which is true of course, but I wonder how much of the larger wing and other flight surfaces was strictly necessary for that.

Colonial-Marine said:
(err... helicopter destroyers to not offend those bothered by the prospect of Japan having aircraft carriers again)
Click to expand...
I'm more offended by the attempt to pass them off as some kind of destroyer.
Destroyer, carrier, Simon's cat, whatever they're called - biggish aircraft-carryingdeploying ships.

TomS said:
It's interesting, because there were 460 gal drop tanks planned in the early days, then they were dropped (pun intended) because of some development issues. Supposedly the inner wing stations, at least on the A and I models, are plumbed for tanks. As of 2019, the Israelis were interested in even larger external tanks (600 gal) to get to Iran with less tanker support.

www.twz.com

Lockheed Eyes Giving F-35s More Gas With Drop Tanks And That's A Very Good Thing

The external tanks could give F-35s significantly valuable extra range and loiter time for certain key missions and circumstances.
www.twz.com www.twz.com
Click to expand...

The Super Hornet's 480 gal tanks were supposed to be certified for the F-35, but that didn't work as the link says. Later redesigned to a 426 gal tank, then dropped.
The Israelis are/were working on an 600 gal tank. A more recent source from 2021. It might be done by now, if so, they managed to keep it a secret.

eagle said:
The Israelis are/were working on an 600 gal tank. A more recent source from 2021. It might be done by now, if so, they managed to keep it a secret.
Click to expand...

The important question is are these 600 gal drop-tanks stealthy or non-stealthy? Have they found a way to mask the fuel and electrical connectors at the pylon's attachment point on the wing so the F-35's stealth is compromised when the tanks are jettisoned?

eagle said:
The Super Hornet's 480 gal tanks were supposed to be certified for the F-35, but that didn't work as the link says. Later redesigned to a 426 gal tank, then dropped.
The Israelis are/were working on an 600 gal tank. A more recent source from 2021. It might be done by now, if so, they managed to keep it a secret.
Click to expand...

Thanks for the updated info.

Here's another even more recent source suggesting that the reduced-RCS tanks being developed for the F-22 might also be applicable to the F-35. Gotta wonder if there is any synergy with the F-35I effort.

I've got to question the utility of LO drop tanks. It seems to me like if you're flying a high-threat mission that requires you to be as stealthy as possible you can afford the expensive of actually dropping the tanks and probably the pylon once that fuel is gone. But eliminating the increased RCS from the exposed pylon attachment points seems like it might be an impossible problem to solve.

Colonial-Marine said:
I've got to question the utility of LO drop tanks. It seems to me like if you're flying a high-threat mission that requires you to be as stealthy as possible you can afford the expensive of actually dropping the tanks and probably the pylon once that fuel is gone. But eliminating the increased RCS from the exposed pylon attachment points seems like it might be an impossible problem to solve.
Click to expand...

That's the challenge for sure. I suspect you can't match the RCS of an aircraft that has those covered properly on the ground. But you should be able to improve on bare fittings at least.

TomS said:
That's the challenge for sure. I suspect you can't match the RCS of an aircraft that has those covered properly on the ground. But you should be able to improve on bare fittings at least.
Click to expand...
I mean, the KF-21 is doing some things with a raised "berm" around the tailhook and maybe in front of the conformal missiles.

Wouldn't be hard to add a couple of pieces to the wings of an F35 for at least the head-on RCS.

TomS said:
But you should be able to improve on bare fittings at least.
Click to expand...

Some sort of spring-loaded conformal stealth-flap that closes over the exposed fittings when the tank pylon (No doubt attached to the drop-tank) is jettisoned?
