Hi!
Junkers Project 14 - Junkers "Ju.Y" - 100 ton transport project. Sorry I lost the source.



[gabrielorosco]

Hi!
Junkers Project 14 - Junkers "Ju.Y" - 100 ton transport project. Sorry I lost the source.
View attachment 624680

Incredible, always wanted to see this. Source would be awesome.



[blackkite]

Hi!

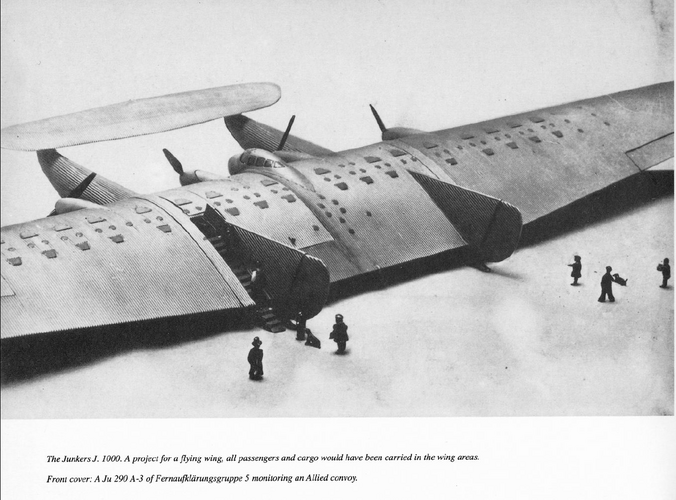

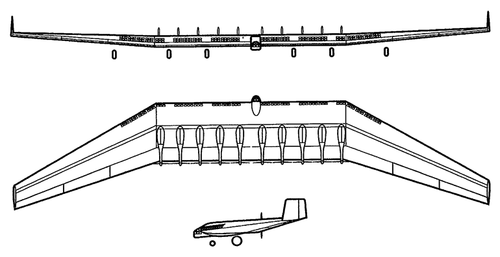

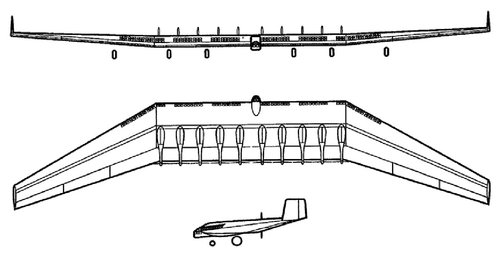

"Even after the construction of its giant passenger G-38 Hugo Junkers is not complacent and in 1930 develops a project of pure flying wing of unprecedented scale with the windows of passenger cabins on the front edge. Ten motors are located in the central plan and spin pushing air screws at its back edge.

The arrow-shaped flying wing consoles with keels at the ends made this scheme really sustainable. The main supports of the chassis with six racks had to be distributed on a scale. Junkers this project paved the way for the works of American Northrop on its flying wings.

These unrealized projects of large passenger vehicles reflected Professor Junkers' deep conviction that the efficiency of long-haul air travel was determined by the aerodynamic quality of the aircraft. And the less its harmful resistance, the greater the quality. Therefore, everything that does not create lifting power is superfluous."

You books. Леонид Анцелиович. Неизвестный Юнкерс

Леонид Анцелиович. Неизвестный Юнкерс. В начале Великой Отечественной не было на фронте более ненавистного самолета, чем отличавшийся исключительной точностью бомбометания и ставший главным символом блицкрига «Юнкерс-87», который прозвали «штукой» и «пикирующей смертью». Не меньше жизней...

www.you-books.com



[blackkite]

Junkers Flying Catamaran Project

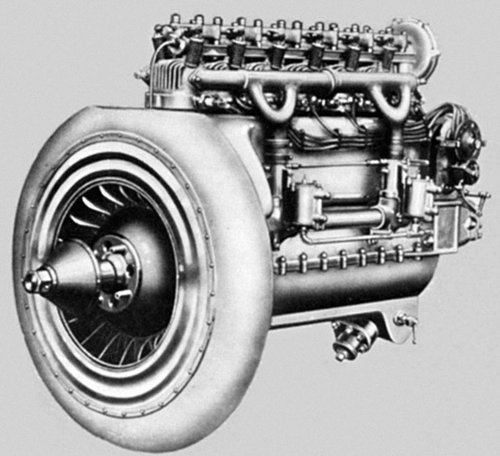

Junkers L1 Aircraft Engine
Hugo is convinced that in peacetime, light single-engine aircraft will require a small engine. In 1920, he began designing an ordinary inline air cooling engine with six L1 cylinders.



[blackkite]

Enlarged image. High performance scanner.



[hesham]

Here is two unknown Projects,

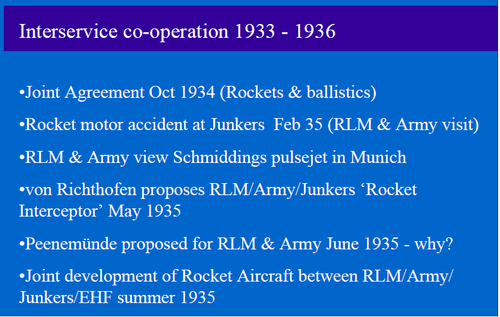

Junkers designed a rocket interceptor Project in May 1935,in co-operation with RLM/Army,also anther rocket aircraft in summer 1935,also with co-operation with RLM/Army/EHF,maybe developed or based on this one;

https://www.secretprojects.co.uk/threads/junkers-doepp-rocket-fighter.16563/

- Heinkel He 176 douglas downer-smith



[hesham]

Hi,

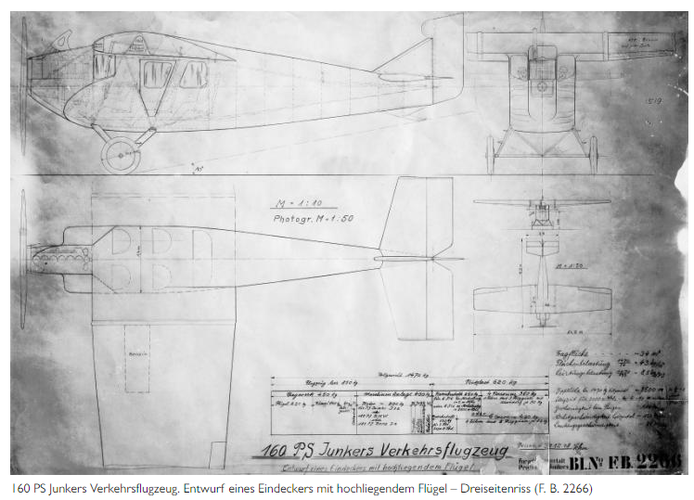

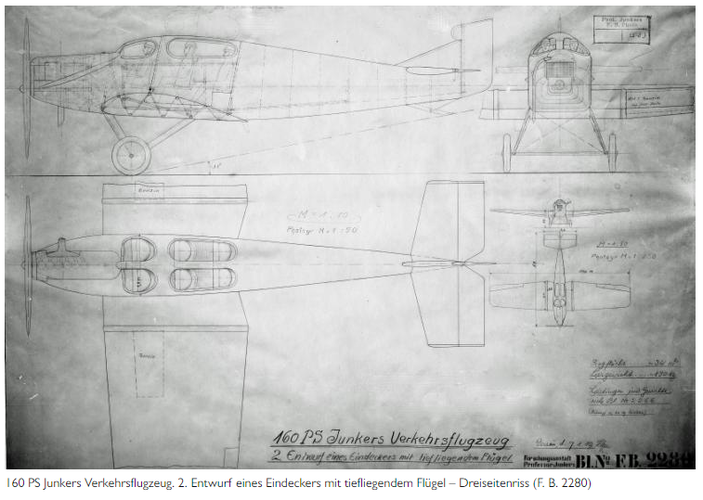

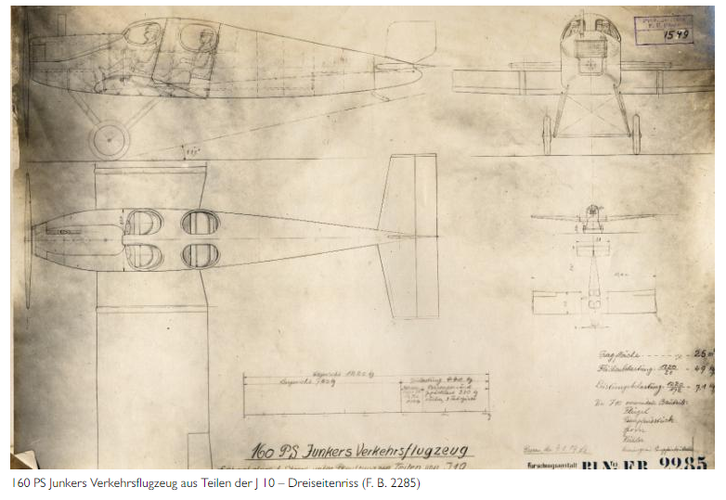

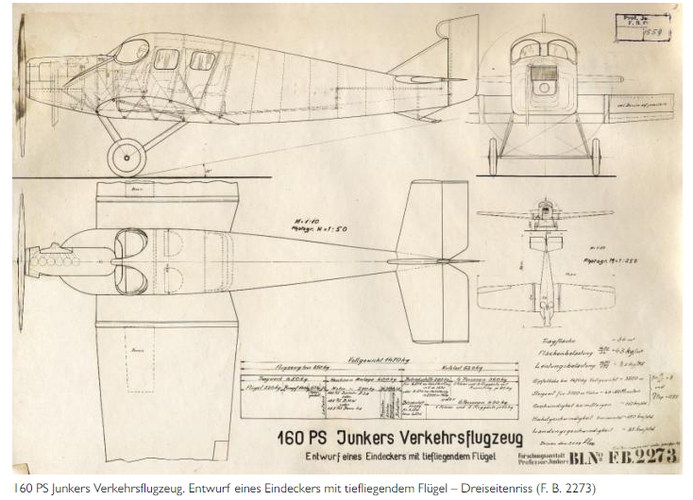

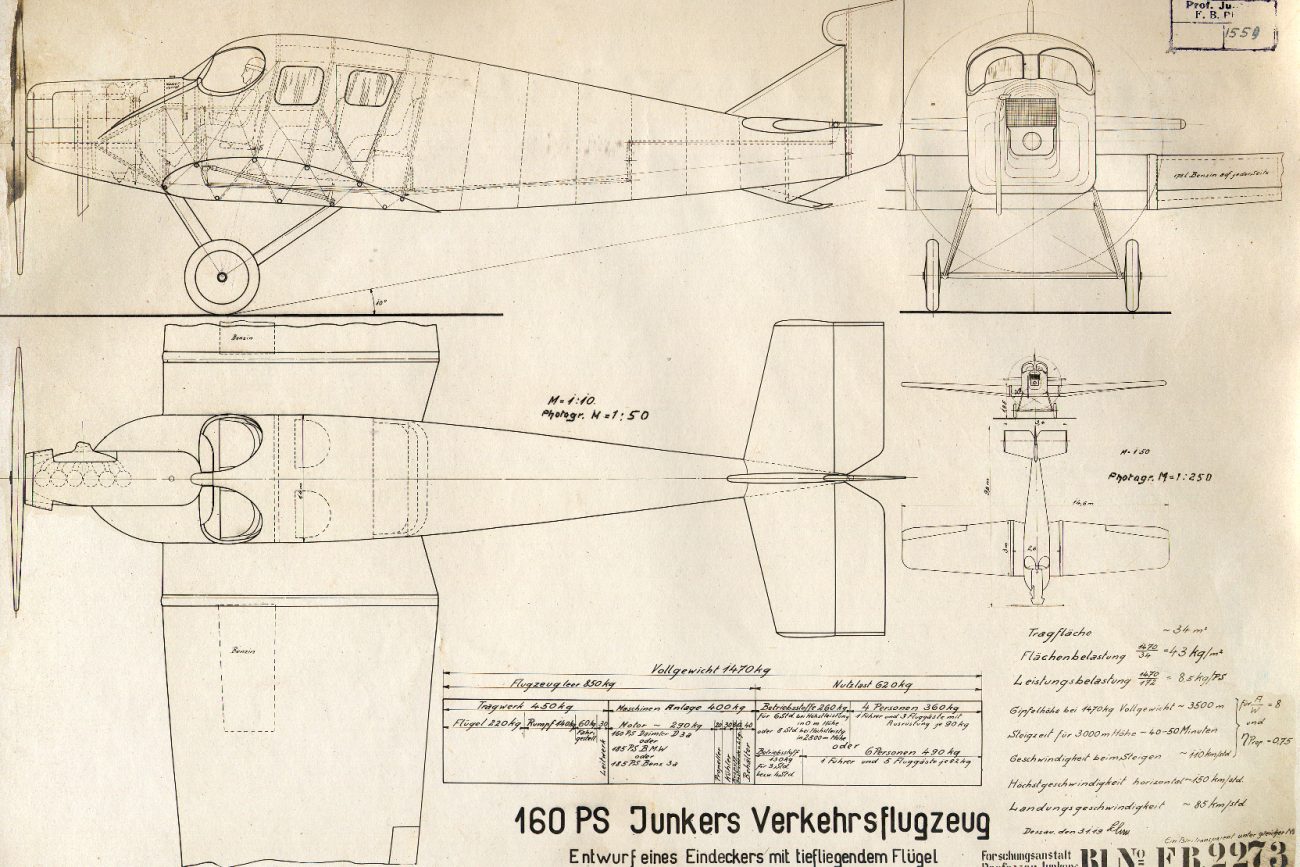

Geburt eines Verkehrsflugzeuges vor 90 Jahren - Junkers

Mit dem Ende des Ersten Weltkrieges im November 1918 war über die während des Krieges aufgeblühte Flugzeugindustrie die Katastrophe hereingebrochen. Die Heeresaufträge fielen von heute auf morgen weg, ein Luftverkehr existiert noch nicht. Auch Prof. Junkers, der die Entwicklung seiner Jagd- und...

www.junkers.de



[hesham]

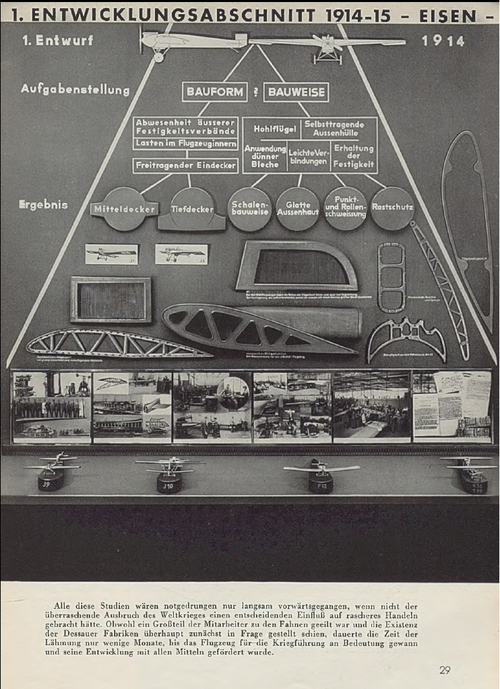

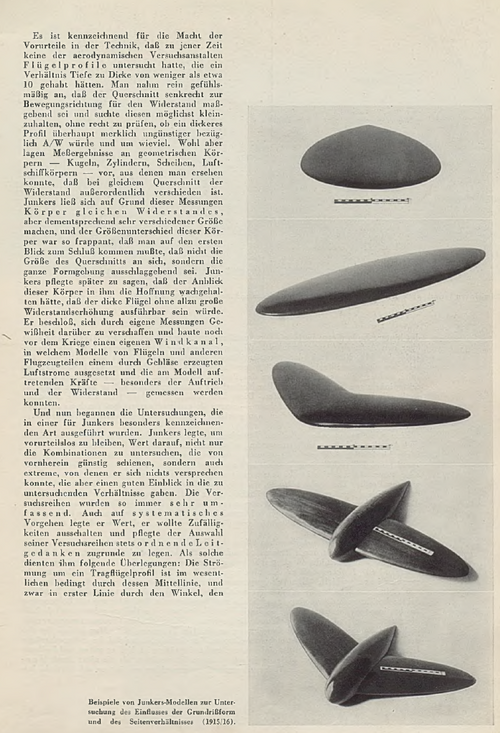

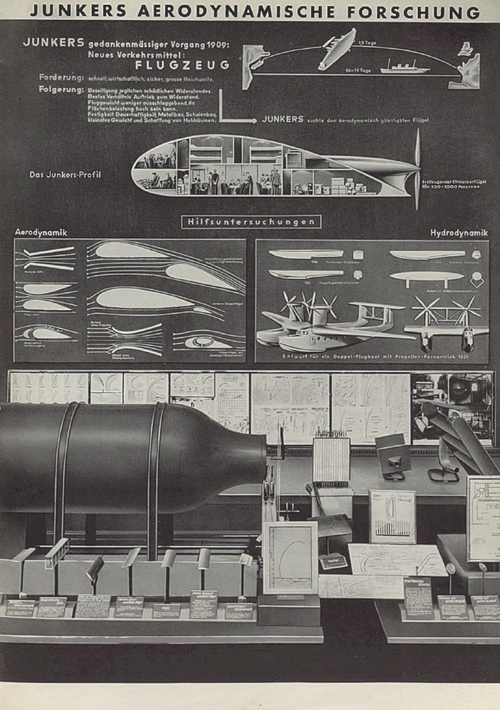

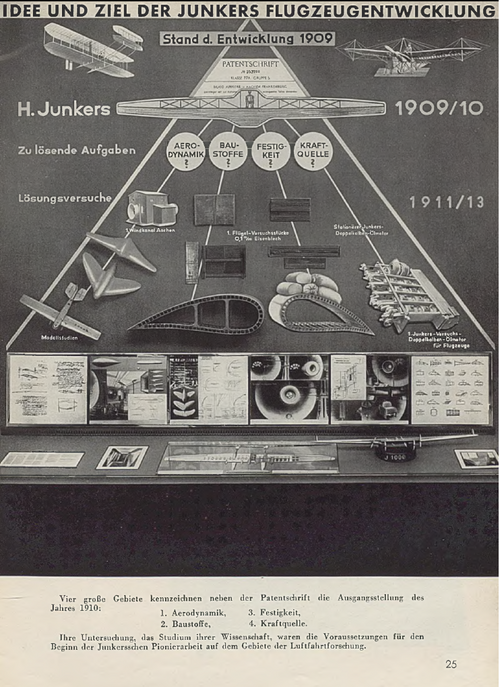

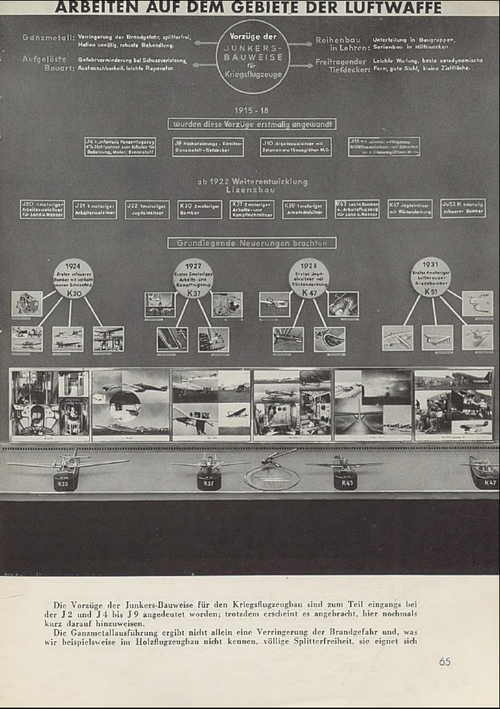

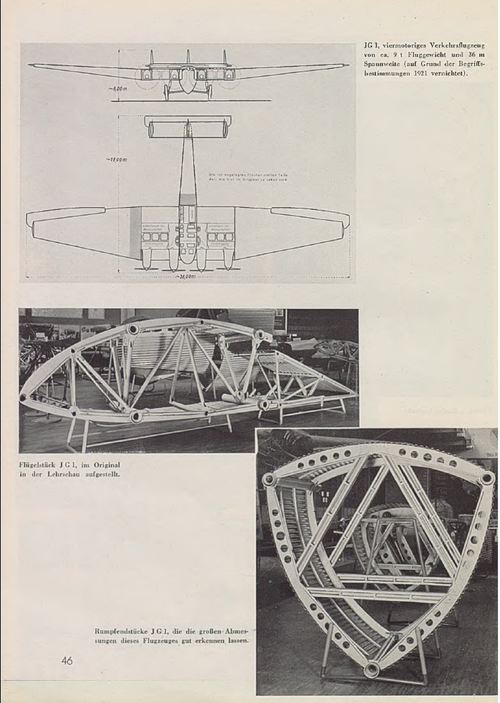

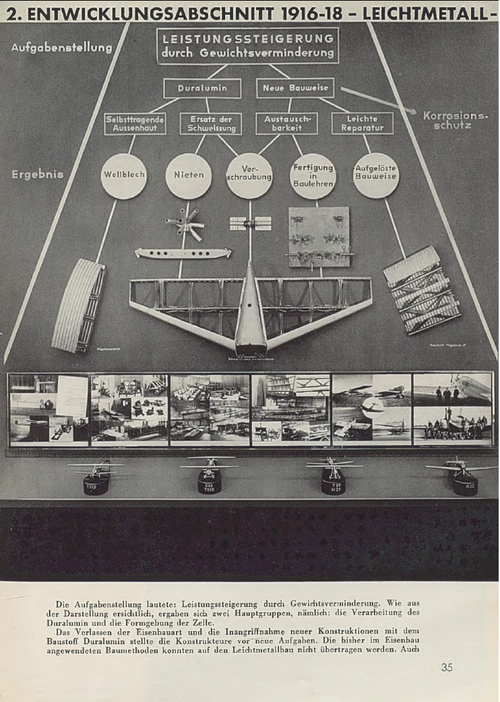

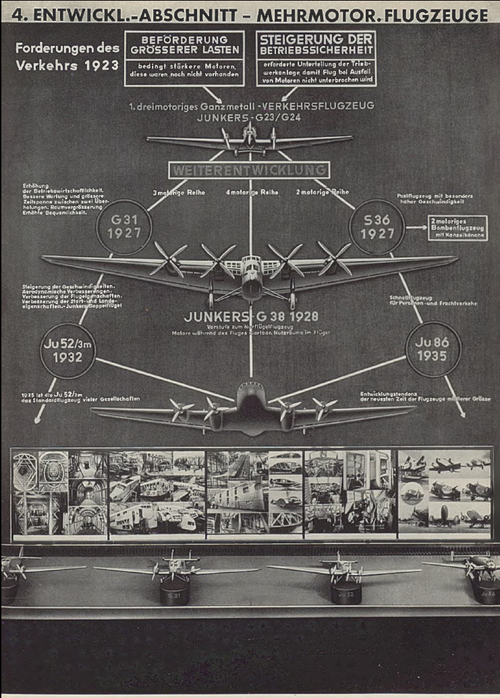

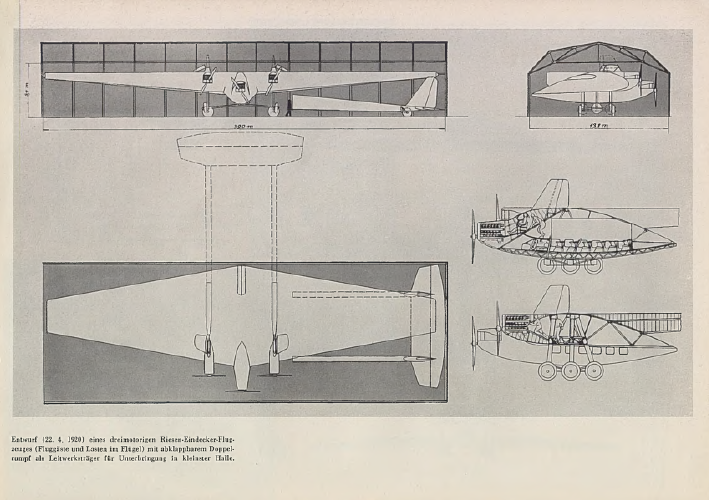

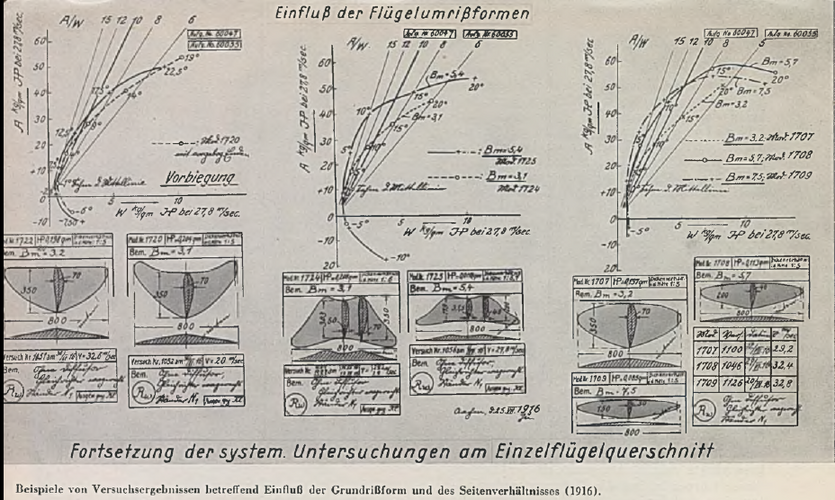

From, Die Junkers Lehrschau 30 Jahre Junkers-Flugzeugforschung 1910-1940.



[hesham]

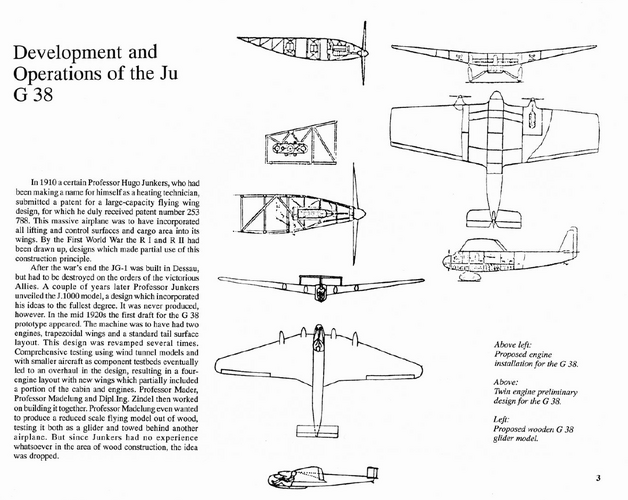

Junkers Junkerissime layout from the 1998 book Junkers Grossflugzeuge...

Source:
Junkers Grossflugzeuge (H.J.Nowarra) Motorbuch Verlag (1998) ISBN 3613012243

A good 3-view from the book;
Flying Man Hugo Junkers and the Dream of Aviation



[hesham]

For Junkers G24;

G3 S1 24 projected ambulance aircraft of 1924, three Junkers L2
G1 Sa 24 projected reconaissance aircraft of 1924, single-engined
G2 Sb 24 projected bomber aircraft with several three engined approaches

Junkers G23 and G24

hugojunkers.bplaced.net



[hesham]

From this book,

a good artist drawing to Ju-89.



[airman]

Enlarged image. High performance scanner.
View attachment 624820



[hesham]

From this book.



[Stargazer]

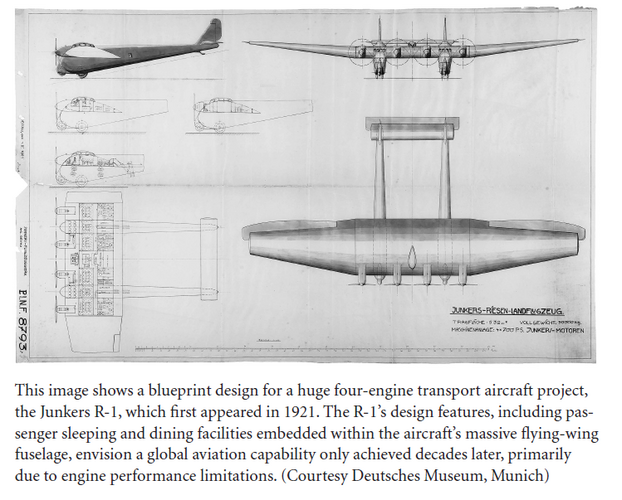

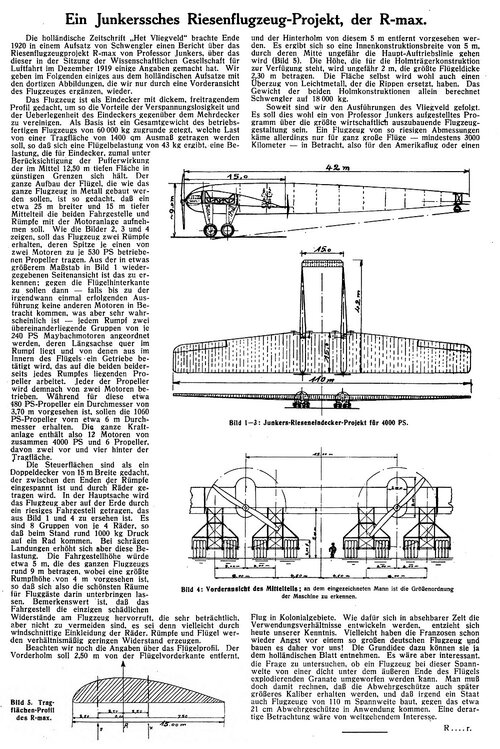

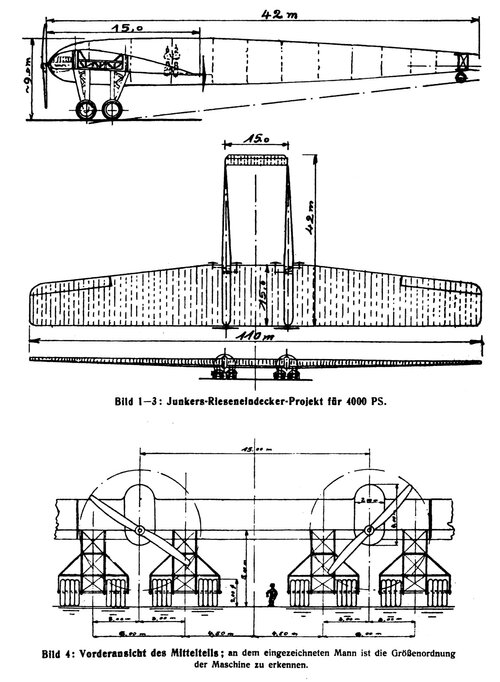

A giant twin-boom project from Junkers in 1921, the R-max (from Luftfahrt Nr. 3, 1921):



[riggerrob]

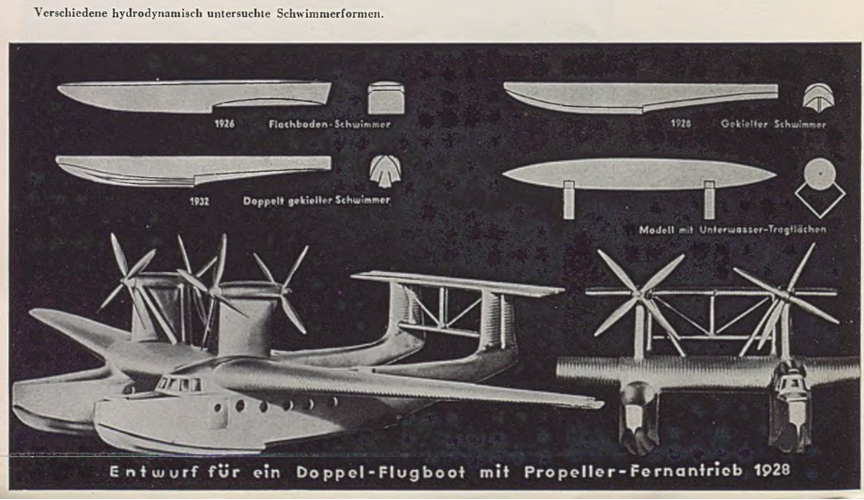

Junkers Flying Catamaran Project
View attachment 624756

Junkers L1 Aircraft Engine
Hugo is convinced that in peacetime, light single-engine aircraft will require a small engine. In 1920, he began designing an ordinary inline air cooling engine with six L1 cylinders.
View attachment 624758

Why is it that so many manufacturers threes have proposed twin-hull flying boats, but so few have entered production?
I did see a video of an American model demonstrating a nasty oscillation in a tow-tank.



[hesham]

Hi,

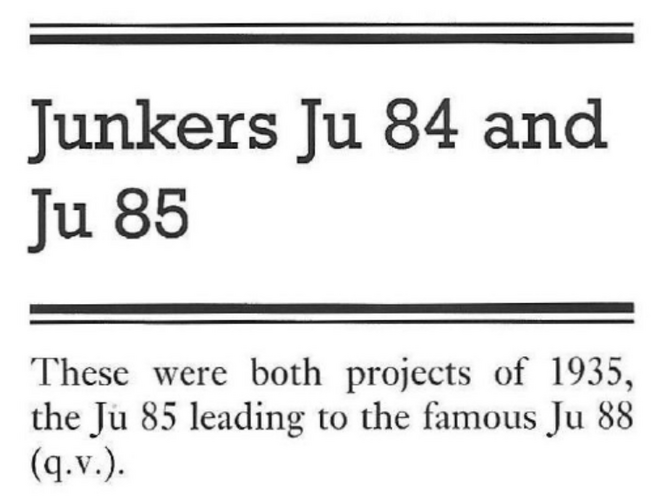

Junkers Ju-84 was unknown real design of 1935.



[Arjen]

Source, please?



[hesham]

Source, please?

The source is; Junkers Aircraft Engines 1913-1945



[Arjen]

Junkers Aircraft & Engines 1913-1945 by Antony L. Kay, Putnam 2004.



[Wurger]

Still no evidence of the Double-hull Junkers seaplane contender to the Blohm & Voss Bv 138?



[hesham]

Still no evidence of the Double-hull Junkers seaplane contender to the Blohm & Voss Bv 138?

Which one my dear Wurger ?



[Wurger]

Which one my dear Wurger ?

So, Hesham, since you know so many Junkers double-hull flying-boat projects, I am asking for the Ha(Bv) 138 contender.
