Japanese "Special Attack" Projects WW2

[tab28682]

good info ....Lippisch DM-1 fuselage in photo 2

Yes, indeed...as mentioned in my post with the photograph....



[Grey Havoc]

On a side note: http://www.asahi.com/ajw/articles/AJ201610090001.html



[blackkite]

good info ....Lippisch DM-1 fuselage in photo 2

Me.too. Very good information!!



[hesham]

From Aero Journal 37.



[sgeorges4]

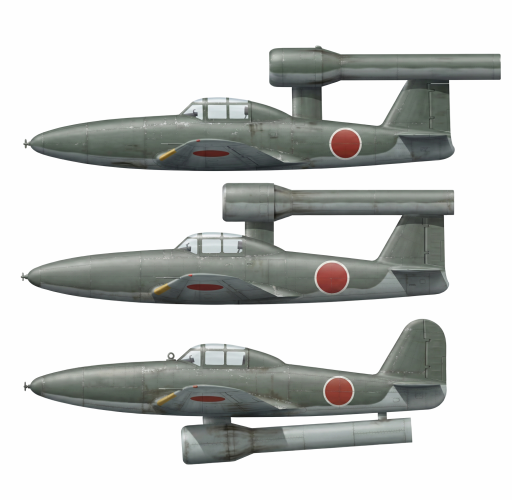

Do you have any official drawing regarding the baika please?



[airman]

i have seen on corporation reports of United States Strategic Bombing Survey published on 1947

that nakajima ki-115 was planned for 402 aircraft on 1945 ,

Judy D4Y3/4 : 1360 ordered



[hesham]

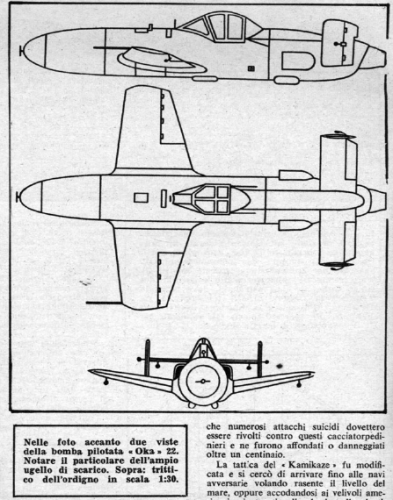

From Oltre il Cielo 1958 12,

the last two concepts,I can't ID them well.



[blackkite]

Baika's Ka-10 enjine was same as Argus AS024 pulse jet engine.



[Justo Miranda]

Hi



[hesham]

From Oltre il Cielo 1958 12,

the last two concepts,I can't ID them well.

For the third picture,the translate is very interesting;

A tri-view of the two interceptors Ionezawa «Kingo», left,and Ionezawa called an emergency.
The quick eavesdroppers had to be piloted by brave pilots called "Shimbu".



[blackkite]

Hi

https://www.secretprojects.co.uk/attachments/661-jpg.636837/

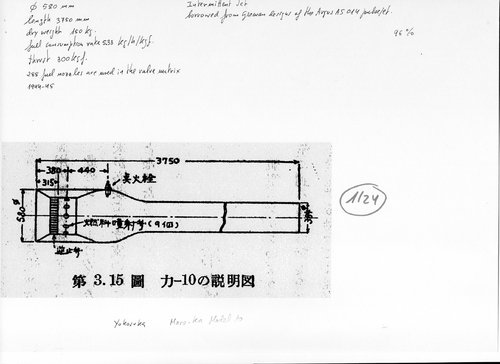

逆止弁 : Check valve
点火栓 : spark plug
燃料噴射弁（９個） : Fuel injection valve (9 sets)



[Airborne2001]

From Oltre il Cielo 1958 12,

the last two concepts,I can't ID them well.

That second design has very tiny wings. Speed was a clear aim with it.



[Apophenia]

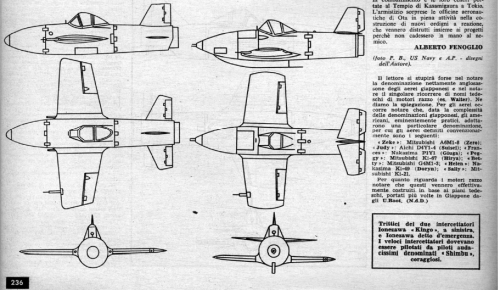

...For the third picture,the translate is very interesting;

A tri-view of the two interceptors Ionezawa «Kingo», left,and Ionezawa called an emergency.
The quick eavesdroppers had to be piloted by brave pilots called "Shimbu".

I'm getting something more like: "Three-view [drawings] of two interceptors [-] Yonezawa 'Kingo', on the left, and a Yonezawa emergency type. These were fast interceptors to be flown by daring pilots called 'Shimbu' or courage."

I assume that 'Shimbu' is a reference to the Shimbu Tokubetsu-Kogekitai (Gathering of Courageous Forces) which would make these IJAAF aircraft. The naming is a bit more elusive. Both Kingo and Yonezawa are Japanese given names (unless Yonezawa refers to the capital city of Yamagata Prefecture).

Has anyone heard of Yonezawa as a name associated with aircraft building?



[blackkite]

From Oltre il Cielo 1958 12,

the last two concepts,I can't ID them well.

About the last picture, I have never seen such a airplane.



[hesham]

From; Japanese Special Attack Aircraft & Flying Bombs,

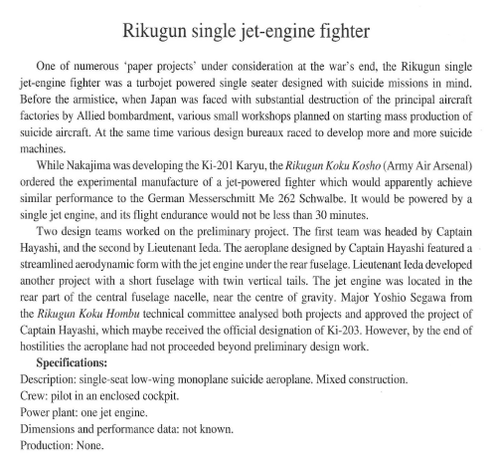

what was this Rikugun single seat Jet Fighter Project ?.



[hesham]

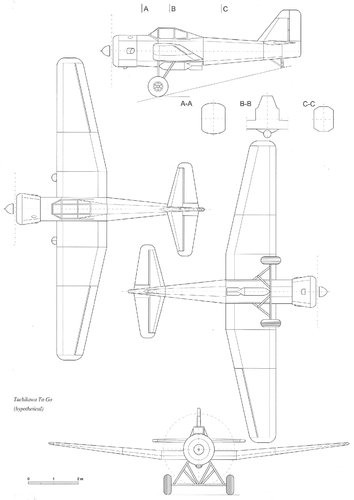

From; Japanese Special Attack Aircraft & Flying Bombs,

the Tachikawa Ta-Go.



[Temistocle]

Hi, here the first of a 8-part story from the 1985 memories of Kunihiro Aoki, chief designer of the Ki-115

The secret story behind the birth of Ki-115



[ArmchairSamurai]

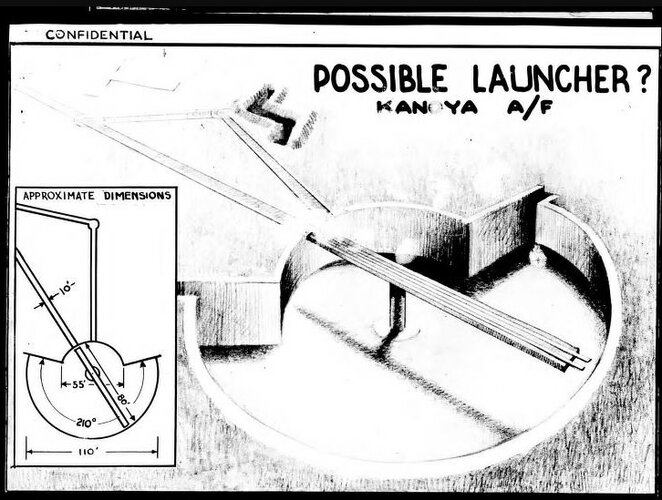

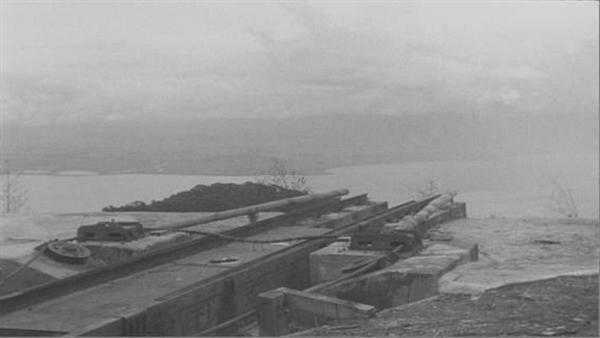

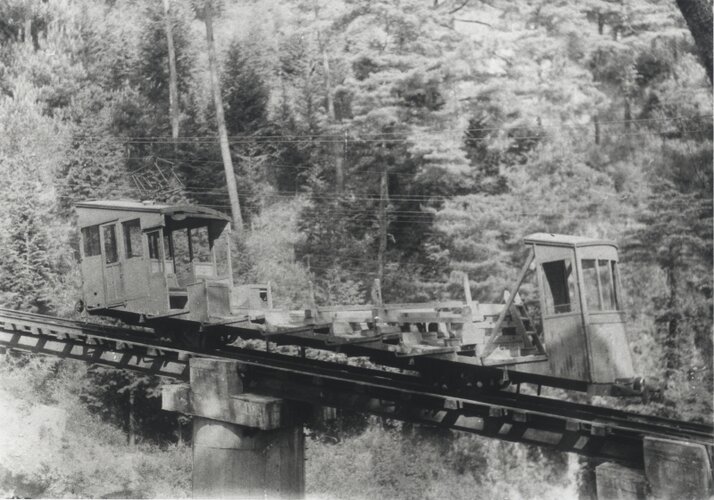

Has anyone ever seen an illustration of the catapult being designed for the Ohka Type 43B? There were tests of the caapult in the summer of 1945 according to "Thunder Gods" and one of the "Japanese Monographs" done for CMH indicates that construction of several of the coastal launch sites had begun in the summer of 1945. I've seen the two photos of the Type 43B mock-up, but nothing on the catapult.

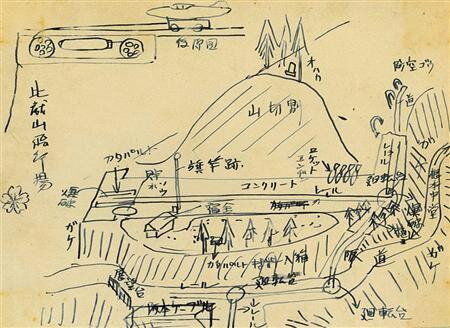

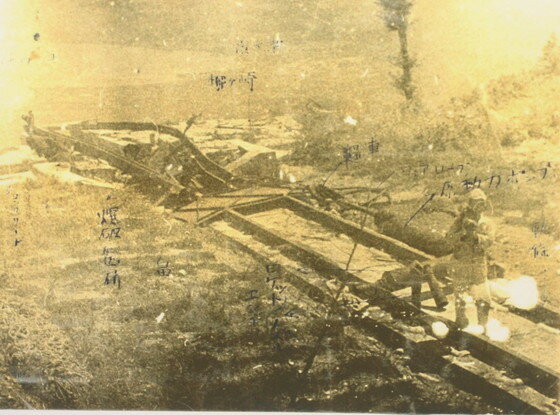

Reviving an old post since I see a need to. I saved these photos and drawings years ago and posted them on another forum site apart from this one.

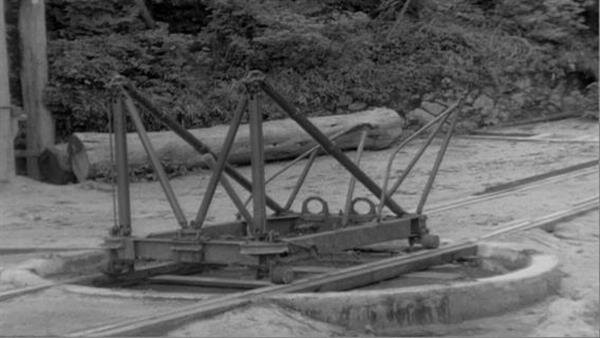

https://www.asahi-net.or.jp/~un3k-mn/ooka-725.htm <-- context for attached photo no.7
