Heinkel He100 variants.

[raoul-bourke]

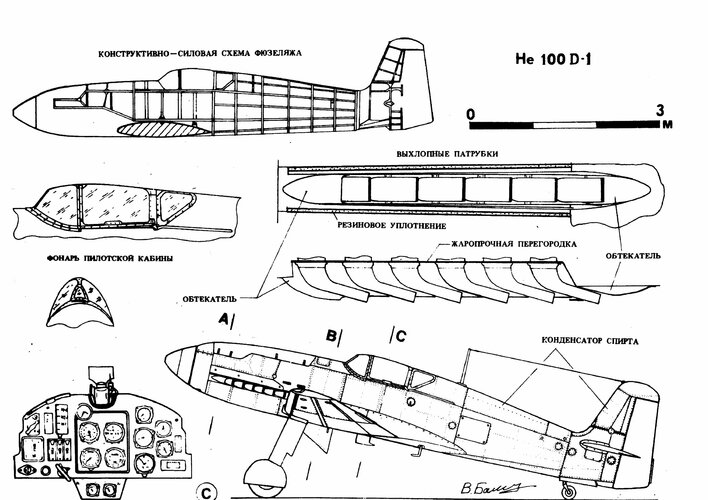

You can see very clear He100 V8 three side view drawing in this amazing book.
But cover picture is not V8. Perhaps it's D-1. You can see this scene in Youtube,too.
V3 side view drawing in this book is almost same as V8!!
According to bottom picture, V-3 : D-ISVR?, V-8 : D-IDGH?
But this book says that D-IDGH is V-3.
Also this book says that V-8 rudder leading edge is straight.(Same as D-1).

Bottom picture source :

Heinkel He 100 - LMK - Vsetín

There didn't exist a D-1 . They all were preproduction samples , one could say A-1.
The V3 and the V8 were identical , with the rear window deleted. Only the V3 was painted light grey . The V8 was built after the V3 crash . It got the same registration number D-IDGH . D-ISVR was the modified V-1 .



[Airfox69]

Are there any files drawings about the cockpit interior of the He 100?



[raoul-bourke]

Forgive me if it's in the topic already. I'm sure I've read that the aircraft's wing would not have been able to accommodate any armament, is that true?

The He-100 had the same weapons as the Bf-109 . One motor canon and two machineguns in the wings .



[Justo Miranda]

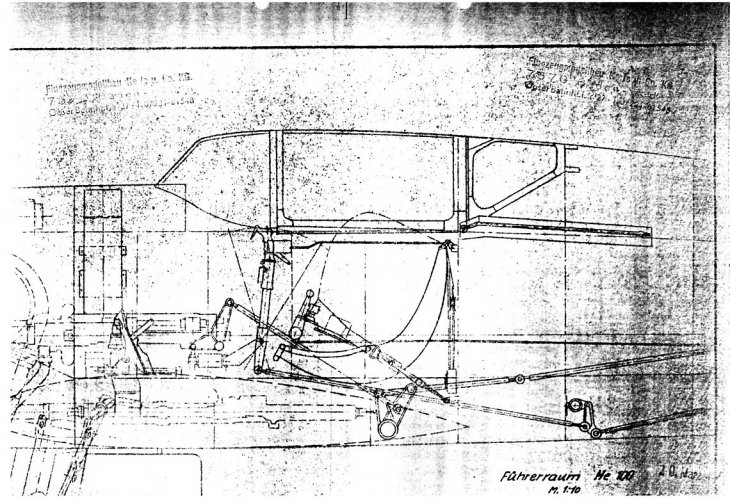

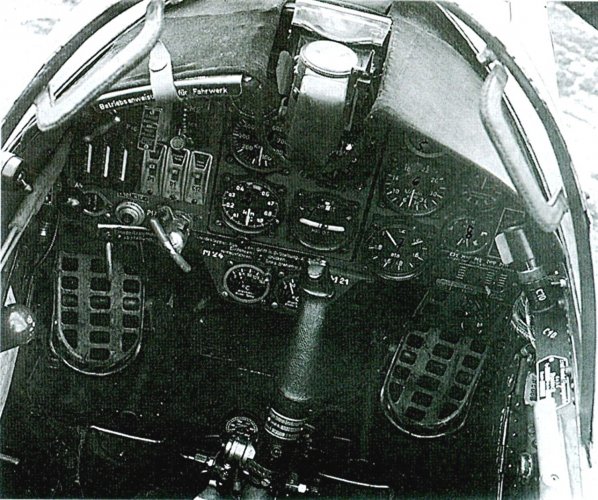

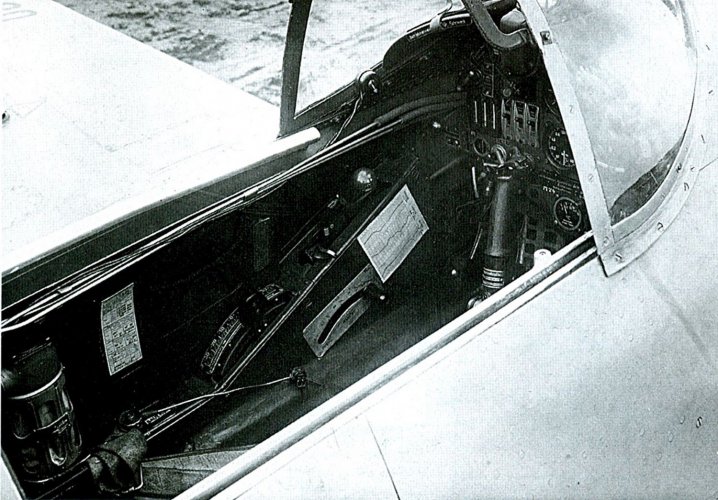

Are there any files drawings about the cockpit interior of the He 100?

Hi



[blackkite]

Hi!
