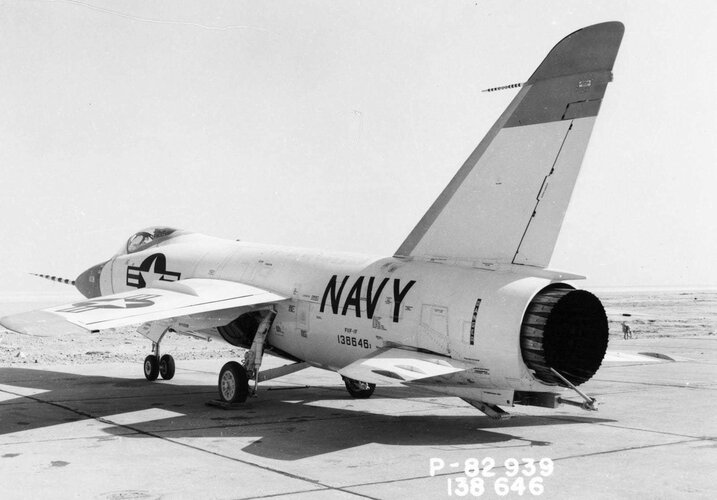

Grumman XF11F-2 Super Tiger


I was reading about the Japanese Air Self Defense Force (JASDF) the other day.
One of the things I found interesting was the fact that when looking to modernise its fighter interceptor force in the late 1950,s / early 1960’s to replace its F-86 Sabre fighters. One of the designs it evaluated and came that close to putting into production was the Grumman F11F-2 (later changed to F11F-1F) Super Tiger light weight fighter.
The article stated that the Japanese had literally signed the licensed production contract with Grumman, when like many things military and business, at the eleventh hour the Japanese did a back flip and instead chose the Lockheed F-104 Starfighter in November1960.
I have not been able to find much on the Super Tiger design, apart from it being powered by a General Electric J79 turbojet engine and because of this being somewhat heavier in weight and supersonic.
Does anyone have any specification / technical data, pictures and a 3-view drawing of the F11F-2 / F11F-1F Super Tiger design?

P.S. I also believe that the Luftwaffe also evaluated the Super Tiger, but like Japan chose the F-104 Starfighter instead.
I wonder if the high accident and mortality rate of Luftwaffe F-104’s and their pilots would have been very different had they chosen the Super Tiger over the Starfighter??
The main reason that the Starfighter gained its infamous name ‘The Widow Maker’

Regards
Pioneer
Can someone explain me the benefit and purpose of the placement of missiles on the upper area of the airframe? It did not seem to be safer than flying a F-104? The super tiger pilot would be in danger if something went wrong which triggered the explosion of the missile behind him.

Aerodynamics. The "top of fuselage" fairing coincidentally and and exactly offset the drag increment added by carriage of the two missiles. he same was not true for underwing carriage of the missiles which increased the overall drag count (decreasing Vmax and/or range).

This excellent reading show how close the Super Tiger come from beating the CF-104 back in 1959 for the RCAF.
(page 253 of the pdf)

-------

As a matter of fact, one can hate Diefenbaker or Hellyer for good reasons, but the RCAF and the powers that be behind it faced really impossible, untractable odds between 1958 and 1968.
The BOMARC, CF-104 and CF-5 deals all were poisoned chalices, one way or another.
And the CF-101 while it did the job well for the next two decades was loathed because of the Arrow trauma.

One is left wondering wether a Super Tiger with Sparrow III (for Canada air defense) and nuclear / conventional bombs (for NATO, Europe, 1st air division there) could have done the job of all these aircraft - and missiles.

Imagine: one aircraft to replace, first, the CF-100 / Sabre / CF-105 trio, and then, next generation: BOMARC, CF-101, CF-104 and CF-5 !

Compared to all of them, it fits except perhaps for the CF-101: obviously it lacks a) range b) two engines and c) two crews (although the later point could be corrected)
Joe Baugher mentions a normal range of 1136 miles.
F-101B is given a normal range of 1520 miles and maximum range 1930 miles. That's... a LOT more.


Attachments

  • The Rise and Fall of Canadas Cold War Air Force 1948-1968.pdf
    1.9 MB · Views: 91
Last edited:
This excellent reading show how close the Super Tiger come from beating the CF-104 back in 1959 for the RCAF.
(page 253 of the pdf)

-------

As a matter of fact, one can hate Diefenbaker or Hellyer for good reasons, but the RCAF and the powers that be behind it faced really impossible, untractable odds between 1958 and 1968.
The BOMARC, CF-104 and CF-5 deals all were poisoned chalices, one way or another.
And the CF-101 while it did the job well for the next two decades was loathed because of the Arrow trauma.

One is left wondering wether a Super Tiger with Sparrow III (for Canada air defense) and nuclear / conventional bombs (for NATO, Europe, 1st air division there) could have done the job of all these aircraft - and missiles.

Imagine: one aircraft to replace, first, the CF-100 / Sabre / CF-105 trio, and then, next generation: BOMARC, CF-101, CF-104 and CF-5 !

Compared to all of them, it fits except perhaps for the CF-101: obviously it lacks a) range b) two engines and c) two crews (although the later point could be corrected)
Joe Baugher mentions a normal range of 1136 miles.
F-101B is given a normal range of 1520 miles and maximum range 1930 miles. That's... a LOT more.
Yeah, I love the Super Tiger and the more I've read about it, the more I've realized what a huge missed opportunity it was. I think the problem was, it had really good performance that was a little better than its contemporaries like the F-104 and it was faster than the F-8, but it wasn't so much better that it could be justified over other fighters. It had two main things working against it. First, it was an orphan. The US didn't want it because they had much better options and the bigger carriers needed to fly them. And second, the bribes being thrown around by Lockheed.

I can think of three ways it could have been a bigger seller. First, have Grumman make some changes to increase its performance from very good to great. Then it would be head and shoulders above planes like the Starfighter and Mirage III, making it impossible for other countries to ignore.

Second, have the Navy buy some to operate off of the SCB-27A Essex class ASW carriers. They would give them a viable fighter screen and drive down procurement costs and maintenance costs for third party operators, making the Super Tiger much more attractive to them (cost was specifically cited by Switzerland when they ordered their Mirage III fleet, despite the Super Tiger having slightly better performance).

Third, have Lockheed's bribes come to light much earlier. That almost certainly gets the Super Tiger into service with Japan and Germany. And that could drive down costs enough that other air forces buy it as well.

Last edited:
The US didn't want it because they had much better options
Rather, they thought they had much better options.
No, they straight out had better options. They had the Phantom and the Super Crusader both being developed and both aircraft could humiliate the Super Tiger in a head to head competition.

Well they had the Crusader, Crusader III and Phantom. Three top notch aircraft. And on top of the Super Tiger, was the Skylancer !

It recently dawned on me that

- the Super Tiger, development of the Tiger, was only allowed to happen as a J79 mach 2 testbed for the Phantom and Vigilante

- the Skylancer, development of the Skyray, was only allowed to happen as "the Sparrow II option" along the "Sparrow III option" which was the last batch of F3H-2 Demons.

Both aircraft only interim types for the full-blown Sparrow III all-weather fighter(s): Crusader III versus Phantom.

So in a sense, two key technologies of the Phantom (J79 & Sparrow III) were tested on interim types (Super Tiger & last Demons) and behind them was yet another interim / insurance - the Skylancer.

Introduction of the AIM-7 Sparrow in the Navy was a complicated affair.

Sparrow I interceptors: F7U Cutlass, F3H Demons - beam-riding was shit
Sparrow II interceptor: F5D Skylancer - ARH was top, but never worked
Sparrow III interceptor: F3H-2 Demon - SARH - less practical, but workable.

Definite Sparrow III interceptor: Crusader III versus Phantom

The heart-breaking result of this was that three formidable flying machines were left behind: Skylancer, Super Tiger, and Crusader III.

An embarassment of riches, really. To think the RN was struggling with the Sea Vixen and never got a British mach 2 or supersonic naval fighter...

Last edited:
No, they straight out had better options. They had the Phantom and the Super Crusader both being developed and both aircraft could humiliate the Super Tiger in a head to head competition.
Both of those were still in early development though, with neither having even flown until May 1958, by which time the Super Tiger had already been flying and undergoing refinement for two years.

EDIT: @Archibald, the Skylancer was already a non-runner mainly because of procurement politics.

Last edited:
No, they straight out had better options. They had the Phantom and the Super Crusader both being developed and both aircraft could humiliate the Super Tiger in a head to head competition.
Both of those were still in early development though, with neither having even flown until May 1958, by which time the Super Tiger had already been flying and undergoing refinement for two years.

EDIT: @Archibald, the Skylancer was already a non-runner mainly because of procurement politics.
And the paper specs of the two fighters alone were more than enough to make the Navy salivate over them. Then there's the fact that the Navy was quite simply awash in "interim" types. Their VF squadrons were flying F2H Banshees, F3H Demons, FJ-1, 2, 3 and 4 Furys, F9F Cougars and Panthers and F11F Tigers. They were desperate to simplify and standardize their carrier air groups. They did not want yet another interim type.

No, they straight out had better options. They had the Phantom and the Super Crusader both being developed and both aircraft could humiliate the Super Tiger in a head to head competition.
Both of those were still in early development though, with neither having even flown until May 1958, by which time the Super Tiger had already been flying and undergoing refinement for two years.

EDIT: @Archibald, the Skylancer was already a non-runner mainly because of procurement politics.
And the paper specs of the two fighters alone were more than enough to make the Navy salivate over them. Then there's the fact that the Navy was quite simply awash in "interim" types. Their VF squadrons were flying F2H Banshees, F3H Demons, FJ-1, 2, 3 and 4 Furys, F9F Cougars and Panthers and F11F Tigers. They were desperate to simplify and standardize their carrier air groups. They did not want yet another interim type.

They still had Panters as trainers, followed by Cougars, three generations of Fury, followed by all the interim "Sparrow types" I mentionned plus the interim supersonic (Skyray, Tiger) and the failed Cutlass and the "true supersonic" Crusader (all of them with Sidewinders) and Skylancer and Super Tiger and Crusader III and Phantom and fuck I forgot the Demon
Whew !

And the paper specs of the two fighters alone were more than enough to make the Navy salivate over them.
One problem though was that the specs kept changing, especially in the case of the Phantom, leading to increased costs and schedule slippage.
That was because the Navy requirement kept changing. The original spec was for a pure fleet defense/air superiority fighter. That morphed into a multirole aircraft that was just as capable a bomber as it was a fighter.

In an ideal world they would have had both Crusader III and Phantom. I grew up with F-16 versus F-18 and other competitions and first time i heard the Phantom competitor was Crusader III, I wondered how could they compete with each other, being so different - night and day, really. I thought the Crusader was the main competitor and then the Phantom had come out of nowhere and screwed it - not even close. There were really developed in parallel and flew side by side for the same requirement.

With hindsight, it is a bit as if in 1976 the F-16 had a fly off with the F-15 with only one retained. Same for F-35 vs F-22.

In an ideal world they would have had both Crusader III and Phantom. I grew up with F-16 versus F-18 and other competitions and first time i heard the Phantom competitor was Crusader III, I wondered how could they compete with each other, being so different - night and day, really. I thought the Crusader was the main competitor and then the Phantom had come out of nowhere and screwed it - not even close. There were really developed in parallel and flew side by side for the same requirement.

With hindsight, it is a bit as if in 1976 the F-16 had a fly off with the F-15 with only one retained. Same for F-35 vs F-22.
They were also designed to evaluate the J75 and J79 head to head. The Crusader III's troubling tendency to go into compressor stalls at high mach numbers certainly didn't help it

In an ideal world they would have had both Crusader III and Phantom. I grew up with F-16 versus F-18 and other competitions and first time i heard the Phantom competitor was Crusader III, I wondered how could they compete with each other, being so different - night and day, really. I thought the Crusader was the main competitor and then the Phantom had come out of nowhere and screwed it - not even close. There were really developed in parallel and flew side by side for the same requirement.

With hindsight, it is a bit as if in 1976 the F-16 had a fly off with the F-15 with only one retained. Same for F-35 vs F-22.
Take the High-Low route with Phantoms and Super Tigers. The Crusader III was very neat, but the pilot work load would have been astronomical; the two crew route is the way to go.

That morphed into a multirole aircraft that was just as capable a bomber as it was a fighter.
It had some important shortfalls though, not least the lack of an internal gun on most models thanks to the 'we have missiles, we don't guns' & 'there will be no more dogfights' mentality / fallacy that overtook the USN and others during the late 1950s (originally the Phantom and Crusader were to meant compliment one another). And a lot of that evolution you mention was down to shorehorning it into roles it was never intended for which caused its own share of costly problems and failures.

I also realized that one of the Sparrow II advantages, vis-a-vis Sparrow III was... it didn't needed a RIO !

Sparrow II: single-pilot fire, and forget it.

Sparrow III: pilot fire, then keep the aircraft pointed toward the target. Meanwhile the RIO in the back struggles with its scopes and radar, praying for that bloody unreliable missile to work, for once... Vietnam told us: 1 chance out of 10, average.

So in a sense, Skylancer could afford to be a single-seater when Crusader III... could not. Except Sparrow II did not really worked, so Skylancer supposed advantage was moot.

Somewhat bizarely, Demon was single-seater, too, yet it had Sparrow III.
When you think about it, that was kind of unfair to the Crusader III !

Or maybe Demons pilots said "Sparrow III really needs a RIO to handle it. Oh, really. The workload is killing us."

Phantom just did not cared. It was two-seater from the start.

I don't want to imagine Cutlass or early Demon workload with the beam-riding Sparrow I... as if surviving the Cutlass apetite for killing its pilot, wasn't complicated enough, they added Sparrow 1 to that thing.
Why Sparrow I never made it into the Skyray instead, is beyond me.

Last edited:
Or maybe Demons pilots said "Sparrow III really needs a RIO to handle it. Oh, really. The workload is killing us."
Actually, they said just the opposite. Naval Aviators swore they could do the job just fine without a guy in the back. Almost universally, the pilots wanted the Crusader III and had a very poor opinion of the Phantom during the fly off, seeing it as being too big and heavy for the intended job and not nearly maneuverable enough (seriously though, the Crusader III could fly literal rings around the Phantom II, could out climb it, had a higher ceiling, longer range and was significantly faster (the Phantom maxed out at 1,302 knots at 45,000' clean per the F-4B SAC sheet, while the Crusader III had a demonstrated top speed of almost 1,600 knots).

And the paper specs of the two fighters alone were more than enough to make the Navy salivate over them.
One problem though was that the specs kept changing, especially in the case of the Phantom, leading to increased costs and schedule slippage.
Sadly, as has been the case with many U.S. military programs - be it ship, aircraft, armoured vehicle.....

Regards
Pioneer

Or maybe Demons pilots said "Sparrow III really needs a RIO to handle it. Oh, really. The workload is killing us."
Actually, they said just the opposite. Naval Aviators swore they could do the job just fine without a guy in the back. Almost universally, the pilots wanted the Crusader III and had a very poor opinion of the Phantom during the fly off, seeing it as being too big and heavy for the intended job and not nearly maneuverable enough (seriously though, the Crusader III could fly literal rings around the Phantom II, could out climb it, had a higher ceiling, longer range and was significantly faster (the Phantom maxed out at 1,302 knots at 45,000' clean per the F-4B SAC sheet, while the Crusader III had a demonstrated top speed of almost 1,600 knots).
Wasn't there also a culture issue with different squadrons converting over to Phantoms? Some VFs were hardcore gunfighters and others from Skynight VF(AW)s were used to the multi-crew fleet defense missions?

Or maybe Demons pilots said "Sparrow III really needs a RIO to handle it. Oh, really. The workload is killing us."
Actually, they said just the opposite. Naval Aviators swore they could do the job just fine without a guy in the back. Almost universally, the pilots wanted the Crusader III and had a very poor opinion of the Phantom during the fly off, seeing it as being too big and heavy for the intended job and not nearly maneuverable enough (seriously though, the Crusader III could fly literal rings around the Phantom II, could out climb it, had a higher ceiling, longer range and was significantly faster (the Phantom maxed out at 1,302 knots at 45,000' clean per the F-4B SAC sheet, while the Crusader III had a demonstrated top speed of almost 1,600 knots).
Wasn't there also a culture issue with different squadrons converting over to Phantoms? Some VFs were hardcore gunfighters and others from Skynight VF(AW)s were used to the multi-crew fleet defense missions?
To a point, yeah. There were also issues with pilots not fully appreciating just how complex the new generation of fighters was getting

According to George Spangenberg there was a conference on all-weather fighters at Patuxent where a group of Navy pilots came down firmly in favour of two seats which helped feed a general conviction two seats were needed. With the avionics available and mission requirements, two radar sweeps could be the difference between success and failure so it made sense to have someone with eyes glued to the screen.

The F8U-3 test pilots might have had other opinions.

The more I read up on this, the more you have to conclude the Super Tiger was such a missed opportunity.
There is a YouTube video of two Tigers being used in a test programme, of which part was a forward thrust for combat manoeuvre type test. The gist was that these jets were relatively easy to reactivate after being inactive for 4 years, due to the designs relative simplicity and robustness.
One can only imagine the usefulness of the Super Tiger on the smaller carriers used for 20-30 years after its first flight.
A faster, Mach 2 Super Etendard type two decades earlier, more suitable than the larger F8, and more capable than the Skyhawk in the fighter role...all of which were used in the end.
Faster than all 3, with more space up front for a larger radar.

Here's the video mentioned, pretty neat!

View: https://www.youtube.com/watch?v=YIMxUT9N8NA

Something just struck me, are there any simulations or thoughts on the ability of the super Tiger to deal with threats of the day one on one, like Vietnam etc?

The Crusader did very well in Vietnam yet it was slower with a larger engine plus the VI wing.
A Super Tiger would add Phantom's J79 to a better airframe than the Crusader, agility included.
It would be a nice complement to the Phantom.

We need a " Super Tiger and Skylancer in Vietnam" thread.

Something just struck me, are there any simulations or thoughts on the ability of the super Tiger to deal with threats of the day one on one, like Vietnam etc?
It would have done very well over Vietnam. At least as well as the Crusader did, maybe even a bit better.
Like an F-104 that could actually maneuver.


Last edited:
I found a copy of that on Amazon so with a bit of luck I'll get it tomorrow.

Some factors have been left out of all of this. The Tiger suffered badly from very limited fuel capacity. Range matters a lot in a naval fighter. Too, by about 1956 the Navy badly wanted an all-weather interceptor, because the main threat (not enemy fighters, Tu-16s with stand-off missiles) was not limited to daylight attacks. Spangenberg's comment about two seats is backed up by Navy files in the archives. It is also too easy to match up fighters without knowing what the competitors were in various formal design competitions. For a while, the Phantom was also involved in a serious push to merge the all-weather fighter and light (nuclear) bomber categories of carrier aircraft (payload weights were similar). You might take a look at Fighters Over the Fleet or Naval Air Superiority.

On the missiles, there seems to be an illusion that Sparrow III was the next step after Sparrow II. It wasn't. Sparrow II was an alternative missile using an active radar seeker rather than the semi-active seeker of Sparrow III. The Canadians were interested in it, and took up responsibility for development. I would imagine that, given the technology of the time, it was several steps too far. Its demise probably contributed to the death of the CF-105 Arrow.

The more I look at it, the more I wonder if Sparrow II wasn't an alternative to Sparrow III the following way...

We know that in 1959, three years after the Sparrow II was canned, the single-seat Crusader III lost to the Phantom because (among other reasons) its lone pilot would have been overwhelmed with a) piloting the aircraft and b) handling SARH Sparrow III without a RIO in the back.

Now, back to the Skylancer and Sparrow II. Basically I wonder if the Sparrow II was not at atempt at
a) getting ride of the need for a RIO to handle the SARH Sparrow III
b) and in turn, not needing two-seats, maybe something as large as a Phantom wouldn't be needed; not only the Crusader III could be "back in the race" if the missile was Sparrow II, but also two other single-seaters: the Skylancer and the Super Tiger (maybe).

From there I can't help thinking that the Skylancer (or more generally, any single seater with Sparrow II) could have been a "pre-Hornet"; with the Phantom in the role of a "pre-Tomcat". High-end / low-end.

So I ask the question: would the Sparrow II, compared to the Sparrow III, allow smaller-Sparrow-armed Mach 2 interceptors than the Phantom and in turn, more mach-2-Sparrow interceptors on smaller and more numerous decks ?

Somewhere on this forum (can't find it, damn it) somebody said the Navy gave Grumman false hopes the Super Tiger could be procured as "a Sparrow armed fighter for the small carriers" - Essex and perhaps even smaller and / or slower.

Last edited:
The Canadians were interested in it, and took up responsibility for development. I would imagine that, given the technology of the time, it was several steps too far. Its demise probably contributed to the death of the CF-105 Arrow.

Not only did the Canadians lurred themselves with an unworkable missile; they ignored the Skylancer radar tailored for the Sparrow II (the APQ-64) and instead started a brand new sophisticated radar with RCA lacking experience, from scratch.
Only to screw the whole thing 2 years down the road (summer 1956 - summer 1958) and replace it with Avro original proposal "use the F-106 radar and missiles, you dummy" - that was the plan
a) before 1956
b) after september 1958, too late

Fundamentally, the Arrow symbolize the exact moment when radars and missiles become the lion share of combat aircraft developments costs: far ahead of ENGINES and AIRFRAME -two areas were the Arrow development went pretty well considering the complexity of the whole thing.

Had the Canadians stuck with the F-106 radar and missiles all the way from 1954 to 1960, the program may have survived.

Alternately, had they picked the (unworklable) Sparrow II but the (workable) Westinghouse APQ-64, they could have switched to Sparrow III and APQ-72 by 1958 or 1960.

Wait, that sounds familiar ?

Phantom F-4B, anybody ?

What is even more puzzling is, the APQ for the Phantom got his antenna grown from 24-inch on the Skyray to 32-inch for the F-4. The Arrow needed a 40-inch antenna, so, what ? Add 8 more inches to the goddam APQ-72, and job done. Now the Arrow radar and missiles are those of the Phantom... and its 5200 airframes, 20 years production run (1959-1979). IF that doesn't help the Arrow surviving for at least 66 airframes in place of OTL CF-101s, then I'm ready to swallow my hat...

Westinghouse APQ-50: Skyray, no Sparrow, 24 inch antenna
Westinghouse APQ-64: Skylancer, Sparrow II, 24 inch antenna
Westinghouse APQ-72: Phantom, Sparrow III, 32 inch antenna.


Would have made some sense to create something like

Westinghouse APQ-74: CF-105, Sparrow III, 40 inch antenna.

Even more since a Canadian Westinghouse existed ! Take an APQ- licence and bid against RCA in 1955-56... and I've found a small bit on Google books, saying they DID that, but LOST to RCA (facepalm).

Back to Super Tiger (which was considered by the RCAF as one of the best options to replace the Sabres in 1958-59, but Lockheed carried the day).

Last edited:
The Tiger suffered badly from very limited fuel capacity

But no worse than any other naval aircraft?

Fuel / Take-off weight clean = Fuel fraction:

F/A-18C: 10,800lbs / 36,000lbs = 0.3
A-4M: 5,440 / 17,400 = 0.313
—> F11F-1: 6,650 / 21,000 = 0.317
F-4B: 13,500 / 42,300 = 0.32
F-8D: 9,170 / 28,200 = 0.325

Last edited:
