German WW2 “SEEDRACHE“ Torpedoboat Project

[Wurger]

The "unknown" source is Harald Fock`s Marine-kleinkampfmittel. An excellent book, actually.



[Justo Miranda]

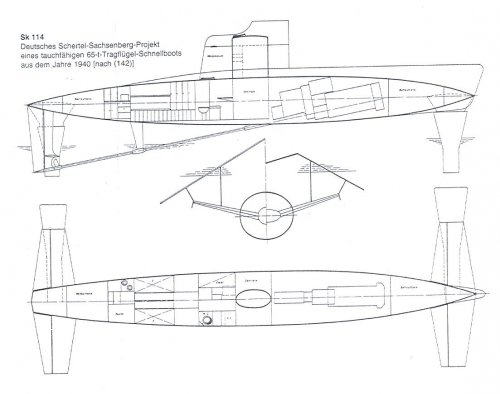

Sk 114
From unknown source



[Justo Miranda]

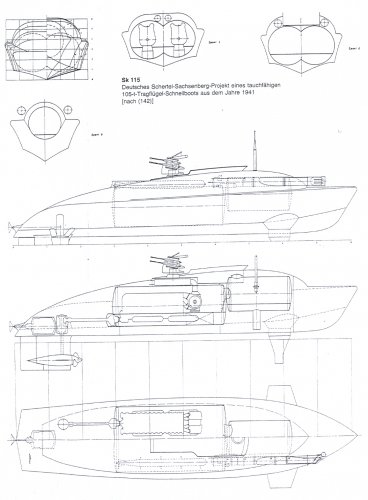

Sk 115
From unknown source



[Justo Miranda]

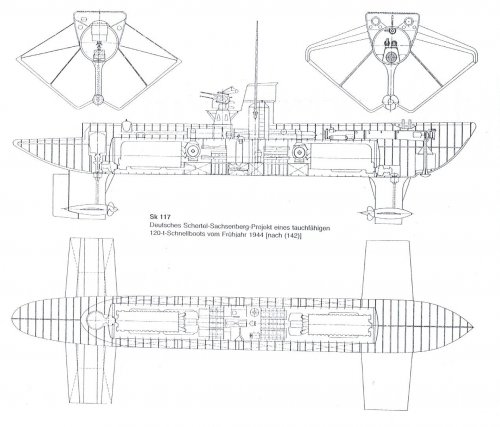

Sk 117
From unknown source



[Justo Miranda]

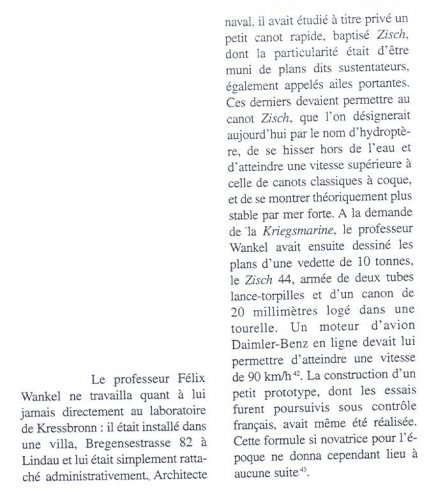

Wankel "Zisch 44"
From "Sous-Marins Français 1944-1954 " by Olivier Huwart
Marines Editions



[Justo Miranda]

The "unknown" source is Harald Fock`s Marine-kleinkampfmittel. An excellent book, actually.

Found at http://www.abebooks.de/search/sortby/3/an/Fock+/tn/+Marine+-+Kleinkampfmittel



[moin1900]

WOW !THANKS ! Thank you so much ! Justo
These drawings are great !

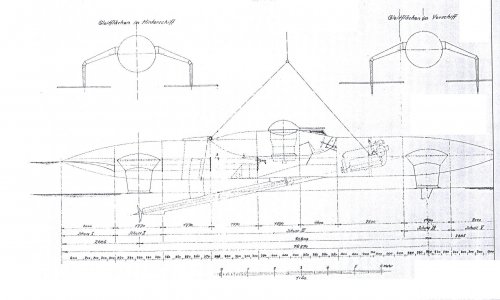

SK 113 = This was a VS-6 project from 1944. The project was called
"Vereinfachung und Serienreifmachung des Klein-Tragflächenbootes VS-6"
VS-13 looked more like the VS-11 (SK 110) , but without the 700 PS engine.
And thanks a lot for the drawing of the "ZISCH 44" !

Many greetings



[Justo Miranda]

Here some additional stuff



[moin1900]

Thanks !
