French Light Civil Aircraft & Helicopter Projects and Prototypes

[hesham]

From Ailes 4/1949,

here is the Grenet G.47



[hesham]

From Ailes 6/1949,

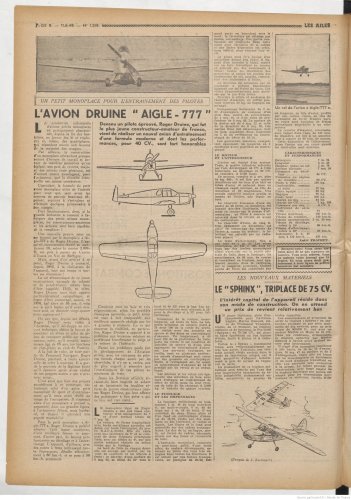

here is a three-seat high-wing utility and tourist monoplane,called Sphinx,designed by Marius
Renoult and Prof. Toussaint,maybe remained a Project.



[hesham]

From Ailes 9/1949,

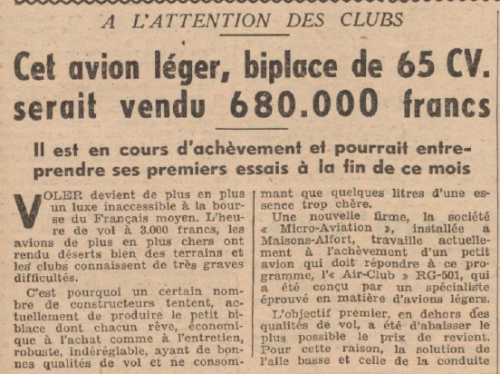

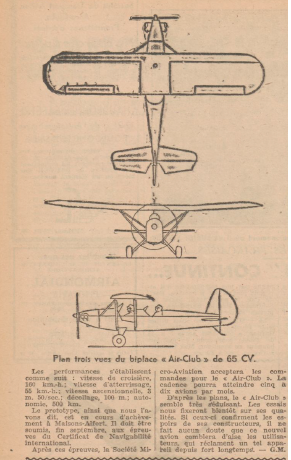

the Micro-Aviation RG-501 light aircraft.



[hesham]

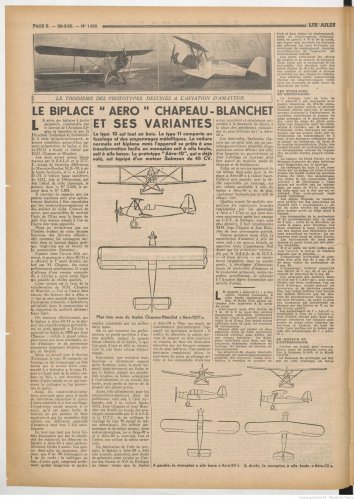

From Ailes 3/1950,

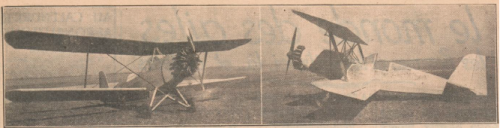

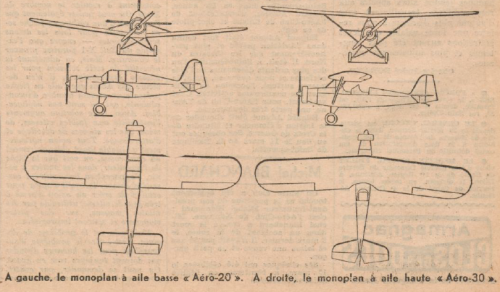

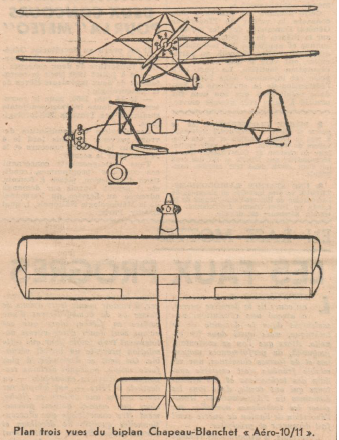

We know Indraéro Aero-20 & Aero-30 light aircraft,but always I ask myself,what was the
beginning,and Mr. Jean Chapeau which formed Societe Indraéro in early 1950s,he designed
with Mr. Blanchet Aero-10 & Aero-11,a tandem two-seat light trainer and touring biplane.

Also he created Aero-20 and Aero-30 a Projects as I guess,because the actually built was
anther aircraft,all details are here.



[hesham]

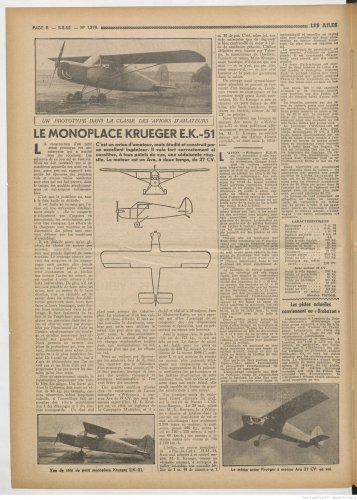

From Ailes 8/1950,

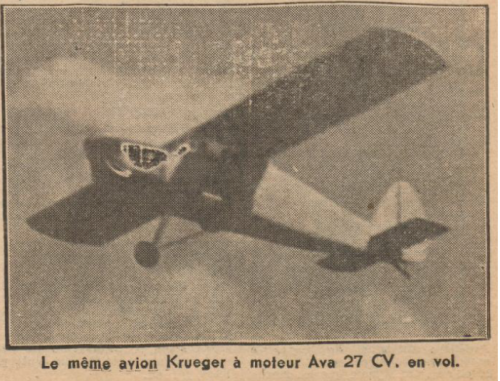

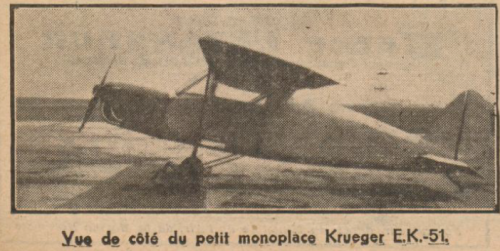

here is a prototype of Krueger EK.51 light aircraft.



[hesham]

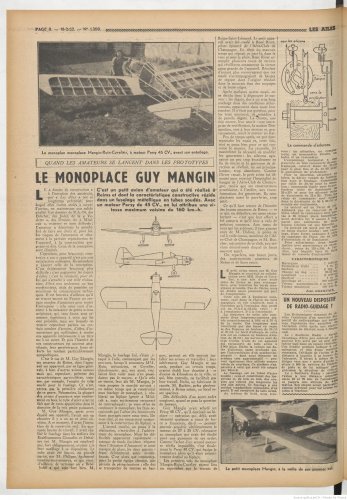

From Ailes 2/1952,

here is a rare aircraft,it was Mangin-Cuvelier-Ruin MCR-1.



[hesham]

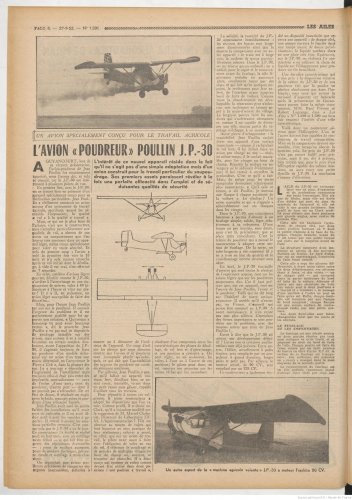

From Ailes 9/1952,

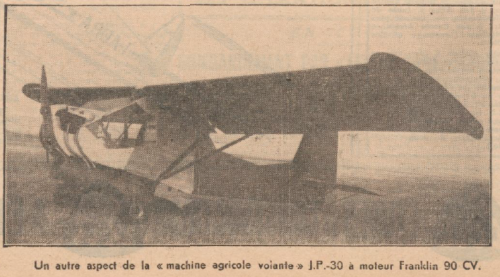

here is a Poullin JP.30 light aircraft.



[hesham]

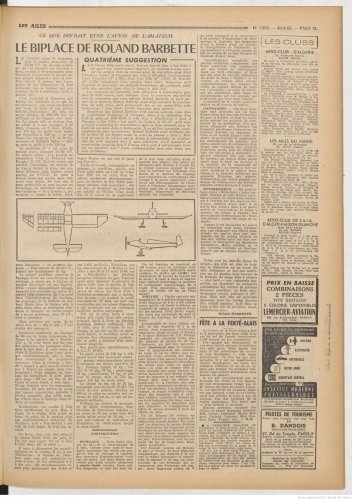

Also from Ailes 9/1952,

here is a two-seat low-wing monoplane,called Roland Barbette,maybe remained a Project.



[hesham]

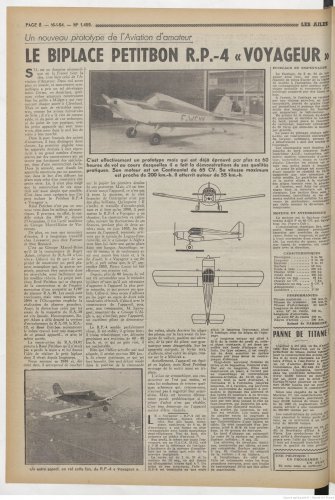

From Ailes 1/1954,

here is a Rene Petitbon RP.40 Voyageur light aircraft.



[hesham]

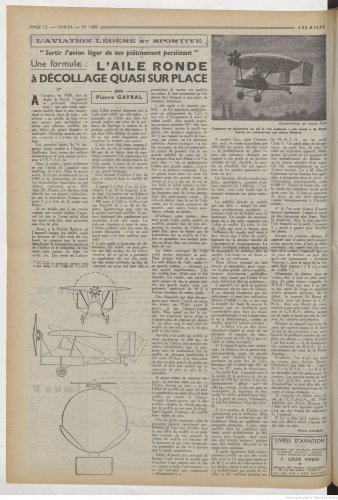

From Ailes 8/1954,

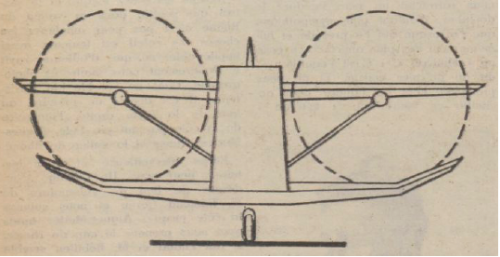

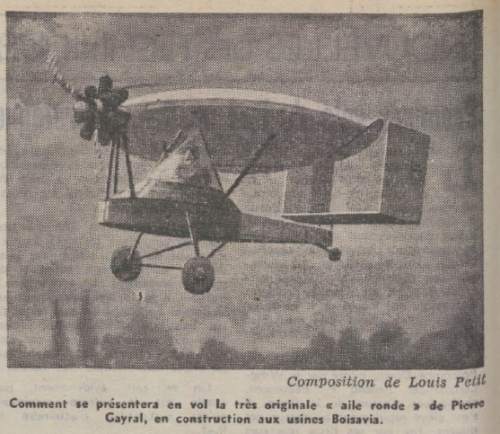

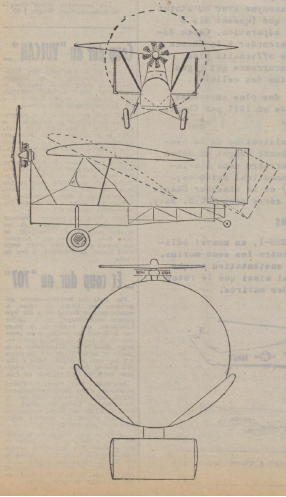

here is a circle wing light aircraft Project,designed by Mr. Pierre Gayral.

https://www.rsafrance.com/index.php/sommaires/1948-1969



[hesham]

From Ailes 13/10/1954,

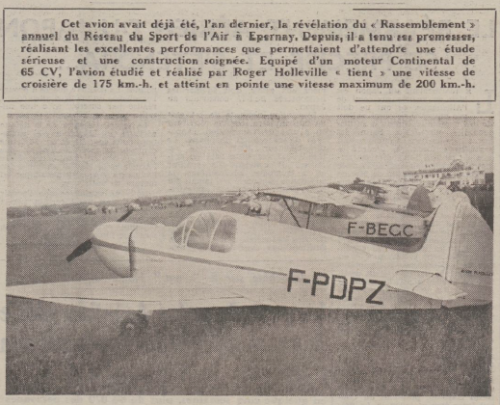

here is a light aircraft,called Holleville RH-1 Bambi.



[walter]

Hi,
Scintex ML-145: was a four seat low-wing cabin touring aircraft project ,which led to ML-250.

Hi Hesham.
The ML-145 was actually built and flown. Plesase see picture



[avion ancien]

It would appear that the Scintex ML-145 is not alone, from amongst the aeroplanes featured in this thread, in having been actually built and flown. If Pierre Gaillard (Les Avions Français de 1944 à 1964) is accepted as authority, the following were both built and flown (the dates in parentheses being that given by him generally as that of their first flights):

Holleville Bambi (27.7.53)
Petitbon RP.40 (1.9.53)
Poullin JP.30 (15.8.52)
Mangin MRC.1 (9.51)
Krueger EK.51 (29.5.50)
Micro-Aviation RG.501 (1949)
Grenet G.47 (1948)
Fleury RF.10 (9.48)
Paumier MP.1 (1948)
Bassou Sport (1948)
Chapeau et Blanchet Lévrier (1946)
Williams X-28 (1947)
Lavoisier LP.24 (1946)

I accept that it cannot be proved, categorically, that all of the foregoing flew. But all were constructed (hence the photographs) and those that didn't fly were, at least, completed and many underwent ground testing. Such is evident from the text of the articles and news reports, in Les Ailes, which accompanied the photographs taken therefrom which have been posted on this thread. Perhaps it would be preferable to post the photographs in the context of those articles and news reports, translated into English, and material concerning the aeroplanes that appears in Pierre Gaillard's book and other books which record the largely amateur built aeroplanes of this period?



[cluttonfred]

I don’t see a problem with including built prototypes/one-offs in this or other project threads.



[hesham]

From Ailes 3/9/1955,

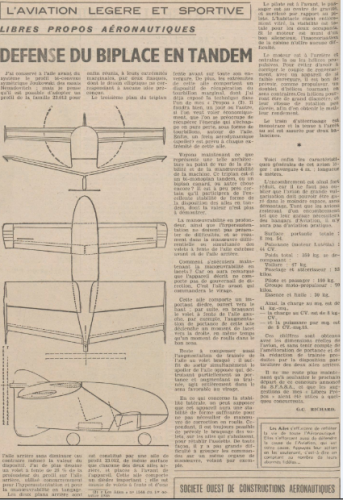

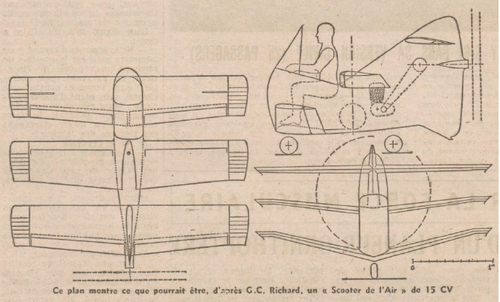

here is a ultra-light tandem wing aircraft Project,designed by Daniel Robert Bancharelle,his concept looks like G. C. Richard,
and by the way he was a well known pilot.

Les Ailes : journal hebdomadaire de la locomotion aérienne / directeur, rédacteur en chef, Georges Houard | 1955-09-03 | Gallica

G.C. Richard Aircraft Projects

Hi, Mr. G.C. Richard was anther French designer (we spoke before about Paul-Aime Richard), he created many aircraft Projects,unfortunately I displayed many of them before,but I didn't know it is from one inventor. He began with a giant 11-engines float seaplane,followed by a cyclogyro...

www.secretprojects.co.uk

La puce du Ciel - Le Petrel



[avion ancien]

I don’t see a problem with including built prototypes/one-offs in this or other project threads.

Matthew Long, Editor
cluttonfred.info

Nor do I, but I do think that it would be helpful, in text accompanying a post, to distinguish between (a) projects which existed only on paper and (b) prototypes and 'one-offs' which actually were built and flown.



[hesham]

Hi,

here is also a safety aircraft Project designed by the pilot,Mr. Daniel Robert Bancharelle.

Louis PETIT. Gouache signée et légendée représentant l'avion - Lot 278

Toutes les informations sur le lot Louis PETIT. Gouache signée et légendée représentant... - Lot 278 - Morand & Morand

www.drouot-morand.com



[hesham]

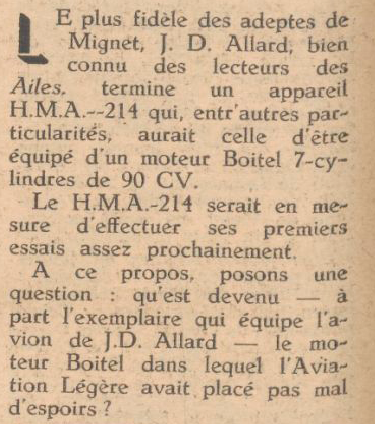

From Ailes 9/11/1957,

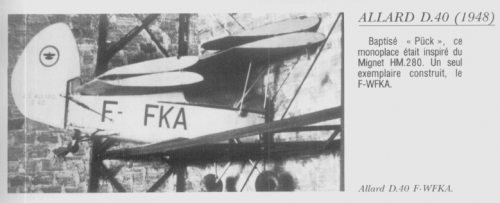

here is a strange Info about Mignet and J. D. Allard HMA.214 aircraft,maybe a Project,,and I know only
the Allard D.40,even I don't know if he was the same designer or what ?,need help.



[hesham]

From Ailes 2/1958,

I spoke before about Daniel Robert-Bancharelle in post 55,and here is a strange design for them;

Les Ailes : journal hebdomadaire de la locomotion aérienne / directeur, rédacteur en chef, Georges Houard | 1958-02-15 | Gallica



[hesham]

From Ailes 3/9/1955,

here is a ultra-light tandem wing aircraft Project,designed by Daniel Robert Bancharelle,his concept looks like G. C. Richard,
and by the way he was a well known pilot.

Les Ailes : journal hebdomadaire de la locomotion aérienne / directeur, rédacteur en chef, Georges Houard | 1955-09-03 | Gallica

G.C. Richard Aircraft Projects

Hi, Mr. G.C. Richard was anther French designer (we spoke before about Paul-Aime Richard), he created many aircraft Projects,unfortunately I displayed many of them before,but I didn't know it is from one inventor. He began with a giant 11-engines float seaplane,followed by a cyclogyro...

www.secretprojects.co.uk

La puce du Ciel - Le Petrel

From Ailes 12/7/1958,

here is again a tandem with from G. C. Richard,but differs a little.



[hesham]

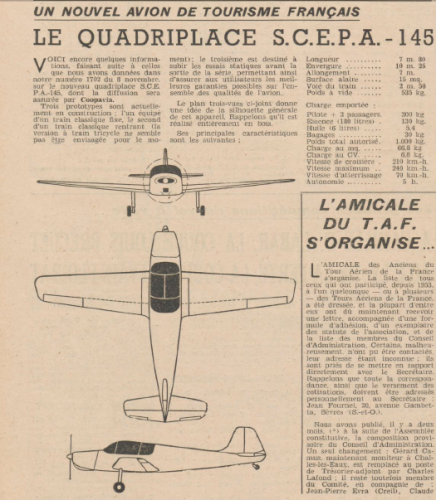

From Ailes 3/1/1959,

was that SCEPA 145 the same as Scintex ML-145 or not ?.



[hesham]

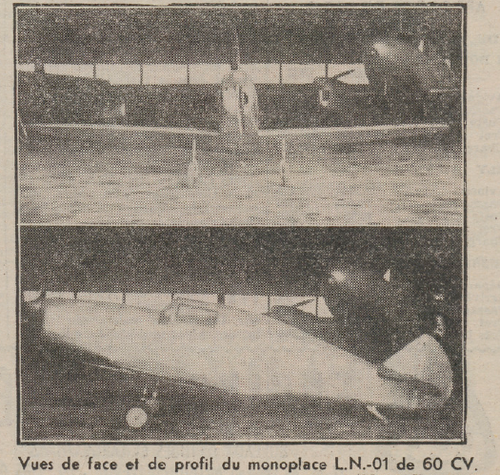

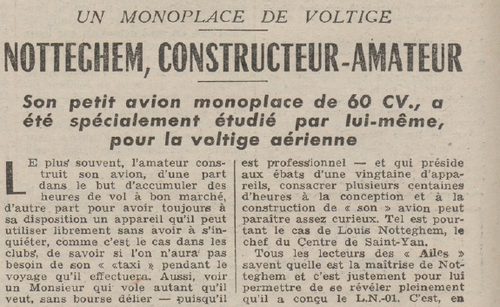

From Ailes 24/10/1953,

here is a prototype to a light aircraft,designed by Louis Notteghem and called LN.1.



[hesham]

From Ailes 9/5/1959,

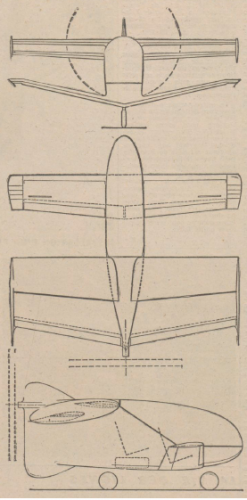

here is anther Project designed by Mr. G. C. Richard.



[hesham]

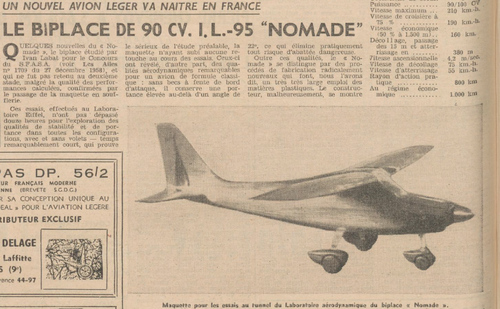

From Ailes 19/9/1959,

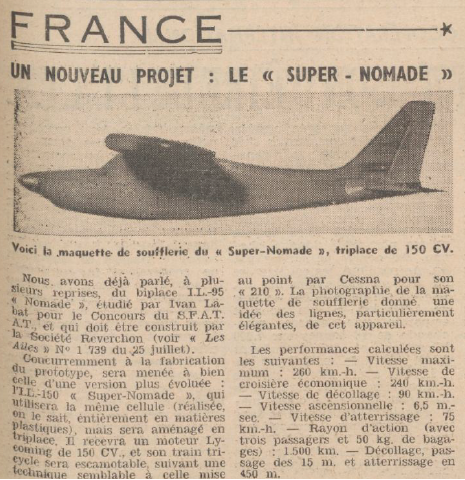

here is a Project from Mr. Labat,called IL-95 Super Nomade.



[hesham]

From Ailes 9/2/1960,

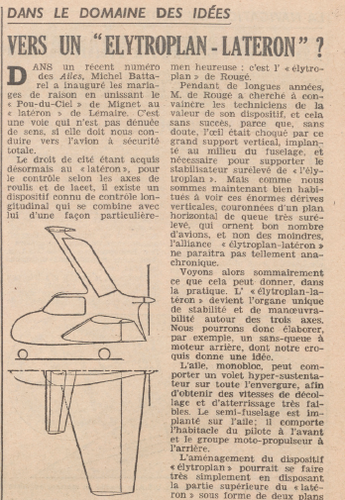

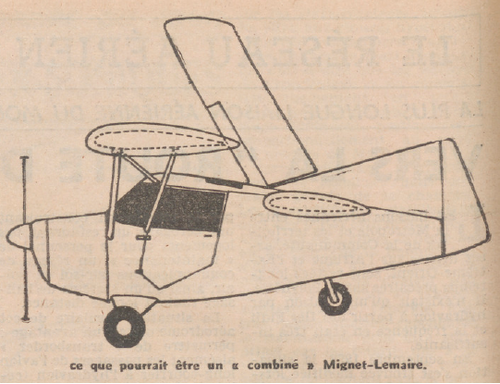

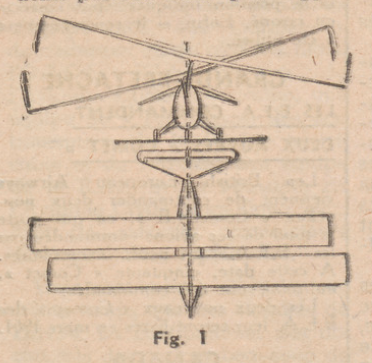

here is just an idea for combining the Mignet concept with Lemaire one.



[hesham]

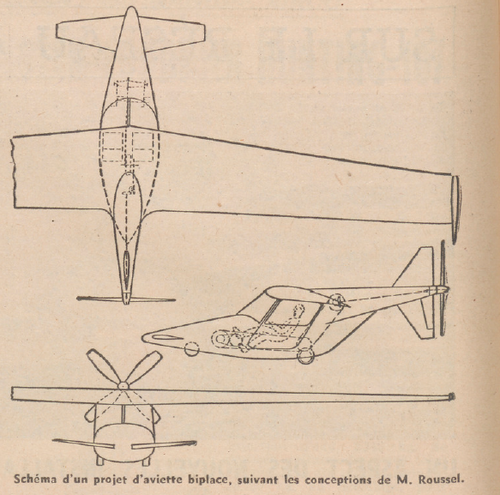

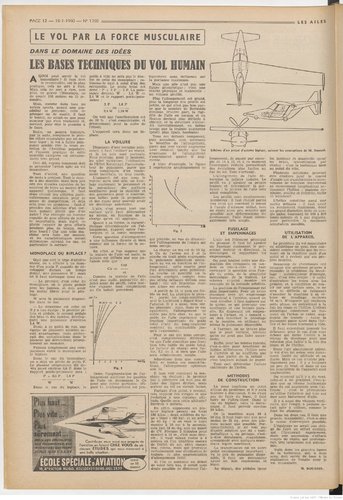

From Ailes 16/1/1960,

here is an idea for lightweight airplane,created by Mr. Roussel,but I don't know if he was the same designer
of R series or not ?.



[hesham]

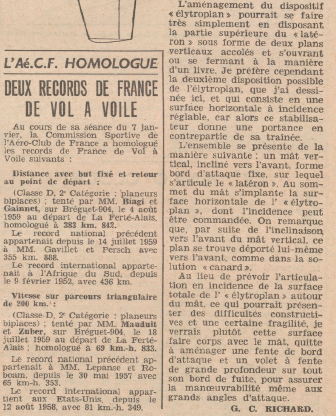

From Ailes 23/1/1960,

and the famous designer,Mr. G. C. Richard.



[hesham]

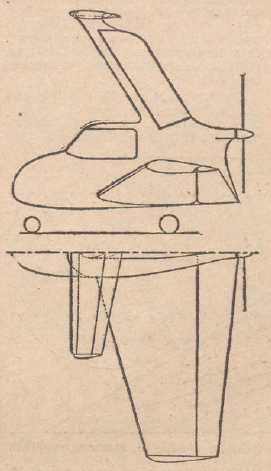

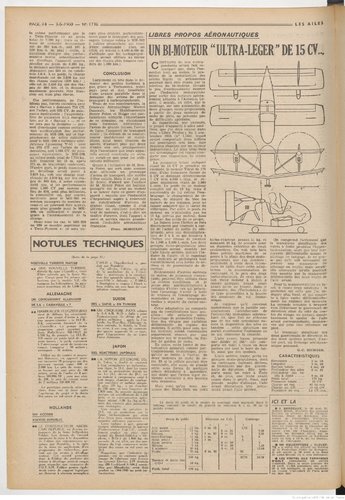

From Ailes 7/5/1960,

here is anther idea from Mr. G. C. Richard.



[pegasus]

From Ailes 7/5/1960,

here is anther idea from Mr. G. C. Richard.

man you are a walking aircraft enciclopedia regards



[hesham]

Also from 18/6/1960,

an idea from Mr. G. C. Richard.



[hesham]

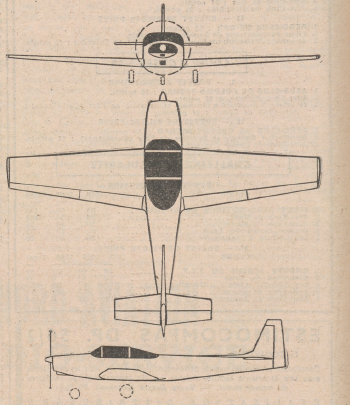

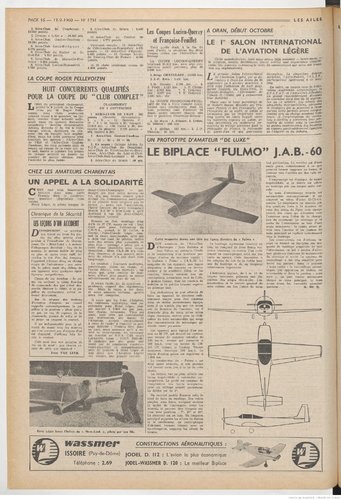

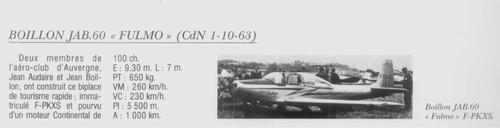

From Ailes 17/9/1960,

here is a JAB.60 light aircraft,which was designed by Mr. Boillon.



[hesham]

From Ailes 19/9/1959,

here is a Project from Mr. Labat,called IL-95 Super Nomade.

And from 25/7/1959.



[hesham]

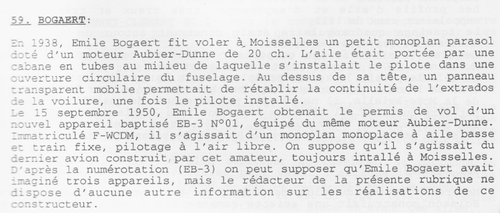

From TU 161,

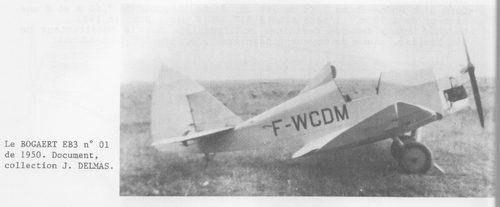

also Mr. Emile Bogaert designed airplane called EB-3;

On September 15, 1950, Emile Bogaert obtained the flight permit for a new aircraft called EB-3 N ° 01,
equipped with the same Aubier-Dunne engine. registered F-WCDM, it was a single-seater low wing
monoplane and fixed gear, piloting in the open air. It is assumed that it was the last plane built, by
this amateur, still installed in Moisselles. From the numbering (EB-3) we can assume that Emile Bogaert
had imagined three aircraft, but the editor of this section has no other information on the achievements
of this manufacturer.



[hesham]

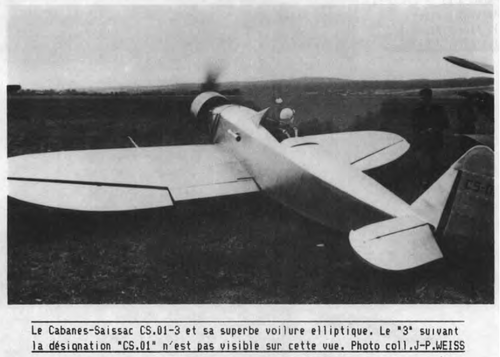

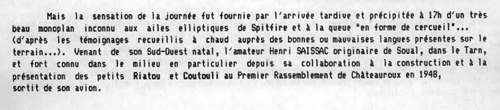

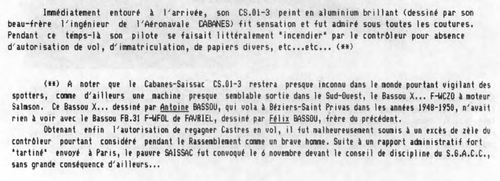

From TU 101,

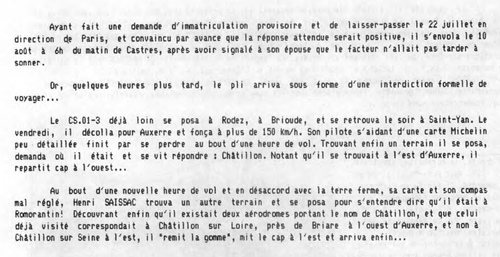

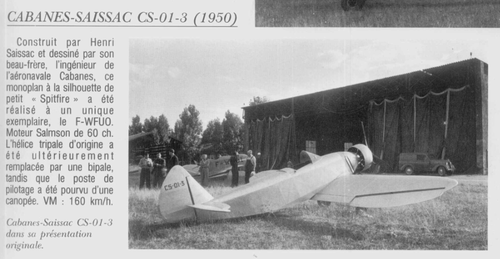

here is a single seat low-wing monoplane,called CS.01,and designed by Cabanes-Saissac.



[hesham]

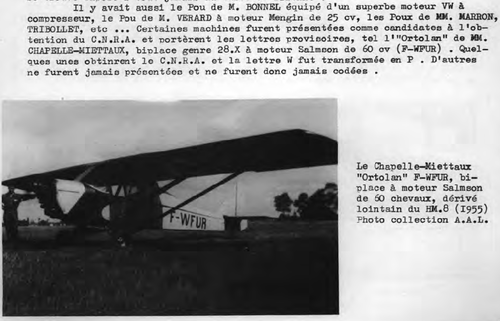

From TU 91,

here is an airplane called Ortolan,designed by Chapelle-Mettaux.



[Apophenia]

here is an airplane called Ortolan,designed by Chapelle-Mettaux.

You'll find a lot of confusion of this type ... mainly because generic names and designations keep popping up. At the heart of it is whole muddle of the Williams/Mourlot 28-X (hence the '28.X' reference in your clipping) which we've discussed before. So, how to untangle it?

First, that Ortolan 'name'. Sounds like an intentional naming ... after all it is the French name for the Ortolan Bunting (imfamous for its appeal to immoral gourmands). But this little airplane was not named after a bird. It was named after its builders: the brothers François and Joseph Ortolan. Some sources say that F-WFUR was also built by the Ortolan brothers.

For some reason unknown to me, many homebuilders constructing Williams 28-Xs gave them fresh designations with 23, 24, or 25 - eg: T-23 (1950) and M-23 (1951) Trinité, Ortolan T-24 (1951), and various MW-25s. F-WFUR was the T-23 Trinité homebuild first flown on 27 September 1950.

So, who were MM. Chapelle-Miettaux? The only mention of the former that I've found says that M. Chapelle was a member of the Aéro-club de Lyon. So too was Lucien Miettaux (who, back in 1936, had built the 'Sablier' - another homebuilt aircraft - with his brother).

An obituary notice for Lucien Miettaux mentions that it took five years to complete the 'Ortolan'. So, one possibility is that what François and Joseph Ortolan actually built was a semi-completed kit aircraft which was then slowly completed by Messers. Chapelle and Miettaux. But there is another possibility in which MM. Chapelle-Miettaux modified an already-completed airframe.

The Miettaux C-1 pops up as a Williams 28-X type completed around 1950. But, whereas the other Williams 28-X variants are open parasols, the Miettaux C-1 is described as a high-winged cabin monoplane. So, was the C-1 ('Cabine un?) the T-23 Trinité F-WFUR retrofitted with an enclosed cockpit? Or did Chapelle-Miettaux build their very own Williams/Mourlot type which just happened to inherit the T-23 Trinité's registration?

Few answers there but hopefully some food for though ...[/U]



[hesham]

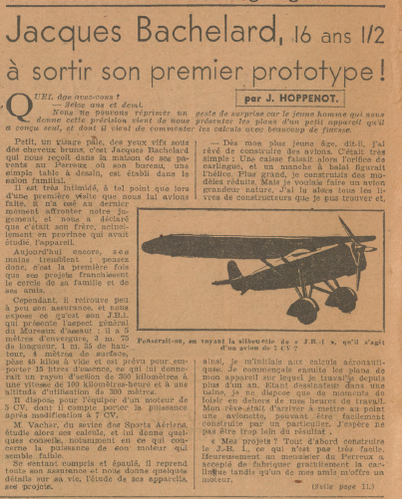

From Aviation Francaise 1945,

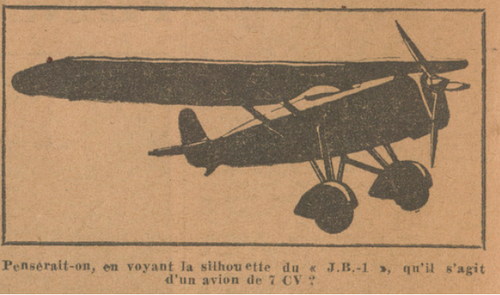

I don't what was it,a Modeller or real airplane Project,it was called J.B.1,from Jacques Bachelard ?.



[hesham]

From Aviation Francaise 1946,

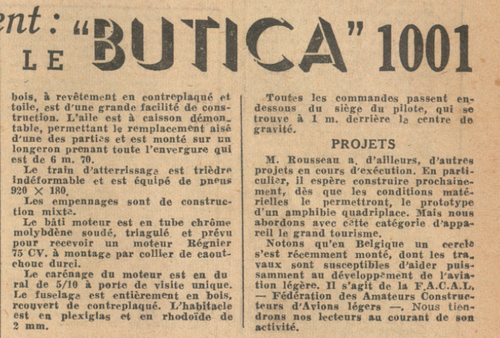

here is a mention for Mr. Georges Rousseau's Project,it was a four-seat amphibian aircraft,intended
for tourist,who know more ?,in TU magazine,they spoke about him and early activities,he built an
airplane based on Mignet HM.8.



[hesham]

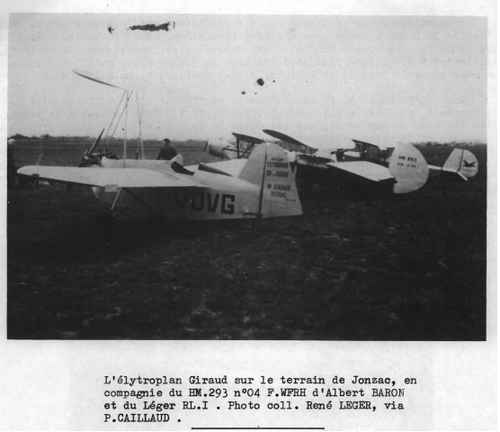

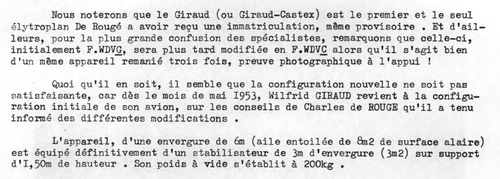

From TU 82,

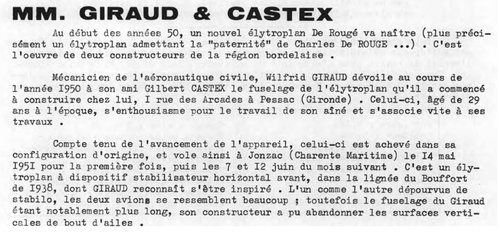

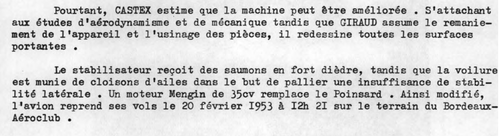

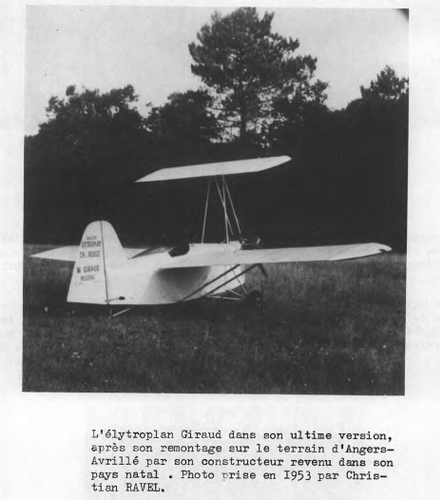

here is all Info about Giraud-Castex Elytroplan.



[hesham]

here is a Poullin JP.30 light aircraft.

From Aviation magazine 1954,

the first time to hear about Poullin JP.31 ?.
