Electronic Warfare

Analysing the limitations of Russian EW capabilities in Ukraine

Despite Russia's plethora of systems and capabilities, their deployment or at the very least perceived impact in Ukraine has remained relatively muted throughout the first months of the conflict.
www.army-technology.com

R-330ZH Zhitel jamming cellular satellite communication station technical data | Russia Russian missile system vehicle UK | Russia Russian army military equipment vehicles UK

R-330ZH Zhitel truck-mounted jamming cellular satellite communication station Russia technical data fact sheet pictures video
www.armyrecognition.com

The station is designed to solve the following tasks: detection, direction finding and jamming wearable mobile stations of mobile satellite communications Inmarsat and Iridium, detection, direction finding and jamming base stations of cellular communication standard GSM 1900 consumer navigation equipment jamming of satellite communications systems NAVSTAR (GPS).
Click to expand...

View: https://twitter.com/NOELreports/status/1691732910141772164?s=20


Ukraine Situation Report: Counteroffensive Pushing South From Robotyne

Ukraine officially announced the capture of Robotyne in Zaporizhzhia Oblast and is continuing its push southward.
www.thedrive.com

Electronic Warfare: Russian Response to the NATO’s Advantage? [ANALYSIS]

**Russian opinion-makers are continuously stressing the fact that in the area of Electronic Warfare, the Russian forces still have a great advantage over their western counterparts. Even though the aforesaid statements may, in some dimension, be propagandist in their nature, considering the...
defence24.com

“Svet-KU” (RB-636AM2) EW system has a purpose of carrying out SIGINT activities and jamming radio and radar signals within the frequency range from 25 MHz up to 18 GHz. The system makes it possible to track a variety of emissions and calculate the source coordinates. RB-636AM2 remains capable of autonomously jamming the GSM, CDMA2000 and UMTS cellphone signals.

The system has been introduced into use back in 2012. Initially it was based on the KamAZ platforms. The manufacturer, OOO “Spetsyalniy tekhniologitsieskoy tsientr” based in St. Petersburg has also presented a variant of the system based on Ford Transit van, which is to allow the user to covertly operate even in traffic on the public roads. When the antenna array system is not extended, the car does not differ from its civilian counterparts.

The extended antenna array may be rotated in a horizontal plane which makes it possible to receive radio signals from any direction. The accuracy depends on the frequency range within which the signal is emitted. In case of the emitters operated within the range between 30 and 100 MHz, 5 degrees accuracy is achievable. For the ranges from 1 to 3 GHz, the accuracy is narrowed down to 2 degrees. The Russians have field tested this system, based on the KamAZ truck, during the operations conducted in the Eastern Ukraine (Luhansk).

View: https://twitter.com/UKikaski/status/1696861578610561386?s=20

View: https://twitter.com/defense_news/status/1708002495916552322?s=20


Chinese defense firms show off counter-drone tech at Serbia arms show

ELINC CHina diplayed a multifunction radar jamming and electronic intelligence station that can be sold in different configurations.
www.defensenews.com

View: https://twitter.com/NGCNews/status/1713910833862844762?s=20

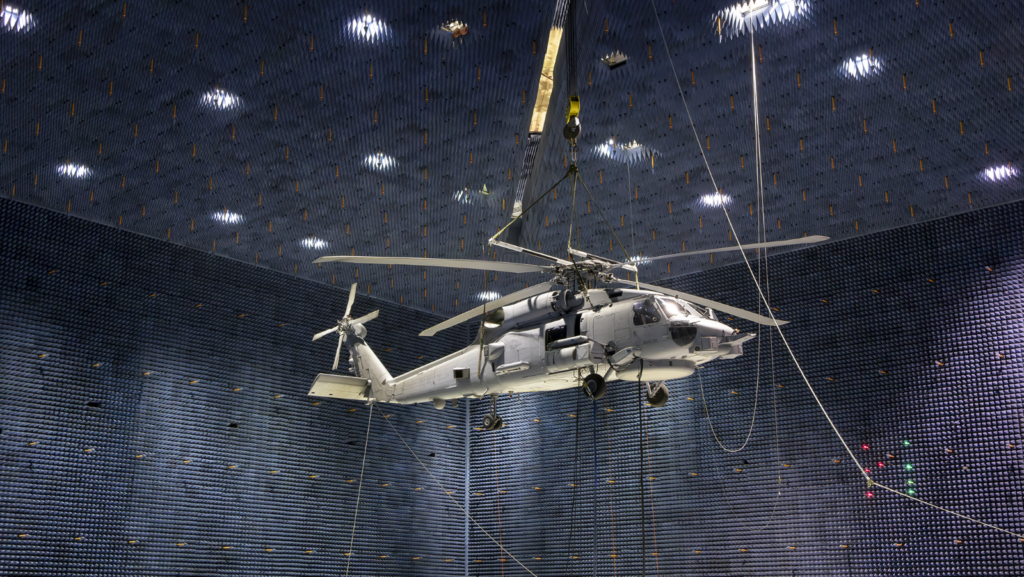

Advancing Survivability for Army Aircrews – A Generational Leap in Threat Detection Technology

Since their introduction, Man-Portable Air Defense Systems – heat-seeking, shoulder-fired missiles – have been a persistent threat to U.S. Army aviation. Infrared countermeasures, such as Northrop Grumman’s Common Infrared Countermeasures (CIRCM), are...
news.northropgrumman.com


Russian troops using Leer-3 able to jam Ukrainian army mobile phone si

google_ad_client = "pub-4068738923530102"; /* 468x15 data sheet menu top dark green */ google_ad_slot = "3500417247"; google_ad_width = 468; go
www.armyrecognition.com

View: https://twitter.com/astraiaintel/status/1720538136537702708?s=20

Forest Green said:

Russian troops using Leer-3 able to jam Ukrainian army mobile phone si

google_ad_client = "pub-4068738923530102"; /* 468x15 data sheet menu top dark green */ google_ad_slot = "3500417247"; google_ad_width = 468; go
www.armyrecognition.com

View: https://twitter.com/astraiaintel/status/1720538136537702708?s=20
Click to expand...
Oh, look, a screaming emitter just waiting to be arty'd to death...


BREAKING NEWS: Ukraine troops destroy Russian Borisoglebsk-2 high valu

Breaking News: In a recent video released on October 3, 2023, by the Artillery and Missile troops of the Armed Forces of Ukraine via their official Faceboo
www.armyrecognition.com

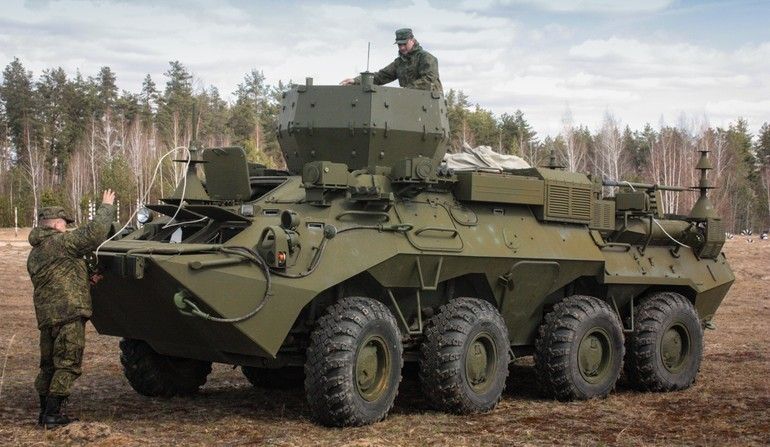

Pivotal Russian RB-301B Borisoglebsk-2 electronic warfare system in the vicinity of Novopetrykivka, Donetsk region. Recognized as the cornerstone of electronic warfare within the Russian Army, the Borisoglebsk-2 boasts the capability to orchestrate four distinct jamming units from a singular command point.
Click to expand...
The Borisoglebsk-2 is a Russian electronic warfare (EW) system designed to disrupt enemy communications, radar, and other electronic systems. As part of Russia's efforts to modernize its electronic warfare capabilities, the system integrates several vehicles, each serving a specific function such as electronic intelligence, electronic jamming, and command and control. Its capabilities allow it to detect, locate, and jam a wide range of enemy electronic signals, including communication and radar signals.
Click to expand...


View: https://twitter.com/astraiaintel/status/1723270512413937941?s=20
