From #41, I don't recognize 28.png - but I do recognize the style of the painting - that is highly likely to have come from Grumman.



[hesham]

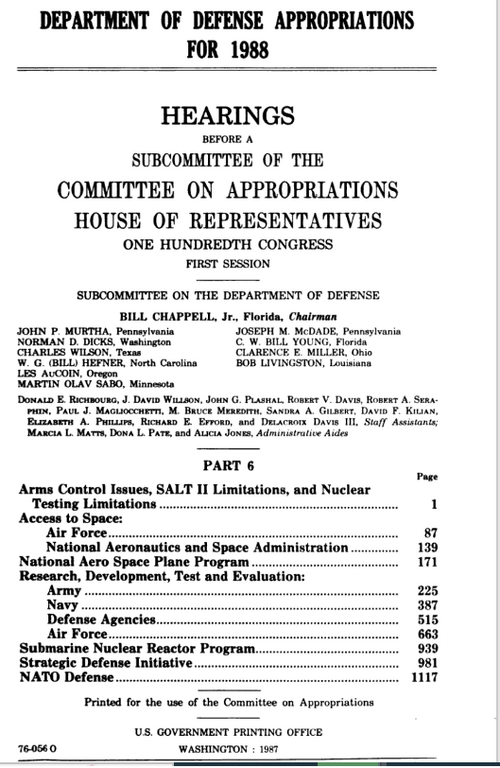

From this report.



[BAROBA]

Hi,


unknown wind tunnel Models for ATF aircraft,can anyone ID them ?.

Does anyone know what ATF-1 is? The A-12 like plane with winglets basically...



[CiTrus90]

Hi,


unknown wind tunnel Models for ATF aircraft,can anyone ID them ?.

Does anyone know what ATF-1 is? The A-12 like plane with winglets basically...

It should be an iteration of Concept 1 shown in the middle here, if I'm not mistaken.



[BAROBA]

Thanks Luca,
Most helpful



[hesham]

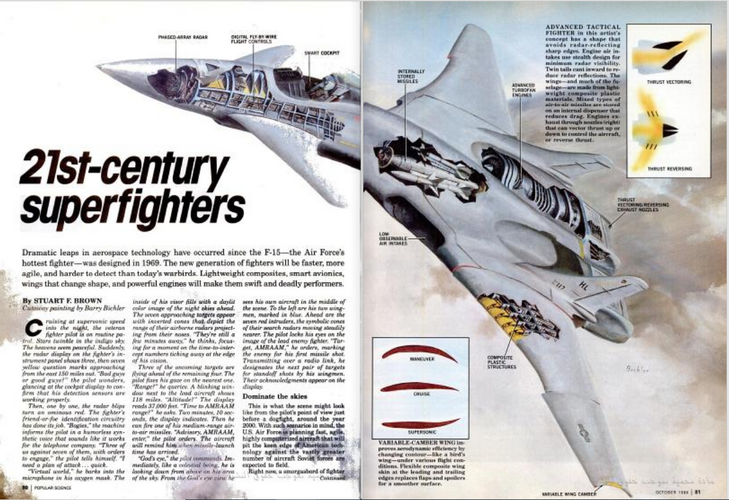

From, Popular Science 1986/10.

​



[hesham]

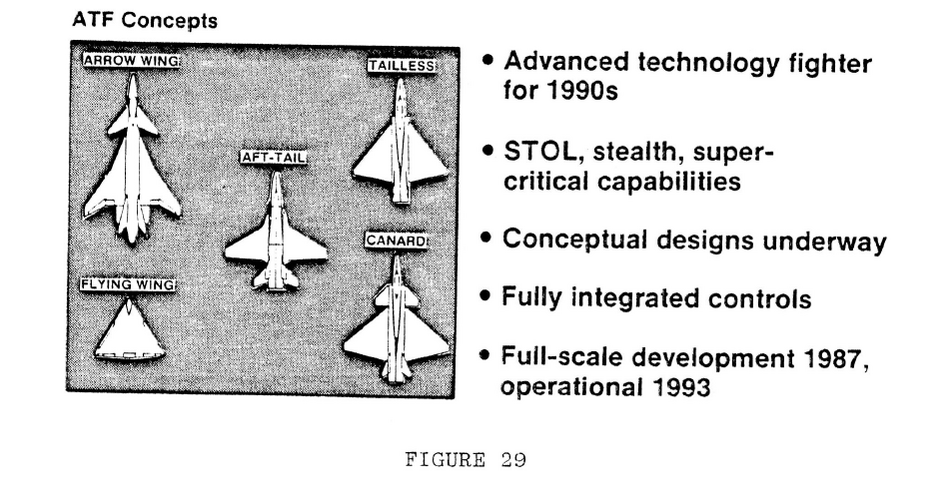

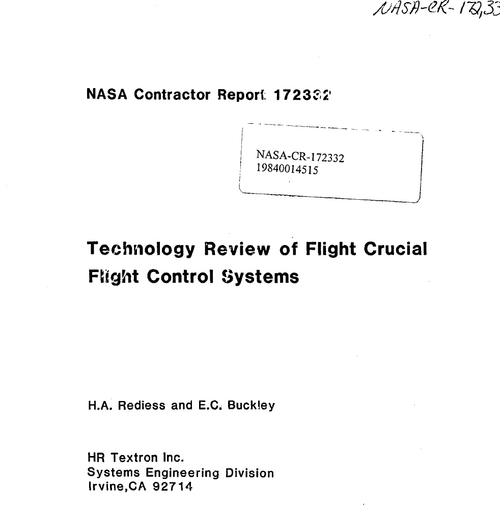

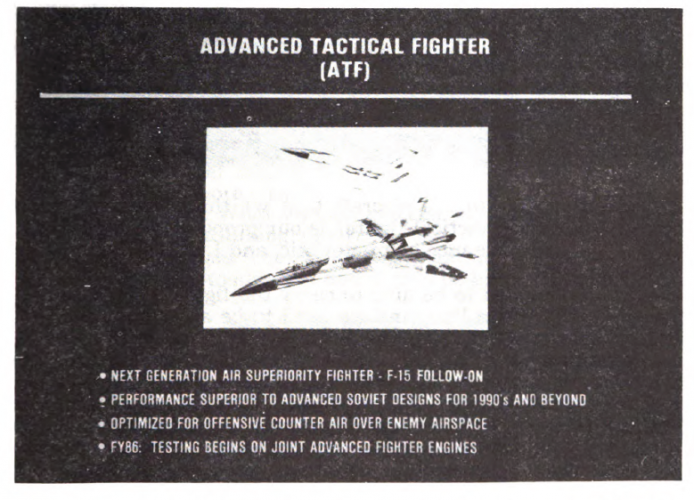

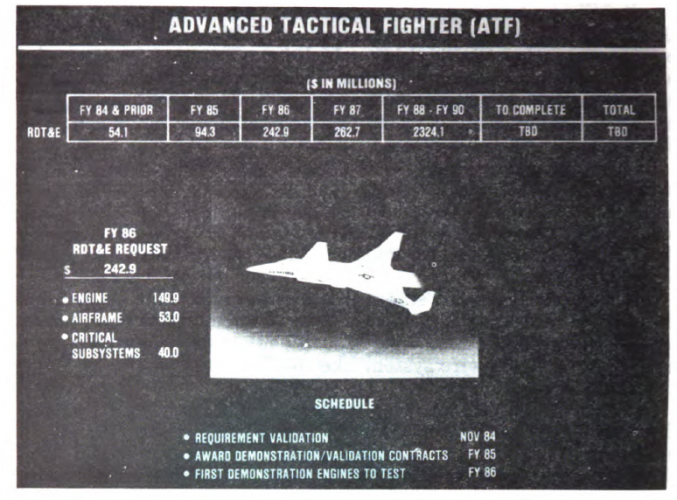

From this report.



[Dew]

Same model as 2nd/3rd pic captioned as 'Westinghouse Advanced Tactical Fighter Concept'

..and again at NARA:
"A model of a stealth fighter aircraft on display in the Las Vegas Convention Center during the Air Force Association's "Gathering of Eagles," a convention commemorating spectacular achievements in the free world's aerospace development"



[Dew]

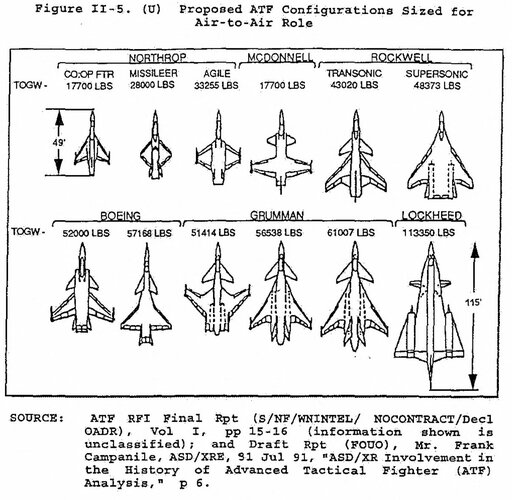

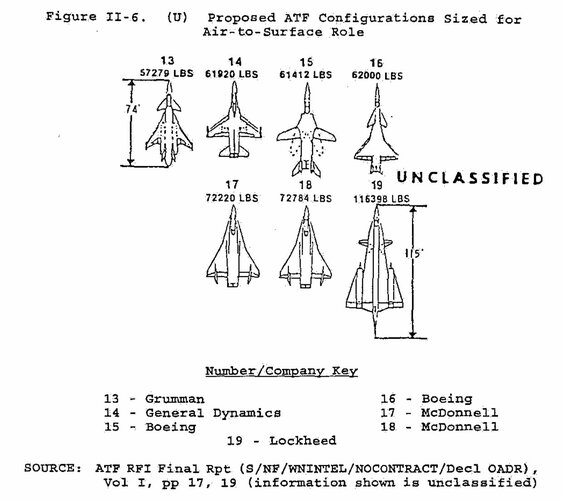

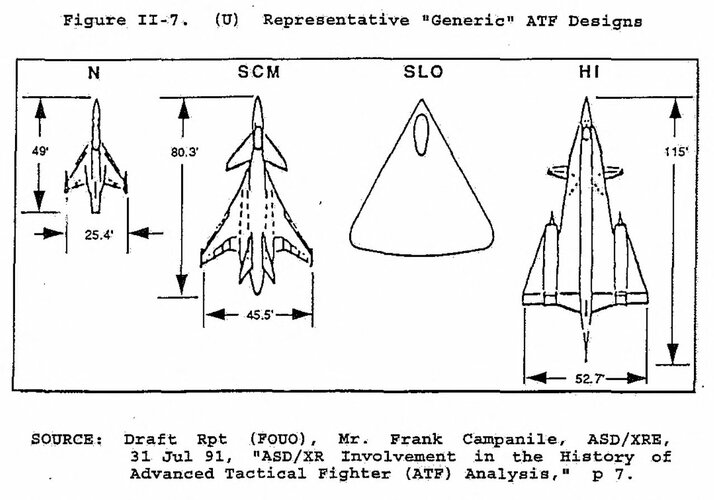

I've a feeling these are already on here somewhere but couldn't immediately find them. Mods please delete/move as applicable:
from:

From Advanced Tactical Fighter (ATF) to F-22 Part I To Milestone 0 and Beyond: 1970-1982
Dr. Paul C. Ferguson, Office of History Aeronautical Systems Center Wright-Patterson AFB, Ohio
