Divisional Air Defense System (DIVAD / DIVADS) Proposals

[Christopher Wang]

According to this brochure from Oerlikon-Contraves, the Flakpanzer Gepard's turret with its 35-mm Oerlikon twin-barreled autocannons can also be fitted onto other AFV chassis such as the M109, M48, M60, Panzer 68, and Vickers MBT:

SOURCE: https://www.secretprojects.co.uk/threads/m247-sergeant-york-a-testers-view.37564/post-547889



[Pioneer]

The employment of the M109 chassis makes a lot of sense in my opinion, in terms of weight, complexity and it's SPH design configuration.

Regards
Pioneer



[TsrJoe]

I had saved the image q a few years back, unfortunately can't recall original source tho ? (might have been Av. Week ad ?)



[Cordy]

The Gepard turret with its twin KDA 35mm (35x228mm) 550 rpm guns weighed over 11 tonnes.



[PMN1]

The employment of the M109 chassis makes a lot of sense in my opinion, in terms of weight, complexity and it's SPH design configuration.

Regards
Pioneer

More sense than the heavier tank hulls.



[grathian]

There is a rumor floating around they equipped a National Guard unit. Sometimes NM, sometimes NY. Any truth?



[Christopher Wang]

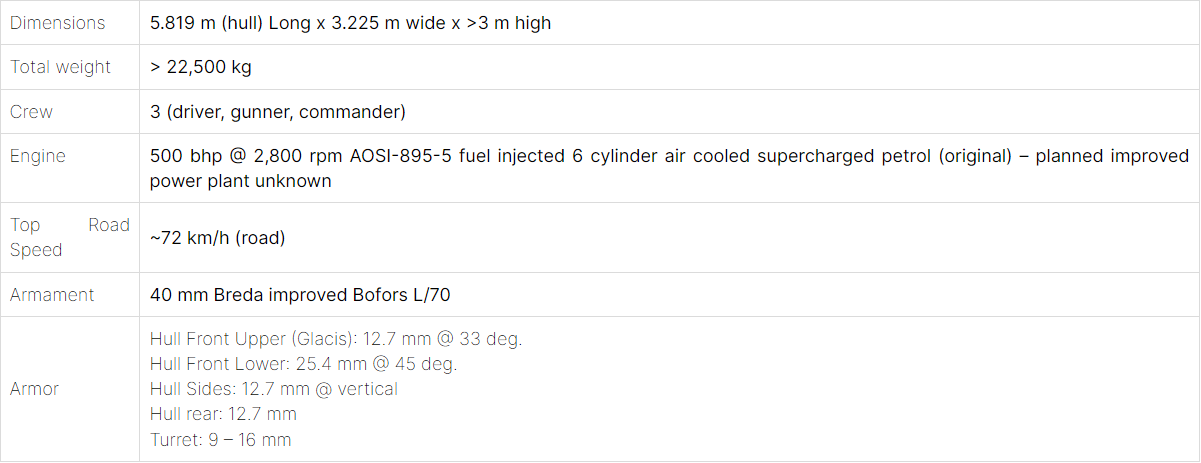

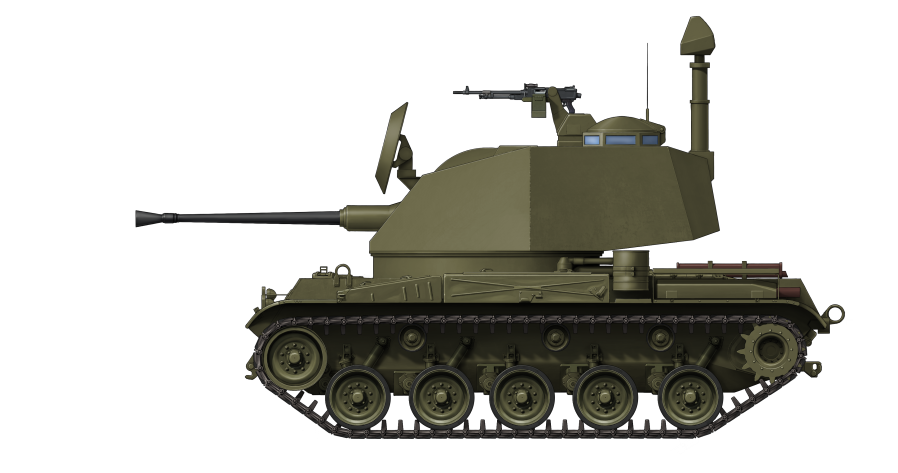

In 1992, the Italian firm Breda Meccanica Bresciana based in Milan offered an export upgrade package for the M42 Duster. The upgrades included a new enclosed turret armed with a single 40-mm L/70 Bofors and equipped with surveillance and tracking radars. The rear hull was also enlarged to provide room for an improved power plant. Ultimately, Breda's M42 Duster upgrade proposal was never accepted and was dropped.



SOURCE: Hills, Andrew. (2021, February 19). Breda M42 Upgrade. Tank Encyclopedia. Retrieved from https://tanks-encyclopedia.com/breda-m42-upgrade/

View: https://www.youtube.com/watch?v=P567j_V1p1k



[Christopher Wang]

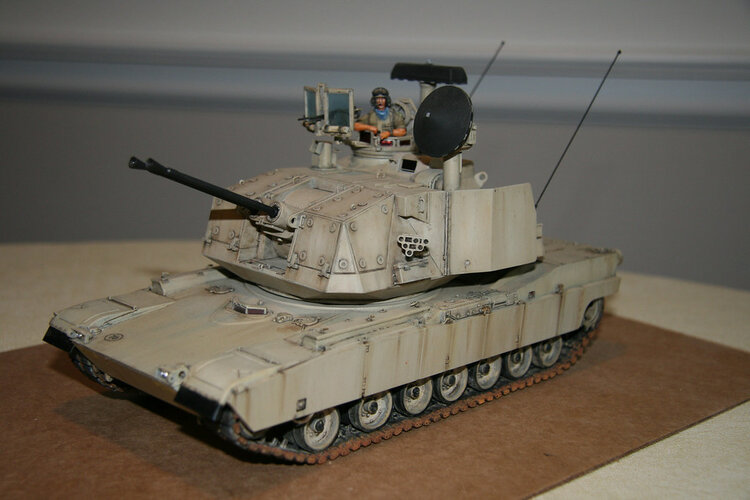

I was looking through some old photos I have saved in my e-mail and I found this Flickr image from Rick McOmber aka RickM2007 of a hypothetical DIVAD model combining the M247 Sergeant York's turret with the M1 Abrams' chassis:

https://flic.kr/p/5JZZAC

View: https://www.flickr.com/photos/rickm15/3112035044

It should be noted that the M48 Patton and M1 Abrams shared the same turret ring diameter of 85-inches / 215.9-centimeters.



[RAP]

2 volume report on human factors and lessons learned on the Sgt. York.



[RAP]

A thesis paper comparing t he Sgt. York and Avenger systems.



[STGN]

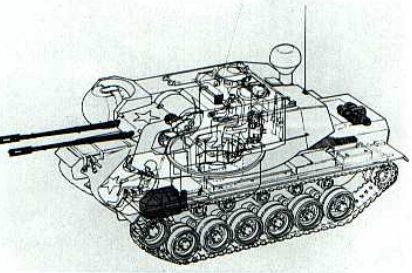

Hi, I am trying to make a 3d model of the XM246 DIVAD from General Dynamics and I know that on page 265 in Hunnicutt's Patton there is a drawing of the crew locations I am wondering if somebody would be willing to share or send me a decent quality photo of the drawing?:



[flateric]

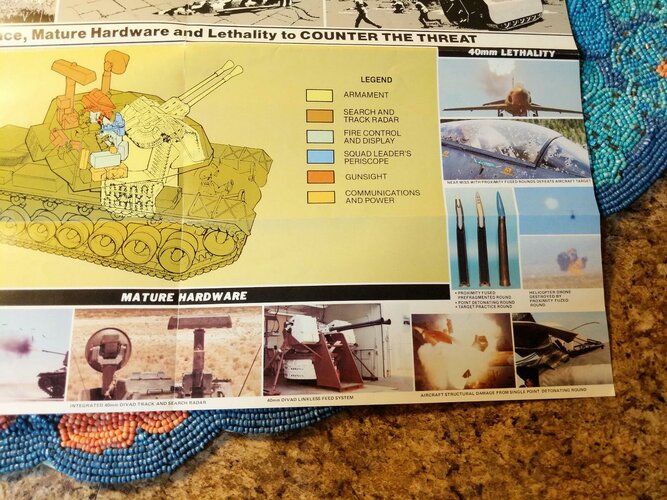

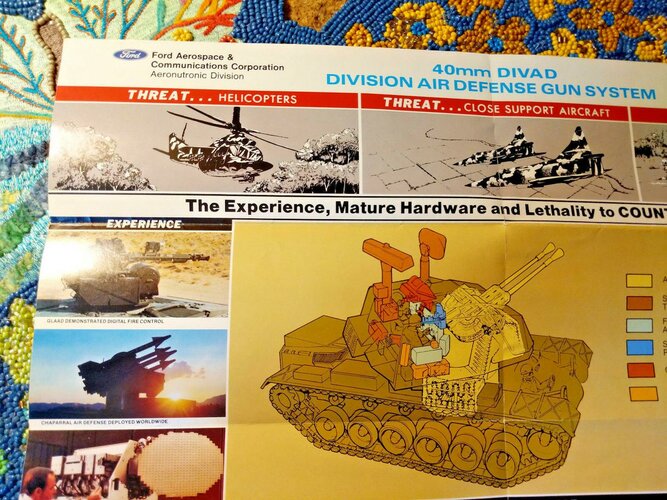

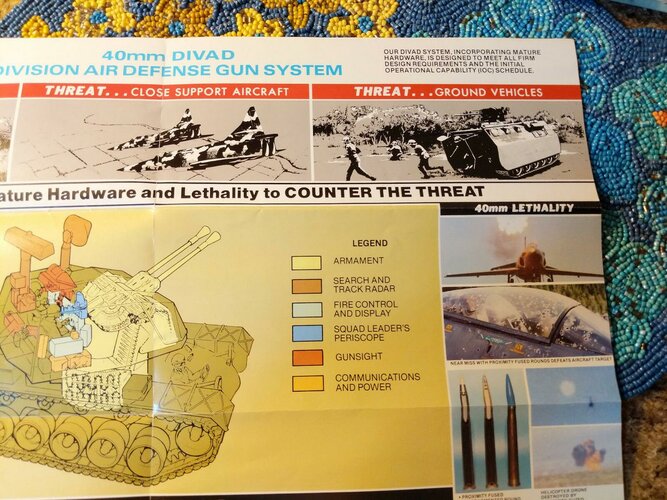

From Worthpoint



[jstar]

Does anyone have, or know a source for, information on the Bofors 40mm M266 cannon and the dual feed linkless ammunition supply system? Can't find anything at all on the internet. TIA



[STGN]

Does anyone have, or know a source for, information on the Bofors 40mm M266 cannon and the dual feed linkless ammunition supply system? Can't find anything at all on the internet. TIA

What information are you looking for?

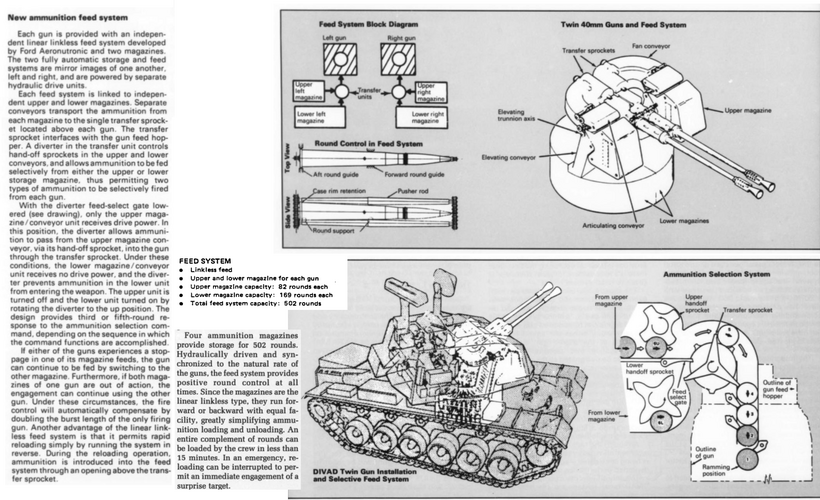

I have included a summary of the most important points to understand the feed system of the Sgt York



[jstar]

What information are you looking for?

I have included a summary of the most important points to understand the feed system of the Sgt York

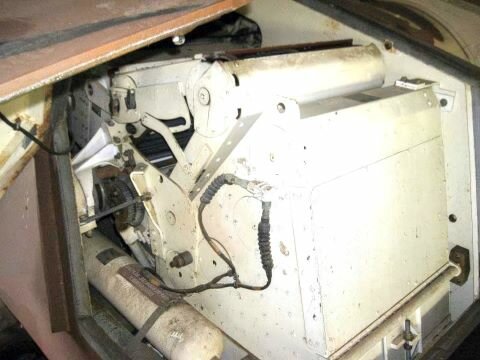

Thank you! That's the best description/illustration of the system I've seen so far. May I ask where you found it, and do you have more? It's really helping me understand a photo I found of the upper magazine (see attachment)



[STGN]

Thank you! That's the best description/illustration of the system I've seen so far. May I ask where you found it, and do you have more? It's really helping me understand a photo I found of the upper magazine (see attachment)

They used to be available on Archive.org. I just made back up screenshots.



[GruntFox]

Here's a funny thing: The collapse of the DIVAD program led to the US creating the Bradley ADATS program (and if it hadn't been done in by the post-Cold War budget cuts, it would have been designated the M6 Linebacker), which was a Bradley with its 25mm in max-ROF mode and two quad-packs of ADATS missiles.

The weapons worked beyond expectations (the only time the system didn't function was when the conditions were so bad that even aircraft wouldn't fly)... but the turret wasn't cooperating with the Bradley.

Funnily enough, with the new warfare requirements these days (SHORAD is now a required Platoon-level asset, not optional), you'll need what GURPS terms TAC Missiles (basically missiles that can do both AA and AT duties) as standard.



[jstar]

They used to be available on Archive.org. I just made back up screenshots.

That's a shame. Guess I'll just keep looking. Must be out there somewhere. Thanks for posting that, really helps.



[World B4]

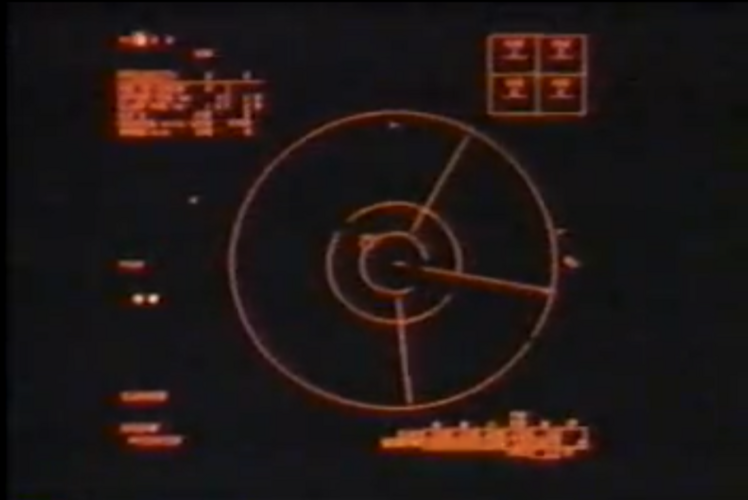

I saw an unsourced claim on Wikipedia about the Sgt. York that "The radar was a modified AN/APG-68 with an AN/APG-66 transmitter" is there any truth to this?
