Design development of the SAAB JAS 39 Gripen

[Deltafan]

Found this today, about : AEROM: NASA’s Unsteady Aerodynamic and Aeroelastic Reduced-Order Modeling Softwar

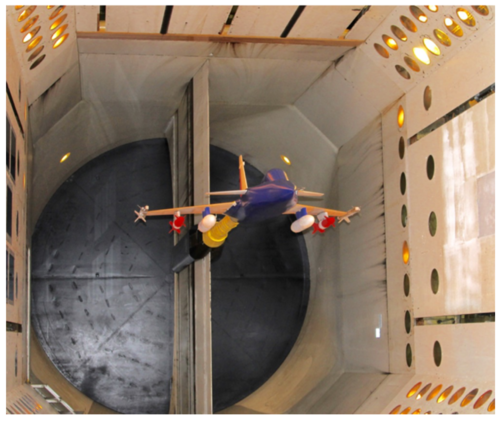

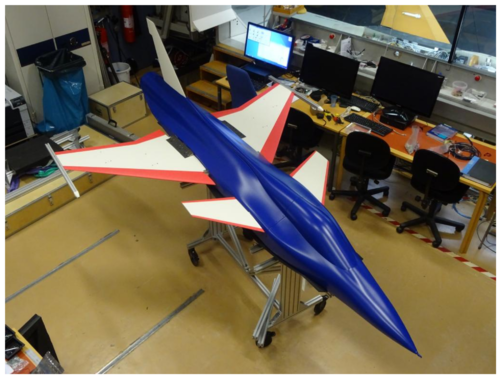

With studies on wind tunnel models of the JAS 39 Gripen :

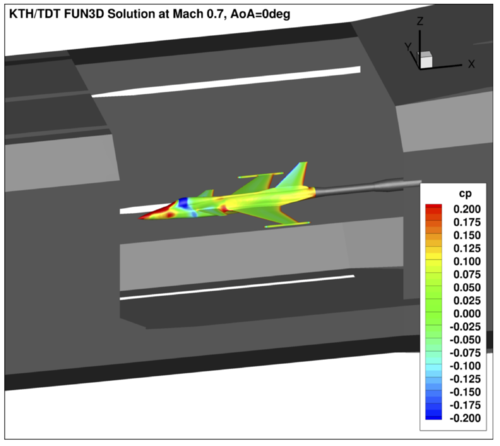

AEROM: NASA’s Unsteady Aerodynamic and Aeroelastic Reduced-Order Modeling Software

The origins, development, implementation, and application of AEROM, NASA’s patented reduced-order modeling (ROM) software, are presented. Using the NASA FUN3D computational fluid dynamic (CFD) code, full and ROM aeroelastic solutions are computed at several Mach numbers and presented in the form...

www.mdpi.com



[fightingirish]

https://twitter.com/x/status/1280955656300834818



[TomcatViP]

They absolutely don't look like the same! For one, the Himat is a close coupled canard when 2111 is not.
Is Rafale a Typhoon look alike?!



[overscan (PaulMM)]

The posted Saab model wing is reminiscent of the Rockwell HIMAT wing planform, which is also like the Saab 2111 wing, which is hardly surprising as Rockwell designed the 2111 wing.



[F-2]

I read that direct side force control was considered and mentioned fairly late in the development in the aircraft. What happened?



[Phantom Fanatic]

Hi,

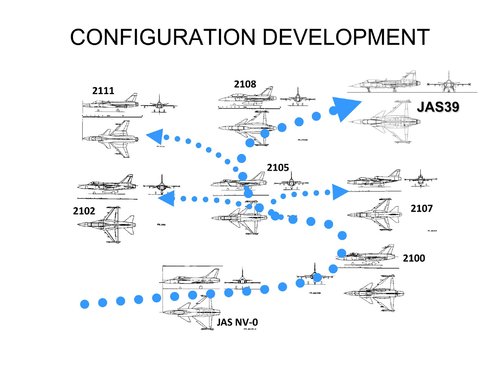

here is the SAAB-2111 and some alternative designs for Gripen.

Flygapennytt

the first picture reminds me a lot of the Saunders Roe SR.53. Is that a coincidence?



[hesham]

From Aviation magazine 1983.



[VTOLicious]

Hi,

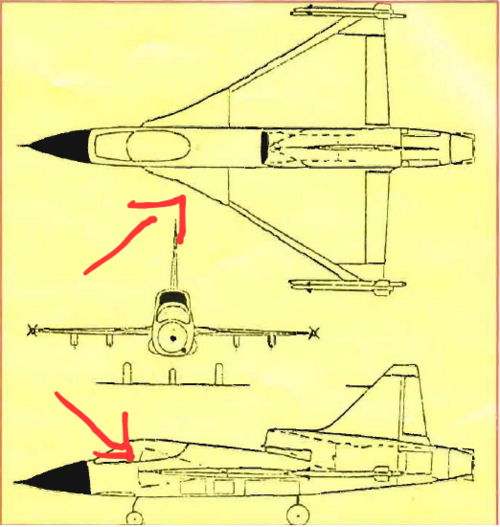

here is the SAAB-2111 and some alternative designs for Gripen.

Did Saab invent the LEVCONs?!



[red admiral]

Did Saab invent the LEVCONs?!

There were quite a lot of leading edge vortex flap schemes explored in US and UK in the 70s/80s, some of which had apex flaps like this.
