Current US hypersonic weapons projects. (General)

full text, big thanks to Bugler billy ;)

Mystery Missiles?

Beyond seven acknowledged projects aimed at developing long-range, maneuvering missiles with a top speed over Mach 5, the U.S. Defense Department is working in classified secrecy on at least two more hypersonic weapon programs, industry officials say.

The mystery of the classified projects—including such details as their development or operational status and any gaps each fills in the Pentagon’s unfolding hypersonic weapons architecture—remains unsolved. But a new clue embedded in the LinkedIn profile of a senior Defense Department hypersonic weapons expert may point to the answers.

- Seven U.S. hypersonic projects cover air-, land- and sea-based weapons
- Pentagon expert’s online profile points to existence of two more programs

Greg Sullivan, a well-regarded expert in the high-speed flight community, describes himself on the professional social media platform as an on-site supporter of air-breathing hypersonic weapons to the department’s research and engineering arm.

Sullivan’s profile also cites his knowledge of “additional hypersonic programs,” which include a nearly comprehensive list of the Pentagon’s acknowledged projects. Intriguingly, his original list also included two additional acronyms representing hypersonic programs: “HACM” and “HCCW.” Shortly after Aviation Week inquired to the Air Force Public Affairs office for details about HACM and HCCW, both acronyms were deleted from the LinkedIn page.

The Air Force does not acknowledge the existence of any program named HACM or HCCW, and no reference to either acronym appears in the military’s public documents, such as budget materials and press releases.

Two sources say they have heard vague references to the existence of a hypersonic program called HACM, but had no details, including what the acronym means. The HCCW program was not known to any sources or analysts contacted by Aviation Week.

The expert hypersonic community is an unusually tight-knit group, reflecting the technology’s mostly experimental status for decades, until its recent rise as one of the Pentagon’s top acquisition priorities. The existence of two new acronyms has prompted several speculative guesses.

Richard Hallion, a former Air Force chief historian who specializes in the history of hypersonic technology, noted that the acronym HACM could be interpreted broadly to cover almost any type of hypersonic weapon, including scramjet-powered cruise missiles or air-launched boost-glide systems.

“Well, the H is obviously [for] hypersonic,” says Hallion. “The rest suggests a mix of ‘A’ for ‘Advanced’ or ‘Air-Breathing’ or ‘Air-Launched.’ ‘C’ for ‘Conventional’ or ‘Capability’ or ‘Concept,’ [and] ‘M’ for ‘Missile.’”


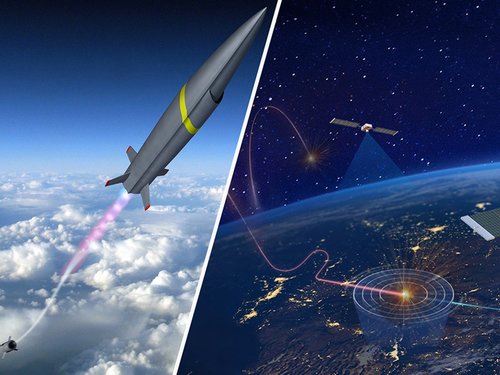

Scramjets have recently moved to the forefront of the Pentagon’s hypersonic weapons portfolio, but so far there is no acknowledged follow-on program to produce and test an operational version of DARPA’s Hypersonic Air-breathing Weapon Concept. Credit: NASA

The meaning of the HCCW acronym proves even more elusive.

For Justin Bronk, a research fellow specializing in airpower at the Royal United Services Institute, one speculative interpretation conforms to his analytical view of a gap in the U.S. military’s weapons arsenal. If the acronym stands for “Hypersonic Counter-Cruise Weapon,” Bronk says, HCCW could be a valuable interceptor specifically tailored against high-speed, air-breathing cruise missiles.

Although the exact role and status of HACM and HCCW are unknown, industry officials have repeatedly said that at least two additional classified programs exist beyond the Defense Department’s seven acknowledged programs. The public list leaves little room for gaps to be filled by new weapons, as they already span air-, land- and sea-launched options and include two different types of boost-glide systems—winged and biconic—and a scramjet-powered cruise missile.

The plethora of planned hypersonic options are intended to serve tactical and strategic goals. On the tactical level, the Pentagon’s war planners will gain a new option for striking mobile missile launchers and countering long-range attacks on the Navy’s surface fleet by an adversary with hypersonic anti-ship missiles. The future U.S. inventory of hypersonic missiles also is intended to serve as a deterrent option short of a nuclear response, as adversaries such as China and Russia stock their arsenals with a range of new hypersonic weapons.

The Air Force alone accounts for two of the acknowledged hypersonic weapon programs: a boost-glide system with a winged glide vehicle called the Air-launched Rapid Response Weapon (ARRW). Another called the Hypersonic Conventional Strike Weapon (HCSW) relies on a less-risky biconic glide vehicle.

The ARRW, also known as the Lockheed Martin AGM-183A, is based on the Tactical Boost Glide (TBG) program, a risk-reduction effort funded by DARPA. The same winged glide vehicle also is being adapted for ground launch under DARPA’s Operational Fires (OpFires) program. Raytheon says it is developing a more advanced winged glider under the TBG program, which could be fielded as a second-generation version of ARRW.



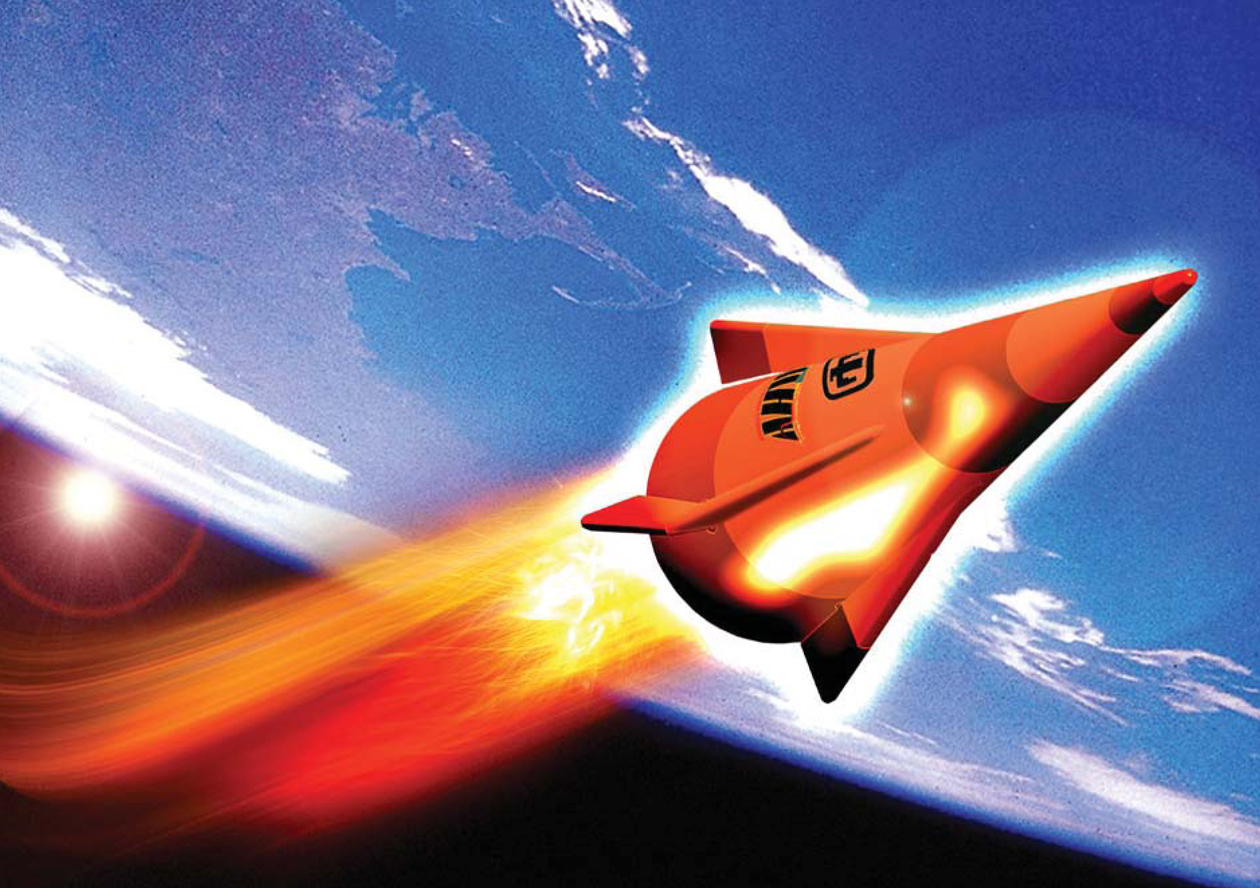

HCSW, meanwhile, is the air-launched version of a biconic-shaped glider originally designed by Sandia National Laboratories. The Navy and Army are adapting the same original design for the sea-launched Conventional Prompt Strike (CPS) system and the Army’s ground-launched Long-Range Hypersonic Weapon (LRHW).

Finally, Raytheon and Lockheed are each designing different scramjet-powered missiles under DARPA’s Hypersonic Air-breathing Weapon Concept (HAWC) program. Weaponized versions of HAWC are under study by the Air Force and Navy for air and sea launch. One possible gap in the weapons portfolio is the apparent lack of an operational follow-on program for HAWC, even though Air Force officials say the program is slightly ahead of DARPA’s TBG program. The TBG demonstrator is intended to reduce risk for the operational ARRW system, but no such operational follow-on exists publicly for HAWC.

Tom Bussing, vice president of advanced missile systems for Raytheon, acknowledged two hypersonic programs exist that he cannot speak about.

“There are probably six different types of hypersonic programs that we have,” Bussing said in a recent interview. “Some are classified, so I can’t speak [about] them because we are not at liberty to announce them.” But he named Raytheon’s role in four hypersonic programs: TBG, HAWC, CPS and LRHW.

DARPA has announced Raytheon’s involvement as one of two weapon designers for TBG and HAWC, but neither the Navy nor the Army has explained Raytheon’s role in CPS and LRHW. The Air Force has announced that Lockheed is the weapon system integrator for the HCSW variant, but no such role has been announced for the Army and Navy versions of the common glide vehicle. So far, Bussing can only acknowledge that Sandia remains the designer of the biconic glider for HCSW, CPS and LRHW.

“That technology has been transitioned over to the CPS program and also to the Army’s Long Range Hypersonic Weapon program,” Bussing said. “So we’re involved in both, and we’re working directly with Sandia.”

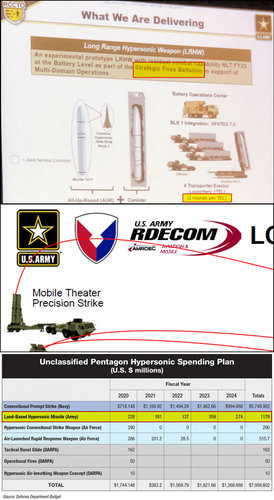

The Defense Department has inserted $10.5 billion into a five-year budget plan released in March to develop and field the long list of offensive and defensive hypersonic weapon systems. But a detailed check of the budgets for unclassified programs reveals a significant surplus, which could be used to fund classified projects.

The combined budget accounts for ARRW, HCSW, CPS and LRHW amount to $7.7 billion over the next five years. The Missile Defense Agency’s $700 million planned investment in counter-hypersonics raises the five-year spending total to $8.36 billion. DARPA does not release a five-year budget, but proposed to spend $222 million in fiscal 2020 on TBG, HAWC and OpFires. That still leaves an unexplained gap of about $2.5 billion in planned spending by the Defense Department on hypersonic weapons over the next five years.


Why in God's name would they consider overlap a bad thing? (Overlap exits in virtually every category of equipment in the inventory.)

Are there actual, real congressional concerns over overlap? It's really not evident in the NDAA from either chamber.

Why in God's name would they consider overlap a bad thing? (Overlap exits in virtually every category of equipment in the inventory.)

One consideration might be the limited skilled workforce available. There is only so much available talent and taking on more work isn't always better, but I doubt no company is going to turn away any work even if their avaialble resources to to the job properly are mightily strained or inadequate. Similarly the limited suite of appropriate test facilities available. This might force test entries where a window might exist, yet might not be appropriately timed for the program at that given time.

Last edited:
Why in God's name would they consider overlap a bad thing? (Overlap exits in virtually every category of equipment in the inventory.)

One consideration might be the limited skilled workforce available. There is only so much available talent and taking on more work isn't always better, but I doubt no company is going to turn away any work even if their avaialble resources to to the job properly are mightily strained or inadequate. Similarly the limited suite of appropriate test facilities available. This might force test entries where a window might exist, yet might not be appropriately timed for the program at that given time.

You don't get a larger, skilled work force by not giving them something to do.

I can see the acquisition workforce being a bottleneck once these programs start transitioning from the 804 "rapid" prototype/fielding to
something more traditional (which, IIRC, they have to in order to go above a certain quantity/budget).

That's what would concern the service PMs but does Congress care?

Last edited:
I can see the acquisition workforce being a bottleneck once these programs start transitioning from the 804 "rapid" prototype/fielding to
something more traditional (which, IIRC, they have to in order to go above a certain quantity/budget).

That's what would concern the service PMs but does Congress care?


They will when stuff starts falling behind. The question is will they understand what's actually happening or will they simply reach for a soapbox and microphone?

Politics is really useless stuff. Those in charge will not know what's going on until it's done. They will then be told in a roundabout way that the US is now more secure and capable, while hopefully realizing that the secure comment refers to them as well. The very wealthy don't want to be dead regardless of their partry affiliation.

Why in God's name would they consider overlap a bad thing? (Overlap exits in virtually every category of equipment in the inventory.)

One consideration might be the limited skilled workforce available. There is only so much available talent and taking on more work isn't always better, but I doubt no company is going to turn away any work even if their avaialble resources to to the job properly are mightily strained or inadequate. Similarly the limited suite of appropriate test facilities available. This might force test entries where a window might exist, yet might not be appropriately timed for the program at that given time.

You don't get a larger, skilled work force by not giving them something to do.

And you also not only don't get a skilled workforce by teaching them how to do things poorly, you also harm the program(s) as well.

Why in God's name would they consider overlap a bad thing? (Overlap exits in virtually every category of equipment in the inventory.)

One consideration might be the limited skilled workforce available. There is only so much available talent and taking on more work isn't always better, but I doubt no company is going to turn away any work even if their avaialble resources to to the job properly are mightily strained or inadequate. Similarly the limited suite of appropriate test facilities available. This might force test entries where a window might exist, yet might not be appropriately timed for the program at that given time.

You don't get a larger, skilled work force by not giving them something to do.

And you also not only don't get a skilled workforce by teaching them how to do things poorly, you also harm the program(s) as well.
One way eventually leads to a skilled workforce. The other, not so much. If companies don't have work there is zero incentive to create the workforce.



The Defense Department has awarded Lockheed Martin a $405 million contract to re-purpose a Navy Conventional Prompt Strike (CPS) designed for submarine launch for use by the Army to give ground forces the means to fire a hypersonic glide body, marking a major development by the Pentagon to ready a new class of ultra-fast conventional weapons to strike high-priority targets in the open salvos of a major fight.


Interesting, looks like resized Trident. Makes sense; there's no point reinventing the wheel.

Interesting, looks like resized Trident. Makes sense; there's no point reinventing the wheel.

I tend to think of it as more of a follow-on to SLIRBM/SLGSM.

It's supposed to be (more or less) the same booster stack for both the Army and Navy with the latter
having, IIRC, three rounds per launch tube. The land-based canister length was given as 400 inches.

And the NAP study suggested the Navy could fit up to 3 x 38 inch diameter missiles per launch tube.

And you also not only don't get a skilled workforce by teaching them how to do things poorly, you also harm the program(s) as well.
One way eventually leads to a skilled workforce. The other, not so much. If companies don't have work there is zero incentive to create the workforce.

I am not advocating for single programs of a given type as I agree you need more than one to grow the workforce. But there is a point of highly diminished returns and in my opinion after 30+ years in the trenches what I am seeing is quite concerning.

A quick search didn't find this elsewhere. My apologies if I missed it.

U.S. Air Force Investments in Hypersonic Test Technologies & Infrastructure
TIMOTHY D. WEST, Colonel, USAF Senior Materiel Leader, Test Operations Division Arnold Engineering Development Complex Arnold AFB TN 37389
NDIA 33rd Annual Test & Evaluation Conference Patuxent River MD – 16 May 2018


Attachments

  • USAF_Invest_in_Hypersonic_Test.pdf
    1.6 MB · Views: 52
And you also not only don't get a skilled workforce by teaching them how to do things poorly, you also harm the program(s) as well.
One way eventually leads to a skilled workforce. The other, not so much. If companies don't have work there is zero incentive to create the workforce.

I am not advocating for single programs of a given type as I agree you need more than one to grow the workforce. But there is a point of highly diminished returns and in my opinion after 30+ years in the trenches what I am seeing is quite concerning.

How would you recommend getting out of the situation?

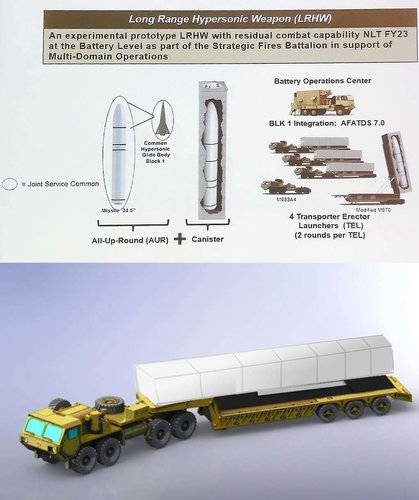

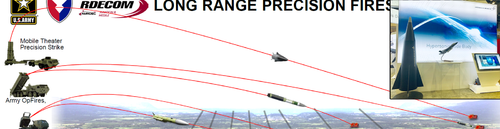

The LRHW system is a universal solid-propellant medium-range All-Up Round, or AUR, ballistic missile, equipped with a universal maneuverable and therefore, unpredictable, the hypersonic warhead of the Common Hypersonic Glide Body (C-HGB) in the execution of Block 1.

Both of these system components are developed by the Sandia National Laboratory of the United States Department of Energy with the participation of the United States Missile Defense Agency. The C-HGB hypersonic warhead is being developed as a whole to equip weapons systems of three types of the U.S. armed forces (Army, Air Force, and Navy). The AUR missile will also be used by the U.S. Navy.

The AUR missile has a case diameter of 34.5 inches (887 mm). The missile will be launched from a transport and launch container with a length of about 10 m from a ground-based towed two-container mobile launcher with an Oshkosh M983A4 tractor unit (8×8). The launcher semi-trailer is a modified M870 semi-trailer of the Patriot SAM launcher. The missile system will use the standard American fire control system for missile forces and artillery AFATDS in version 7.0. The battery of the LRHW system will include four dual-container launchers and one Battery Operation Center.

According to RCCTO officials, the U.S. Army expected to develop and deliver one experimental prototype Long Range Hypersonic Weapon battery by FY2023.

Aug 11, 2019

34.5" is a lot less of a headache than I feared, not even in KEI territory. Still going to require a new VLS spec, and the length is going to make backfit to DDG-51 or FFG(X).... problematic.

34.5" is a lot less of a headache than I feared, not even in KEI territory. Still going to require a new VLS spec, and the length is going to make backfit to DDG-51 or FFG(X).... problematic.


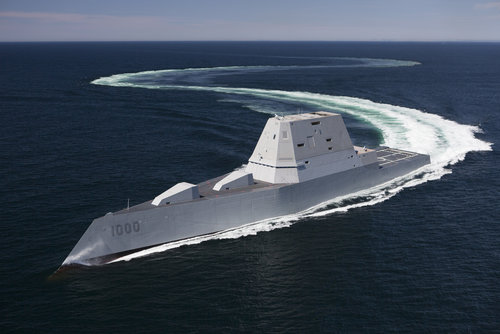

A shame we don't have hull ready made for it. Oh, wait:



(The sarcasm isn't meant for you. It's for the @!#$!!~ USN who stubbornly refuse to see the obvious.)


Attachments

  • modular-launch-system.pdf
    415.5 KB · Views: 60
34.5" is a lot less of a headache than I feared, not even in KEI territory. Still going to require a new VLS spec, and the length is going to make backfit to DDG-51 or FFG(X).... problematic.

I am going to risk being proved wrong one day and say neither FFG(X) or any currently authorised DDG51 variant is ever going to carry this system. The missile alone is a third longer than a strike length Mk-41 is deep.

On the other hand, Virginia Payload Tubes are said to be 87 inches in diameter which means they should be able to hold 3 rounds including missile canisters and internal structure etc. Mathematically 4 would work but there probably wouldn't be room for the canisters etc.

34.5" is a lot less of a headache than I feared, not even in KEI territory. Still going to require a new VLS spec, and the length is going to make backfit to DDG-51 or FFG(X).... problematic.

I am going to risk being proved wrong one day and say neither FFG(X) or any currently authorised DDG51 variant is ever going to carry this system. The missile alone is a third longer than a strike length Mk-41 is deep.

On the other hand, Virginia Payload Tubes are said to be 87 inches in diameter which means they should be able to hold 3 rounds including missile canisters and internal structure etc. Mathematically 4 would work but there probably wouldn't be room for the canisters etc.
I wouldn't expect it either given the specs, but someone is going to make a case for it somewhere, and I don't trust the current Navy to fight against the notion as strongly as they should. What they should do is call back to when TLAM helped make the case for big MK41 ships and present this as the opportune and necessary moment to reset expectations for what size combatants will be if they going to carry the next generation of missiles.
