Perhaps inevitably, Scott has a better copy of the second image (at least):

The 1957 Convair document Characteristics of Tactical, Strategic and Research Missiles gives three warheads for the 'B-58 Pod': one of 2,800 lb, one of 7,000 lb, and one of 20,000 lb.


Those correspond fairly naturally to the second-generation thermonuclear W27, W39, and W36 warheads respectively. Which I identified back in 2014, but we can do better.

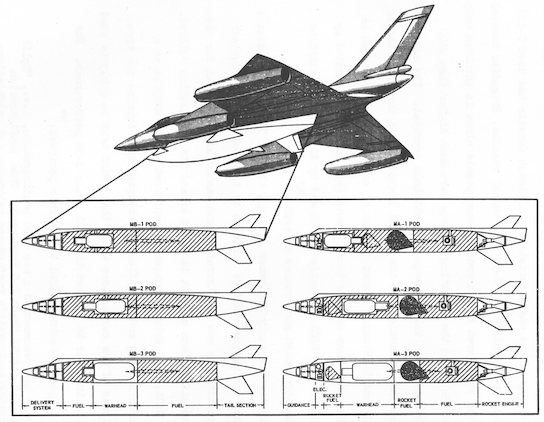

However, we know that the MB-1 (and presumably the corresponding MA-1) pods carried the W39. Scaling pixels implies that the other two carried proportionately larger warheads:
  • MA-2 & MB-2 - Approximately 38" x 120" - perhaps corresponding to the W46, which is known to have been planned for the B-58.
  • MA-3 & MB-3 - Approximately 49" x 140" - perhaps corresponding to the W41.
My guess is that as development progressed, it was seen as inefficient to use the B-58 to deliver a single Class D weapon, and the W27 warhead was dropped. The MB-1 with a W39 was the initial service model, and it was expected to replace this with the -2 and -3 pods carrying higher-yield W46 and W41 warheads.

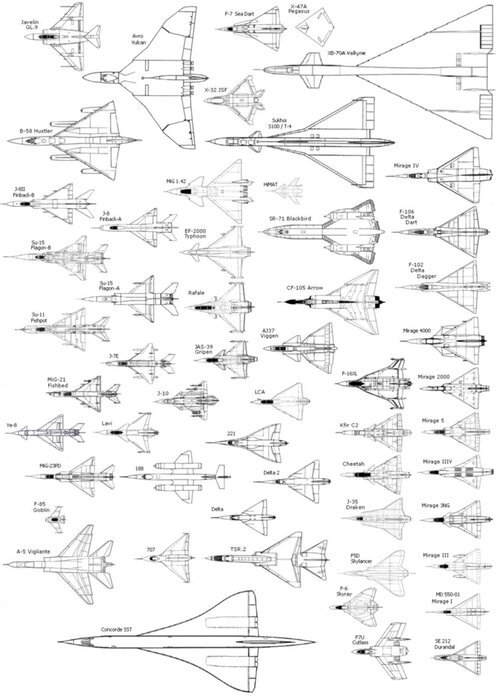

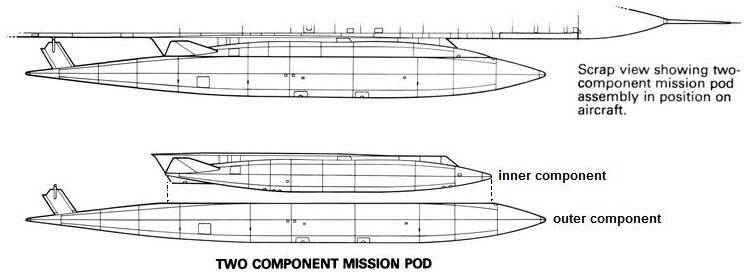

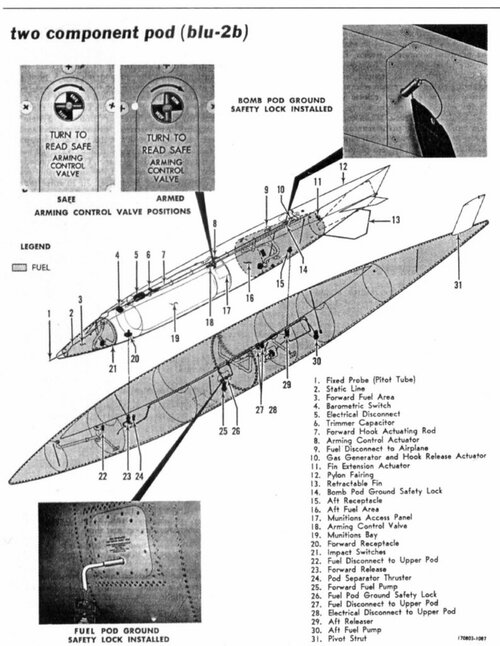

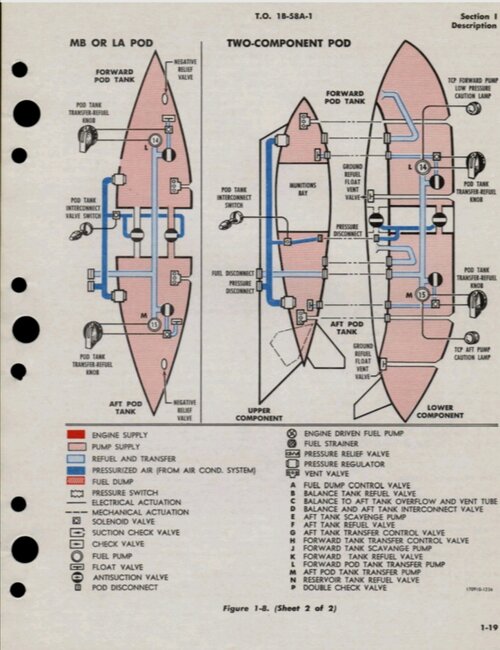

With limited service of the B-58, and the fuel leak issues, none of the other pods were developed. The BLU-2 Two-Component Pod did, however, use the W53, which evolved from the original W46.

Last edited:

Attachments

  • 10.png
    651.8 KB · Views: 79
  • 11.png
    1 MB · Views: 76
  • 12.png
    1.4 MB · Views: 70
  • 13.png
    798 KB · Views: 71
  • 14.png
    822.2 KB · Views: 70
  • 15.png
    1.9 MB · Views: 66
  • 16.png
    535.6 KB · Views: 63
  • 17.png
    551.5 KB · Views: 70
  • 18.png
    768.4 KB · Views: 84

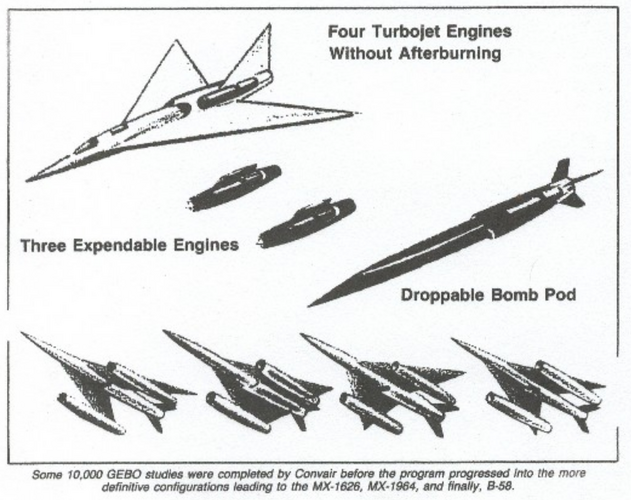

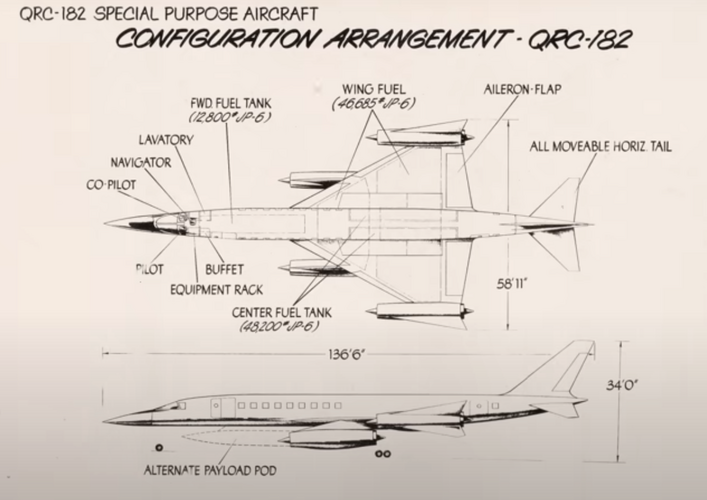

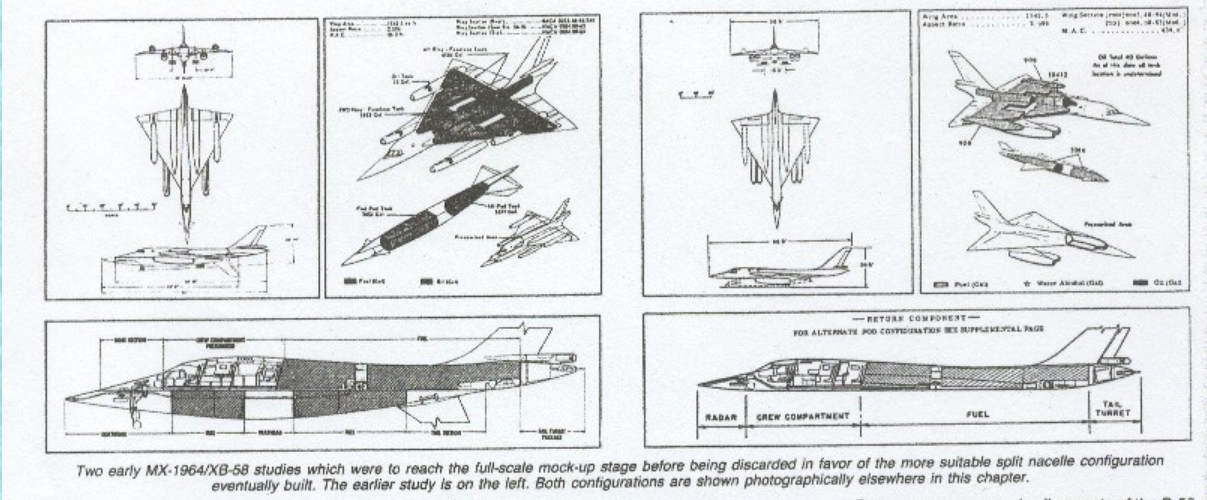

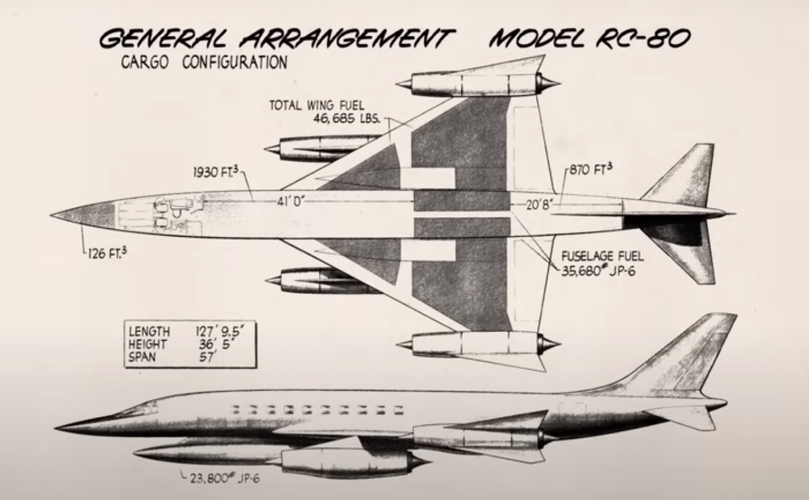

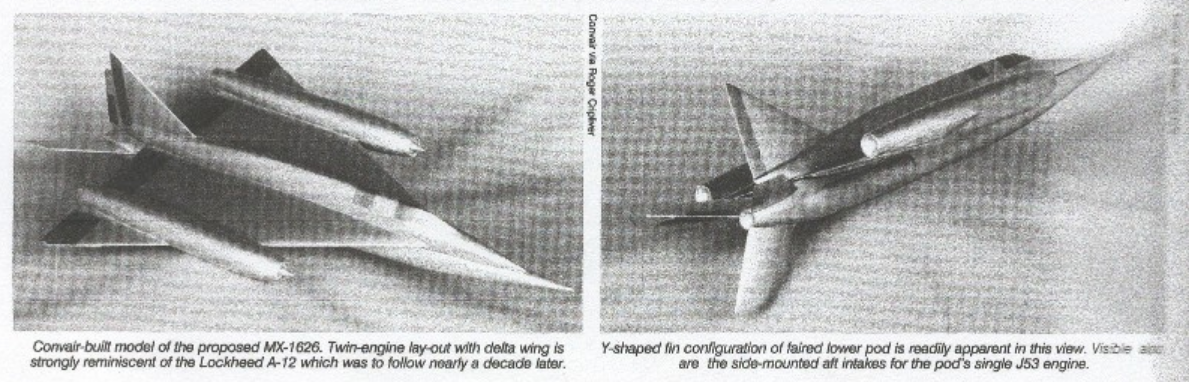

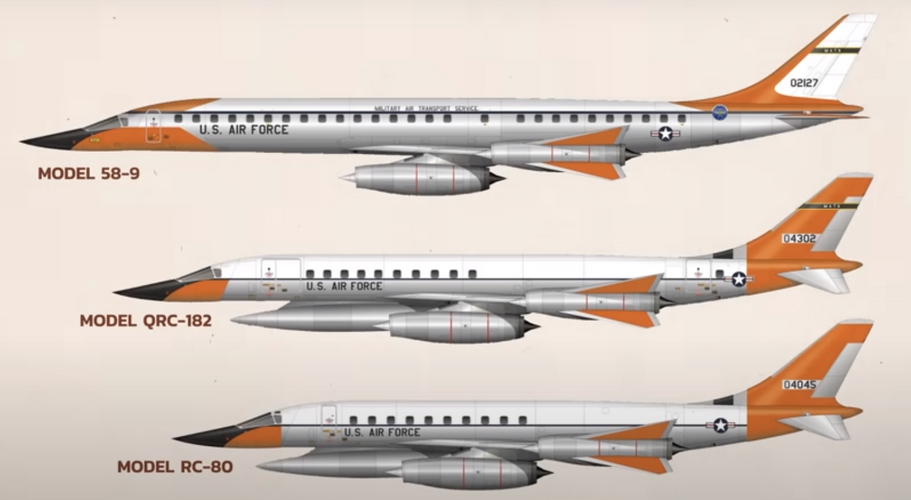

They mentioned here,my dear Scott and his work,

View: https://www.youtube.com/watch?v=jbGzuyPvBbo

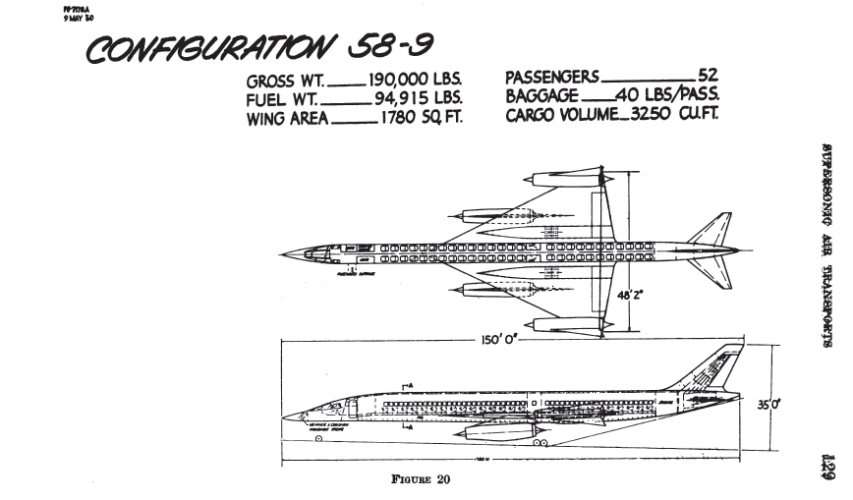

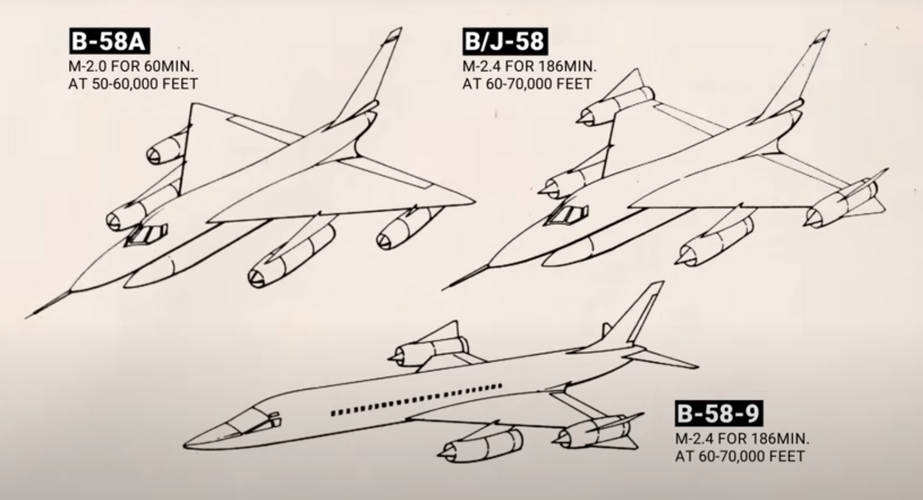

With no offense at all,they were not clever enough,the Convair 58-9 had to
build,becuase many reasons,first it was depended on a successful design already
entered product and proved a good performance,second no need to make
studying for construction design,third that was a priority to surprise the world
by made at least two prototypes,and it was not cost much,fourth there was a

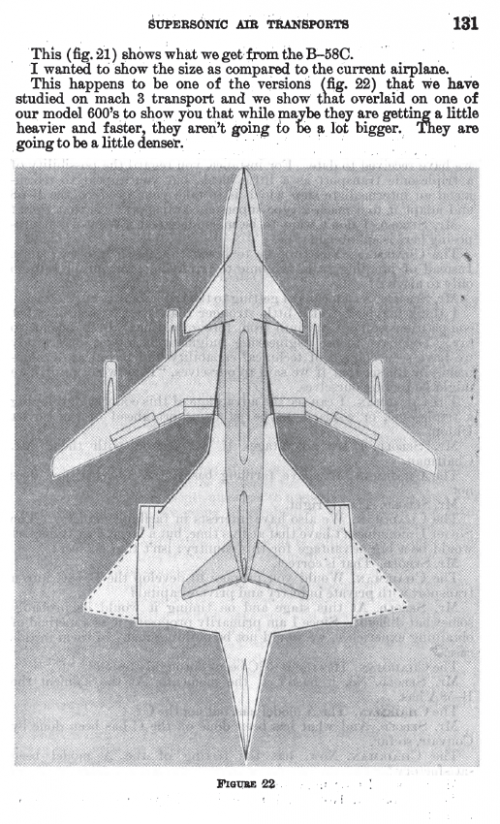

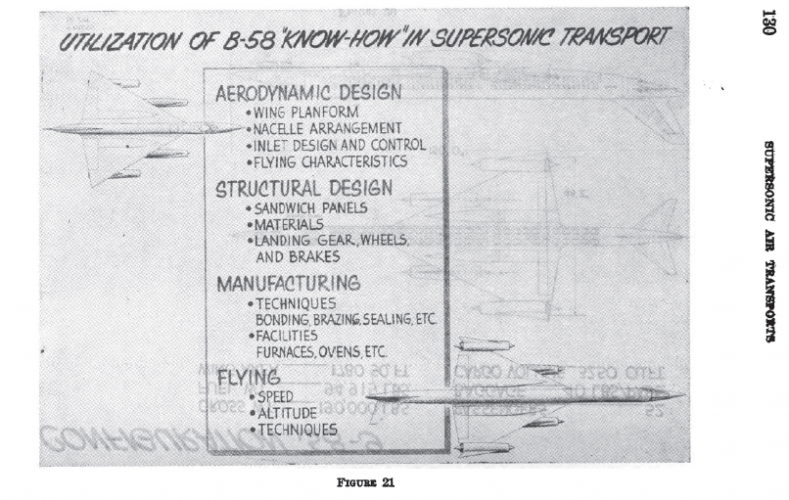

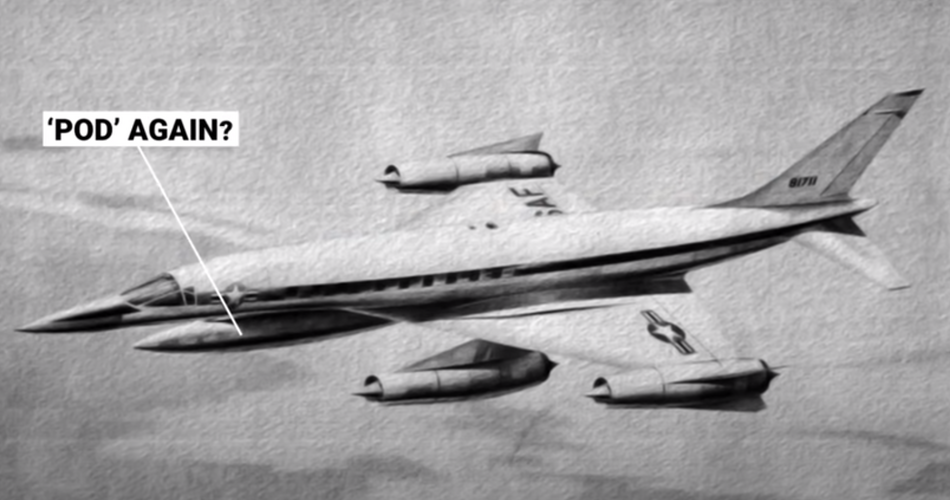

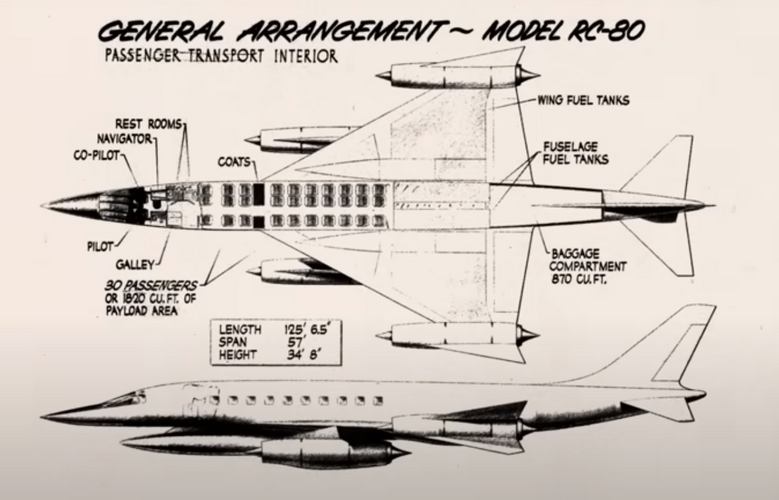

big possibility to issue a large versions,my speculation is; Model-58-10 with a
capacity of accommodation 80 to 90 passenger.

These may the companies contected Convair and USA got a precedence in
this field ?!.

PLEASE,no argue about that in this topic,it's my personal opinion.

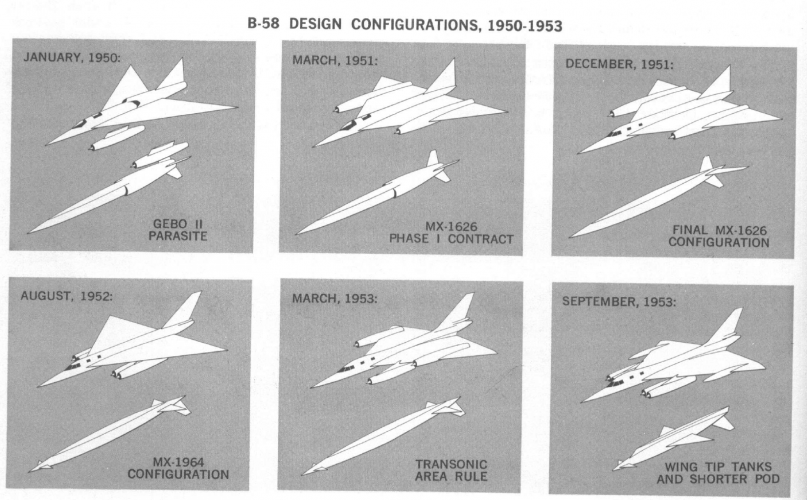

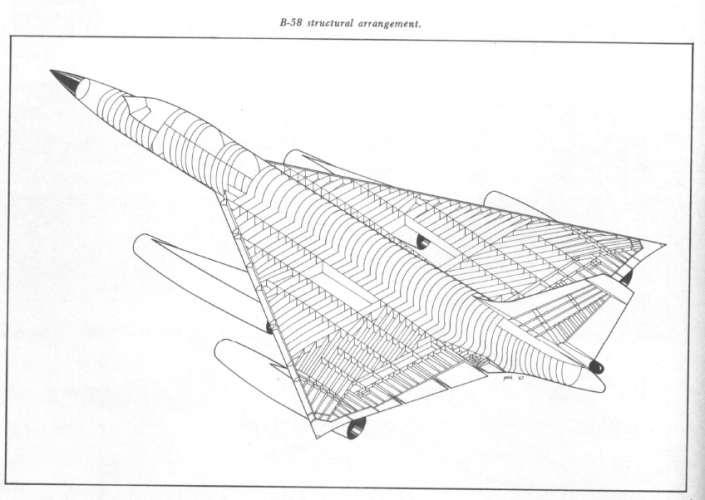

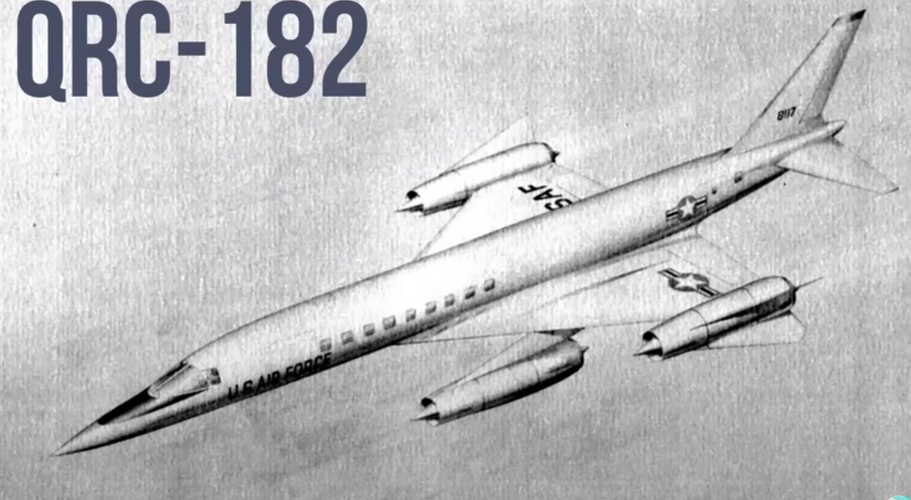

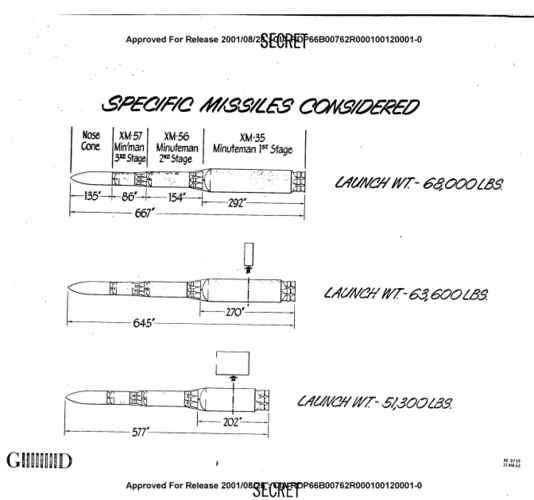

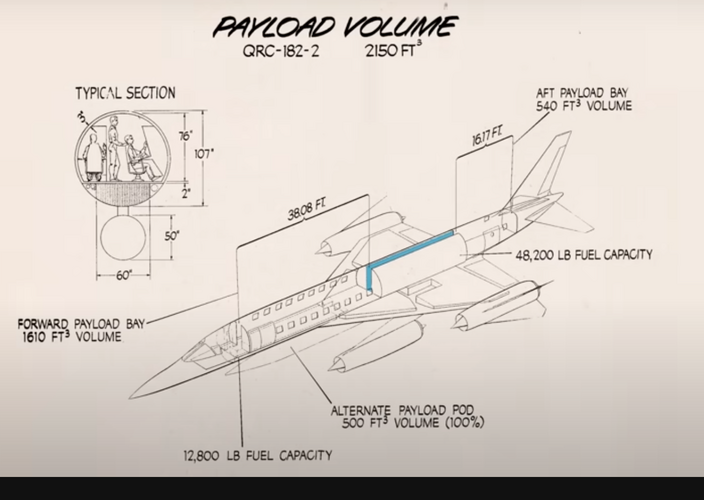

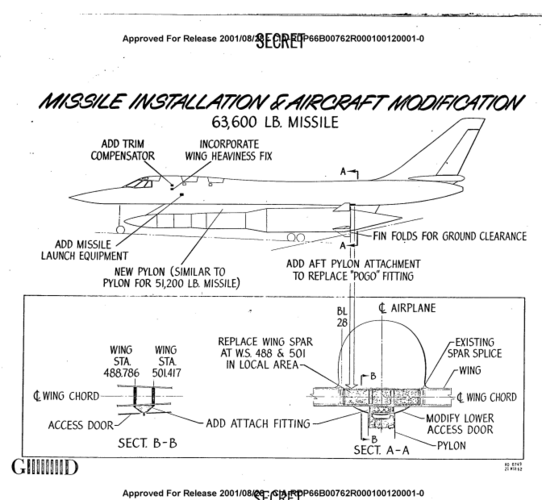

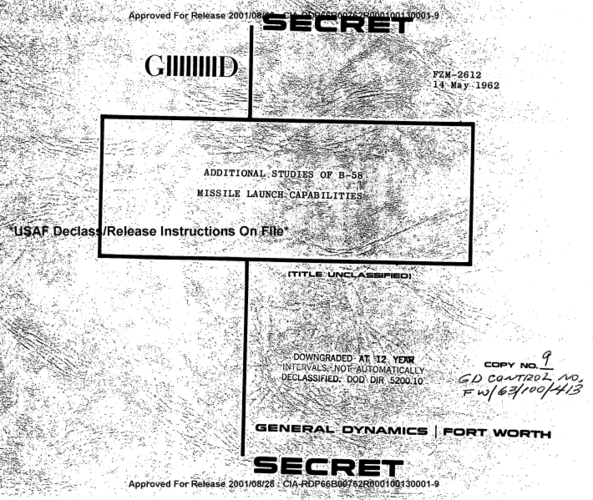

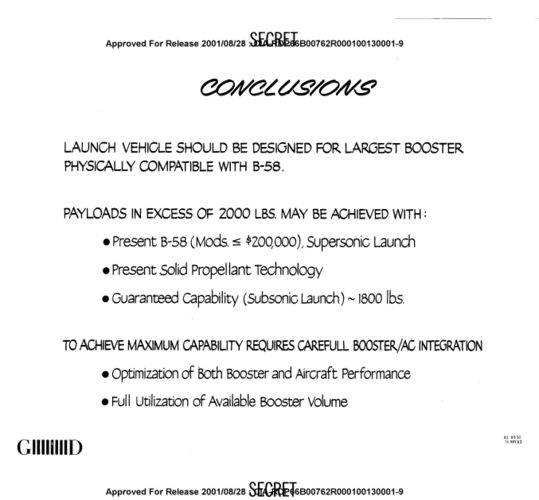

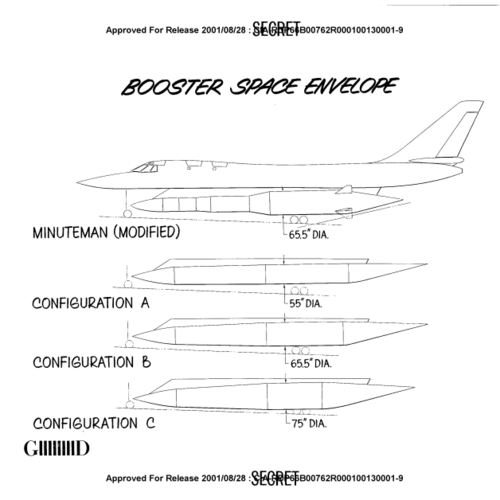

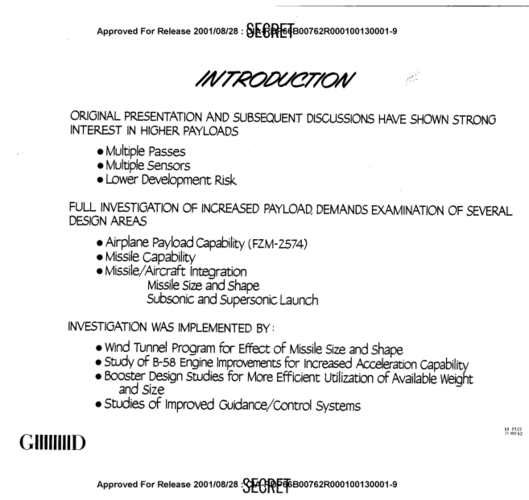

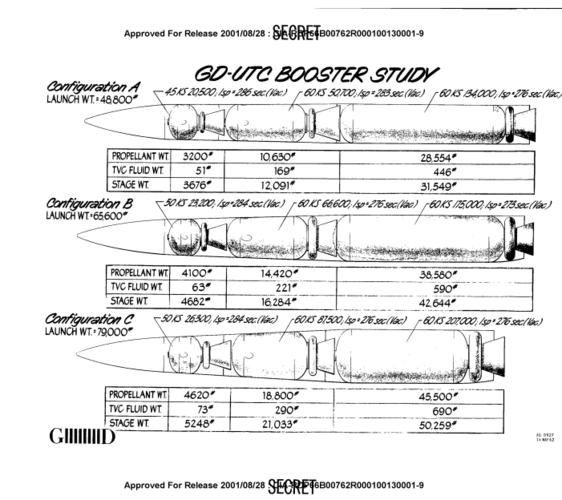

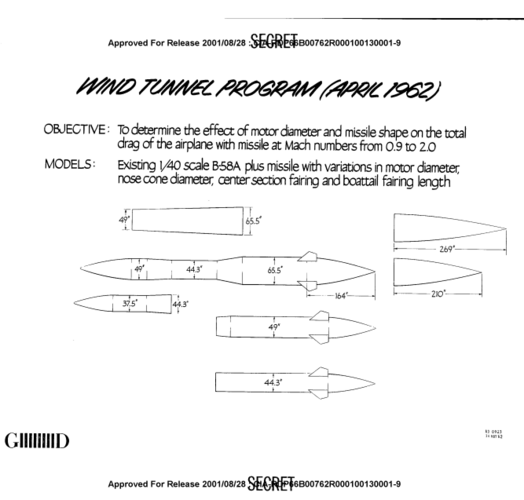

Report on missile launch configurarion for B58. Attached is the report and some of copies of the imagaes contained in it. Another report will follow.


Attachments

  • 6.png
    84.9 KB · Views: 54
  • 5.png
    157 KB · Views: 49
  • 4.png
    78.6 KB · Views: 52
  • 3.png
    66.7 KB · Views: 53
  • 2.png
    103.6 KB · Views: 51
  • 1.png
    340.1 KB · Views: 51
  • cia-rdp66b00762r000100130001-9.pdf
    808.9 KB · Views: 15

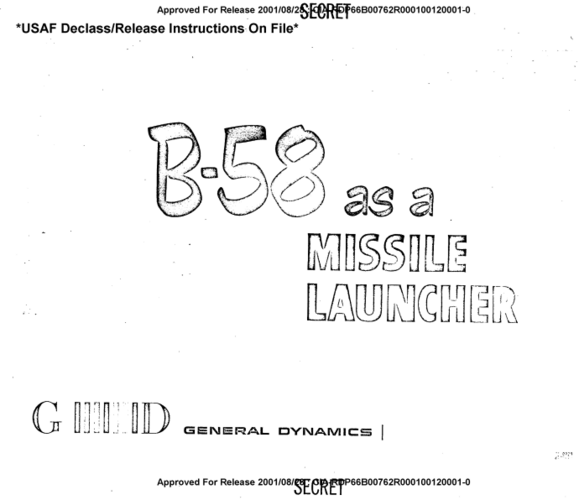

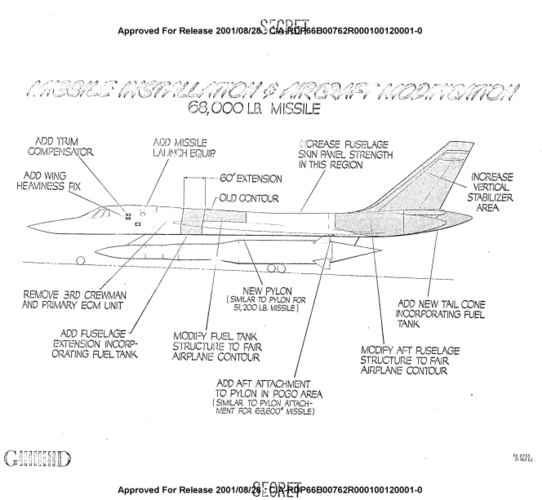

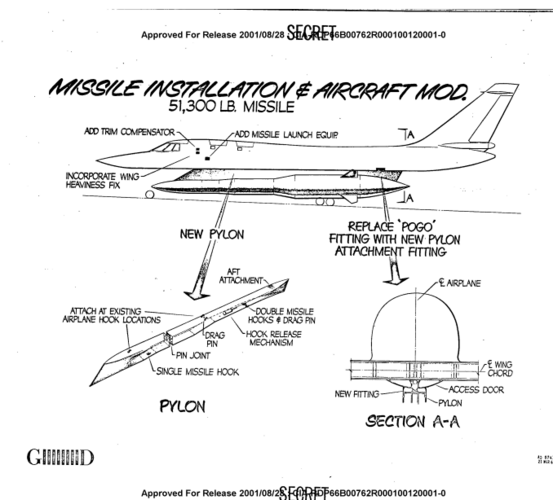

Another study.


Attachments

  • CIA-RDP66B00762R000100120001-0.pdf
    1.9 MB · Views: 22
  • A.png
    74 KB · Views: 56
  • B.png
    79.4 KB · Views: 60
  • C.png
    110.2 KB · Views: 55
  • D.png
    119.2 KB · Views: 57
  • E.png
    120.1 KB · Views: 57
