Jemiba said:

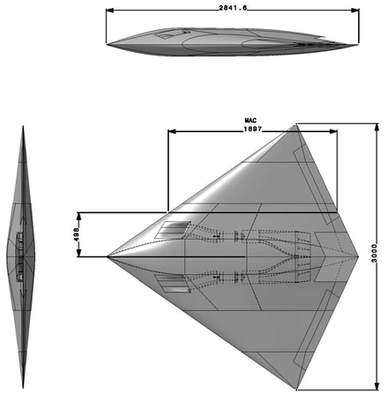

Another cranfield project, this time a UCAV, designated U-99.
Interesting feature is theintended methode of weapon release :
The weapons bay is on the upper side, for attack the UCAV would
roll inverted.
(from AirInternational October 2000)
Click to expand...

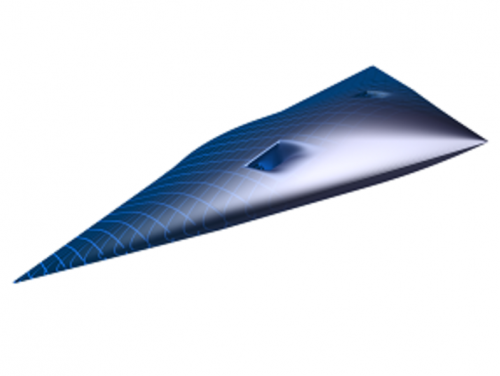

Thank You for 3-view, Jemiba! It looks almoust like Airbus Sagitta UCAV:


Attachments

  • sagitta.png
    59.8 KB · Views: 171
  • csm_SAGITTA-small_3cd6447501.png
    127.3 KB · Views: 117

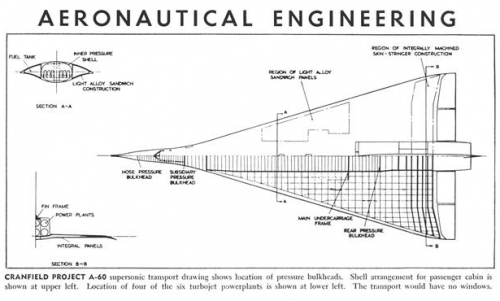

A-60;

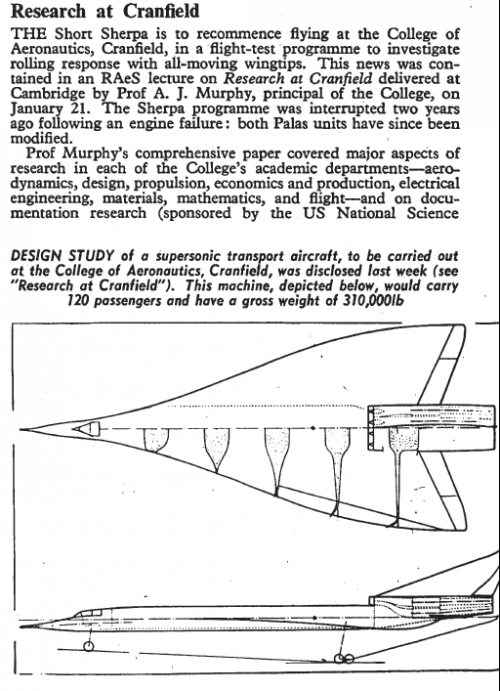

http://archive.aviationweek.com/image/spread/19620423/38/2
http://archive.aviationweek.com/image/spread/19620423/39/2


Attachments

  • 1.png
    110.6 KB · Views: 84
  • 2.png
    63.9 KB · Views: 89
Hi,

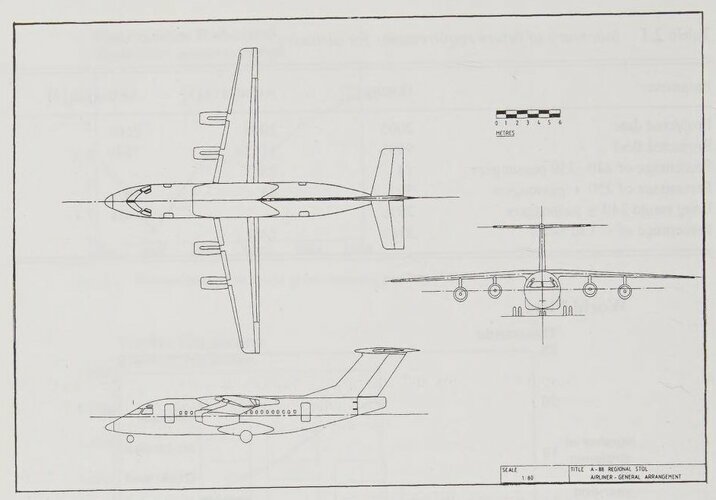

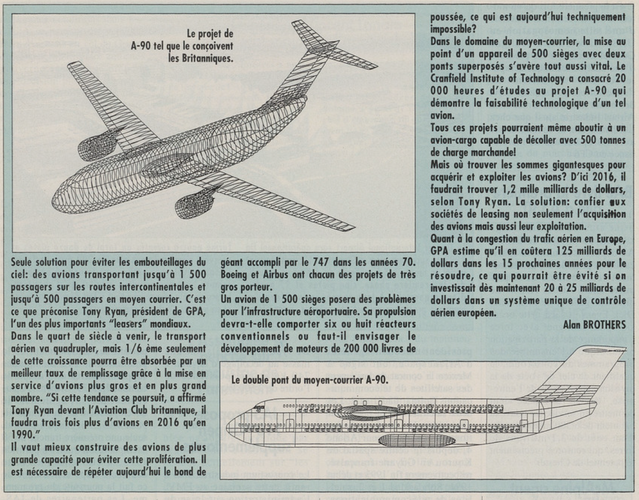

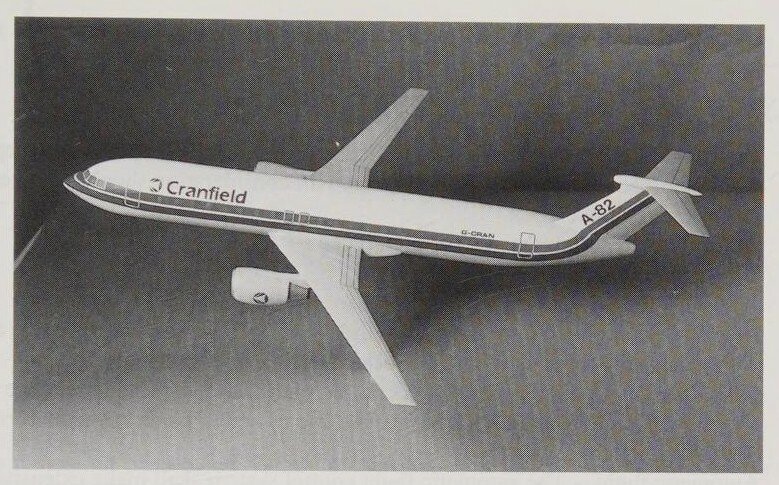

here is some Cranfield aircraft Projects.

http://club66pro.com/documents/The-Anatomy-of-the-Airplane.pdf


Attachments

  • 62.png
    39.1 KB · Views: 115
  • e.png
    28.4 KB · Views: 127
  • b.png
    45.5 KB · Views: 106

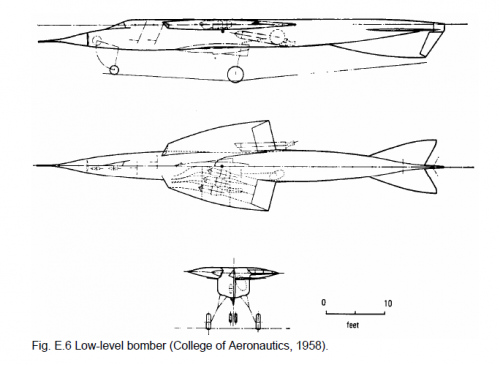

the 1958 'low level bomber' design was Cranfield's response to GOR.339, indeed most of the year projects are based upon issued specifications or requirement proposals :)

TsrJoe said:
the 1958 'low level bomber' design was Cranfield's response to GOR.339, indeed most of the year projects are based upon issued specifications or requirement proposals :)
Click to expand...

New Info for me,thanks.

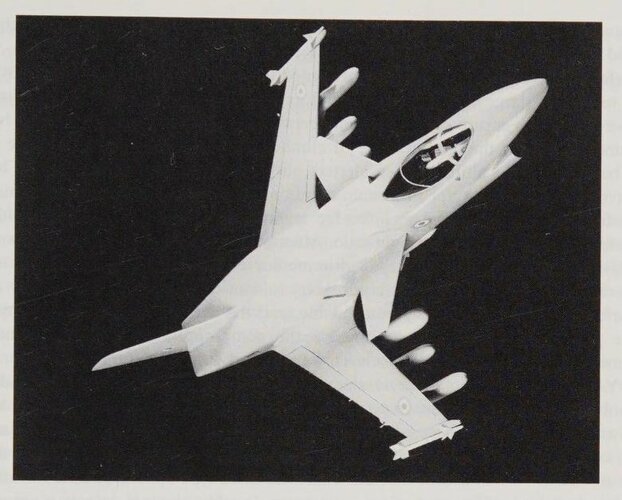

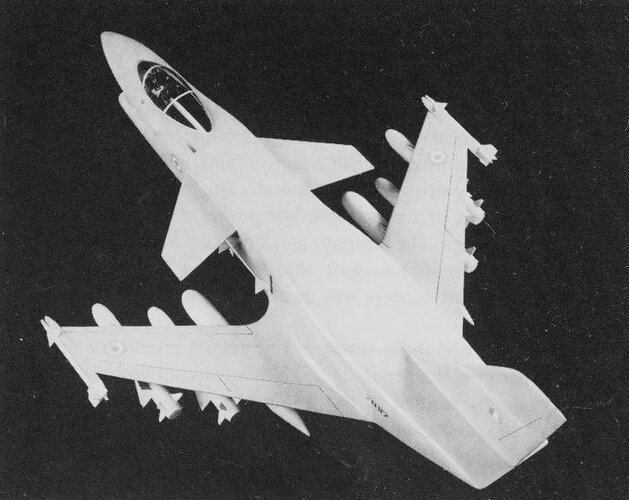

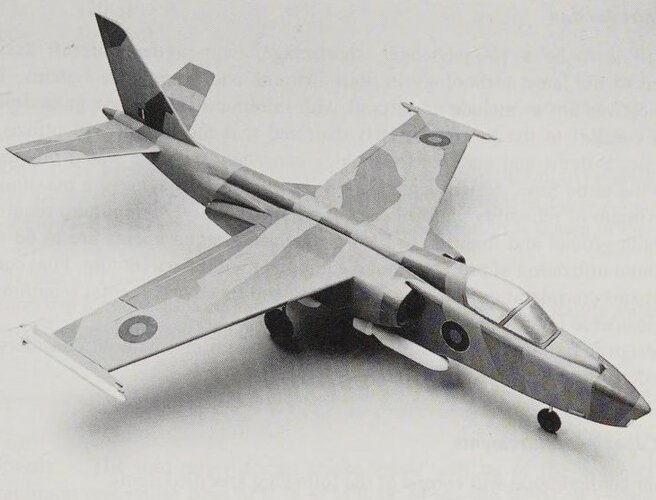

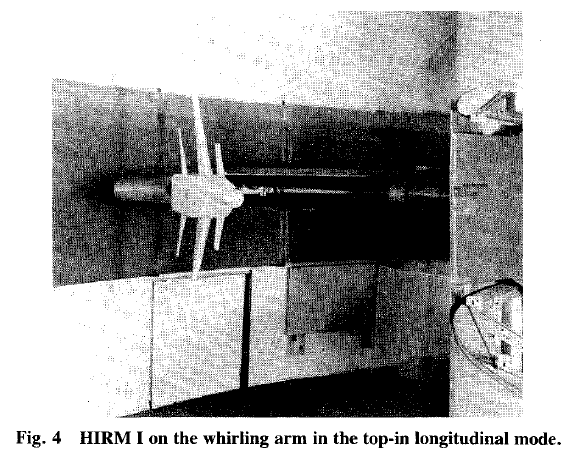

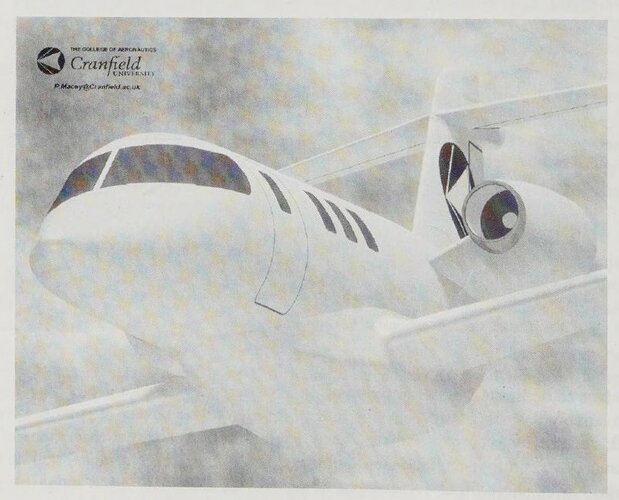

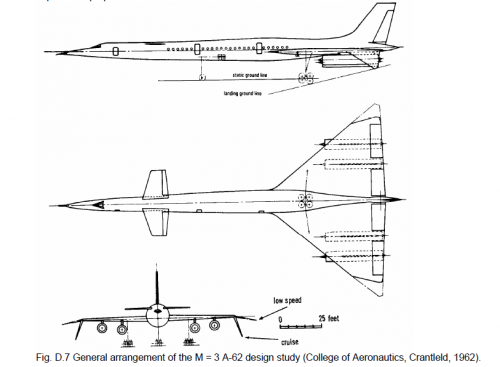

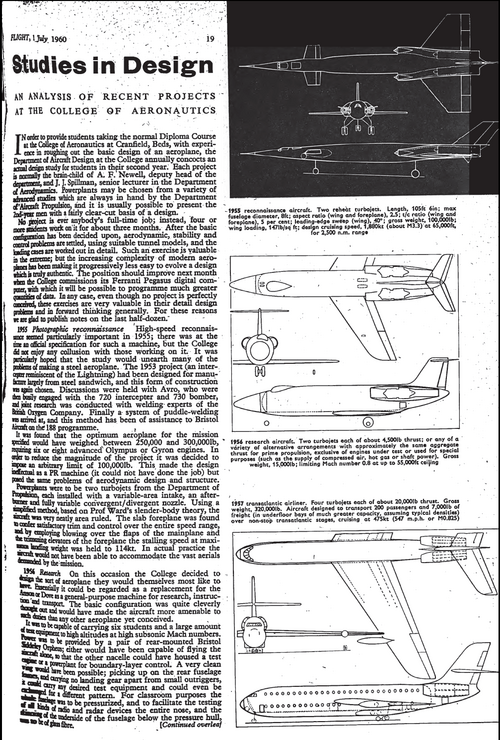

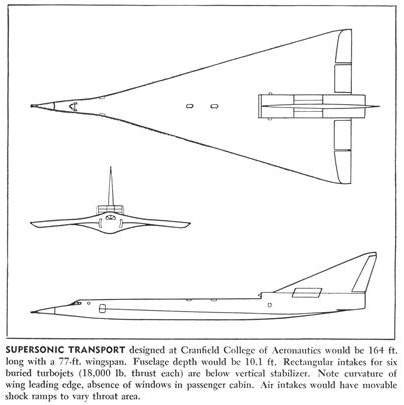

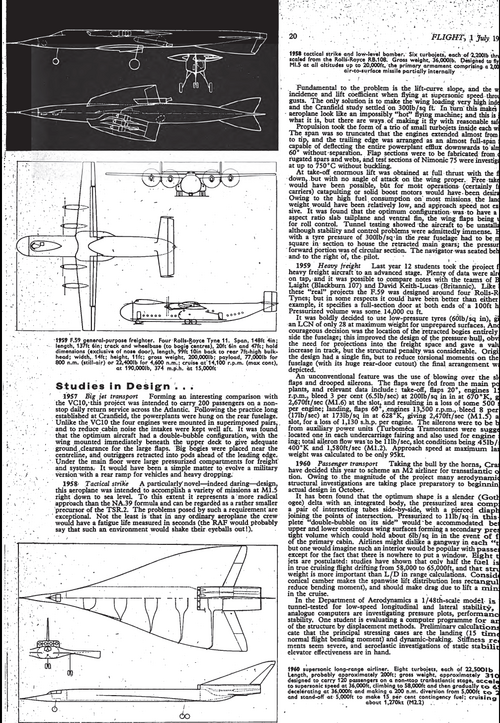

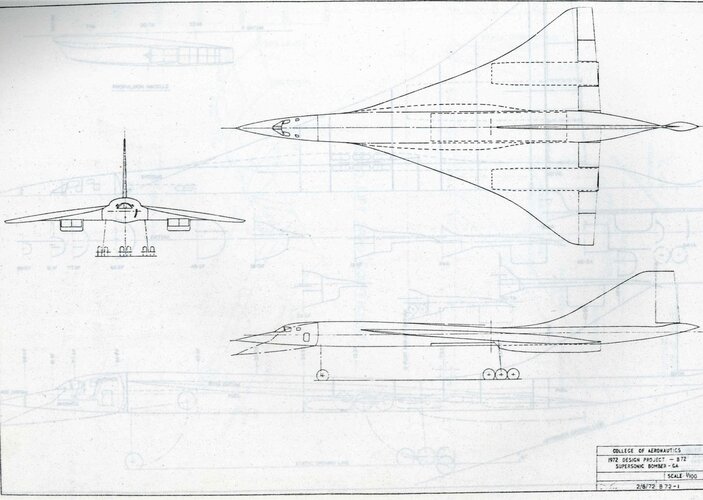

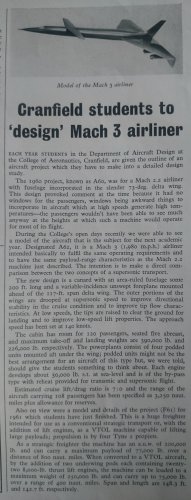

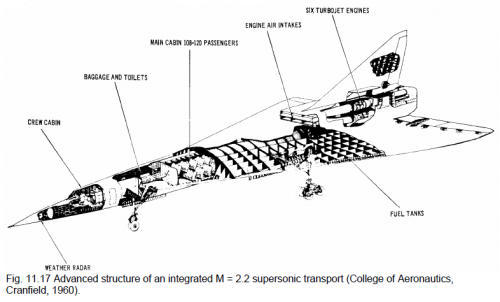

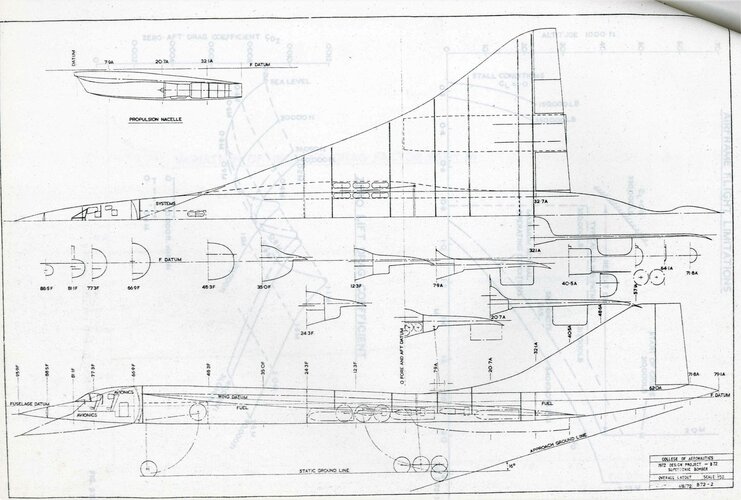

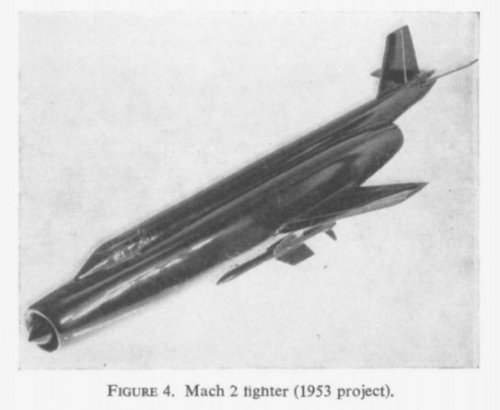

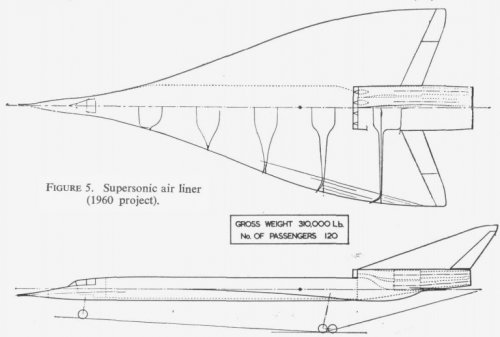

The College of Aeronautics at Cranfield in Britain was established in 1945 to provide high-level training in all aspects of aircraft design and engineering. As part of the programme the Department of Design carried out quite detailed design work on various aircraft types, which, as with many of the projects on this forum (and indeed in several books), were never intended to be built as they were just research studies. Nevertheless they are a useful addition to assess design trends. These two projects were illustrations in a lecture given to the Cambridge branch of the RAeS in 1960.


edit. I see that the SST has been posted before in a thread that has been moved to Theoretical and Speculative, although I would not consider a large part of their work to be any more theoretical and speculative than a large percentage of projects produced by industry in the 1950s and 60s. Mods can move and merge this if they wish


Attachments

  • CoA_1.jpg
    25.8 KB · Views: 574
  • CoA_2.jpg
    39 KB · Views: 572

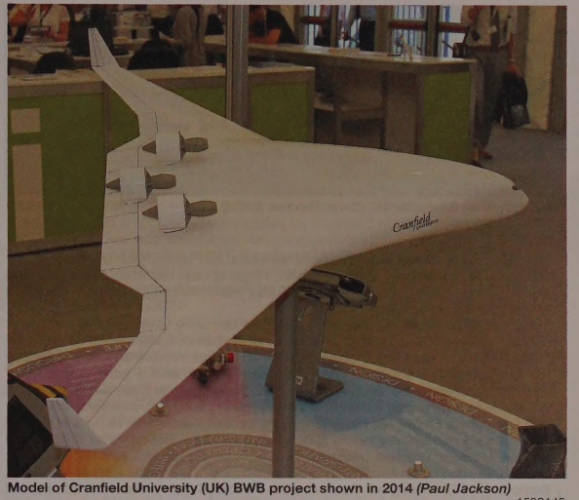

should this thread be taken out of the 'theoretical and speculative' and 'Cranfield College of Aeronautics/University of Cranfield' treated as a 'company' in its own right ? it should be noted most of the 50/60/70's designs are based upon actual specified requirements, eg. OR.330, OR.339, etc., indeed it should be noted some of the later designs, eg, Eclipse, Demon, BWB have made it to 'hardware' stage :)

cheers, Joe

I agree, their work was closely associated with industry, a symbiotic relationship.

Yes, I noted that. The point is the thread should really be in Postwar Aircraft Projects and not in Theoretical and Speculative, which is for conceptual artwork, comic book stuff, fictional designs and so on.


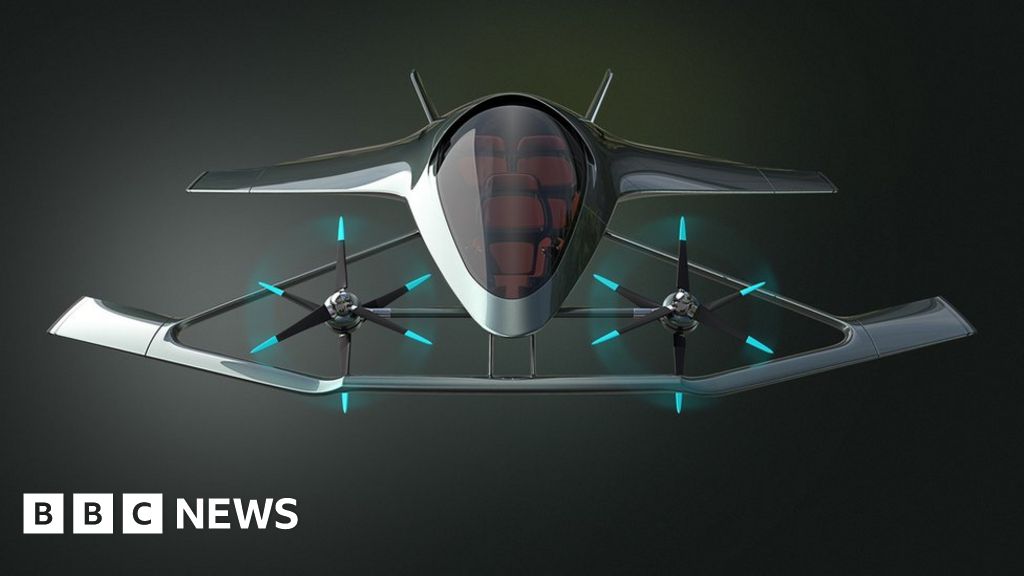

www.bbc.com

Farnborough Airshow: Aston Martin unveils sports car for the skies

James Bond's favourite car company has plans to develop small aircraft with engine giant Rolls-Royce.
www.bbc.com

www.foxbusiness.com

Aston Martin reveals flying car that could hit 200 mph

The British sports car maker introduced the Volante Vision Concept at the Farnborough Airshow.
www.foxbusiness.com www.foxbusiness.com

EDIT: https://www.secretprojects.co.uk/forum/index.php/topic,30584.0.html (h/t RavenOne)

Last edited by a moderator:

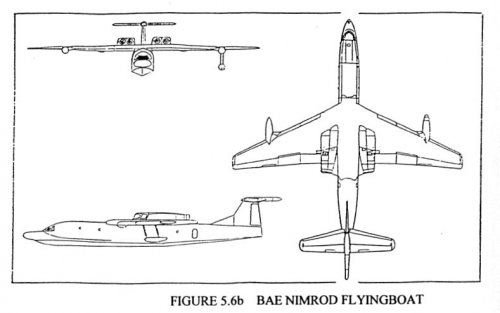

Conceptual Nimrod flying boat taken from a 1999 Cranfield Phd thesis CONCEPTUAL DESIGN METHODOLOGIES FOR WATERBORNE AND AMPHIBIOUS AIRCRAFT by S H Chicken (yes, really)


Attachments

  • Nimrod concept.jpg
    Nimrod concept.jpg
    55.9 KB · Views: 225
From Cranfield College of Aeronautics history


Attachments

  • 1.png
    181.4 KB · Views: 91

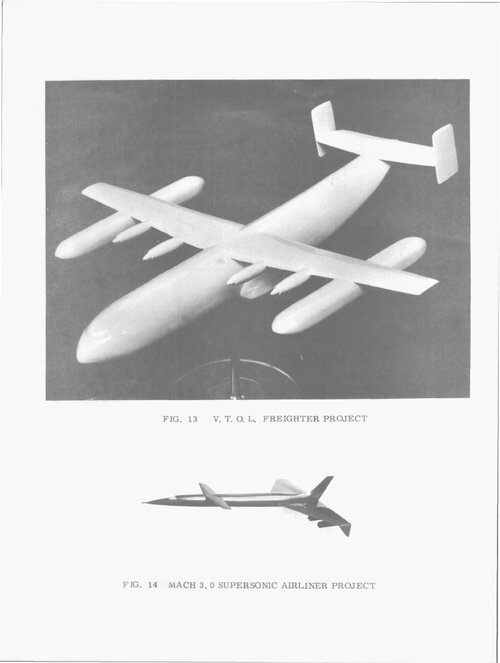

The V.T.O.L STRATEGIC FREIGHTER F-61 VTOL (design by Cranfield College of Aeronautics )
Seems something of a mystery, does anyone know if any manufacture's played a part in its concept.

A basic guess perhaps Bristol or Blackburn houses? I know it used RR Tyne engines as its main propulsion.

TIA


Attachments

  • Clipboard01.jpg
    21.9 KB · Views: 72
Last edited by a moderator:
shock1 said:
The V.T.O.L STRATEGIC FREIGHTER F-61 VTOL (design by Cranfield College of Aeronautics )
Seems something of a mystery, does anyone know if any manufacture's played a part in its concept.

A basic guess perhaps Bristol or Blackburn houses? I know it used RR Tyne engines as its main propulsion.

TIA
Click to expand...
Why do you think they should be necessarily involved in this?

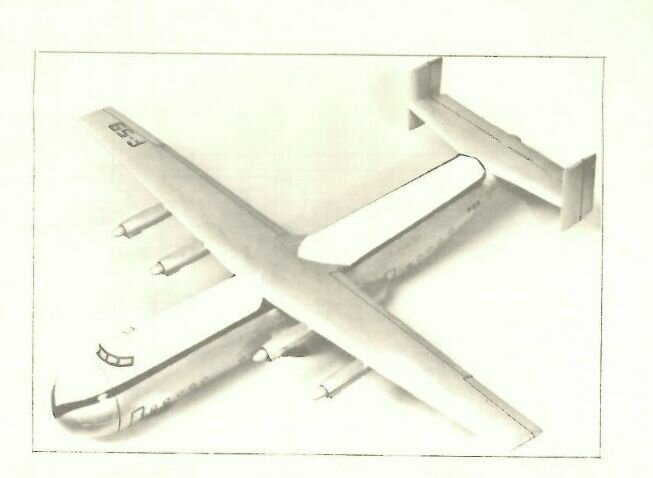

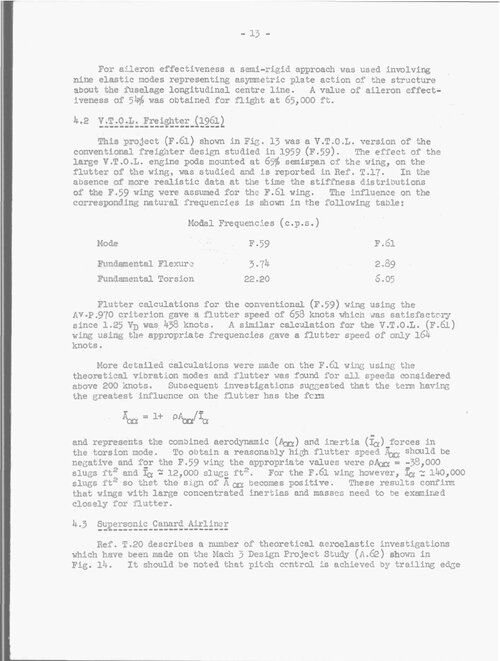

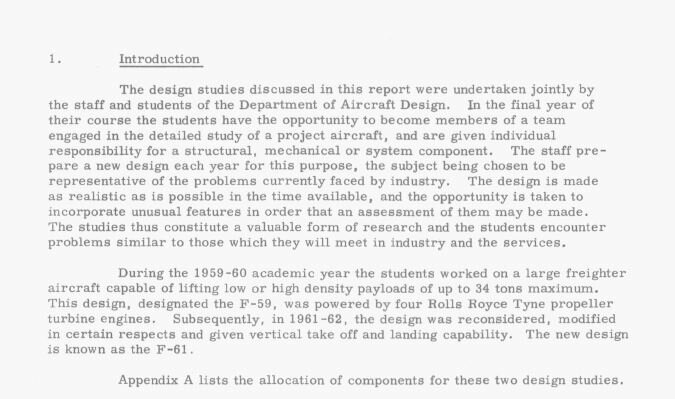

Aeroplane design studies conventional and V.T.O.L. freighter aircraft (Academic Years 1959 and 1961)

During the second year of their course in the Department of Aircraft Design, students have the option of working as a member of a team engaged in a design study. The subjects for the studies are chosen to represent the current interests of the industry and include unusual features considered to...
dspace.lib.cranfield.ac.uk dspace.lib.cranfield.ac.uk
better quality copy

Aeroplane design studies conventional and V.T.O.L. freighter aircraft (academic years 1959 and 1961) | TU Delft Repository

repository.tudelft.nl repository.tudelft.nl


Attachments

  • F.61.jpg
    255.4 KB · Views: 54
  • F.61-2.jpg
    200.8 KB · Views: 53
  • 59-61.JPG
    57.8 KB · Views: 53
Last edited:
Cranfield S-83 FSW STOVL Project.

Source: An Introduction to Aircraft Design John P. Fielding


Attachments

  • Cranfield S-83.jpg
    Cranfield S-83.jpg
    121.3 KB · Views: 46
  • Cranfield S-83-2.jpg
    Cranfield S-83-2.jpg
    111.1 KB · Views: 47
Last edited:

Attachments

  • 337367540_1208398266732514_470392917226238546_n.jpg
    592.5 KB · Views: 59
  • 337351559_217064304200878_3571169920401465876_n.jpg
    693 KB · Views: 73
