Chinese VTOL aircraft

[Ainen]

https://twitter.com/x/status/1664653653947609090

View: https://twitter.com/louischeung_hk/status/1664653653947609090

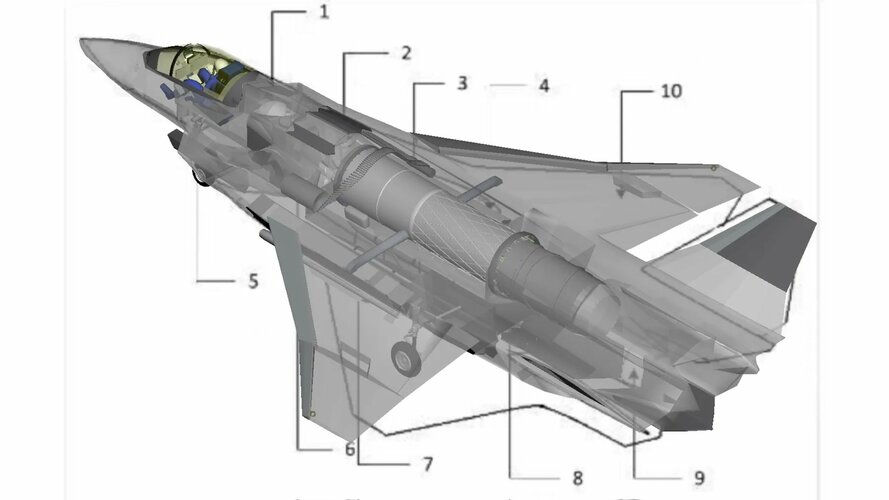

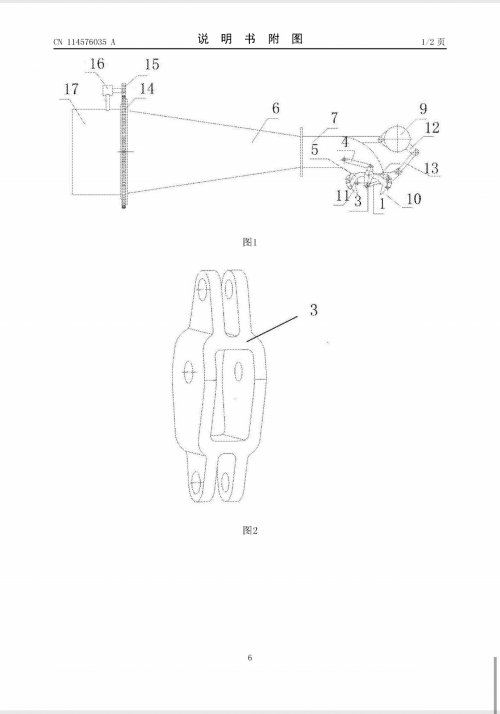

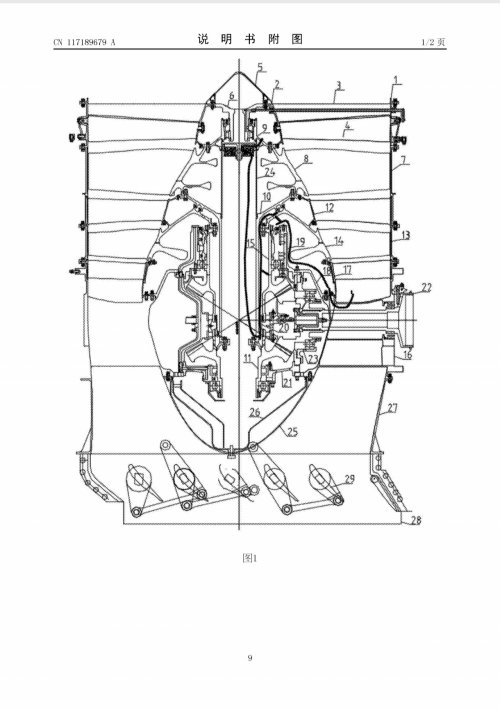

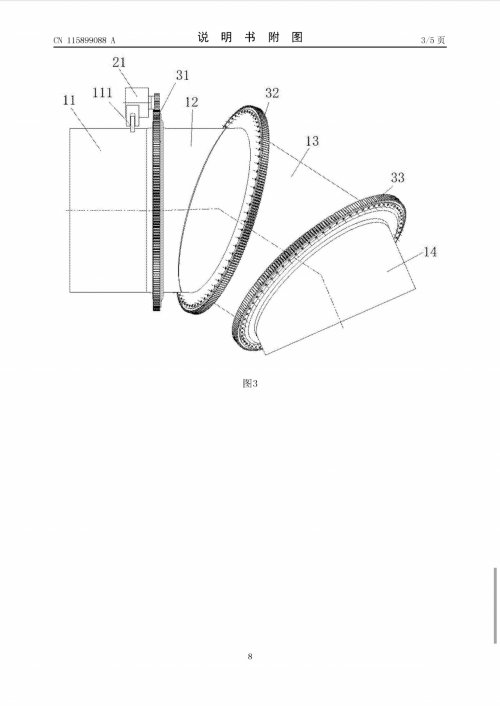

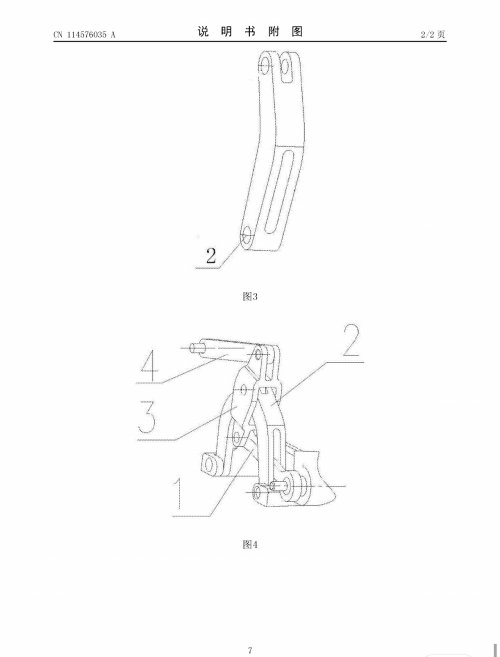

Chinese 3d graphics is an old meme, but here it helps visualize the patent drawings.
Overall - interesting sorta "1.5"-engined concept, merging Harrier, F-35, and Yak-38 approaches. In both advantages and disadvantages.

Could you please post these images directly here since I’m blocked by that guy

done:



[GTX]

A patent does not make a prototype...a prototype does not make an operational platform...

Perhaps I need to amend this to say: A patent does not make a prototype...a prototype does not make an operational platform...and neither does CGI Art...



[Erdosain]

I found this on Twitter, I don't know the veracity of the project but personally it seems unlikely to me to put those big fans on a super sonic fighter.

Could it be some kind of April Fool's Day joke? Or just a theoretical study?



[moin1900]

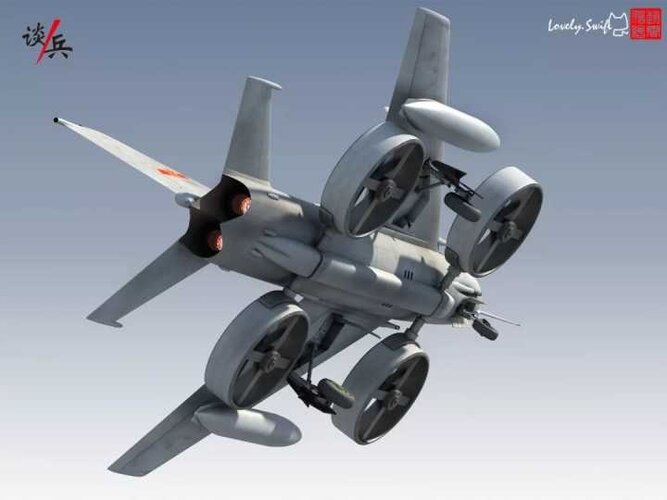

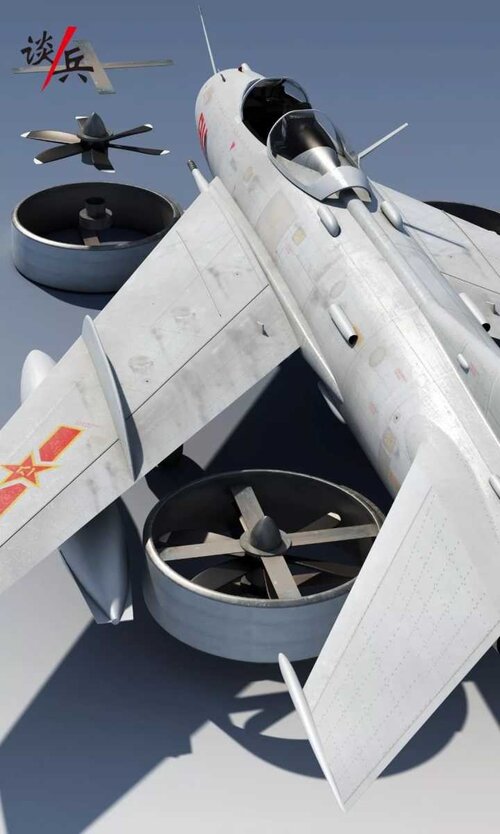

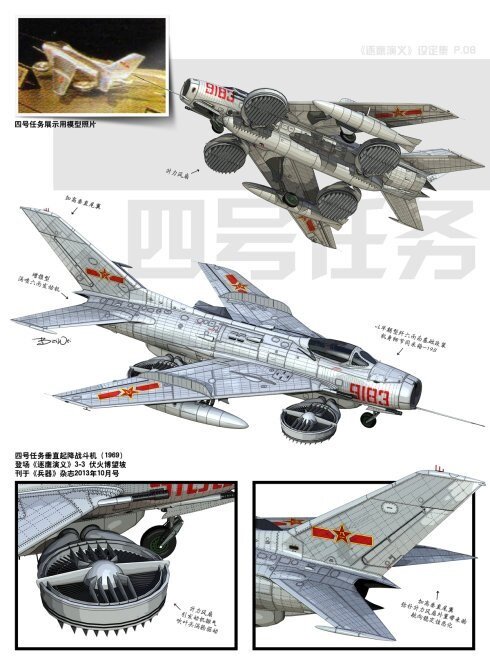

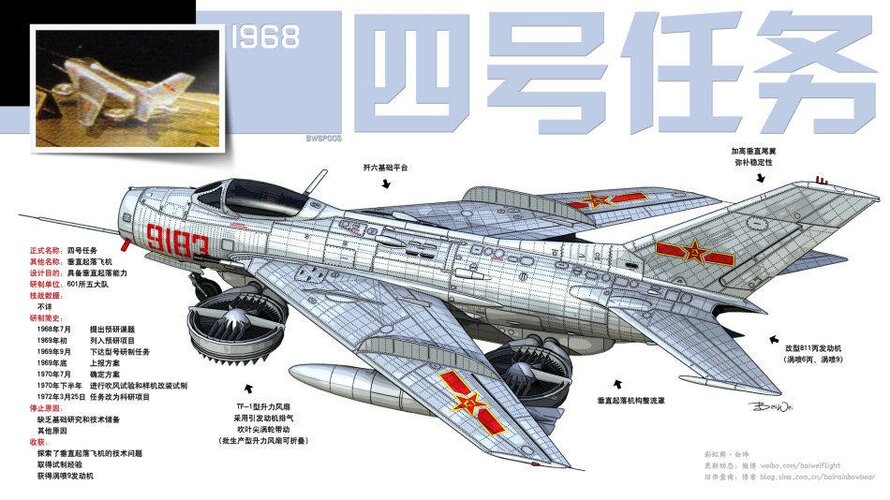

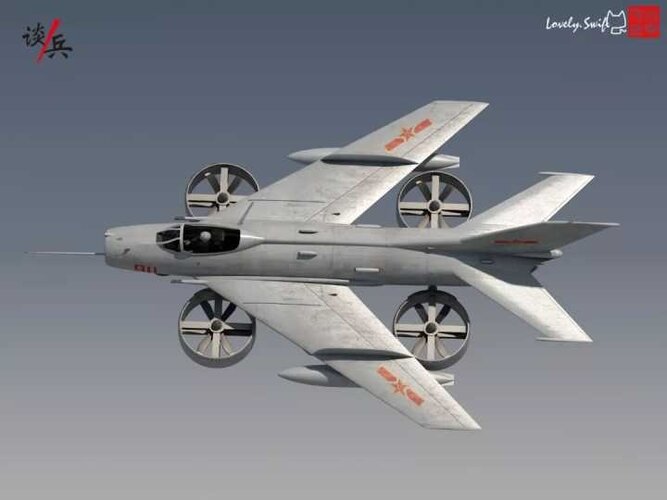

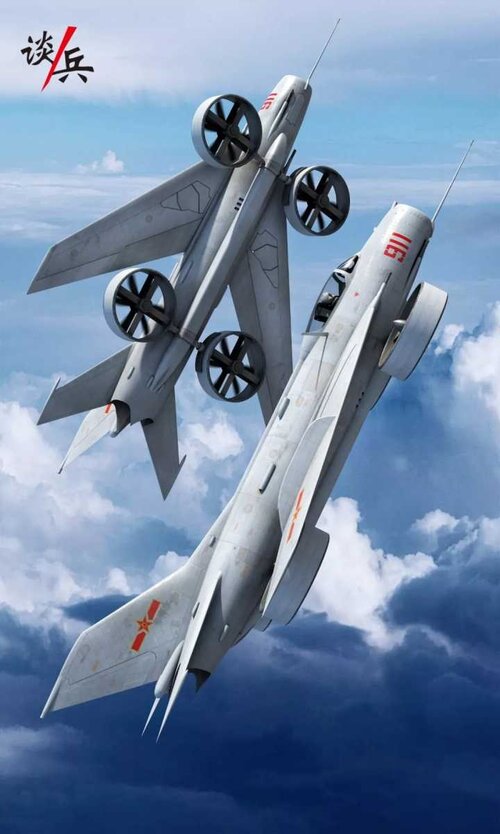

J-6 VTOL

https://www.secretprojects.co.uk/threads/chinese-j-6-vtol-project.35235/

https://www.secretprojects.co.uk/threads/shenyang-j-8ii-1968-design.19709/post-191811

https://www.secretprojects.co.uk/threads/kumas-china-secret-project-artwork.40499/post-563340
