Chelomey OKB-52 UR-700 rockets family

[Byeman]

3) Mine either.

Yours isn't worth anything to begin with.



[Triton]

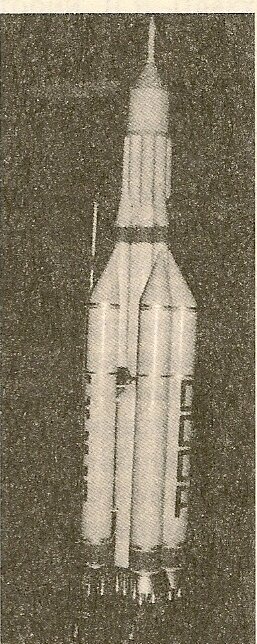

Model of UR-700.

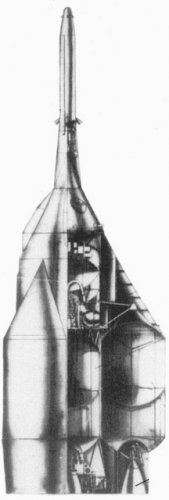

Model of UR-700 mod.

Source: http://www.b14643.de/Spacerockets_1/Diverse/R_and_UR-Missiles/index.htm



[OM]

3) Mine either.

Yours isn't worth anything to begin with.

...Well, guess that answers that.

[PLONK]



[Capt. David]

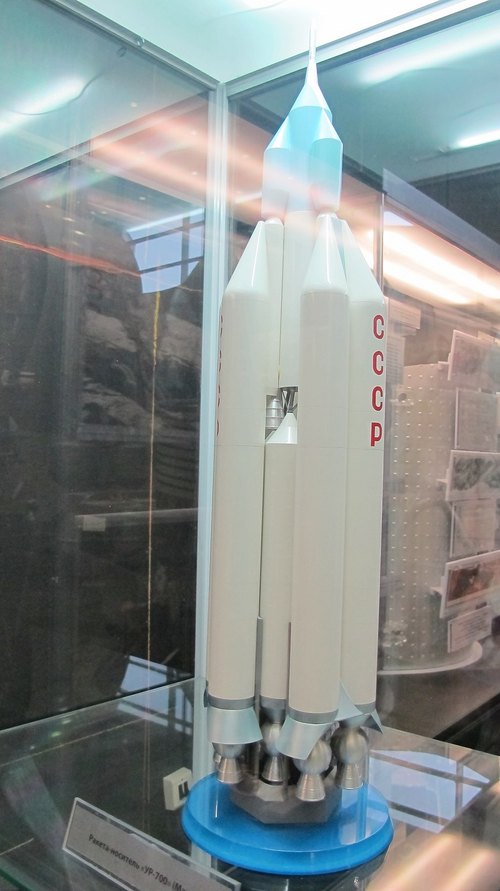

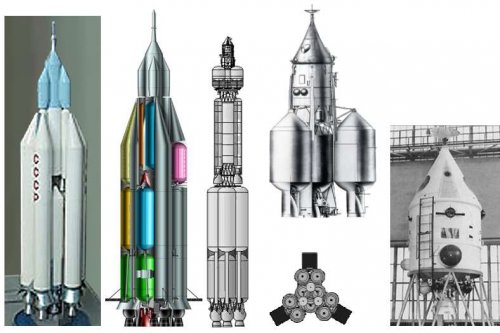

Model of UR-700 mod.

Source: http://www.b14643.de/Spacerockets_1/Diverse/R_and_UR-Missiles/index.htm

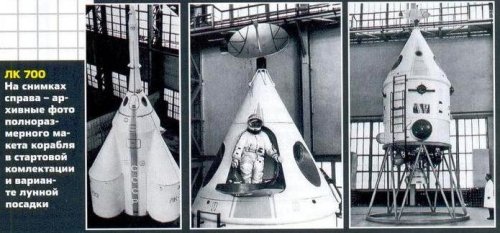

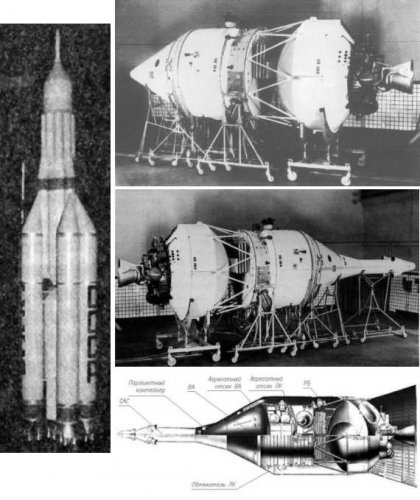

The photos to the right of the UR700 mod(?) are all of the LK1 which would have been UR500 launched (in fact the top two images are from the same photo - one is reversed, and heavily retouched to remove the Launch Escape system).

The UR-700 mod model is an earlier concept before the addition of the RD270.

Regards,

David L. Rickman



[Triton]

Model of UR-700 mod.

Source: http://www.b14643.de/Spacerockets_1/Diverse/R_and_UR-Missiles/index.htm

The photos to the right of the UR700 mod(?) are all of the LK1 which would have been UR500 launched (in fact the top two images are from the same photo - one is reversed, and heavily retouched to remove the Launch Escape system).

The UR-700 mod model is an earlier concept before the addition of the RD270.

Regards,

David L. Rickman

Yeah, I should have cropped the images that I found.



[OM]

Yeah, I should have cropped the images that I found.

...Actually, a couple of those I hadn't seen before. So your "mistake" was my gain. Thanks



[athpilot]

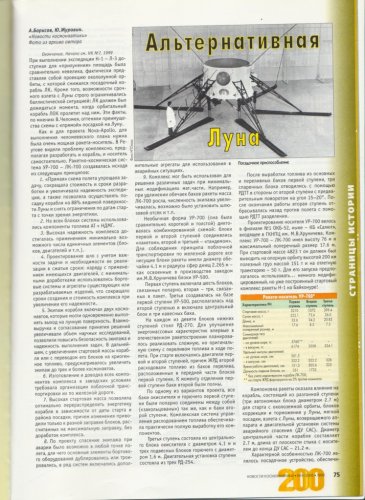

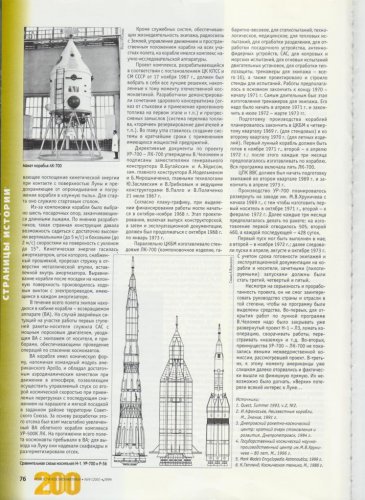

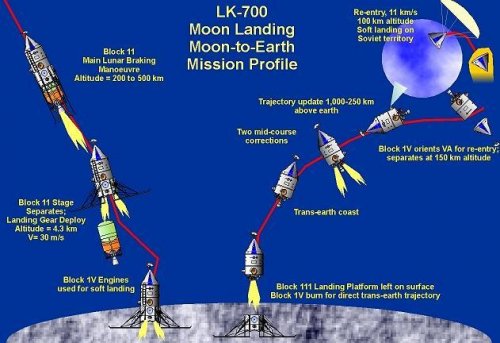

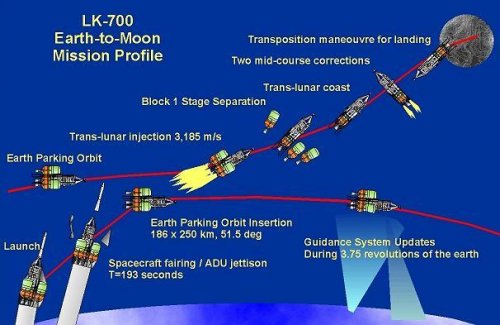

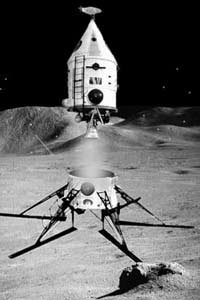

Here are some more pictures. The first is an article in "Novosti Kosmonvtiki".
Regards
Athpilot



[Michel Van]

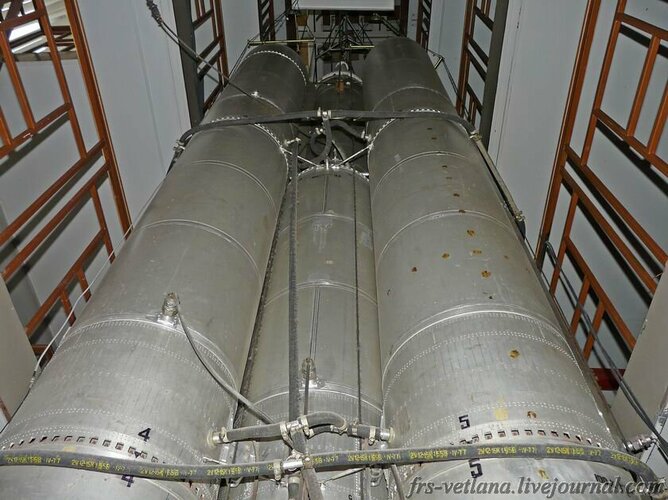

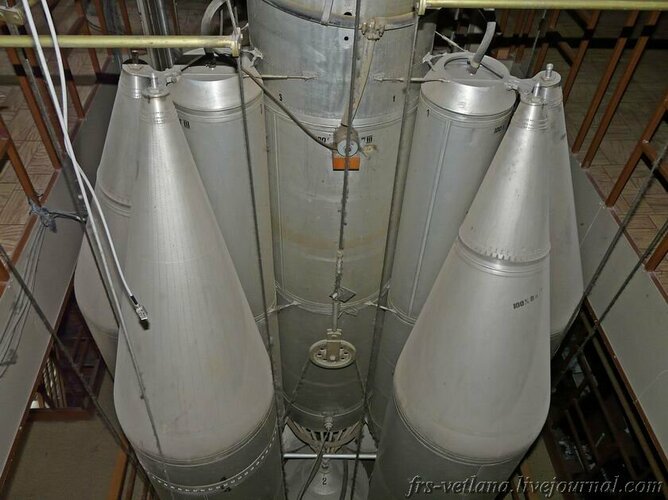

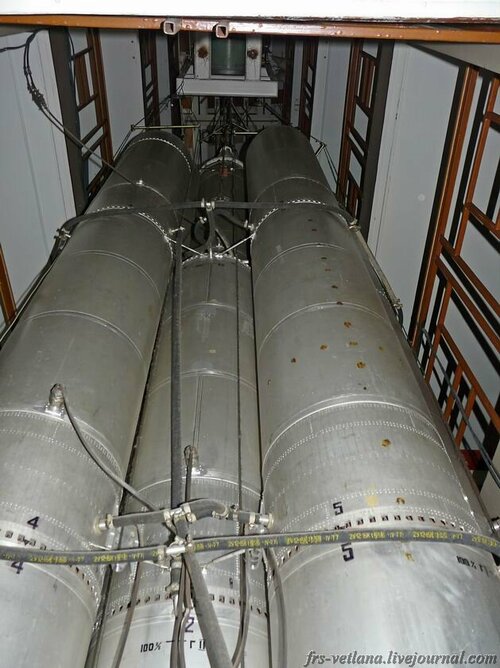

Chelomei not only design the UR-700 rocket on Paper.

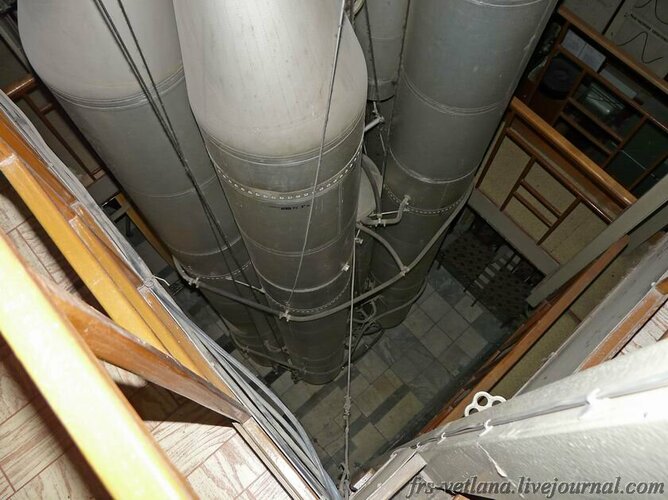

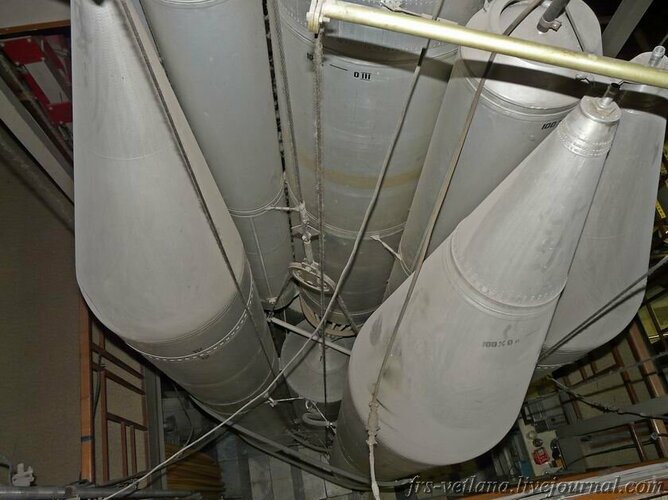

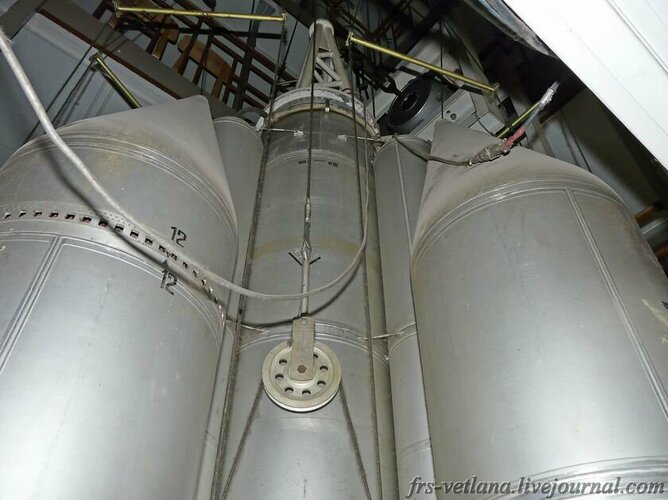

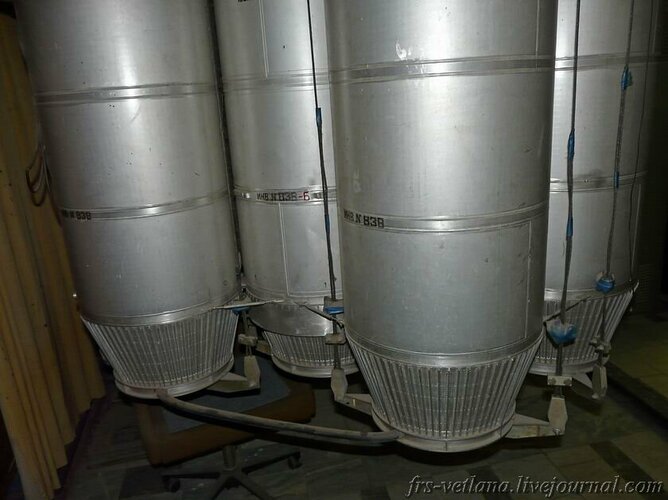

He order the construction of two Testmodel in 1/10 size of original rocket for dynamic simulations
and that one BIG model still exist in the Chelomey Design Bureau that occupies three floors !

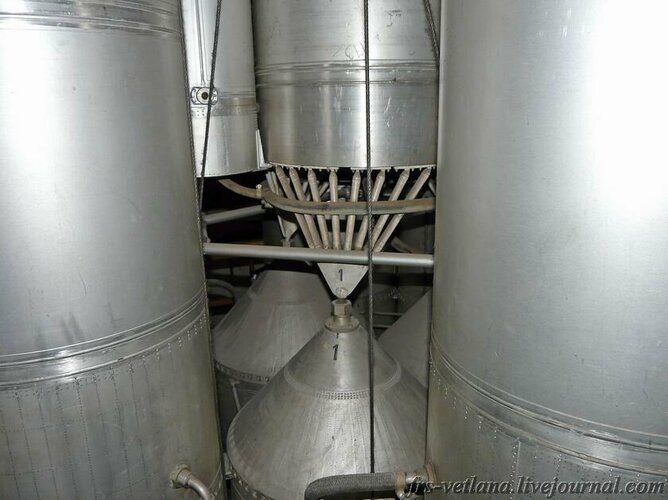

They used Rubber hoses served to "refuel" the model with water (UR-700 use propellant transfer during launch)

Source
http://nick-stevens.com/2017/04/17/new-reference-information-ur700/#more-1211
Original in Russian language
http://frs-vetlana.livejournal.com/333518.html



[dwkr01]

Here are some more pictures. The first is an article in "Novosti Kosmonvtiki".
Regards
Athpilot

And, a video:

View: https://www.youtube.com/watch?v=Txrvp64Iqis



[BuckDanny]

1). UR-700K

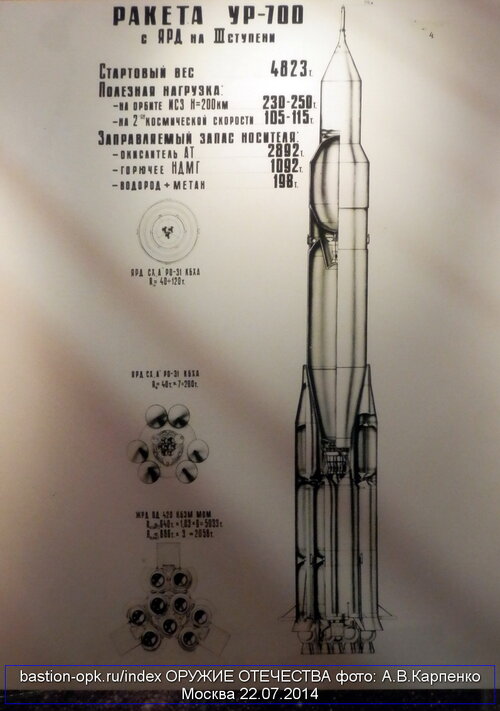

2). UR-700 with RO-31 nuclear rocket engine (250 t to LEO)

all images (c) NPOMash
please don't repost anywhere

3). UR-700 compared to N1 and Saturn V

The whole point of the UR-700 was to be able to be manufactured in moscow's plants and then brought by train to baikonur. Any idea how the RO-31 nuclear engine stage would have been manufactured or brought to the launch site?



[Dmitry V.]

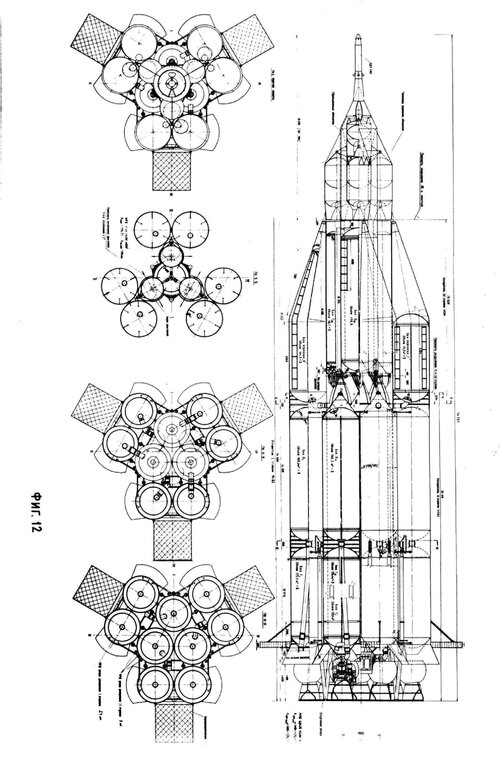

Early variant of UR-700



[Dmitry V.]

UR-700



[Dmitry V.]

UR-700 on launch pad



[Dmitry V.]

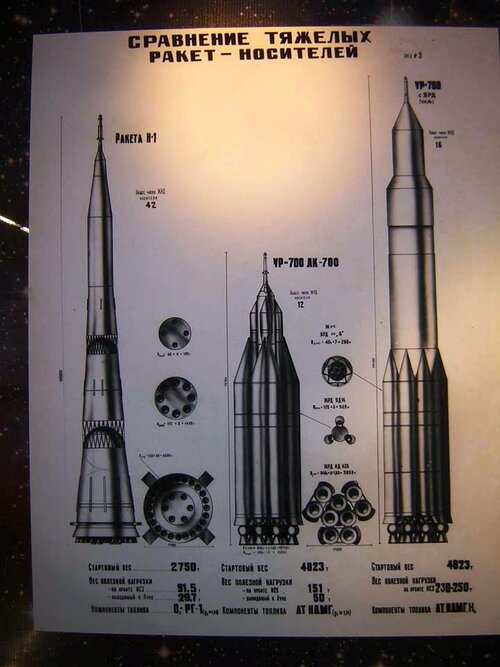

N-1, UR-700 and nuclear UR-700



[Dmitry V.]

Dynamic mockup UR-700



[Archibald]

Dynamic mockup UR-700

It still exists ? pretty cool it has been preserved.



[Deleted member 4286]

Nuclear UR-700: The unknown leviathan of the Moon Race

The history of the UR-700A project by Anatoly Zak

www.russianspaceweb.com

UR-700 launch vehicle

The history of the UR-700 rocket by Anatoly Zak

www.russianspaceweb.com



[Forest Green]

Says here 750t to LEO for the UR-700M.

UR-700M

UR-700M

www.astronautix.com

UR-700M

UR-700M

web.archive.org

Universal Rocket - Wikipedia

en.wikipedia.org

Larger UR-900:

UR-900

UR-900

www.astronautix.com



[flateric]

View: https://youtu.be/7DoIEPBkOmU?si=7tBCIokYly3IFfNU

View: https://youtu.be/8ZT5PzArVdI?si=gKclDFs2urVtYFWd



[Archibald]

Do we have a russian Hazegrayart here ?

Mandatory music - Soviet anthem.

View: https://www.youtube.com/watch?v=rHomETco0MI

View: https://www.youtube.com/watch?v=kCTrNb4uC-Y



[Grey Havoc]

From Siddiqi's "Rocket engines of the Glushko Bureau", JBIS 2001
View attachment 734634
View attachment 734635
From Lardier's Liquid Propellant Engines in the Soviet Union, 1999
View attachment 734636
From what I understand, it was originally meant to replace the RD-119 in the Kosmos 2 launcher, which had a high ISP (352s) because it used Liquid Oxygen with UDMH, apparently they wanted the same performances with fully storable and hypergolic propellant, which required the use of a high pressure FFSC cycle.
It was later proposed for the later R-56 on the 4th stage (V. Molodtsov, “Manned Space Flights” )
