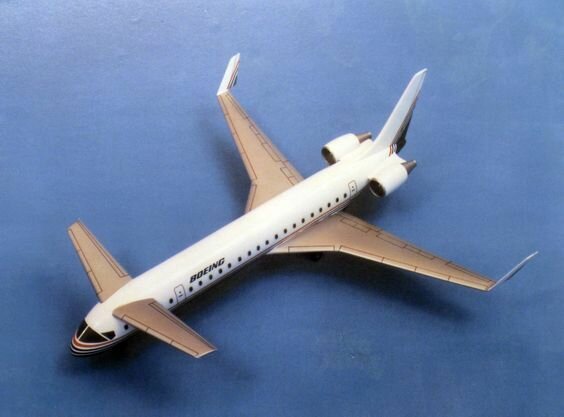

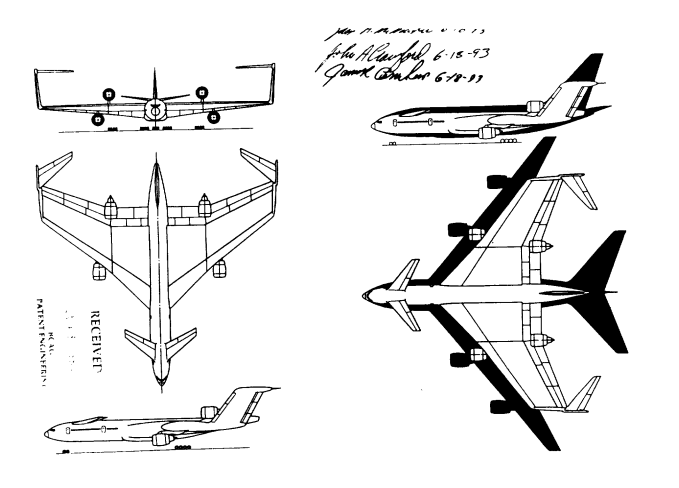

Does anyone know what this project is? It's an odd little design that has some odd choices regarding its layout. Was this an official project that ever had a project number, or was it a "fictitious" design?

At first I thought that this was a design that led to the 7J7, but I have my doubts.



[jstar]

Does anyone know what this project is? It's an odd little design that has some odd choices regarding its layout. Was this an official project that ever had a project number, or was it a "fictitious" design?

At first I thought that this was a design that led to the 7J7, but I have my doubts.

See posts 56 and 74 above.



[hesham]

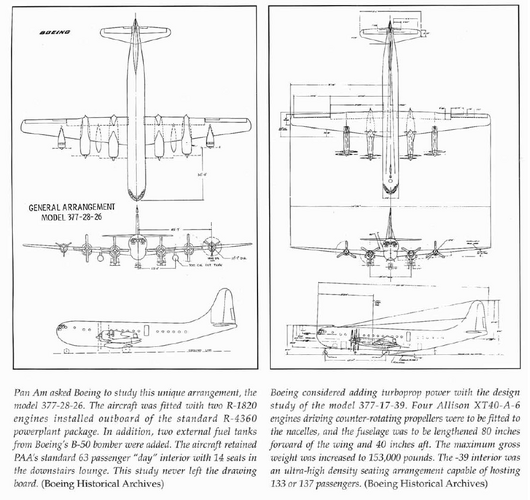

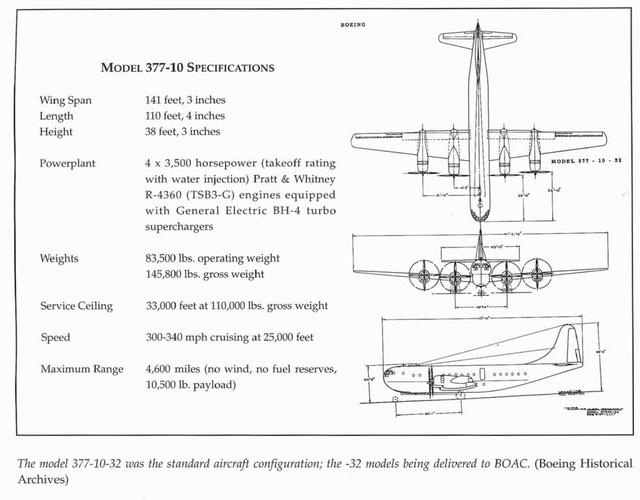

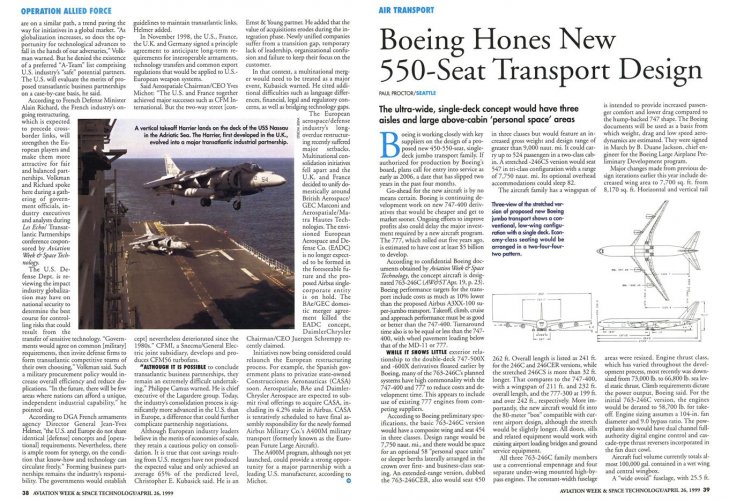

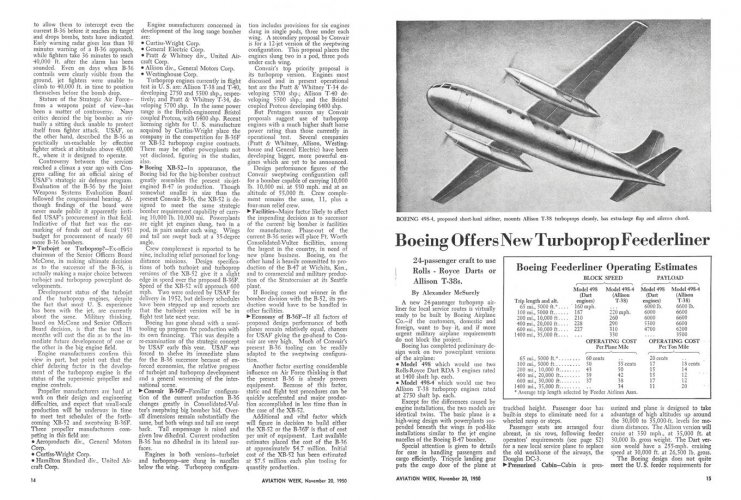

From Ailiner Tech 9.



[hesham]

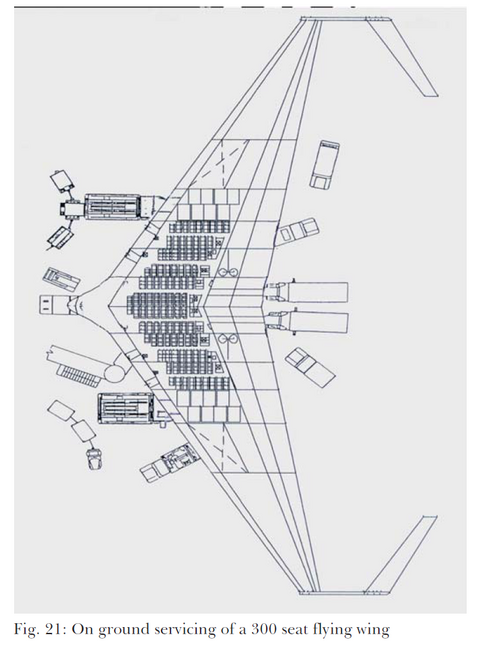

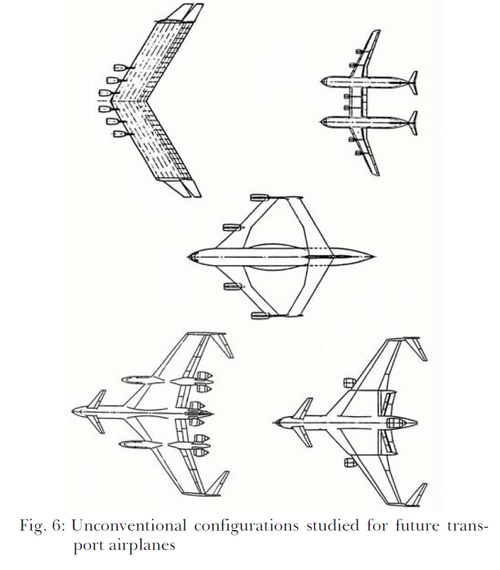

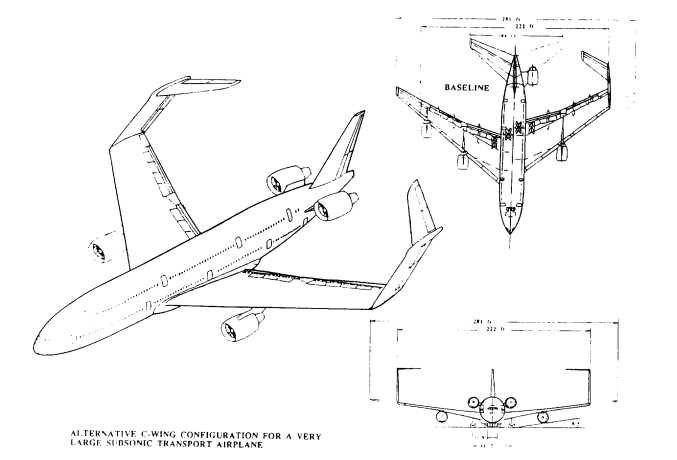

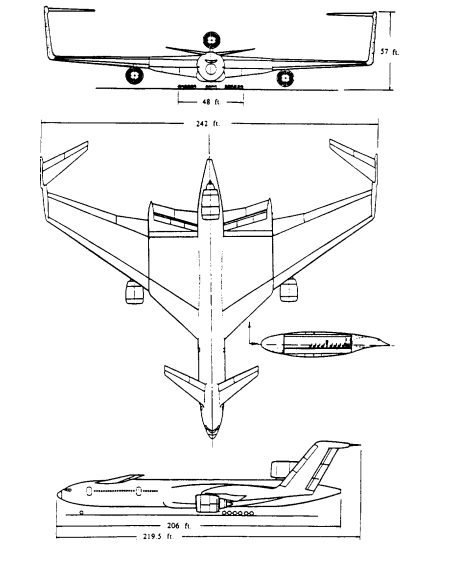

From this report.



[hesham]

Hi,

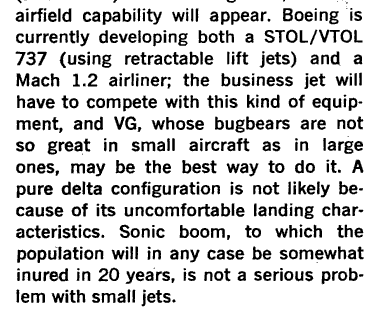

The Boeing studied a fan-lift VTOL system version of Model-737
which was fitted with lift jets mounted horizontally below floor
level and exhausting through swivelling nozzles.

http://www.flightglobal.com/FlightPDFArchive/1968/1968%20-%202738.pdf

Hi,

Flying Magazine

books.google.com.eg



[hesham]

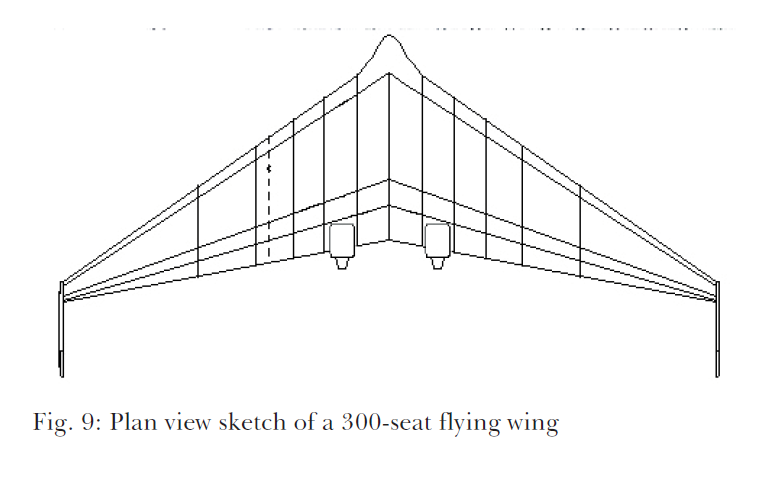

1. Boeing natural laminar flow study from 1977

Hi,

https://i.pinimg.com/originals/28/f7/76/28f7765f9e3fbc3affa45cdeb84f88e3.jpg



[hesham]

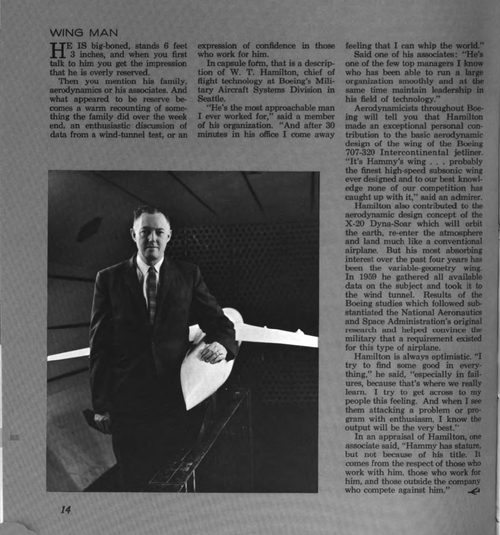

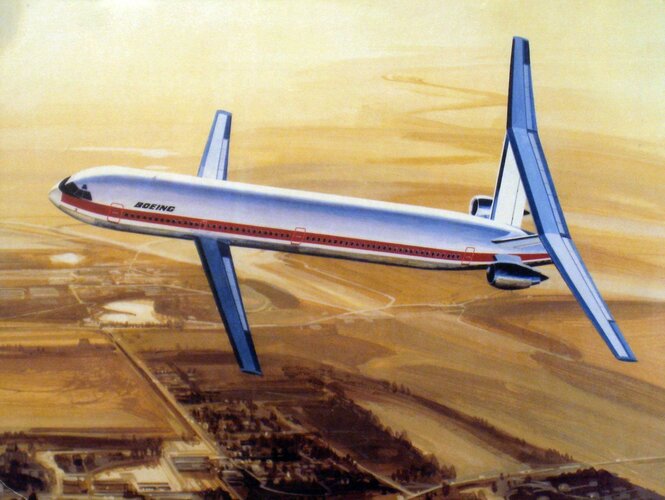

From Boeing magazine 1963,

what was this ?



[hesham]

Hi,

https://core.ac.uk/download/pdf/42777659.pdf



[Helicoprion]

Does anyone have any information on the Boeing “wing integrated propulsor”?



[hesham]

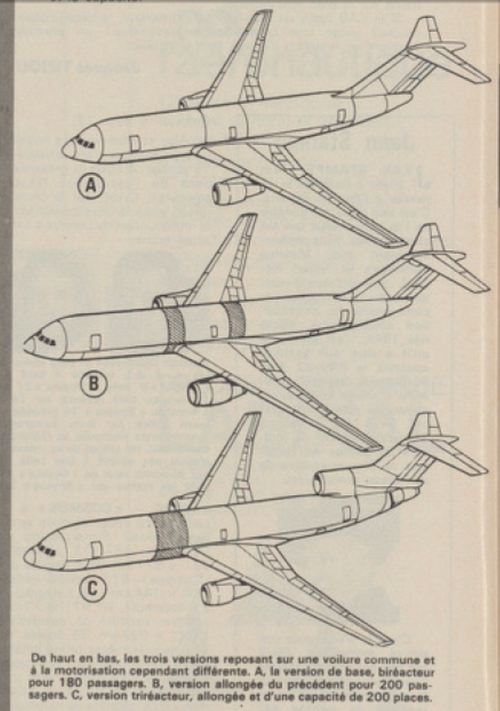

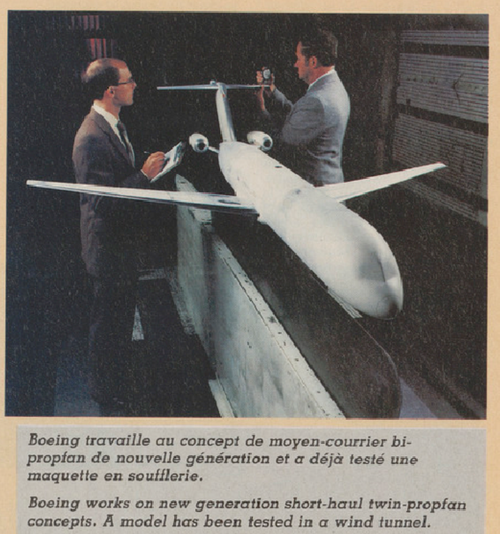

From Aviation magazine 1978.



[hesham]

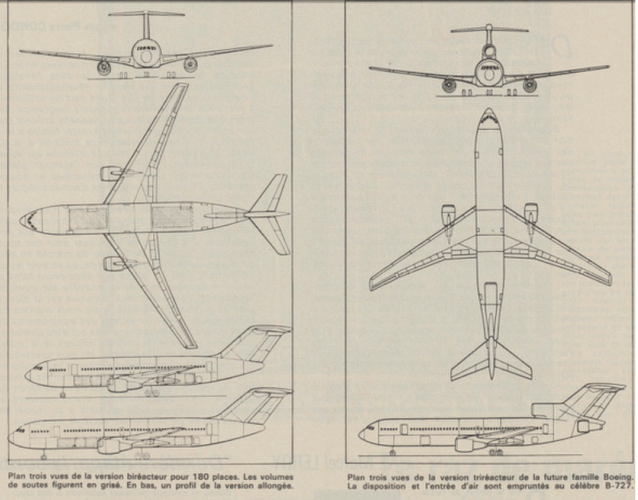

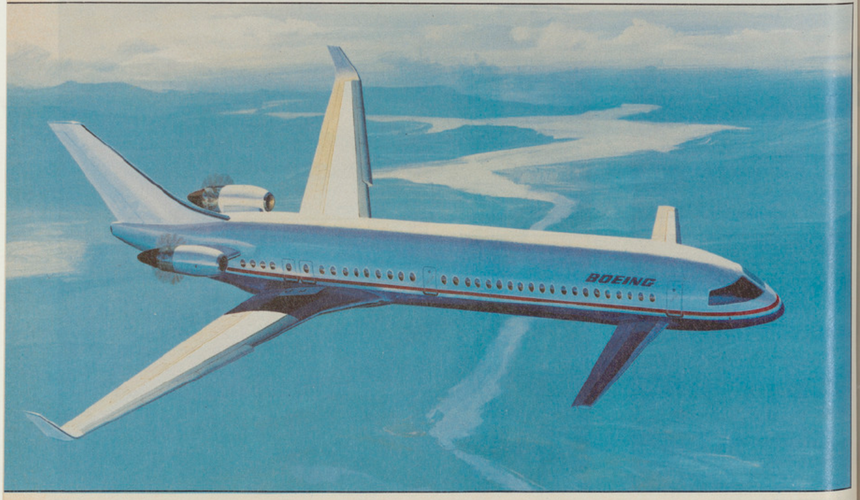

From Aviation magazine 15-5-1985.



[hesham]

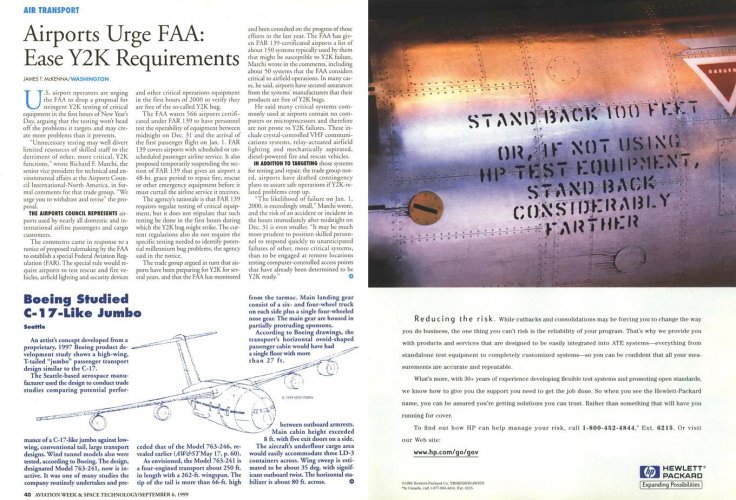

From Aviation magazine 15-1-1986



[bercr]

Hi,

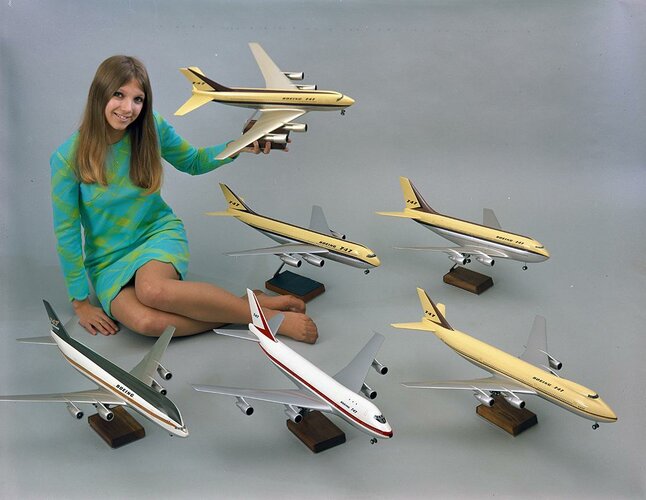

Here is a pic showing the final designs considered for the B747. Among them, I find very interesting the design dubbed "Ant Eater". Any aditional 3-view of these designs, apart from the midle mounted wing proposal submitted by Hesham? I think it would deserve a whole thread the design process carried out for the mighty Jumbo, including the conections with USAF´s heavy airlifter program (CX?) .

Another slightly better copy of this image (source Boeing Historical Archives, Boeing image identifier K16458 via https://www.airlineratings.com/articles/safety-top-priority-father-jumbo).
