Bell V-280 Valor

Scott Kenny said:
I'd honestly thought that the V280 was already using the Osprey engines, not just the proprotors....
Click to expand...
The demonstrator used the T-64 engine instead of the T406/AE1107C the V-22 uses. The FLRAA engine will be a variant called AE1107F. The V-280 proprietors aren't the V-22's proprotors, either. Smaller diameter and higher flapping to meet the Army's agility targets. Being a demonstrator, there is probably some part reuse here and there, but to substantially expand flapping will be a bunch of new parts and the V-280 clearly doesn't have blade fold, so that's a new blade and new other details to capture that weight and complexity savings.

@Scott Kenny - Actually, the proprotors are significantly different. I do not recall the numbers, but the FLRAA will have ~ 5 degrees more flex than that of the V-22 for increased agility. The Bell demonstrator used CH-47 engines as there is an ample supply of them within the U.S. Army and they were 'Government Furnished Equipment' to keep cost down. When the dollars went aways for the Future Advanced Turbine Engine (FATE) program, both vendors were given authority to select engines for their aircraft.

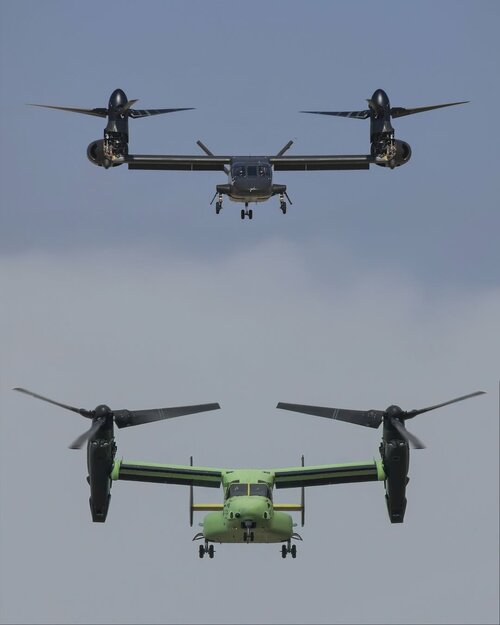

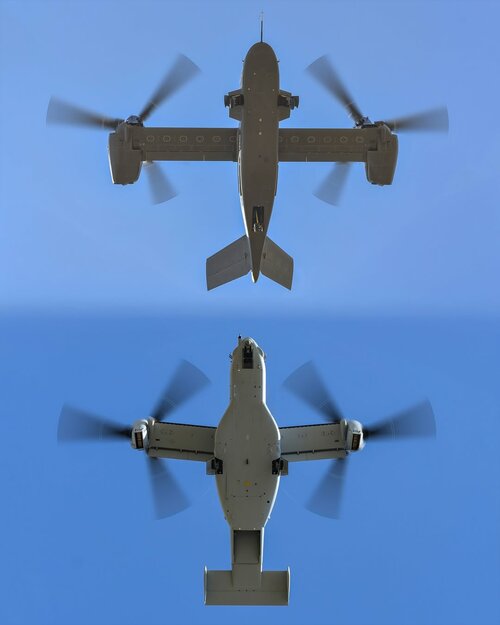

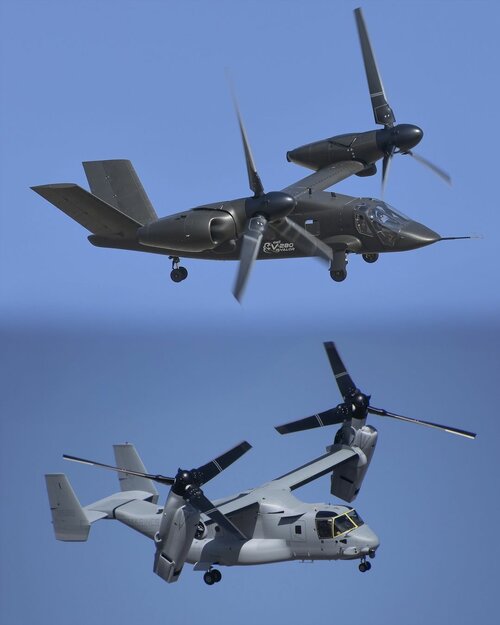

Did the V-280 Valor have reduced down wash compared to the V-22 Osprey? Heavy down wash from the Osprey’s high proprotor loading limits where it can operate safely if I remember correctly.

@SteveO - The propwash is reduced from V-22 mostly due to difference in weight. It is still more than similar sized helicopters. I suspect it will be of similar velocity to that of a CH-47. That said, the FLRAA is a "sideways" CH-47 with smaller rotors.

More testing with a mockup fuselage. Lots of effort going in to making the cabin work for the soldiers who will be using it.
www.flightglobal.com

US Army’s Pacific combat troops already training on FLRAA tiltrotor

Infantry and aviation soldiers from the Hawaii-based 25th Infantry Division are drilling on a mock-up of Bell's Future Long-Range Assault Aircraft tiltrotor to help test cabin design and ergonomics for the aircraft, whose primary role will be ferrying assault troops into battle.
www.flightglobal.com www.flightglobal.com

www.twz.com

Army Already Preparing For V-280 Valor To Dramatically Transform Air Assaults

The V-280 will "deliver one Brigade Combat Team in one period of darkness, over 500 miles, arriving behind enemy lines, and be able to conduct sustained combat operations.” The Army is busy working on its concept of Large-Scale, Long-Range Air Assault, which will be enabled by the arrival of the...
www.twz.com www.twz.com

That article is very light on info, sadly.
It suggests a whole brigade could be airlifted 500 miles away during one period of darkness. Is it 8 hours? or 16 hours?
If it's a 12 hour average, just how many trips and how many aircraft would be needed to airlift a whole brigade?
I assume we're talking about an air assault brigade with the lightest of equipment, but still, that's several hundred vehicles and trailers, on top of 3+ thousand personnel.

That's likely several hundred trips required. Mostly due to vehicles. (personnel alone could likely be ferried in 240 or so trips) It really depends on the number of vehicles/trailers/supplies carried, and that's something that I haven't managed to find, how many pieces of equipment does an air assault brigade use.

Last edited:
totoro said:
It suggests a whole brigade could be airlifted 500 miles away during one period of darkness. Is it 8 hours? or 16 hours?
If it's a 12 hour average, just how many trips and how many aircraft would be needed to airlift a whole brigade?
I assume we're talking about an air assault brigade with the lightest of equipment, but still, that's several hundred vehicles and trailers, on top of 3+ thousand personnel.
Click to expand...
Also would be interesting to compare to deploying the same force by airdrop. A single A400M or C-17 can drop as many troops + equipment as a dozen V-280s, much faster and farther.

A dozen A400Ms or C-17s = 144 V-280s!

Last edited:
Interesting news from TWZ coverage which wasn't in circulation before: the Army's wooden buck testing had 2 distinct (though not fully described) layouts and soldier feedback heavily (maybe unanimously) favored one configuration over the other. Encouraging as far as that goes.

Also, no cockpit doors on an Army rotorcraft is a bit surprising.

The division conducting the brigade air assault (101st AASLT) has four times the CH-47 of other divisions to move outsized loads. The division commander pointed out he needed three FARP to do the mission vice ten with UH-60. Those FARP are most likely primarily for the CH-47 carrying the artillery, command vehicles, ammo, and medical forward.

While fixed wing lift platforms could certainly paradrop the troops, the fact that these aircraft are very critically precious assets for a theater commander, and you would be flying them just above stall speed at a perfect altitude for every weapon from .50 caliber on up through MANPADs and tactical air defenses, with 100+ troops in each one, makes the proposition extremely high risk. 300 troops and aircrews dead before you even start the fight, would not play well politically.

H_K said:
Also would be interesting to compare to deploying the same force by airdrop. A single A400M or C-17 can drop as many troops + equipment as a dozen V-280s, much faster and farther.
Click to expand...
One problem; the chances of C-17 surviving till the drop are orders of magnitude less than of V-280. And V-280 could actually land troops, not merely drop them around to be massacred by enemy FPV drones. The era of paratroopers is over.

Just touching back on the proposed naval / maritime strike variant (that would be partnered with unmanned V-247) , and the proposed USMC variant - has there been any talk of the USCG having interest in V-280, out of interest?

Just referencing a conversation i briefly had last week at European Rotors in Amsterdam, but it wasnt with Bell before anyone asks.

cheers

RavenOne said:
Just touching back on the proposed naval / maritime strike variant (that would be partnered with unmanned V-247) , and the proposed USMC variant - has there been any talk of the USCG having interest in V-280, out of interest?

Just referencing a conversation i briefly had last week at European Rotors in Amsterdam, but it wasnt with Bell before anyone asks.

cheers
Click to expand...
I suspect the value to the USCG will depend on the downwash produced by the aircraft. It may have wonderful range and speed, but if it cannot safely conduct hoist operations it would probably not be worth the cost to them. I cannot see the cost being worth it for a reconnaissance platform.

There is some solutions today to bypass the problem of downwash.
Also, being able to discontinue the need to have long range rescue mission supplemented with C-130 for aerial refueling will easily justify getting a USCG derivative to offset the cost of manpower and sustainment. Especially when Americans are reaching farther out at sea with larger boats, more frequent travels and increased occurrence of serious weather events.
It could also raise Guardians own safety with rescue being flown in pair due to the offset of manpower from larger airframe and long range that will allow backups to join from more stations.

I can´t really see any downside.

TomcatViP said:
There is some solutions today to bypass the problem of downwash.
Also, being able to discontinue the need to have long range rescue mission supplemented with C-130 for aerial refueling will easily justify getting a USCG derivative to offset the cost of manpower and sustainment.
Click to expand...

Not sure why you are talking about aerial refueling here -- the USCG doesn't do it, except for helicopter in-flight refueling from surface ships.

TomS said:
Not sure why you are talking about aerial refueling here -- the USCG doesn't do it, except for helicopter in-flight refueling from surface ships.
Click to expand...

I can’t speak for Tomcat, but I’ve seen the belief that USCG must do aerial refueling because of the HC-130 designation of their Hercules aircraft and the existence of the HC-130P, etc. in the USAF which do helicopter aerial refueling.

In reality they are distinct birds with different mission sets, but it is confusing to keep them straight.

@TomS : Isn´t the USAF providing SAR at sea when required? I seem to recall missions with refueling involving HC-130P.

www.dvidshub.net

Long-range rescue at sea

In a concerted effort throughout July 7, 2017 and into the early hours of July 8, approximately 80 Citizen Airmen and four aircraft from the 920th Rescue Wing, Patrick Air Force Base, Florida, successfully rescued 2 German citizens whose vessel caught fire approximately 500 nautical miles off...
www.dvidshub.net www.dvidshub.net

With a long range self deployable and fast a/c like the Valor, the USCG could increase the number of missions it can sustain independently with less airframe.

Last edited:
TomcatViP said:
@TomS : Isn´t the USAF providing SAR at sea when required? I seem to recall missions with refueling involving HC-130P.

www.dvidshub.net

Long-range rescue at sea

In a concerted effort throughout July 7, 2017 and into the early hours of July 8, approximately 80 Citizen Airmen and four aircraft from the 920th Rescue Wing, Patrick Air Force Base, Florida, successfully rescued 2 German citizens whose vessel caught fire approximately 500 nautical miles off...
www.dvidshub.net www.dvidshub.net

With a long range self deployable and fast a/c like the Valor, the USCG could increase the number of missions it can sustain independently with less airframe.
Click to expand...
Those are USAF Pave Hawks and HC130s not the USCG Jay Hawks and HC130s.
Thats the Air Force craft with Air Force organic rescue Pilots, you can tell by the liverary. All Coast Guard Craft use the icon White with Red.

The Coast Guard basically called the air force and ask/Told them to send a set of THEIR copters with their Tanker support to go help cause none of the CG birds have the range.

The Coast Guard Birds, both the HC130s and the Jayhawks, lack any mid air refueling gear since their primary zone is well within the 275 mile + 30 minute loiter radius of the copters. Coast Guard Birds have more range [bout 300-500 mile] over the military counterparts due to dropping armor and weapons for more fuel.

The Air Force helps with the extreme range missions like the post as needed cause it both the Right Thing to Do, and it help training the crews in doing Stressful operations due to the similarities.

The only major Area of Operations that will need the Valor range and speed is up by Alaska and the weather bad enough to often ground them anyways.

Edit: Now if the Valor starts replacing the The Blackhawk Family enmass I can see the CG switching for logistical reasons.

Last edited:
Firefinder said:
Edit: Now if the Valor starts replacing the The Blackhawk Family enmass I can see the CG switching for logistical reasons.
Click to expand...
That's what I expect to happen.

The entire Army fleet will be some 2500 Valors assuming a 1:1 replacement for Blackhawks, while the USN has 450 Seahawks. Due to the hangar limits, I expect the USN to stick with Seahawks and just upgrade the engines to T901s.

As long as the Valors aren't impossible to do hoist work under, I expect the USCG to want Valors instead of Super Seahawks from the Navy. Because better speed and range is ideal for SAR work.

TomcatViP said:
There is some solutions today to bypass the problem of downwash.
Also, being able to discontinue the need to have long range rescue mission supplemented with C-130 for aerial refueling will easily justify getting a USCG derivative to offset the cost of manpower and sustainment. Especially when Americans are reaching farther out at sea with larger boats, more frequent travels and increased occurrence of serious weather events.
It could also raise Guardians own safety with rescue being flown in pair due to the offset of manpower from larger airframe and long range that will allow backups to join from more stations.

I can´t really see any downside.
Click to expand...
$$$

Scott Kenny said:
The entire Army fleet will be some 2500 Valors assuming a 1:1 replacement for Blackhawks, while the USN has 450 Seahawks. Due to the hangar limits, I expect the USN to stick with Seahawks and just upgrade the engines to T901s.
Click to expand...

I'm not sure if there is an official procurement quantity of record, but here are some approximate comments from army brass:

Also speaking at AUSA today, Maj. Gen. Clair Gill, Commanding General at the U.S. Army Aviation Center of Excellence and Fort Novosel, said that the future force mix will come down to the specific situation and operational demands at the time — as well as budgetary constraints.

“Would I love to put a FLRAA everywhere that there’s a Black Hawk? Sure. Do I think it’s affordable? Probably not,” Gill told reporters.

“The Black Hawk is coming up on 40 years old, I believe, and my sense is the Black Hawk is going to compete with the B-52 and C-130 for going the distance. We’re going to have Black Hawks in our formation as long as any of us are reading the news.”

“I think FLRAA is going to come on.” Gill continued. “We’re going to learn a lot about it. We’re going to scale it. We’re going to see where we are in the 2030s, once we go to full-rate production and we get that first limited test unit out, learn a lot about it, we got to figure out how we train it. We start proliferating it. And if it, if it is that game-changing technology and everybody says that we’ve got to double down, then maybe we buy more. But I think initially it’s going to be some sort of a mix, and I don’t see the Black Hawk going away.”
Click to expand...
www.twz.com

Army Already Preparing For V-280 Valor To Dramatically Transform Air Assaults

The V-280 will "deliver one Brigade Combat Team in one period of darkness, over 500 miles, arriving behind enemy lines, and be able to conduct sustained combat operations.” The Army is busy working on its concept of Large-Scale, Long-Range Air Assault, which will be enabled by the arrival of the...
www.twz.com www.twz.com

joshjosh said:
I'm not sure if there is an official procurement quantity of record, but here are some approximate comments from army brass:
Click to expand...
Which says that the Army really want to buy 2500 Valors, and just need to figure out how to pay for them all.

I'd guess that the USAF would be willing to replace their 223x Pave Hawks with Valors for the CSAR role. They might even swap out their CV22s if the Valors have similar range/speed. (Not sure here, but usually CSAR is rescuing maybe a half dozen people so the Ospreys are a lot bigger than needed)

USMC would be in for another ~160 Valors plus ~160 gunship versions, to replace their H-1s. They'll probably jump in on the tail end of Army production because the Yankee and Zulu are still relatively new airframes.

USCG another 144+ (replacing 102 Dolphins and 42 Jayhawks), plus however many you want to swap from C-27Js (14) and HC-144s (18). I'm assuming that the USCG would not get rid of their HC-130s, but that'd be another 27 if they did. You might make an argument for the USCG picking up the USAF CV22s to replace the C-27Js and HC-144s, instead of Valors. Just to have some larger airframes for bigger rescue operations.

I still think that for what the Navy wants to do, they'll end up with T901 Super Seahawks instead of Valors, at least until the Burkes are out of service due to hangar size limits.

Scott Kenny said:
USCG another 144+ (replacing 102 Dolphins and 42 Jayhawks), plus however many you want to swap from C-27Js (14) and HC-144s (18).
Click to expand...

The HH-65s will be gone before the USCG begins to receive any "HV-280"s. ;)

www.dcms.uscg.mil

Coast Guard takes next steps toward all MH-60T helicopter fleet

The Coast Guard received approval from the Department of Homeland Security on Oct. 31, 2023, to proceed with acquisition program activities that will continue to extend the service life of the
www.dcms.uscg.mil
The Coast Guard received approval from the Department of Homeland Security on Oct. 31, 2023, to proceed with acquisition program activities that will continue to extend the service life of the existing MH-60T fleet as well as begin the Coast Guard’s transition to a rotary wing fleet consisting of all MH-60T aircraft. The MH-60T Acquisition/Sustainment Program is authorized to: 
  • Move to full rate production of newly manufactured hulls as part of the service life extension program (SLEP) for the existing MH-60T fleet. 
  • Conduct Obtain Phase activities and execute low rate initial production of 12 aircraft that will transition three Coast Guard air stations currently operating with the MH-65 to the MH-60T. 
  • Begin Obtain Phase activities for aircraft that will transition the remaining Coast Guard air stations to the MH-60T from the MH-65. 
Consolidation of the Coast Guard’s rotary wing fleet to a single MH-60T airframe is necessary to mitigate sustainability challenges with the MH-65 short range recovery helicopter and maintain the service’s rotary wing capability until recapitalization in line with the Department of Defense’s Future Vertical Lift program.
Click to expand...

A Valor is never going to be suitable for all tasks, in reality a Valor/Blackhawk team seems very likely for the foreseeable future (just like the Huey lasted into the early Blackhawk years).
As Maj. Gen. Clair Gill says, if it does turn out to be the best thing since sliced bread, then they can always order more. Who knows, maybe the Valor has a 50-year production run ahead of it?
If it turns out more limited use than the Powerpoints said it would be, then at least you haven't wasted billions making thousands of the things.

The Blackhawk for sure is going to stay for long. That´s why it needs to be modernized and re-adjusted to the new set of missions.

BlackBat242 said:
The HH-65s will be gone before the USCG begins to receive any "HV-280"s. ;)

www.dcms.uscg.mil

Coast Guard takes next steps toward all MH-60T helicopter fleet

The Coast Guard received approval from the Department of Homeland Security on Oct. 31, 2023, to proceed with acquisition program activities that will continue to extend the service life of the
www.dcms.uscg.mil
Click to expand...
Okay, but the number of Coastie HV-280s is still on the order of 150, just replacing MH-60Ts and getting ordered in 15-20 years. (Assuming 1:1 replacement of Dolphins with MH60T Jayhawks)

I'd still like to see the Coasties replace their C-27s and C-144s with Ospreys.

yasotay said:
I wish the Coasties had a budget to even consider Osprey.
Click to expand...
Maybe as they start to age out with other services, a few can be transferred to them via GSA the way they came by their C-27's (sorry, Army).
Still need to train pilots, maintain them, etc, but "free" is a magic word occasionally.

_Del_ said:
Maybe as they start to age out with other services, a few can be transferred to them via GSA the way they came by their C-27's (sorry, Army).
Still need to train pilots, maintain them, etc, but "free" is a magic word occasionally.
Click to expand...
That might work, but only as long as the spare part pipeline is equally inexpensive. Also I am not sure the USCG has enough people to resource maintenance for Osprey, MH-60T, and C-130. "Aged Out" aircraft tend to be rather maintenance intensive.
It would be interesting to see though.

Hi all, I've been following the V280 Valor project for a while now and I think it's a really cool looking aircraft. It's obviously still in a test phase and I think the look of the aircraft will change quite a bit when it goes in production, especially when the army or navy has certain demands and requirements.

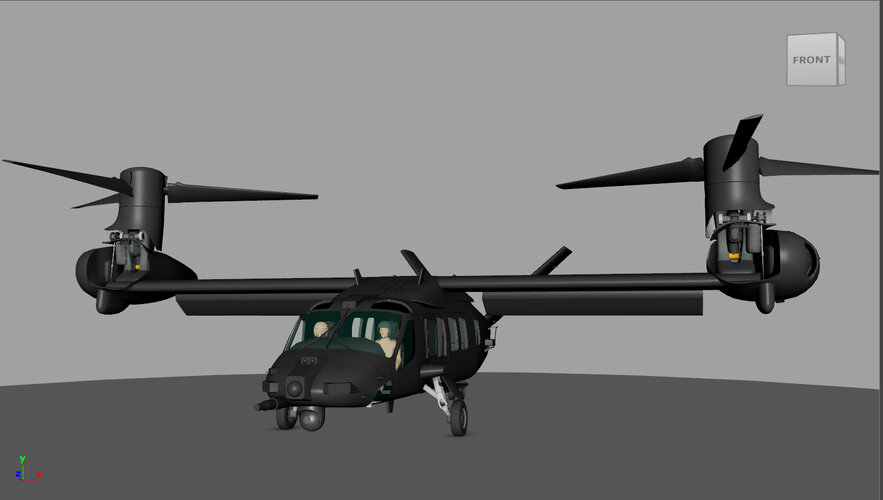

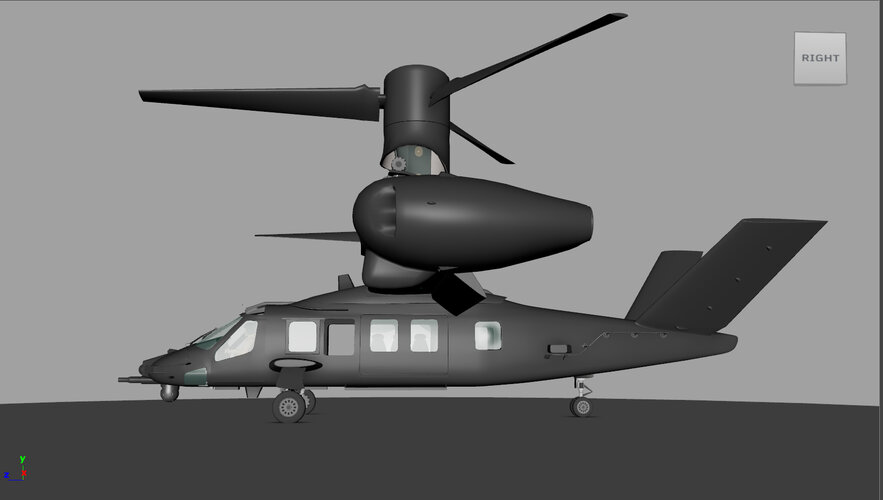

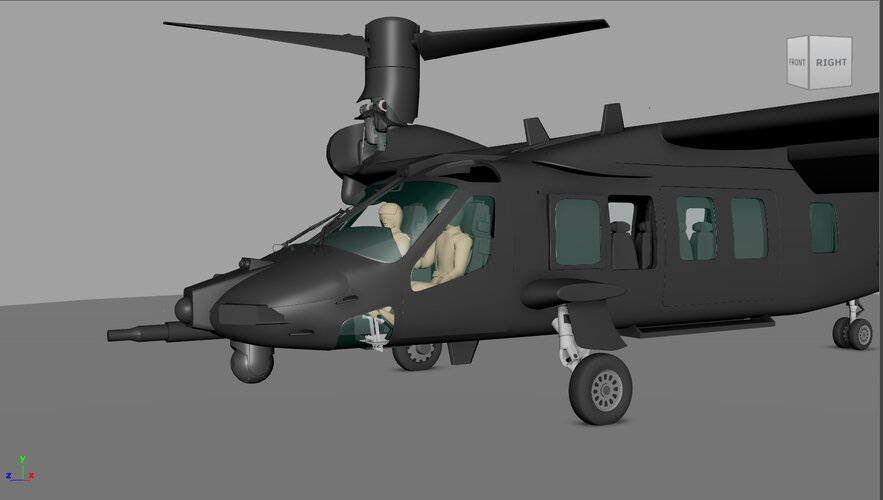

I'm a VFX artist for The Netherlands and I decided to make my own (artist) impression of the aircraft and making it a special forces variant like the MH60 of the Night Stalkers. Those helicopters are packed with all sorts of sensors and little details which i think would look really cool on the V280. Here are some work in progress images of where I'm currently at. I really dislike the look of the cockpit windows of the test aircraft so i made them more like the UH-60 or AW139 helicopter, which looks way better in my opinion :) During my research for ref images I came across this forum so i thought maybe it's cool to share the work in progress with you guys. If you have some cool suggestions of things i can add please let me know!

Cheers, Jonathan

WIP-02.jpg WIP-01.jpg
WIP-03.jpg WIP-04.jpg

Excellent work Sir. The only observation I would make is that your aircrew are not scaled correctly. The aircraft is just about the same size as a UH-60 in length. So I would think a reduction of about .33% might be in order.
Hope to see you continue to post here.
To save you from the wraith of the staff ( grumpy lot) I might also recommend making a thread in the "user artwork and models."
