Battlefield Support Fighters - SABA, Skorpion, ATLAS etc

Great fun... By the way, it's easy to arrive at that configuration when you start doodling a dedicated CAS platform. You start with a single prop (cost, speed, and a conventional twin-prop does not buy you much survivability). Then you go to a twin-boom pusher to get the engine out of the pilot's forward/downward vision and clear the nose for sensors or guns. Then you say "it's FBW anyway", put the stabilizer in front and lose the booms.

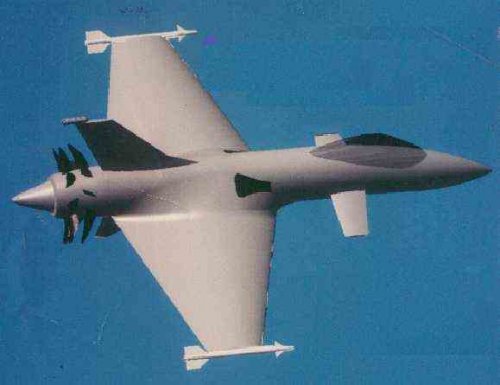

Source: Inernational Combat Arms


Attachments

  • ICA_BAE_SABA.jpg
    78.8 KB · Views: 645
actually, stolen from British Secret Projects. Need to remove 'em. See Forum rules.

boxkite said:
Jazz, I'm not familiar with Hamilton HX-11 (do only know the Hamilton designations A-II, H-1, HA-1, HX-1, HX-321, and HXT-2). Could you give more details or a source, where I can find a description?
Thanks.

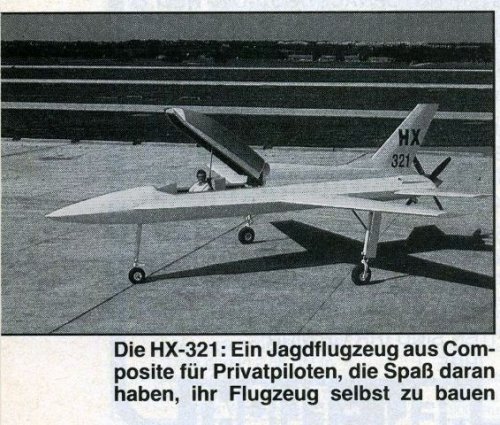

Here a picture of the Hamilton HX-321.
Facts & figures will follow tomorrow. It's late now.
Source: Flug Revue - Trainer in Zivil, page 78, February 1989


Attachments

  • Hamilton_HX321_FR_02_1989.jpg
    91.5 KB · Views: 498
Wasnìt SABA more a Hind killer then a CAS ?

Greetings All -

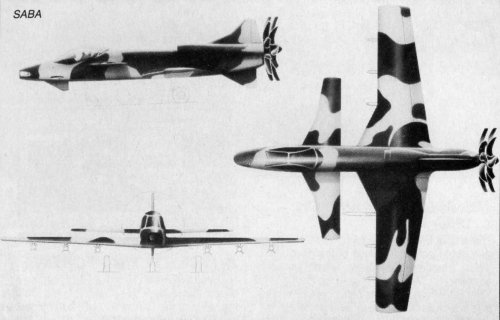

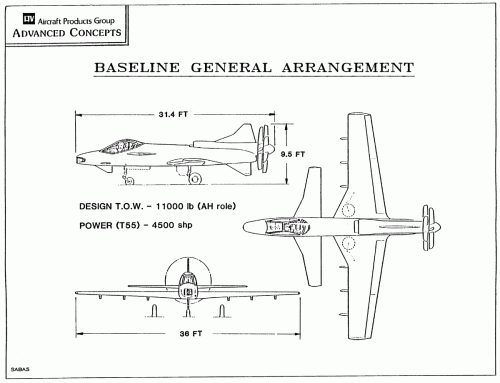

A couple of drawings I found in a Vought presentation of the SABA.

Enjoy the Day! Mark


Attachments

  • SABA General Arrangement.gif
    SABA General Arrangement.gif
    108.7 KB · Views: 1,595

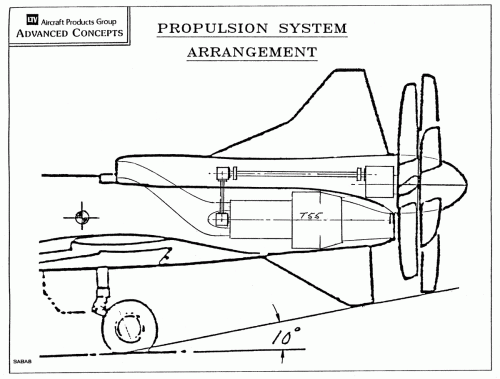

  • SABA Propulsion Arrangement.gif
    SABA Propulsion Arrangement.gif
    115.3 KB · Views: 1,447
Lockheed ATLAS
Does anyone have any details of this tank killer concept?
Googling has turned up a single artist's impression & very little detail.
Were Lockheed kite flying or was it a response to some requirement?

It is noticeable how many canard, rear engined, turboprop/unducted fan designs have been put forward for CAS/ battlefield air support: ATLAS, BAe SABA, PZL-230 Skorpion, Aeroprogress T-720, 1969 Northrop AX-1. Is this form following function?

The second one bears a small resemblance to the IML Addax.

There was also a McDonnell Douglas project along very similar lines circa 1973. It's somewhere on this forum, but where?

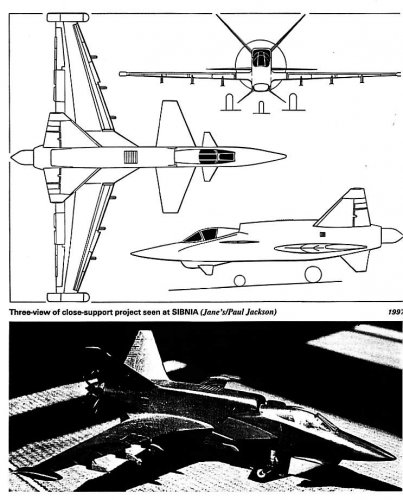

I have had this drawing for many years; it comes from 'Jane's All The World's Aircraft', probably circa 1997. Does it dit into this topic? I rather like the design; does any one know more about it?


Attachments

  • Close-support project (SIBNIA).jpg
    Close-support project (SIBNIA).jpg
    85.8 KB · Views: 1,086
Hmmmmm........ it appears to use stock Su-25 flying surfaces....


cheers,
Robin.

Stargazer2006 said:
There was also a McDonnell Douglas project along very similar lines circa 1973. It's somewhere on this forum, but where?

I believe the design you're thinking of is the McDD 268 XST.

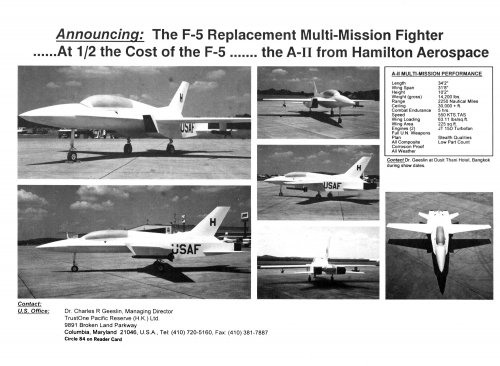

An advertisement for the Hamilton A-II multi-mission fighter project from AW&ST (early 1990s):


Attachments

  • Hamilton A-II.jpg
    Hamilton A-II.jpg
    562.8 KB · Views: 1,891

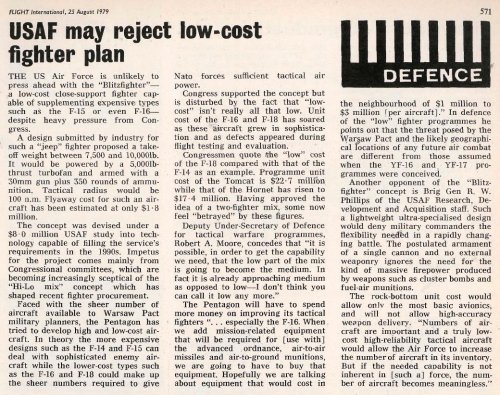

Here's an 1979 article from FLIGHT that sums up the USAF's complete disinterest in this concept.


Attachments

  • blitzfighter FLIGHT 25 Aug 1979 p571.jpg
    blitzfighter FLIGHT 25 Aug 1979 p571.jpg
    278.6 KB · Views: 1,498
Some Info about Hawker Siddeley (later BAe Kingston) SABA WSRA studies
Minicas study = Mini Close Air Support
HS.1194 fuselage with canard and "kaspers wing"
Powered by Roll Royce RB.199 turbofan in a "rotary augmentor system"
HS.1196 the fuselage resemblance the Heinkel He 162 and Henschel Hs 132
with Viper turbojet engine
a vertral 30 mm ADEN cannon
4 QC434/SRAAM against enemy aircraft

SABA = Small Agile Battlefield Aircraft
P.1233-1 with pusher propfan
P.1234-1 Idea of put a gun turret under a blended body wing aircraft
with Roll-Royce-Adour RT-172-871 Engine
2 ASRAAM for self defence
P.1234-2 with fuselage similar to Sukhoi Su-25 but more compact
Avco Lycoming ALF-502 engine
Armament same like P.1233-1
p.1234-3 A small deltawing aircraft
under fuselage a 360° turret with 2 launchtube for guided "Hypervelocity" missile (12 rounds)
P.1238 with pusher propfan in twin Tailboom (looks more like ww2 Focke-Wulf "Flitzer")

P.1239 A Aircraft with modular weaponpod over the wings:
  • CASTOR ground surveillance radar platform
  • Turred mounted M37 20 mm cannon
  • Turred mounted Oerlikon 30 mm KCA cannon
  • Dispenser for HB.876 mines and BL.755 bomblets
  • 72 upwards firing Merlin smart Mortar rounds
  • 14 rounds magazine with Startreak "Hypervelocity" missile

also was consider a unmanned P.1239 version with 2 S225 AAM as Fighter

WSRA = Wide Speed Range Aircraft
a Ministry of Technology inspired study by westland and Hawker Siddeley
for a combination of helicopter and aircraft
the fuselage similar the Alpha Jet but with T-tail
with two rotorblade are mounted over the wings
Armament 4 BAe anti missile
but the program was victim of cost cutting

Source:
British Secret Projects: Jet Bomber | by Tony Buttler, Midland
Page 166-168
British Secret Projects: Hypersonic, Ramjets & Missile | by Chris Gibson & Tony Buttler, Midland
Page 82-86

Michel Van said:
also was consider a unmanned P.1239 version with 2 S225 AAM as Fighter

I wonder how this was envisioned in operation (Having an on-board radar? Having an automatic killbox that allied aircraft would avoid flying into?)

Michel Van said:
WSRA = Wide Speed Range Aircraft
a Ministry of Technology inspired study by westland and Hawker Siddeley
for a combination of helicopter and aircraft
the fuselage similar the Alpha Jet but with T-tail
with two rotorblade are mounted over the wings

So the British equivalent of the Kamov V-100?

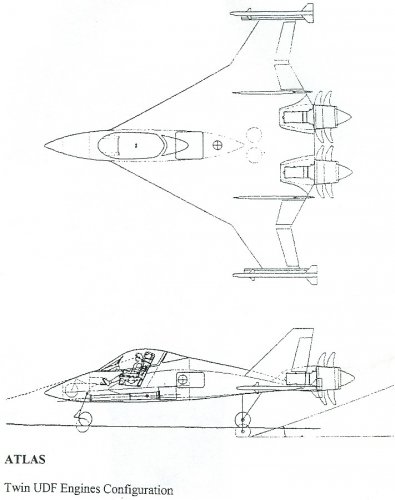

Lockheed ATLAS twin-UDF engine configuration.

Source:
http://www.combatreform.org/killerbees2.htm


Attachments

  • atlas2twinengine.jpg
    93.1 KB · Views: 1,354
Pirania (1991) and Szerszeń (1995) by Tomasz Makowski from Instytut Lotnictwa
http://www.samolotypolskie.pl/samoloty/1275/79/IL3
http://www.samolotypolskie.pl/samoloty/1282/79/IL


Attachments

  • preview_il-szerszen_src_1.jpg
    27.8 KB · Views: 2,040
  • preview_il-pirania_src_1.jpg
    20.1 KB · Views: 2,038

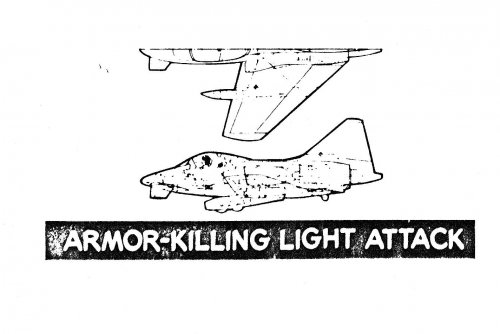

Here is an interesting one from a Northrop briefing - late 70's design? Anyone seen this before?


Attachments

  • Anti Tank.jpg
    Anti Tank.jpg
    124.9 KB · Views: 1,848
Funky...if that's the word I am looking for :eek:

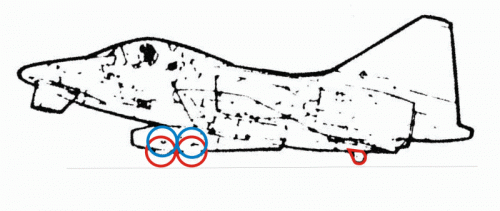

It's hard to say, but are those the wheels of a tandem landing gear protruding from the wing fairing?

If you draw a line between them and the tail wheel, it makes it a taildragger too.

BillRo said:
If you draw a line between them and the tail wheel, it makes it a taildragger too.

Seems plausible, as there would be hardly enough space in the nose for stowing away
the nose wheel ! With the main wheels in the fairings it would have a suitable track and
the tandem wheels would reduce pressure on the ground and still allowing for small wheels.
Their diameter is correct for stowing them in those fairings.


Attachments

  • taildragger.gif
    35.1 KB · Views: 1,583
That would make it one of the very rare post-WWII designs for a jet aircraft with conventional "taildragger" gear. Added to a swept-forward wing and what appears to be an essentially tailless design (with a small trimming canard), this is quite an original little beastie. I would love to learn more.

Bill S said:
More from THE VOUGHT ARCHIVES

I like the YF-23-esque design, however, while the planform design would be great for overall lift, overall body strength, and room for fuel, I think it would produce tremendous amounts of drag in turns as α increases. I could be wrong, but I think it would need quite a bit of thrust and energy for good, high rate, high G turn performance much like an F-16 compared to the A-10.

Does anyone know the dimensions of the various Saba proposals? So far the only one I've been able to find any solid measurements of is the P.1233-1.
I'm especially interested in the P.1238

i am referring to replies 20 and 21

the image shown in reply 21 refers to Hamilton Aerospace H-1 Badger, according to company's website.

please note that HA-1 was not produced by Hamilton Aerospace, but by another company also called Hamilton and is a conversion of the Beech Model 18. (see aerofiles)

that leaves the HX-1 and HX-11. JAZZ could you tell us the source of information?

index.php
Apparently the original AST-412 selection, a version of the Caproni C.22J built to RAF requirements. It was not proceeded with for some reason, leading to a renewed selection process that eventually resulted in the Shorts Tucano being acquired. Mentioned here because an anti-helicopter variant armed with the air-to-air version of Blowpipe was also planned.

Check this out, guys.
Found today ;D

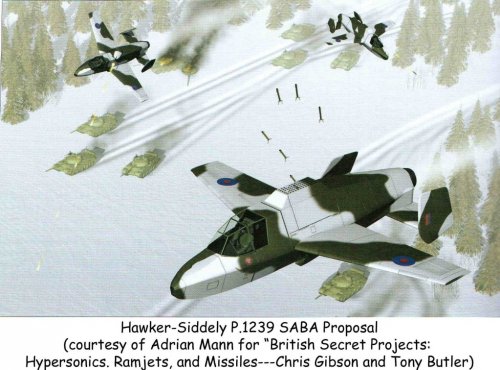

Hawker-Siddeley P.1239 SABA Proposal

"The central idea was a modular weapons bay that included cannon, hyper velocity missiles, or as seen in the foreground, a system to deploy (72?) 81mm, merlin guided mortar rounds as bomblets."

Amazing.


Attachments

  • P.1239 SABA.jpg
    P.1239 SABA.jpg
    269.3 KB · Views: 1,817
Re: US- ATLAS Anti-tank-light-attack-system

I was thinking about this


Attachments

  • US- ATLAS Anti-tank-light-attack-system.jpg
    US- ATLAS Anti-tank-light-attack-system.jpg
    10.4 KB · Views: 1,642
Re: US- ATLAS Anti-tank-light-attack-system

Turboprop Pusher light attack aircraft!? havent seen this design before! tell me more! :D

In this topic,

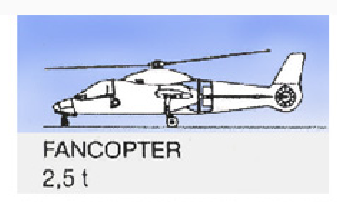

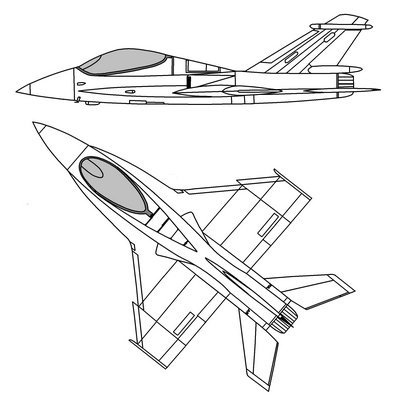

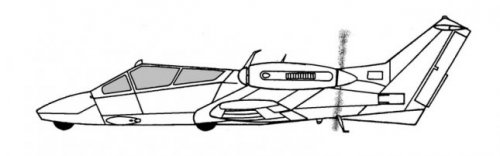

my dear JAZZ displayed in reply # 3,the Fancopter and Marchette PL concepts,I knew
them from long time ago,but no more info about them ?.


Attachments

  • Fancopter.png
    41.3 KB · Views: 1,299
  • Marchette PL.png
    Marchette PL.png
    22.4 KB · Views: 1,283
