Hi All,

Does anyone know of an accessible version of the Dec 1942 patent for the cranked wing, later appearing on the V16? It has eluded me so far.

Much appreciated!



[edwest4]

In reference to the BV 250:

https://www.secretprojects.co.uk/threads/blohm-und-voss-p-173-02-long-range-bomber-project.9612/



[topspeed3]

Looks like pre historic today:

View: https://www.youtube.com/watch?v=K1GXMHXhOQc



[riggerrob]

Hi,

also from Unicraft site;

Available Unicraft Kits , older releases

Let’s add links to models for all threads on www.secret projects.com.



[napobona]

Some E.395 images seem to have found their way into this thread, so I'll leave this here:

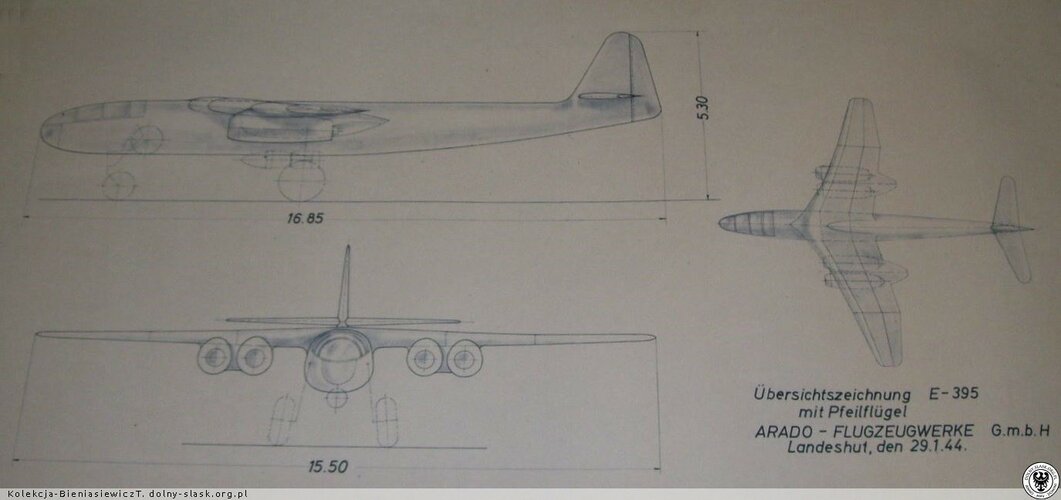

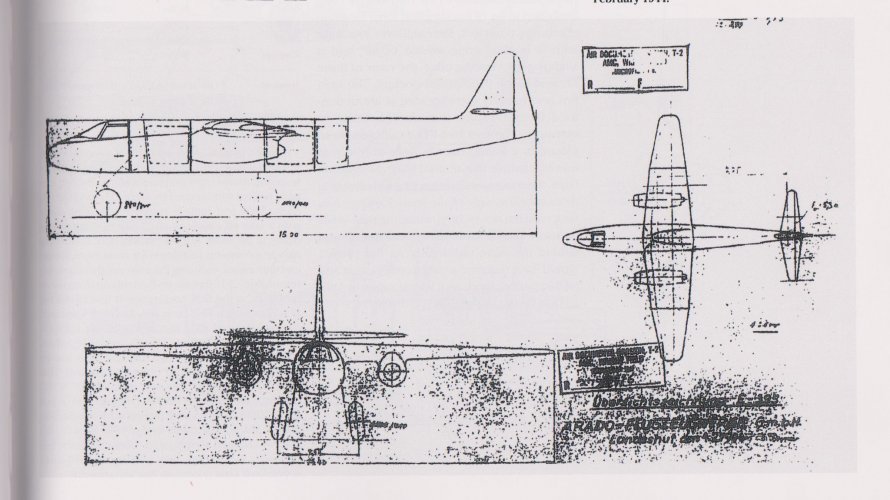

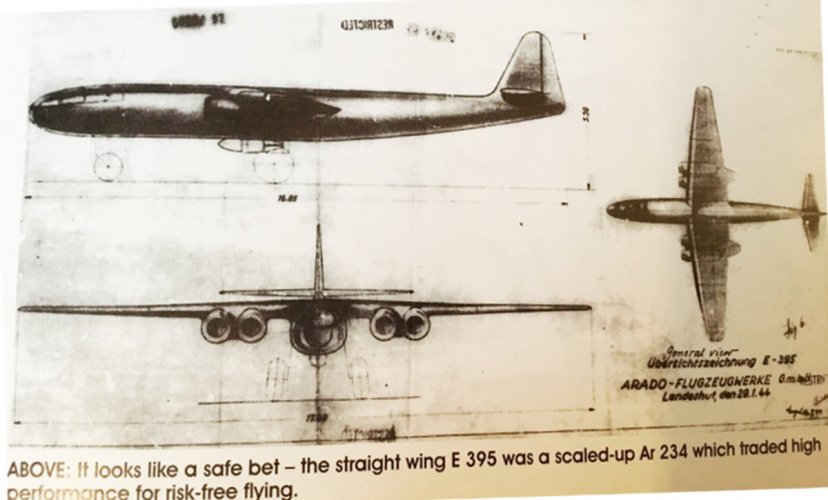

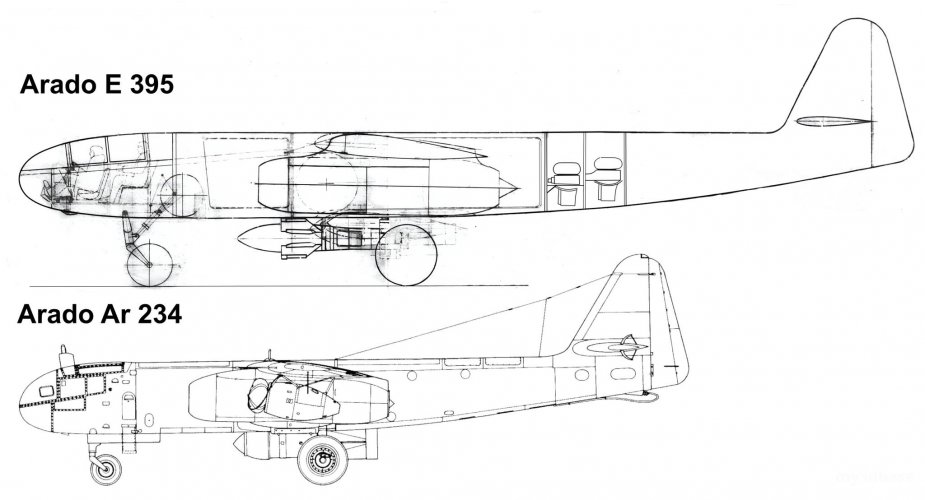

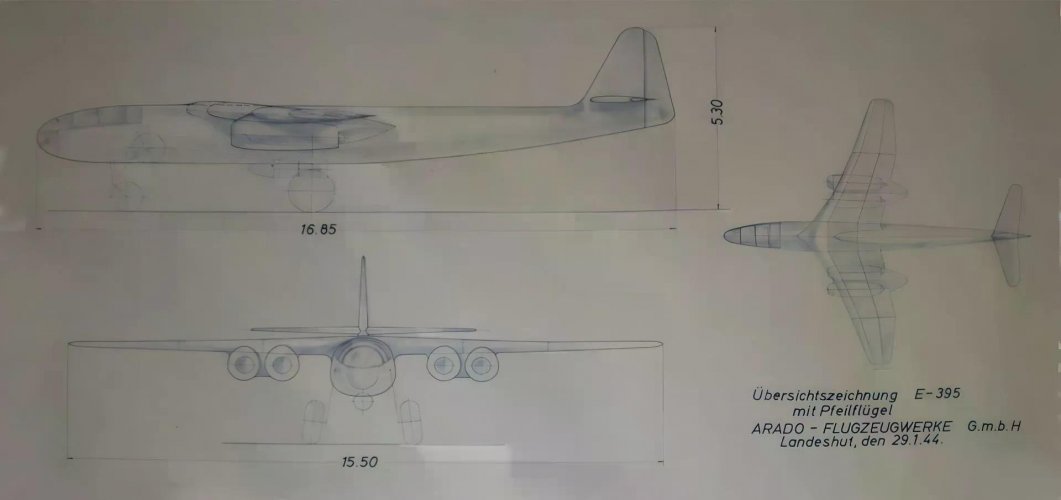

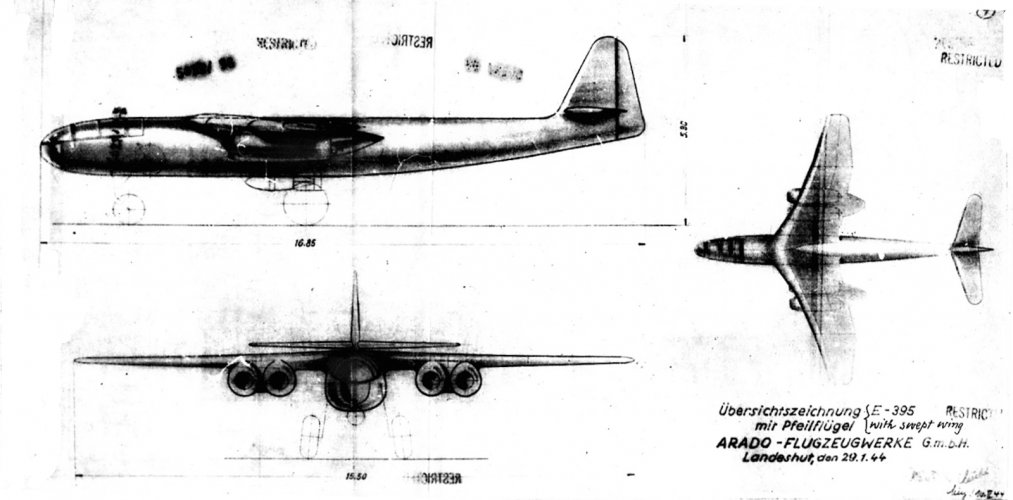

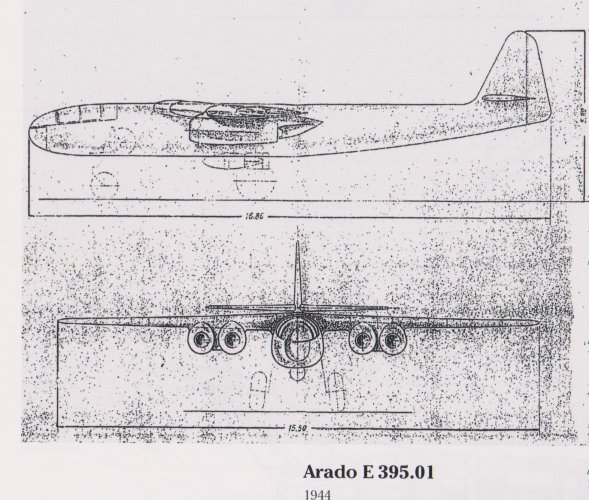

This seems to be the original drawing of the E.395 as seen in the Lockheed report. Found it here: https://polska-org.pl/6831343,foto.html

Apparently this was available at an online auction ().



[hesham]

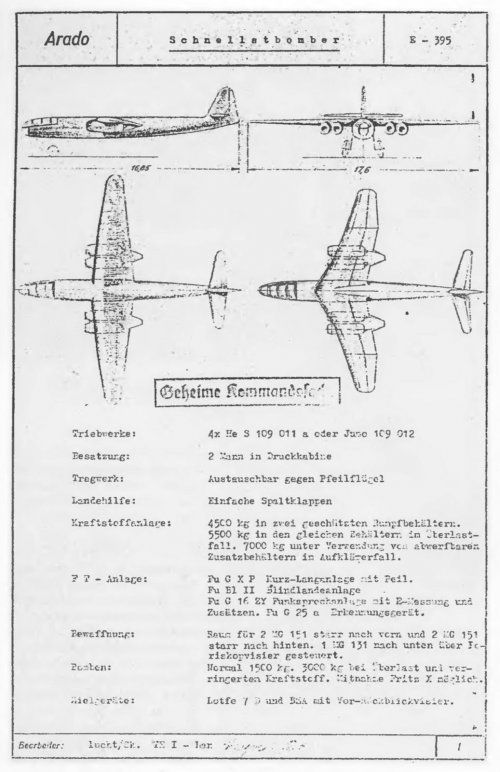

From this book.



[napobona]

Some E.395 renderings with Jumo 012 engines. Landing gear design is mainly based on 234 setup, but scaled up slightly. Making these for 3D printed kits. Cheers, Kris



[hesham]

Hi,

https://i.pinimg.com/originals/61/7a/26/617a26655e553786e49b23440d1fb2eb.jpg
