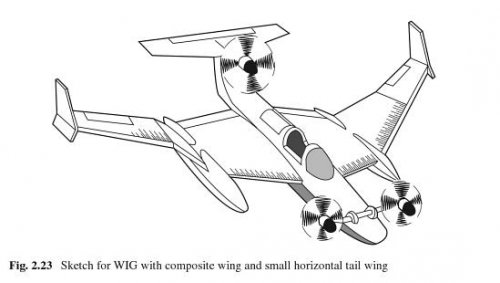

Please note the designs of Alexeyev.

http://books.google.com.eg/books?id=IJOm1XDn0moC&printsec=frontcover&dq=aircraft+joined-wing&source=gbs_similarbooks_s&cad=1#v=onepage&q&f=true



[Triton]

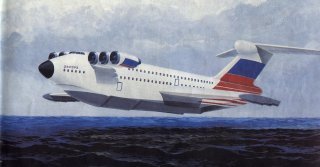

Artist's impression of passenger ekranoplan designed by Rostislav Evgenievich Alexeev (1916-1980) of the Central Hydrofoil Design Bureau.

Source: http://prs.tripod.com/other.htm



[Triton]

Model of double-deck passenger ekranoplan designed by Rostislav Aleexeev of the Central Hydrofoil Design Bureau.

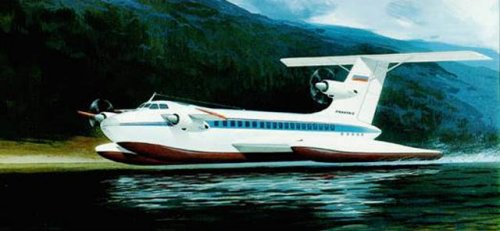

Artist's impression of "Rocket-2" ekranoplan designed by Rostislav Aleexeev of the Central Hydrodoil Design Bureau.

From Dark Roasted Blend:

The "swan song" of Rostislav Alexeev, the last considered concept was the "Rocket-2" river cruise ship design.

Source: http://www.darkroastedblend.com/2007/05/ekranoplans-showcase.html



[Triton]

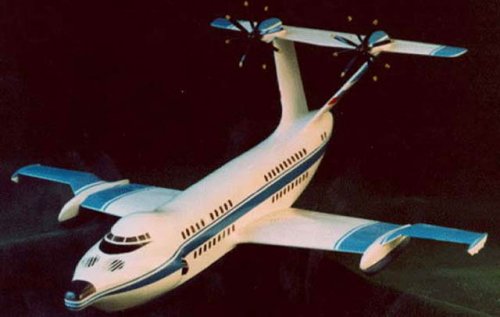

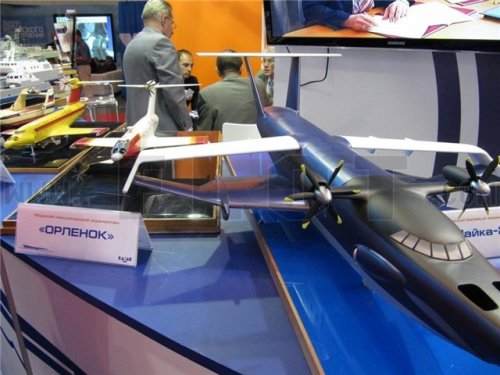

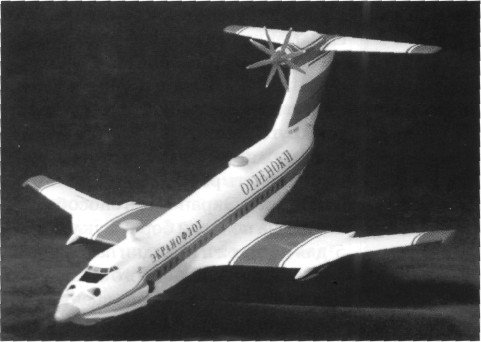

Model of Orlyonok-P, passenger version of A-90 Orlyonok ("Eaglet"), designed by Rostislav Evgenievich Alexeev (1916-1980) of the Central Hydrofoil Design Bureau.

Source: http://vadimvswar.narod.ru/ALL_OUT/TiVOut0809/Ekrl2/Ekrl2022.htm



[Triton]

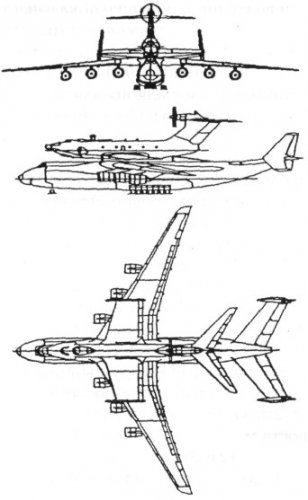

Three-view drawing of deployment concept of A-90 Orlyonok atop Antonov An-225 Mriya for rapid response search and rescue to disasters at sea or the arctic.

Source: http://vadimvswar.narod.ru/ALL_OUT/TiVOut0809/Ekrl2/Ekrl2022.htm



[Triton]

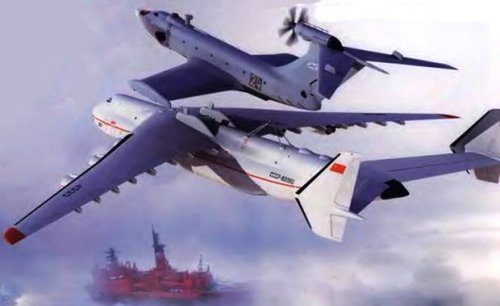

Artist's impression of deployment concept of A-90 Orlyonok atop Antonov An-225 Mriya for rapid response search and rescue to disasters at sea or the arctic. This configuration was under study by Antonov.

Source: http://www.siliyan.ru/archives/6738



[Triton]

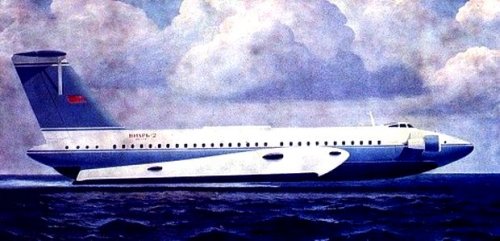

Artist's impression of "Whirl-2" civil ekranoplan. Alexeev/Central Hydroplane Design Bureau?

Source: http://www.siliyan.ru/archives/6738



[Demon Lord Razgriz]

Artist's impression of deployment concept of A-90 Orlyonok atop Antonov An-225 Mriya for rapid response search and rescue to disasters at sea or the arctic. This configuration was under study by Antonov.

Source: http://www.siliyan.ru/archives/6738

0.o Damn that's cool, did they really study the possibility of air-launching the Orlyonok?



[hesham]

what is this WIG and box-wing model ?.



[Stargazer]

It's the Alekseyev Chaika-2:
http://www.se-technology.com/wig/html/main.php?open=showcraft&code=0&craft=132



[hesham]

It's the Alekseyev Chaika-2:
http://www.se-technology.com/wig/html/main.php?open=showcraft&code=0&craft=132

Thank you stargazer,but this WIG model have a box-wing !.



[Stargazer]

Thank you stargazer,but this WIG model have a box-wing !.

I agree! But both projects have appeared as the "Chaika-2" (literally: "Seagull-2") so I believe these are just two different stages of the project, the box wing version being the definitive one. Two more pics, which show both jet and prop variants of the same:



[Stargazer]

Split from the old WIG topic. Please use this topic now for anything related to Alexeyev's WIG designs.



[Stargazer]

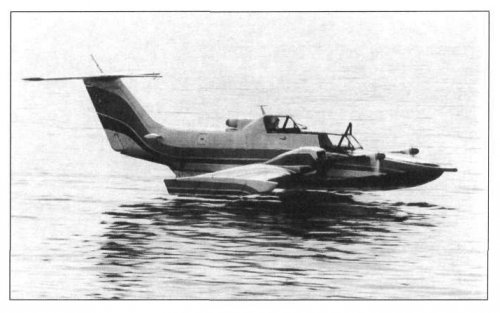

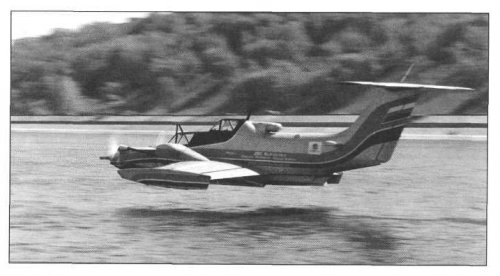

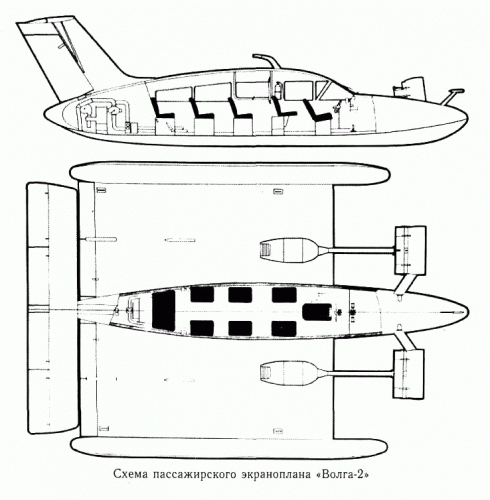

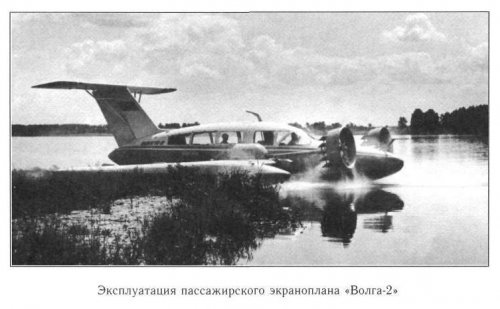

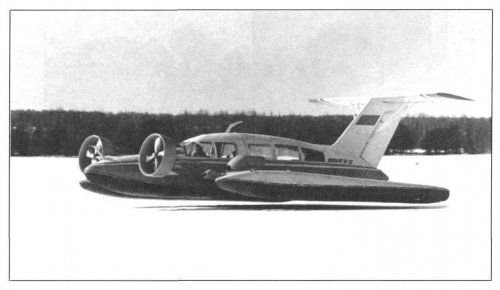

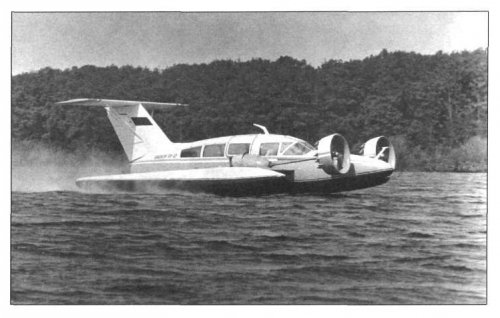

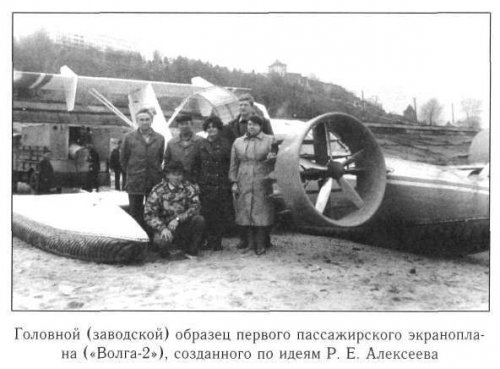

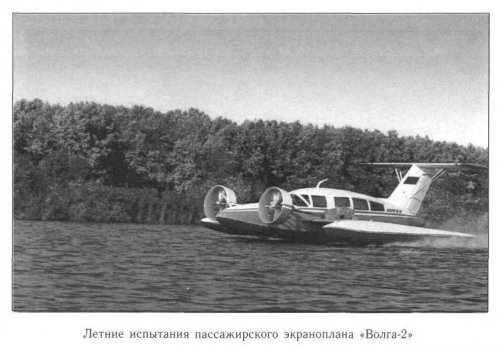

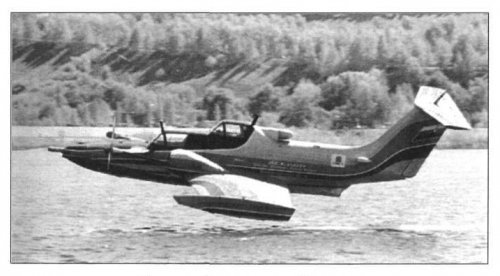

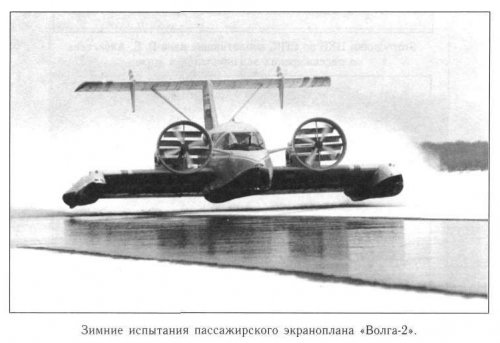

Photos of the Volga-2 (all taken from the Politeknik book: Rostislav Alekseyev by P. I. Kachur):



[Stargazer]

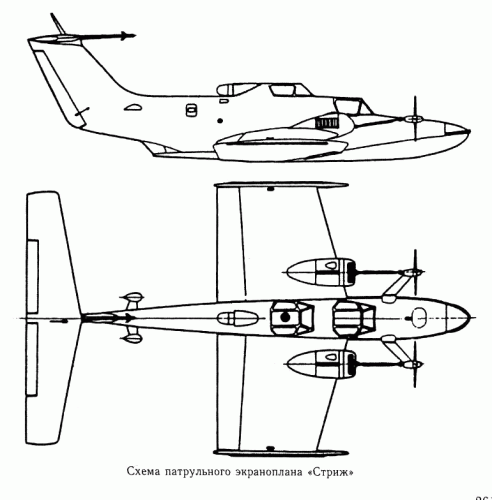

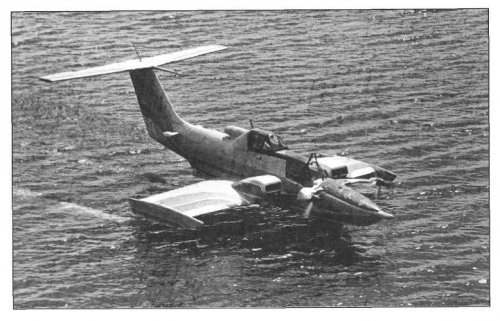

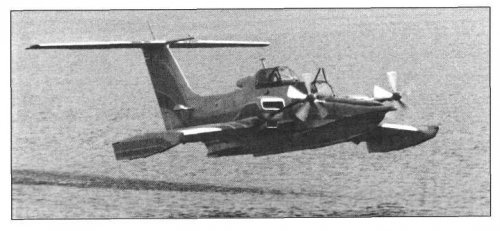

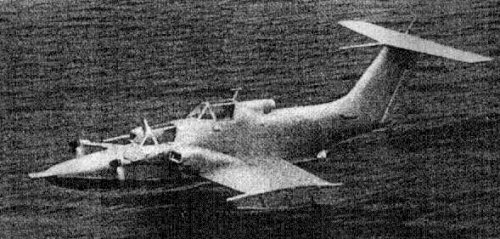

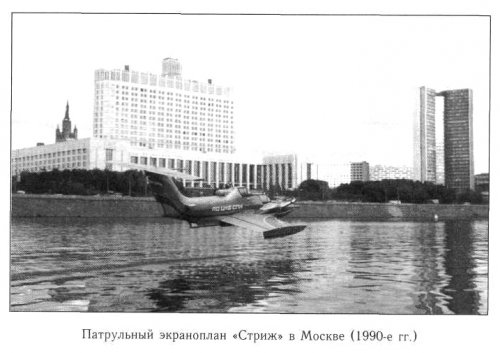

The Strizh, a patrol ekranoplane (same source as above):



[Cy-27]

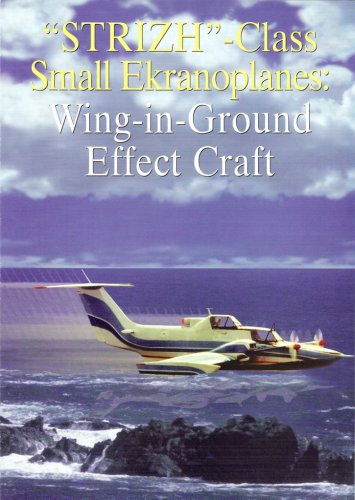

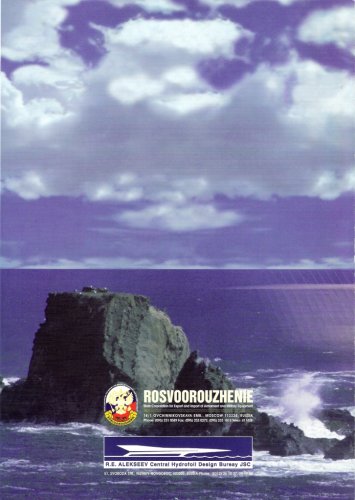

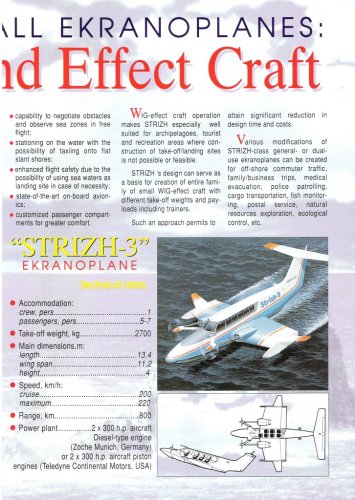

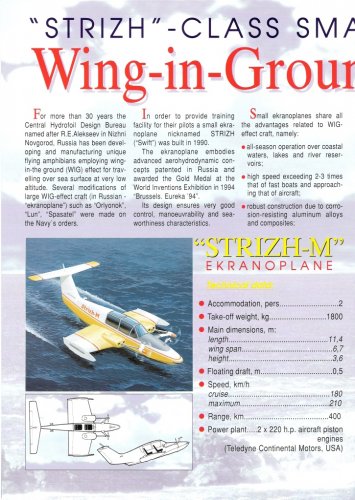

Following on from the Strizh images from Stargazer2006, please find below a brief brochure picked up in the late 1990's. It shows the Alexeyev (Alekseev / TsKB) Strizh-M and Strizh-3 designs.



[Stargazer]

Thanks! I have one question which will probably sound silly to all you Soviet aircraft experts, but anyway... Is the Alekseyev of the Orlyonok the same that did the post-war I-211, I-212, I-215 and I-218 jet fighters, or a totally different engineer?



[Cy-27]

Chief Designer Rostislav Evgenievich Alekseev was involved in the TsKB Ekranoplan projects and the I-218 and early designations were the work of Semyon Mikhailovich Alekseyev.

There is a profile of RE Alekseev at http://www.foils.org/alekseev.htm.

I think the problem is compounded once again by the variety of spellings of their surname!



[osul]

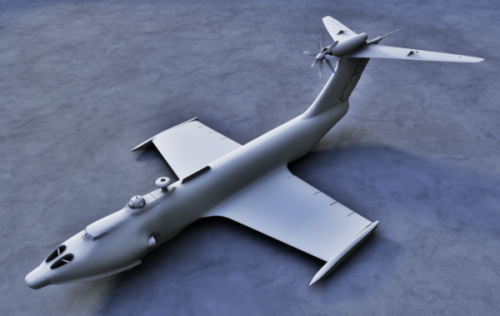

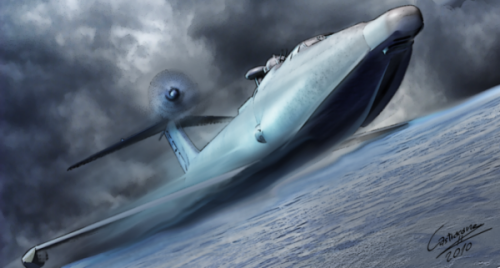

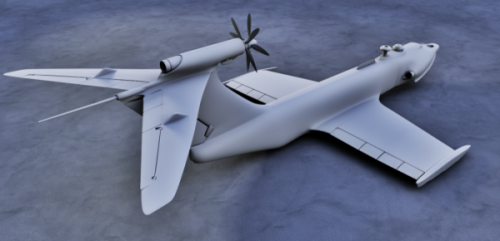

This is my 3d model Ekranoplane. Modeling in Cinema 4d



[Stargazer]

I think the problem is compounded once again by the variety of spellings of their surname!

But isn't there only ONE spelling in Russian?

It's only the Western transcriptions which are not always properly done. Alekseyev seems to be the best one (many Western journalists simply ignore that the second "e" is pronounced "ye"...). Alexeyev is an acceptable alternative I guess.



[hesham]

Hi,


http://www.opoccuu.com/250811.htm



[hesham]

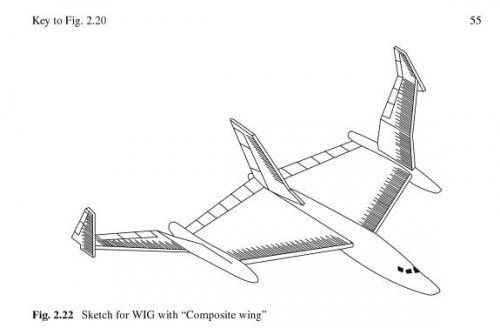

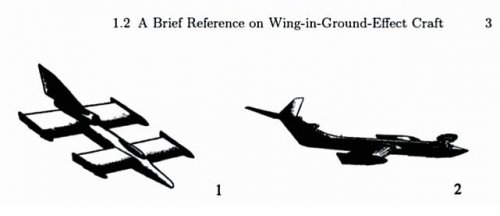

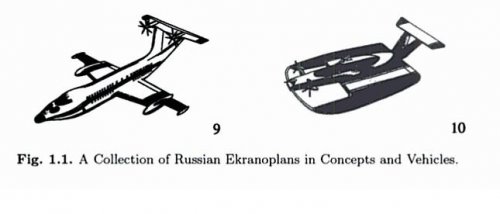

A more clearance to a drawings,which were appeared in early in this topic;


http://books.google.com.eg/books?id=oAXEphDmmEMC&pg=PA81&lpg=PA81&dq=lippisch+X-117&source=bl&ots=T6mAsVJHjK&sig=2zz1qYcmUY6J0sMTbTCq5A8IpKM&hl=ar&sa=X&ei=-gzXUPuKHe_34QSd54GYDA&ved=0CDkQ6AEwAjgK#v=onepage&q&f=true



[redstar72]

Semyon Alexeyev (1909-1993), the author of I-211 family, was Chief Designer of NPP Zvezda since October 1952 to 1964. This is the company which produces all Russian space suits and well-known K-36 ejection seat. The Yuri Gagarin's space suit SK-1 was designed under Alexeyev's lead. In January 1964 he left his chair, followed by Guy Severin. He was never involved in Ekranoplanes, and he isn't related to Rostislav Alexeyev (1916-1980).


P.S. Of course in Russian there is only one spelling of the surname: Алексеев.



[fightingirish]

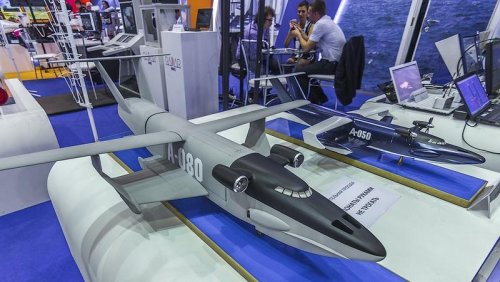

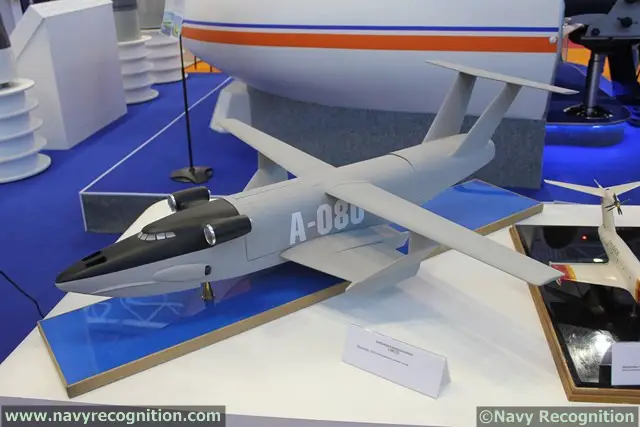

A-080 model shown at IMDS 2013.

Picture: http://www.navyrecognition.com/images/stories/east_europe/russia/exhibition/IMDS_2013/pictures/A-080-752.jpg



[Stargazer]

A-080 model shown at IMDS 2013.

Alekseyev, without a doubt!



[hesham]

A-080 model shown at IMDS 2013.

Picture: http://www.navyrecognition.com/images/stories/east_europe/russia/exhibition/IMDS_2013/pictures/A-080-752.jpg

Great find my dear Fightingirish,


and here is the picture from your site.



[Triton]

Source:
https://www.facebook.com/groups/XPlanesSecretProjects/575814885812528/?comment_id=576009605793056&notif_t=group_comment_reply
http://www.ckbspk.ru/?p=1211525479



[hesham]

Hi Triton,

if you used the srearch,you will find those are Alexeyev,A-080 and A-050,and
we displayed them herte;

http://www.secretprojects.co.uk/forum/index.php/topic,16970.msg163742.html#msg163742



[Triton]

Hi Triton,

if you used the srearch,you will find those are Alexeyev,A-080 and A-050,and
we displayed them herte;

http://www.secretprojects.co.uk/forum/index.php/topic,16970.msg163742.html#msg163742

Hesham, I don't judge you when you make a redundant or mistaken post. I would appreciate it if you would be kind enough to do the same for me.

posts split and merged, title modified



[hesham]

My dears Jemiba and Triton,


we also have anther topic for Alexeyev WIG aircraft only;


http://www.secretprojects.co.uk/forum/index.php/topic,16958.msg171148.html#msg171148



[hesham]

Hi,


here is the Russian SDPP Strizh-2 WIG aircraft.


http://www.ghdstudios.com/radacraft/images/strizh_2.jpg



[Cy-27]

Re: Hesham's Russian SDPP Strizh-2 WIG aircraft - see also http://www.secretprojects.co.uk/forum/index.php/topic,16958.msg165541.html#msg165541



[hesham]

Re: Hesham's Russian SDPP Strizh-2 WIG aircraft - see also http://www.secretprojects.co.uk/forum/index.php/topic,16958.msg165541.html#msg165541

OK my dear Cy-27.



[athpilot]

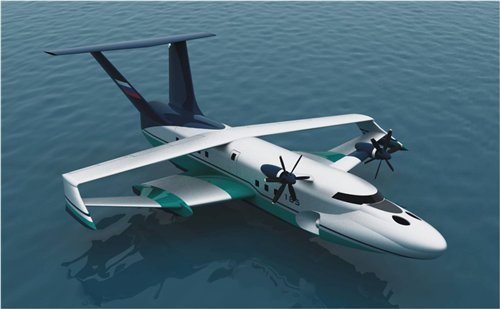

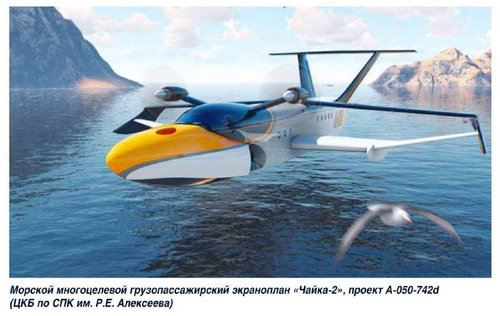

Here´s the Chaika-2 from this source.
Good evening
Athpilot



[fightingirish]

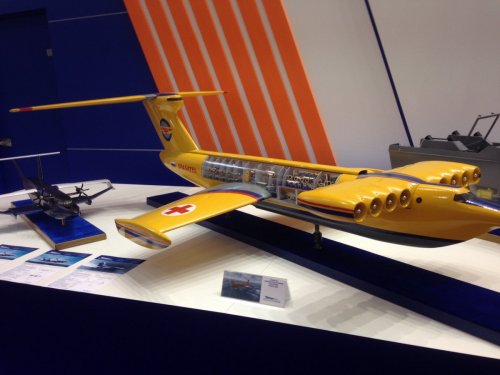

Russian ground effect vehicle [GEV] models @ ARMY-2016

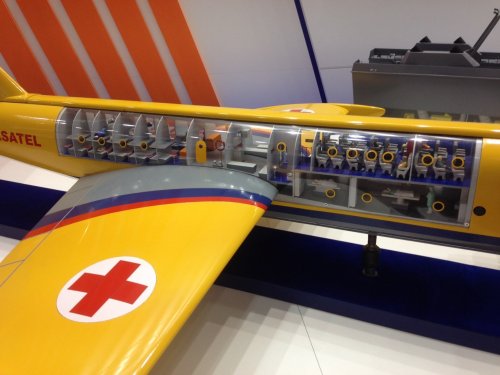

«Spasatel» field hospital [based on Lun]
«A-050» Ekranoplan

Source: https://twitter.com/Missilito/status/775053325289000960



[zebedee]

Spasatel has been removed from the hanger to make for other projects by the looks of things...

Zeb

http://bestlj.ru/14950-Nedostroennyjj-ehkranoplan-quot;Spasatel-quot;-vyveden-iz-cekha-na-otstojj.html



[hesham]

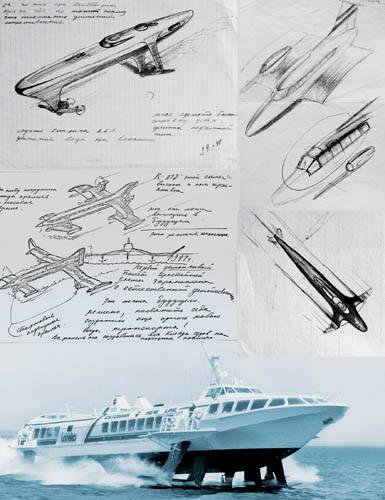

From; Техника и вооружение 2007 11 (fb2) | КулЛиб - Скачать fb2 - Читать онлайн - Отзывы



[hesham]

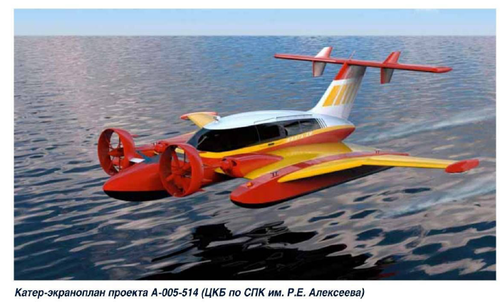

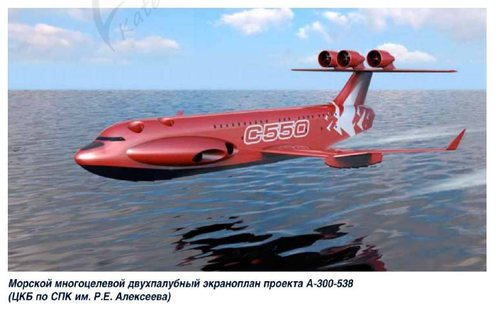

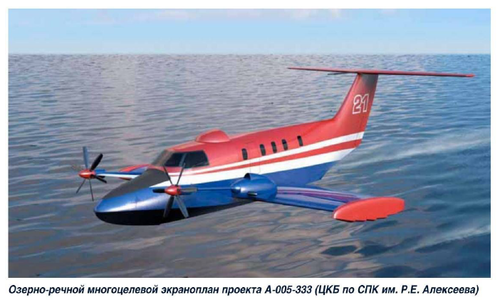

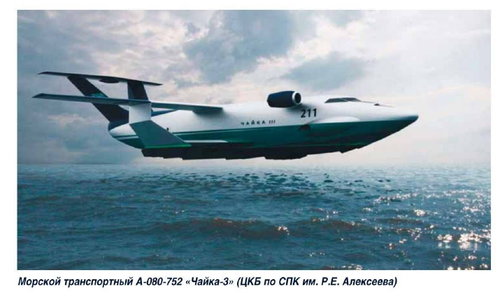

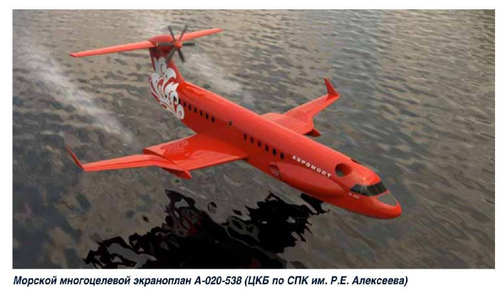

From Аэрокосмическое обозрение 2018-6,

here is a various Alexeyev WIG aircarft Projects.



[robertino]

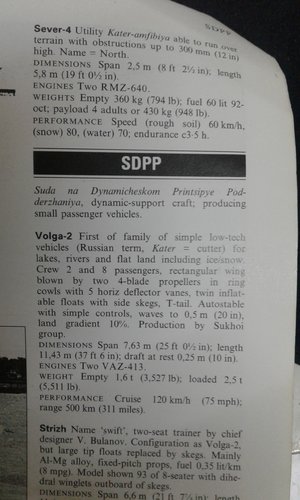

does anyone have more information for volga (Volga-2)

thank you



[hesham]

does anyone have more information for volga (Volga-2)

Here it's.
