There's a video on YouTube of the project:

https://www.youtube.com/watch?v=ZvelR2aoheE

Enjoy the Day! Mark

http://www.agustawestland.com/about-us/driving-innovation/advanced-concepts/project-zero
Nothing new here really except a video about collaborater Windriver (avionics). Disappointed we haven't seen it transition to forward flight yet.

Something new!

https://www.flightglobal.com/news/articles/singapore-project-zero-tiltrotor-to-gain-diesel-eng-421964/

10 minute endurance on batteries, diesel engine to increase it to 35-45 minutes. One third scale model used for flight tests.

Have any overall dimensions been published as yet for the full size design, would make for an unusual model :) (a rough guess im thinking 30-40 feet span ?)
cheers, Joe

http://www.diseno-art.com/encyclopedia/strange_vehicles/agustawestland-project-zero.html


Attachments

  • AW1019.jpg
    731.7 KB · Views: 69
very much so, many thanks flateric, clearest drawings iv seen published as yet (il have to tweak my cad drawing) :)
id stil love to find any dimension I can scale from, eg., span, duct diameter even wheel track ? its interesting nothing has been noted previously in published sources ?

many thanks, Joe

I'll have a stab at it.

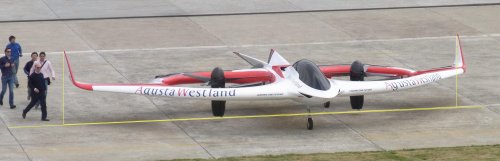

The image of the vehicle on the ramp was taken with a long telephoto with almost no distortion or parallax, so I can measure 2420 pixels wingspan.

The same line between three concrete slab measures 2951 pixels.

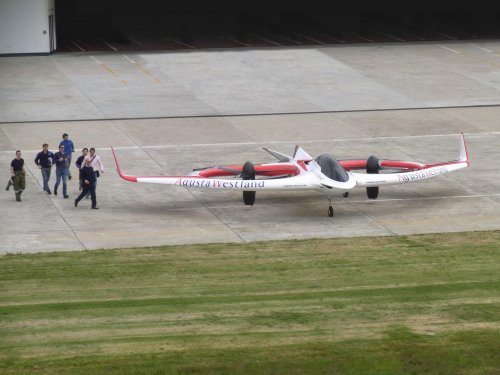

With Google Earth, I can see that 13 concrete tiles on the ramp measure 65.19 m give or take 0.1 m.

So we have a Project Zero wingspan equal to 65.19/13 * 3 * 2420/2951 = 12.34 m and this should be fairly accurate, maybe within 5 cm.


Attachments

  • AW1019span.jpg
    400.3 KB · Views: 279
  • Agustaramp.jpg
    184 KB · Views: 261
cheers for that, nicely done, il go ahead with the model, 12.34m should be 171.3 mm span at 1/72 scale :)

very appreciated indeed, Joe
