In 1982, the Yugoslav government realized that it had 150 agricultural planes, 17 different models, all imported and logistical nightmare with spare parts. In March 1984 the requirements for new agricultural plane were made public and none of the existing models could meet them. There were a plethora of proposals (including the futuristic looking GBP-100) but in the end YU AG S/D won. Sadly the country disintegrated before the plane could enter production.
Here are the contenders, mainly from Utva aircraft plant


Attachments

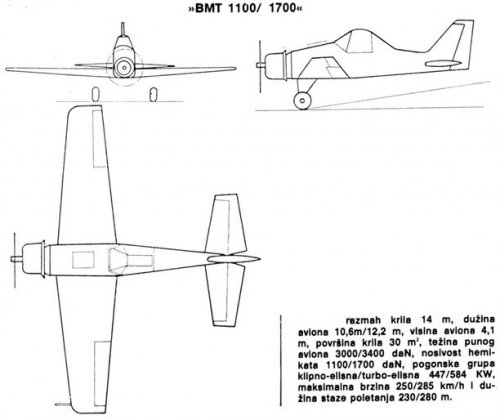

  • BMT.jpg
    36.6 KB · Views: 302

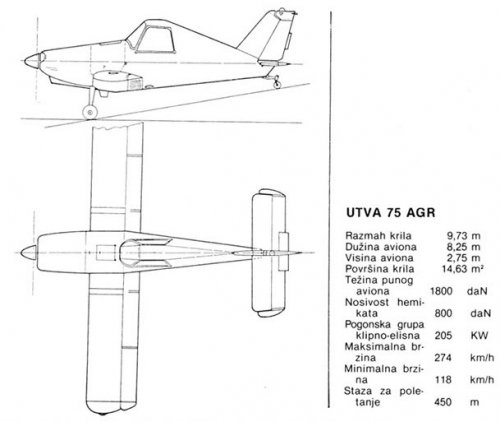

  • Utva-75AGR.jpg
    36.5 KB · Views: 69

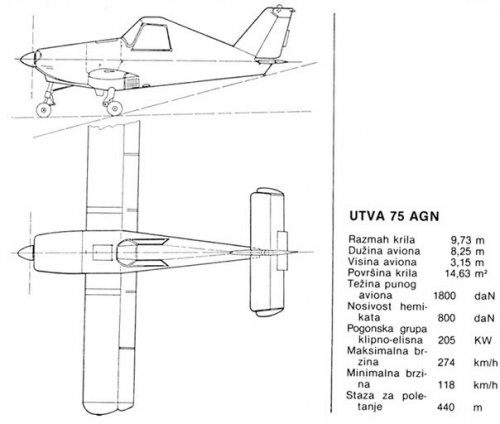

  • Utva-75AGN.jpg
    38 KB · Views: 64
  • Moma-86-1.jpg
    26 KB · Views: 72

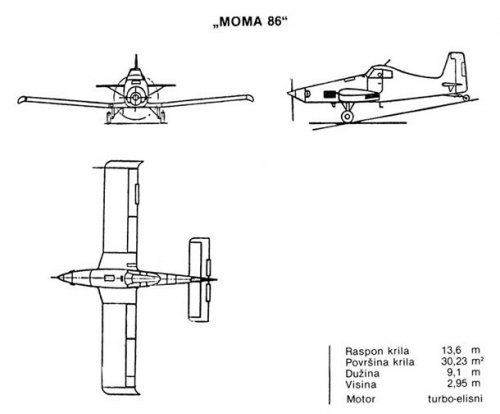

  • Moma-86.jpg
    53.8 KB · Views: 281

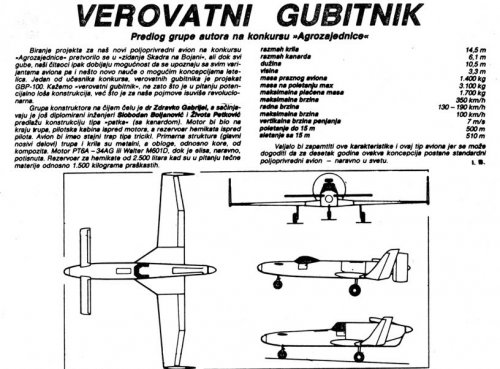

  • GBP-100.jpg
    106.6 KB · Views: 302

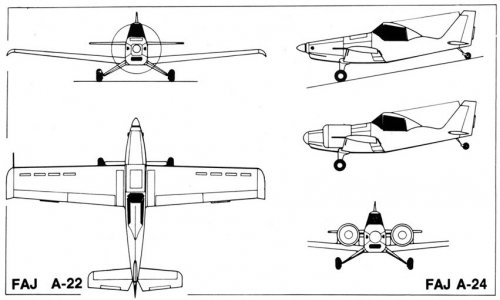

  • FAJ-A-22_2.jpg
    49.1 KB · Views: 299
  • FAJ-A-22.jpg
    28.4 KB · Views: 297
The winner has a separate thread,
http://www.secretprojects.co.uk/forum/index.php/topic,3456.msg102557.html#msg102557


Attachments

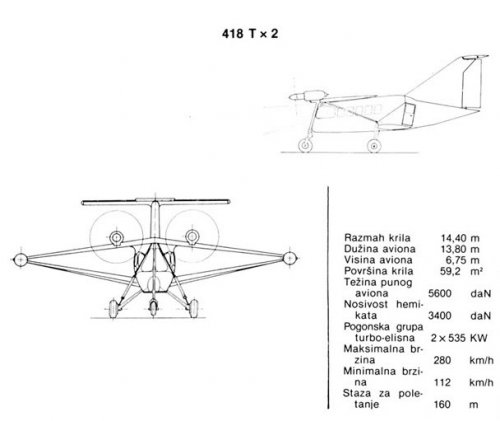

  • Utva-418Tx2.jpg
    32.1 KB · Views: 71

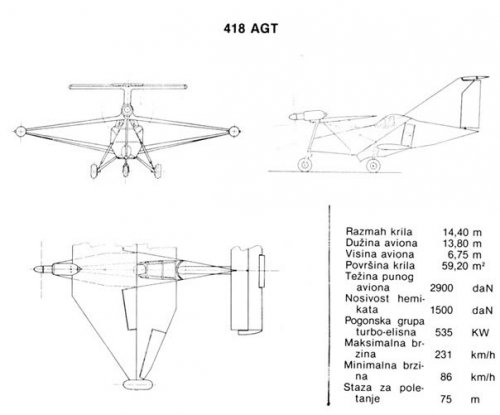

  • Utva-418AGT.jpg
    33.7 KB · Views: 83

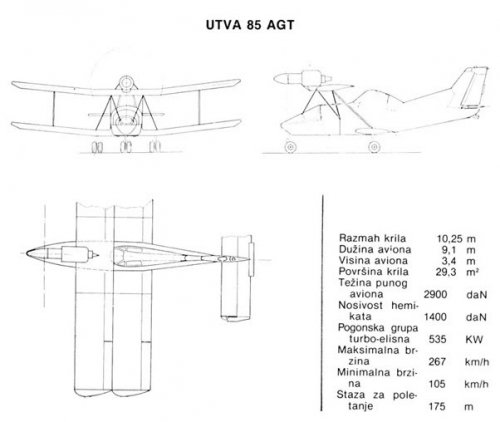

  • Utva-85AGT.jpg
    33.9 KB · Views: 77

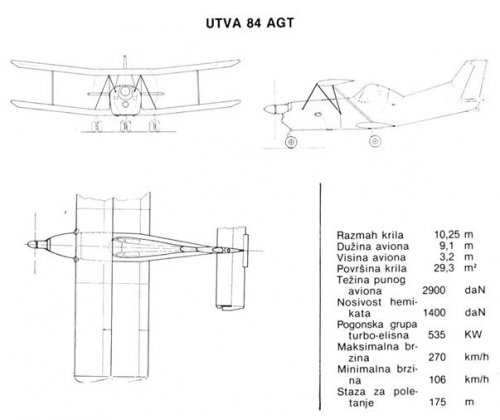

  • Utva-84AGT.jpg
    33.7 KB · Views: 71

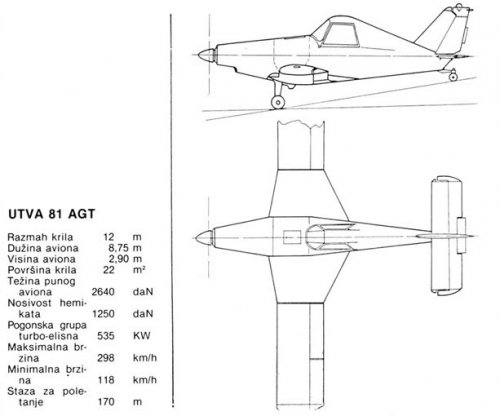

  • Utva-81AGT.jpg
    36 KB · Views: 66
  • Utva-81AG.jpg
    36.3 KB · Views: 74
From Aeosvet 05 and 08,

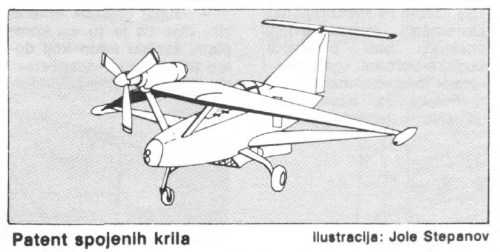

here is a patent led to develop UTVA/P-418 or UTVA-71,and also the Moma in 1988.


Attachments

  • Patent.png
    315.5 KB · Views: 52
  • Moma.png
    359.1 KB · Views: 67

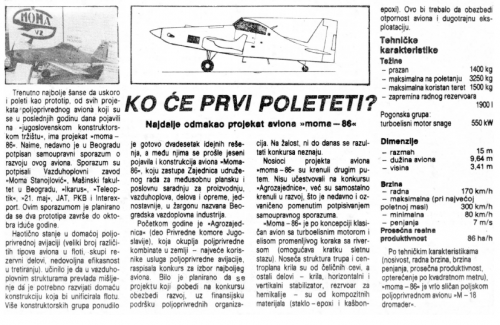

From Krila 1/1987,

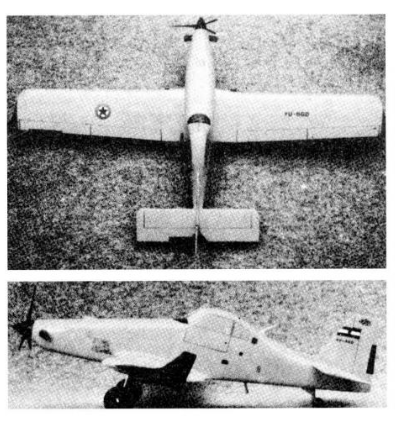

a good view to a MOMA-86 Model Project.


Attachments

  • 1.png
    185.8 KB · Views: 29
