Yokosuka (Kugisho) 12-Shi Small Recce Seaplane (E14Y "Glen")

[hesham]

From Le FANA 59,

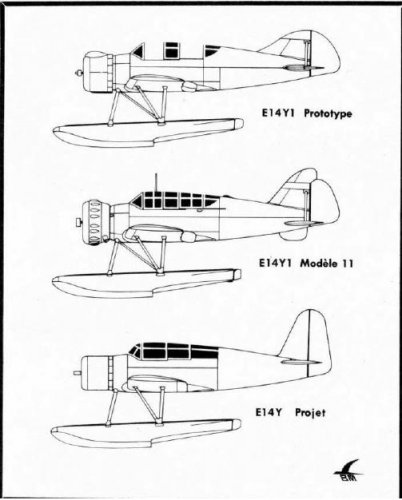

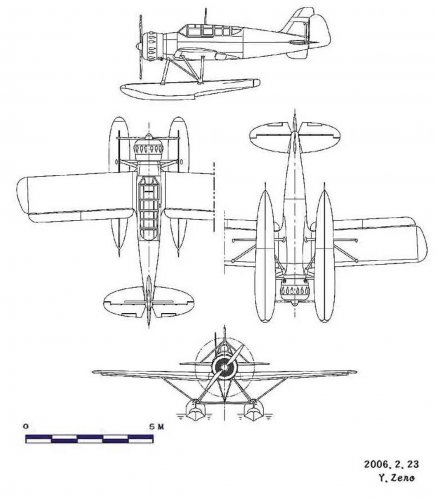

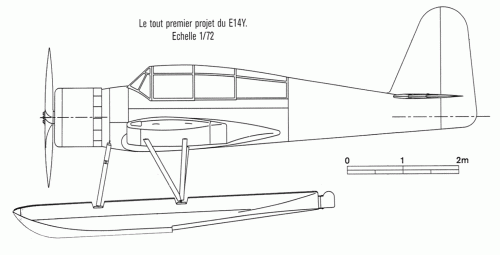

here is the early drawing to Yokosuka E14Y aircraft.



[blackkite]

Hi!



[blackkite]

I think this drawing's vertical tail stabilizer/rudder shape and flap shape are little strange.



[blackkite]

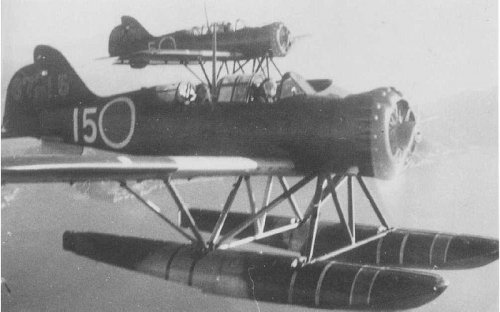

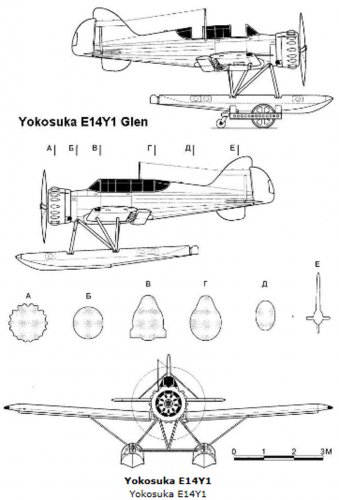

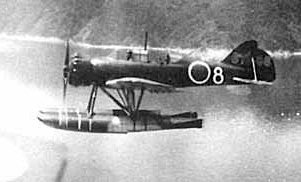

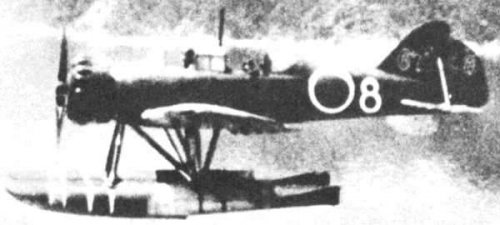

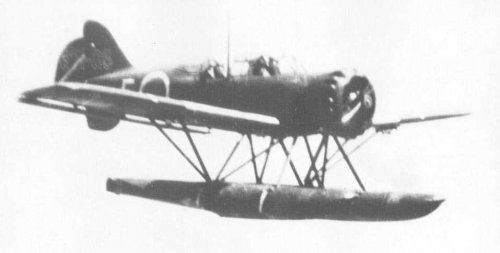

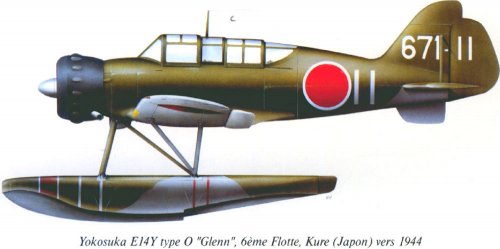

I think this is the better one compared with actual E14Y1 pictures.



[blackkite]

Hi!
http://www.sas1946.com/main/index.php?topic=36393.0



[blackkite]

What is the bottom one?
Ryusuke's next book is about E14Y1.



[blackkite]

Hi!
http://www.youtube.com/watch?v=ZRcuhdVCi4o



[Stargazer]

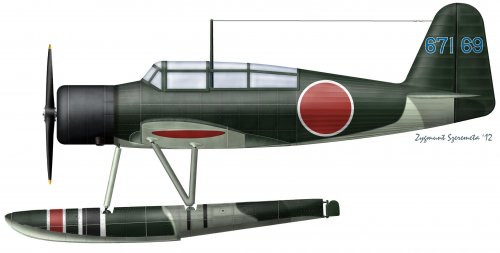

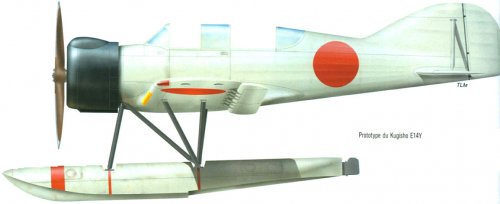

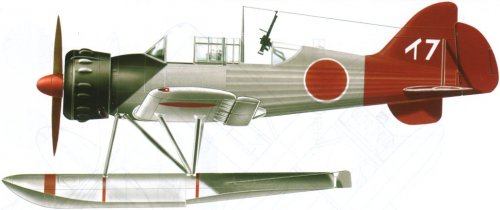

A better quality profile of the early design:



[Rickshaw]

How were the catapults on the submarines which launched this aircraft powered? Steam? Some mechanical system? Rockets?



[Jemiba]

I think, those subs used compressed air catapults. Several catapults of this type were delivered before the war to Japan.



[hesham]

Great pictures and drawings my dears.



[blackkite]

A better quality profile of the early design:

Wow thanks!
Perhaps E14Y1's vertical tail stabilizer was shortened, ventral fin was added to accommodate in submarine.



[blackkite]

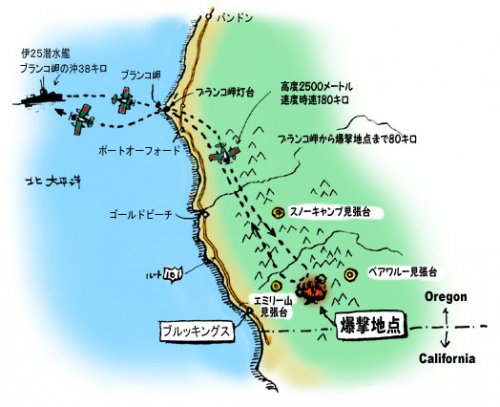

America bombing by I-25 submarine and E14Y1 Glen(1)



[blackkite]

America bombing by I-25 submarine and E14Y1 Glen(2)
ブランコ岬 ; Cape Blanco, ブルッキングス ; Brookings

http://www.wetwing.com/documents/to_oregon/leaving.html



[blackkite]

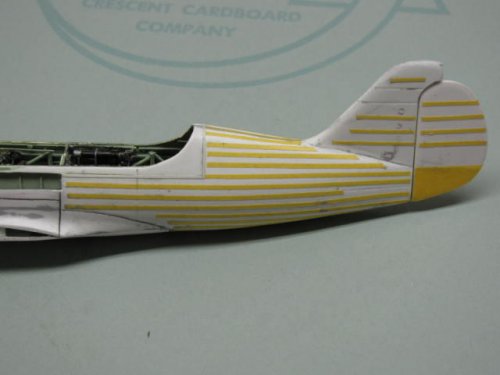

Hi another shape!
http://www.hyperscale.com/2010/features/e14yglen48bc_1.htm



[blackkite]

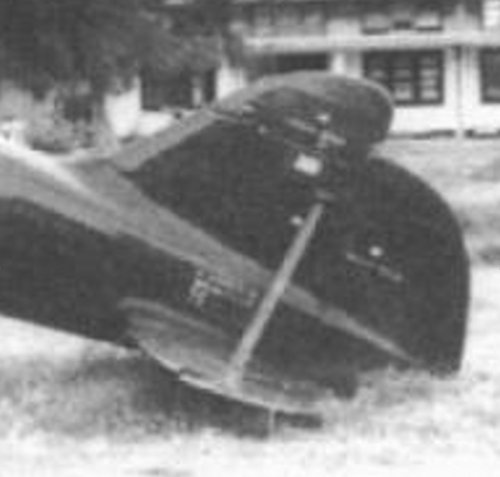

Perhaps E14Y1 prototype and production model had a same shape rudder.
Only production model's vertical tail stabilizer height was increased to improve poor flight characteristic of prototype model.
Production model's vertival tail stabilizer upper part was collapsed to horizontal direction to accommodate into submarine.

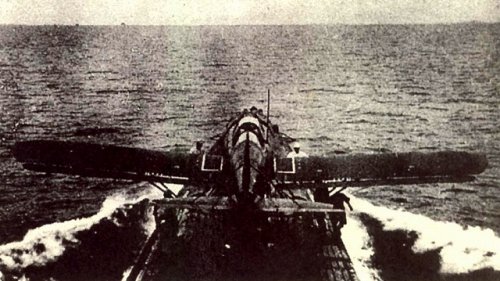

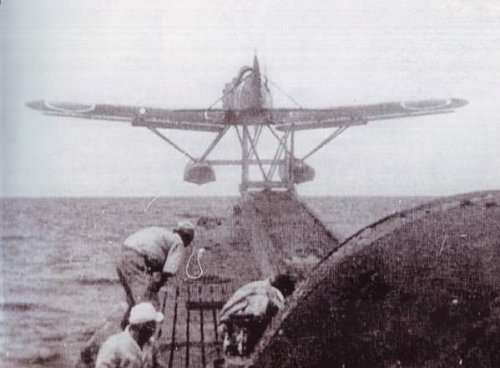

You can see air catapult in bottom two pictures.



[Tadeusz Januszewski]

Hi Friends,

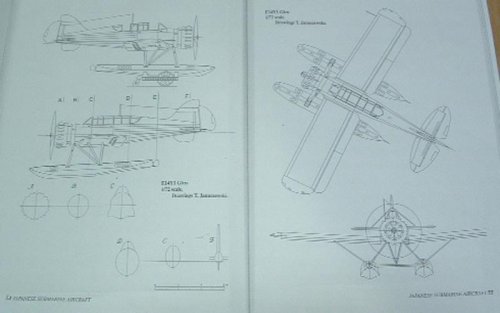

Authors Ryusuke Ishiguro and Tadeusz Januszewski invite you to read our book.
Tadeusz



[blackkite]

Hi!
I ordered this book yesterday.
E14Y2!



[blackkite]

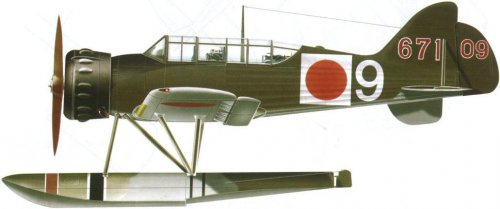

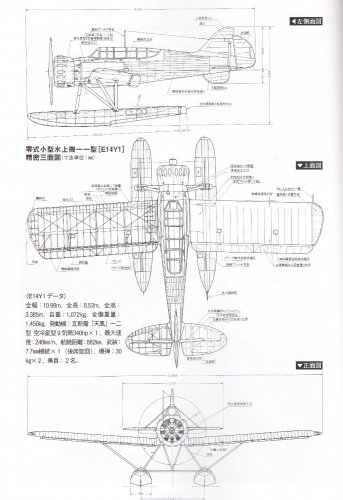

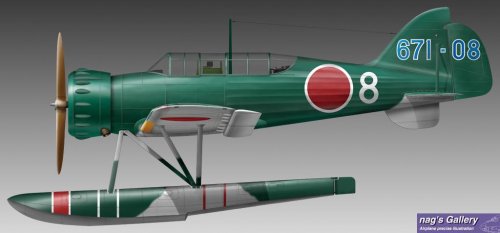

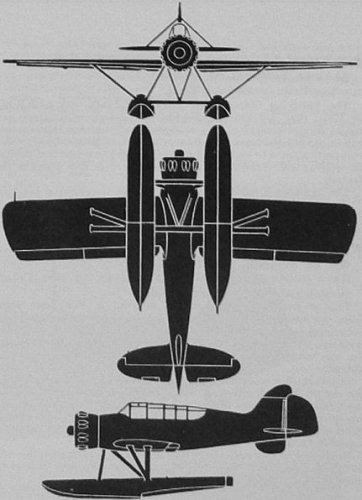

Good 3 side view. Enjoy.
Source : ISBN978-4-89319-173-1, The IJA and the IJN reconnaissance aircraft, cargo carrier, trainer and flying boat.
Famous aircraft of the world special edition, Bunrindo, Tokyo,3/31/2010
Also enjoy Ryusuke Ishiguro and Tadeusz Januszewski's excellent book.



[lark]

The book is already on my bookshelves Tadeus...

I was much surprised by the flightmaps over Oregon, found by Ruyshuke
and your drawing of the 'Glen' development.

Great work !



[theponja]

Hi Friends,
Authors Ryusuke Ishiguro and Tadeusz Januszewski invite you to read our book.
Tadeusz

I've this one too. An impressive work.
My only critic is the lack of cross section on the big drawings.


Regards
Alcides



[blackkite]

I got my copy today. Amazing book. Very cheap compared with it's value.



[airman]

Any other informations about E14Y2? I have seen was projected with hitachi engine of 510 Hp.
